ProteC CaPtoP® EP 300

Valve flange protection plugs


CaPtoP® EP 300

Valve flange protection plugs


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

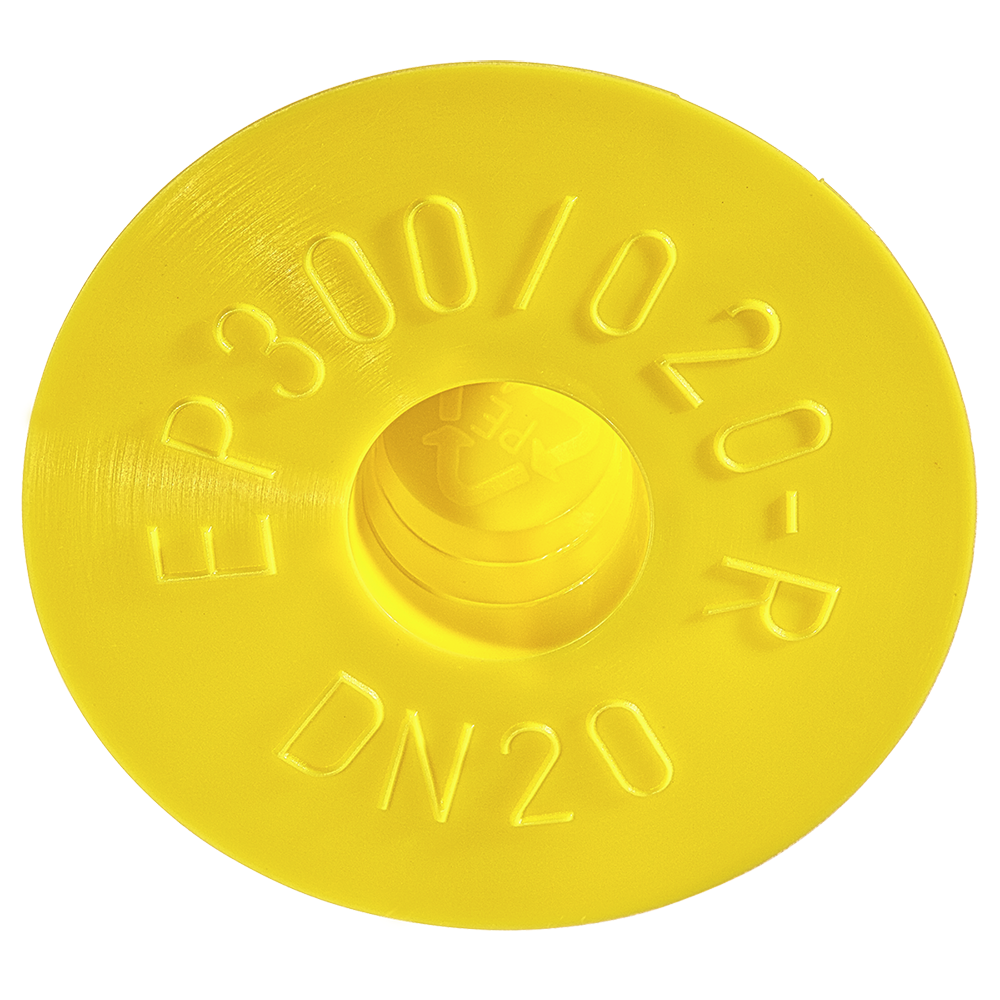

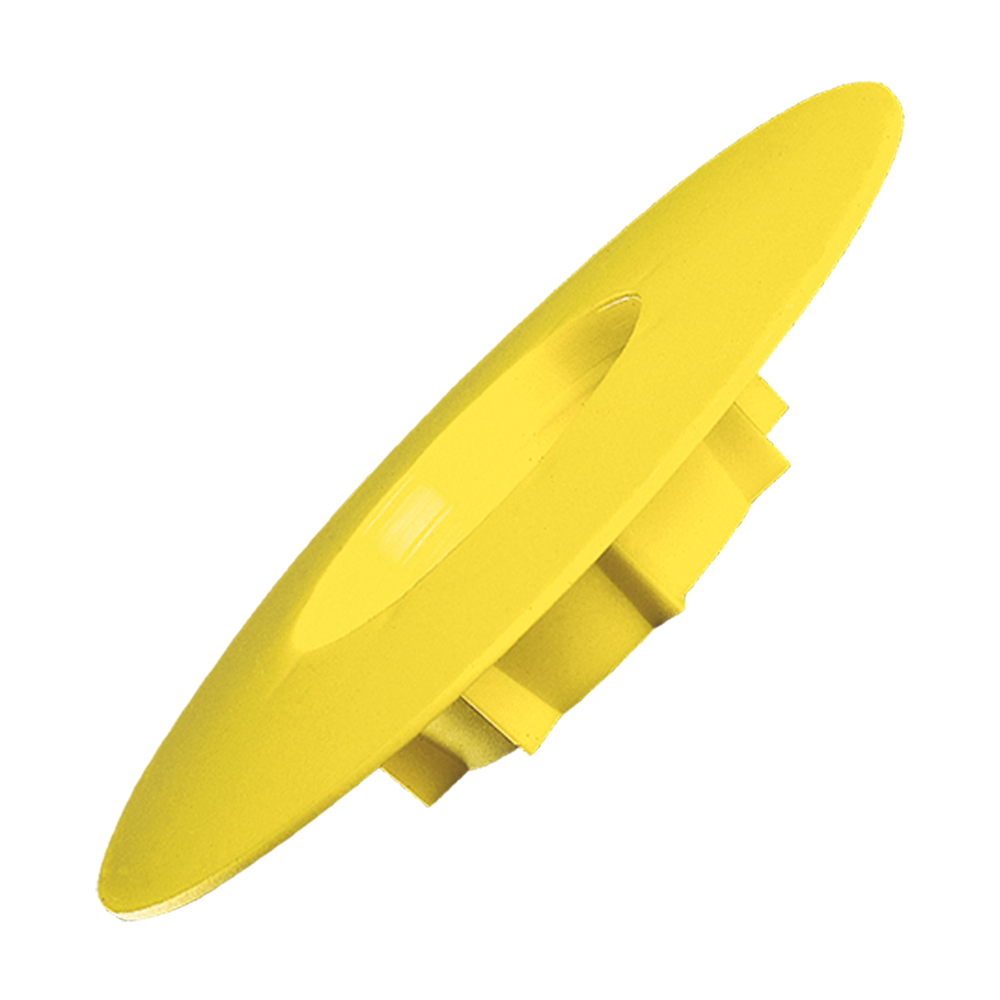

Provides cushioned protection for flange face.
Suitable for DIN 2402 flanges DN 10 to DN 400.

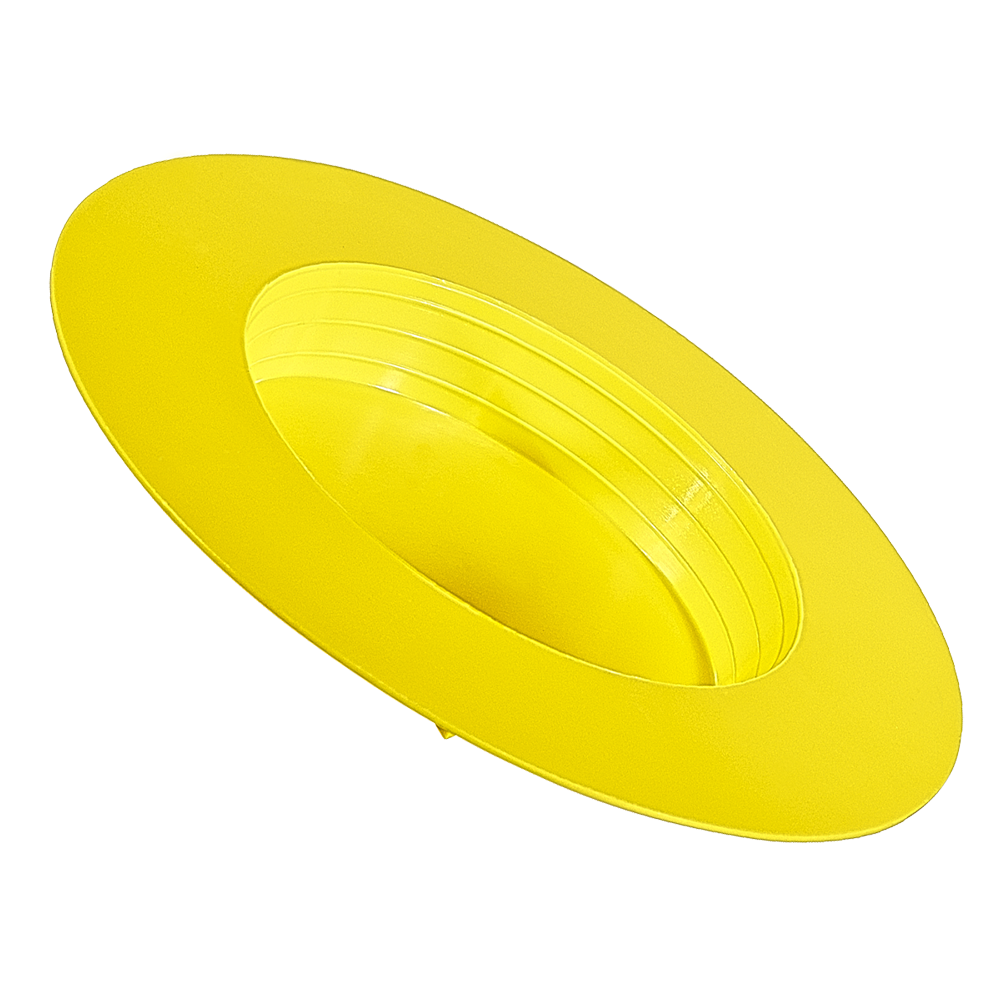

These plugs have a tapered body and a wide flange to protect the entire machined surface of valve flange.

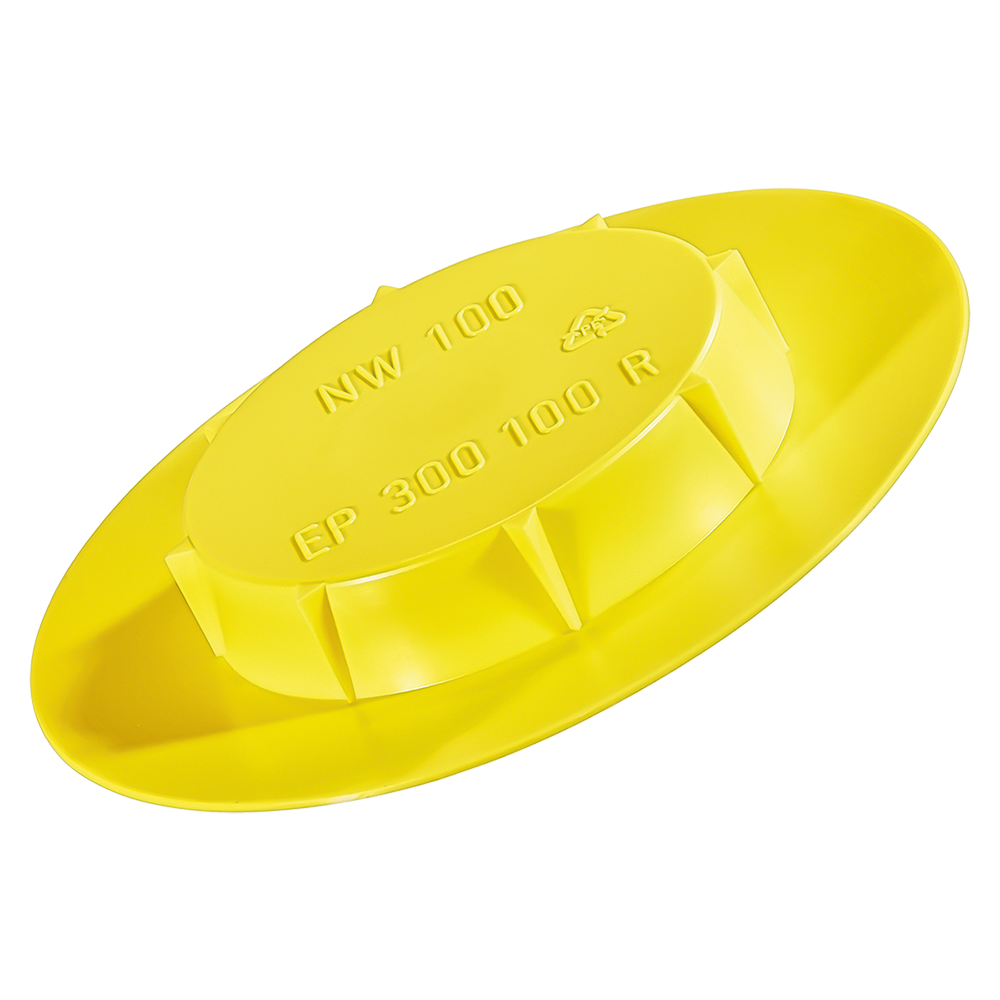

Number of ribs are 4-8 depending on the size (see table).

Std. Color: yellow
Material: LLD-PE, linear low density polyethylene

PROTEC CAPTOP EP 300
DIN 2402 d1 d2 Plug Design D H Standard
Pack
Reference No. Bookmark
DN   10     7.6   10.9 conic   40.0   9.7 5.000 EP 300 / 010 - R
DN   15   12.2   16.8 conic   45.0 10.0 5.000 EP 300 / 015 - R
DN   20   16.1   22.5 conic   58.3 14.5 2.000 EP 300 / 020 - R
DN   25   20.1   26.0 conic   68.0 15.0 1.500 EP 300 / 025 - R
DN   32   26.5   33.5 conic   78.6 14.6 1.000 EP 300 / 032 - R
DN   40   34.5   41.5 conic   89.0 15.0    700 EP 300 / 040 - R
DN   50   45.0   51.6 conic 103.5 15.0    500 EP 300 / 050 - R
DN   65   58.5   66.0 conic 122.0 20.0    250 EP 300 / 065 - R
DN   80   74.0   81.0 conic 138.0 20.0    200 EP 300 / 080 - R
DN 100   94.0 103.0 conic 162.0 20.4    100 EP 300 / 100 - R
DN 125 118.0 127.0 conic 188.0 20.0    125 EP 300 / 125 - R
DN 150 144.0 153.2 conic 215.0 20.3      80 EP 300 / 150 - R
DN 200 194.5 204.5 conic 268.0 25.0      60 EP 300 / 200 - R
DN 250 247.0 252.0 conic 344.0 25.0      50 EP 300 / 250
DN 300 303.0 parallel 408.0 20.5      52 EP 300 / 300
DN 350 355.0 parallel 455.0 21.0      50 EP 300 / 350
DN 400 406.0 parallel 510.0 23.0      40 EP 300 / 400
DIN 2402 d1 d2 Plug Design D H VPE Reference No.
DN   10     7.6   10.9 konisch   40.0   9.7 5.000 EP 300 / 010 - R
DN   15   12.2   16.8 konisch   45.0 10.0 5.000 EP 300 / 015 - R
DN   20   16.1   22.5 konisch   58.3 14.5 2.000 EP 300 / 020 - R
DN   25   20.1   26.0 konisch   68.0 15.0 1.500 EP 300 / 025 - R
DN   32   26.5   33.5 konisch   78.6 14.6 1.000 EP 300 / 032 - R
DN   40   34.5   41.5 konisch   89.0 15.0    700 EP 300 / 040 - R
DN   50   45.0   51.6 konisch 103.5 15.0    500 EP 300 / 050 - R
DN   65   58.5   66.0 konisch 122.0 20.0    250 EP 300 / 065 - R
DN   80   74.0   81.0 konisch 138.0 20.0    200 EP 300 / 080 - R
DN 100   94.0 103.0 konisch 162.0 20.4    100 EP 300 / 100 - R
DN 125 118.0 127.0 konisch 188.0 20.0    125 EP 300 / 125 - R
DN 150 144.0 153.2 konisch 215.0 20.3      80 EP 300 / 150 - R
DN 200 194.5 204.5 konisch 268.0 25.0      60 EP 300 / 200 - R
DN 250 247.0 252.0 konisch 344.0 25.0      50 EP 300 / 250
DN 300 303.0 zylindrisch 408.0 20.5      52 EP 300 / 300
DN 350 355.0 zylindrisch 455.0 21.0      50 EP 300 / 350
DN 400 406.0 zylindrisch 510.0 23.0      40 EP 300 / 400
DIN 2402
DN 10

Dimensions d1
7.6

Dimensions d2
10.9

Plug Design
konisch

Dimensions D
40.0

Dimensions H
9.7

Packaging Unit
5.000

Reference No.
EP 300 / 010 - R

DIN 2402
DN 15

Dimensions d1
12.2

Dimensions d2
16.8

Plug Design
konisch

Dimensions D
45.0

Dimensions H
10.0

Packaging Unit
5.000

Reference No.
EP 300 / 015 - R

DIN 2402
DN 20

Dimensions d1
16.1

Dimensions d2
22.5

Plug Design
konisch

Dimensions D
58.3

Dimensions H
14.5

Packaging Unit
2.000

Reference No.
EP 300 / 020 - R

DIN 2402
DN 25

Dimensions d1
20.1

Dimensions d2
26.0

Plug Design
konisch

Dimensions D
68.0

Dimensions H
15.0

Packaging Unit
1.500

Reference No.
EP 300 / 025 - R

DIN 2402
DN 32

Dimensions d1
26.5

Dimensions d2
33.5

Plug Design
konisch

Dimensions D
78.6

Dimensions H
14.6

Packaging Unit
1.000

Reference No.
EP 300 / 032 - R

DIN 2402
DN 40

Dimensions d1
34.5

Dimensions d2
41.5

Plug Design
konisch

Dimensions D
89.0

Dimensions H
15.0

Packaging Unit
700

Reference No.
EP 300 / 040 - R

DIN 2402
DN 50

Dimensions d1
45.0

Dimensions d2
51.6

Plug Design
konisch

Dimensions D
103.5

Dimensions H
15.0

Packaging Unit
500

Reference No.
EP 300 / 050 - R

DIN 2402
DN 65

Dimensions d1
58.5

Dimensions d2
66.0

Plug Design
konisch

Dimensions D
122.0

Dimensions H
20.0

Packaging Unit
250

Reference No.
EP 300 / 065 - R

DIN 2402
DN 80

Dimensions d1
74.0

Dimensions d2
81.0

Plug Design
konisch

Dimensions D
138.0

Dimensions H
20.0

Packaging Unit
200

Reference No.
EP 300 / 080 - R

DIN 2402
DN 100

Dimensions d1
94.0

Dimensions d2
103.0

Plug Design
konisch

Dimensions D
162.0

Dimensions H
20.4

Packaging Unit
100

Reference No.
EP 300 / 100 - R

DIN 2402
DN 125

Dimensions d1
118.0

Dimensions d2
127.0

Plug Design
konisch

Dimensions D
188.0

Dimensions H
20.0

Packaging Unit
125

Reference No.
EP 300 / 125 - R

DIN 2402
DN 150

Dimensions d1
144.0

Dimensions d2
153.2

Plug Design
konisch

Dimensions D
215.0

Dimensions H
20.3

Packaging Unit
80

Reference No.
EP 300 / 150 - R

DIN 2402
DN 200

Dimensions d1
194.5

Dimensions d2
204.5

Plug Design
konisch

Dimensions D
268.0

Dimensions H
25.0

Packaging Unit
60

Reference No.
EP 300 / 200 - R

DIN 2402
DN 250

Dimensions d1
247.0

Dimensions d2
252.0

Plug Design
konisch

Dimensions D
344.0

Dimensions H
25.0

Packaging Unit
50

Reference No.
EP 300 / 250

DIN 2402
DN 300

Dimensions d1

Dimensions d2
303.0

Plug Design
zylindrisch

Dimensions D
408.0

Dimensions H
20.5

Packaging Unit
52

Reference No.
EP 300 / 300

DIN 2402
DN 350

Dimensions d1

Dimensions d2
355.0

Plug Design
zylindrisch

Dimensions D
455.0

Dimensions H
21.0

Packaging Unit
50

Reference No.
EP 300 / 350

DIN 2402
DN 400

Dimensions d1

Dimensions d2
406.0

Plug Design
zylindrisch

Dimensions D
510.0

Dimensions H
23.0

Packaging Unit
40

Reference No.
EP 300 / 400

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 300 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

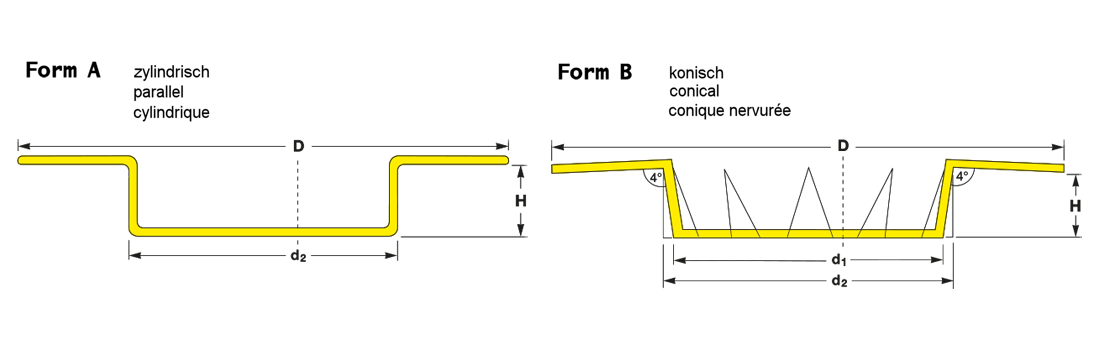

Type B offers a more secure fit than Type A in the bore. However, due to the tapered body and large diameter of its ribs, Type B provides a more suitable fit for valves and machined parts with larger bore tolerances.
