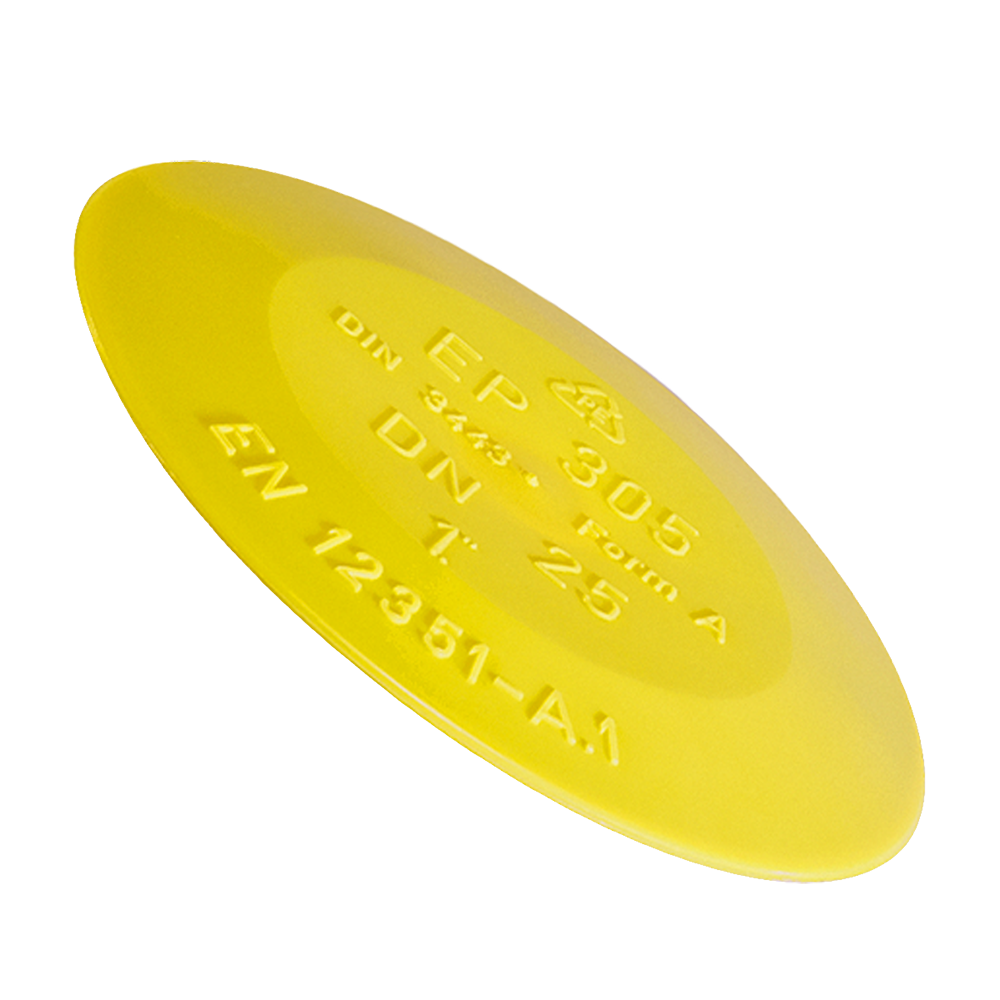

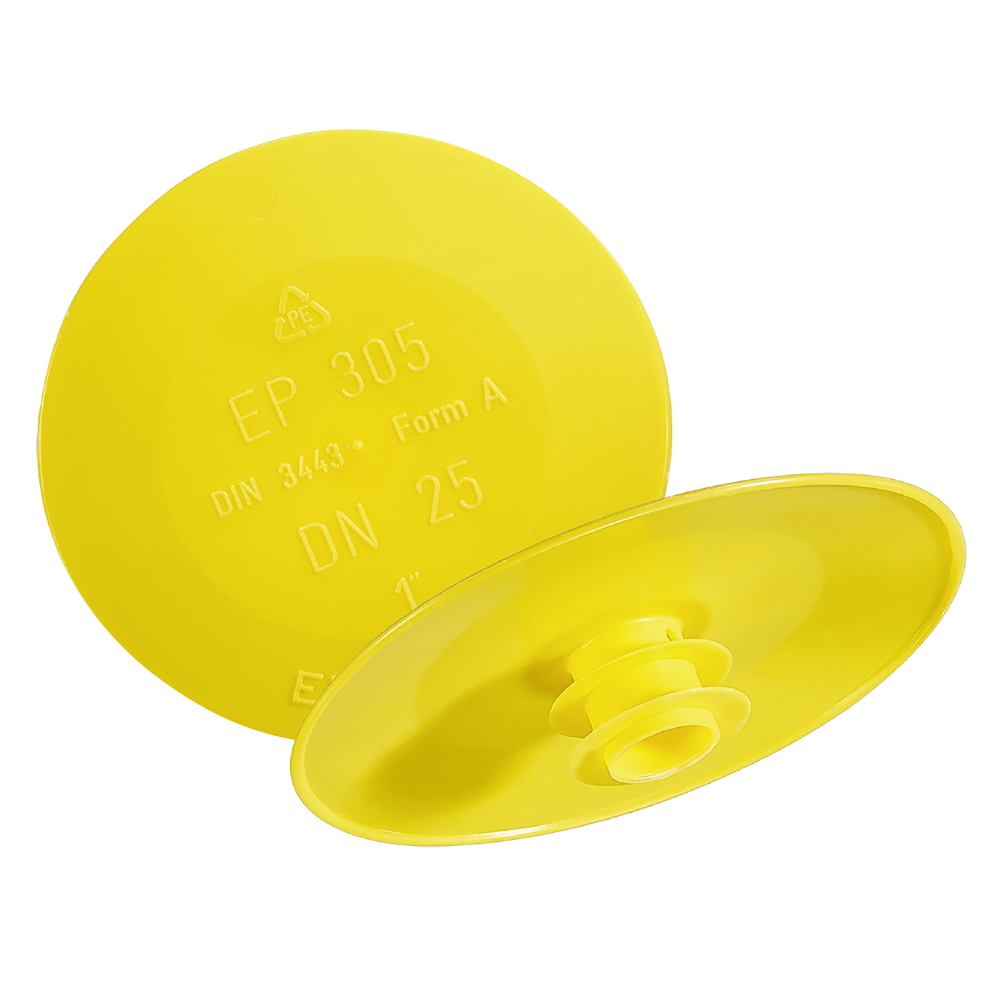

ProteC CaPtoP® EP 305

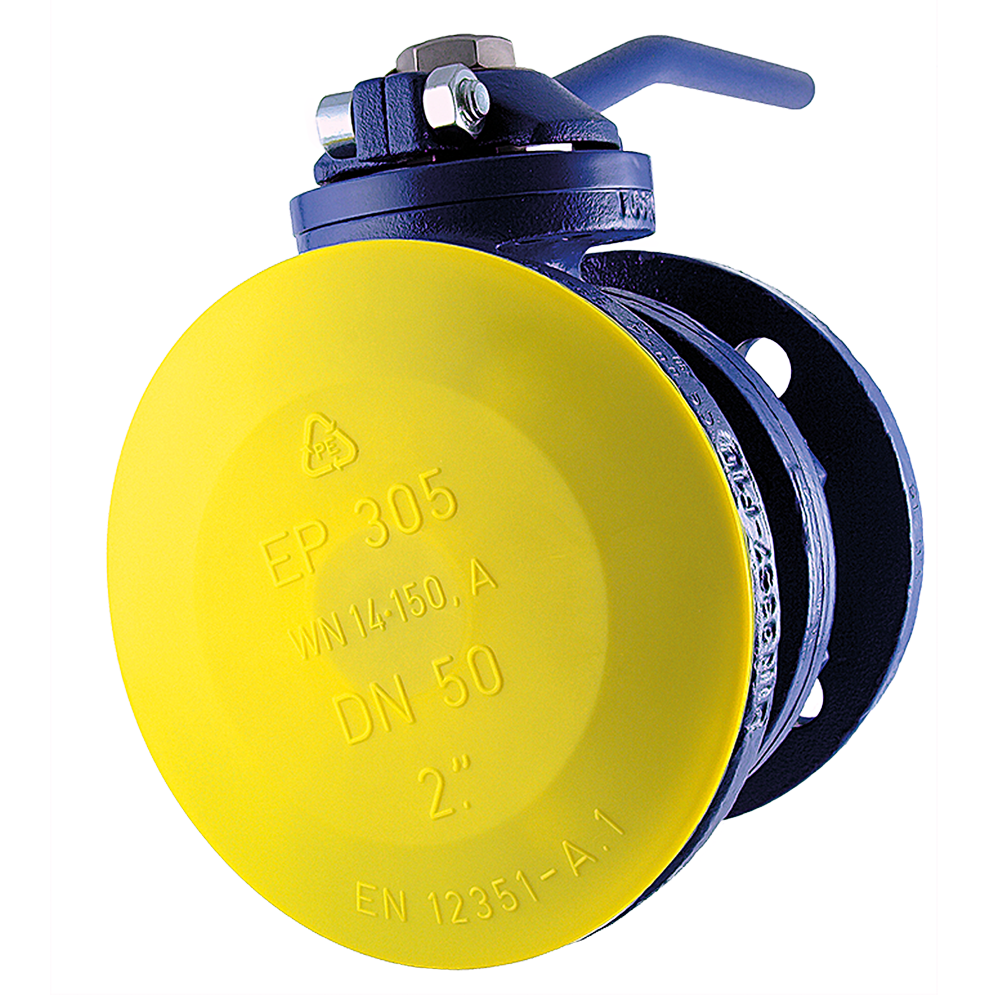

Push-in full-face flange protectors


CaPtoP® EP 305

Push-in full-face flange protectors


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

Suitable for both imperial (ANSI) and metric (DIN) flanges to specifications DN 2627 - 2638, 150, BS 5504 and ANSIB16,5.

The most versatile and universal flange protector on the market.

Its unique design allows the protection of an array of different size flanges, as well as other various classifications of flanges, with one part.

Low cost full face flange protection with flexible fins, which ensure a snug fit into bores.

Std. Color: yellow
Material: LLD-PE, linear low density polyethylene

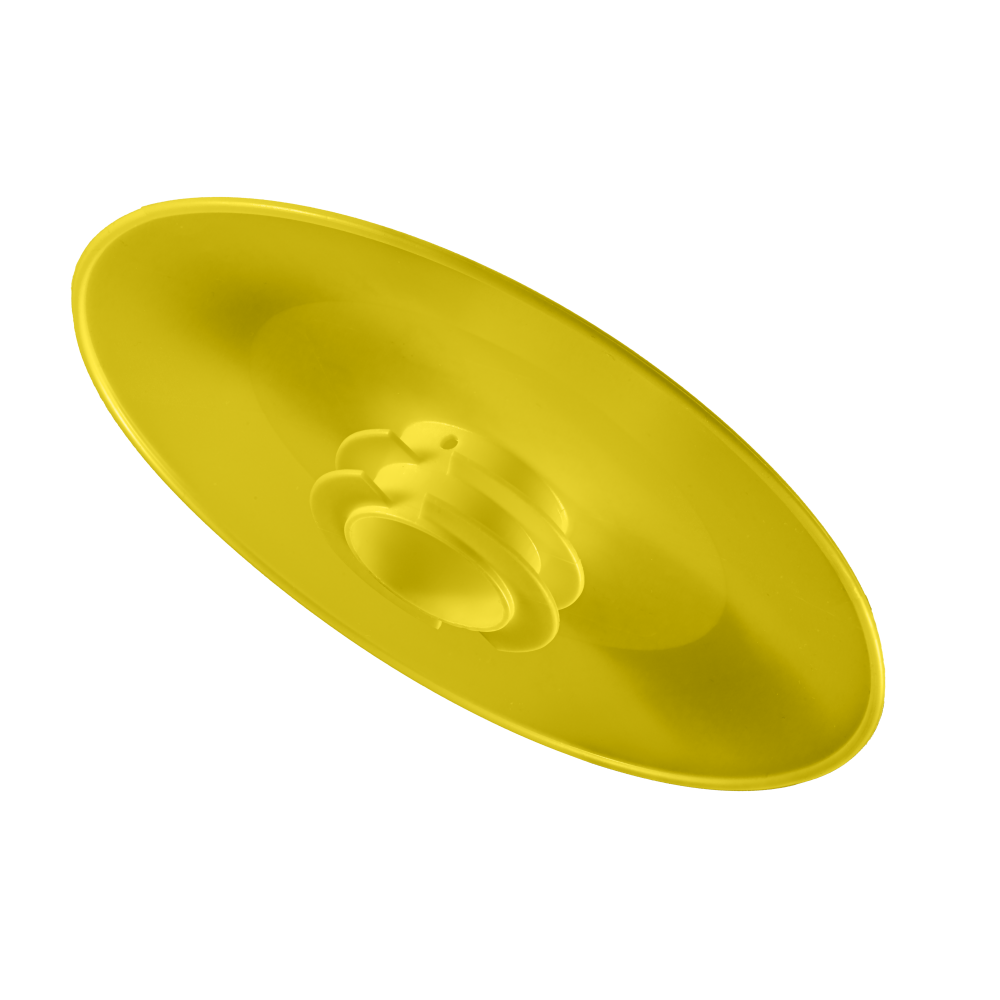

NEW! Hi-Flexx Ribs for firm fit
PROTEC CAPTOP EP 305

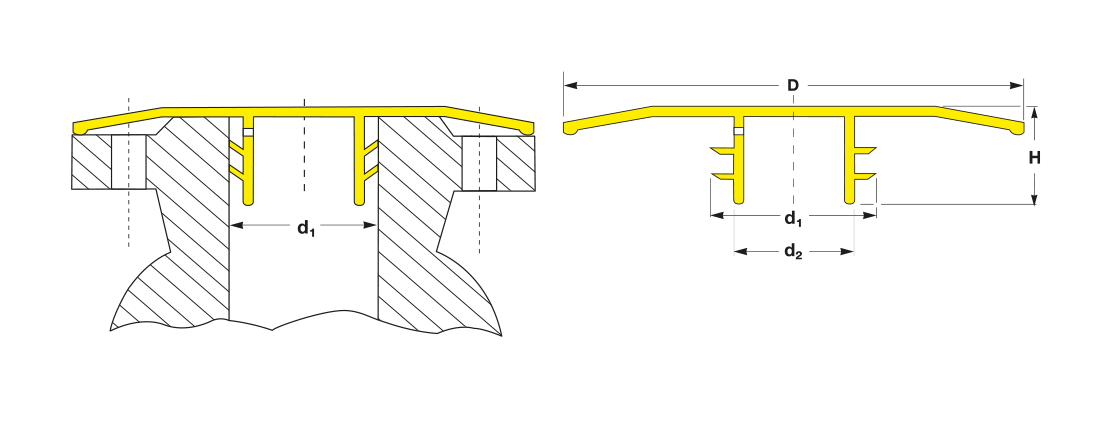

Ø Flange Ø D d1 d2 H Standard
Pack
Reference No. Bookmark
DN   10     .3/8"   86.0   13.7     7.00 15.0 1.000 EP 305 / DN   10 HF
DN   15     .1/2"   90.0   19.0     9.00 15.0 1.000 EP 305 / DN   15 HF
DN   20     .3/4" 101.0   24.0   14.40 20.0    700 EP 305 / DN   20 HF
DN   25   1." 110.0   30.0   18.00 20.0    500 EP 305 / DN   25 HF
DN   32   1.1/4" 136.0   39.0   22.27 20.0    300 EP 305 / DN   32 HF
DN   40   1.1/2" 146.0   45.0   30.00 20.0    250 EP 305 / DN   40 HF
DN   50   2." 160.0   56.0   40.10 20.0    200 EP 305 / DN   50 HF
DN   65   2.1/2" 180.0   73.0   53.40 20.0    200 EP 305 / DN   65 HF
DN   80   3." 196.0   85.0   67.60 25.0    150 EP 305 / DN   80 HF
DN 100   4." 216.0 109.0   88.60 25.0    100 EP 305 / DN 100 HF
DN 125   5." 247.7 134.0 110.20 25.0      75 EP 305 / DN 125
DN 150   6." 283.0 161.0 135.69 35.0      40 EP 305 / DN 150
DN 200   8." 337.0 211.0 188.60 41.3      40 EP 305 / DN 200
DN 250 10." 390.0 262.0 243.80 41.0      28 EP 305 / DN 250
DN 300 12." 450.0 318.0 280.90 48.0      20 EP 305 / DN 300
DN 350 14." 505.0 355.0 286.00 62.0      10 EP 305 / DN 350 HF     NEU
DN 400 16." 586.0 410.0 351.00 62.0      10 EP 305 / DN 400 HF     NEU
DN 450 18." 540.0 447.0 387.00 46.0      15 EP 305 / DN 450
Ø Flange Ø D d1 d2 H VPE Reference No.
DN   10     .3/8"   86.0   13.7     7.00 15.0 1.000 EP 305 / DN   10 HF
DN   15     .1/2"   90.0   19.0     9.00 15.0 1.000 EP 305 / DN   15 HF
DN   20     .3/4" 101.0   24.0   14.40 20.0    700 EP 305 / DN   20 HF
DN   25   1." 110.0   30.0   18.00 20.0    500 EP 305 / DN   25 HF
DN   32   1.1/4" 136.0   39.0   22.27 20.0    300 EP 305 / DN   32 HF
DN   40   1.1/2" 146.0   45.0   30.00 20.0    250 EP 305 / DN   40 HF
DN   50   2." 160.0   56.0   40.10 20.0    200 EP 305 / DN   50 HF
DN   65   2.1/2" 180.0   73.0   53.40 20.0    200 EP 305 / DN   65 HF
DN   80   3." 196.0   85.0   67.60 25.0    150 EP 305 / DN   80 HF
DN 100   4." 216.0 109.0   88.60 25.0    100 EP 305 / DN 100 HF
DN 125   5." 247.7 134.0 110.20 25.0      75 EP 305 / DN 125
DN 150   6." 283.0 161.0 135.69 35.0      40 EP 305 / DN 150
DN 200   8." 337.0 211.0 188.60 41.3      40 EP 305 / DN 200
DN 250 10." 390.0 262.0 243.80 41.0      28 EP 305 / DN 250
DN 300 12." 450.0 318.0 280.90 48.0      20 EP 305 / DN 300
DN 350 14." 505.0 355.0 286.00 62.0      10 EP 305 / DN 350 HF     NEU
DN 400 16." 586.0 410.0 351.00 62.0      10 EP 305 / DN 400 HF     NEU
DN 450 18." 540.0 447.0 387.00 46.0      15 EP 305 / DN 450
Ø Flange
DN 10 .3/8"

Dimensions Ø D
86.0

Dimensions d1
13.7

Dimensions d2
7.00

Dimensions >H
15.0

Packaging Unit
1.000

Reference No.
EP 305 / DN   10 HF

Ø Flange
DN 15 .1/2"

Dimensions Ø D
90.0

Dimensions d1
19.0

Dimensions d2
9.00

Dimensions >H
15.0

Packaging Unit
1.000

Reference No.
EP 305 / DN   15 HF

Ø Flange
DN 20 .3/4"

Dimensions Ø D
101.0

Dimensions d1
24.0

Dimensions d2
14.40

Dimensions >H
20.0

Packaging Unit
700

Reference No.
EP 305 / DN   20 HF

Ø Flange
DN 25 1."

Dimensions Ø D
110.0

Dimensions d1
30.0

Dimensions d2
18.00

Dimensions >H
20.0

Packaging Unit
500

Reference No.
EP 305 / DN   25 HF

Ø Flange
DN 32 1.1/4"

Dimensions Ø D
136.0

Dimensions d1
39.0

Dimensions d2
22.27

Dimensions >H
20.0

Packaging Unit
300

Reference No.
EP 305 / DN   32 HF

Ø Flange
DN 40 1.1/2"

Dimensions Ø D
146.0

Dimensions d1
45.0

Dimensions d2
30.00

Dimensions >H
20.0

Packaging Unit
250

Reference No.
EP 305 / DN   40 HF

Ø Flange
DN 50 2."

Dimensions Ø D
160.0

Dimensions d1
56.0

Dimensions d2
40.10

Dimensions >H
20.0

Packaging Unit
200

Reference No.
EP 305 / DN   50 HF

Ø Flange
DN 65 2.1/2"

Dimensions Ø D
180.0

Dimensions d1
 73.0

Dimensions d2
53.40

Dimensions >H
20.0

Packaging Unit
200

Reference No.
EP 305 / DN   65 HF

Ø Flange
DN 80 3."

Dimensions Ø D
196.0

Dimensions d1
85.0

Dimensions d2
67.60

Dimensions >H
25.0

Packaging Unit
150

Reference No.
EP 305 / DN   80 HF

Ø Flange
DN 100 4."

Dimensions Ø D
216.0

Dimensions d1
109.0

Dimensions d2
88.60

Dimensions >H
25.0

Packaging Unit
100

Reference No.
EP 305 / DN 100 HF

Ø Flange
DN 125 5."

Dimensions Ø D
247.7

Dimensions d1
134.0

Dimensions d2
110.20

Dimensions >H
25.0

Packaging Unit
75

Reference No.
EP 305 / DN 125

Ø Flange
DN 150 6."

Dimensions Ø D
283.0

Dimensions d1
161.0

Dimensions d2
135.69

Dimensions >H
35.0

Packaging Unit
40

Reference No.
EP 305 / DN 150

Ø Flange
DN 200 8."

Dimensions Ø D
337.0

Dimensions d1
211.0

Dimensions d2
188.60

Dimensions >H
41.3

Packaging Unit
40

Reference No.
EP 305 / DN 200

Ø Flange
DN 250 10."

Dimensions Ø D
390.0

Dimensions d1
262.0

Dimensions d2
243.80

Dimensions >H
41.0

Packaging Unit
28

Reference No.
EP 305 / DN 250

Ø Flange
DN 300 12."

Dimensions Ø D
450.0

Dimensions d1
318.0

Dimensions d2
280.90

Dimensions >H
48.0

Packaging Unit
20

Reference No.
EP 305 / DN 300

Ø Flange
DN 350 14."

Dimensions Ø D
505.0

Dimensions d1
355.0

Dimensions d2
286.00

Dimensions >H
62.0

Packaging Unit
    10

Reference No.
EP 305 / DN 350 HF     NEU

Ø Flange
DN 400 16."

Dimensions Ø D
586.0

Dimensions d1
410.0

Dimensions d2
351.00

Dimensions >H
62.0

Packaging Unit
10

Reference No.
EP 305 / DN 400 HF     NEU

Ø Flange
DN 450 18."

Dimensions Ø D
540.0

Dimensions d1
447.0

Dimensions d2
387.00

Dimensions >H
46.0

Packaging Unit
15

Reference No.
EP 305 / DN 450

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 305 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Per size – these protectors can be used on a variety of classifications.

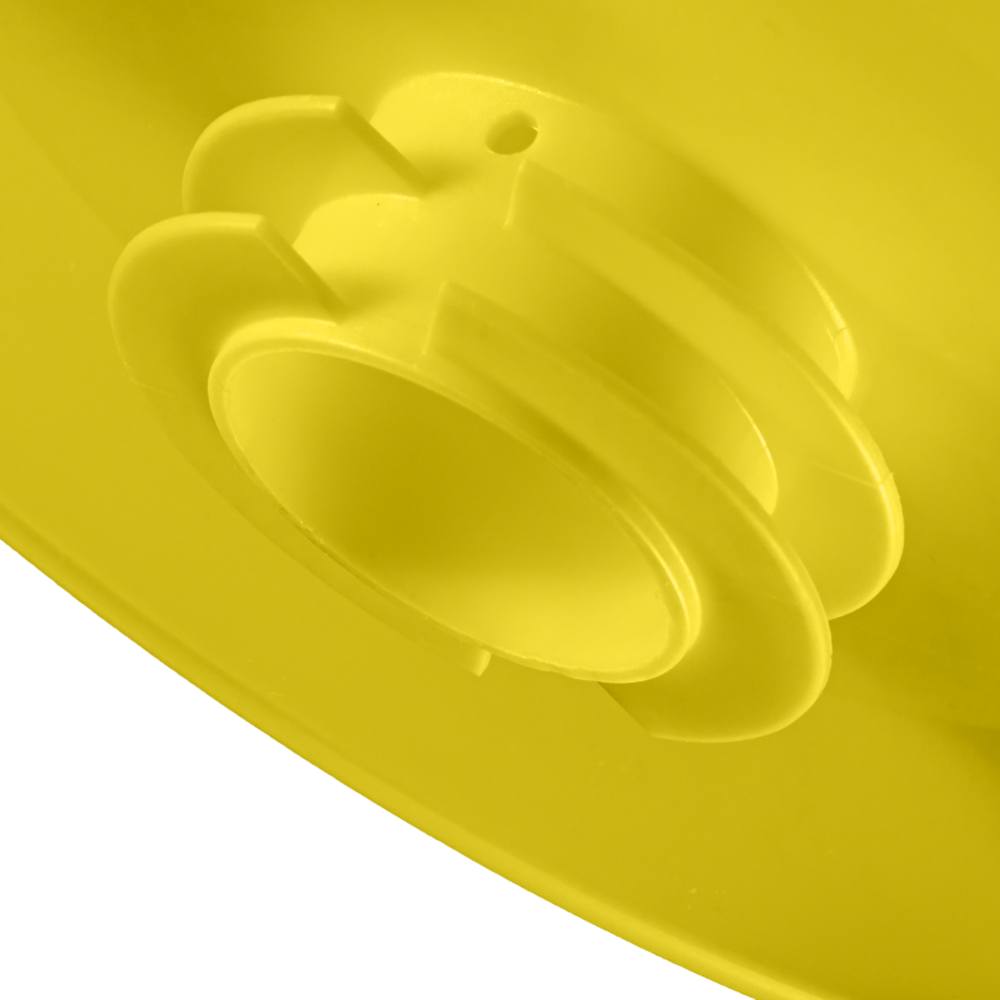

Hi-Flexx Ribs ensure a tight fit into the center bore.

On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
