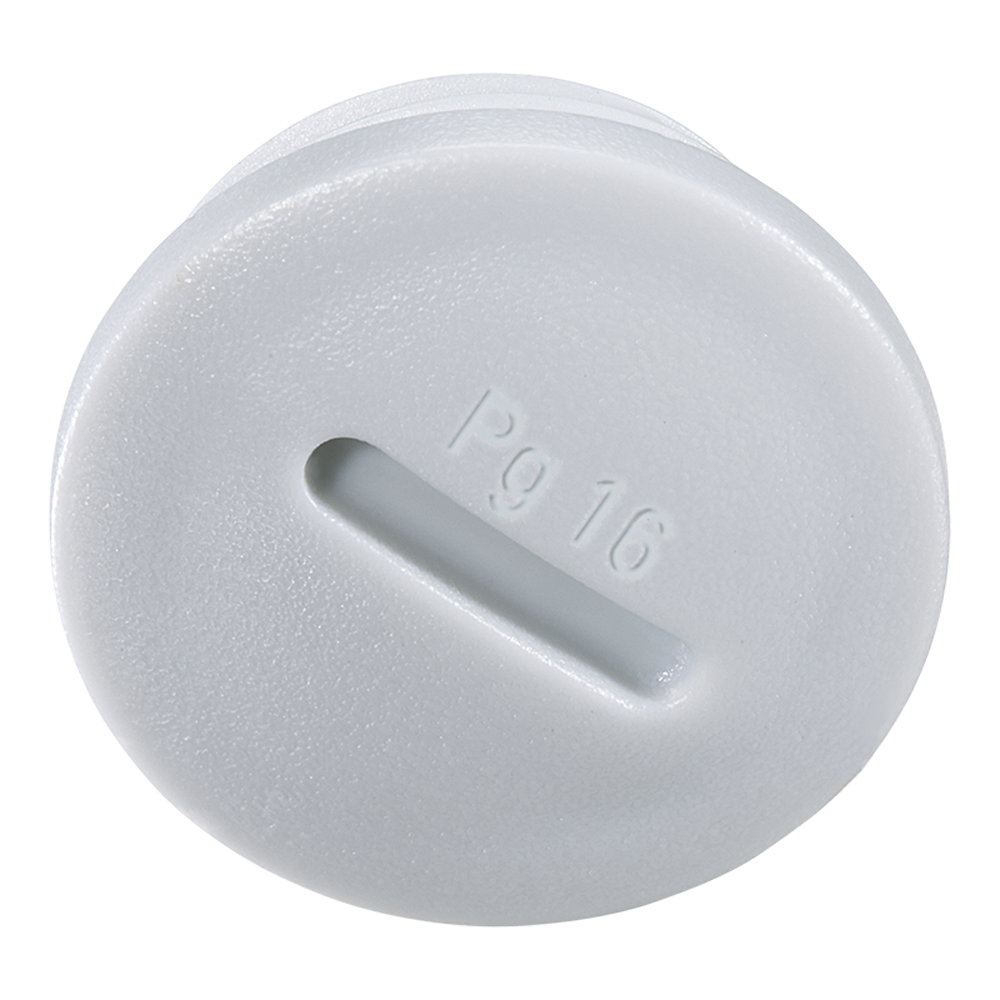

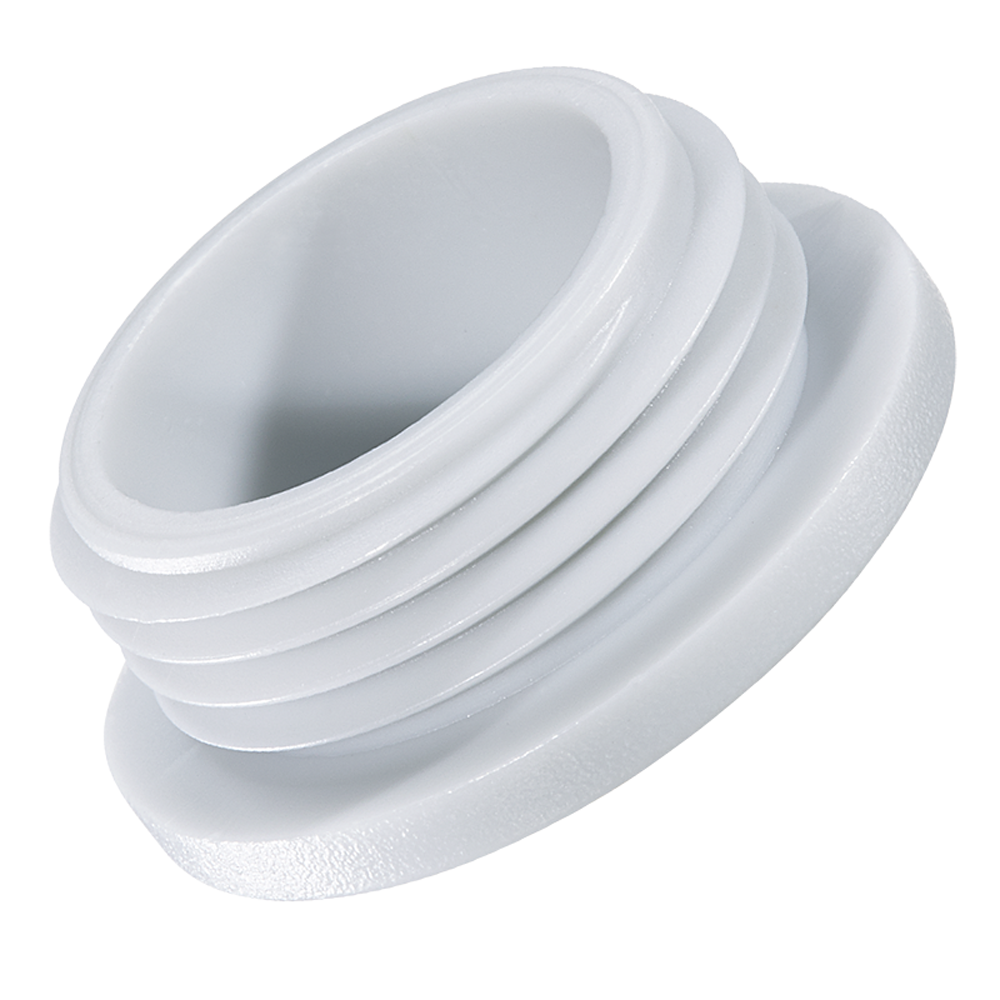

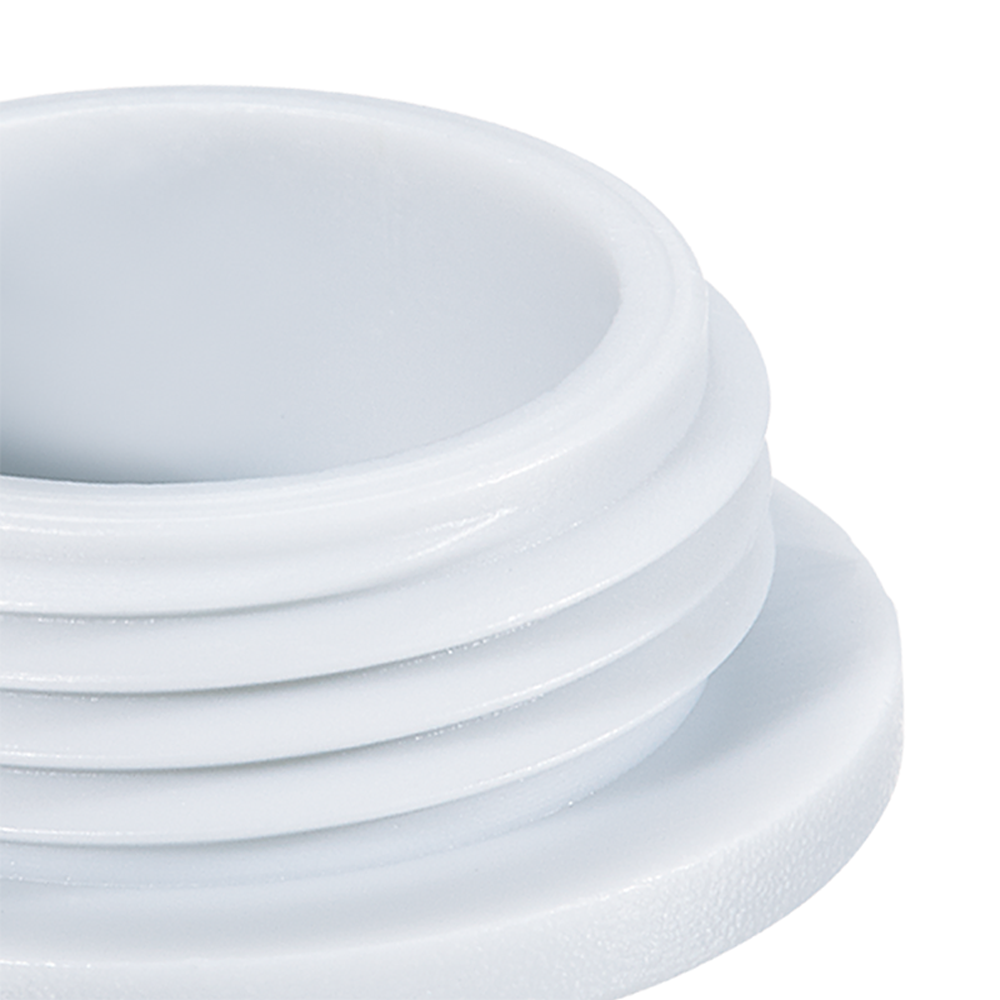

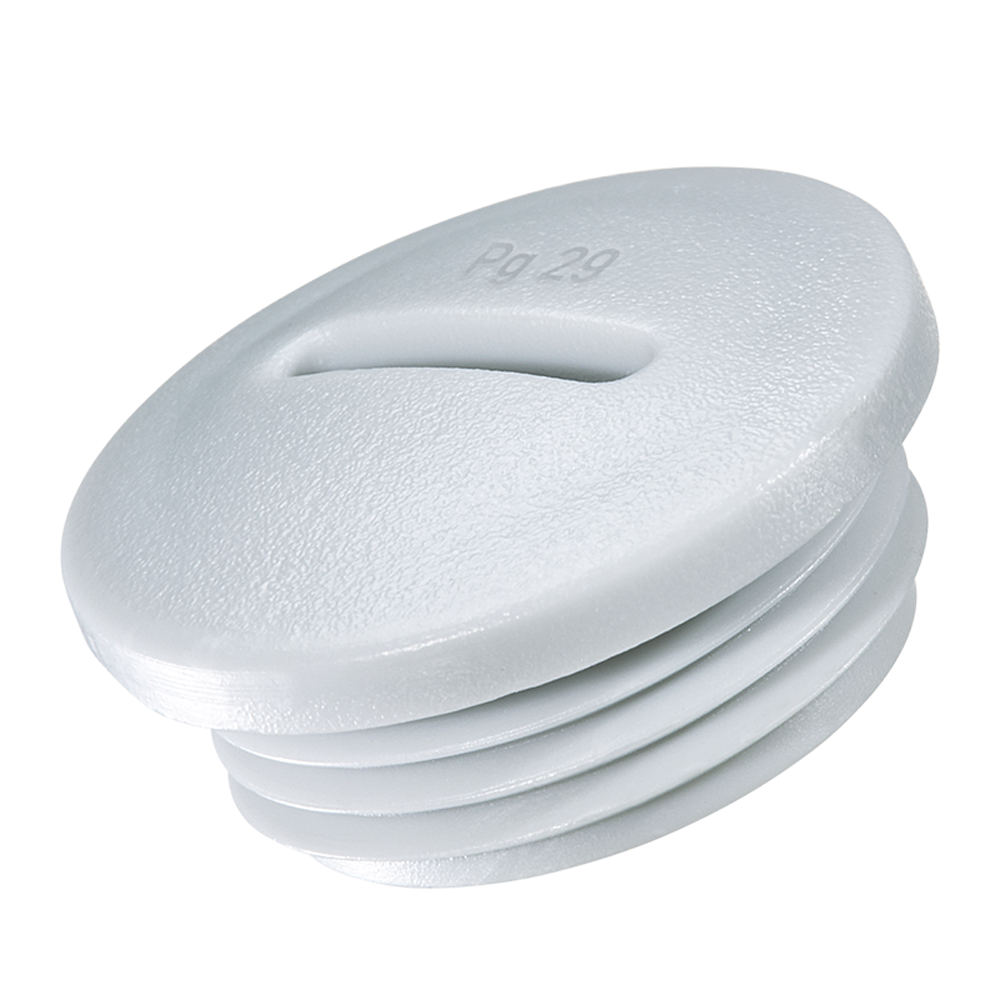

ProteC QuiCk-fit® EPN 450

Threaded blanking plugs


QuiCk-fit® EPN 450

Threaded blanking plugs


Close existing threads to secure unused ports for future use.

This range fits a variety of Metirc and PG thread sizes and can be applied for plugging threads in panels from 12mm to 63mm in diameter.

Standard Colours : Light grey RAL 7035, dark grey RAL 7001, black RAL 9005. Optional : White RAL 9010 and red RAL 3000. Additional colours are available on request.

Material PS (durable polystyrene) and PA 6 (impact restistant nylon) depending on sizes (see table).

PROTEC QUICK-FIT EPN 450

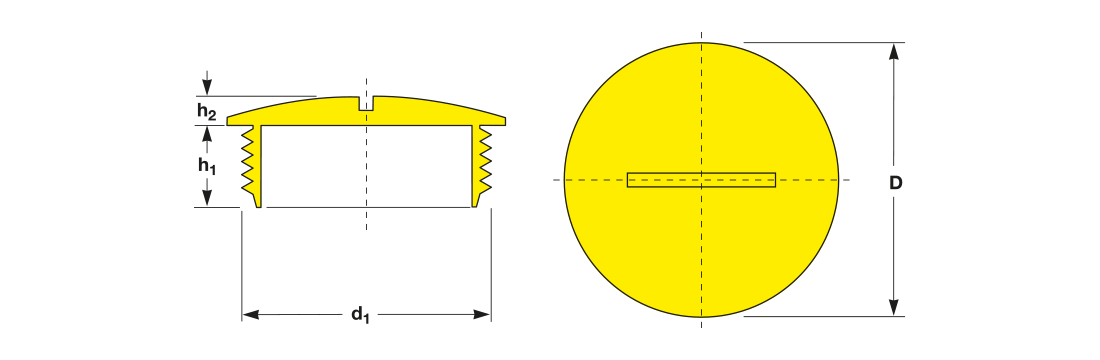

d1 D h1 h2 Material Reference No. Bookmark
  Metric
M 12x1.5 15.0   6.0 4.0 PS EPN 450/M 12x1.5
M 16x1.5 20.0   7.0 4.0 PS EPN 450/M 16x1.5
M 20x1.5 24.0   7.0 4.5 PS EPN 450/M 20x1.5
M 25x1.5 30.0 11.0 4.5 PS EPN 450/M 25x1.5
M 32x1.5 38.0 11.0 5.0 PS EPN 450/M 32x1.5
M 40x1.5 46.0 13.0 5.0 PS EPN 450/M 40x1.5
M 50x1.5 56.0 14.0 6.5 PA-GF EPN 450/M 50x1.5
M 63x1.5 69.7 15.0 5.5 PA-GF EPN 450/M 63x1.5
  PG
PG   7 15.0   6.0 2.0 PS EPN 450/ PG   7
PG   9 19.0   6.0 3.0 PS EPN 450/ PG   9
PG 11 22.0   6.5 3.0 PS EPN 450/ PG 11
PG 13.5 25.0   6.0 3.5 PS EPN 450/ PG 13.5
PG 16 27.0   6.5 3.5 PS EPN 450/ PG 16
PG 21 33.0   8.0 4.0 PS EPN 450/ PG 21
PG 29 44.0   8.0 4.0 PS EPN 450/ PG 29
PG 36 55.0 10.0 5.0 PS EPN 450/ PG 36
PG 42 62.0 10.0 6.0 PS EPN 450/ PG 42
PG 48 69.0 12.0 5.0 PS EPN 450/ PG 48
d1 D h1 h2 Material Reference No.
  Metric
M 12x1.5 15.0   6.0 4.0 PS EPN 450/M 12x1.5
M 16x1.5 20.0   7.0 4.0 PS EPN 450/M 16x1.5
M 20x1.5 24.0   7.0 4.5 PS EPN 450/M 20x1.5
M 25x1.5 30.0 11.0 4.5 PS EPN 450/M 25x1.5
M 32x1.5 38.0 11.0 5.0 PS EPN 450/M 32x1.5
M 40x1.5 46.0 13.0 5.0 PS EPN 450/M 40x1.5
M 50x1.5 56.0 14.0 6.5 PA-GF EPN 450/M 50x1.5
M 63x1.5 69.7 15.0 5.5 PA-GF EPN 450/M 63x1.5
  PG
PG   7 15.0   6.0 2.0 PS EPN 450/ PG   7
PG   9 19.0   6.0 3.0 PS EPN 450/ PG   9
PG 11 22.0   6.5 3.0 PS EPN 450/ PG 11
PG 13.5 25.0   6.0 3.5 PS EPN 450/ PG 13.5
PG 16 27.0   6.5 3.5 PS EPN 450/ PG 16
PG 21 33.0   8.0 4.0 PS EPN 450/ PG 21
PG 29 44.0   8.0 4.0 PS EPN 450/ PG 29
PG 36 55.0 10.0 5.0 PS EPN 450/ PG 36
PG 42 62.0 10.0 6.0 PS EPN 450/ PG 42
PG 48 69.0 12.0 5.0 PS EPN 450/ PG 48
  Metric
Thread d1
M 12x1.5

Flange D
15.0

Depth h1
6.0

Depth h2
4.0

Material
PS

Reference No. EPN 450/M 12x1.5

Thread d1
M 16x1.5

Flange D
20.0

Depth h1
7.0

Depth h2
4.0

Material
PS

Reference No. EPN 450/M 16x1.5

Thread d1
M 20x1.5

Flange D
24.0

Depth h1
7.0

Depth h2
4.5

Material
PS

Reference No. EPN 450/M 20x1.5

Thread d1
M 25x1.5

Flange D
30.0

Depth h1
11.0

Depth h2
4.5

Material
PS

Reference No. EPN 450/M 25x1.5

Thread d1
M 32x1.5

Flange D
38.0

Depth h1
11.0

Depth h2
5.0

Material
PS

Reference No. EPN 450/M 32x1.5

Thread d1
M 40x1.5

Flange D
46.0

Depth h1
13.0

Depth h2
5.0

Material
PS

Reference No. EPN 450/M 40x1.5

Thread d1
M 50x1.5

Flange D
56.0

Depth h1
14.0

Depth h2
6.5

Material
PA-GF

Reference No. EPN 450/M 50x1.5

Thread d1
M 63x1.5

Flange D
69.7

Depth h1
15.0

Depth h2
5.5

Material
PA-GF

Reference No. EPN 450/M 63x1.5

  PG
Thread d1
PG 7

Flange D
15.0

Depth h1
6.0

Depth h2
2.0

Material
PS

Reference No. EPN 450/ PG 7

Thread d1
PG 9

Flange D
19.0

Depth h1
6.0

Depth h2
3.0

Material
PS

Reference No. EPN 450/ PG 9

Thread d1
PG 11

Flange D
22.0

Depth h1
6.5

Depth h2
3.0

Material
PS

Reference No. EPN 450/ PG 11

Thread d1
PG 13.5

Flange D
25.0

Depth h1
6.0

Depth h2
3.5

Material
PS

Reference No. EPN 450/ PG 13.5

Thread d1
PG 16

Flange D
27.0

Depth h1
6.5

Depth h2
3.5

Material
PS

Reference No. EPN 450/ PG 16

Thread d1
PG 21

Flange D
33.0

Depth h1
8.0

Depth h2
4.0

Material
PS

Reference No. EPN 450/ PG 21

Thread d1
PG 29

Flange D
44.0

Depth h1
8.0

Depth h2
4.0

Material
PS

Reference No. EPN 450/ PG 29

Thread d1
PG 36

Flange D
55.0

Depth h1
10.0

Depth h2
5.0

Material
PS

Reference No. EPN 450/ PG 36

Thread d1
PG 42

Flange D
62.0

Depth h1
10.0

Depth h2
6.0

Material
PS

Reference No. EPN 450/ PG 42

Thread d1
PG 48

Flange D
69.0

Depth h1
12.0

Depth h2
5.0

Material
PS

Reference No. EPN 450/ PG 48

PROTEC products and specifications are subject to improvement and change without notice.

QUICK-FIT® EPN 450 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
