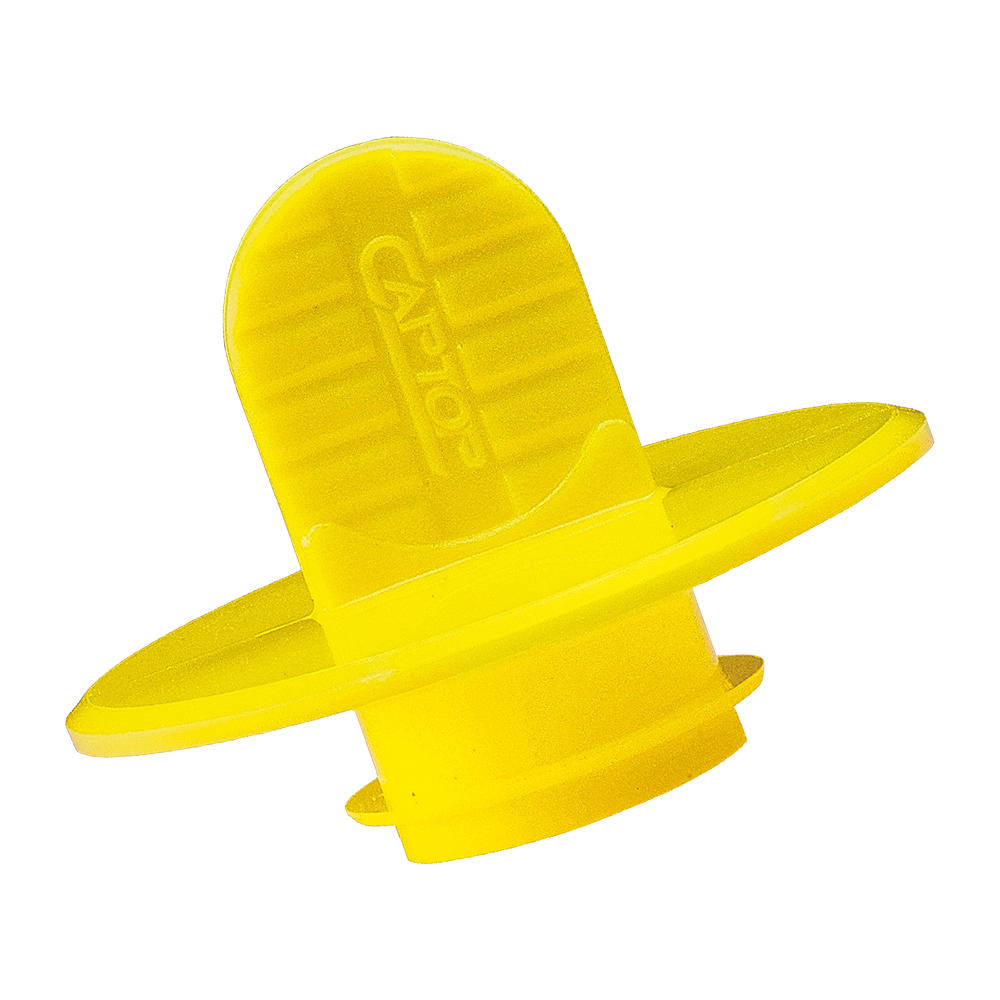

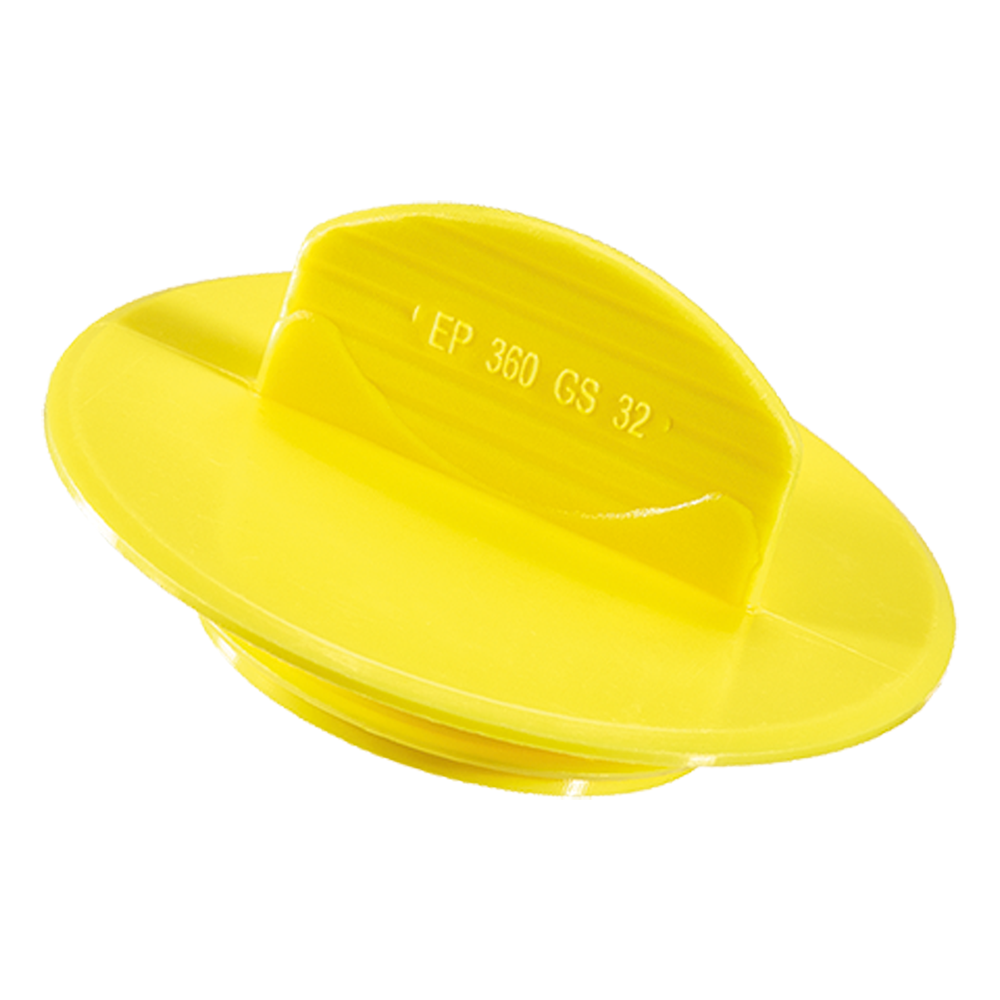

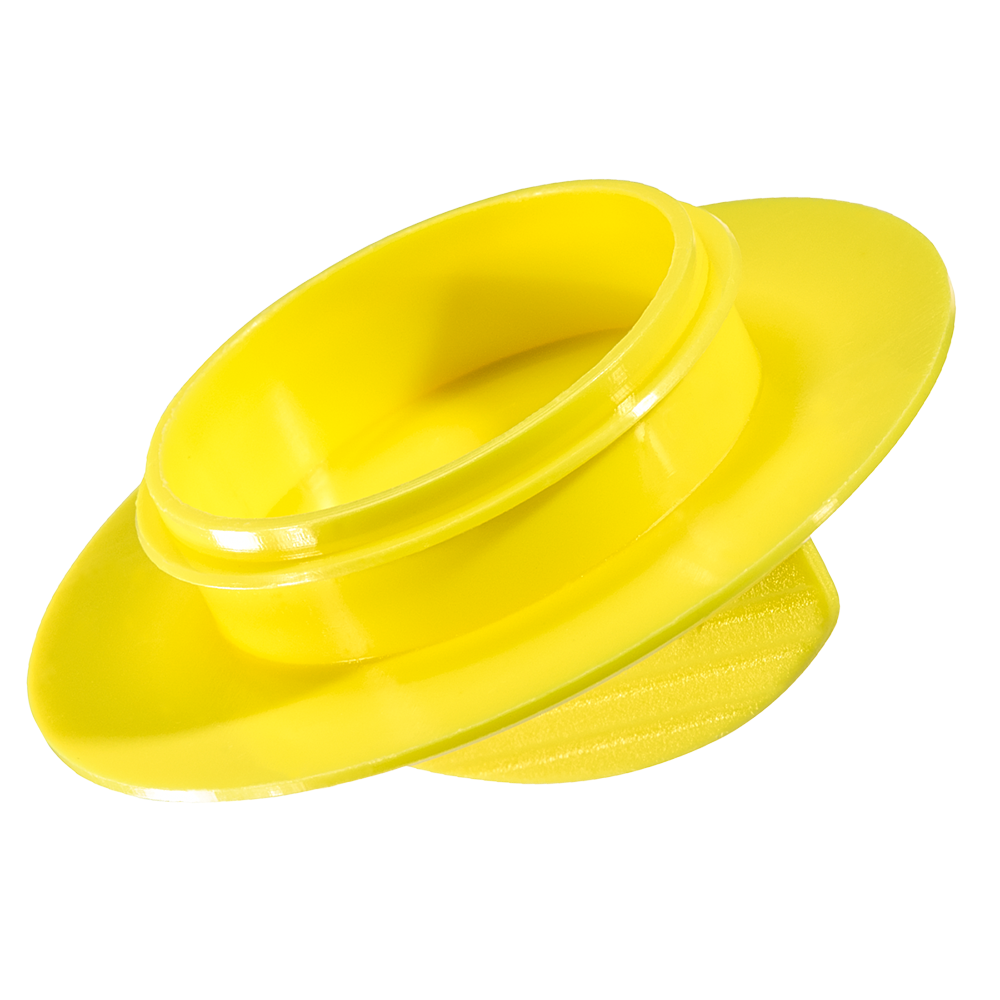

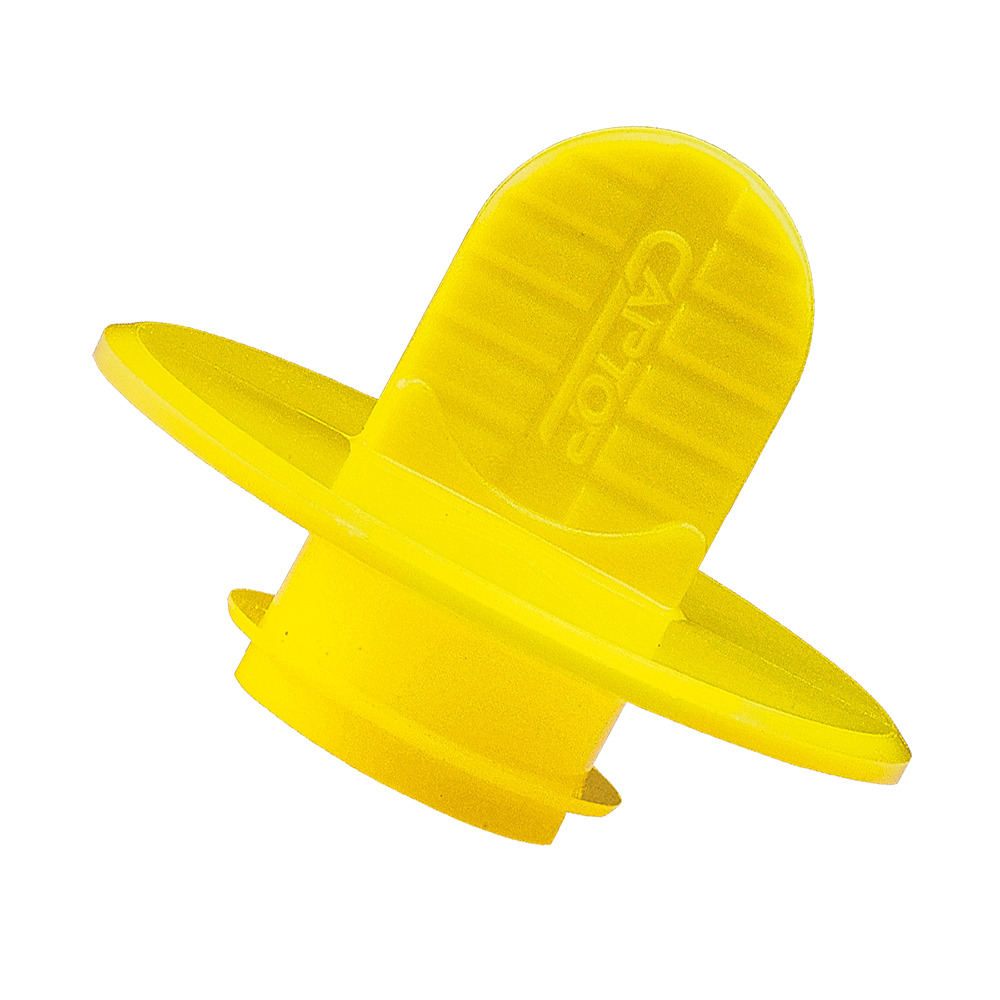

ProteC CaPtoP® EP 360

Snap-fit grip plugs with large flange


CaPtoP® EP 360

Snap-fit grip plugs with large flange


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

Single turn gives tight fit once pushed into position.

With large full Protection Flange

Designed with flexible fins each plug covers a wide range of threads.

Std. Color: yellow
Material: LLD-PE, linear low density polyethylene

PROTEC CAPTOP EP 360

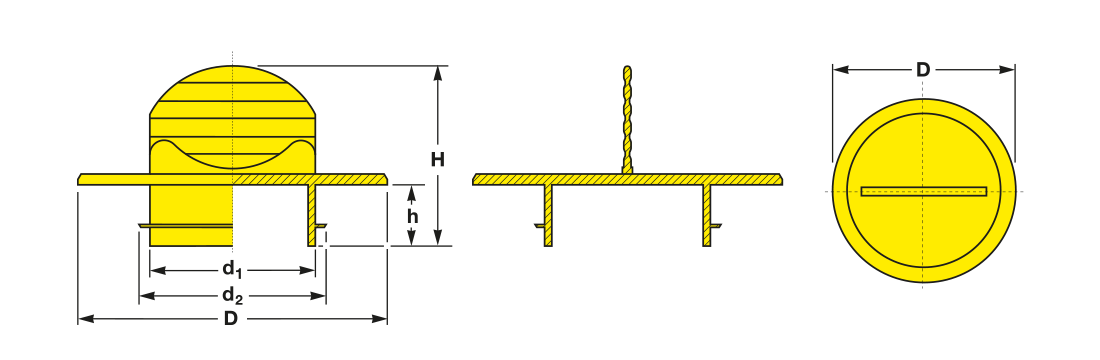

D d1 d2 h H Reference No. Bookmark
  25.0   5.0   8.0 8.0 25.0 EP 360 / GS   8
  27.0   7.0 10.0 8.0 25.0 EP 360 / GS 10
  29.0   9.0 12.0 8.0 25.0 EP 360 / GS 12
  31.0 11.0 14.0 8.0 25.0 EP 360 / GS 14
  33.0 13.0 16.0 8.0 25.0 EP 360 / GS 16
  35.0 15.0 18.0 8.0 25.0 EP 360 / GS 18
  39.0 19.0 22.0 8.0 25.0 EP 360 / GS 22
  42.9 23.0 26.0 8.0 25.0 EP 360 / GS 26
  47.0 27.0 30.0 8.0 25.0 EP 360 / GS 30
  49.0 29.0 32.0 8.0 25.0 EP 360 / GS 32
  51.0 31.0 34.0 8.0 27.0 EP 360 / GS 34
  58.0 38.0 41.0 8.0 27.0 EP 360 / GS 41
  63.3 44.0 47.0 8.0 27.0 EP 360 / GS 47
  75.0 55.0 58.0 8.0 27.0 EP 360 / GS 58
  92.0 72.0 75.0 8.0 27.0 EP 360 / GS 75
  99.0 79.0 84.0 8.0 27.0 EP 360 / GS 82-84
103.0 83.0 86.0 8.0 27.0 EP 360 / GS 86
D d1 d2 h H Reference No.
  25.0   5.0   8.0 8.0 25.0 EP 360 / GS   8
  27.0   7.0 10.0 8.0 25.0 EP 360 / GS 10
  29.0   9.0 12.0 8.0 25.0 EP 360 / GS 12
  31.0 11.0 14.0 8.0 25.0 EP 360 / GS 14
  33.0 13.0 16.0 8.0 25.0 EP 360 / GS 16
  35.0 15.0 18.0 8.0 25.0 EP 360 / GS 18
  39.0 19.0 22.0 8.0 25.0 EP 360 / GS 22
  42.9 23.0 26.0 8.0 25.0 EP 360 / GS 26
  47.0 27.0 30.0 8.0 25.0 EP 360 / GS 30
  49.0 29.0 32.0 8.0 25.0 EP 360 / GS 32
  51.0 31.0 34.0 8.0 27.0 EP 360 / GS 34
  58.0 38.0 41.0 8.0 27.0 EP 360 / GS 41
  63.3 44.0 47.0 8.0 27.0 EP 360 / GS 47
  75.0 55.0 58.0 8.0 27.0 EP 360 / GS 58
  92.0 72.0 75.0 8.0 27.0 EP 360 / GS 75
  99.0 79.0 84.0 8.0 27.0 EP 360 / GS 82-84
103.0 83.0 86.0 8.0 27.0 EP 360 / GS 86
D
25.0

d1
5.0

d2
8.0

h
8.0

H
25.0

Reference No.
EP 360 / GS 8

D
27.0

d1
7.0

d2
10.0

h
8.0

H
25.0

Reference No.
EP 360 / GS 10

D
29.0

d1
9.0

d2
12.0

h
8.0

H
25.0

Reference No.
EP 360 / GS 12

D
31.0

d1
11.0

d2
14.0

h
8.0

H
25.0

Reference No.
EP 360 / GS 14

D
33.0

d1
13.0

d2
16.0

h
8.0

H
25.0

Reference No.
EP 360 / GS 16

D
35.0

d1
15.0

d2
18.0

h
8.0

H
25.0

Reference No.
EP 360 / GS 18

D
39.0

d1
19.0

d2
22.0

h
8.0

H
25.0

Reference No.
EP 360 / GS 22

D
42.9

d1
23.0

d2
26.0

h
8.0

H
25.0

Reference No.
EP 360 / GS 26

D
47.0

d1
27.0

d2
30.0

h
8.0

H
25.0

Reference No.
EP 360 / GS 30

D
49.0

d1
29.0

d2
32.0

h
8.0

H
25.0

Reference No.
EP 360 / GS 32

D
51.0

d1
31.0

d2
34.0

h
8.0

H
27.0

Reference No.
EP 360 / GS 34

D
58.0

d1
38.0

d2
41.0

h
8.0

H
27.0

Reference No.
EP 360 / GS 41

D
63.3

d1
44.0

d2
47.0

h
8.0

H
27.0

Reference No.
EP 360 / GS 47

D
75.0

d1
55.0

d2
58.0

h
8.0

H
27.0

Reference No.
EP 360 / GS 58

D
92.0

d1
72.0

d2
75.0

h
8.0

H
27.0

Reference No.
EP 360 / GS 75

D
99.0

d1
79.0

d2
84.0

h
8.0

H
27.0

Reference No.
EP 360 / GS 82-84

D
103.0

d1
83.0

d2
86.0

h
8.0

H
27.0

Reference No.
EP 360 / GS 86

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 360 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
