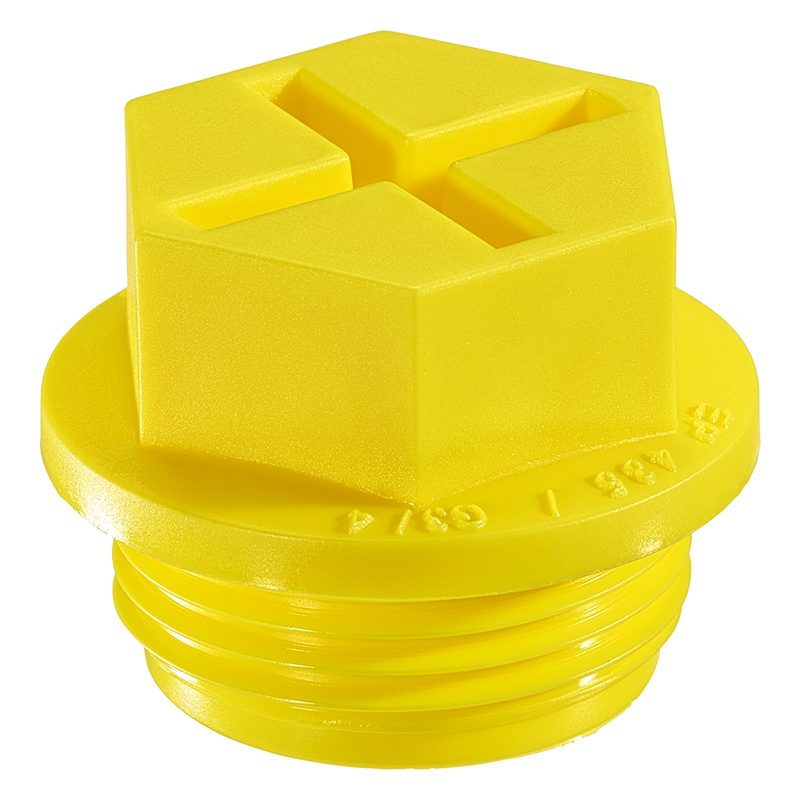

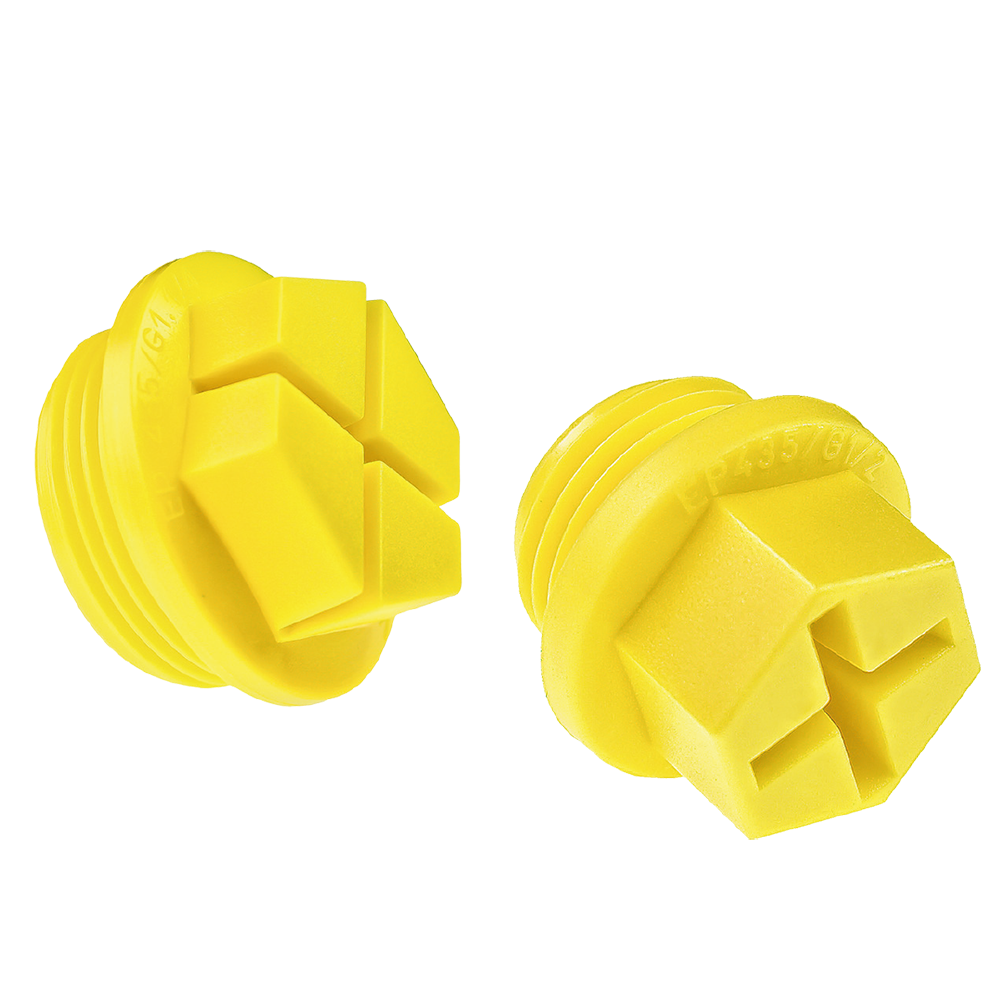

ProteC CaPtoP® EP 435

Threaded sealing plugs, PA 6, yellow


CaPtoP® EP 435

Threaded sealing plugs, PA 6, yellow


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

Protective sealing during painting processes and testing.

To protect unified/straight threaded ports and fittings according to DIN 3852-1 Metric, DIN ISO 6149-1 BSP, SAE J 1926 UN/UNF.

This plug is engineered with five complete threads to provide a tight fit.

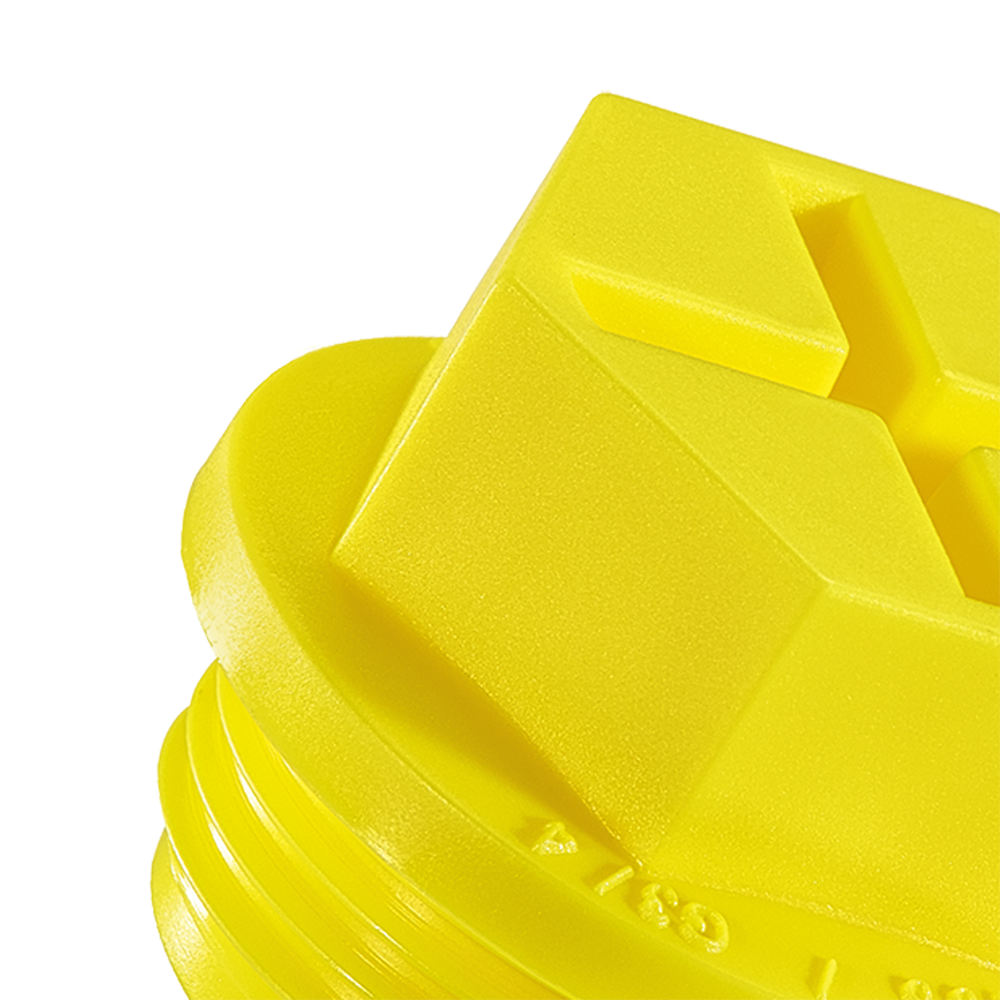

The "sealing lip" enables each plug to provide a secure seal to a specific torque for each size.

EP 435 plugs can be fitted and removed with a screwdriver, socket wrench, power tool or by hand.

Std. Color: yellow
Material: Premium, impact resistant Nylon ( PA 6 )

PROTEC CAPTOP EP 435

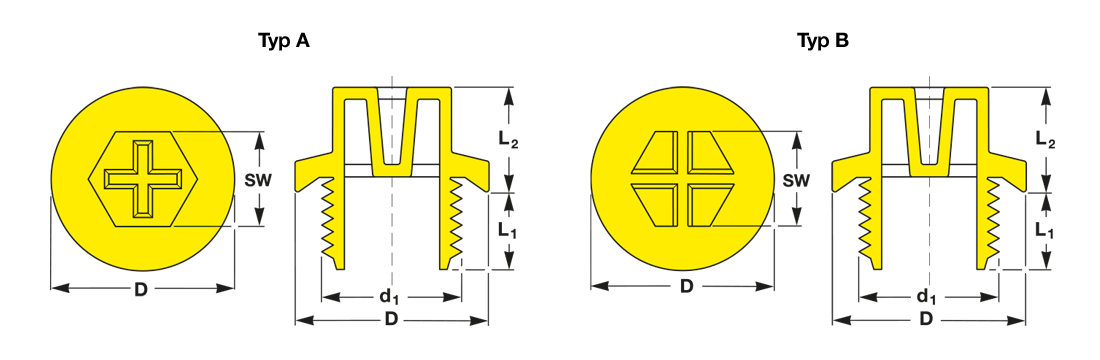

d1 D L1 L2 SW Type Reference No. Bookmark
DIN EN ISO 228-1 / DIN 3852-2
G   .1/8" 16.8   7.5 11.2 13 A EP 435 -   .1/8"
G   .1/4" 19.0   7.5 11.3 13 A EP 435 -   .1/4"
G   .3/8" 22.0   7.6 12.5 17 A EP 435 -   .3/8"
G   .1/2" 27.0 10.6 14.7 19 A EP 435 -   .1/2"
G   .3/4" 32.2 10.5 14.2 24 A EP 435 -   .3/4"
G 1." 39.7 13.6 15.8 27 B EP 435 - 1."
G 1.1/4" 49.8 13.5 17.8 36 B EP 435 - 1.1/4"
G 1.1/2" 55.4 13.5 16.5 41 B EP 435 - 1.1/2"
G 2." 68.2 13.5 16.9 55 B EP 435 - 2."
Metric DIN 3852-1 / DIN ISO 6149-1
M 10 x 1 14.0   5.5 11.5 10 B EP 435 - M 10 x 1
M 12 x 1.5 17.2   8.2 11.5 13 A EP 435 - M 12 x 1.5
M 14 x 1.5 19.1 10.1 11.2 13 A EP 435 - M 14 x 1.5
M 16 x 1.5 21.7   7.5 11.6 17 A EP 435 - M 16 x 1.5
M 18 x 1.5 23.8   8.6 12.3 17 A EP 435 - M 18 x 1.5
M 20 x 1.5 25.8   8.5 15.5 19 A EP 435 - M 20 x 1.5
M 22 x 1.5 26.7   8.6 15.5 19 A EP 435 - M 22 x 1.5
M 24 x 1.5 31.2 10.6 15.2 24 A EP 435 - M 24 x 1.5
M 26 x 1.5 31.8   8.5 15.5 24 A EP 435 - M 26 x 1.5
M 27 x 2 32.1 11.5 15.4 24 A EP 435 - M 27 x 2
M 33 x 2 39.6 11.5 15.6 27 B EP 435 - M 33 x 2
M 42 x 2 49.8 11.5 16.6 36 B EP 435 - M 42 x 2
ISO 11926-1
.7 / 16" - 20 UNF 21.0 10.0 10.2 13 A EP 435 -   .7 / 16" - 20 UNF
.1/    2" - 20 UNF 22.8   9.6 11.3 13 A EP 435 -   .1/    2" - 20 UNF
.9 / 16" - 18 UNF 24.8   9.5 11.3 13 A EP 435 -   .9 / 16" - 18 UNF SF4
.5 /   8" - 18 UNF 24.9 10.5 13.2 17 A EP 435 -   .5 /   8" - 18 UNF
.3 /   4" - 16 UNF 25.6   8.9 14.3 17 A EP 435 -   .3 /   4" - 16 UNF
.7 /   8" - 14 UNF 33.9 12.5 13.6 19 A EP 435 -   .7 /   8" - 14 UNF
1.1 /16" - 12 UN 40.7 12.5 13.4 24 A EP 435 - 1.1 / 16" - 12 UN
1.5 /16" - 12 UN 42.1 13.5 16.5 27 A EP 435 - 1.5 / 16" - 12 UN
1.5 /  8" - 12 UN 55.5 15.7 16.3 36 A EP 435 - 1.5 /   8" - 12 UN
1.5 /  8" - 16 UN 57.6 15.8 16.6 36 A EP 435 - 1.5 /   8" - 16 UN
d1 D L1 L2 SW Type Reference No.
DIN EN ISO 228-1 / DIN 3852-2
G   .1/8" 16.8   7.5 11.2 13 A EP 435 -   .1/8"
G   .1/4" 19.0   7.5 11.3 13 A EP 435 -   .1/4"
G   .3/8" 22.0   7.6 12.5 17 A EP 435 -   .3/8"
G   .1/2" 27.0 10.6 14.7 19 A EP 435 -   .1/2"
G   .3/4" 32.2 10.5 14.2 24 A EP 435 -   .3/4"
G 1." 39.7 13.6 15.8 27 B EP 435 - 1."
G 1.1/4" 49.8 13.5 17.8 36 B EP 435 - 1.1/4"
G 1.1/2" 55.4 13.5 16.5 41 B EP 435 - 1.1/2"
G 2." 68.2 13.5 16.9 55 B EP 435 - 2."
Metric DIN 3852-1 / DIN ISO 6149-1
M 10 x 1 14.0   5.5 11.5 10 B EP 435 - M 10 x 1
M 12 x 1.5 17.2   8.2 11.5 13 A EP 435 - M 12 x 1.5
M 14 x 1.5 19.1 10.1 11.2 13 A EP 435 - M 14 x 1.5
M 16 x 1.5 21.7   7.5 11.6 17 A EP 435 - M 16 x 1.5
M 18 x 1.5 23.8   8.6 12.3 17 A EP 435 - M 18 x 1.5
M 20 x 1.5 25.8   8.5 15.5 19 A EP 435 - M 20 x 1.5
M 22 x 1.5 26.7   8.6 15.5 19 A EP 435 - M 22 x 1.5
M 24 x 1.5 31.2 10.6 15.2 24 A EP 435 - M 24 x 1.5
M 26 x 1.5 31.8   8.5 15.5 24 A EP 435 - M 26 x 1.5
M 27 x 2 32.1 11.5 15.4 24 A EP 435 - M 27 x 2
M 33 x 2 39.6 11.5 15.6 27 B EP 435 - M 33 x 2
M 42 x 2 49.8 11.5 16.6 36 B EP 435 - M 42 x 2
ISO 11926-1
.7 / 16" - 20 UNF 21.0 10.0 10.2 13 A EP 435 -   .7 / 16" - 20 UNF
.1/    2" - 20 UNF 22.8   9.6 11.3 13 A EP 435 -   .1/    2" - 20 UNF
.9 / 16" - 18 UNF 24.8   9.5 11.3 13 A EP 435 -   .9 / 16" - 18 UNF SF4
.5 /   8" - 18 UNF 24.9 10.5 13.2 17 A EP 435 -   .5 /   8" - 18 UNF
.3 /   4" - 16 UNF 25.6   8.9 14.3 17 A EP 435 -   .3 /   4" - 16 UNF
.7 /   8" - 14 UNF 33.9 12.5 13.6 19 A EP 435 -   .7 /   8" - 14 UNF
1.1 /16" - 12 UN 40.7 12.5 13.4 24 A EP 435 - 1.1 / 16" - 12 UN
1.5 /16" - 12 UN 42.1 13.5 16.5 27 A EP 435 - 1.5 / 16" - 12 UN
1.5 /  8" - 12 UN 55.5 15.7 16.3 36 A EP 435 - 1.5 /   8" - 12 UN
1.5 /  8" - 16 UN 57.6 15.8 16.6 36 A EP 435 - 1.5 /   8" - 16 UN
  DIN EN ISO 228-1 / DIN 3852-2
Thread d1
G   .1/8"

Flange D
16.8

Thread Length L1
  7.5

Head Lengt L2
11.2

Spannersize SW
13

Type
A

Reference No.
EP 435 -   .1/8"

Thread d1
G   .1/4"

Flange D
19.0

Thread Length L1
  7.5

Head Lengt L2
11.3

Spannersize SW
13

Type
A

Reference No.
EP 435 -   .1/4"

Thread d1
G   .3/8"

Flange D
22.0

Thread Length L1
  7.6

Head Lengt L2
12.5

Spannersize SW
17

Type
A

Reference No.
EP 435 -   .3/8"

Thread d1
G   .1/2"

Flange D
27.0

Thread Length L1
10.6

Head Lengt L2
14.7

Spannersize SW
19

Type
A

Reference No.
EP 435 -   .1/2"

Thread d1
G   .3/4"

Flange D
32.2

Thread Length L1
10.5

Head Lengt L2
14.2

Spannersize SW
24

Type
A

Reference No.
EP 435 -   .3/4"

Thread d1
G 1."

Flange D
39.7

Thread Length L1
13.6

Head Lengt L2
15.8

Spannersize SW
27

Type
B

Reference No.
EP 435 - 1."

Thread d1
G 1.1/4"

Flange D
49.8

Thread Length L1
13.5

Head Lengt L2
17.8

Spannersize SW
36

Type
B

Reference No.
EP 435 - 1.1/4"

Thread d1
G 1.1/2"

Flange D
55.4

Thread Length L1
13.5

Head Lengt L2
16.5

Spannersize SW
41

Type
B

Reference No.
EP 435 - 1.1/2"

Thread d1
G 2."

Flange D
68.2

Thread Length L1
13.5

Head Lengt L2
16.9

Spannersize SW
55

Type
B

Reference No.
EP 435 - 2."

  Metric DIN 3852-1 / DIN ISO 6149-1
Thread d1
M 10 x 1

Flange D
14.0

Thread Length L1
  5.5

Head Lengt L2
11.5

Spannersize SW
10

Type
B

Reference No.
EP 435 - M 10 x 1

Thread d1
M 12 x 1.5

Flange D
17.2

Thread Length L1
  8.2

Head Lengt L2
11.5

Spannersize SW
13

Type
A

Reference No.
EP 435 - M 12 x 1.5

Thread d1
M 14 x 1.5

Flange D
19.1

Thread Length L1
10.1

Head Lengt L2
11.2

Spannersize SW
13

Type
A

Reference No.
EP 435 - M 14 x 1.5

Thread d1
M 16 x 1.5

Flange D
21.7

Thread Length L1
  7.5

Head Lengt L2
11.6

Spannersize SW
17

Type
A

Reference No.
EP 435 - M 16 x 1.5

Thread d1
M 18 x 1.5

Flange D
23.8

Thread Length L1
  8.6

Head Lengt L2
12.3

Spannersize SW
17

Type
A

Reference No.
EP 435 - M 18 x 1.5

Thread d1
M 20 x 1.5

Flange D
25.8

Thread Length L1
  8.5

Head Lengt L2
15.5

Spannersize SW
19

Type
A

Reference No.
EP 435 - M 20 x 1.5

Thread d1
M 22 x 1.5

Flange D
26.7

Thread Length L1
  8.6

Head Lengt L2
15.5

Spannersize SW
19

Type
A

Reference No.
EP 435 - M 22 x 1.5

Thread d1
M 24 x 1.5

Flange D
31.2

Thread Length L1
10.6

Head Lengt L2
15.2

Spannersize SW
24

Type
A

Reference No.
EP 435 - M 24 x 1.5

Thread d1
M 26 x 1.5

Flange D
31.8

Thread Length L1
  8.5

Head Lengt L2
15.5

Spannersize SW
24

Type
A

Reference No.
EP 435 - M 26 x 1.5

Thread d1
M 27 x 2

Flange D
32.1

Thread Length L1
11.5

Head Lengt L2
15.4

Spannersize SW
24

Type
A

Reference No.
EP 435 - M 27 x 2

Thread d1
M 33 x 2

Flange D
39.6

Thread Length L1
11.5

Head Lengt L2
15.6

Spannersize SW
27

Type
B

Reference No.
EP 435 - M 33 x 2

Thread d1
M 42 x 2

Flange D
49.8

Thread Length L1
11.5

Head Lengt L2
16.6

Spannersize SW
36

Type
B

Reference No.
EP 435 - M 42 x 2

  ISO 11926-1
Thread d1
.7 / 16" - 20 UNF

Flange D
21.0

Thread Length L1
10.0

Head Lengt L2
10.2

Spannersize SW
13

Type
A

Reference No.
EP 435 -   .7 / 16" - 20 UNF

Thread d1
.1/    2" - 20 UNF

Flange D
22.8

Thread Length L1
  9.6

Head Lengt L2
11.3

Spannersize SW
13

Type
A

Reference No.
EP 435 -   .1/    2" - 20 UNF

Thread d1
.9 / 16" - 18 UNF

Flange D
24.8

Thread Length L1
  9.5

Head Lengt L2
11.3

Spannersize SW
13

Type
A

Reference No.
EP 435 -   .9 / 16" - 18 UNF SF4

Thread d1
.5 /   8" - 18 UNF

Flange D
24.9

Thread Length L1
10.5

Head Lengt L2
13.2

Spannersize SW
17

Type
A

Reference No.
EP 435 -   .5 /   8" - 18 UNF

Thread d1
.3 /   4" - 16 UNF

Flange D
25.6

Thread Length L1
  8.9

Head Lengt L2
14.3

Spannersize SW
17

Type
A

Reference No.
EP 435 -   .3 /   4" - 16 UNF

Thread d1
.7 /   8" - 14 UNF

Flange D
33.9

Thread Length L1
12.5

Head Lengt L2
13.6

Spannersize SW
19

Type
A

Reference No.
EP 435 -   .7 /   8" - 14 UNF

Thread d1
1.1 /16" - 12 UN

Flange D
40.7

Thread Length L1
12.5

Head Lengt L2
13.4

Spannersize SW
24

Type
A

Reference No.
EP 435 - 1.1 / 16" - 12 UN

Thread d1
1.5 /16" - 12 UN

Flange D
42.1

Thread Length L1
13.5

Head Lengt L2
16.5

Spannersize SW
27

Type
A

Reference No.
EP 435 - 1.5 / 16" - 12 UN

Thread d1
1.5 /  8" - 12 UN

Flange D
55.5

Thread Length L1
15.7

Head Lengt L2
16.3

Spannersize SW
36

Type
A

Reference No.
EP 435 - 1.5 /   8" - 12 UN

Thread d1
1.5 /  8" - 16 UN

Flange D
57.6

Thread Length L1
15.8

Head Lengt L2
16.6

Spannersize SW
36

Type
A

Reference No.
EP 435 - 1.5 /   8" - 16 UN

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 435 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

EP 435 plugs are specially designed to perfectly seal internal threads to avoid unwanted fluid leakage.

Nylon offers high resistance against hydraulic fluids, acids, base alkalines and solvents.

On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.
