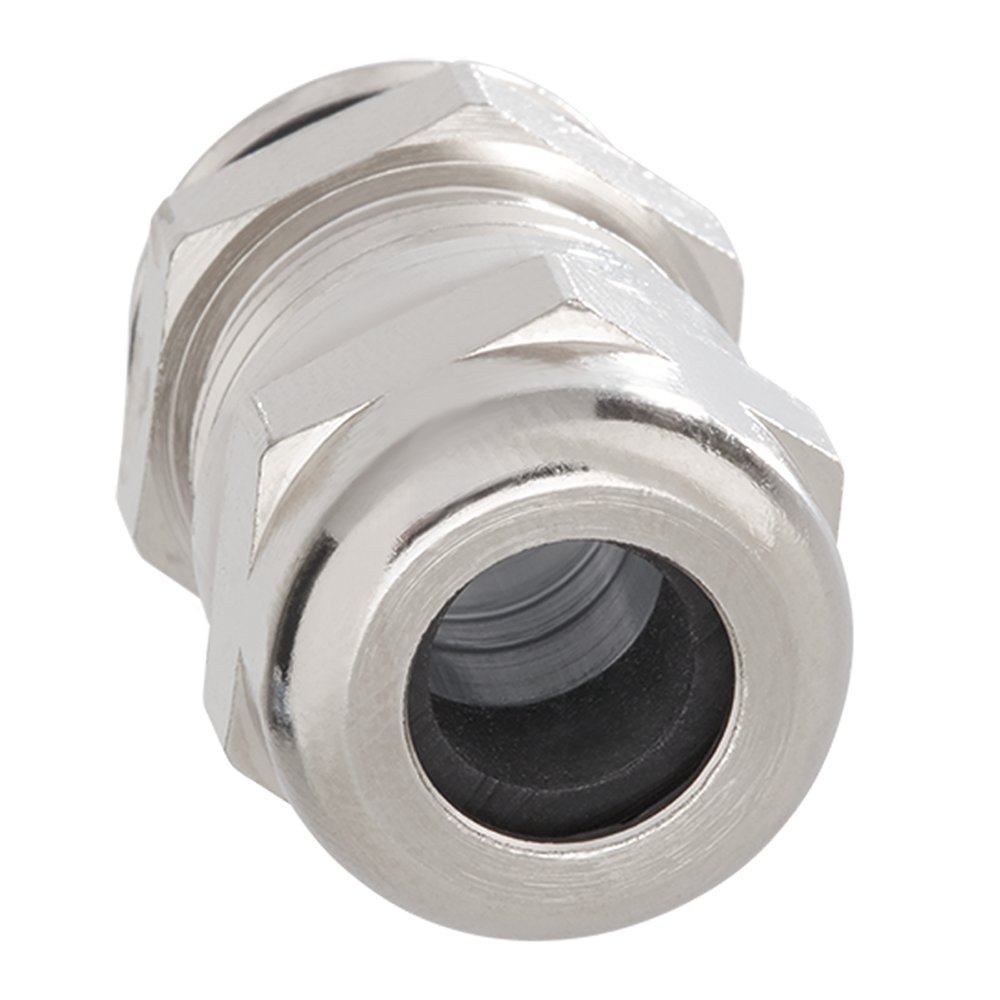

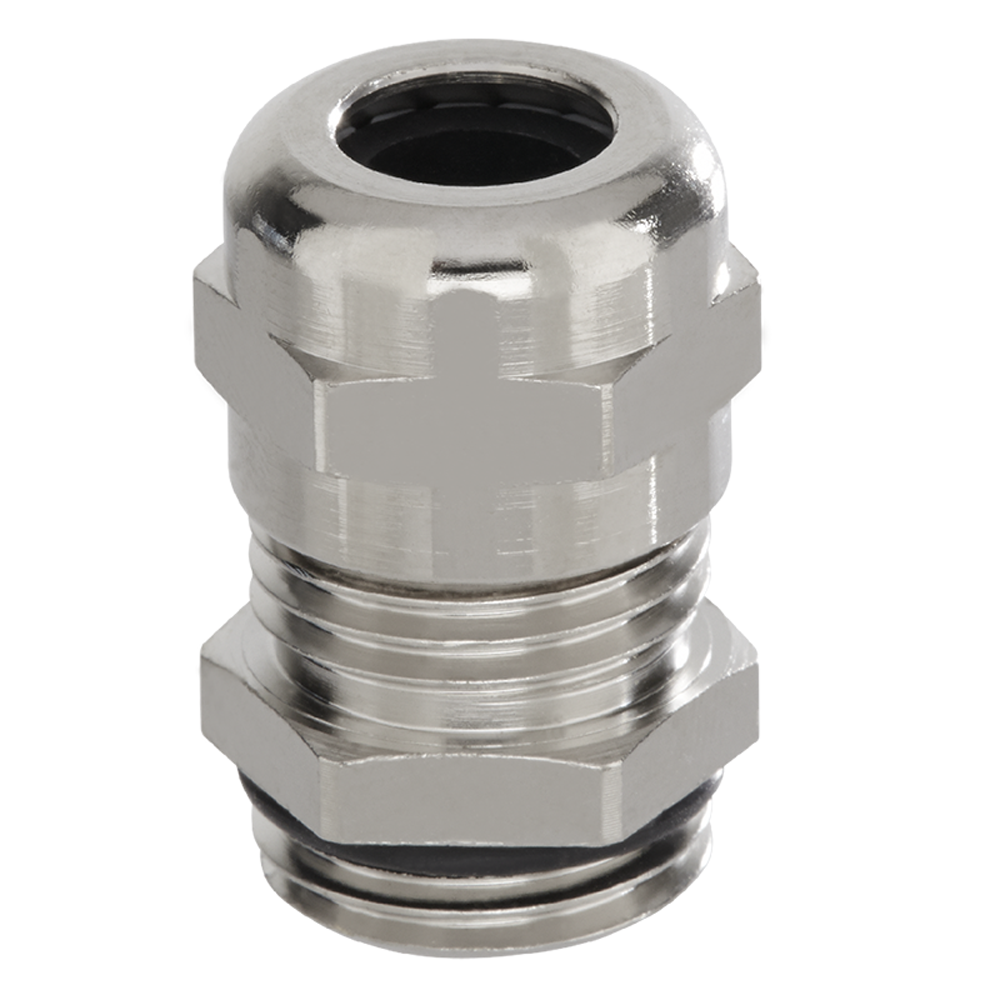

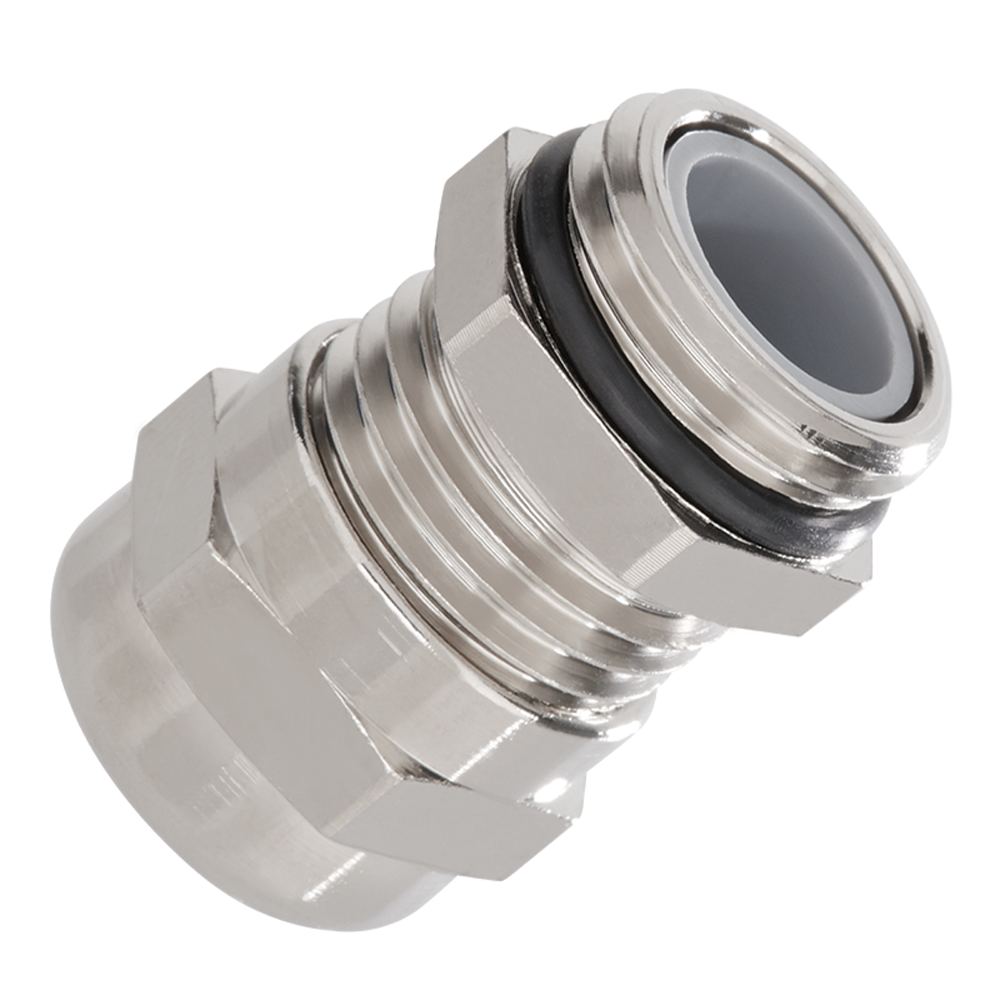

ProteC QuiCk-fit® EPN 700

Cable glands, brass, nickel plated


QuiCk-fit® EPN 700

Cable glands, brass, nickel plated


Integrated strain relief, built-in twisting protection and Easy-to-install.

Wide sealing and clamping range. A wide range of high strength compresion type cable glands manufactured in nickel plated brass with eiter PG or metric thread.

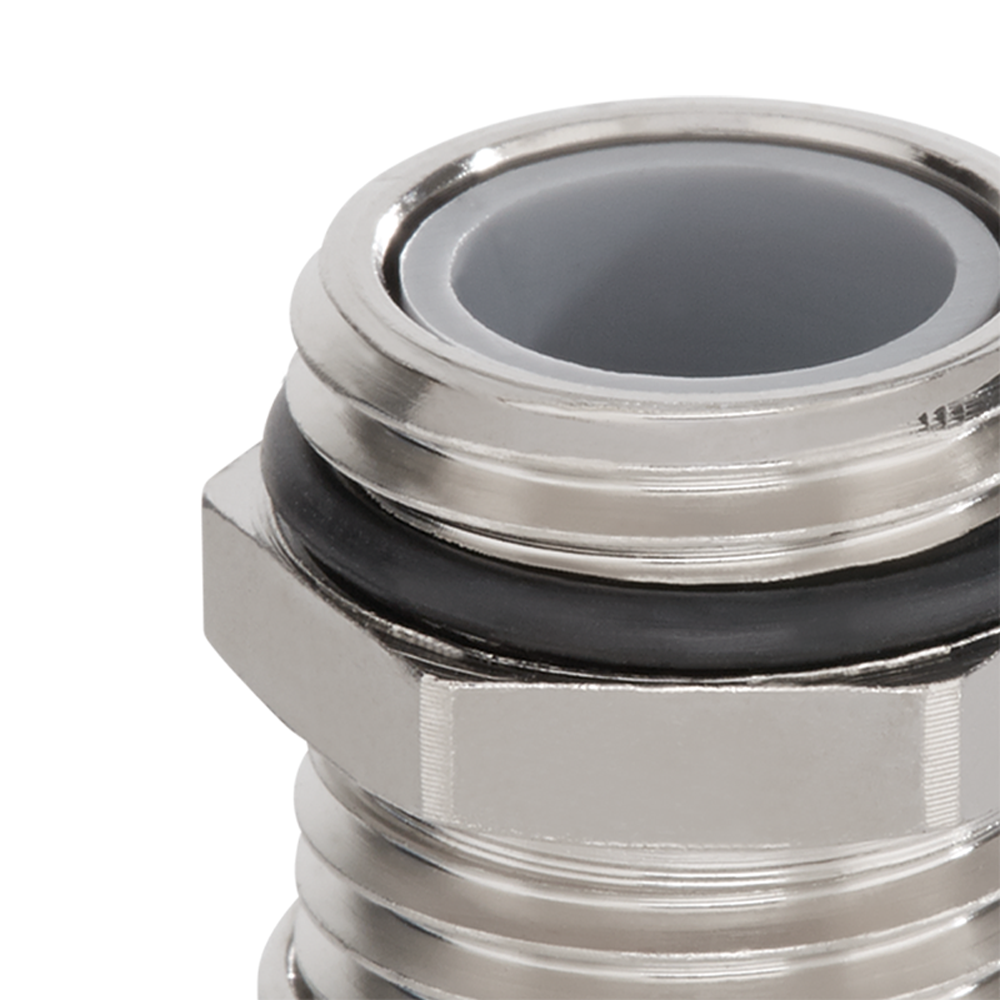

Protection similar to IP 68 is achieved by employing a fully insulated Neoprene cable seal and Perbunan O-Ring on external fixing thread.

Material : Brass, nickel plated
Blade insert : Polyamide PA6 V-2
Sealing ring : Polychloroprene-Nitrile rubber CR/NBR
O-Ring : Nitrile rubber NBR

Protection grade : IP68

PROTEC QUICK-FIT EPN 700

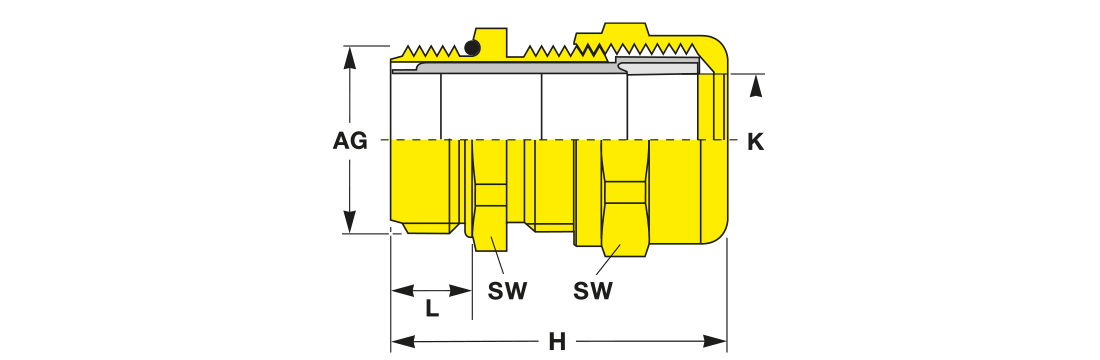

AG K L SW Reference No. Bookmark
  Metric
M 12x1.5   3.0 -   6.0   5.0 SW 14 EPN 700/ M 12 MS
M 16x1.5   5.0 -   9.0   5.0 SW 17 EPN 700/ M 16 MS
M 20x1.5   8.0 - 13.0   6.0 SW 22 EPN 700/ M 20 MS
M 25x1.5 11.0 - 16.0   7.0 SW 27 EPN 700/ M 25 MS
M 32x1.5 15.0 - 21.0   8.0 SW 34 EPN 700/ M 32 MS
M 40x1.5 19.0 - 27.0   8.0 SW 43 EPN 700/ M 40 MS
M 50x1.5 24.0 - 35.0   9.0 SW 55 EPN 700/ M 50 MS
M 63x1.5 34.0 - 44.0 10.0 SW 65 EPN 700/ M 63 MS
  PG
PG   7   3.0 -   6.0   5.0 SW 14 EPN 700/ PG   7 MS
PG   9   4.0 -   8.0   6.0 SW 17 EPN 700/ PG   9 MS
PG 11   5.0 - 10.0   6.3 SW 20 EPN 700/ PG 11 MS
PG 13.5   6.0 - 12.0   6.5 SW 22 EPN 700/ PG 13.5 MS
PG 16 10.0 - 14.0   6.8 SW 24 EPN 700/ PG 16 MS
PG 21 13.0 - 18.0   7.0 SW 30 EPN 700/ PG 21 MS
PG 29 16.0 - 25.0   8.0 SW 40 EPN 700/ PG 29 MS
PG 36 19.0 - 32.0   9.0 SW 50 EPN 700/ PG 36 MS
PG 42 28.0 - 38.0 10.0 SW 57 EPN 700/ PG 42 MS
PG 48 34.0 - 44.0 10.0 SW 64 EPN 700/ PG 48 MS
AG K L SW Reference No.
  Metric
M 12x1.5   3.0 -   6.0   5.0 SW 14 EPN 700/ M 12 MS
M 16x1.5   5.0 -   9.0   5.0 SW 17 EPN 700/ M 16 MS
M 20x1.5   8.0 - 13.0   6.0 SW 22 EPN 700/ M 20 MS
M 25x1.5 11.0 - 16.0   7.0 SW 27 EPN 700/ M 25 MS
M 32x1.5 15.0 - 21.0   8.0 SW 34 EPN 700/ M 32 MS
M 40x1.5 19.0 - 27.0   8.0 SW 43 EPN 700/ M 40 MS
M 50x1.5 24.0 - 35.0   9.0 SW 55 EPN 700/ M 50 MS
M 63x1.5 34.0 - 44.0 10.0 SW 65 EPN 700/ M 63 MS
  PG
PG   7   3.0 -   6.0   5.0 SW 14 EPN 700/ PG   7 MS
PG   9   4.0 -   8.0   6.0 SW 17 EPN 700/ PG   9 MS
PG 11   5.0 - 10.0   6.3 SW 20 EPN 700/ PG 11 MS
PG 13.5   6.0 - 12.0   6.5 SW 22 EPN 700/ PG 13.5 MS
PG 16 10.0 - 14.0   6.8 SW 24 EPN 700/ PG 16 MS
PG 21 13.0 - 18.0   7.0 SW 30 EPN 700/ PG 21 MS
PG 29 16.0 - 25.0   8.0 SW 40 EPN 700/ PG 29 MS
PG 36 19.0 - 32.0   9.0 SW 50 EPN 700/ PG 36 MS
PG 42 28.0 - 38.0 10.0 SW 57 EPN 700/ PG 42 MS
PG 48 34.0 - 44.0 10.0 SW 64 EPN 700/ PG 48 MS
  Metric
Thread AG
M 12x1.5

Clamping-Range K
3.0 - 6.0

Clamping-Range K
5.0

SW
SW 14

Reference No. EPN 700/ M 12 MS

Thread AG
M 16x1.5

Clamping-Range K
5.0 - 9.0

Clamping-Range K
5.0

SW
SW 17

Reference No. EPN 700/ M 16 MS

Thread AG
M 20x1.5

Clamping-Range K
8.0 - 13.0

Clamping-Range K
6.0

SW
SW 22

Reference No. EPN 700/ M 20 MS

Thread AG
M 25x1.5

Clamping-Range K
11.0 - 16.0

Clamping-Range K
7.0

SW
SW 27

Reference No. EPN 700/ M 25 MS

Thread AG
M 32x1.5

Clamping-Range K
15.0 - 21.0

Clamping-Range K
8.0

SW
SW 34

Reference No. EPN 700/ M 32 MS

Thread AG
M 40x1.5

Clamping-Range K
19.0 - 27.0

Clamping-Range K
8.0

SW
SW 43

Reference No. EPN 700/ M 40 MS

Thread AG
M 50x1.5

Clamping-Range K
24.0 - 35.0

Clamping-Range K
9.0

SW
SW 55

Reference No. EPN 700/ M 50 MS

Thread AG
M 63x1.5

Clamping-Range K
34.0 - 44.0

Clamping-Range K
10.0

SW
SW 65

Reference No. EPN 700/ M 63 MS

  PG
Thread AG
PG 7

Clamping-Range K
3.0 - 6.0

Clamping-Range K
5.0

SW
SW 14

Reference No. EPN 700/ PG 7 MS

Thread AG
PG 9

Clamping-Range K
4.0 - 8.0

Clamping-Range K
6.0

SW
SW 17

Reference No. EPN 700/ PG 9 MS

Thread AG
PG 11

Clamping-Range K
5.0 - 10.0

Clamping-Range K
6.3

SW
SW 20

Reference No. EPN 700/ PG 11 MS

Thread AG
PG 13.5

Clamping-Range K
6.0 - 12.0

Clamping-Range K
6.5

SW
SW 22

Reference No. EPN 700/ PG 13.5 MS

Thread AG
PG 16

Clamping-Range K
10.0 - 14.0

Clamping-Range K
6.8

SW
SW 24

Reference No. EPN 700/ PG 16 MS

Thread AG
PG 21

Clamping-Range K
13.0 - 18.0

Clamping-Range K
7.0

SW
SW 30

Reference No. EPN 700/ PG 21 MS

Thread AG
PG 29

Clamping-Range K
16.0 - 25.0

Clamping-Range K
8.0

SW
SW 40

Reference No. EPN 700/ PG 29 MS

Thread AG
PG 36

Clamping-Range K
19.0 - 32.0

Clamping-Range K
9.0

SW
SW 50

Reference No. EPN 700/ PG 36 MS

Thread AG
PG 42

Clamping-Range K
28.0 - 38.0

Clamping-Range K
10.0

SW
SW 57

Reference No. EPN 700/ PG 42 MS

Thread AG
PG 48

Clamping-Range K
34.0 - 44.0

Clamping-Range K
10.0

SW
SW 64

Reference No. EPN 700/ PG 48 MS

PROTEC products and specifications are subject to improvement and change without notice.

QUICK-FIT® EPN 700 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
