ProteC Prosicon® EPS 450

High Temp Silicone Multi-Flanged Plugs


Prosicon® EPS 450

High Temp Silicone Multi-Flanged Plugs


Multi-Flanged Plugs are designed to mask plain holes and internal threads.

Flexible fins allow the plug to fit a range of hole sizes.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code:
Reusable

Color:
Special color runs available on request

Material:
Prosicon® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

HEAT RESISTANT!
PROTEC PROSICON EPS 450

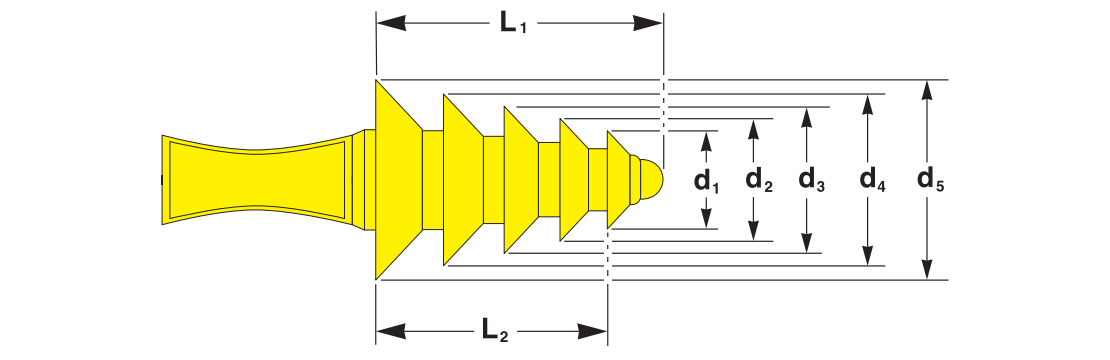

Metric d1 d2 d3 d4 d5 L1 L2 Shore A Std. Color VPE Reference No. Bookmark
M 4 - M 10  4.00 6.00 8.00 10.00 ----  10.63 13.60 60 Blue 500 EPS 450 / 4-10
M 8 - M 14  8.00 10.00 12.00 14.00 16.00 19.00 23.50 60 Brown 200 EPS 450 / 8-16
M 10 - M 16  10.00 12.00 14.00 16.00 18.00 19.00 24.00 60 Green 200 EPS 450 /10-18
Metric d1 d2 d3 L1 L2 Reference No.
M 4 - M 10  4.00 6.00 8.00 10.63 13.60 EPS 450 / 4-10
M 8 - M 14  8.00 10.00 12.00 19.00 23.50 EPS 450 / 8-16
M 10 - M 16  10.00 12.00 14.00 19.00 24.00 EPS 450 /10-18
Metric
M 4 - M 10

d1
4.00

d2
6.00

d3
8.00

d4
10.00

d5
----

L1
10.63

L2
13.60

Shore A
60

Std. Color
^
Blue

Packaging Unit
500

Reference No.
EPS 450 / 4-10

Metric
M 8 - M 14

d1
8.00

d2
10.00

d3
12.00

d4
14.00

d5
16.00

L1
19.00

L2
23.50

Shore A
60

Std. Color
^
Brown

Packaging Unit
200

Reference No.
EPS 450 / 8-16

Metric
M 10 - M 16

d1
10.00

d2
12.00

d3
14.00

d4
16.00

d5
18.00

L1
19.00

L2
24.00

Shore A
60

Std. Color
^
Green

Packaging Unit
200

Reference No.
EPS 450 /10-18

PROTEC products and specifications are subject to improvement and change without notice.

PROSICON® EPS 450 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.
