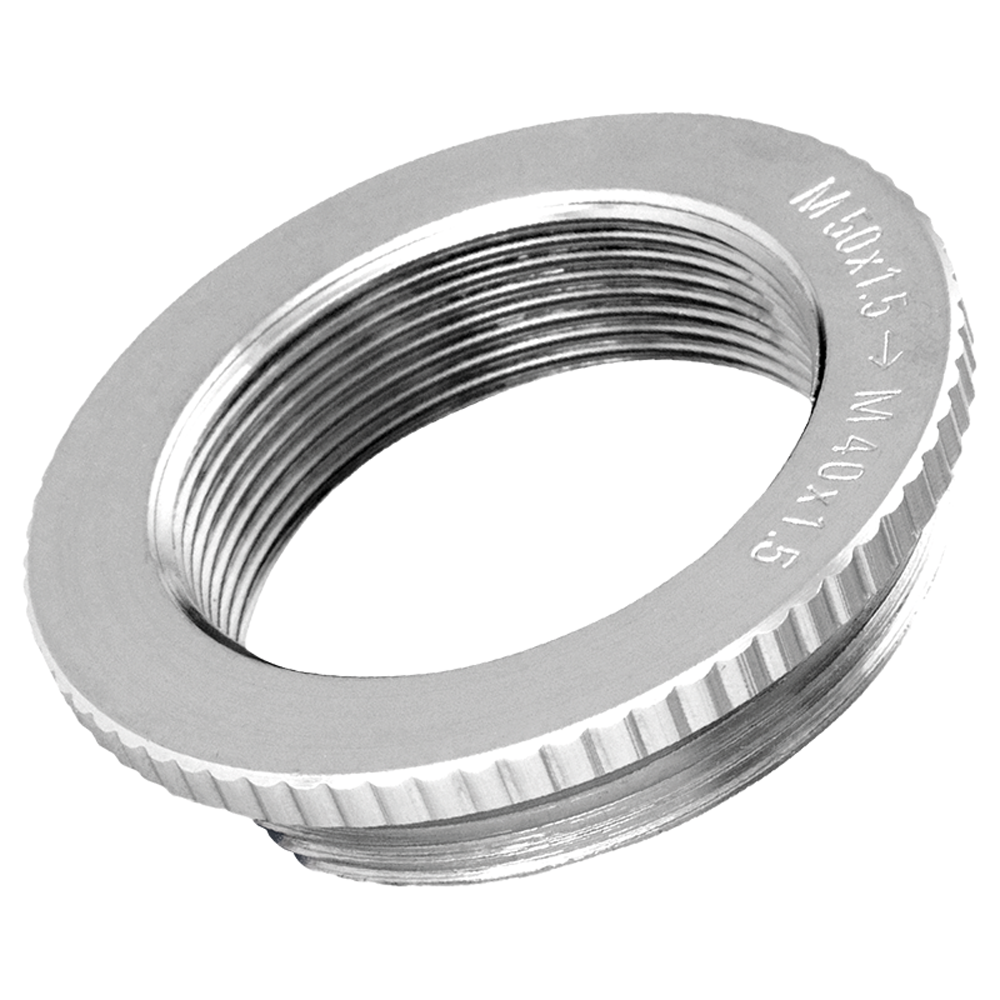

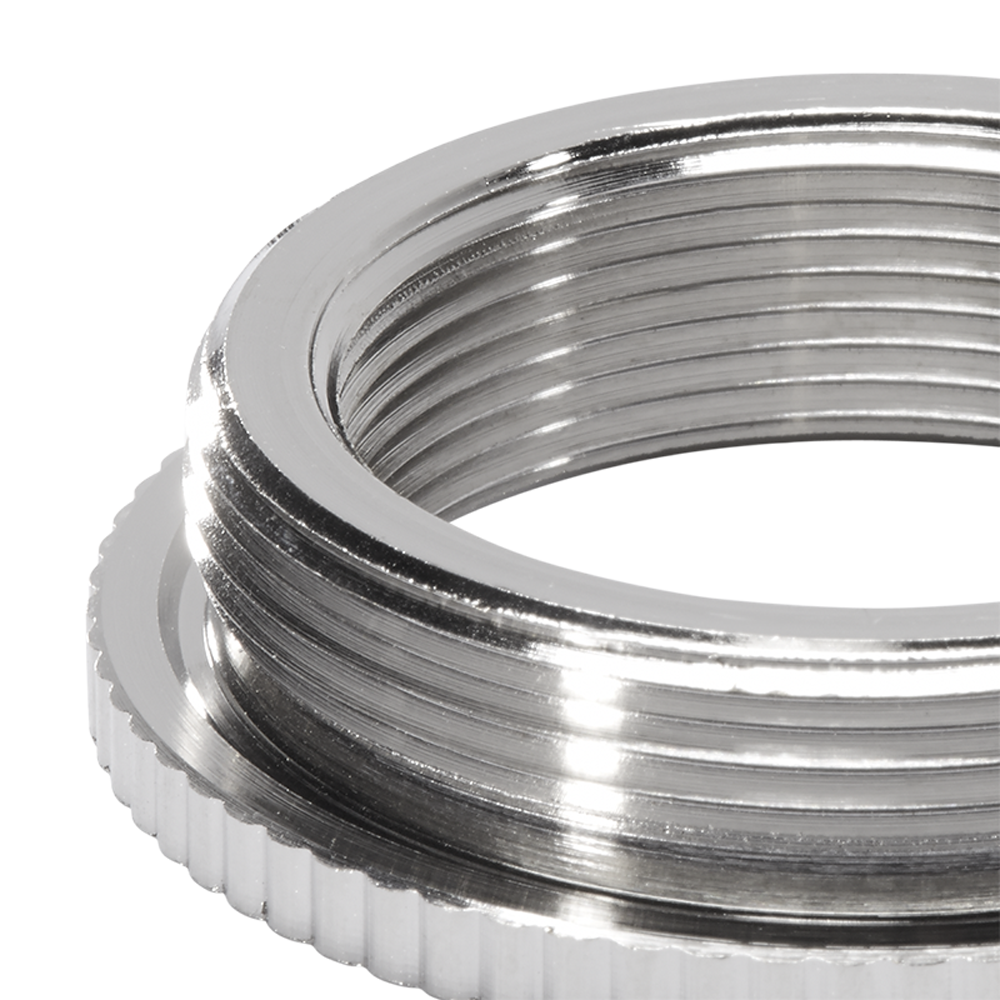

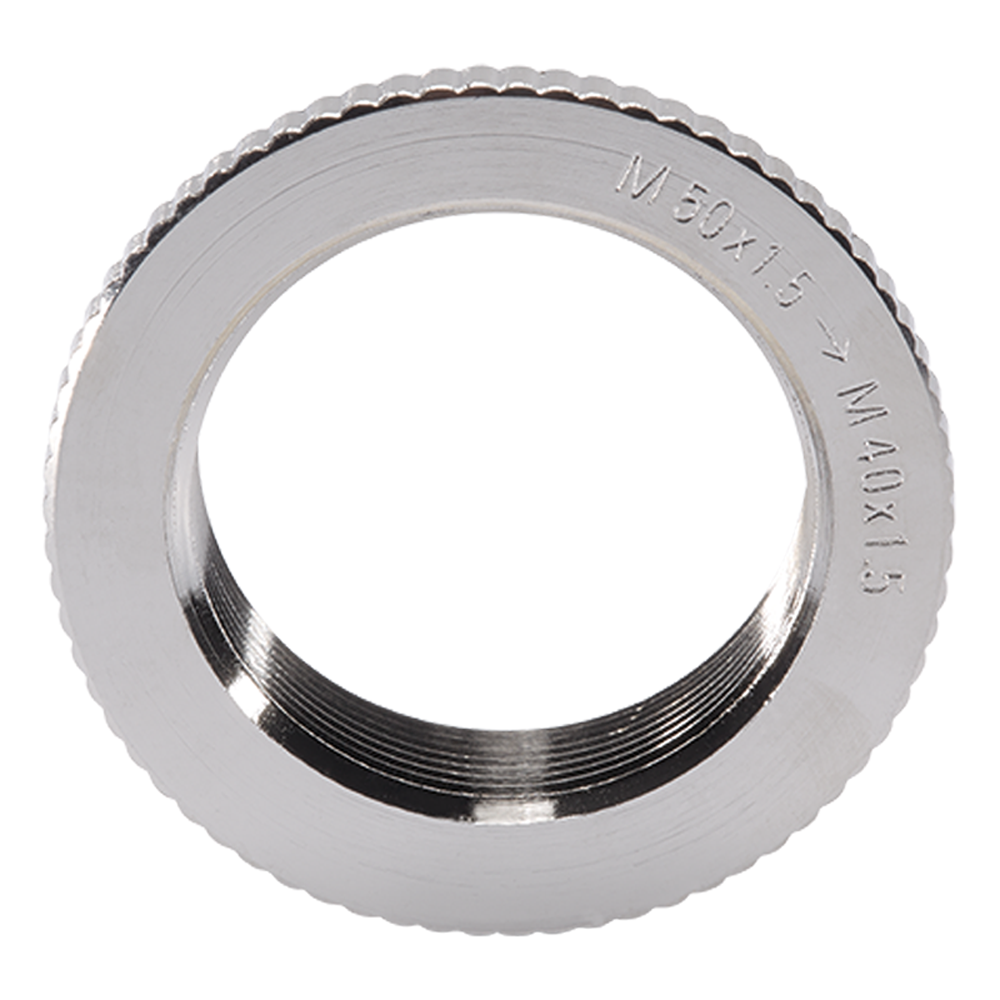

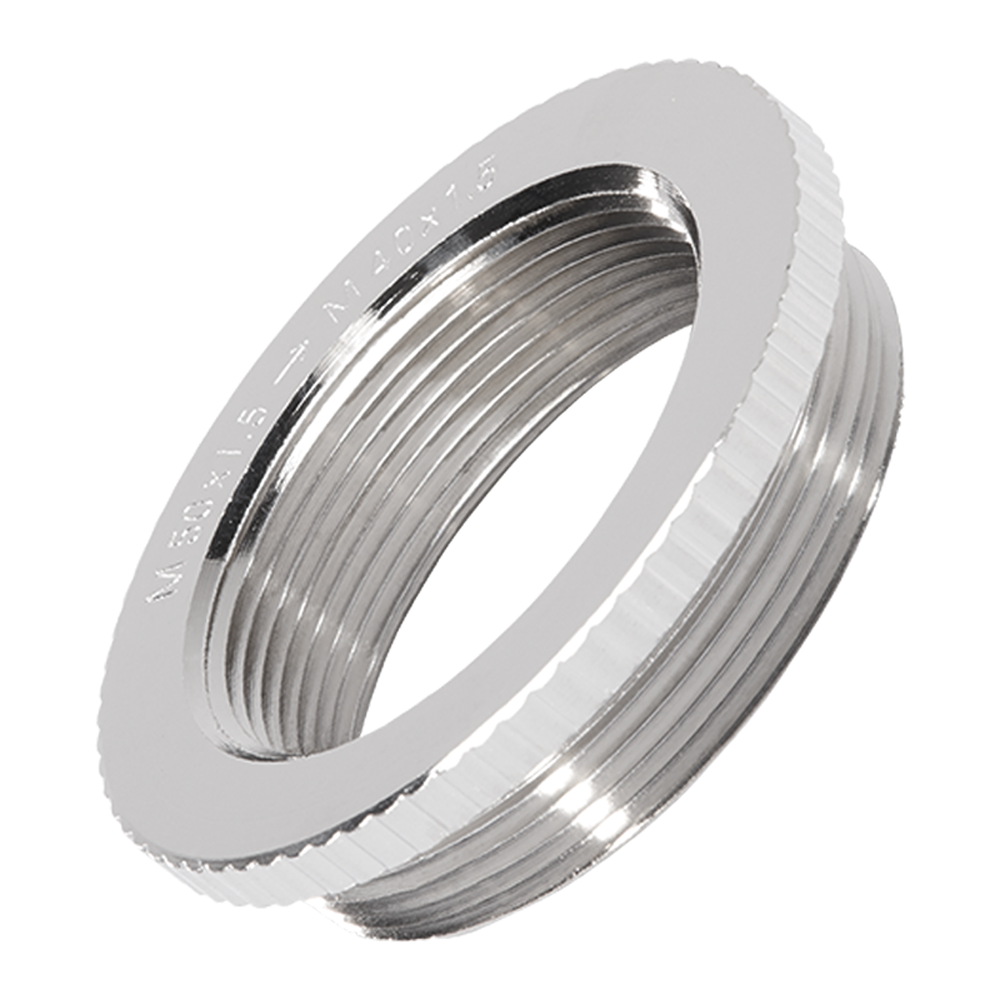

ProteC QuiCk-fit® EPN 720

Thread reducers, brass, nickel plated


QuiCk-fit® EPN 720

Thread reducers, brass, nickel plated


These components reduce the threaded entry diameter on any threaded interface from a larger to smaller thread size in order to accept a suitable gland.

Configuration: From large external Metric to small internal Metric and from large external PG to small internal PG.

Available for both metric to metric and PG to PG-threads.

Material: Brass, nickel plated

PROTEC QUICK-FIT EPN 720

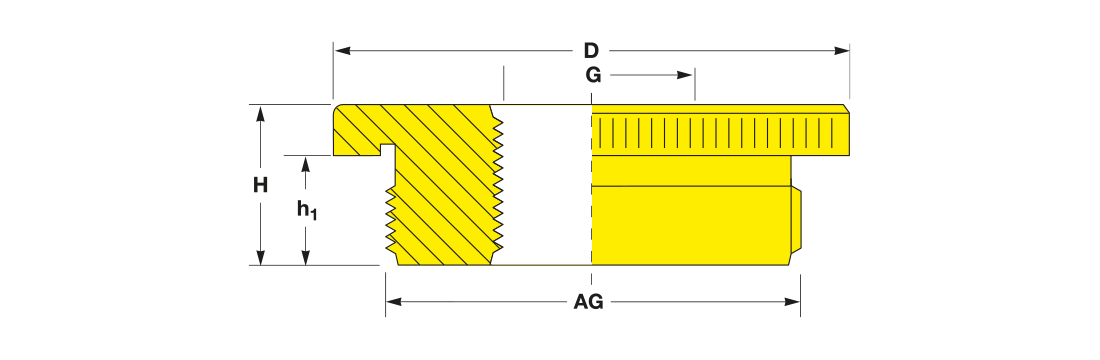

AG IG D h1 H Reference No. Bookmark
  Metric
M 16 x 1.5 M 12 x 1.5 20.0   6.0   8.5 EPN 720/  M 16 - M 12
M 20 x 1.5 M 12 x 1.5 24.0   6.5   9.0 EPN 720/  M 20 - M 12
M 20 x 1.5 M 16 x 1.5 24.0   6.5   9.0 EPN 720/  M 20 - M 16
M 25 x 1.5 M 16 x 1.5 30.0   7.0 10.0 EPN 720/  M 25 - M 16
M 25 x 1.5 M 20 x 1.5 30.0   7.0 10.0 EPN 720/  M 25 - M 20
M 32 x 1.5 M 20 x 1.5 39.0   8.0 11.5 EPN 720/  M 32 - M 20
M 32 x 1.5 M 25 x 1.5 39.0   8.0 11.5 EPN 720/  M 32 - M 25
M 40 x 1.5 M 25 x 1.5 50.0   9.0 12.5 EPN 720/  M 40 - M 25
M 40 x 1.5 M 32 x 1.5 50.0   9.0 12.5 EPN 720/  M 40 - M 32
M 50 x 1.5 M 32 x 1.5 57.0 10.0 14.0 EPN 720/  M 50 - M 32
M 50 x 1.5 M 40 x 1.5 57.0 10.0 14.0 EPN 720/  M 50 - M 40
M 63 x 1.5 M 40 x 1.5 70.0 10.0 14.0 EPN 720/  M 63 - M 40
M 63 x 1.5 M 50 x 1.5 70.0 10.0 14.0 EPN 720/  M 63 - M 50
  PG
PG   9 PG   7 17.0   6.0   8.5 EPN 720/  PG   9 - PG   7
PG 11 PG   7 20.0   6.0   8.5 EPN 720/  PG 11 - PG   7
PG 11 PG   9 20.0   6.0   8.5 EPN 720/  PG 11 - PG   9
PG 13.5 PG   7 22.0   6.5   9.0 EPN 720/  PG 13.5 - PG   7
PG 13.5 PG   9 22.0   6.5   9.0 EPN 720/  PG 13.5 - PG   9
PG 13.5 PG 11 22.0   6.5   9.0 EPN 720/  PG 13.5 - PG 11
PG 16 PG   7 24.0   6.5   9.5 EPN 720/  PG 16 - PG   7
PG 16 PG   9 24.0   6.5   9.5 EPN 720/  PG 16 - PG   9
PG 16 PG 11 24.0   6.5   9.5 EPN 720/  PG 16 - PG 11
PG 16 PG 13.5 24.0   6.5   9.5 EPN 720/  PG 16 - PG 13.5
PG 21 PG 11 30.0   7.0 10.0 EPN 720/  PG 21 - PG 11
PG 21 PG 13.5 30.0   7.0 10.0 EPN 720/  PG 21 - PG 13.5
PG 21 PG 16 30.0   7.0 10.0 EPN 720/  PG 21 - PG 16
PG 29 PG 13.5 39.0   8.0 11.5 EPN 720/  PG 29 - PG 13.5
PG 29 PG 16 39.0   8.0 11.5 EPN 720/  PG 29 - PG 16
PG 29 PG 21 39.0   8.0 11.5 EPN 720/  PG 29 - PG 21
PG 36 PG 16 50.0   9.0 12.5 EPN 720/  PG 36 - PG 16
PG 36 PG 21 50.0   9.0 12.5 EPN 720/  PG 36 - PG 21
PG 36 PG 29 51.0   9.0 12.5 EPN 720/  PG 36 - PG 29
PG 42 PG 21 57.0 10.0 14.0 EPN 720/  PG 42 - PG 21
PG 42 PG 29 57.0 10.0 14.0 EPN 720/  PG 42 - PG 29
PG 42 PG 36 57.0 10.0 14.0 EPN 720/  PG 42 - PG 36
PG 48 PG 29 64.0 10.0 14.0 EPN 720/  PG 48 - PG 29
PG 48 PG 36 64.0 10.0 14.0 EPN 720/  PG 48 - PG 36
PG 48 PG 42 64.0 10.0 14.0 EPN 720/  PG 48 - PG 42
AG IG D h1 H Reference No.
  Metric
M 16 x 1.5 M 12 x 1.5 20.0   6.0   8.5 EPN 720/  M 16 - M 12
M 20 x 1.5 M 12 x 1.5 24.0   6.5   9.0 EPN 720/  M 20 - M 12
M 20 x 1.5 M 16 x 1.5 24.0   6.5   9.0 EPN 720/  M 20 - M 16
M 25 x 1.5 M 16 x 1.5 30.0   7.0 10.0 EPN 720/  M 25 - M 16
M 25 x 1.5 M 20 x 1.5 30.0   7.0 10.0 EPN 720/  M 25 - M 20
M 32 x 1.5 M 20 x 1.5 39.0   8.0 11.5 EPN 720/  M 32 - M 20
M 32 x 1.5 M 25 x 1.5 39.0   8.0 11.5 EPN 720/  M 32 - M 25
M 40 x 1.5 M 25 x 1.5 50.0   9.0 12.5 EPN 720/  M 40 - M 25
M 40 x 1.5 M 32 x 1.5 50.0   9.0 12.5 EPN 720/  M 40 - M 32
M 50 x 1.5 M 32 x 1.5 57.0 10.0 14.0 EPN 720/  M 50 - M 32
M 50 x 1.5 M 40 x 1.5 57.0 10.0 14.0 EPN 720/  M 50 - M 40
M 63 x 1.5 M 40 x 1.5 70.0 10.0 14.0 EPN 720/  M 63 - M 40
M 63 x 1.5 M 50 x 1.5 70.0 10.0 14.0 EPN 720/  M 63 - M 50
  PG
PG   9 PG   7 17.0   6.0   8.5 EPN 720/  PG   9 - PG   7
PG 11 PG   7 20.0   6.0   8.5 EPN 720/  PG 11 - PG   7
PG 11 PG   9 20.0   6.0   8.5 EPN 720/  PG 11 - PG   9
PG 13.5 PG   7 22.0   6.5   9.0 EPN 720/  PG 13.5 - PG   7
PG 13.5 PG   9 22.0   6.5   9.0 EPN 720/  PG 13.5 - PG   9
PG 13.5 PG 11 22.0   6.5   9.0 EPN 720/  PG 13.5 - PG 11
PG 16 PG   7 24.0   6.5   9.5 EPN 720/  PG 16 - PG   7
PG 16 PG   9 24.0   6.5   9.5 EPN 720/  PG 16 - PG   9
PG 16 PG 11 24.0   6.5   9.5 EPN 720/  PG 16 - PG 11
PG 16 PG 13.5 24.0   6.5   9.5 EPN 720/  PG 16 - PG 13.5
PG 21 PG 11 30.0   7.0 10.0 EPN 720/  PG 21 - PG 11
PG 21 PG 13.5 30.0   7.0 10.0 EPN 720/  PG 21 - PG 13.5
PG 21 PG 16 30.0   7.0 10.0 EPN 720/  PG 21 - PG 16
PG 29 PG 13.5 39.0   8.0 11.5 EPN 720/  PG 29 - PG 13.5
PG 29 PG 16 39.0   8.0 11.5 EPN 720/  PG 29 - PG 16
PG 29 PG 21 39.0   8.0 11.5 EPN 720/  PG 29 - PG 21
PG 36 PG 16 50.0   9.0 12.5 EPN 720/  PG 36 - PG 16
PG 36 PG 21 50.0   9.0 12.5 EPN 720/  PG 36 - PG 21
PG 36 PG 29 51.0   9.0 12.5 EPN 720/  PG 36 - PG 29
PG 42 PG 21 57.0 10.0 14.0 EPN 720/  PG 42 - PG 21
PG 42 PG 29 57.0 10.0 14.0 EPN 720/  PG 42 - PG 29
PG 42 PG 36 57.0 10.0 14.0 EPN 720/  PG 42 - PG 36
PG 48 PG 29 64.0 10.0 14.0 EPN 720/  PG 48 - PG 29
PG 48 PG 36 64.0 10.0 14.0 EPN 720/  PG 48 - PG 36
PG 48 PG 42 64.0 10.0 14.0 EPN 720/  PG 48 - PG 42
  Metric
from Thread external AG
M 16 x 1.5

to Thread inmternal IG
M 12 x 1.5

Ø external D
20.0

Thread Length h1
6.0

Depth H
8.5

Reference No. EPN 720/ M 16 - M 12

from Thread external AG
M 20 x 1.5

to Thread inmternal IG
M 12 x 1.5

Ø external D
24.0

Thread Length h1
6.5

Depth H
9.0

Reference No. EPN 720/ M 20 - M 12

from Thread external AG
M 20 x 1.5

to Thread inmternal IG
M 16 x 1.5

Ø external D
24.0

Thread Length h1
6.5

Depth H
9.0

Reference No. EPN 720/ M 20 - M 16

from Thread external AG
M 25 x 1.5

to Thread inmternal IG
M 16 x 1.5

Ø external D
30.0

Thread Length h1
7.0

Depth H
10.0

Reference No. EPN 720/ M 25 - M 16

from Thread external AG
M 25 x 1.5

to Thread inmternal IG
M 20 x 1.5

Ø external D
30.0

Thread Length h1
7.0

Depth H
10.0

Reference No. EPN 720/ M 25 - M 20

from Thread external AG
M 32 x 1.5

to Thread inmternal IG
M 20 x 1.5

Ø external D
39.0

Thread Length h1
8.0

Depth H
11.5

Reference No. EPN 720/ M 32 - M 20

from Thread external AG
M 32 x 1.5

to Thread inmternal IG
M 25 x 1.5

Ø external D
39.0

Thread Length h1
8.0

Depth H
11.5

Reference No. EPN 720/ M 32 - M 25

from Thread external AG
M 40 x 1.5

to Thread inmternal IG
M 25 x 1.5

Ø external D
50.0

Thread Length h1
9.0

Depth H
12.5

Reference No. EPN 720/ M 40 - M 25

from Thread external AG
M 40 x 1.5

to Thread inmternal IG
M 32 x 1.5

Ø external D
50.0

Thread Length h1
9.0

Depth H
12.5

Reference No. EPN 720/ M 40 - M 32

from Thread external AG
M 50 x 1.5

to Thread inmternal IG
M 32 x 1.5

Ø external D
57.0

Thread Length h1
10.0

Depth H
14.0

Reference No. EPN 720/ M 50 - M 32

from Thread external AG
M 50 x 1.5

to Thread inmternal IG
M 40 x 1.5

Ø external D
57.0

Thread Length h1
10.0

Depth H
14.0

Reference No. EPN 720/ M 50 - M 40

from Thread external AG
M 63 x 1.5

to Thread inmternal IG
M 40 x 1.5

Ø external D
70.0

Thread Length h1
10.0

Depth H
14.0

Reference No. EPN 720/ M 63 - M 40

from Thread external AG
M 63 x 1.5

to Thread inmternal IG
M 50 x 1.5

Ø external D
70.0

Thread Length h1
10.0

Depth H
14.0

Reference No. EPN 720/ M 63 - M 50

  PG
from Thread external AG
PG 9

to Thread inmternal IG
PG 7

Ø external D
17.0

Thread Length h1
6.0

Depth H
8.5

Reference No. EPN 720/ PG 9 - PG 7

from Thread external AG
PG 11

to Thread inmternal IG
PG 7

Ø external D
20.0

Thread Length h1
6.0

Depth H
8.5

Reference No. EPN 720/ PG 11 - PG 7

from Thread external AG
PG 11

to Thread inmternal IG
PG 9

Ø external D
20.0

Thread Length h1
6.0

Depth H
8.5

Reference No. EPN 720/ PG 11 - PG 9

from Thread external AG
PG 13.5

to Thread inmternal IG
PG 7

Ø external D
22.0

Thread Length h1
6.5

Depth H
9.0

Reference No. EPN 720/ PG 13.5 - PG 7

from Thread external AG
PG 13.5

to Thread inmternal IG
PG 9

Ø external D
22.0

Thread Length h1
6.5

Depth H
9.0

Reference No. EPN 720/ PG 13.5 - PG 9

from Thread external AG
PG 13.5

to Thread inmternal IG
PG 11

Ø external D
22.0

Thread Length h1
6.5

Depth H
9.0

Reference No. EPN 720/ PG 13.5 - PG 11

from Thread external AG
PG 16

to Thread inmternal IG
PG 7

Ø external D
24.0

Thread Length h1
6.5

Depth H
9.5

Reference No. EPN 720/ PG 16 - PG 7

from Thread external AG
PG 16

to Thread inmternal IG
PG 9

Ø external D
24.0

Thread Length h1
6.5

Depth H
9.5

Reference No. EPN 720/ PG 16 - PG 9

from Thread external AG
PG 16

to Thread inmternal IG
PG 11

Ø external D
24.0

Thread Length h1
6.5

Depth H
9.5

Reference No. EPN 720/ PG 16 - PG 11

from Thread external AG
PG 16

to Thread inmternal IG
PG 13.5

Ø external D
24.0

Thread Length h1
6.5

Depth H
9.5

Reference No. EPN 720/ PG 16 - PG 13.5

from Thread external AG
PG 21

to Thread inmternal IG
PG 11

Ø external D
30.0

Thread Length h1
7.0

Depth H
10.0

Reference No. EPN 720/ PG 21 - PG 11

from Thread external AG
PG 21

to Thread inmternal IG
PG 13.5

Ø external D
30.0

Thread Length h1
7.0

Depth H
10.0

Reference No. EPN 720/ PG 21 - PG 13.5

from Thread external AG
PG 21

to Thread inmternal IG
PG 16

Ø external D
30.0

Thread Length h1
7.0

Depth H
10.0

Reference No. EPN 720/ PG 21 - PG 16

from Thread external AG
PG 29

to Thread inmternal IG
PG 13.5

Ø external D
39.0

Thread Length h1
8.0

Depth H
11.5

Reference No. EPN 720/ PG 29 - PG 13.5

from Thread external AG
PG 29

to Thread inmternal IG
PG 16

Ø external D
39.0

Thread Length h1
8.0

Depth H
11.5

Reference No. EPN 720/ PG 29 - PG 16

from Thread external AG
PG 29

to Thread inmternal IG
PG 21

Ø external D
39.0

Thread Length h1
8.0

Depth H
11.5

Reference No. EPN 720/ PG 29 - PG 21

from Thread external AG
PG 36

to Thread inmternal IG
PG 16

Ø external D
50.0

Thread Length h1
9.0

Depth H
12.5

Reference No. EPN 720/ PG 36 - PG 16

from Thread external AG
PG 36

to Thread inmternal IG
PG 21

Ø external D
50.0

Thread Length h1
9.0

Depth H
12.5

Reference No. EPN 720/ PG 36 - PG 21

from Thread external AG
PG 36

to Thread inmternal IG
PG 29

Ø external D
51.0

Thread Length h1
9.0

Depth H
12.5

Reference No. EPN 720/ PG 36 - PG 29

from Thread external AG
PG 42

to Thread inmternal IG
PG 21

Ø external D
57.0

Thread Length h1
10.0

Depth H
14.0

Reference No. EPN 720/ PG 42 - PG 21

from Thread external AG
PG 42

to Thread inmternal IG
PG 29

Ø external D
57.0

Thread Length h1
10.0

Depth H
14.0

Reference No. EPN 720/ PG 42 - PG 29

from Thread external AG
PG 42

to Thread inmternal IG
PG 36

Ø external D
57.0

Thread Length h1
10.0

Depth H
14.0

Reference No. EPN 720/ PG 42 - PG 36

from Thread external AG
PG 48

to Thread inmternal IG
PG 29

Ø external D
64.0

Thread Length h1
10.0

Depth H
14.0

Reference No. EPN 720/ PG 48 - PG 29

from Thread external AG
PG 48

to Thread inmternal IG
PG 36

Ø external D
64.0

Thread Length h1
10.0

Depth H
14.0

Reference No. EPN 720/ PG 48 - PG 36

from Thread external AG
PG 48

to Thread inmternal IG
PG 42

Ø external D
64.0

Thread Length h1
10.0

Depth H
14.0

Reference No. EPN 720/ PG 48 - PG 42

PROTEC products and specifications are subject to improvement and change without notice.

QUICK-FIT® EPN 720 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.

You might also be interested in these PROTEC series

QUICK-FIT® EPN 705

EMC cable glands, brass, nickel plated

QUICK-FIT® EPN 750

Thread adapters, brass, nickel plated

QUICK-FIT® EPN 700

Cable glands, brass, nickel plated

QUICK-FIT® EPN 740

Thread enlargers, brass, nickel plated

Certified production & quality management

PROTEC meets the most stringent demands of safety and operations reliability. International approvals and certifications such as UL, CSA, VDE, VDA 6.1 and DIN EN ISO 9001: 2015 demonstrate total quality commitment on superior level.

Be the first to know - Join our newsletter!

Stay on top of the latest news and upcoming events and event information from PROTEC and its partner. Be the first to know when new products are on the market. Get periodic specials and news delivered directly to your email inbox! You can un-subscribe anytime.

Sign our free newsletter now

Imprint | Contact form | Privacy policy | Jobs at PROTEC | Certifications

copyright (c) 2024 PROTEC PLASTICS THE CAP COMPANY LTD
