ProteC CaPtoP® EP 810 Typ 3.2

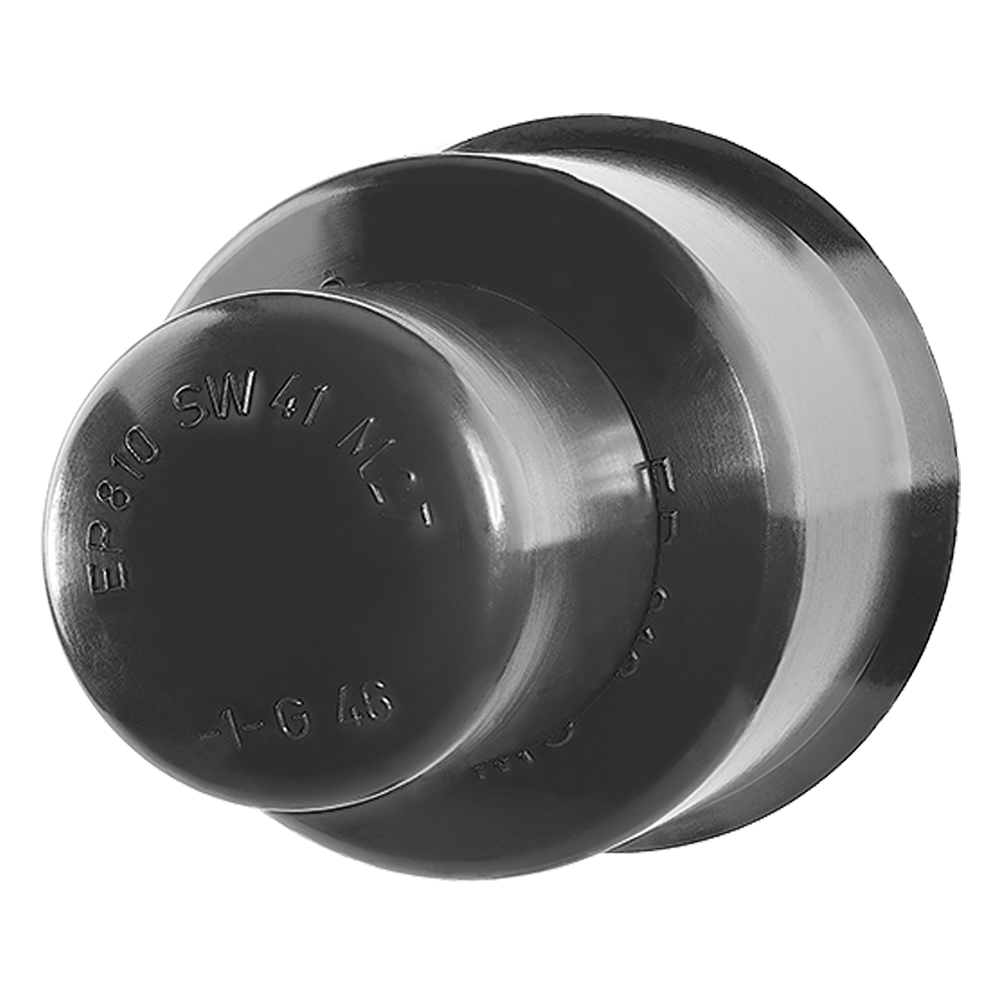

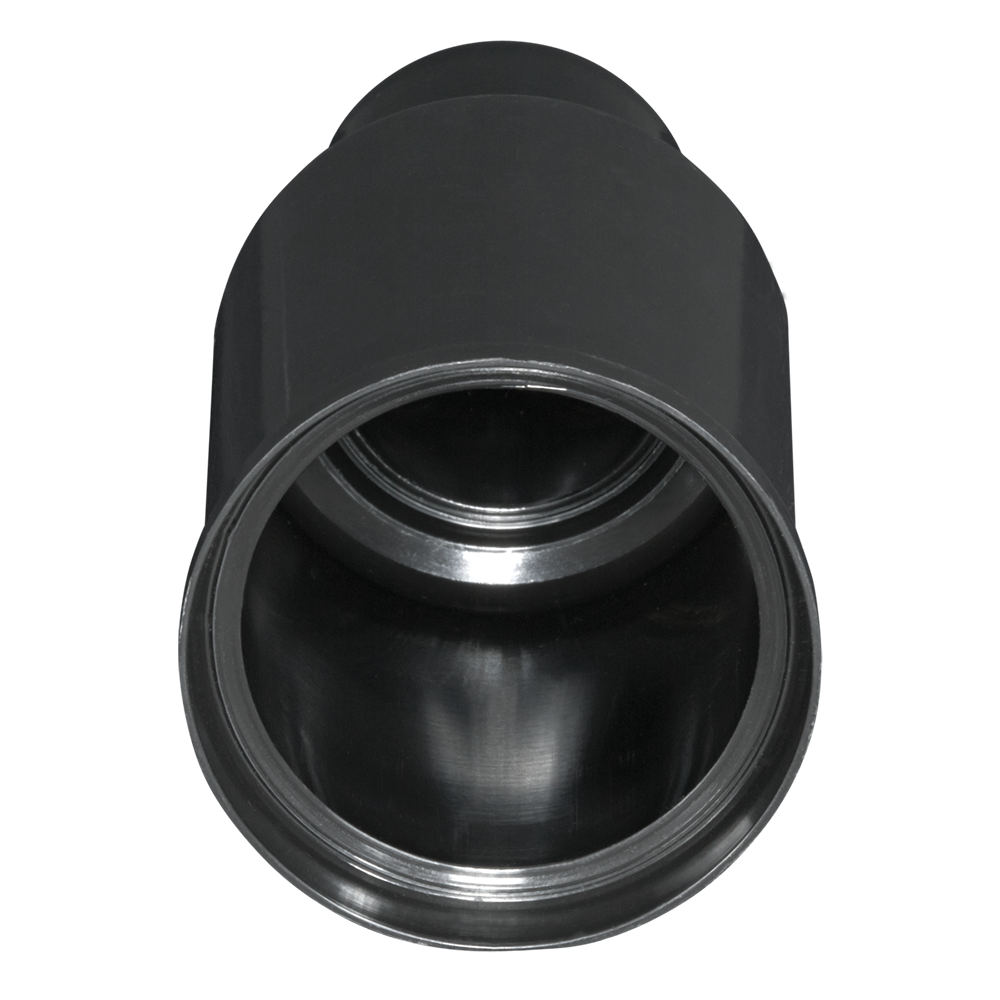

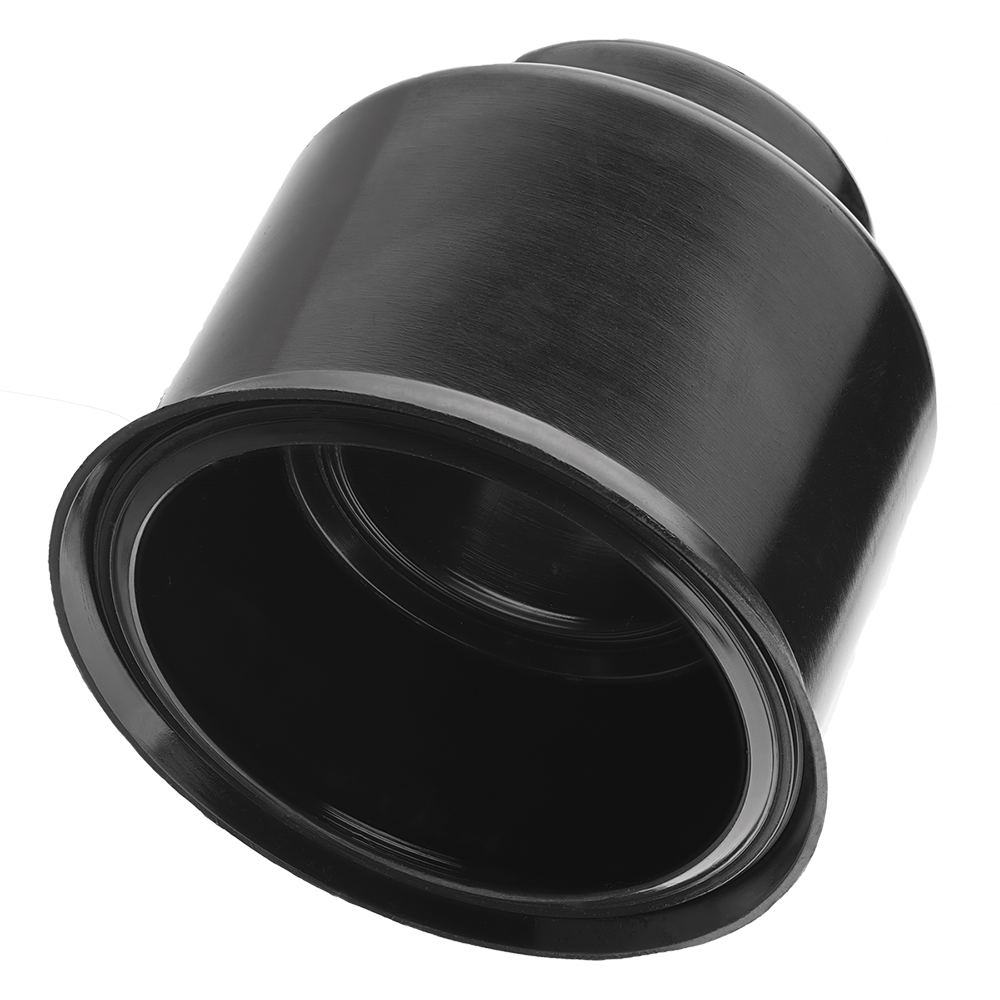

Bolt and nut adjustable telescopic snap caps


CaPtoP® EP 810 Typ 3.2

Bolt and nut adjustable telescopic snap caps


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

For bolted joints with washers.

With anti-vibration locking lip.

Adjustable for extremely large bolt length.

Resistant against chemicals.

Broad Temperature range, resistant from -25 °C up to +70 °C.

Std. Color: black
Material: LD-PE, low density polyethylene

PROTEC CAPTOP EP 810 Typ 3.2

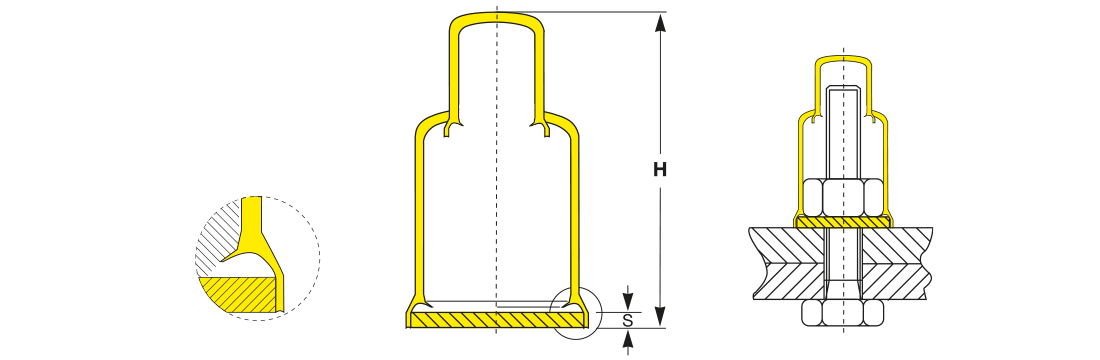

SW h1 H S Metric
DIN 13
DIN 11
UNC
Reference No.
EP 810/
Reference No.
EP 810/
Max. height
inside
Reference No.
EP 810 Typ 3.2
Bookmark
SW   24   67.2   70.0 3.0 M 16   .9/16" SW   24-2-G   69 SW   17-1-G   29   91.0 SW   24-3.2-G   91
SW   24   67.2   70.0 3.0 M 16   .9/16" SW   24-2-G   69 SW   17-1-G   45 107.0 SW   24-3.2-G 107
SW   30   82.0   84.0 3.0 M 20 SW   30-2-G   82 SW   19-1-G   29 106.0 SW   30-3.2-G 106
SW   30   82.0   84.0 3.0 M 20 SW   30-2-G   82 SW   19-1-G   50 127.0 SW   30-3.2-G 127
SW   36 120.0 122.5 4.0 M 24   .7/8" SW   36-2-G 120 SW   24-1-G   31 148.0 SW   36-3.2-G 148
SW   36 120.0 122.5 4.0 M 24   .7/8" SW   36-2-G 120 SW   24-2-G   69 177.0 SW   36-3.2-G 177
SW   41   88.0   92.0 4.0 M 27 1."       SW   41-2-G   80 SW   30-1-G   34 116.0 SW   41-3.2-G 116
SW   41   88.0   92.0 4.0 M 27 1."       SW   41-2-G   80 SW   30-1-G 120 199.0 SW   41-3.2-G 199
SW   46   81.7 114.3 4.0 M 30 1.1/8" SW   46-2-G   83 SW   30-1-G   34 110.0 SW   46-3.2-G 110
SW   46  194.3  196.7 4.0 M 30 1.1/8" SW   46-2-G   83 SW   30-1-G 120 192.0 SW   46-3.2-G 192
SW   50   87.0   90.0 5.0 M 33 1.1/4" SW   50-2-G   86   SW   36-1-G   43 123.0 SW   50-3.2-G 123
SW   50 199.0 201.0 5.7 M 33 1.1/4" SW   50-2-G   86   SW   36-2-G 120 197.0 SW   50-3.2-G 197
SW   55   89.0   92.0 5.0 M 36 1.3/8" SW   55-2-G   90 SW   36-1-G   43 125.0 SW   55-3.2-G 125
SW   55   89.0   92.0 5.0 M 36 1.3/8" SW   55-2-G   90 SW   36-2-G 120 199.0 SW   55-3.2-G 199
SW   55 163.0 173.0 5.0 M 36 1.3/8" SW   55-2-G 160 SW   36-1-G   43 199.0 SW   55-3.2-G 199
SW   55 152.0 154.0 7.5 M 36 1.3/8" SW   55-2-G 160 SW   36-2-G 120 273.0 SW   55-3.2-G 273
SW   60 106.0 106.0 6.0 M 39 1.1/2" SW   60-2-G   93 SW   41-1-G   46 146.0 SW   60-3.2-G 146
SW   60 101.4 106.0 6.0 M 39 1.1/2" SW   60-2-G   93 SW   41-1-G   76 170.0 SW   60-3.2-G 170
SW   65   95.2   98.0 7.7 M 42 1.5/8" SW   65-2-G   98   SW   41-1-G   46 141.0 SW   65-3.2-G 141
SW   65 166.2 168.2 7.7 M 42 1.5/8" SW   65-2-G   98   SW   41-1-G   76 164.0 SW   65-3.2-G 164
SW   70 100.0 102.0 7.0 M 45 1.3/4" SW   70-2-G 100 SW   46-1-G   49 145.0 SW   70-3.2-G 145
SW   70 100.0 102.0 7.0 M 45 1.3/4" SW   70-2-G 100   SW   46-1-G 144 240.0 SW   70-3.2-G 240
SW   80 136.0 141.0 8.0 M 52 SW   80-2-G 139 SW   50-1-G   51 184.0 SW   80-3.2-G 184
SW   75 103.4 110.0 8.0 M 48 1.7/8" SW   75-2-G 103 SW   46-1-G   49 149.0 SW   75-3.2-G 149
SW   75 103.4 110.0 8.0 M 48 1.7/8" SW   75-2-G 103 SW   46-1-G 144 243.0 SW   75-3.2-G 243
SW   80 136.0 141.0 8.0 M 52 SW   80-2-G 139 SW   50-1-G   81 210.0 SW   80-3.2-G 210
SW   85   83.0   86.0 9.0 M 56 SW   85-2-G   83 SW   55-1-G   55 134.0 SW   85-3.2-G 134
SW   85   83.0   86.0 9.0 M 56 SW   85-2-G   83 SW   55-1-G 155 239.0 SW   85-3.2-G 239
SW   90   81.0   85.3 9.2 M 60 SW   90-2-G   83 SW   60-1-G   57 133.0 SW   90-3.2-G 133
SW   90   81.0   85.3 9.2 M 60 SW   90-2-G   83 SW   60-1-G 107 185.0 SW   90-3.2-G 185
SW   95 140.0 145.0 9.0 M 64 SW   95-2-G 140 SW   65-1-G   61 192.0 SW   95-3.2-G 192
SW   95 140.0 145.0 9.0 M 64 SW   95-2-G 140 SW   65-1-G 123 258.0 SW   95-3.2-G 258
SW 100 150.0 158.0 9.0 M 68 SW 100-2-G 150 SW   70-1-G   63 207.0 SW 100-3.2-G 207
SW 100 150.0 158.0 9.0 M 68 SW 100-2-G 150 SW   70-1-G 113 258.0 SW 100-3.2-G 258
SW 105 159.0 164.0 9.0 M 72 SW 105-2-G 160 SW   75-1-G   66 217.0 SW 105-3.2-G 217
SW 105 159.0 164.0 9.0 M 72 SW 105-2-G 160 SW   75-1-G   96 246.0 SW 105-3.2-G 246
SW h1 H S DIN 11
UNC
Reference No.
EP 810/
Reference No.
EP 810/
Reference No.
EP 810 Typ 3.2
   24   67.2   70.0 M 16 M 16x1.5   .9/16"    24-2-G   69    17-1-G   29   91.0    24-3.2-G   91
   24   67.2   70.0 M 16 M 16x1.5   .9/16"    24-2-G   69    17-1-G   45 107.0    24-3.2-G 107
   30   82.0   84.0 M 20 M 20x1.5    30-2-G   82    19-1-G   29 106.0    30-3.2-G 106
   30   82.0   84.0 M 20 M 20x1.5    30-2-G   82    19-1-G   50 127.0    30-3.2-G 127
   36 120.0 122.5 M 24 M 24x1.5   .7/8"    36-2-G 120    24-1-G   31 148.0    36-3.2-G 148
   36 120.0 122.5 M 24 M 24x1.5   .7/8"    36-2-G 120    24-2-G   69 177.0    36-3.2-G 177
   41   88.0   92.0 M 27 M 27x1.5 1."          41-2-G   80    30-1-G   34 116.0    41-3.2-G 116
   41   88.0   92.0 M 27 M 27x1.5 1."          41-2-G   80    30-1-G 120 199.0    41-3.2-G 199
   46   81.7 114.3 M 30 M 30x1.5 1.1/8"    46-2-G   83    30-1-G   34 110.0    46-3.2-G 110
   46  194.3  196.7 M 30 M 30x1.5 1.1/8"    46-2-G   83    30-1-G 120 192.0    46-3.2-G 192
   50   87.0   90.0 M 33 M 33x1.5 1.1/4"    50-2-G   86      36-1-G   43 123.0    50-3.2-G 123
   50 199.0 201.0 M 33 M 33x1.5 1.1/4"    50-2-G   86      36-2-G 120 197.0    50-3.2-G 197
   55   89.0   92.0 M 36 M 36x1.5 1.3/8"    55-2-G   90    36-1-G   43 125.0    55-3.2-G 125
   55   89.0   92.0 M 36 M 36x1.5 1.3/8"    55-2-G   90    36-2-G 120 199.0    55-3.2-G 199
   55 163.0 173.0 M 36 M 36x1.5 1.3/8"    55-2-G 160    36-1-G   43 199.0    55-3.2-G 199
   55 152.0 154.0 M 36 M 36x1.5 1.3/8"    55-2-G 160    36-2-G 120 273.0    55-3.2-G 273
   60 106.0 106.0 M 39 M 39x1.5 1.1/2"    60-2-G   93    41-1-G   46 146.0    60-3.2-G 146
   60 101.4 106.0 M 39 M 39x1.5 1.1/2"    60-2-G   93    41-1-G   76 170.0    60-3.2-G 170
   65   95.2   98.0 M 42 M 42x1.5 1.5/8"    65-2-G   98      41-1-G   46 141.0    65-3.2-G 141
   65 166.2 168.2 M 42 M 42x1.5 1.5/8"    65-2-G   98      41-1-G   76 164.0    65-3.2-G 164
   70 100.0 102.0 M 45 1.3/4"    70-2-G 100    46-1-G   49 145.0    70-3.2-G 145
   70 100.0 102.0 M 45 1.3/4"    70-2-G 100      46-1-G 144 240.0    70-3.2-G 240
   80 136.0 141.0 M 52    80-2-G 139    50-1-G   51 184.0    80-3.2-G 184
   75 103.4 110.0 M 48 1.7/8"    75-2-G 103    46-1-G   49 149.0    75-3.2-G 149
   75 103.4 110.0 M 48 1.7/8"    75-2-G 103    46-1-G 144 243.0    75-3.2-G 243
   80 136.0 141.0 M 52    80-2-G 139    50-1-G   81 210.0    80-3.2-G 210
   85   83.0   86.0 M 56    85-2-G   83    55-1-G   55 134.0    85-3.2-G 134
   85   83.0   86.0 M 56    85-2-G   83    55-1-G 155 239.0    85-3.2-G 239
   90   81.0   85.3 M 60    90-2-G   83    60-1-G   57 133.0    90-3.2-G 133
   90   81.0   85.3 M 60    90-2-G   83    60-1-G 107 185.0    90-3.2-G 185
   95 140.0 145.0 M 64    95-2-G 140    65-1-G   61 192.0    95-3.2-G 192
   95 140.0 145.0 M 64    95-2-G 140    65-1-G 123 258.0    95-3.2-G 258
 100 150.0 158.0 M 68  100-2-G 150    70-1-G   63 207.0  100-3.2-G 207
 100 150.0 158.0 M 68  100-2-G 150    70-1-G 113 258.0  100-3.2-G 258
 105 159.0 164.0 M 72  105-2-G 160    75-1-G   66 217.0  105-3.2-G 217
 105 159.0 164.0 M 72  105-2-G 160    75-1-G   96 246.0  105-3.2-G 246
Spannersize SW
24

Hight inside h1
67.2

Hight outside H
70.0

Thickness Washer S
3.0

Thread Metric DIN 13
M 16x1.5

Thread DIN 11 UNC
.9/16"

Base Cap Reference No. EP 810/ 24-2-G 69

Top Cap Reference No. EP 810 / 17-1-G 29

Max. Height inside
91.0

Reference No. EP 810 / 24-3.2-G 91

Spannersize SW
24

Hight inside h1
67.2

Hight outside H
70.0

Thickness Washer S
3.0

Thread Metric DIN 13
M 16x1.5

Thread DIN 11 UNC
.9/16"

Base Cap Reference No. EP 810/ 24-2-G 69

Top Cap Reference No. EP 810 / 17-1-G 45

Max. Height inside
107.0

Reference No. EP 810 / 24-3.2-G 107

Spannersize SW
30

Hight inside h1
82.0

Hight outside H
84.0

Thickness Washer S
3.0

Thread Metric DIN 13
M 20x1.5

Thread DIN 11 UNC

Base Cap Reference No. EP 810/ 30-2-G 82

Top Cap Reference No. EP 810 / 19-1-G 29

Max. Height inside
106.0

Reference No. EP 810 / 30-3.2-G 106

Spannersize SW
30

Hight inside h1
82.0

Hight outside H
84.0

Thickness Washer S
3.0

Thread Metric DIN 13
M 20x1.5

Thread DIN 11 UNC

Base Cap Reference No. EP 810/ 30-2-G 82

Top Cap Reference No. EP 810 / 19-1-G 50

Max. Height inside
127.0

Reference No. EP 810 / 30-3.2-G 127

Spannersize SW
36

Hight inside h1
120.0

Hight outside H
122.5

Thickness Washer S
4.0

Thread Metric DIN 13
M 24x1.5

Thread DIN 11 UNC
.7/8"

Base Cap Reference No. EP 810/ 36-2-G 120

Top Cap Reference No. EP 810 / 24-1-G 31

Max. Height inside
148.0

Reference No. EP 810 / 36-3.2-G 148

Spannersize SW
36

Hight inside h1
120.0

Hight outside H
122.5

Thickness Washer S
4.0

Thread Metric DIN 13
M 24x1.5

Thread DIN 11 UNC
.7/8"

Base Cap Reference No. EP 810/ 36-2-G 120

Top Cap Reference No. EP 810 / 24-2-G 69

Max. Height inside
177.0

Reference No. EP 810 / 36-3.2-G 177

Spannersize SW
41

Hight inside h1
88.0

Hight outside H
92.0

Thickness Washer S
4.0

Thread Metric DIN 13
M 27x1.5

Thread DIN 11 UNC
1."

Base Cap Reference No. EP 810/ 41-2-G 80

Top Cap Reference No. EP 810 / 30-1-G 34

Max. Height inside
116.0

Reference No. EP 810 / 41-3.2-G 116

Spannersize SW
41

Hight inside h1
88.0

Hight outside H
92.0

Thickness Washer S
4.0

Thread Metric DIN 13
M 27x1.5

Thread DIN 11 UNC
1."

Base Cap Reference No. EP 810/ 41-2-G 80

Top Cap Reference No. EP 810 / 30-1-G 120

Max. Height inside
199.0

Reference No. EP 810 / 41-3.2-G 199

Spannersize SW
46

Hight inside h1
 81.7

Hight outside H
114.3

Thickness Washer S
4.0

Thread Metric DIN 13
M 30x1.5

Thread DIN 11 UNC
1.1/8"

Base Cap Reference No. EP 810/ 46-2-G 83

Top Cap Reference No. EP 810 / 30-1-G 34

Max. Height inside
110.0

Reference No. EP 810 / 46-3.2-G 110

Spannersize SW
46

Hight inside h1
194.3

Hight outside H
196.7

Thickness Washer S
4.0

Thread Metric DIN 13
M 30x1.5

Thread DIN 11 UNC
1.1/8"

Base Cap Reference No. EP 810/ 46-2-G 83

Top Cap Reference No. EP 810 / 30-1-G 120

Max. Height inside
192.0

Reference No. EP 810 / 46-3.2-G 192

Spannersize SW
50

Hight inside h1
87.0

Hight outside H
90.0

Thickness Washer S
5.0

Thread Metric DIN 13
M 33x1.5

Thread DIN 11 UNC
1.1/4"

Base Cap Reference No. EP 810/ 50-2-G 86

Top Cap Reference No. EP 810 / 36-1-G 43

Max. Height inside
123.0

Reference No. EP 810 / 50-3.2-G 123

Spannersize SW
50

Hight inside h1
199.0

Hight outside H
201.0

Thickness Washer S
5.7

Thread Metric DIN 13
M 33x1.5

Thread DIN 11 UNC
1.1/4"

Base Cap Reference No. EP 810/ 50-2-G 86

Top Cap Reference No. EP 810 / 36-2-G 120

Max. Height inside
197.0

Reference No. EP 810 / 50-3.2-G 197

Spannersize SW
55

Hight inside h1
89.0

Hight outside H
92.0

Thickness Washer S
5.0

Thread Metric DIN 13
M 36x1.5

Thread DIN 11 UNC
1.3/8"

Base Cap Reference No. EP 810/ 55-2-G 90

Top Cap Reference No. EP 810 / 36-1-G 43

Max. Height inside
125.0

Reference No. EP 810 / 55-3.2-G 125

Spannersize SW
55

Hight inside h1
89.0

Hight outside H
92.0

Thickness Washer S
5.0

Thread Metric DIN 13
M 36x1.5

Thread DIN 11 UNC
1.3/8"

Base Cap Reference No. EP 810/ 55-2-G 90

Top Cap Reference No. EP 810 / 36-2-G 120

Max. Height inside
199.0

Reference No. EP 810 / 55-3.2-G 199

Spannersize SW
55

Hight inside h1
163.0

Hight outside H
173.0

Thickness Washer S
5.0

Thread Metric DIN 13
M 36x1.5

Thread DIN 11 UNC
1.3/8"

Base Cap Reference No. EP 810/ 55-2-G 160

Top Cap Reference No. EP 810 / 36-1-G 43

Max. Height inside
199.0

Reference No. EP 810 / 55-3.2-G 199

Spannersize SW
55

Hight inside h1
152.0

Hight outside H
154.0

Thickness Washer S
7.5

Thread Metric DIN 13
M 36x1.5

Thread DIN 11 UNC
1.3/8"

Base Cap Reference No. EP 810/ 55-2-G 160

Top Cap Reference No. EP 810 / 36-2-G 120

Max. Height inside
273.0

Reference No. EP 810 / 55-3.2-G 273

Spannersize SW
60

Hight inside h1
106.0

Hight outside H
106.0

Thickness Washer S
6.0

Thread Metric DIN 13
M 39x1.5

Thread DIN 11 UNC
1.1/2"

Base Cap Reference No. EP 810/ 60-2-G 93

Top Cap Reference No. EP 810 / 41-1-G 46

Max. Height inside
146.0

Reference No. EP 810 / 60-3.2-G 146

Spannersize SW
60

Hight inside h1
101.4

Hight outside H
106.0

Thickness Washer S
6.0

Thread Metric DIN 13
M 39x1.5

Thread DIN 11 UNC
1.1/2"

Base Cap Reference No. EP 810/ 60-2-G 93

Top Cap Reference No. EP 810 / 41-1-G 76

Max. Height inside
170.0

Reference No. EP 810 / 60-3.2-G 170

Spannersize SW
65

Hight inside h1
95.2

Hight outside H
98.0

Thickness Washer S
7.7

Thread Metric DIN 13
M 42x1.5

Thread DIN 11 UNC
1.5/8"

Base Cap Reference No. EP 810/ 65-2-G 98

Top Cap Reference No. EP 810 / 41-1-G 46

Max. Height inside
141.0

Reference No. EP 810 / 65-3.2-G 141

Spannersize SW
65

Hight inside h1
166.2

Hight outside H
168.2

Thickness Washer S
7.7

Thread Metric DIN 13
M 42x1.5

Thread DIN 11 UNC
1.5/8"

Base Cap Reference No. EP 810/ 65-2-G 98

Top Cap Reference No. EP 810 / 41-1-G 76

Max. Height inside
164.0

Reference No. EP 810 / 65-3.2-G 164

Spannersize SW
70

Hight inside h1
100.0

Hight outside H
102.0

Thickness Washer S
7.0

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 70-2-G 100

Top Cap Reference No. EP 810 / 46-1-G 49

Max. Height inside
145.0

Reference No. EP 810 / 70-3.2-G 145

Spannersize SW
70

Hight inside h1
100.0

Hight outside H
102.0

Thickness Washer S
7.0

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 70-2-G 100

Top Cap Reference No. EP 810 / 46-1-G 144

Max. Height inside
240.0

Reference No. EP 810 / 70-3.2-G 240

Spannersize SW
80

Hight inside h1
136.0

Hight outside H
141.0

Thickness Washer S
8.0

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 80-2-G 139

Top Cap Reference No. EP 810 / 50-1-G 51

Max. Height inside
184.0

Reference No. EP 810 / 80-3.2-G 184

Spannersize SW
75

Hight inside h1
103.4

Hight outside H
110.0

Thickness Washer S
8.0

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 75-2-G 103

Top Cap Reference No. EP 810 / 46-1-G 49

Max. Height inside
149.0

Reference No. EP 810 / 75-3.2-G 149

Spannersize SW
75

Hight inside h1
103.4

Hight outside H
110.0

Thickness Washer S
8.0

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 75-2-G 103

Top Cap Reference No. EP 810 / 46-1-G 144

Max. Height inside
243.0

Reference No. EP 810 / 75-3.2-G 243

Spannersize SW
80

Hight inside h1
136.0

Hight outside H
141.0

Thickness Washer S
8.0

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 80-2-G 139

Top Cap Reference No. EP 810 / 50-1-G 81

Max. Height inside
210.0

Reference No. EP 810 / 80-3.2-G 210

Spannersize SW
85

Hight inside h1
83.0

Hight outside H
86.0

Thickness Washer S
9.0

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 85-2-G 83

Top Cap Reference No. EP 810 / 55-1-G 55

Max. Height inside
134.0

Reference No. EP 810 / 85-3.2-G 134

Spannersize SW
85

Hight inside h1
83.0

Hight outside H
86.0

Thickness Washer S
9.0

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 85-2-G 83

Top Cap Reference No. EP 810 / 55-1-G 155

Max. Height inside
239.0

Reference No. EP 810 / 85-3.2-G 239

Spannersize SW
90

Hight inside h1
81.0

Hight outside H
85.3

Thickness Washer S
9.2

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 90-2-G 83

Top Cap Reference No. EP 810 / 60-1-G 57

Max. Height inside
133.0

Reference No. EP 810 / 90-3.2-G 133

Spannersize SW
90

Hight inside h1
81.0

Hight outside H
85.3

Thickness Washer S
9.2

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 90-2-G 83

Top Cap Reference No. EP 810 / 60-1-G 107

Max. Height inside
185.0

Reference No. EP 810 / 90-3.2-G 185

Spannersize SW
95

Hight inside h1
140.0

Hight outside H
145.0

Thickness Washer S
9.0

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 95-2-G 140

Top Cap Reference No. EP 810 / 65-1-G 61

Max. Height inside
192.0

Reference No. EP 810 / 95-3.2-G 192

Spannersize SW
95

Hight inside h1
140.0

Hight outside H
145.0

Thickness Washer S
9.0

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 95-2-G 140

Top Cap Reference No. EP 810 / 65-1-G 123

Max. Height inside
258.0

Reference No. EP 810 / 95-3.2-G 258

Spannersize SW
100

Hight inside h1
150.0

Hight outside H
158.0

Thickness Washer S
9.0

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 100-2-G 150

Top Cap Reference No. EP 810 / 70-1-G 63

Max. Height inside
207.0

Reference No. EP 810 / 100-3.2-G 207

Spannersize SW
100

Hight inside h1
150.0

Hight outside H
158.0

Thickness Washer S
9.0

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 100-2-G 150

Top Cap Reference No. EP 810 / 70-1-G 113

Max. Height inside
258.0

Reference No. EP 810 / 100-3.2-G 258

Spannersize SW
105

Hight inside h1
159.0

Hight outside H
164.0

Thickness Washer S
9.0

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 105-2-G 160

Top Cap Reference No. EP 810 / 75-1-G 66

Max. Height inside
217.0

Reference No. EP 810 / 105-3.2-G 217

Spannersize SW
105

Hight inside h1
159.0

Hight outside H
164.0

Thickness Washer S
9.0

Thread Metric DIN 13

Base Cap Reference No. EP 810/ 105-2-G 160

Top Cap Reference No. EP 810 / 75-1-G 96

Max. Height inside
246.0

Reference No. EP 810 / 105-3.2-G 246

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 810 Typ 3.2 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.

You might also be interested in these PROTEC series

CAPTOP® EP 810 Typ 2

Bolt and nut anti-corrosion snap caps

CAPTOP® EP 810 Typ 1

Bolt and nut anti-corrosion snap caps

CAPTOP® EP 800

Bolt and nut protection caps

CAPTOP® EP 810 Typ 3.1

Bolt and nut adjustable telescopic corrosion cap

Certified production & quality management

PROTEC meets the most stringent demands of safety and operations reliability. International approvals and certifications such as UL, CSA, VDE, VDA 6.1 and DIN EN ISO 9001: 2015 demonstrate total quality commitment on superior level.

Be the first to know - Join our newsletter!

Stay on top of the latest news and upcoming events and event information from PROTEC and its partner. Be the first to know when new products are on the market. Get periodic specials and news delivered directly to your email inbox! You can un-subscribe anytime.

Sign our free newsletter now

Imprint | Contact form | Privacy policy | Jobs at PROTEC | Certifications

copyright (c) 2024 PROTEC PLASTICS THE CAP COMPANY LTD
