ProteC Prosicon® EPS 400

High Temperature Masking Silicone Combi Plugs


Prosicon® EPS 400

High Temperature Masking Silicone Combi Plugs


The ideal plug for protecting metric internal threads and threaded holes, also suitable for protecting assembly holes.

Conical shaft design.

All-purpose stopper that can be used on both sides.

Central pull tab.

Optimal press fit achieves a high sealing effect.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code:
Reusable

Color:
Special color runs available on request

Material:
Prosicon® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

HEAT RESISTANT!
PROTEC PROSICON EPS 400

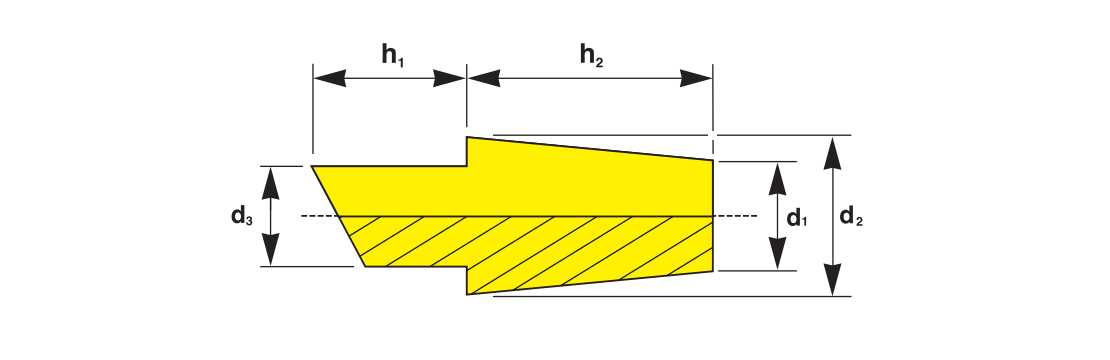

d1 d2 d3 h1 h2 Metric Shore A Std. Color Pack Reference No. Bookmark
2.00 3.50 2.50 6.50 13.00 M 3  55 Blue 1000 EPS 400 / M3
3.75 4.30 3.40 6.50 20.00 M 4  55 Yellow 1000 EPS 400 / M4
4.20 5.20 4.30 7.50 20.50 M 5  55 Black 1000 EPS 400 / M5
5.75 7.35 5.10 7.50 23.00 M 6  55 Green 1000 EPS 400 / M6
7.00 12.50 7.00 10.00 23.60 55 Pink 500 EPS 400 / 0276
7.75 8.90 6.90 10.00 23.00 M 8  55 Orange 500 EPS 400 / M8
7.93 12.50 7.10 70.00 23.40 55 Red 500 EPS 400 / 0280
9.00 10.50 8.50 13.00 25.00 M 10  55 Blue 500 EPS 400 / M10
10.30 12.30 10.50 14.50 25.00 55 Gray 250 EPS 400 / M12
d1 d2 h1 h2 Metric Reference No.
2.00 3.50 6.50 13.00 M 3  EPS 400 / M3
3.75 4.30 6.50 20.00 M 4  EPS 400 / M4
4.20 5.20 7.50 20.50 M 5  EPS 400 / M5
5.75 7.35 7.50 23.00 M 6  EPS 400 / M6
7.00 12.50 10.00 23.60 EPS 400 / 0276
7.75 8.90 10.00 23.00 M 8  EPS 400 / M8
7.93 12.50 70.00 23.40 EPS 400 / 0280
9.00 10.50 13.00 25.00 M 10  EPS 400 / M10
10.30 12.30 14.50 25.00 EPS 400 / M12
d1
2.00

d2
3.50

d3
2.50

h1
6.50

h2
13.00

Metric
M 3

Shore A
55

Std. Color
Blue

Packaging Unit<
1000

Reference No.
EPS 400 / M3

d1
3.75

d2
4.30

d3
3.40

h1
6.50

h2
20.00

Metric
M 4

Shore A
55

Std. Color
Yellow

Packaging Unit<
1000

Reference No.
EPS 400 / M4

d1
4.20

d2
5.20

d3
4.30

h1
7.50

h2
20.50

Metric
M 5

Shore A
55

Std. Color
Black

Packaging Unit<
1000

Reference No.
EPS 400 / M5

d1
5.75

d2
7.35

d3
5.10

h1
7.50

h2
23.00

Metric
M 6

Shore A
55

Std. Color
Green

Packaging Unit<
1000

Reference No.
EPS 400 / M6

d1
7.00

d2
12.50

d3
7.00

h1
10.00

h2
23.60

Metric

Shore A
55

Std. Color
Pink

Packaging Unit<
500

Reference No.
EPS 400 / 0276

d1
7.75

d2
8.90

d3
6.90

h1
10.00

h2
23.00

Metric
M 8

Shore A
55

Std. Color
Orange

Packaging Unit<
500

Reference No.
EPS 400 / M8

d1
7.93

d2
12.50

d3
7.10

h1
70.00

h2
23.40

Metric

Shore A
55

Std. Color
Red

Packaging Unit<
500

Reference No.
EPS 400 / 0280

d1
9.00

d2
10.50

d3
8.50

h1
13.00

h2
25.00

Metric
M 10

Shore A
55

Std. Color
Blue

Packaging Unit<
500

Reference No.
EPS 400 / M10

d1
10.30

d2
12.30

d3
10.50

h1
14.50

h2
25.00

Metric

Shore A
55

Std. Color
Gray

Packaging Unit<
250

Reference No.
EPS 400 / M12

PROTEC products and specifications are subject to improvement and change without notice.

PROSICON® EPS 400 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.
