ProteC CaPtoP® EP 370

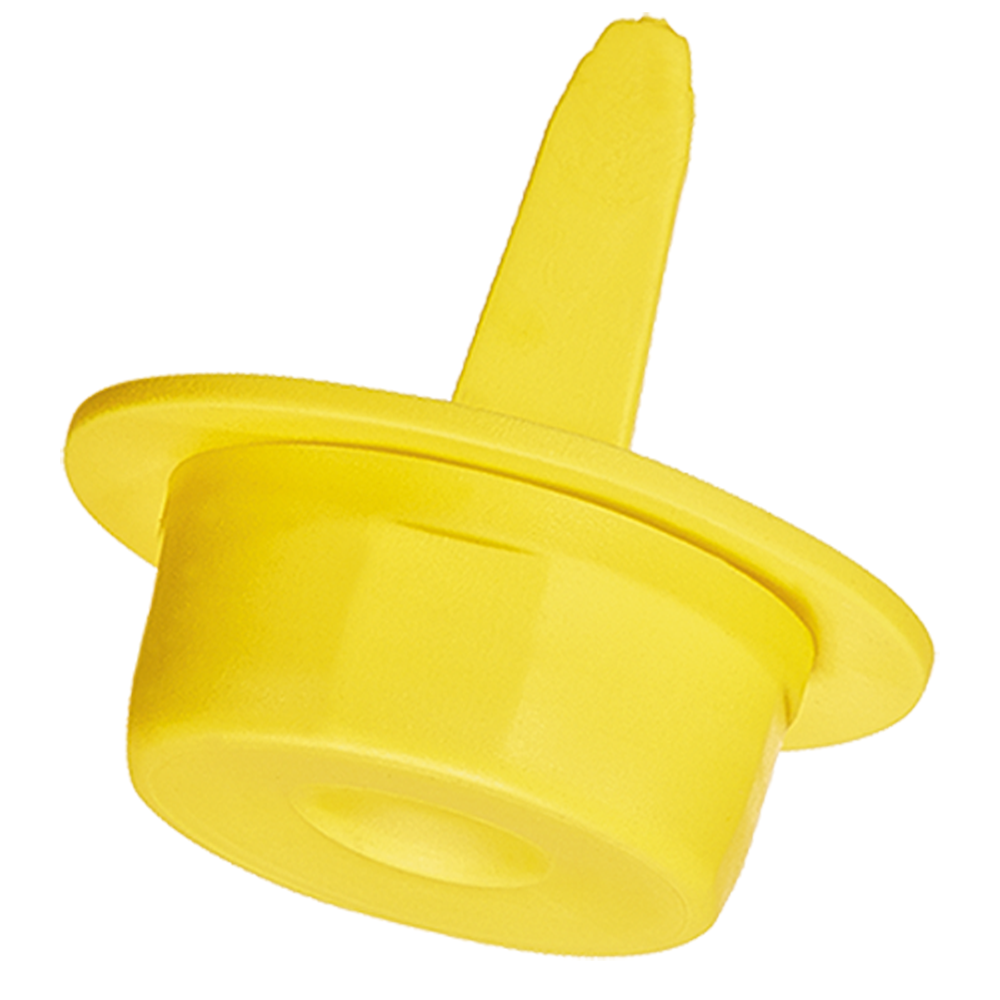

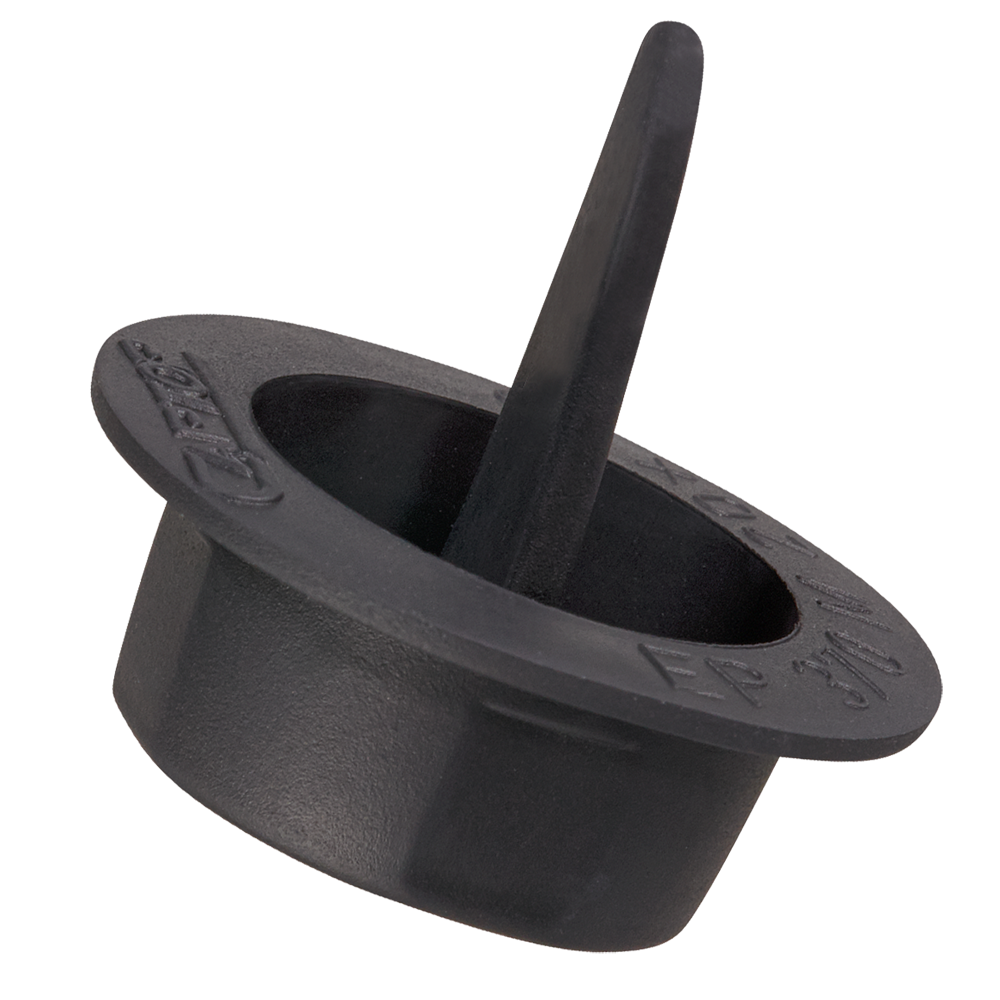

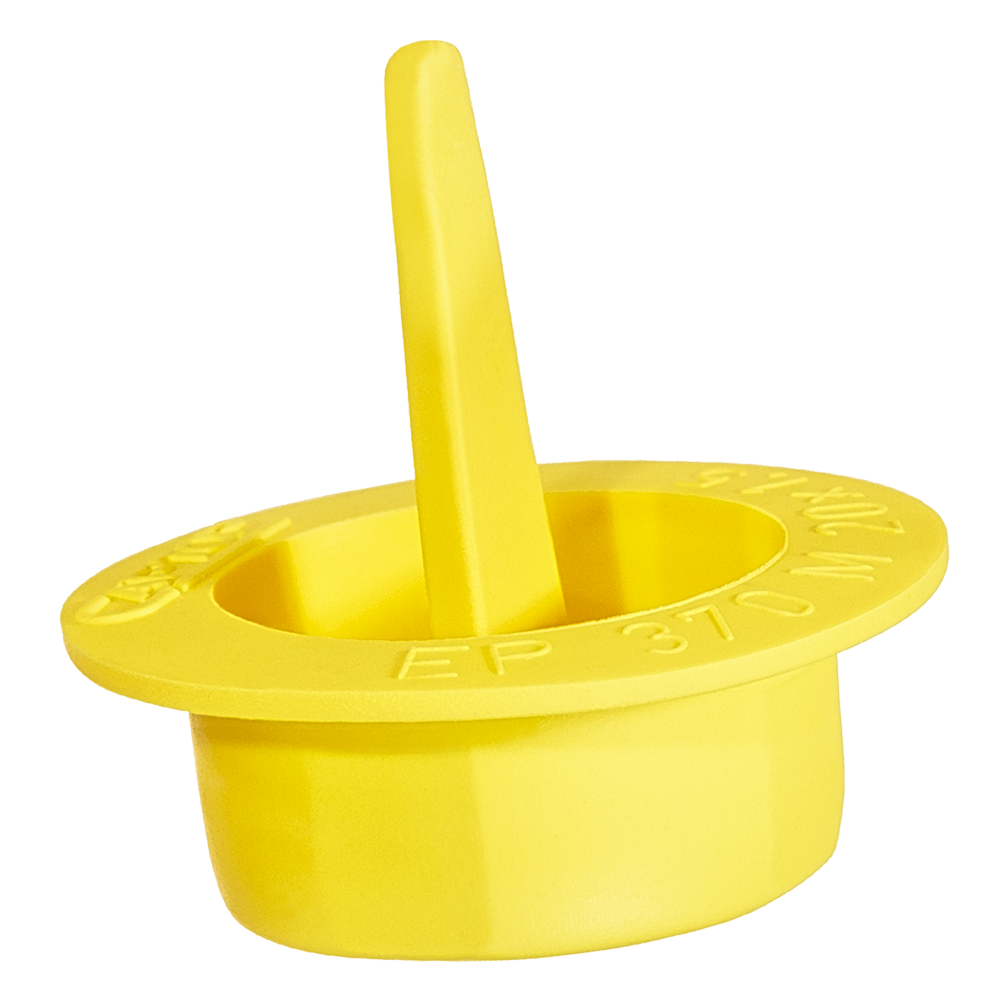

Thermoplastic rubber plugs


CaPtoP® EP 370

Thermoplastic rubber plugs


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

Handy pull-tab for easy removal.

Protects threaded or plain components.

Withstands continuous temperatures of up to 120 °C.

Durable, rubber-like material.

The pull-tab design allows easy removal, when the tab is pulled the base of the plug moves upwards and inwards and the plug releases in a swift rolling motion which stops any residue being left on the threads or in the bore.

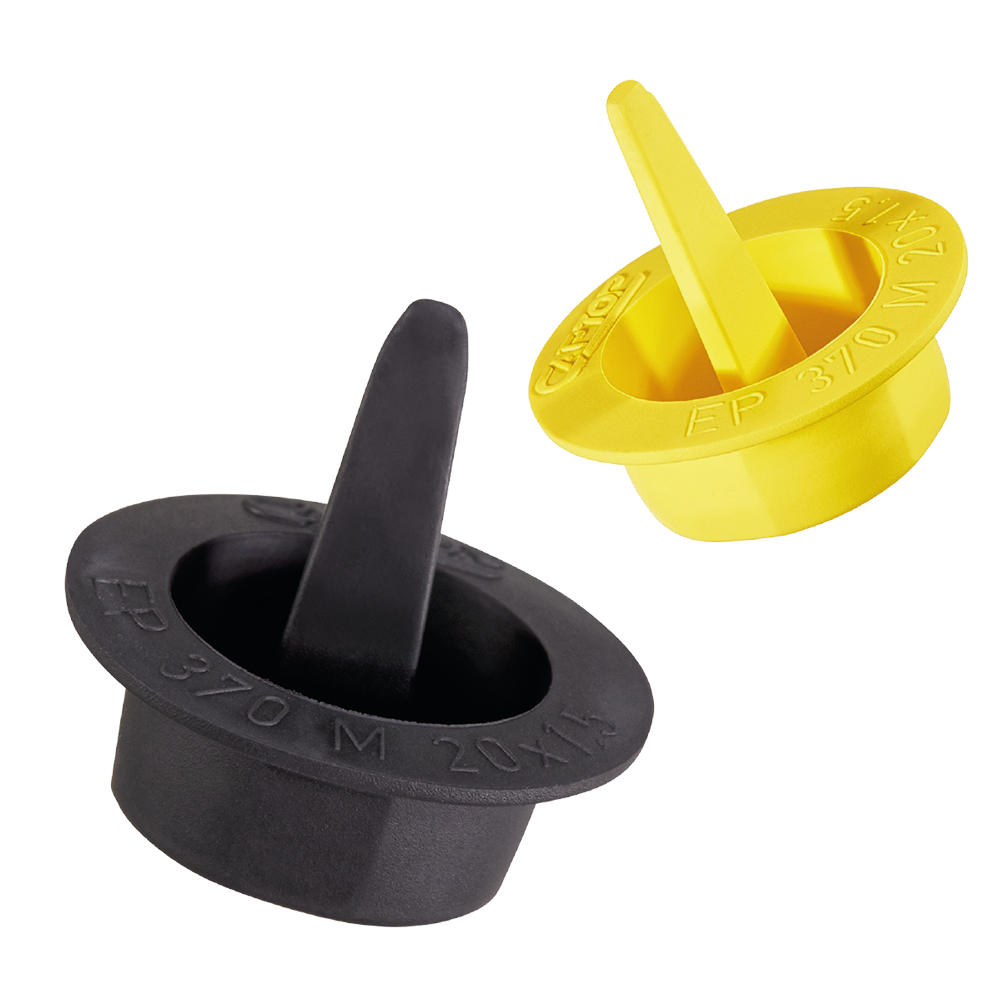

Std. Color: yellow, black
Material: TPE, thermoplastic rubber free from plasticisers

Withstands continous temp. up to +120°C
PROTEC CAPTOP EP 370

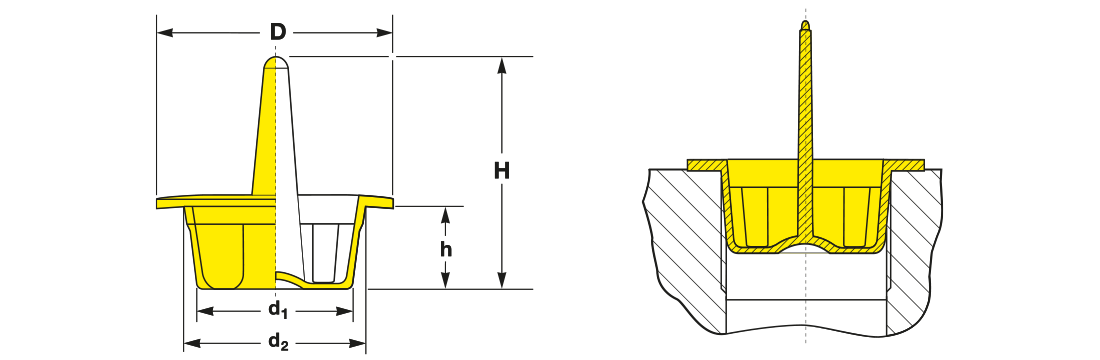

d1 d2 D h H DIN 13 DIN 228 UN UNC UNF UNEF Reference No. Bookmark
  6.5   7.5 15.5 9.0 24.0 M   8 x 1 .5/16 .7/16 .5/16 .5/16 EP 370 / M   8 x 1
  8.5   9.5 17.5 9.0 24.0 M 10 x 1 G .1/8" .3/8 .7/16 .3/8 EP 370 / M 10 x 1
10.5 11.5 19.5 9.0 25.0 M 12 x 1.5 G .1/4" .1/2 EP 370 / M 12 x 1
12.5 13.5 21.5 8.5 26.0 M 14 x 1.5 .9/16 .9/16 .9/16 .9/16 EP 370 / M 14 x 1.5
14.3 15.5 23.5 9.0 25.5 M 16 x 1.5 G .3/8" .5/8 .5/8 .5/8 EP 370 / M 16 x 1.5
16.2 17.6 25.5 9.0 25.0 M 18 x 1.5 .11/16 .3/4 .11/16 EP 370 / M 18 x 1.5
18.0 19.4 26.5 8.6 25.0 M 20 x 1.5 G .1/2" EP 370 / M 20 x 1.5
20.0 21.4 26.5 8.7 25.7 M 22 x 1.5 EP 370 / M 22 x 1.5
22.0 23.5 28.5 9.0 25.0 M 24 x 1.5 .15/16 .15/16 EP 370 / M 24 x 1.5
d1 d2 D h H DIN 13 DIN 228 UN UNC UNF UNEF Reference No.
  6.5   7.5 15.5 9.0 24.0 M   8 x 1 .5/16 .7/16 .5/16 .5/16 EP 370 / M   8 x 1
  8.5   9.5 17.5 9.0 24.0 M 10 x 1 G .1/8" .3/8 .7/16 .3/8 EP 370 / M 10 x 1
10.5 11.5 19.5 9.0 25.0 M 12 x 1.5 G .1/4" .1/2 EP 370 / M 12 x 1
12.5 13.5 21.5 8.5 26.0 M 14 x 1.5 .9/16 .9/16 .9/16 .9/16 EP 370 / M 14 x 1.5
14.3 15.5 23.5 9.0 25.5 M 16 x 1.5 G .3/8" .5/8 .5/8 .5/8 EP 370 / M 16 x 1.5
16.2 17.6 25.5 9.0 25.0 M 18 x 1.5 .11/16 .3/4 .11/16 EP 370 / M 18 x 1.5
18.0 19.4 26.5 8.6 25.0 M 20 x 1.5 G .1/2" EP 370 / M 20 x 1.5
20.0 21.4 26.5 8.7 25.7 M 22 x 1.5 EP 370 / M 22 x 1.5
22.0 23.5 28.5 9.0 25.0 M 24 x 1.5 .15/16 .15/16 EP 370 / M 24 x 1.5
Dimensions d1
6.5

Dimensions d2
7.5

Dimensions D
15.5

Dimensions h
9.0

Dimensions H
24.0

Metric Thread DIN 13
M 8 x 1

Unified thread UN
.5/16

Unified thread UNC
.7/16

Unified thread UNF
.5/16

Unified thread UNEF
.5/16

Reference No.
EP 370 / M 8 x 1

Dimensions d1
8.5

Dimensions d2
9.5

Dimensions D
17.5

Dimensions h
9.0

Dimensions H
24.0

Metric Thread DIN 13
M 10 x 1

DIN ISO 228 DIN 228
G .1/8"

Unified thread UN
.3/8

Unified thread UNC
.7/16

Unified thread UNEF
.3/8

Reference No.
EP 370 / M 10 x 1

Dimensions d1
10.5

Dimensions d2
11.5

Dimensions D
19.5

Dimensions h
9.0

Dimensions H
25.0

Metric Thread DIN 13
M 12 x 1.5

DIN ISO 228 DIN 228
G .1/4"

Unified thread UN
.1/2

Reference No.
EP 370 / M 12 x 1

Dimensions d1
12.5

Dimensions d2
13.5

Dimensions D
21.5

Dimensions h
8.5

Dimensions H
26.0

Metric Thread DIN 13
M 14 x 1.5

Unified thread UN
.9/16

Unified thread UNC
.9/16

Unified thread UNF
.9/16

Unified thread UNEF
.9/16

Reference No.
EP 370 / M 14 x 1.5

Dimensions d1
14.3

Dimensions d2
15.5

Dimensions D
23.5

Dimensions h
9.0

Dimensions H
25.5

Metric Thread DIN 13
M 16 x 1.5

DIN ISO 228 DIN 228
G .3/8"

Unified thread UN
.5/8

Unified thread UNF
.5/8

Unified thread UNEF
.5/8

Reference No.
EP 370 / M 16 x 1.5

Dimensions d1
16.2

Dimensions d2
17.6

Dimensions D
25.5

Dimensions h
9.0

Dimensions H
25.0

Metric Thread DIN 13
M 18 x 1.5

Unified thread UN
.11/16

Unified thread UNC
.3/4

Unified thread UNEF
.11/16

Reference No.
EP 370 / M 18 x 1.5

Dimensions d1
18.0

Dimensions d2
19.4

Dimensions D
26.5

Dimensions h
8.6

Dimensions H
25.0

Metric Thread DIN 13
M 20 x 1.5

DIN ISO 228 DIN 228
G .1/2"

Reference No.
EP 370 / M 20 x 1.5

Dimensions d1
20.0

Dimensions d2
21.4

Dimensions D
26.5

Dimensions h
8.7

Dimensions H
25.7

Metric Thread DIN 13
M 22 x 1.5

Reference No.
EP 370 / M 22 x 1.5

Dimensions d1
22.0

Dimensions d2
23.5

Dimensions D
28.5

Dimensions h
9.0

Dimensions H
25.0

Metric Thread DIN 13
M 24 x 1.5

Unified thread UN
.15/16

Unified thread UNEF
.15/16

Reference No.
EP 370 / M 24 x 1.5

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 370 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.
