ProteC Prosicon® EPS 100

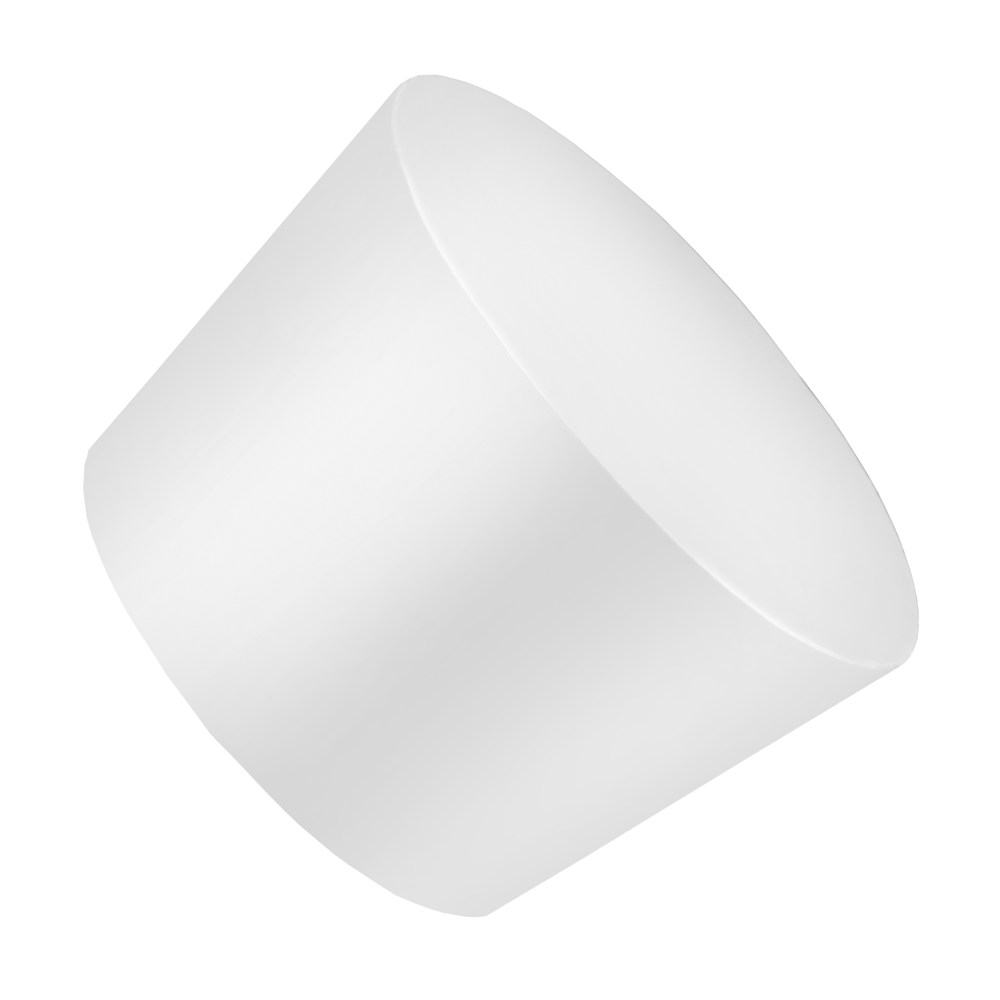

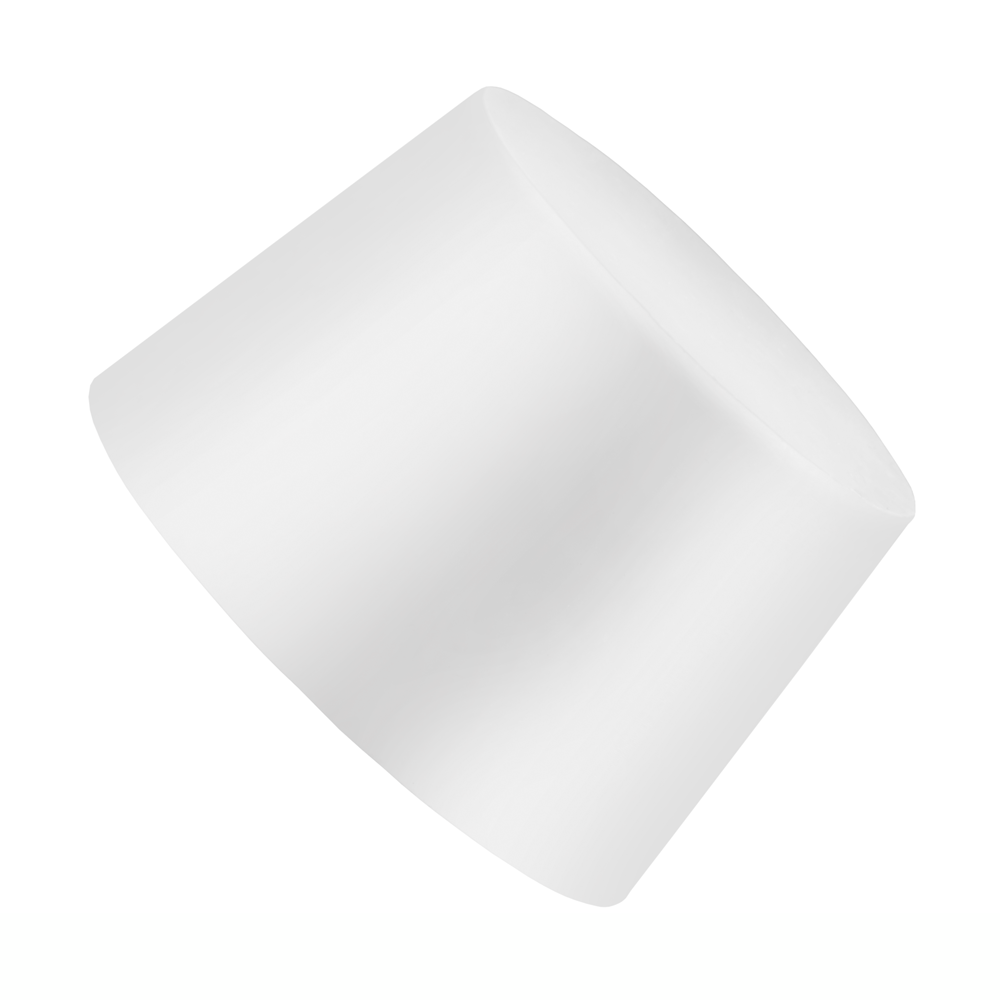

Tapered Silicone Plugs - solid


Prosicon® EPS 100

Tapered Silicone Plugs - solid


Designed to perfectly fit pipes, bore holes and internal threads.

Conical shaft, without collar, solid construction, high temperature masking.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code:
Reusable

Color:
Special color runs available on request

Material:
Prosicon® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

HEAT RESISTANT!
PROTEC PROSICON EPS 100

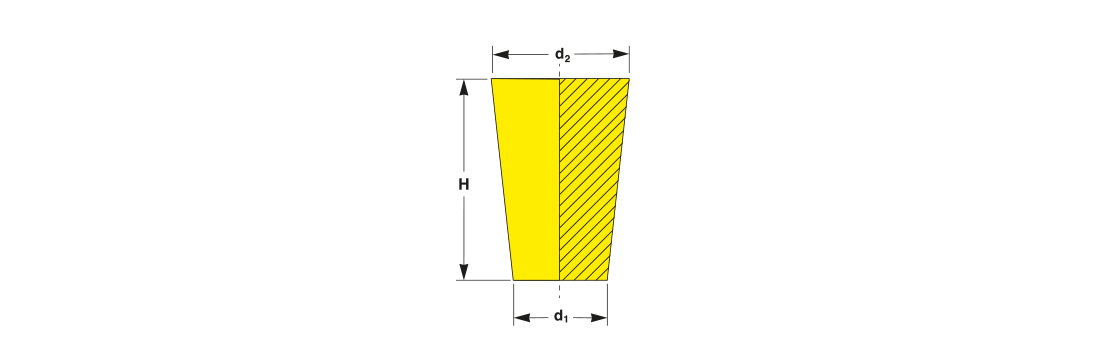

d1 d2 H Metric UNF Standard
Pack
Reference No. Bookmark
0.41 1.60 15.88 1.000 EPS 100 / 0063-0625
0.41 7.09 24.99 1.000 EPS 100 / 0279-0984
0.51 1.98 19.05 M2 1.000 EPS 100 / 0078-0750
0.51 1.98 25.40 M2 1.000 EPS 100 / 0078-1000
0.79 3.18 15.88 M3 1.000 EPS 100 / 0125
0.81 2.54 15.88 1.000 EPS 100 / 0100-0625
0.81 2.54 25.40 1.000 EPS 100 / 0100-1000
1.19 4.78 55.88 M4 1.000 EPS 100 / 0188-2200
1.19 5.00 27.89 1.000 EPS 100 / 0197-1100
1.19 5.49 38.10 M3,M4,M5 1.000 EPS 100 / 0216-1500
1.50 4.50 15.01 1.000 EPS 100 / 0177-0591
1.60 3.18 15.88 M3 1.000 EPS 100 / 0125-0625
1.60 4.75 15.88 M3, M4 1.000 EPS 100 / 0187-0625
1.60 4.75 19.05 M3, M4 1.000 EPS 100 / 0187-0750
1.60 5.08 19.05 1.000 EPS 100 / 0200-0750
2.20 7.01 24.99 1.000 EPS 100 / 0276-0984
2.79 4.75 10.01 M3, M4 1.000 EPS 100 / 0187-0394
3.00 7.00 19.99 1.000 EPS 100 / 0276-0787
3.18 6.35 19.05 M5,M6 .1/4" 1.000 EPS 100 / 0250-0750
3.18 6.35 25.40 M5,M6 .1/4" 1.000 EPS 100 / 0250-1000
3.18 9.53 31.75 M8 .5/8" 500 EPS 100 / 0375-1250
3.20 12.70 50.80 M10 .3/8" 250 EPS 100 / 0500-2000
3.40 3.70 7.00 1.000 EPS 100 / 0146-0276
3.99 8.00 19.99 1.000 EPS 100 / 0315-0787
4.00 10.00 50.00 250 EPS 100 / 0394-1969
4.50 8.99 24.99 1.000 EPS 100 / 0354-0984
4.70 5.54 6.35 1.000 EPS 100 / 0218-0250
4.78 8.71 15.88 M7, M8 .5/8" 1.000 EPS 100 / 0343-0625
4.78 8.71 19.05 M7, M8 .5/8" 1.000 EPS 100 / 0343-0750
4.78 8.71 25.40 M7, M8 .5/8" 1.000 EPS 100 / 0343-1000
5.00 7.00 16.00 1.000 EPS 100 / 0276-0630
5.00 10.00 25.40 500 EPS 100 / 0394-1000
5.00 10.01 48.01 500 EPS 100 / 0394-1890
5.00 10.03 50.01 500 EPS 100 / 0395-1969
6.00 9.98 19.99 500 EPS 100 / 0393-0787
6.02 11.99 50.80 M10 .3/8" 500 EPS 100 / 0472-2000
6.35 9.53 12.70 M8 .5/8" 500 EPS 100 / 0375-0500
6.35 9.53 19.05 M8 .5/8" 500 EPS 100 / 0375-0750
6.35 9.53 25.40 M8 .5/8" 500 EPS 100 / 0375-1000
6.35 11.10 25.40 M10 .3/8" 500 EPS 100 / 0437-1000
7.90 12.01 19.99 M10 .3/8" 500 EPS 100 / 0473-0787
7.90 12.70 25.40 M10 .3/8" 250 EPS 100 / 0500-1000
7.92 12.70 20.65 M10 .3/8" 250 EPS 100 / 0500-0813
7.95 13.00 28.58 250 EPS 100 / 0512-1125
7.95 14.27 25.40 M10,M12,M14 .7/16", .1/2", .9/16" 250 EPS 100 / 0562-1000
7.95 14.27 28.58 M10,M12,M14 .7/16", .1/2", .9/16" 250 EPS 100 / 0562-1125
8.00 11.00 19.00 M10 .3/8" 500 EPS 100 / 0433-0748
8.00 11.00 27.00 M10 .3/8" 500 EPS 100 / 0433-1063
8.74 11.13 17.48 M10 .3/8" 500 EPS 100 / 0438-0688
8.74 11.91 20.65 M10 .3/8" 500 EPS 100 / 0469-0813
8.99 11.13 19.00 M10 .3/8" 500 EPS 100 / 0438-0748
8.99 11.99 19.00 M10 .3/8" 500 EPS 100 / 0472-0748
8.99 11.99 25.40 M10 .3/8" 500 EPS 100 / 0472-1000
8.99 12.37 19.00 M10 .3/8" 500 EPS 100 / 0487-0748
8.99 13.00 24.99 250 EPS 100 / 0512-0984
9.53 14.30 25.40 M10,M12,M14 .7/16", .1/2", .9/16" 250 EPS 100 / 0563-1000
9.98 14.99 25.40 250 EPS 100 / 0590-1000
10.00 12.50 20.00 M10 .3/8" 500 EPS 100 / 0492-0787
10.31 15.09 25.40 250 EPS 100 / 0594-1000
10.70 17.50 25.40 M14, M16, M18 .5/8" 250 EPS 100 / 0689-1000
11.00 15.01 19.99 M14, M16  .1/2", .9/16" 250 EPS 100 / 0591-0787
11.10 15.88 20.65 M14, M16  .9/16", .5/8" 250 EPS 100 / 0625-0813
11.13 15.88 22.23 M14, M16  .9/16", .5/8" 250 EPS 100 / 0625-0875
11.13 17.45 25.40 M14, M16, M18 .5/8" 250 EPS 100 / 0687-1000
12.70 15.88 25.40 M14, M16  .9/16", .5/8" 250 EPS 100 / 0625-1000
12.70 16.66 25.40 M16, 5/8 250 EPS 100 / 0656-1000
13.00 16.99 25.40 250 EPS 100 / 0669-1000
13.67 20.24 24.99 200 EPS 100 / 0797-0984
14.00 17.45 19.99 M14, M16, M18 .5/8" 250 EPS 100 / 0687-0787
14.00 18.01 19.99 250 EPS 100 / 0709-0787
14.27 19.00 25.40 M18, M20 .3/4" 100 EPS 100 / 0748-1000
14.30 19.00 14.27 M18, M20 .3/4" 250 EPS 100 / 0750-0562
15.88 19.99 25.40 M20 .3/4" 100 EPS 100 / 0787-1000
15.88 20.32 15.88 100 EPS 100 / 0800-0625
15.88 20.62 25.40 100 EPS 100 / 0812-1000
16.00 21.01 25.40 100 EPS 100 / 0827-1000
18.01 24.03 30.00 M22 .7/8" 100 EPS 100 / 0946-1181
18.26 23.83 25.40 M22 .7/8" 100 EPS 100 / 0938-1000
19.05 23.50 19.05 M22 .7/8" 100 EPS 100 / 0925-0750
19.05 23.50 25.40 M22 .7/8" 100 EPS 100 / 0925-1000
19.05 27.99 50.80 M30  1.1/4" 100 EPS 100 / 1102-2000
19.20 24.00 19.05 M22 .7/8" 100 EPS 100 / 0945-0750
19.20 24.00 25.40 M22 .7/8" 100 EPS 100 / 0945-1000
19.84 25.40 25.40 M22, M24 1." 100 EPS 100 / 1000-1000
19.99 25.15 22.48 100 EPS 100 / 0990-0885
19.99 26.01 25.40 100 EPS 100 / 1024-1000
22.00 25.50 12.00 M22, M24 1." 100 EPS 100 / 1004-0472
22.00 26.97 24.99 100 EPS 100 / 1062-0984
22.35 26.01 20.19 100 EPS 100 / 1024-0795
22.40 25.15 20.19 100 EPS 100 / 0990-0795
23.01 27.00 25.40 M27 100 EPS 100 / 1063-1000
23.83 27.94 25.40 M30  1.1/4" 100 EPS 100 / 1100-1000
24.99 30.99 30.00 100 EPS 100 / 1220-1181
26.19 31.75 25.40 M33  1.1/4" 100 EPS 100 / 1250-1000
27.00 33.35 25.40 M33 1.1/4", .3/8" 100 EPS 100 / 1313-1000
27.00 33.99 25.40 100 EPS 100 / 1338-1000
27.79 30.00 25.40 100 EPS 100 / 1181-1000
30.18 36.53 25.40 M36  1.3/8" 100 EPS 100 / 1438-1000
30.18 36.98 25.40 100 EPS 100 / 1456-1000
30.99 38.00 35.00 50 EPS 100 / 1496-1378
31.75 38.89 25.40 M39 1.1/2" 50 EPS 100 / 1531-1000
33.02 41.00 25.40 50 EPS 100 / 1614-1000
33.35 41.28 25.40 M39, M42 1.1/2" 50 EPS 100 / 1625-1000
34.01 41.02 35.00 50 EPS 100 / 1615-1378
35.71 42.88 25.40 M42 50 EPS 100 / 1688-1000
35.99 43.00 25.40 M42, MM45 50 EPS 100 / 1693-1000
36.00 43.99 40.01 50 EPS 100 / 1732-1575
37.01 45.01 25.40 50 EPS 100 / 1772-1000
37.31 44.45 25.40 M48 50 EPS 100 / 1750-1000
38.10 46.05 25.40 50 EPS 100 / 1813-1000
41.00 49.00 40.01 50 EPS 100 / 1929-1575
41.28 50.01 25.40 50 EPS 100 / 1969-1000
44.45 52.40 25.40 M56 25 EPS 100 / 2063-1000
44.96 52.98 25.40 25 EPS 100 / 2086-1000
46.99 54.99 40.01 25 EPS 100 / 2165-1575
47.63 55.96 25.40 M56 25 EPS 100 / 2203-1000
50.00 59.99 45.01 25 EPS 100 / 2362-1772
50.01 62.71 25.40 M64 25 EPS 100 / 2469-1000
50.01 62.99 25.40 M50, M52 25 EPS 100 / 2480-1000
53.98 63.50 25.40 M64 25 EPS 100 / 2500-1000
57.94 68.28 25.40 25 EPS 100 / 2688-1000
61.93 75.01 34.93 25 EPS 100 / 2953-1375
75.01 89.99 38.99 10 EPS 100 / 3543-1535
76.20 88.90 38.10 10 EPS 100 / 3500-1500
82.55 101.60 38.10 10 EPS 100 / 4000-1500
82.98 103.00 38.99 10 EPS 100 / 4055-1535
88.90 127.00 50.80 5 EPS 100 / 5000-2000
d1 d2 H Metric UNF Reference No.
0.41 1.60 15.88 EPS 100 / 0063-0625
0.41 7.09 24.99 EPS 100 / 0279-0984
0.51 1.98 19.05 M2 EPS 100 / 0078-0750
0.51 1.98 25.40 M2 EPS 100 / 0078-1000
0.79 3.18 15.88 M3 EPS 100 / 0125
0.81 2.54 15.88 EPS 100 / 0100-0625
0.81 2.54 25.40 EPS 100 / 0100-1000
1.19 4.78 55.88 M4 EPS 100 / 0188-2200
1.19 5.00 27.89 EPS 100 / 0197-1100
1.19 5.49 38.10 M3,M4,M5 EPS 100 / 0216-1500
1.50 4.50 15.01 EPS 100 / 0177-0591
1.60 3.18 15.88 M3 EPS 100 / 0125-0625
1.60 4.75 15.88 M3, M4 EPS 100 / 0187-0625
1.60 4.75 19.05 M3, M4 EPS 100 / 0187-0750
1.60 5.08 19.05 EPS 100 / 0200-0750
2.20 7.01 24.99 EPS 100 / 0276-0984
2.79 4.75 10.01 M3, M4 EPS 100 / 0187-0394
3.00 7.00 19.99 EPS 100 / 0276-0787
3.18 6.35 19.05 M5,M6 .1/4" EPS 100 / 0250-0750
3.18 6.35 25.40 M5,M6 .1/4" EPS 100 / 0250-1000
3.18 9.53 31.75 M8 .5/8" EPS 100 / 0375-1250
3.20 12.70 50.80 M10 .3/8" EPS 100 / 0500-2000
3.40 3.70 7.00 EPS 100 / 0146-0276
3.99 8.00 19.99 EPS 100 / 0315-0787
4.00 10.00 50.00 EPS 100 / 0394-1969
4.50 8.99 24.99 EPS 100 / 0354-0984
4.70 5.54 6.35 EPS 100 / 0218-0250
4.78 8.71 15.88 M7, M8 .5/8" EPS 100 / 0343-0625
4.78 8.71 19.05 M7, M8 .5/8" EPS 100 / 0343-0750
4.78 8.71 25.40 M7, M8 .5/8" EPS 100 / 0343-1000
5.00 7.00 16.00 EPS 100 / 0276-0630
5.00 10.00 25.40 EPS 100 / 0394-1000
5.00 10.01 48.01 EPS 100 / 0394-1890
5.00 10.03 50.01 EPS 100 / 0395-1969
6.00 9.98 19.99 EPS 100 / 0393-0787
6.02 11.99 50.80 M10 .3/8" EPS 100 / 0472-2000
6.35 9.53 12.70 M8 .5/8" EPS 100 / 0375-0500
6.35 9.53 19.05 M8 .5/8" EPS 100 / 0375-0750
6.35 9.53 25.40 M8 .5/8" EPS 100 / 0375-1000
6.35 11.10 25.40 M10 .3/8" EPS 100 / 0437-1000
7.90 12.01 19.99 M10 .3/8" EPS 100 / 0473-0787
7.90 12.70 25.40 M10 .3/8" EPS 100 / 0500-1000
7.92 12.70 20.65 M10 .3/8" EPS 100 / 0500-0813
7.95 13.00 28.58 EPS 100 / 0512-1125
7.95 14.27 25.40 M10,M12,M14 .7/16", .1/2", .9/16" EPS 100 / 0562-1000
7.95 14.27 28.58 M10,M12,M14 .7/16", .1/2", .9/16" EPS 100 / 0562-1125
8.00 11.00 19.00 M10 .3/8" EPS 100 / 0433-0748
8.00 11.00 27.00 M10 .3/8" EPS 100 / 0433-1063
8.74 11.13 17.48 M10 .3/8" EPS 100 / 0438-0688
8.74 11.91 20.65 M10 .3/8" EPS 100 / 0469-0813
8.99 11.13 19.00 M10 .3/8" EPS 100 / 0438-0748
8.99 11.99 19.00 M10 .3/8" EPS 100 / 0472-0748
8.99 11.99 25.40 M10 .3/8" EPS 100 / 0472-1000
8.99 12.37 19.00 M10 .3/8" EPS 100 / 0487-0748
8.99 13.00 24.99 EPS 100 / 0512-0984
9.53 14.30 25.40 M10,M12,M14 .7/16", .1/2", .9/16" EPS 100 / 0563-1000
9.98 14.99 25.40 EPS 100 / 0590-1000
10.00 12.50 20.00 M10 .3/8" EPS 100 / 0492-0787
10.31 15.09 25.40 EPS 100 / 0594-1000
10.70 17.50 25.40 M14, M16, M18 .5/8" EPS 100 / 0689-1000
11.00 15.01 19.99 M14, M16  .1/2", .9/16" EPS 100 / 0591-0787
11.10 15.88 20.65 M14, M16  .9/16", .5/8" EPS 100 / 0625-0813
11.13 15.88 22.23 M14, M16  .9/16", .5/8" EPS 100 / 0625-0875
11.13 17.45 25.40 M14, M16, M18 .5/8" EPS 100 / 0687-1000
12.70 15.88 25.40 M14, M16  .9/16", .5/8" EPS 100 / 0625-1000
12.70 16.66 25.40 M16, 5/8 EPS 100 / 0656-1000
13.00 16.99 25.40 EPS 100 / 0669-1000
13.67 20.24 24.99 EPS 100 / 0797-0984
14.00 17.45 19.99 M14, M16, M18 .5/8" EPS 100 / 0687-0787
14.00 18.01 19.99 EPS 100 / 0709-0787
14.27 19.00 25.40 M18, M20 .3/4" EPS 100 / 0748-1000
14.30 19.00 14.27 M18, M20 .3/4" EPS 100 / 0750-0562
15.88 19.99 25.40 M20 .3/4" EPS 100 / 0787-1000
15.88 20.32 15.88 EPS 100 / 0800-0625
15.88 20.62 25.40 EPS 100 / 0812-1000
16.00 21.01 25.40 EPS 100 / 0827-1000
18.01 24.03 30.00 M22 .7/8" EPS 100 / 0946-1181
18.26 23.83 25.40 M22 .7/8" EPS 100 / 0938-1000
19.05 23.50 19.05 M22 .7/8" EPS 100 / 0925-0750
19.05 23.50 25.40 M22 .7/8" EPS 100 / 0925-1000
19.05 27.99 50.80 M30  1.1/4" EPS 100 / 1102-2000
19.20 24.00 19.05 M22 .7/8" EPS 100 / 0945-0750
19.20 24.00 25.40 M22 .7/8" EPS 100 / 0945-1000
19.84 25.40 25.40 M22, M24 1." EPS 100 / 1000-1000
19.99 25.15 22.48 EPS 100 / 0990-0885
19.99 26.01 25.40 EPS 100 / 1024-1000
22.00 25.50 12.00 M22, M24 1." EPS 100 / 1004-0472
22.00 26.97 24.99 EPS 100 / 1062-0984
22.35 26.01 20.19 EPS 100 / 1024-0795
22.40 25.15 20.19 EPS 100 / 0990-0795
23.01 27.00 25.40 M27 EPS 100 / 1063-1000
23.83 27.94 25.40 M30  1.1/4" EPS 100 / 1100-1000
24.99 30.99 30.00 EPS 100 / 1220-1181
26.19 31.75 25.40 M33  1.1/4" EPS 100 / 1250-1000
27.00 33.35 25.40 M33 1.1/4", .3/8" EPS 100 / 1313-1000
27.00 33.99 25.40 EPS 100 / 1338-1000
27.79 30.00 25.40 EPS 100 / 1181-1000
30.18 36.53 25.40 M36  1.3/8" EPS 100 / 1438-1000
30.18 36.98 25.40 EPS 100 / 1456-1000
30.99 38.00 35.00 EPS 100 / 1496-1378
31.75 38.89 25.40 M39 1.1/2" EPS 100 / 1531-1000
33.02 41.00 25.40 EPS 100 / 1614-1000
33.35 41.28 25.40 M39, M42 1.1/2" EPS 100 / 1625-1000
34.01 41.02 35.00 EPS 100 / 1615-1378
35.71 42.88 25.40 M42 EPS 100 / 1688-1000
35.99 43.00 25.40 M42, MM45 EPS 100 / 1693-1000
36.00 43.99 40.01 EPS 100 / 1732-1575
37.01 45.01 25.40 EPS 100 / 1772-1000
37.31 44.45 25.40 M48 EPS 100 / 1750-1000
38.10 46.05 25.40 EPS 100 / 1813-1000
41.00 49.00 40.01 EPS 100 / 1929-1575
41.28 50.01 25.40 EPS 100 / 1969-1000
44.45 52.40 25.40 M56 EPS 100 / 2063-1000
44.96 52.98 25.40 EPS 100 / 2086-1000
46.99 54.99 40.01 EPS 100 / 2165-1575
47.63 55.96 25.40 M56 EPS 100 / 2203-1000
50.00 59.99 45.01 EPS 100 / 2362-1772
50.01 62.71 25.40 M64 EPS 100 / 2469-1000
50.01 62.99 25.40 M50, M52 EPS 100 / 2480-1000
53.98 63.50 25.40 M64 EPS 100 / 2500-1000
57.94 68.28 25.40 EPS 100 / 2688-1000
61.93 75.01 34.93 EPS 100 / 2953-1375
75.01 89.99 38.99 EPS 100 / 3543-1535
76.20 88.90 38.10 EPS 100 / 3500-1500
82.55 101.60 38.10 EPS 100 / 4000-1500
82.98 103.00 38.99 EPS 100 / 4055-1535
88.90 127.00 50.80 EPS 100 / 5000-2000
Dimensions d1
0.41

Dimensions d1
1.60

Dimensions H
15.88

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0063-0625

Dimensions d1
0.41

Dimensions d1
7.09

Dimensions H
24.99

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0279-0984

Dimensions d1
0.51

Dimensions d1
1.98

Dimensions H
19.05

Metric
M2

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0078-0750

Dimensions d1
0.51

Dimensions d1
1.98

Dimensions H
25.40

Metric
M2

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0078-1000

Dimensions d1
0.79

Dimensions d1
3.18

Dimensions H
15.88

Metric
M3

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0125

Dimensions d1
0.81

Dimensions d1
2.54

Dimensions H
15.88

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0100-0625

Dimensions d1
0.81

Dimensions d1
2.54

Dimensions H
25.40

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0100-1000

Dimensions d1
1.19

Dimensions d1
4.78

Dimensions H
55.88

Metric
M4

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0188-2200

Dimensions d1
1.19

Dimensions d1
5.00

Dimensions H
27.89

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0197-1100

Dimensions d1
1.19

Dimensions d1
5.49

Dimensions H
38.10

Metric
M3,M4,M5

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0216-1500

Dimensions d1
1.50

Dimensions d1
4.50

Dimensions H
15.01

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0177-0591

Dimensions d1
1.60

Dimensions d1
3.18

Dimensions H
15.88

Metric
M3

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0125-0625

Dimensions d1
1.60

Dimensions d1
4.75

Dimensions H
15.88

Metric
M3, M4

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0187-0625

Dimensions d1
1.60

Dimensions d1
4.75

Dimensions H
19.05

Metric
M3, M4

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0187-0750

Dimensions d1
1.60

Dimensions d1
5.08

Dimensions H
19.05

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0200-0750

Dimensions d1
2.20

Dimensions d1
7.01

Dimensions H
24.99

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0276-0984

Dimensions d1
2.79

Dimensions d1
4.75

Dimensions H
10.01

Metric
M3, M4

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0187-0394

Dimensions d1
3.00

Dimensions d1
7.00

Dimensions H
19.99

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0276-0787

Dimensions d1
3.18

Dimensions d1
6.35

Dimensions H
19.05

Metric
M5,M6

UNF
.1/4"

Packaging Unit
1.000

Reference No.
EPS 100 / 0250-0750

Dimensions d1
3.18

Dimensions d1
6.35

Dimensions H
25.40

Metric
M5,M6

UNF
.1/4"

Packaging Unit
1.000

Reference No.
EPS 100 / 0250-1000

Dimensions d1
3.18

Dimensions d1
9.53

Dimensions H
31.75

Metric
M8

UNF
.5/8"

Packaging Unit
500

Reference No.
EPS 100 / 0375-1250

Dimensions d1
3.20

Dimensions d1
12.70

Dimensions H
50.80

Metric
M10

UNF
.3/8"

Packaging Unit
250

Reference No.
EPS 100 / 0500-2000

Dimensions d1
3.40

Dimensions d1
3.70

Dimensions H
7.00

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0146-0276

Dimensions d1
3.99

Dimensions d1
8.00

Dimensions H
19.99

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0315-0787

Dimensions d1
4.00

Dimensions d1
10.00

Dimensions H
50.00

Metric

UNF

Packaging Unit
250

Reference No.
EPS 100 / 0394-1969

Dimensions d1
4.50

Dimensions d1
8.99

Dimensions H
24.99

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0354-0984

Dimensions d1
4.70

Dimensions d1
5.54

Dimensions H
6.35

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0218-0250

Dimensions d1
4.78

Dimensions d1
8.71

Dimensions H
15.88

Metric
M7, M8

UNF
.5/8"

Packaging Unit
1.000

Reference No.
EPS 100 / 0343-0625

Dimensions d1
4.78

Dimensions d1
8.71

Dimensions H
19.05

Metric
M7, M8

UNF
.5/8"

Packaging Unit
1.000

Reference No.
EPS 100 / 0343-0750

Dimensions d1
4.78

Dimensions d1
8.71

Dimensions H
25.40

Metric
M7, M8

UNF
.5/8"

Packaging Unit
1.000

Reference No.
EPS 100 / 0343-1000

Dimensions d1
5.00

Dimensions d1
7.00

Dimensions H
16.00

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 100 / 0276-0630

Dimensions d1
5.00

Dimensions d1
10.00

Dimensions H
25.40

Metric

UNF

Packaging Unit
500

Reference No.
EPS 100 / 0394-1000

Dimensions d1
5.00

Dimensions d1
10.01

Dimensions H
48.01

Metric

UNF

Packaging Unit
500

Reference No.
EPS 100 / 0394-1890

Dimensions d1
5.00

Dimensions d1
10.03

Dimensions H
50.01

Metric

UNF

Packaging Unit
500

Reference No.
EPS 100 / 0395-1969

Dimensions d1
6.00

Dimensions d1
9.98

Dimensions H
19.99

Metric

UNF

Packaging Unit
500

Reference No.
EPS 100 / 0393-0787

Dimensions d1
6.02

Dimensions d1
11.99

Dimensions H
50.80

Metric
M10

UNF
.3/8"

Packaging Unit
500

Reference No.
EPS 100 / 0472-2000

Dimensions d1
6.35

Dimensions d1
9.53

Dimensions H
12.70

Metric
M8

UNF
.5/8"

Packaging Unit
500

Reference No.
EPS 100 / 0375-0500

Dimensions d1
6.35

Dimensions d1
9.53

Dimensions H
19.05

Metric
M8

UNF
.5/8"

Packaging Unit
500

Reference No.
EPS 100 / 0375-0750

Dimensions d1
6.35

Dimensions d1
9.53

Dimensions H
25.40

Metric
M8

UNF
.5/8"

Packaging Unit
500

Reference No.
EPS 100 / 0375-1000

Dimensions d1
6.35

Dimensions d1
11.10

Dimensions H
25.40

Metric
M10

UNF
.3/8"

Packaging Unit
500

Reference No.
EPS 100 / 0437-1000

Dimensions d1
7.90

Dimensions d1
12.01

Dimensions H
19.99

Metric
M10

UNF
.3/8"

Packaging Unit
500

Reference No.
EPS 100 / 0473-0787

Dimensions d1
7.90

Dimensions d1
12.70

Dimensions H
25.40

Metric
M10

UNF
.3/8"

Packaging Unit
250

Reference No.
EPS 100 / 0500-1000

Dimensions d1
7.92

Dimensions d1
12.70

Dimensions H
20.65

Metric
M10

UNF
.3/8"

Packaging Unit
250

Reference No.
EPS 100 / 0500-0813

Dimensions d1
7.95

Dimensions d1
13.00

Dimensions H
28.58

Metric

UNF

Packaging Unit
250

Reference No.
EPS 100 / 0512-1125

Dimensions d1
7.95

Dimensions d1
14.27

Dimensions H
25.40

Metric
M10,M12,M14

UNF
.7/16", .1/2", .9/16"

Packaging Unit
250

Reference No.
EPS 100 / 0562-1000

Dimensions d1
7.95

Dimensions d1
14.27

Dimensions H
28.58

Metric
M10,M12,M14

UNF
.7/16", .1/2", .9/16"

Packaging Unit
250

Reference No.
EPS 100 / 0562-1125

Dimensions d1
8.00

Dimensions d1
11.00

Dimensions H
19.00

Metric
M10

UNF
.3/8"

Packaging Unit
500

Reference No.
EPS 100 / 0433-0748

Dimensions d1
8.00

Dimensions d1
11.00

Dimensions H
27.00

Metric
M10

UNF
.3/8"

Packaging Unit
500

Reference No.
EPS 100 / 0433-1063

Dimensions d1
8.74

Dimensions d1
11.13

Dimensions H
17.48

Metric
M10

UNF
.3/8"

Packaging Unit
500

Reference No.
EPS 100 / 0438-0688

Dimensions d1
8.74

Dimensions d1
11.91

Dimensions H
20.65

Metric
M10

UNF
.3/8"

Packaging Unit
500

Reference No.
EPS 100 / 0469-0813

Dimensions d1
8.99

Dimensions d1
11.13

Dimensions H
19.00

Metric
M10

UNF
.3/8"

Packaging Unit
500

Reference No.
EPS 100 / 0438-0748

Dimensions d1
8.99

Dimensions d1
11.99

Dimensions H
19.00

Metric
M10

UNF
.3/8"

Packaging Unit
500

Reference No.
EPS 100 / 0472-0748

Dimensions d1
8.99

Dimensions d1
11.99

Dimensions H
25.40

Metric
M10

UNF
.3/8"

Packaging Unit
500

Reference No.
EPS 100 / 0472-1000

Dimensions d1
8.99

Dimensions d1
12.37

Dimensions H
19.00

Metric
M10

UNF
.3/8"

Packaging Unit
500

Reference No.
EPS 100 / 0487-0748

Dimensions d1
8.99

Dimensions d1
13.00

Dimensions H
24.99

Metric

UNF

Packaging Unit
250

Reference No.
EPS 100 / 0512-0984

Dimensions d1
9.53

Dimensions d1
14.30

Dimensions H
25.40

Metric
M10,M12,M14

UNF
.7/16", .1/2", .9/16"

Packaging Unit
250

Reference No.
EPS 100 / 0563-1000

Dimensions d1
9.98

Dimensions d1
14.99

Dimensions H
25.40

Metric

UNF

Packaging Unit
250

Reference No.
EPS 100 / 0590-1000

Dimensions d1
10.00

Dimensions d1
12.50

Dimensions H
20.00

Metric
M10

UNF
.3/8"

Packaging Unit
500

Reference No.
EPS 100 / 0492-0787

Dimensions d1
10.31

Dimensions d1
15.09

Dimensions H
25.40

Metric

UNF

Packaging Unit
250

Reference No.
EPS 100 / 0594-1000

Dimensions d1
10.70

Dimensions d1
17.50

Dimensions H
25.40

Metric
M14, M16, M18

UNF
.5/8"

Packaging Unit
250

Reference No.
EPS 100 / 0689-1000

Dimensions d1
11.00

Dimensions d1
15.01

Dimensions H
19.99

Metric
M14, M16

UNF
.1/2", .9/16"

Packaging Unit
250

Reference No.
EPS 100 / 0591-0787

Dimensions d1
11.10

Dimensions d1
15.88

Dimensions H
20.65

Metric
M14, M16

UNF
.9/16", .5/8"

Packaging Unit
250

Reference No.
EPS 100 / 0625-0813

Dimensions d1
11.13

Dimensions d1
15.88

Dimensions H
22.23

Metric
M14, M16

UNF
.9/16", .5/8"

Packaging Unit
250

Reference No.
EPS 100 / 0625-0875

Dimensions d1
11.13

Dimensions d1
17.45

Dimensions H
25.40

Metric
M14, M16, M18

UNF
.5/8"

Packaging Unit
250

Reference No.
EPS 100 / 0687-1000

Dimensions d1
12.70

Dimensions d1
15.88

Dimensions H
25.40

Metric
M14, M16

UNF
.9/16", .5/8"

Packaging Unit
250

Reference No.
EPS 100 / 0625-1000

Dimensions d1
12.70

Dimensions d1
16.66

Dimensions H
25.40

Metric
M16, 5/8

UNF

Packaging Unit
250

Reference No.
EPS 100 / 0656-1000

Dimensions d1
13.00

Dimensions d1
16.99

Dimensions H
25.40

Metric

UNF

Packaging Unit
250

Reference No.
EPS 100 / 0669-1000

Dimensions d1
13.67

Dimensions d1
20.24

Dimensions H
24.99

Metric

UNF

Packaging Unit
200

Reference No.
EPS 100 / 0797-0984

Dimensions d1
14.00

Dimensions d1
17.45

Dimensions H
19.99

Metric
M14, M16, M18

UNF
.5/8"

Packaging Unit
250

Reference No.
EPS 100 / 0687-0787

Dimensions d1
14.00

Dimensions d1
18.01

Dimensions H
19.99

Metric

UNF

Packaging Unit
250

Reference No.
EPS 100 / 0709-0787

Dimensions d1
14.27

Dimensions d1
19.00

Dimensions H
25.40

Metric
M18, M20

UNF
.3/4"

Packaging Unit
100

Reference No.
EPS 100 / 0748-1000

Dimensions d1
14.30

Dimensions d1
19.00

Dimensions H
14.27

Metric
M18, M20

UNF
.3/4"

Packaging Unit
250

Reference No.
EPS 100 / 0750-0562

Dimensions d1
15.88

Dimensions d1
19.99

Dimensions H
25.40

Metric
M20

UNF
.3/4"

Packaging Unit
100

Reference No.
EPS 100 / 0787-1000

Dimensions d1
15.88

Dimensions d1
20.32

Dimensions H
15.88

Metric

UNF

Packaging Unit
100

Reference No.
EPS 100 / 0800-0625

Dimensions d1
15.88

Dimensions d1
20.62

Dimensions H
25.40

Metric

UNF

Packaging Unit
100

Reference No.
EPS 100 / 0812-1000

Dimensions d1
16.00

Dimensions d1
21.01

Dimensions H
25.40

Metric

UNF

Packaging Unit
100

Reference No.
EPS 100 / 0827-1000

Dimensions d1
18.01

Dimensions d1
24.03

Dimensions H
30.00

Metric
M22

UNF
.7/8"

Packaging Unit
100

Reference No.
EPS 100 / 0946-1181

Dimensions d1
18.26

Dimensions d1
23.83

Dimensions H
25.40

Metric
M22

UNF
.7/8"

Packaging Unit
100

Reference No.
EPS 100 / 0938-1000

Dimensions d1
19.05

Dimensions d1
23.50

Dimensions H
19.05

Metric
M22

UNF
.7/8"

Packaging Unit
100

Reference No.
EPS 100 / 0925-0750

Dimensions d1
19.05

Dimensions d1
23.50

Dimensions H
25.40

Metric
M22

UNF
.7/8"

Packaging Unit
100

Reference No.
EPS 100 / 0925-1000

Dimensions d1
19.05

Dimensions d1
27.99

Dimensions H
50.80

Metric
M30

UNF
1.1/4"

Packaging Unit
100

Reference No.
EPS 100 / 1102-2000

Dimensions d1
19.20

Dimensions d1
24.00

Dimensions H
19.05

Metric
M22

UNF
.7/8"

Packaging Unit
100

Reference No.
EPS 100 / 0945-0750

Dimensions d1
19.20

Dimensions d1
24.00

Dimensions H
25.40

Metric
M22

UNF
.7/8"

Packaging Unit
100

Reference No.
EPS 100 / 0945-1000

Dimensions d1
19.84

Dimensions d1
25.40

Dimensions H
25.40

Metric
M22, M24

UNF
1."

Packaging Unit
100

Reference No.
EPS 100 / 1000-1000

Dimensions d1
19.99

Dimensions d1
25.15

Dimensions H
22.48

Metric

UNF

Packaging Unit
100

Reference No.
EPS 100 / 0990-0885

Dimensions d1
19.99

Dimensions d1
26.01

Dimensions H
25.40

Metric

UNF

Packaging Unit
100

Reference No.
EPS 100 / 1024-1000

Dimensions d1
22.00

Dimensions d1
25.50

Dimensions H
12.00

Metric
M22, M24

UNF
1."

Packaging Unit
100

Reference No.
EPS 100 / 1004-0472

Dimensions d1
22.00

Dimensions d1
26.97

Dimensions H
24.99

Metric

UNF

Packaging Unit
100

Reference No.
EPS 100 / 1062-0984

Dimensions d1
22.35

Dimensions d1
26.01

Dimensions H
20.19

Metric

UNF

Packaging Unit
100

Reference No.
EPS 100 / 1024-0795

Dimensions d1
22.40

Dimensions d1
25.15

Dimensions H
20.19

Metric

UNF

Packaging Unit
100

Reference No.
EPS 100 / 0990-0795

Dimensions d1
23.01

Dimensions d1
27.00

Dimensions H
25.40

Metric
M27

UNF

Packaging Unit
100

Reference No.
EPS 100 / 1063-1000

Dimensions d1
23.83

Dimensions d1
27.94

Dimensions H
25.40

Metric
M30

UNF
1.1/4"

Packaging Unit
100

Reference No.
EPS 100 / 1100-1000

Dimensions d1
24.99

Dimensions d1
30.99

Dimensions H
30.00

Metric

UNF

Packaging Unit
100

Reference No.
EPS 100 / 1220-1181

Dimensions d1
26.19

Dimensions d1
31.75

Dimensions H
25.40

Metric
M33

UNF
1.1/4"

Packaging Unit
100

Reference No.
EPS 100 / 1250-1000

Dimensions d1
27.00

Dimensions d1
33.35

Dimensions H
25.40

Metric
M33

UNF
1.1/4", .3/8"

Packaging Unit
100

Reference No.
EPS 100 / 1313-1000

Dimensions d1
27.00

Dimensions d1
33.99

Dimensions H
25.40

Metric

UNF

Packaging Unit
100

Reference No.
EPS 100 / 1338-1000

Dimensions d1
27.79

Dimensions d1
30.00

Dimensions H
25.40

Metric

UNF

Packaging Unit
100

Reference No.
EPS 100 / 1181-1000

Dimensions d1
30.18

Dimensions d1
36.53

Dimensions H
25.40

Metric
M36

UNF
1.3/8"

Packaging Unit
100

Reference No.
EPS 100 / 1438-1000

Dimensions d1
30.18

Dimensions d1
36.98

Dimensions H
25.40

Metric

UNF

Packaging Unit
100

Reference No.
EPS 100 / 1456-1000

Dimensions d1
30.99

Dimensions d1
38.00

Dimensions H
35.00

Metric

UNF

Packaging Unit
50

Reference No.
EPS 100 / 1496-1378

Dimensions d1
31.75

Dimensions d1
38.89

Dimensions H
25.40

Metric
M39

UNF
1.1/2"

Packaging Unit
50

Reference No.
EPS 100 / 1531-1000

Dimensions d1
33.02

Dimensions d1
41.00

Dimensions H
25.40

Metric

UNF

Packaging Unit
50

Reference No.
EPS 100 / 1614-1000

Dimensions d1
33.35

Dimensions d1
41.28

Dimensions H
25.40

Metric
M39, M42

UNF
1.1/2"

Packaging Unit
50

Reference No.
EPS 100 / 1625-1000

Dimensions d1
34.01

Dimensions d1
41.02

Dimensions H
35.00

Metric

UNF

Packaging Unit
50

Reference No.
EPS 100 / 1615-1378

Dimensions d1
35.71

Dimensions d1
42.88

Dimensions H
25.40

Metric
M42

UNF

Packaging Unit
50

Reference No.
EPS 100 / 1688-1000

Dimensions d1
35.99

Dimensions d1
43.00

Dimensions H
25.40

Metric
M42, MM45

UNF

Packaging Unit
50

Reference No.
EPS 100 / 1693-1000

Dimensions d1
36.00

Dimensions d1
43.99

Dimensions H
40.01

Metric

UNF

Packaging Unit
50

Reference No.
EPS 100 / 1732-1575

Dimensions d1
37.01

Dimensions d1
45.01

Dimensions H
25.40

Metric

UNF

Packaging Unit
50

Reference No.
EPS 100 / 1772-1000

Dimensions d1
37.31

Dimensions d1
44.45

Dimensions H
25.40

Metric
M48

UNF

Packaging Unit
50

Reference No.
EPS 100 / 1750-1000

Dimensions d1
38.10

Dimensions d1
46.05

Dimensions H
25.40

Metric

UNF

Packaging Unit
50

Reference No.
EPS 100 / 1813-1000

Dimensions d1
41.00

Dimensions d1
49.00

Dimensions H
40.01

Metric

UNF

Packaging Unit
50

Reference No.
EPS 100 / 1929-1575

Dimensions d1
41.28

Dimensions d1
50.01

Dimensions H
25.40

Metric

UNF

Packaging Unit
50

Reference No.
EPS 100 / 1969-1000

Dimensions d1
44.45

Dimensions d1
52.40

Dimensions H
25.40

Metric
M56

UNF

Packaging Unit
25

Reference No.
EPS 100 / 2063-1000

Dimensions d1
44.96

Dimensions d1
52.98

Dimensions H
25.40

Metric

UNF

Packaging Unit
25

Reference No.
EPS 100 / 2086-1000

Dimensions d1
46.99

Dimensions d1
54.99

Dimensions H
40.01

Metric

UNF

Packaging Unit
25

Reference No.
EPS 100 / 2165-1575

Dimensions d1
47.63

Dimensions d1
55.96

Dimensions H
25.40

Metric
M56

UNF

Packaging Unit
25

Reference No.
EPS 100 / 2203-1000

Dimensions d1
50.00

Dimensions d1
59.99

Dimensions H
45.01

Metric

UNF

Packaging Unit
25

Reference No.
EPS 100 / 2362-1772

Dimensions d1
50.01

Dimensions d1
62.71

Dimensions H
25.40

Metric
M64

UNF

Packaging Unit
25

Reference No.
EPS 100 / 2469-1000

Dimensions d1
50.01

Dimensions d1
62.99

Dimensions H
25.40

Metric
M50, M52

UNF

Packaging Unit
25

Reference No.
EPS 100 / 2480-1000

Dimensions d1
53.98

Dimensions d1
63.50

Dimensions H
25.40

Metric
M64

UNF

Packaging Unit
25

Reference No.
EPS 100 / 2500-1000

Dimensions d1
57.94

Dimensions d1
68.28

Dimensions H
25.40

Metric

UNF

Packaging Unit
25

Reference No.
EPS 100 / 2688-1000

Dimensions d1
61.93

Dimensions d1
75.01

Dimensions H
34.93

Metric

UNF

Packaging Unit
25

Reference No.
EPS 100 / 2953-1375

Dimensions d1
75.01

Dimensions d1
89.99

Dimensions H
38.99

Metric

UNF

Packaging Unit
10

Reference No.
EPS 100 / 3543-1535

Dimensions d1
76.20

Dimensions d1
88.90

Dimensions H
38.10

Metric

UNF

Packaging Unit
10

Reference No.
EPS 100 / 3500-1500

Dimensions d1
82.55

Dimensions d1
101.60

Dimensions H
38.10

Metric

UNF

Packaging Unit
10

Reference No.
EPS 100 / 4000-1500

Dimensions d1
82.98

Dimensions d1
103.00

Dimensions H
38.99

Metric

UNF

Packaging Unit
10

Reference No.
EPS 100 / 4055-1535

Dimensions d1
88.90

Dimensions d1
127.00

Dimensions H
50.80

Metric

UNF

Packaging Unit
5

Reference No.
EPS 100 / 5000-2000

PROTEC products and specifications are subject to improvement and change without notice.

PROSICON® EPS 100 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.

You might also be interested in these PROTEC series

PROSICON® EPS 550

High Temp Silicone Caps - Dome Top - internal lip

PROSICON® EPS 350

High Temperature Masking Dual Flanged Pull Plugs

PROSICON® EPS 375

High Temp Silicone Push-Fit Plugs with Handle

PROSICON® EPS 135

High Temperature Masking Tapered Silicone Pull Plugs

Certified production & quality management

PROTEC meets the most stringent demands of safety and operations reliability. International approvals and certifications such as UL, CSA, VDE, VDA 6.1 and DIN EN ISO 9001: 2015 demonstrate total quality commitment on superior level.

Be the first to know - Join our newsletter!

Stay on top of the latest news and upcoming events and event information from PROTEC and its partner. Be the first to know when new products are on the market. Get periodic specials and news delivered directly to your email inbox! You can un-subscribe anytime.

Sign our free newsletter now

Imprint | Contact form | Privacy policy | Jobs at PROTEC | Certifications

copyright (c) 2024 PROTEC PLASTICS THE CAP COMPANY LTD
