ProteC CaPtoP® EP 436

Threaded sealing plugs with drain head design


CaPtoP® EP 436

Threaded sealing plugs with drain head design


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

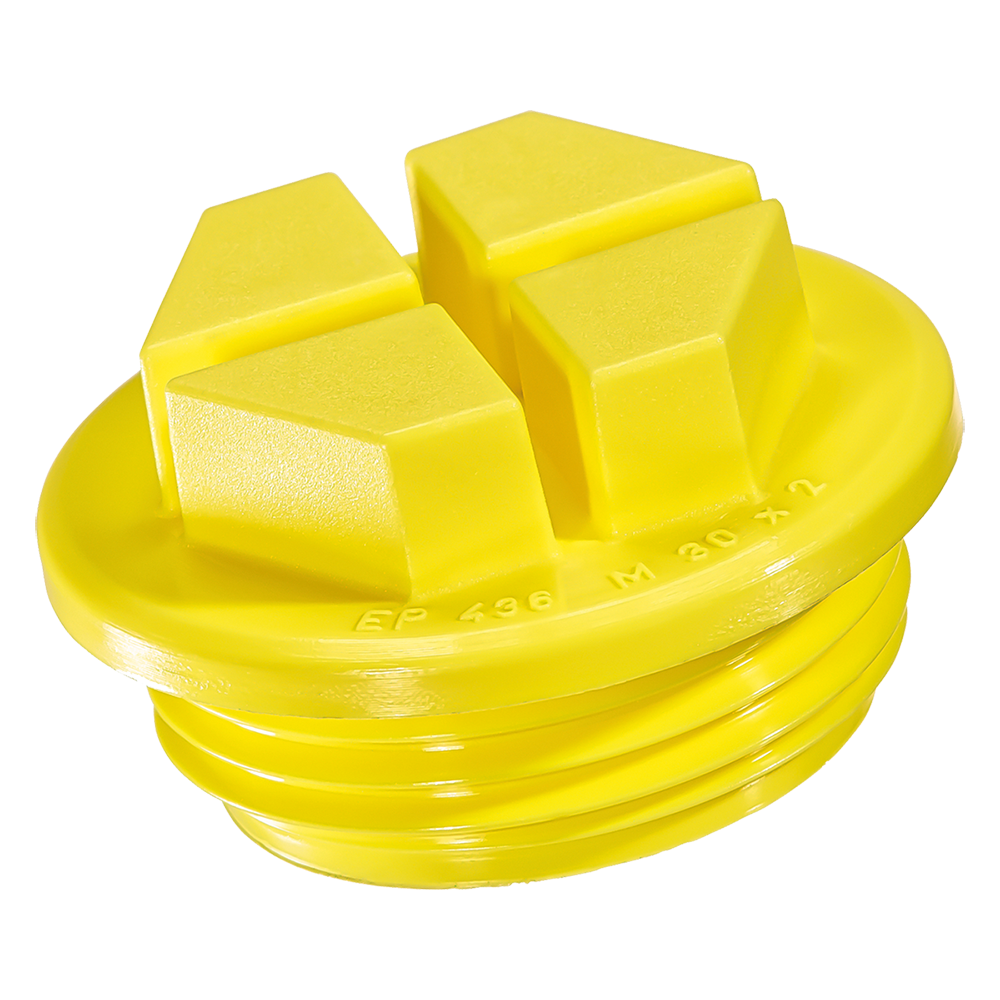

Designed to protect unified / straight threaded ports.

Each plug features an integral tight fit sealing lip along with five complete threads.

Head designed to drain liquids.

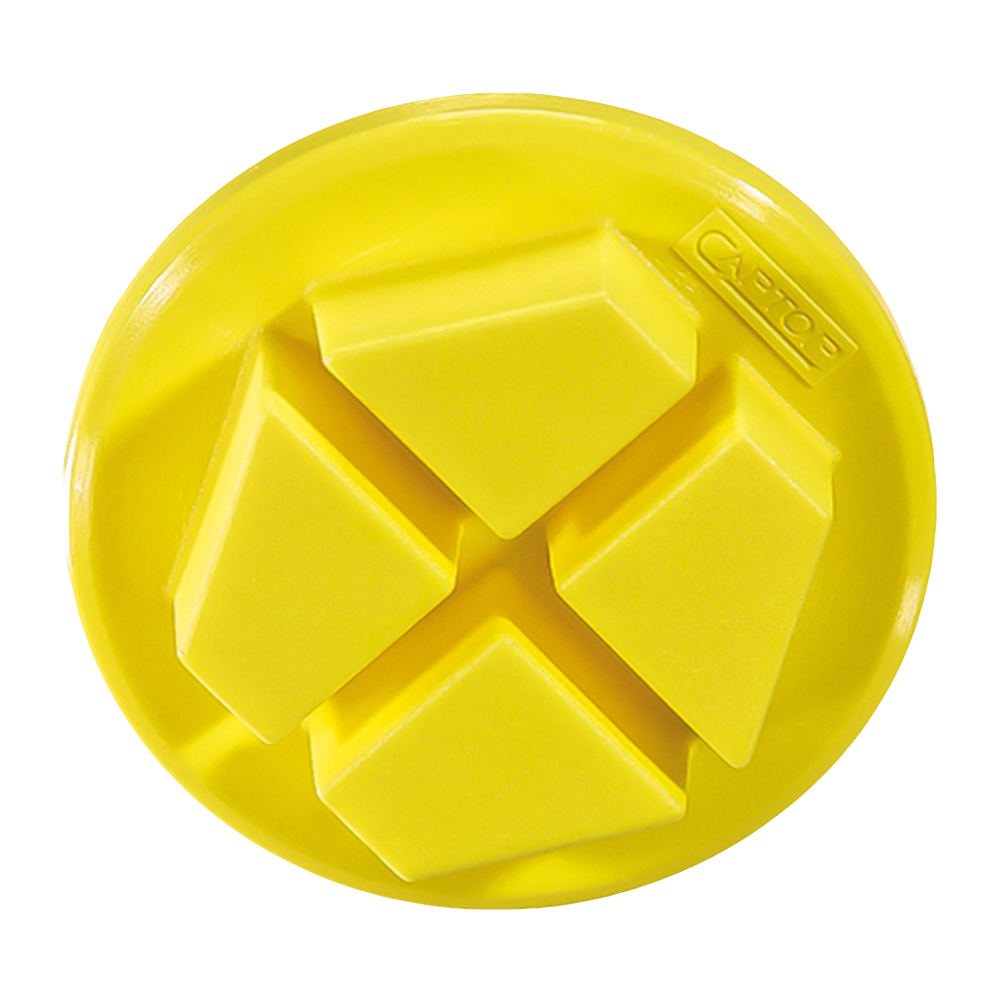

Large flange design.

Exist in a wide range of thread types.



Std. Color: yellow, natural
Material: Premium, impact resistant Nylon ( PA 6 )

PROTEC CAPTOP EP 436

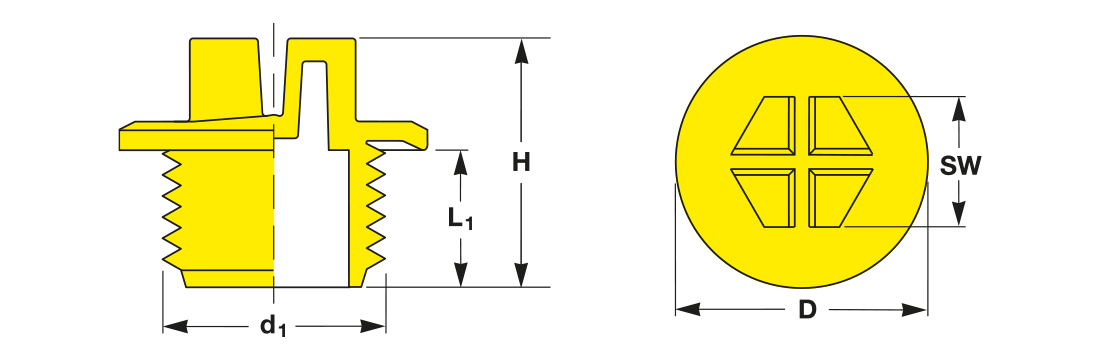

d1 D L1 H SW Standard
Colour
Reference No. Bookmark
  Metric DIN 3852-1 / DIN ISO 6149-1
M 10 x 1    15.4     8.0 15.0   7 Yellow EP 436 - M 10 x 1
M 12 x 1.5 18.5   9.0 16.5 10 Yellow EP 436 - M 12 x 1.5
M 14 x 1.5 20.3   9.0 17.0 10 Yellow EP 436 - M 14 x 1.5
M 16 x 1.5 23.6 10.0 20.0 13 Yellow EP 436 - M 16 x 1.5
M 18 x 1.5 25.5 11.0 20.6 13 Yellow EP 436 - M 18 x 1.5
M 22 x 1.5 28.4 12.2 21.7 15 Yellow EP 436 - M 22 x 1.5
M 27 x 2 33.4 15.0 25.0 19 Yellow EP 436 - M 27 x 2
M 30 x 2    35.9 10.0 20.0 24 Yellow EP 436 - M 30 x 2
M 33 x 2    42.5 15.0 25.0 24 Yellow EP 436 - M 33 x 2
M 36 x 2    44.1 10.0 20.0 24 Yellow EP 436 - M 36 x 2
M 42 x 2    51.3   15.0 26.0 24 Yellow EP 436 - M 42 x 2
M 45 x 2    54.9 14.6 25.7 30 Yellow EP 436 - M 45 x 2
M 48 x 2    56.7 17.0 28.0 30 Yellow EP 436 - M 48 x 2
M 52 x 2    60.5 17.0 27.7 30 Yellow EP 436 - M 52 x 2
  ISO 11926-1
  .7/16" - 20 UNF 17.5   9.2 16.0 10 Natural EP 436 -   .7/16" - 20 UNF
  .9/16" - 18 UNF 21.4   10.0 18.0 10 Natural EP 436 -   .9/16" - 18 UNF
  .3/  4" - 16 UNF 27.3 11.0 21.0 13 Natural EP 436 -   .3/  4" - 16 UNF
  .7/  8" - 14 UNF 30.5 13.0 23.0 15 Natural EP 436 -   .7/  8" - 14 UNF
1.1/16" - 12 UN   38.2 15.0 25.0 19 Natural EP 436 - 1.1/16" - 12 UN
1.5/16" - 12 UN   44.8   15.0 25.0 24 Natural EP 436 - 1.5/16" - 12 UN
1.5/  8" - 12 UN   56.0 15.0 26.0 30 Natural EP 436 - 1.5/  8" - 12 UN
1.7/  8" - 12 UN   63.7 15.0 26.0 30 Natural EP 436 - 1.7/  8" - 12 UN
d1 D L1 H SW Std.
Colour
Reference No.
  Metric DIN 3852-1 / DIN ISO 6149-1
M 10 x 1    15.4     8.0 15.0   7 Yellow EP 436 - M 10 x 1
M 12 x 1.5 18.5   9.0 16.5 10 Yellow EP 436 - M 12 x 1.5
M 14 x 1.5 20.3   9.0 17.0 10 Yellow EP 436 - M 14 x 1.5
M 16 x 1.5 23.6 10.0 20.0 13 Yellow EP 436 - M 16 x 1.5
M 18 x 1.5 25.5 11.0 20.6 13 Yellow EP 436 - M 18 x 1.5
M 22 x 1.5 28.4 12.2 21.7 15 Yellow EP 436 - M 22 x 1.5
M 27 x 2 33.4 15.0 25.0 19 Yellow EP 436 - M 27 x 2
M 30 x 2    35.9 10.0 20.0 24 Yellow EP 436 - M 30 x 2
M 33 x 2    42.5 15.0 25.0 24 Yellow EP 436 - M 33 x 2
M 36 x 2    44.1 10.0 20.0 24 Yellow EP 436 - M 36 x 2
M 42 x 2    51.3   15.0 26.0 24 Yellow EP 436 - M 42 x 2
M 45 x 2    54.9 14.6 25.7 30 Yellow EP 436 - M 45 x 2
M 48 x 2    56.7 17.0 28.0 30 Yellow EP 436 - M 48 x 2
M 52 x 2    60.5 17.0 27.7 30 Yellow EP 436 - M 52 x 2
  ISO 11926-1
  .7/16" - 20 UNF 17.5   9.2 16.0 10 Natural EP 436 -   .7/16" - 20 UNF
  .9/16" - 18 UNF 21.4   10.0 18.0 10 Natural EP 436 -   .9/16" - 18 UNF
  .3/  4" - 16 UNF 27.3 11.0 21.0 13 Natural EP 436 -   .3/  4" - 16 UNF
  .7/  8" - 14 UNF 30.5 13.0 23.0 15 Natural EP 436 -   .7/  8" - 14 UNF
1.1/16" - 12 UN   38.2 15.0 25.0 19 Natural EP 436 - 1.1/16" - 12 UN
1.5/16" - 12 UN   44.8   15.0 25.0 24 Natural EP 436 - 1.5/16" - 12 UN
1.5/  8" - 12 UN   56.0 15.0 26.0 30 Natural EP 436 - 1.5/  8" - 12 UN
1.7/  8" - 12 UN   63.7 15.0 26.0 30 Natural EP 436 - 1.7/  8" - 12 UN
  ISO 11926-1
Thread d1
M 10 x 1

Flange D
15.4

Thread Length L1
8.0

Head Lengt H
15.0

Spannersize SW
7

Standardcolour
Yellow

Reference No.
EP 436 - M 10 x 1

Thread d1
M 12 x 1.5

Flange D
18.5

Thread Length L1
9.0

Head Lengt H
16.5

Spannersize SW
10

Standardcolour
Yellow

Reference No.
EP 436 - M 12 x 1.5

Thread d1
M 14 x 1.5

Flange D
20.3

Thread Length L1
9.0

Head Lengt H
17.0

Spannersize SW
10

Standardcolour
Yellow

Reference No.
EP 436 - M 14 x 1.5

Thread d1
M 16 x 1.5

Flange D
23.6

Thread Length L1
10.0

Head Lengt H
20.0

Spannersize SW
13

Standardcolour
Yellow

Reference No.
EP 436 - M 16 x 1.5

Thread d1
M 18 x 1.5

Flange D
25.5

Thread Length L1
11.0

Head Lengt H
20.6

Spannersize SW
13

Standardcolour
Yellow

Reference No.
EP 436 - M 18 x 1.5

Thread d1
M 22 x 1.5

Flange D
28.4

Thread Length L1
12.2

Head Lengt H
21.7

Spannersize SW
15

Standardcolour
Yellow

Reference No.
EP 436 - M 22 x 1.5

Thread d1
M 27 x 2

Flange D
33.4

Thread Length L1
15.0

Head Lengt H
25.0

Spannersize SW
19

Standardcolour
Yellow

Reference No.
EP 436 - M 27 x 2

Thread d1
M 30 x 2

Flange D
35.9

Thread Length L1
10.0

Head Lengt H
20.0

Spannersize SW
24

Standardcolour
Yellow

Reference No.
EP 436 - M 30 x 2

Thread d1
M 33 x 2

Flange D
42.5

Thread Length L1
15.0

Head Lengt H
25.0

Spannersize SW
24

Standardcolour
Yellow

Reference No.
EP 436 - M 33 x 2

Thread d1
M 36 x 2

Flange D
44.1

Thread Length L1
10.0

Head Lengt H
20.0

Spannersize SW
24

Standardcolour
Yellow

Reference No.
EP 436 - M 36 x 2

Thread d1
M 42 x 2

Flange D
51.3

Thread Length L1
15.0

Head Lengt H
26.0

Spannersize SW
24

Standardcolour
Yellow

Reference No.
EP 436 - M 42 x 2

Thread d1
M 45 x 2

Flange D
54.9

Thread Length L1
14.6

Head Lengt H
25.7

Spannersize SW
30

Standardcolour
Yellow

Reference No.
EP 436 - M 45 x 2

Thread d1
M 48 x 2

Flange D
56.7

Thread Length L1
17.0

Head Lengt H
28.0

Spannersize SW
30

Standardcolour
Yellow

Reference No.
EP 436 - M 48 x 2

Thread d1
M 52 x 2

Flange D
60.5

Thread Length L1
17.0

Head Lengt H
27.7

Spannersize SW
30

Standardcolour
Yellow

Reference No.
EP 436 - M 52 x 2

  ISO 11926-1
Thread d1
.7/16" - 20 UNF

Flange D
17.5

Thread Length L1
9.2

Head Lengt H
16.0

Spannersize SW
10

Standardcolour
Natural

Reference No.
EP 436 - .7/16" - 20 UNF

Thread d1
.9/16" - 18 UNF

Flange D
21.4

Thread Length L1
10.0

Head Lengt H
18.0

Spannersize SW
10

Standardcolour
Natural

Reference No.
EP 436 - .9/16" - 18 UNF

Thread d1
.3/ 4" - 16 UNF

Flange D
27.3

Thread Length L1
11.0

Head Lengt H
21.0

Spannersize SW
13

Standardcolour
Natural

Reference No.
EP 436 - .3/ 4" - 16 UNF

Thread d1
.7/ 8" - 14 UNF

Flange D
30.5

Thread Length L1
13.0

Head Lengt H
23.0

Spannersize SW
15

Standardcolour
Natural

Reference No.
EP 436 - .7/ 8" - 14 UNF

Thread d1
1.1/16" - 12 UN

Flange D
38.2

Thread Length L1
15.0

Head Lengt H
25.0

Spannersize SW
19

Standardcolour
Natural

Reference No.
EP 436 - 1.1/16" - 12 UN

Thread d1
1.5/16" - 12 UN

Flange D
44.8

Thread Length L1
15.0

Head Lengt H
25.0

Spannersize SW
24

Standardcolour
Natural

Reference No.
EP 436 - 1.5/16" - 12 UN

Thread d1
1.5/ 8" - 12 UN

Flange D
56.0

Thread Length L1
15.0

Head Lengt H
26.0

Spannersize SW
30

Standardcolour
Natural

Reference No.
EP 436 - 1.5/ 8" - 12 UN

Thread d1
1.7/ 8" - 12 UN

Flange D
63.7

Thread Length L1
15.0

Head Lengt H
26.0

Spannersize SW
30

Standardcolour
Natural

Reference No.
EP 436 - 1.7/ 8" - 12 UN

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 436 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Protective sealing during painting processes and testing. Drain head design allows all fluids to drain off.

To protect unified/straight threaded ports and fittings according to DIN 3852-1 Metric, SAE J 1926 UN/UNF.

This plug is engineered with five complete threads to provide a tight fit. The "sealing lip" enables each plug to provide a secure seal to a specific torque for each size.

EP 436 plugs can be fitted and removed with a screwdriver, socket wrench, power tool or by hand.

Nylon offers high resistance against hydraulic fluids, acids, base alkalines and solvents.

On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.
