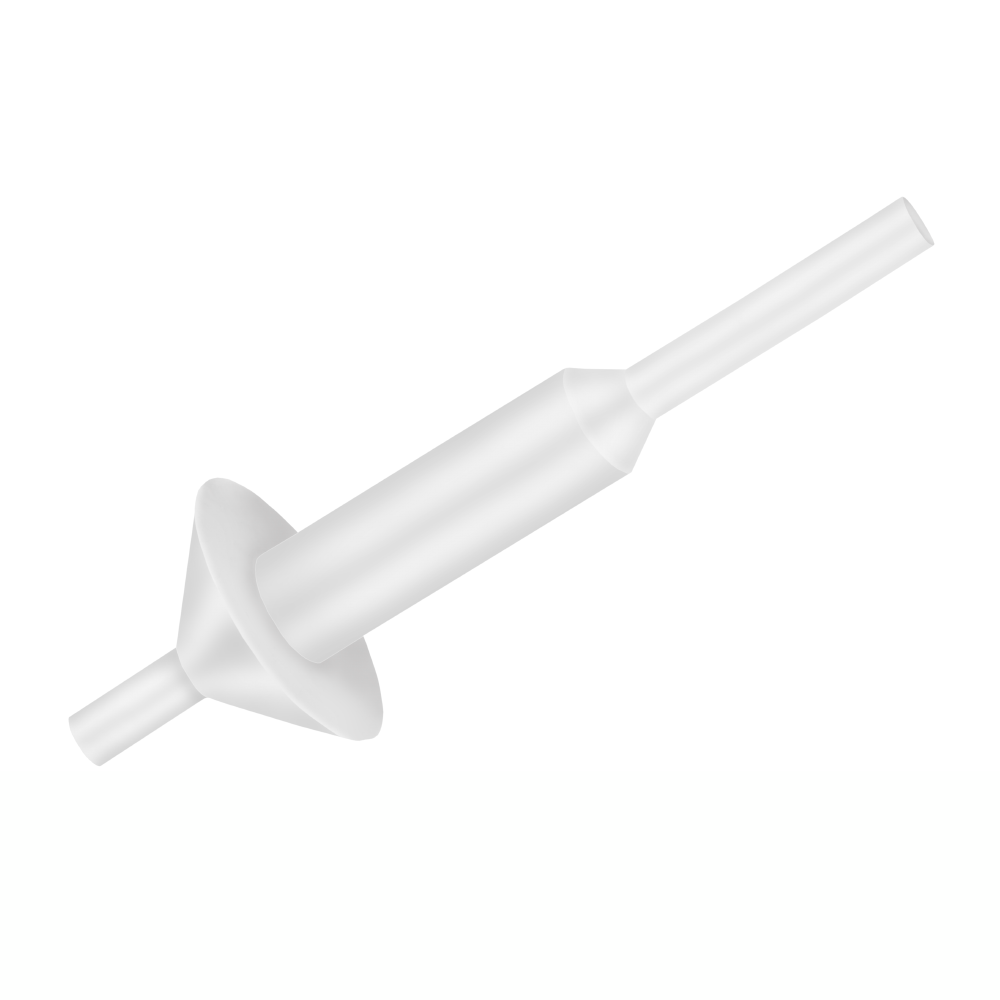

ProteC Prosicon® EPS 250

High Temp Silicone Washer Pull Plugs - Long


Prosicon® EPS 250

High Temp Silicone Washer Pull Plugs - Long


The disc plugs are ideal for covering the ring surface around the bore and for covering threads with edge cover.

Cylindrical shaft design.

Central pull tab.

Push-fit application achieves a high sealing effect.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code:
Reusable

Color:
Special color runs available on request

Material:
Prosicon® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

HEAT RESISTANT!
PROTEC PROSICON EPS 250

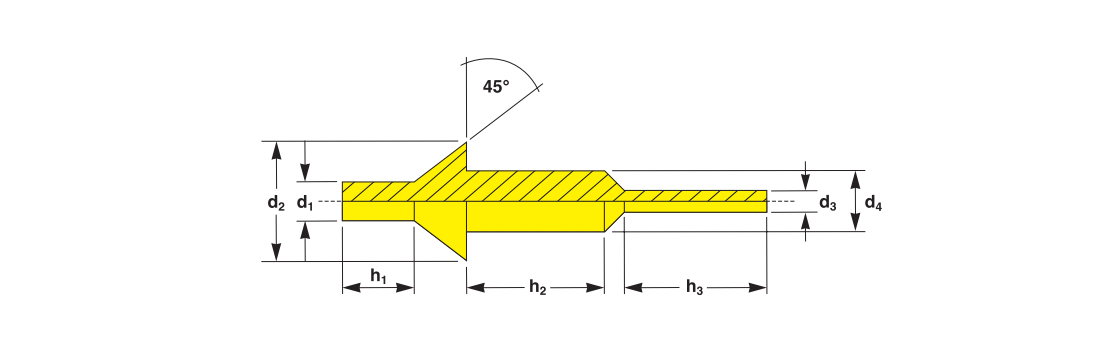

d1 d2 h1 d3 d4 h2 h3 Shore A Pack Reference No. Bookmark
2.50 10.00 10.00 2.50 2.90 15.00 20.00 40-45 1000 EPS 250 / 0114
3.00 10.00 12.70 2.00 3.60 9.90 9.90 40-45 1000 EPS 250 / 0140
3.00 10.00 10.00 3.00 3.80 15.00 20.00 40-45 1000 EPS 250 / 0150
3.00 12.00 10.00 3.00 4.50 15.00 20.00 40-45 1000 EPS 250 / 0177
3.40 10.00 10.00 2.00 3.00 10.00 10.00 40-45 1000 EPS 250 / 0118
3.40 10.00 10.00 2.20 4.00 10.00 9.00 40-45 1000 EPS 250 / 0157
3.50 10.00 10.00 3.50 5.00 10.00 15.00 40-45 1000 EPS 250 / 0197-S
3.70 10.00 10.00 3.70 5.00 10.00 10.00 40-45 1000 EPS 250 / 0197-0394
3.80 10.00 10.00 2.20 3.50 10.00 15.00 40-45 1000 EPS 250 / 0138
3.80 10.00 12.70 2.50 4.50 9.90 9.90 40-45 1000 EPS 250 / 0175
4.80 12.70 10.20 3.00 4.70 9.90 11.00 40-45 1000 EPS 250 / 0185
4.00 15.00 10.00 4.00 5.00 15.00 20.00 40-45 250 EPS 250 / 0197
4.00 14.00 10.00 4.00 5.50 15.00 20.00 40-45 250 EPS 250 / 0217
4.00 16.00 10.00 4.00 7.40 15.00 20.00 40-45 250 EPS 250 / 0291
4.10 14.30 12.70 2.80 5.00 9.90 9.90 40-45 1000 EPS 250 / 0195
4.20 17.80 9.90 4.20 8.40 13.50 16.50 40-45 250 EPS 250 / 0330
4.50 15.00 10.00 4.50 6.00 15.00 20.00 40-45 250 EPS 250 / 0236-L
4.60 15.00 12.70 3.00 5.50 9.90 9.90 40-45 250 EPS 250 / 0217-1
4.80 15.90 12.70 3.30 5.70 9.90 9.90 40-45 250 EPS 250 / 0225
5.00 15.00 10.00 3.60 6.00 10.00 9.00 40-45 250 EPS 250 / 0236
5.00 15.00 10.00 5.00 8.00 10.00 15.30 40-45 250 EPS 250 / 0315
5.00 15.00 10.00 5.00 8.00 15.00 22.00 40-45 250 EPS 250 / 0315-L
5.00 18.00 10.00 5.00 9.20 15.00 25.00 40-45 250 EPS 250 / 0362
5.00 20.00 10.00 5.00 11.00 15.00 25.00 40-45 100 EPS 250 / 0433
5.10 28.50 12.70 5.10 10.90 33.00 33.00 40-45 100 EPS 250 / 0430-L
6.10 17.50 12.70 4.10 7.20 9.90 19.10 40-45 250 EPS 250 / 0284
6.10 15.00 12.70 4.10 7.20 9.90 9.90 40-45 250 EPS 250 / 0285
6.10 16.50 10.50 4.10 7.20 12.70 15.20 40-45 250 EPS 250 / 0285-XL
7.40 20.60 12.70 5.00 8.80 9.90 9.90 40-45 250 EPS 250 / 0345
7.50 20.00 10.00 5.70 10.00 10.00 19.30 40-45 100 EPS 250 / 0394
8.10 20.00 12.70 5.50 9.50 9.90 9.90 40-45 250 EPS 250 / 0375
8.60 23.40 12.70 5.80 10.20 9.90 19.10 40-45 100 EPS 250 / 0400
9.10 20.00 12.70 6.20 10.90 9.90 9.90 40-45 100 EPS 250 / 0430
9.10 20.60 10.00 6.20 11.30 12.70 12.70 40-45 100 EPS 250 / 0445
9.90 27.00 7.60 6.70 11.70 9.90 9.90 40-45 100 EPS 250 / 0460
d1 d2 h1 h2 h3 Reference No.
2.50 10.00 10.00 15.00 20.00 EPS 250 / 0114
3.00 10.00 12.70 9.90 9.90 EPS 250 / 0140
3.00 10.00 10.00 15.00 20.00 EPS 250 / 0150
3.00 12.00 10.00 15.00 20.00 EPS 250 / 0177
3.40 10.00 10.00 10.00 10.00 EPS 250 / 0118
3.40 10.00 10.00 10.00 9.00 EPS 250 / 0157
3.50 10.00 10.00 10.00 15.00 EPS 250 / 0197-S
3.70 10.00 10.00 10.00 10.00 EPS 250 / 0197-0394
3.80 10.00 10.00 10.00 15.00 EPS 250 / 0138
3.80 10.00 12.70 9.90 9.90 EPS 250 / 0175
4.80 12.70 10.20 9.90 11.00 EPS 250 / 0185
4.00 15.00 10.00 15.00 20.00 EPS 250 / 0197
4.00 14.00 10.00 15.00 20.00 EPS 250 / 0217
4.00 16.00 10.00 15.00 20.00 EPS 250 / 0291
4.10 14.30 12.70 9.90 9.90 EPS 250 / 0195
4.20 17.80 9.90 13.50 16.50 EPS 250 / 0330
4.50 15.00 10.00 15.00 20.00 EPS 250 / 0236-L
4.60 15.00 12.70 9.90 9.90 EPS 250 / 0217-1
4.80 15.90 12.70 9.90 9.90 EPS 250 / 0225
5.00 15.00 10.00 10.00 9.00 EPS 250 / 0236
5.00 15.00 10.00 10.00 15.30 EPS 250 / 0315
5.00 15.00 10.00 15.00 22.00 EPS 250 / 0315-L
5.00 18.00 10.00 15.00 25.00 EPS 250 / 0362
5.00 20.00 10.00 15.00 25.00 EPS 250 / 0433
5.10 28.50 12.70 33.00 33.00 EPS 250 / 0430-L
6.10 17.50 12.70 9.90 19.10 EPS 250 / 0284
6.10 15.00 12.70 9.90 9.90 EPS 250 / 0285
6.10 16.50 10.50 12.70 15.20 EPS 250 / 0285-XL
7.40 20.60 12.70 9.90 9.90 EPS 250 / 0345
7.50 20.00 10.00 10.00 19.30 EPS 250 / 0394
8.10 20.00 12.70 9.90 9.90 EPS 250 / 0375
8.60 23.40 12.70 9.90 19.10 EPS 250 / 0400
9.10 20.00 12.70 9.90 9.90 EPS 250 / 0430
9.10 20.60 10.00 12.70 12.70 EPS 250 / 0445
9.90 27.00 7.60 9.90 9.90 EPS 250 / 0460
d1
2.50

d2
10.00

h1
10.00

d3
2.50

d4
2.90

h2
15.00

h3
20.00

Shore A
40-45

Packaging Unit<
1000

Reference No.
EPS 250 / 0114

d1
3.00

d2
10.00

h1
12.70

d3
2.00

d4
3.60

h2
9.90

h3
9.90

Shore A
40-45

Packaging Unit<
1000

Reference No.
EPS 250 / 0140

d1
3.00

d2
10.00

h1
10.00

d3
3.00

d4
3.80

h2
15.00

h3
20.00

Shore A
40-45

Packaging Unit<
1000

Reference No.
EPS 250 / 0150

d1
3.00

d2
12.00

h1
10.00

d3
3.00

d4
4.50

h2
15.00

h3
20.00

Shore A
40-45

Packaging Unit<
1000

Reference No.
EPS 250 / 0177

d1
3.40

d2
10.00

h1
10.00

d3
2.00

d4
3.00

h2
10.00

h3
10.00

Shore A
40-45

Packaging Unit<
1000

Reference No.
EPS 250 / 0118

d1
3.40

d2
10.00

h1
10.00

d3
2.20

d4
4.00

h2
10.00

h3
9.00

Shore A
40-45

Packaging Unit<
1000

Reference No.
EPS 250 / 0157

d1
3.50

d2
10.00

h1
10.00

d3
3.50

d4
5.00

h2
10.00

h3
15.00

Shore A
40-45

Packaging Unit<
1000

Reference No.
EPS 250 / 0197-S

d1
3.70

d2
10.00

h1
10.00

d3
3.70

d4
5.00

h2
10.00

h3
10.00

Shore A
40-45

Packaging Unit<
1000

Reference No.
EPS 250 / 0197-0394

d1
3.80

d2
10.00

h1
10.00

d3
2.20

d4
3.50

h2
10.00

h3
15.00

Shore A
40-45

Packaging Unit<
1000

Reference No.
EPS 250 / 0138

d1
3.80

d2
10.00

h1
12.70

d3
2.50

d4
4.50

h2
9.90

h3
9.90

Shore A
40-45

Packaging Unit<
1000

Reference No.
EPS 250 / 0175

d1
4.80

d2
12.70

h1
10.20

d3
3.00

d4
4.70

h2
9.90

h3
11.00

Shore A
40-45

Packaging Unit<
1000

Reference No.
EPS 250 / 0185

d1
4.00

d2
15.00

h1
10.00

d3
4.00

d4
5.00

h2
15.00

h3
20.00

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0197

d1
4.00

d2
14.00

h1
10.00

d3
4.00

d4
5.50

h2
15.00

h3
20.00

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0217

d1
4.00

d2
16.00

h1
10.00

d3
4.00

d4
7.40

h2
15.00

h3
20.00

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0291

d1
4.10

d2
14.30

h1
12.70

d3
2.80

d4
5.00

h2
9.90

h3
9.90

Shore A
40-45

Packaging Unit<
1000

Reference No.
EPS 250 / 0195

d1
4.20

d2
17.80

h1
9.90

d3
4.20

d4
8.40

h2
13.50

h3
16.50

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0330

d1
4.50

d2
15.00

h1
10.00

d3
4.50

d4
6.00

h2
15.00

h3
20.00

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0236-L

d1
4.60

d2
15.00

h1
12.70

d3
3.00

d4
5.50

h2
9.90

h3
9.90

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0217-1

d1
4.80

d2
15.90

h1
12.70

d3
3.30

d4
5.70

h2
9.90

h3
9.90

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0225

d1
5.00

d2
15.00

h1
10.00

d3
3.60

d4
6.00

h2
10.00

h3
9.00

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0236

d1
5.00

d2
15.00

h1
10.00

d3
5.00

d4
8.00

h2
10.00

h3
15.30

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0315

d1
5.00

d2
15.00

h1
10.00

d3
5.00

d4
8.00

h2
15.00

h3
22.00

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0315-L

d1
5.00

d2
18.00

h1
10.00

d3
5.00

d4
9.20

h2
15.00

h3
25.00

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0362

d1
5.00

d2
20.00

h1
10.00

d3
5.00

d4
11.00

h2
15.00

h3
25.00

Shore A
40-45

Packaging Unit<
100

Reference No.
EPS 250 / 0433

d1
5.10

d2
28.50

h1
12.70

d3
5.10

d4
10.90

h2
33.00

h3
33.00

Shore A
40-45

Packaging Unit<
100

Reference No.
EPS 250 / 0430-L

d1
6.10

d2
17.50

h1
12.70

d3
4.10

d4
7.20

h2
9.90

h3
19.10

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0284

d1
6.10

d2
15.00

h1
12.70

d3
4.10

d4
7.20

h2
9.90

h3
9.90

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0285

d1
6.10

d2
16.50

h1
10.50

d3
4.10

d4
7.20

h2
12.70

h3
15.20

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0285-XL

d1
7.40

d2
20.60

h1
12.70

d3
5.00

d4
8.80

h2
9.90

h3
9.90

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0345

d1
7.50

d2
20.00

h1
10.00

d3
5.70

d4
10.00

h2
10.00

h3
19.30

Shore A
40-45

Packaging Unit<
100

Reference No.
EPS 250 / 0394

d1
8.10

d2
20.00

h1
12.70

d3
5.50

d4
9.50

h2
9.90

h3
9.90

Shore A
40-45

Packaging Unit<
250

Reference No.
EPS 250 / 0375

d1
8.60

d2
23.40

h1
12.70

d3
5.80

d4
10.20

h2
9.90

h3
19.10

Shore A
40-45

Packaging Unit<
100

Reference No.
EPS 250 / 0400

d1
9.10

d2
20.00

h1
12.70

d3
6.20

d4
10.90

h2
9.90

h3
9.90

Shore A
40-45

Packaging Unit<
100

Reference No.
EPS 250 / 0430

d1
9.10

d2
20.60

h1
10.00

d3
6.20

d4
11.30

h2
12.70

h3
12.70

Shore A
40-45

Packaging Unit<
100

Reference No.
EPS 250 / 0445

d1
9.90

d2
27.00

h1
7.60

d3
6.70

d4
11.70

h2
9.90

h3
9.90

Shore A
40-45

Packaging Unit<
100

Reference No.
EPS 250 / 0460

PROTEC products and specifications are subject to improvement and change without notice.

PROSICON® EPS 250 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.

You might also be interested in these PROTEC series

PROSICON® EPS 375

High Temp Silicone Push-Fit Plugs with Handle

PROSICON® EPS 450

High Temp Silicone Multi-Flanged Plugs

PROSICON® EPS 350

High Temperature Masking Dual Flanged Pull Plugs

PROSICON® EPS 425

High Temp Silicone Compression Plugs

Certified production & quality management

PROTEC meets the most stringent demands of safety and operations reliability. International approvals and certifications such as UL, CSA, VDE, VDA 6.1 and DIN EN ISO 9001: 2015 demonstrate total quality commitment on superior level.

Be the first to know - Join our newsletter!

Stay on top of the latest news and upcoming events and event information from PROTEC and its partner. Be the first to know when new products are on the market. Get periodic specials and news delivered directly to your email inbox! You can un-subscribe anytime.

Sign our free newsletter now

Imprint | Contact form | Privacy policy | Jobs at PROTEC | Certifications

copyright (c) 2024 PROTEC PLASTICS THE CAP COMPANY LTD
