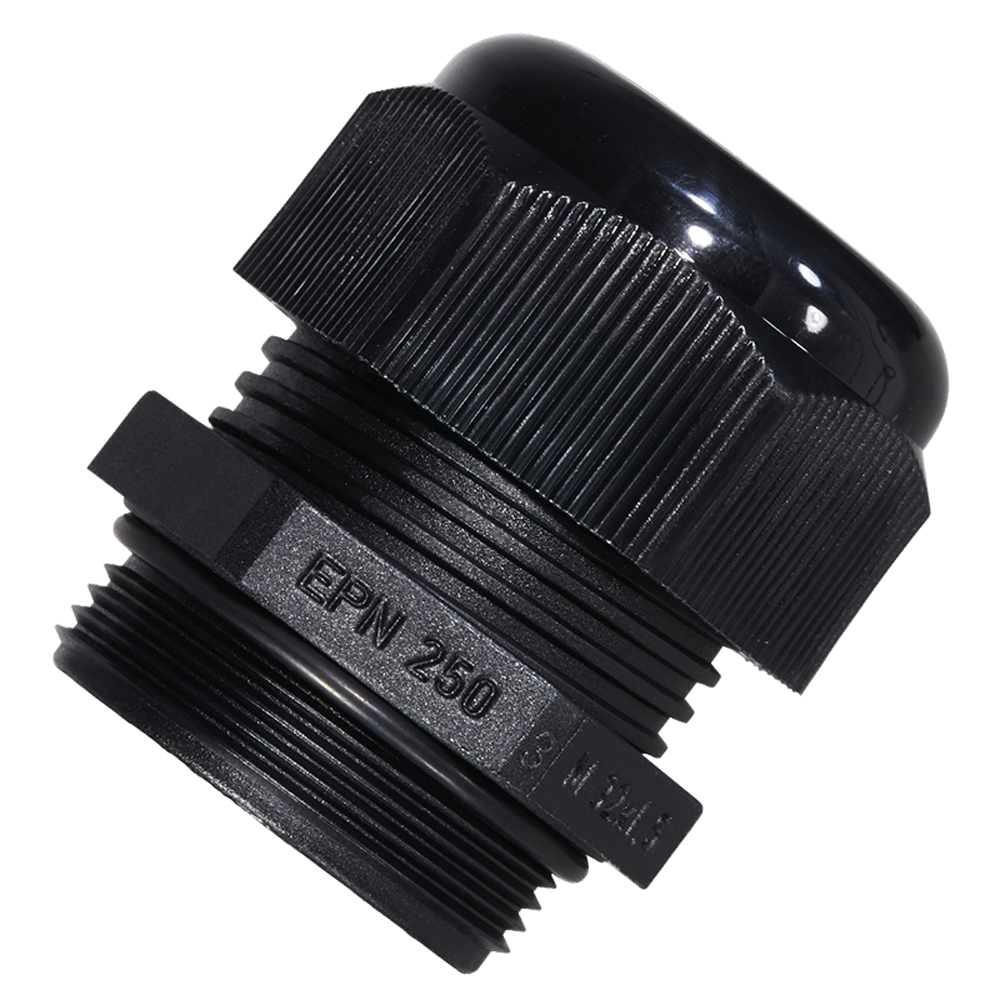

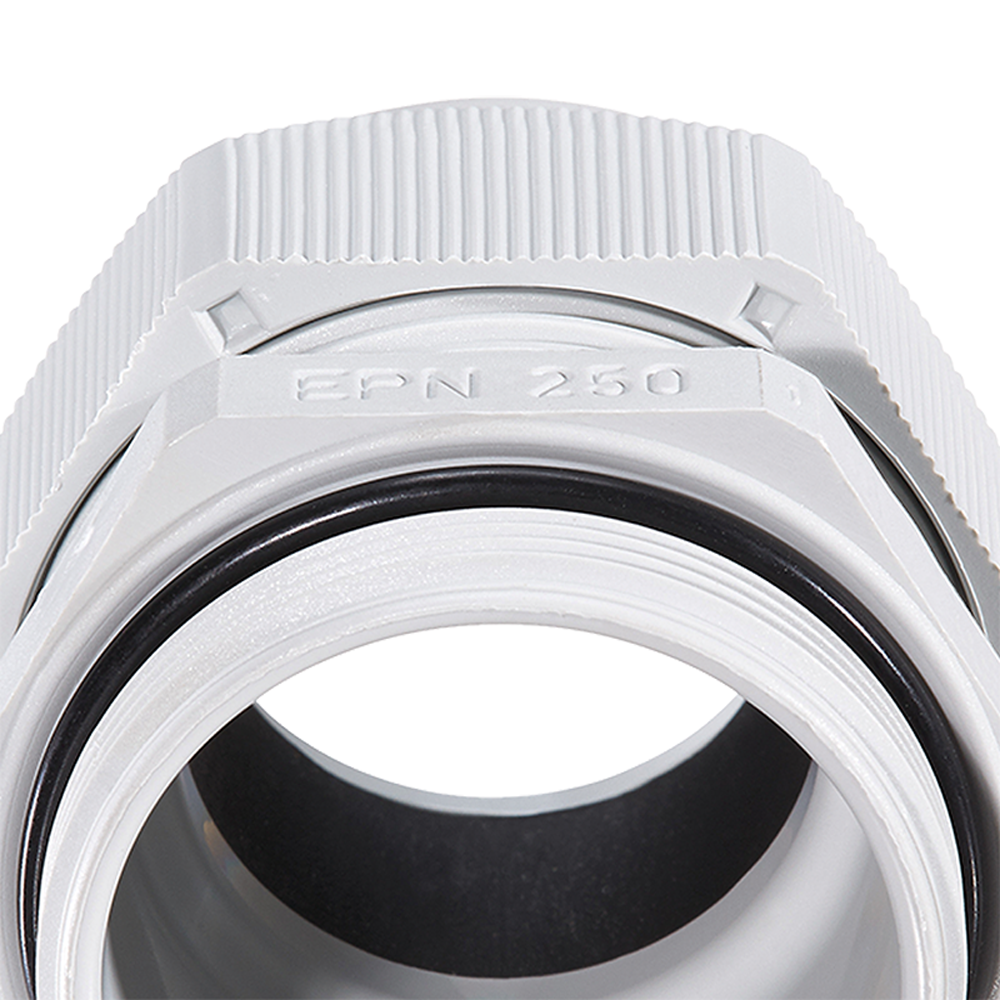

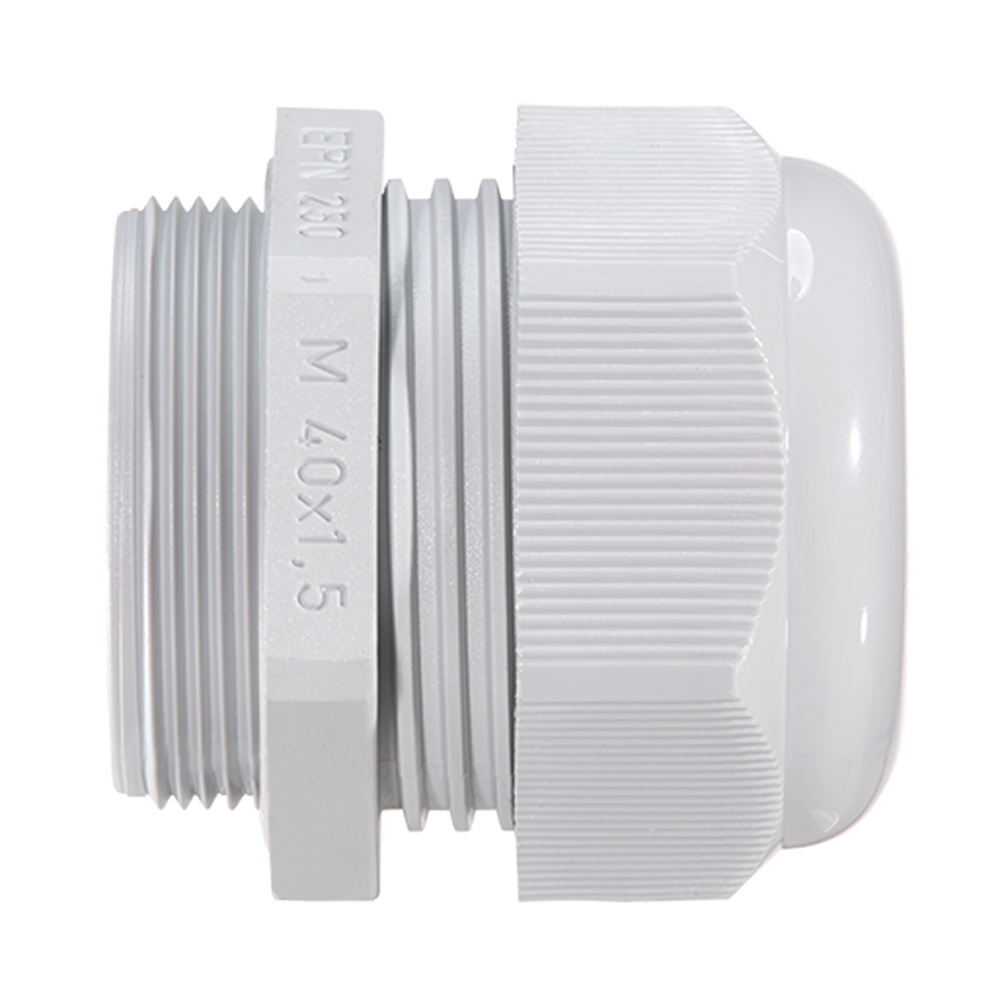

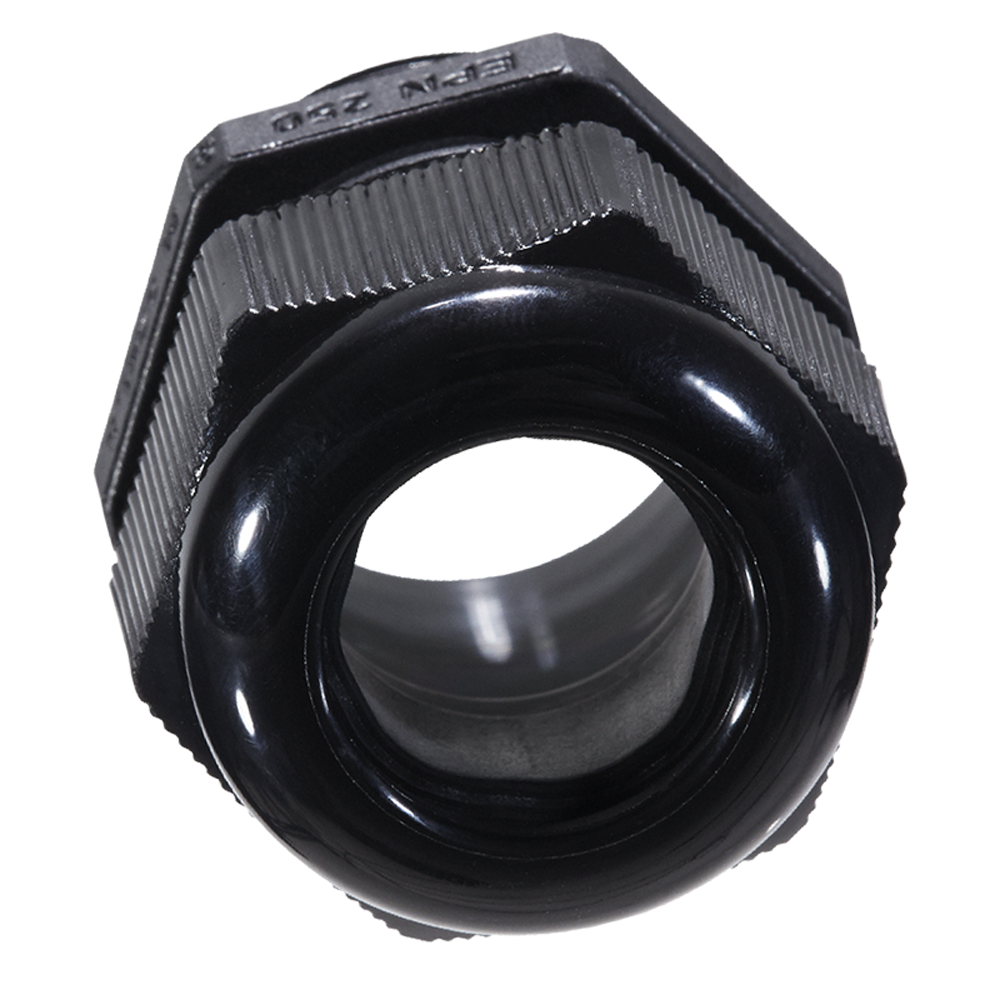

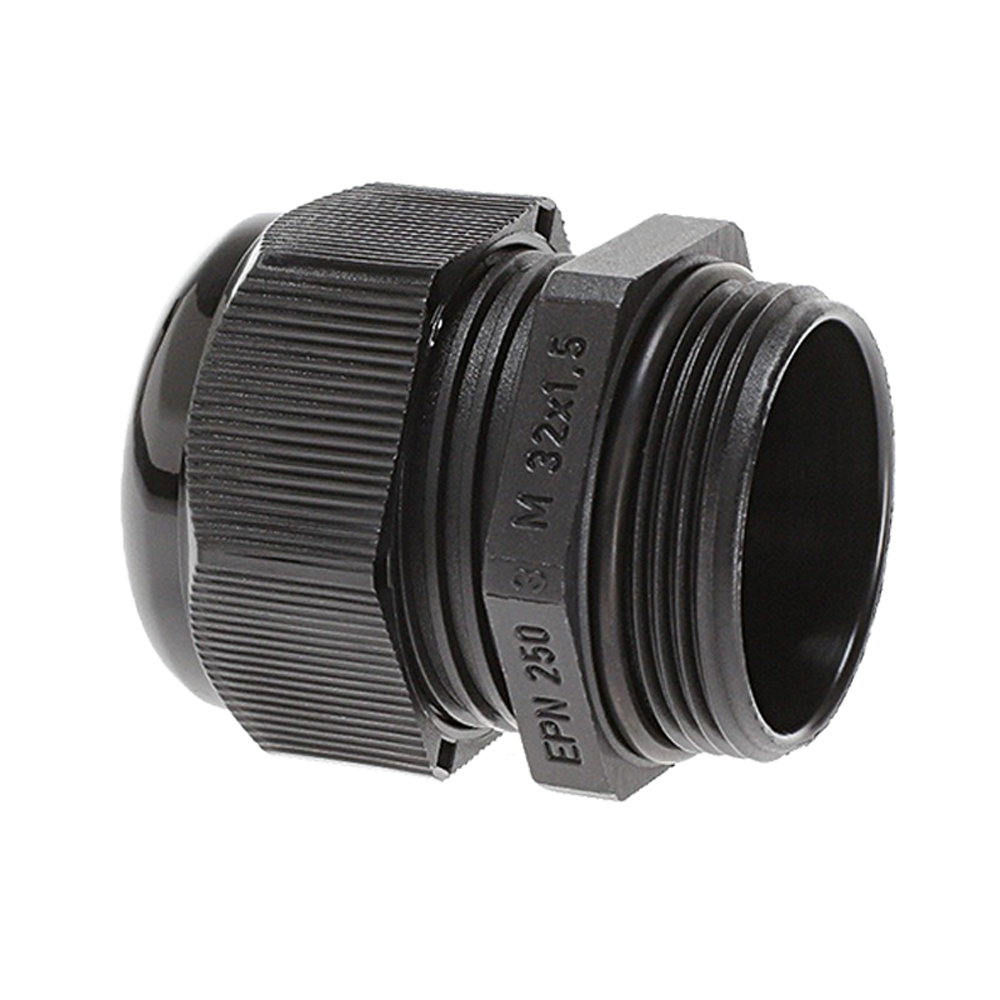

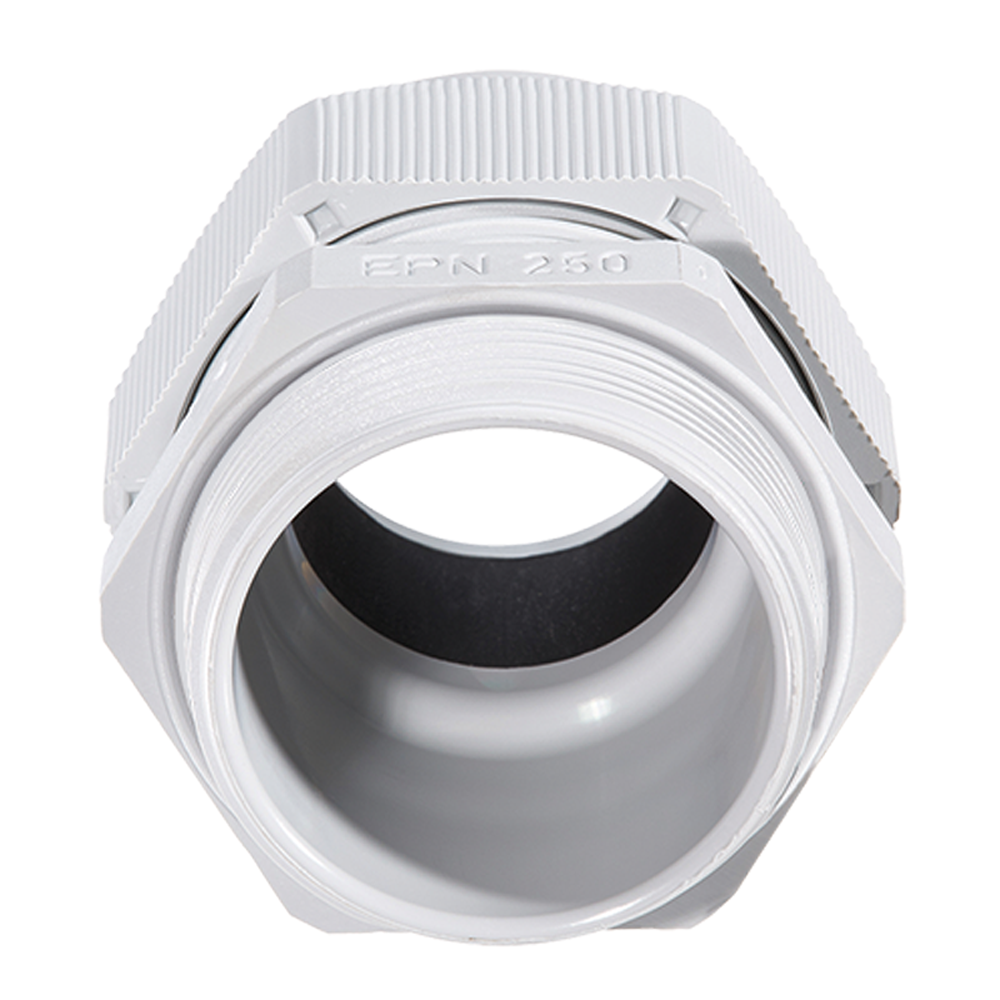

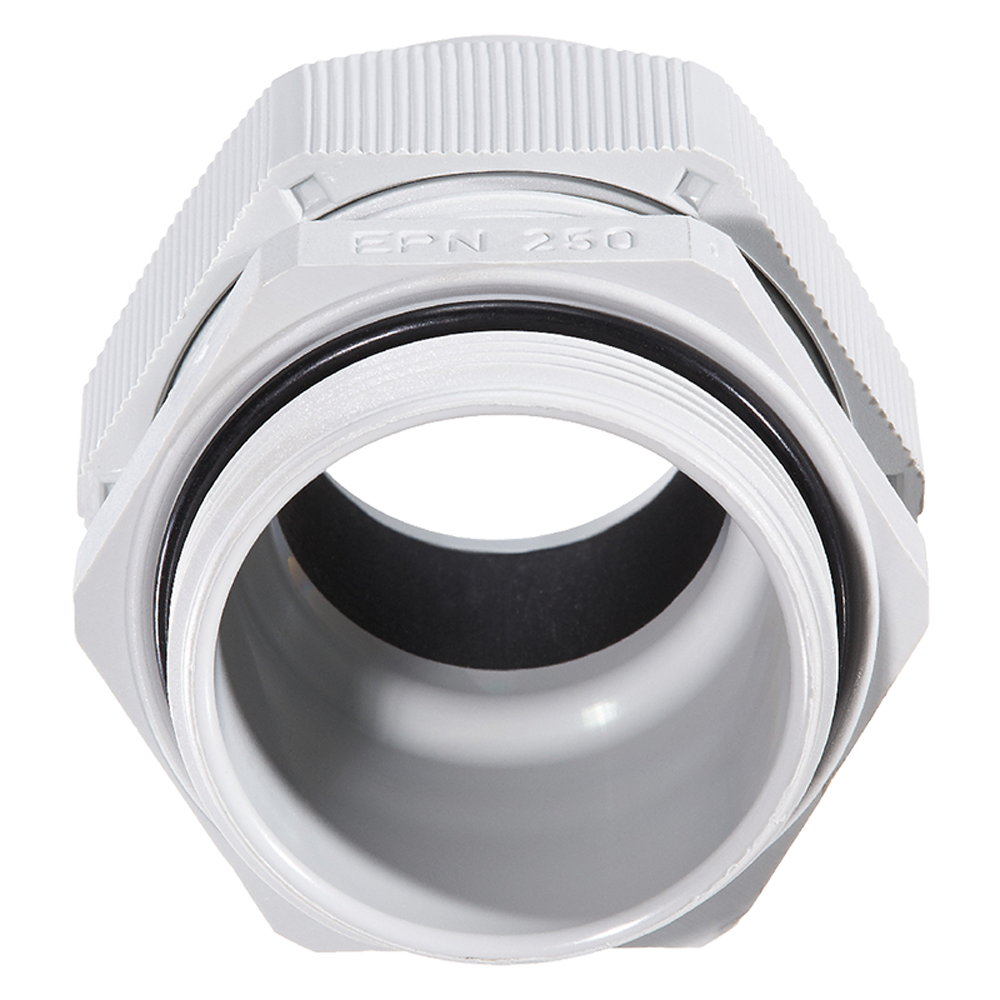

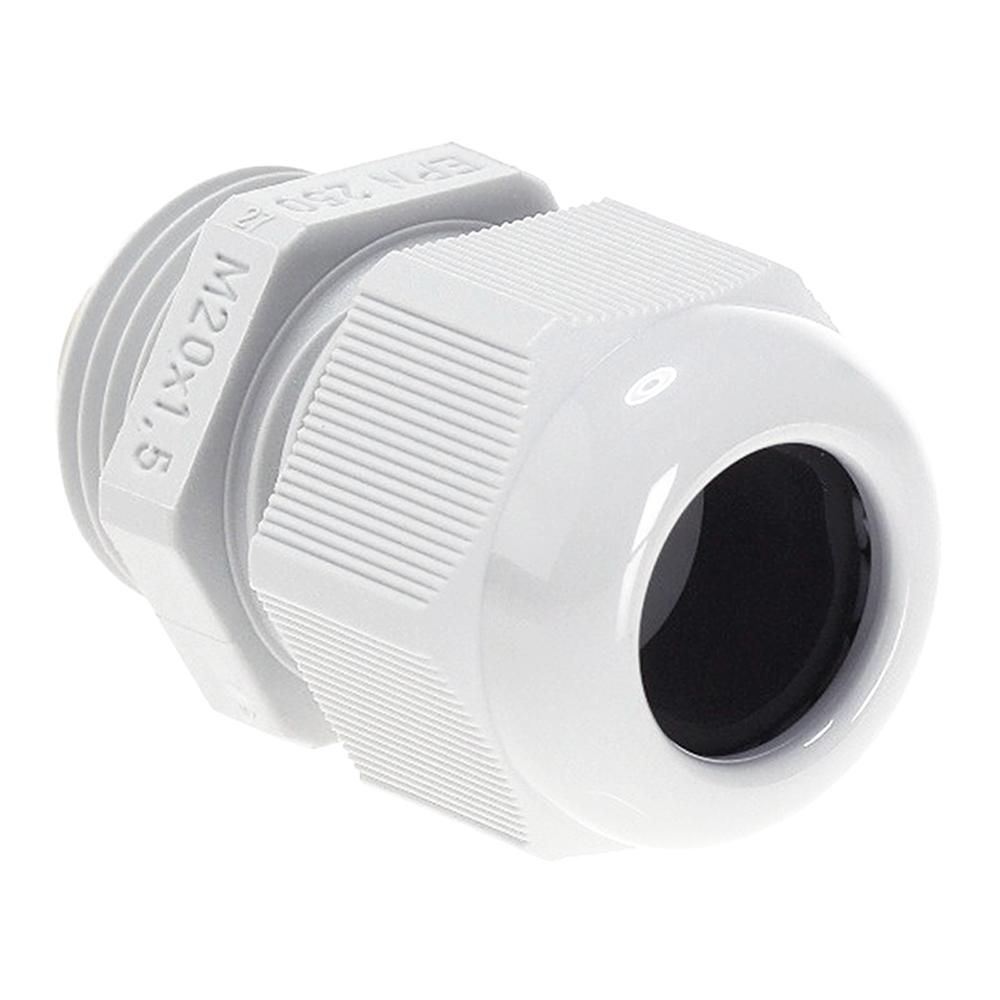

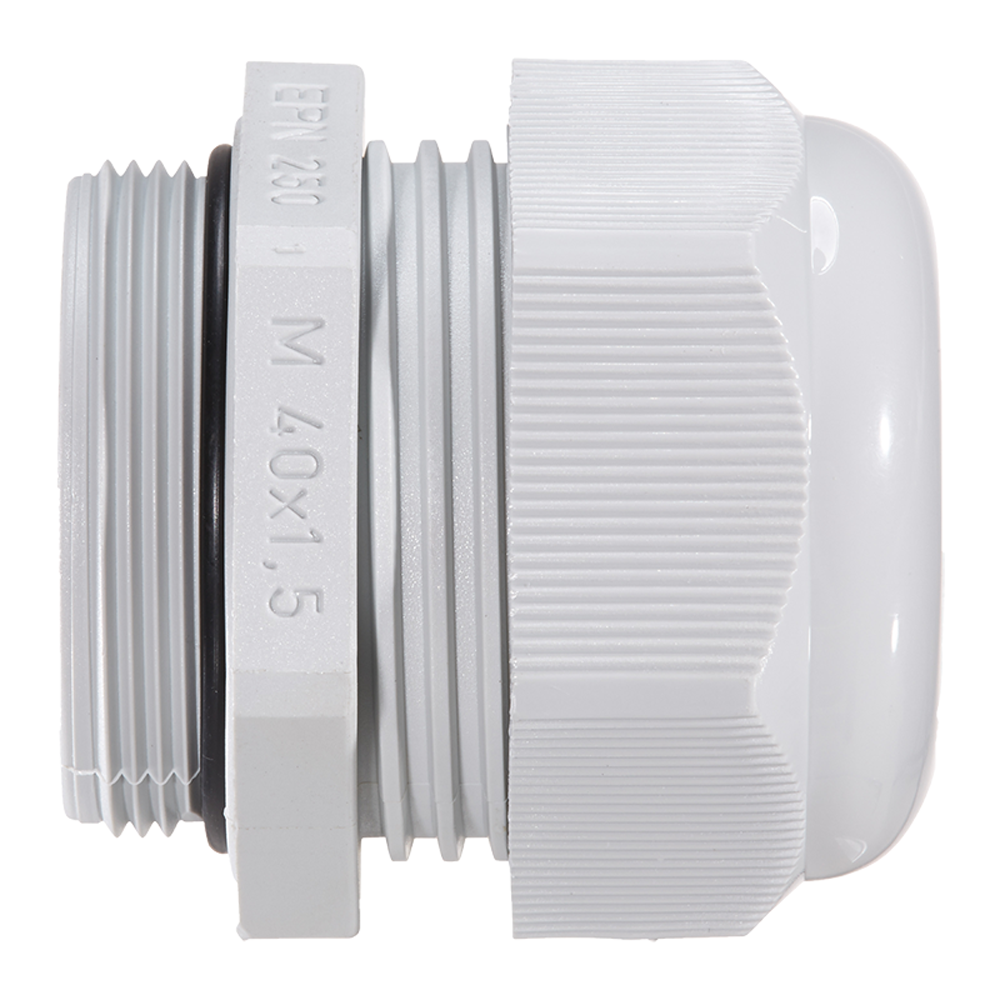

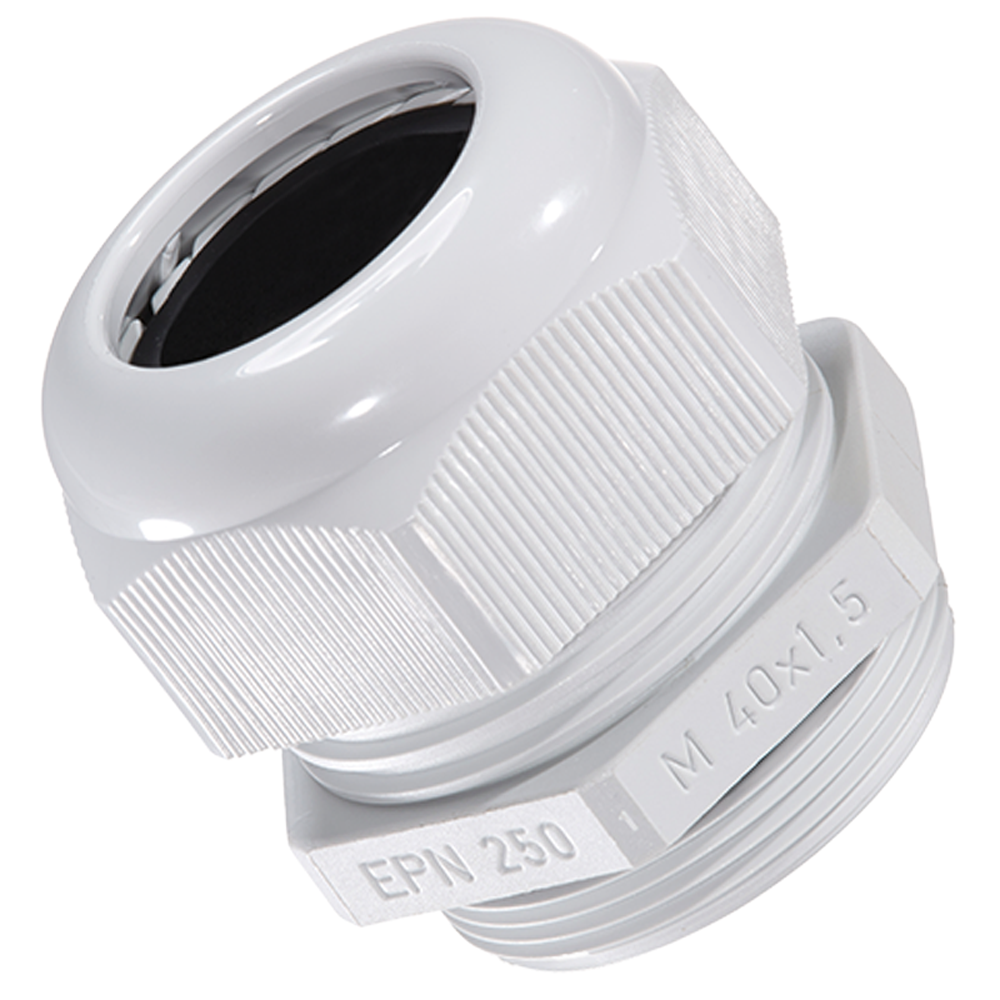

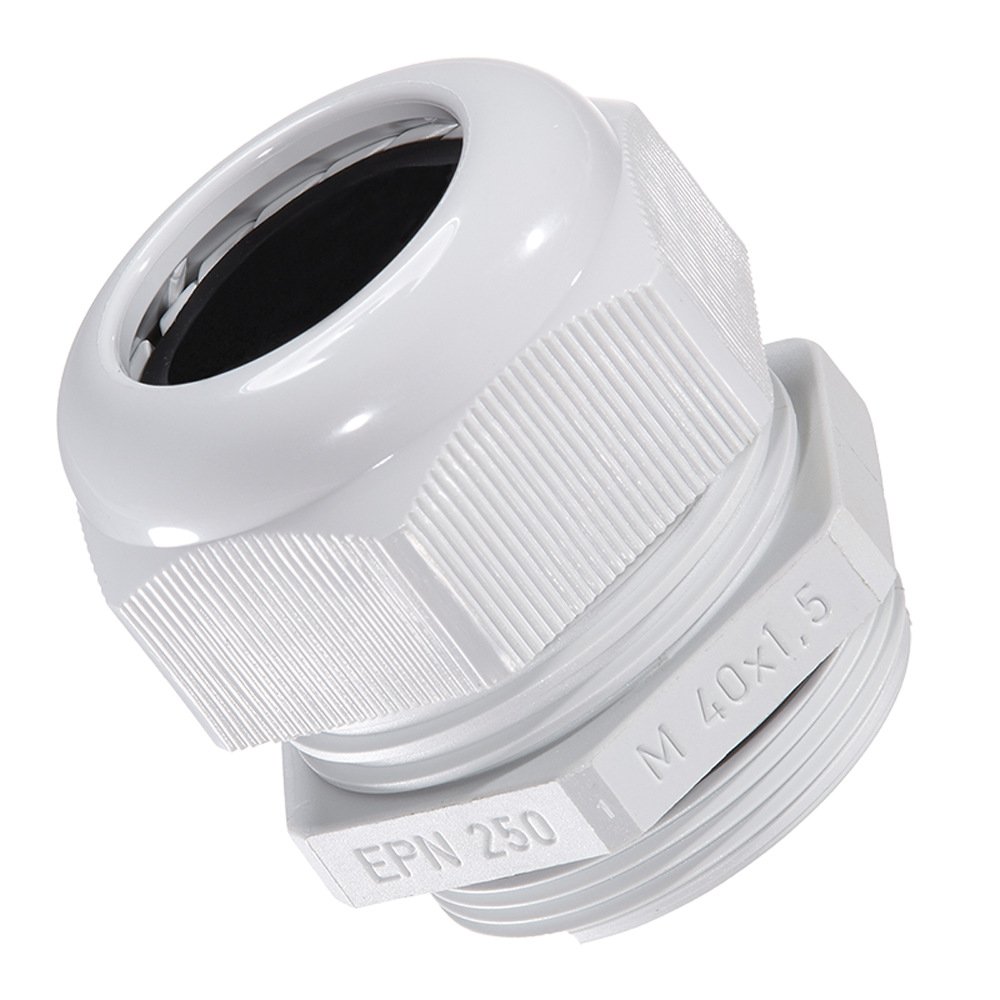

ProteC QuiCk-fit® EPN 250

Nylon Cable glands - Liquid tight, strain relief. UL, CSA, VDE


QuiCk-fit® EPN 250

Nylon Cable glands - Liquid tight, strain relief. UL, CSA, VDE


YOUR QUICK-FIT® ADVANTAGE:   Best Price in the Market

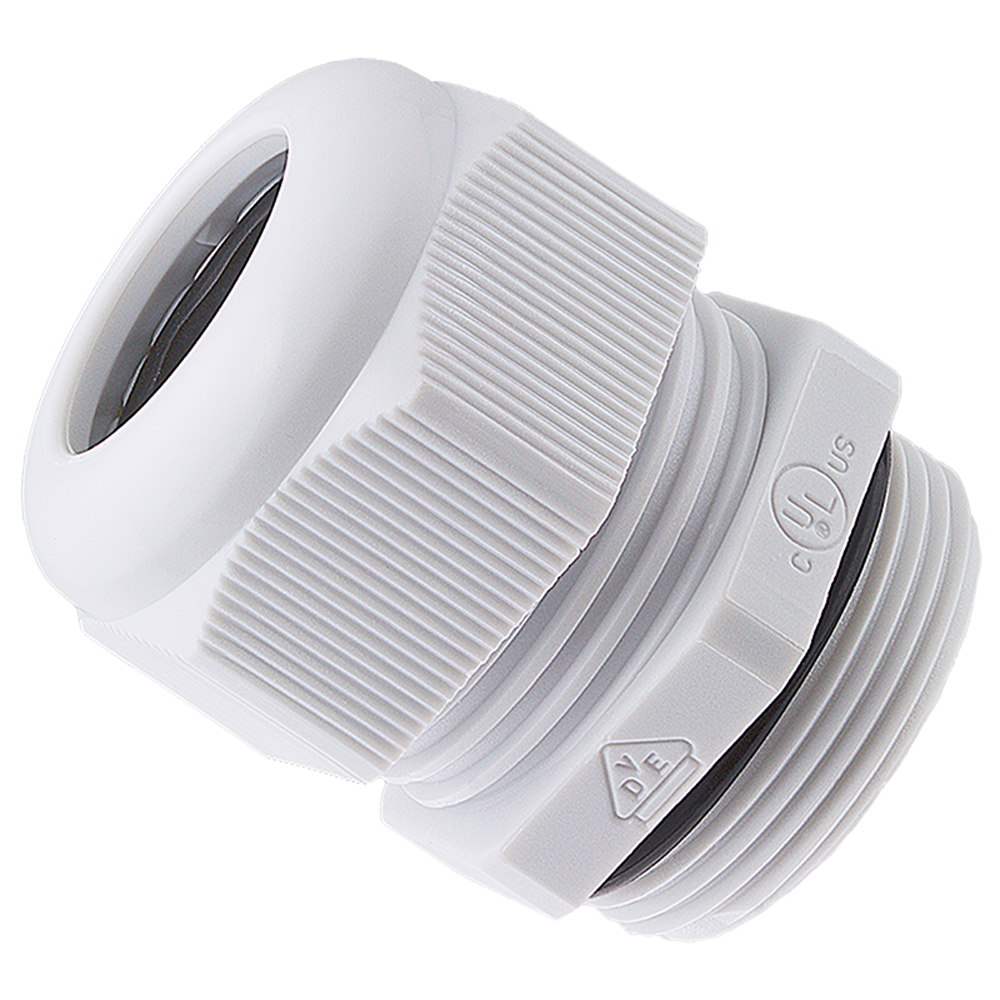

VDE and UL certification Superior Protection.

Watertight, IP 68 rated protection - 5 bar, built-in vibration proof, strain relief.

Type-A : Cable Glands for quick-fit installation.
Type-B : Cable Glands for extreme mechanical demands.

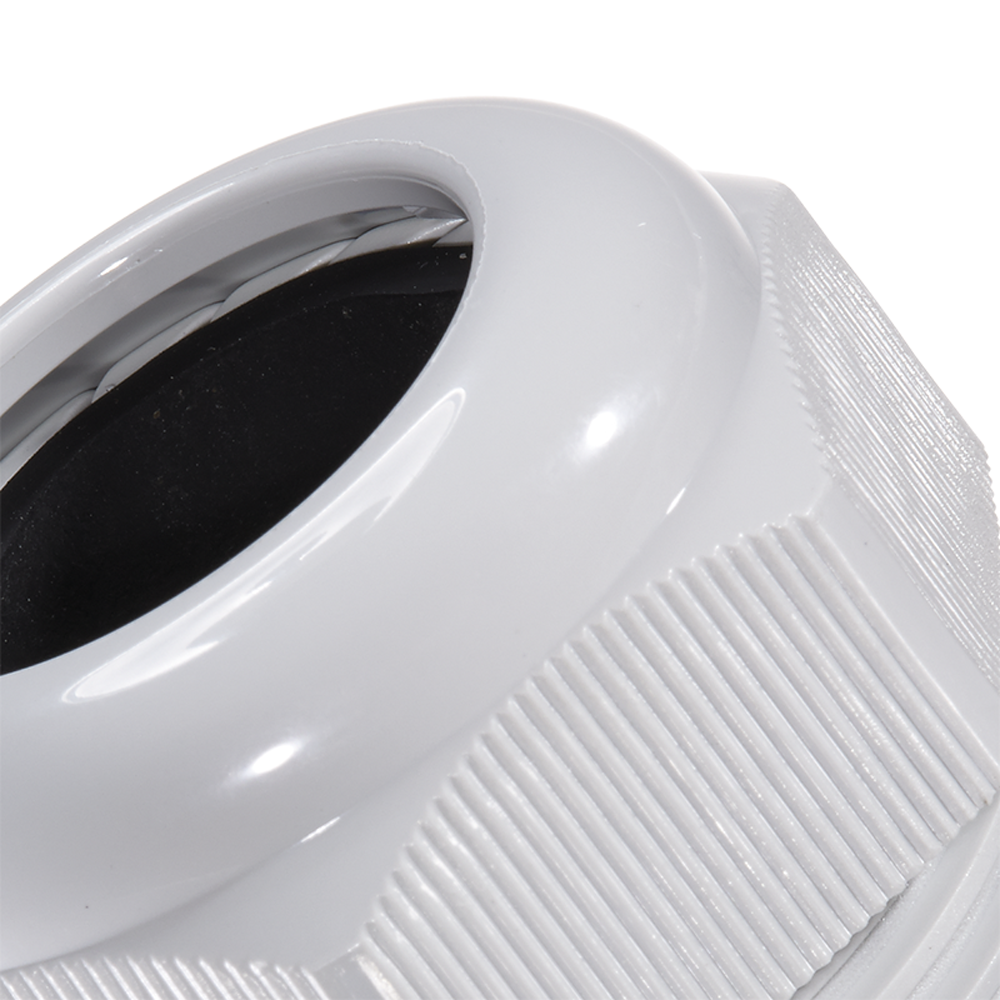

Sealing NutDesigned for a perfect grip and effortless spanner tight seal.
Vibration ProofBuilt-in vibration protection system to eliminate loss of torque.
Neoprene SealFor a perfect, watertight seal IP 68 - 5 bar.
Blade SystemFor optimal strain relief and cable protection combined with a generous clamping range
Multiple Threads  For secure and rapid assembly

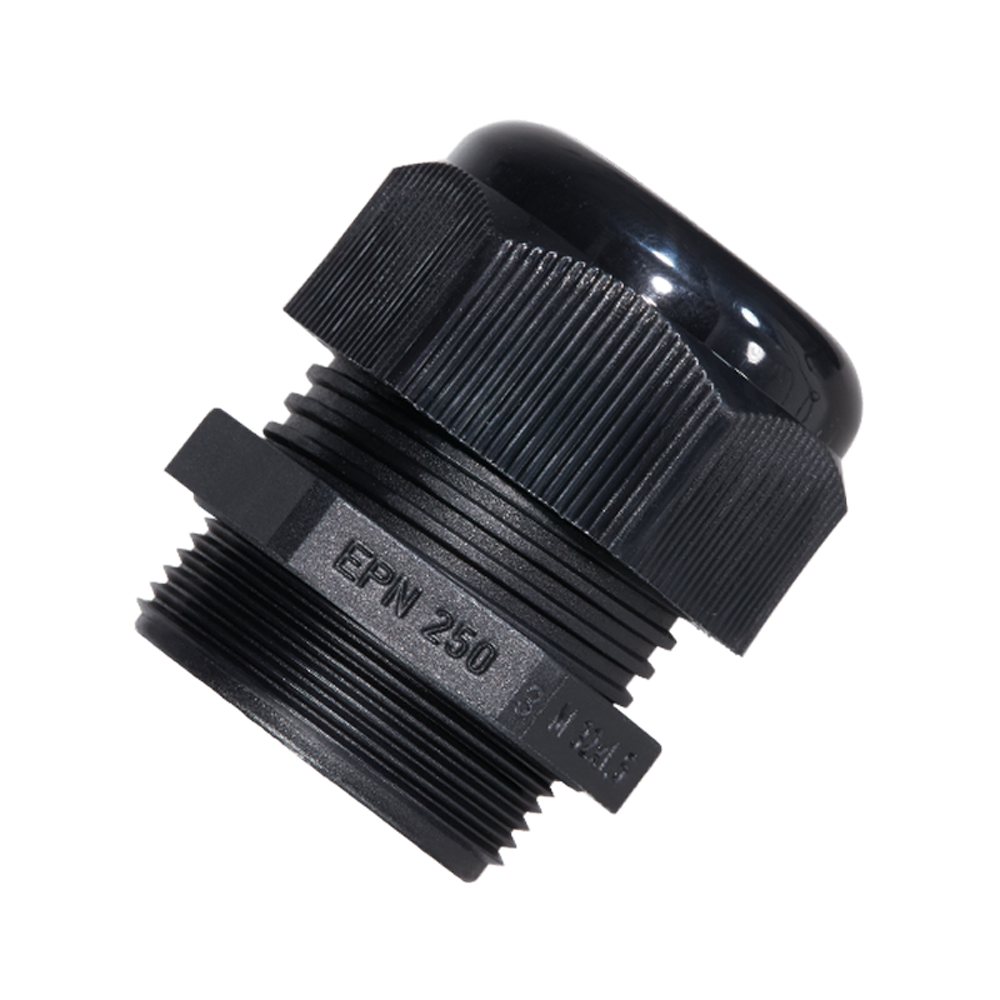

Std. Color: light grey, dark grey, black, optional white, red
Material: PA 6, impact restistant nylon, V0 according to UL 94

PROTEC QUICK-FIT EPN 250

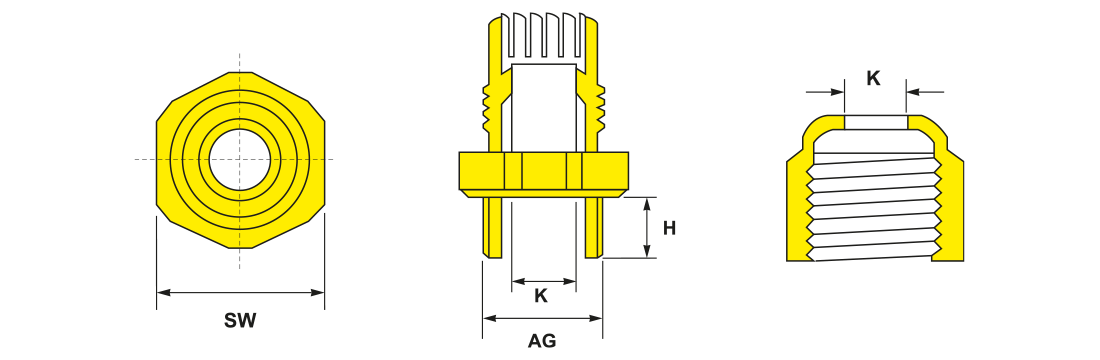

Type AG K H Spannersize SW Reference No. Bookmark
  Enlarged Clamping range Standard connecting thread
A M 12 x 1.5   3.0 -   6.5   8.0 SW 15   EPN250/ M 12
A M 16 x 1.5   6.0 - 10.0   8.0 SW 19   EPN250/ M 16 N
A M 20 x 1.5   7.0 - 12.0   9.0 SW 24   EPN250/ M 20 N
A M 25 x 1.5 11.0 - 17.0 10.0 SW 30   EPN250/ M 25 N
A M 32 x 1.5 15.0 - 21.0 10.0 SW 36   EPN250/ M 32 N
A M 40 x 1.5 19.0 - 28.0 10.0 SW 46   EPN250/ M 40 N
A M 50 x 1.5 27.0 - 35.0 12.0 SW 55   EPN250/ M 50 N
A M 63 x 1.5 34.0 - 45.0 12.0 SW 66   EPN250/ M 63 N
  Enlarged Clamping range Metric Extendend connecting thread.
A M 12 x 1.5   3.0 -   6.5 15.0 SW 15   EPN250/ M 12  L
A M 16 x 1.5   6.0 - 10.0 15.0 SW 19   EPN250/ M 16  LN
A M 20 x 1.5   7.0 - 12.0 15.0 SW 24   EPN250/ M 20  LN
A M 25 x 1.5 11.0 - 17.0 15.0 SW 30   EPN250/ M 25  LN
A M 32 x 1.5 15.0 - 21.0 15.0 SW 36   EPN250/ M 32  LN
A M 40 x 1.5 19.0 - 28.0 18.0 SW 46   EPN250/ M 40  LN
A M 50 x 1.5 27.0 - 35.0 18.0 SW 55   EPN250/ M 50  LN
A M 63 x 1.5 34.0 - 45.0 18.0 SW 66   EPN250/ M 63  LN
  Reduced Clamping range Standard mounting thread lengths.
A M 12 x 1.5   3.0 -   6.0   8.0 SW 15   EPN250/ M 12  RN
A M 16 x 1.5   5.0 -   7.0   8.0 SW 19   EPN250/ M 16  RN
A M 20 x 1.5   6.0 -   9.0   9.0 SW 24   EPN250/ M 20  RN
A M 25 x 1.5   8.0 - 13.0 10.0 SW 30   EPN250/ M 25  RN
A M 32 x 1.5 11.0 - 15.0 10.0 SW 36   EPN250/ M 32  RN
A M 40 x 1.5 15.0 - 23.0 10.0 SW 46   EPN250/ M 40  RN
A M 50 x 1.5 22.0 - 29.0 12.0 SW 55   EPN250/ M 50  RN
A M 63 x 1.5 28.0 - 39.0 12.0 SW 66   EPN250/ M 63  RN
  Reduced Clamping range Metric Extended mounting thread lengths.
A M 12 x 1.5   3.0 -   6.0 15.0 SW 15   EPN250/ M 12 LRN
A M 16 x 1.5   5.0 -   7.0 15.0 SW 19   EPN250/ M 16 LRN
A M 20 x 1.5   6.0 -   9.0 15.0 SW 24   EPN250/ M 20 LRN
A M 25 x 1.5   8.0 - 13.0 15.0 SW 30   EPN250/ M 25 LRN
A M 32 x 1.5 11.0 - 15.0 15.0 SW 36   EPN250/ M 32 LRN
A M 40 x 1.5 15.0 - 23.0 18.0 SW 46   EPN250/ M 40 LRN
A M 50 x 1.5 22.0 - 29.0 18.0 SW 55   EPN250/ M 50 LRN
A M 63 x 1.5 28.0 - 39.0 18.0 SW 66   EPN250/ M 63 LRN
  Enlarged Clamping range Standard mounting thread lengths.
B M 16 x 1.5   4.0 -   8.0   8.0 SW 19   EPN250/ M 16
B M 20 x 1.5 10.0 - 14.0 10.2 SW 27   EPN250/ M 20 E
B M 25 x 1.5 10.0 - 14.0 11.0 SW 27   EPN 250/M 25 E
B M 25 x 1.5 13.0 - 18.0 11.0 SW 33   EPN 250/M 25 E2
B M 32 x 1.5 18.0 - 25.0 12.0 SW 42   EPN250/ M 32 E
B M 40 x 1.5 22.0 - 32.0 13.0 SW 53   EPN250/ M 40
B M 50 x 1.5 30.0 - 38.0 13.0 SW 60   EPN250/ M 50
  Enlarged Clamping range Metric Extended mounting thread lengths.
B M 20 x 1.5 10.0 - 14.0 15.0 SW 27   EPN250/ M 20 EL
B M 25 x 1.5 13.0 - 18.0 15.0 SW 33   EPN 250/M 25 EL
B M 32 x 1.5 18.0 - 25.0 15.0 SW 42   EPN250/ M 32 EL
B M 40 x 1.5 22.0 - 32.0 18.0 SW 53   EPN250/ M 40 L
B M 50 x 1.5 30.0 - 38.0 18.0 SW 60   EPN250/ M 50 L
  Reduced Clamping range Standard mounting thread lengths.
B M 16 x 1.5   2.0 -   6.0   8.0 SW 19   EPN250/ M 16  R
B M 20 x 1.5   7.0 - 12.0 11.0 SW 27   EPN250/ M 20  R
B M 25 x 1.5   7.0 - 12.0 11.0 SW 27   EPN250/ M 25  R
B M 32 x 1.5 12.0 - 20.0 10.0 SW 42   EPN250/ M 32  R
B M 40 x 1.5 20.0 - 26.0 13.0 SW 53   EPN250/ M 40  R
B M 50 x 1.5 25.0 - 31.0 13.0 SW 60   EPN250/ M 50  R
  Reduced Clamping range Metric Extended mounting thread lengths.
B M 20 x 1.5   7.0 - 12.0 15.0 SW 27   EPN250/ M 20  LR
B M 25 x 1.5   9.0 - 16.0 15.0 SW 33   EPN250/ M 25  LR
B M 32 x 1.5 12.0 - 20.0 15.0 SW 42   EPN250/ M 32  LR
B M 40 x 1.5 20.0 - 26.0 18.0 SW 53   EPN250/ M 40  LR
B M 50 x 1.5 25.0 - 31.0 18.0 SW 60   EPN250/ M 50  LR
  Enlarged Clamping range Standard connecting thread
B PG   7      3.0 -   6.5   8.0 SW 15   EPN250/ PG   7
B PG   9      4.0 -   8.0   8.0 SW 19   EPN250/ PG   9
B PG 11      4.5 - 10.0   8.0 SW 22   EPN250/ PG 11
B PG 13.5   6.0 - 12.0   9.0 SW 24   EPN250/ PG 13.5
B PG 16    10.0 - 14.0 10.2 SW 27   EPN250/ PG 16
B PG 21    13.0 - 18.0 11.0 SW 33   EPN250/ PG 21
B PG 29    18.0 - 25.0 11.0 SW 42   EPN250/ PG 29
B PG 36    22.0 - 32.0 13.0 SW 53   EPN250/ PG 36
B PG 42    30.0 - 38.0 13.0 SW 60   EPN250/ PG 42
B PG 48    34.0 - 44.0 14.0 SW 65   EPN250/ PG 48
  Reduced Clamping range Standard mounting thread lengths.
B PG   7      2.0 -   5.0   8.0 SW 15   EPN250/ PG   7 R
B PG   9      2.0 -   6.0   8.0 SW 19   EPN250/ PG   9 R
B PG 11      3.0 -   7.0   8.0 SW 22   EPN250/ PG 11 R
B PG 13.5   5.0 -   9.0   9.0 SW 24   EPN250/ PG 13.5 R
B PG 16      7.0 - 12.0 10.2 SW 27   EPN250/ PG 16 R
B PG 21      9.0 - 16.0 11.0 SW 33   EPN250/ PG 21 R
B PG 29    12.0 - 20.0 11.0 SW 42   EPN250/ PG 29 R
B PG 36    20.0 - 26.0 13.0 SW 53   EPN250/ PG 36 R
Type AG K H SW Reference No.
  Enlarged Clamping range Standard connecting thread
A M 12 x 1.5   3.0 -   6.5   8.0 SW 15   EPN250/ M 12
A M 16 x 1.5   6.0 - 10.0   8.0 SW 19   EPN250/ M 16 N
A M 20 x 1.5   7.0 - 12.0   9.0 SW 24   EPN250/ M 20 N
A M 25 x 1.5 11.0 - 17.0 10.0 SW 30   EPN250/ M 25 N
A M 32 x 1.5 15.0 - 21.0 10.0 SW 36   EPN250/ M 32 N
A M 40 x 1.5 19.0 - 28.0 10.0 SW 46   EPN250/ M 40 N
A M 50 x 1.5 27.0 - 35.0 12.0 SW 55   EPN250/ M 50 N
A M 63 x 1.5 34.0 - 45.0 12.0 SW 66   EPN250/ M 63 N
  Enlarged Clamping range Metric Extendend connecting thread.
A M 12 x 1.5   3.0 -   6.5 15.0 SW 15   EPN250/ M 12  L
A M 16 x 1.5   6.0 - 10.0 15.0 SW 19   EPN250/ M 16  LN
A M 20 x 1.5   7.0 - 12.0 15.0 SW 24   EPN250/ M 20  LN
A M 25 x 1.5 11.0 - 17.0 15.0 SW 30   EPN250/ M 25  LN
A M 32 x 1.5 15.0 - 21.0 15.0 SW 36   EPN250/ M 32  LN
A M 40 x 1.5 19.0 - 28.0 18.0 SW 46   EPN250/ M 40  LN
A M 50 x 1.5 27.0 - 35.0 18.0 SW 55   EPN250/ M 50  LN
A M 63 x 1.5 34.0 - 45.0 18.0 SW 66   EPN250/ M 63  LN
  Reduced Clamping range Standard mounting thread lengths.
A M 12 x 1.5   3.0 -   6.0   8.0 SW 15   EPN250/ M 12  RN
A M 16 x 1.5   5.0 -   7.0   8.0 SW 19   EPN250/ M 16  RN
A M 20 x 1.5   6.0 -   9.0   9.0 SW 24   EPN250/ M 20  RN
A M 25 x 1.5   8.0 - 13.0 10.0 SW 30   EPN250/ M 25  RN
A M 32 x 1.5 11.0 - 15.0 10.0 SW 36   EPN250/ M 32  RN
A M 40 x 1.5 15.0 - 23.0 10.0 SW 46   EPN250/ M 40  RN
A M 50 x 1.5 22.0 - 29.0 12.0 SW 55   EPN250/ M 50  RN
A M 63 x 1.5 28.0 - 39.0 12.0 SW 66   EPN250/ M 63  RN
  Reduced Clamping range Metric Extended mounting thread lengths.
A M 12 x 1.5   3.0 -   6.0 15.0 SW 15   EPN250/ M 12 LRN
A M 16 x 1.5   5.0 -   7.0 15.0 SW 19   EPN250/ M 16 LRN
A M 20 x 1.5   6.0 -   9.0 15.0 SW 24   EPN250/ M 20 LRN
A M 25 x 1.5   8.0 - 13.0 15.0 SW 30   EPN250/ M 25 LRN
A M 32 x 1.5 11.0 - 15.0 15.0 SW 36   EPN250/ M 32 LRN
A M 40 x 1.5 15.0 - 23.0 18.0 SW 46   EPN250/ M 40 LRN
A M 50 x 1.5 22.0 - 29.0 18.0 SW 55   EPN250/ M 50 LRN
A M 63 x 1.5 28.0 - 39.0 18.0 SW 66   EPN250/ M 63 LRN
  Enlarged Clamping range Standard mounting thread lengths.
B M 16 x 1.5   4.0 -   8.0   8.0 SW 19   EPN250/ M 16
B M 20 x 1.5 10.0 - 14.0 10.2 SW 27   EPN250/ M 20 E
B M 25 x 1.5 10.0 - 14.0 11.0 SW 27   EPN 250/M 25 E
B M 25 x 1.5 13.0 - 18.0 11.0 SW 33   EPN 250/M 25 E2
B M 32 x 1.5 18.0 - 25.0 12.0 SW 42   EPN250/ M 32 E
B M 40 x 1.5 22.0 - 32.0 13.0 SW 53   EPN250/ M 40
B M 50 x 1.5 30.0 - 38.0 13.0 SW 60   EPN250/ M 50
  Enlarged Clamping range Metric Extended mounting thread lengths.
B M 20 x 1.5 10.0 - 14.0 15.0 SW 27   EPN250/ M 20 EL
B M 25 x 1.5 13.0 - 18.0 15.0 SW 33   EPN 250/M 25 EL
B M 32 x 1.5 18.0 - 25.0 15.0 SW 42   EPN250/ M 32 EL
B M 40 x 1.5 22.0 - 32.0 18.0 SW 53   EPN250/ M 40 L
B M 50 x 1.5 30.0 - 38.0 18.0 SW 60   EPN250/ M 50 L
  Reduced Clamping range Standard mounting thread lengths.
B M 16 x 1.5   2.0 -   6.0   8.0 SW 19   EPN250/ M 16  R
B M 20 x 1.5   7.0 - 12.0 11.0 SW 27   EPN250/ M 20  R
B M 25 x 1.5   7.0 - 12.0 11.0 SW 27   EPN250/ M 25  R
B M 32 x 1.5 12.0 - 20.0 10.0 SW 42   EPN250/ M 32  R
B M 40 x 1.5 20.0 - 26.0 13.0 SW 53   EPN250/ M 40  R
B M 50 x 1.5 25.0 - 31.0 13.0 SW 60   EPN250/ M 50  R
  Reduced Clamping range Metric Extended mounting thread lengths.
B M 20 x 1.5   7.0 - 12.0 15.0 SW 27   EPN250/ M 20  LR
B M 25 x 1.5   9.0 - 16.0 15.0 SW 33   EPN250/ M 25  LR
B M 32 x 1.5 12.0 - 20.0 15.0 SW 42   EPN250/ M 32  LR
B M 40 x 1.5 20.0 - 26.0 18.0 SW 53   EPN250/ M 40  LR
B M 50 x 1.5 25.0 - 31.0 18.0 SW 60   EPN250/ M 50  LR
  Enlarged Clamping range Standard connecting thread
B PG   7      3.0 -   6.5   8.0 SW 15   EPN250/ PG   7
B PG   9      4.0 -   8.0   8.0 SW 19   EPN250/ PG   9
B PG 11      4.5 - 10.0   8.0 SW 22   EPN250/ PG 11
B PG 13.5   6.0 - 12.0   9.0 SW 24   EPN250/ PG 13.5
B PG 16    10.0 - 14.0 10.2 SW 27   EPN250/ PG 16
B PG 21    13.0 - 18.0 11.0 SW 33   EPN250/ PG 21
B PG 29    18.0 - 25.0 11.0 SW 42   EPN250/ PG 29
B PG 36    22.0 - 32.0 13.0 SW 53   EPN250/ PG 36
B PG 42    30.0 - 38.0 13.0 SW 60   EPN250/ PG 42
B PG 48    34.0 - 44.0 14.0 SW 65   EPN250/ PG 48
  Reduced Clamping range Standard mounting thread lengths.
B PG   7      2.0 -   5.0   8.0 SW 15   EPN250/ PG   7 R
B PG   9      2.0 -   6.0   8.0 SW 19   EPN250/ PG   9 R
B PG 11      3.0 -   7.0   8.0 SW 22   EPN250/ PG 11 R
B PG 13.5   5.0 -   9.0   9.0 SW 24   EPN250/ PG 13.5 R
B PG 16      7.0 - 12.0 10.2 SW 27   EPN250/ PG 16 R
B PG 21      9.0 - 16.0 11.0 SW 33   EPN250/ PG 21 R
B PG 29    12.0 - 20.0 11.0 SW 42   EPN250/ PG 29 R
B PG 36    20.0 - 26.0 13.0 SW 53   EPN250/ PG 36 R
Enlarged Clamping range Standard connecting thread
Type
A

Thread AG
M 12 x 1.5

Clamping Range K
  3.0 -   6.5

Thread Length H
  8.0

Spannersize SW
SW 15

Reference No.   EPN250/ M 12

Type
A

Thread AG
M 16 x 1.5

Clamping Range K
  6.0 - 10.0

Thread Length H
  8.0

Spannersize SW
SW 19

Reference No.   EPN250/ M 16 N

Type
A

Thread AG
M 20 x 1.5

Clamping Range K
  7.0 - 12.0

Thread Length H
  9.0

Spannersize SW
SW 24

Reference No.   EPN250/ M 20 N

Type
A

Thread AG
M 25 x 1.5

Clamping Range K
11.0 - 17.0

Thread Length H
10.0

Spannersize SW
SW 30

Reference No.   EPN250/ M 25 N

Type
A

Thread AG
M 32 x 1.5

Clamping Range K
15.0 - 21.0

Thread Length H
10.0

Spannersize SW
SW 36

Reference No.   EPN250/ M 32 N

Type
A

Thread AG
M 40 x 1.5

Clamping Range K
19.0 - 28.0

Thread Length H
10.0

Spannersize SW
SW 46

Reference No.   EPN250/ M 40 N

Type
A

Thread AG
M 50 x 1.5

Clamping Range K
27.0 - 35.0

Thread Length H
12.0

Spannersize SW
SW 55

Reference No.   EPN250/ M 50 N

Type
A

Thread AG
M 63 x 1.5

Clamping Range K
34.0 - 45.0

Thread Length H
12.0

Spannersize SW
SW 66

Reference No.   EPN250/ M 63 N

Enlarged Clamping range Metric Extendend connecting thread.
Type
A

Thread AG
M 12 x 1.5

Clamping Range K
  3.0 -   6.5

Thread Length H
15.0

Spannersize SW
SW 15

Reference No.   EPN250/ M 12  L

Type
A

Thread AG
M 16 x 1.5

Clamping Range K
  6.0 - 10.0

Thread Length H
15.0

Spannersize SW
SW 19

Reference No.   EPN250/ M 16  LN

Type
A

Thread AG
M 20 x 1.5

Clamping Range K
  7.0 - 12.0

Thread Length H
15.0

Spannersize SW
SW 24

Reference No.   EPN250/ M 20  LN

Type
A

Thread AG
M 25 x 1.5

Clamping Range K
11.0 - 17.0

Thread Length H
15.0

Spannersize SW
SW 30

Reference No.   EPN250/ M 25  LN

Type
A

Thread AG
M 32 x 1.5

Clamping Range K
15.0 - 21.0

Thread Length H
15.0

Spannersize SW
SW 36

Reference No.   EPN250/ M 32  LN

Type
A

Thread AG
M 40 x 1.5

Clamping Range K
19.0 - 28.0

Thread Length H
18.0

Spannersize SW
SW 46

Reference No.   EPN250/ M 40  LN

Type
A

Thread AG
M 50 x 1.5

Clamping Range K
27.0 - 35.0

Thread Length H
18.0

Spannersize SW
SW 55

Reference No.   EPN250/ M 50  LN

Type
A

Thread AG
M 63 x 1.5

Clamping Range K
34.0 - 45.0

Thread Length H
18.0

Spannersize SW
SW 66

Reference No.   EPN250/ M 63  LN

Reduced Clamping range Standard mounting thread lengths.
Type
A

Thread AG
M 12 x 1.5

Clamping Range K
  3.0 -   6.0

Thread Length H
  8.0

Spannersize SW
SW 15

Reference No.   EPN250/ M 12  RN

Type
A

Thread AG
M 16 x 1.5

Clamping Range K
  5.0 -   7.0

Thread Length H
  8.0

Spannersize SW
SW 19

Reference No.   EPN250/ M 16  RN

Type
A

Thread AG
M 20 x 1.5

Clamping Range K
  6.0 -   9.0

Thread Length H
  9.0

Spannersize SW
SW 24

Reference No.   EPN250/ M 20  RN

Type
A

Thread AG
M 25 x 1.5

Clamping Range K
  8.0 - 13.0

Thread Length H
10.0

Spannersize SW
SW 30

Reference No.   EPN250/ M 25  RN

Type
A

Thread AG
M 32 x 1.5

Clamping Range K
11.0 - 15.0

Thread Length H
10.0

Spannersize SW
SW 36

Reference No.   EPN250/ M 32  RN

Type
A

Thread AG
M 40 x 1.5

Clamping Range K
15.0 - 23.0

Thread Length H
10.0

Spannersize SW
SW 46

Reference No.   EPN250/ M 40  RN

Type
A

Thread AG
M 50 x 1.5

Clamping Range K
22.0 - 29.0

Thread Length H
12.0

Spannersize SW
SW 55

Reference No.   EPN250/ M 50  RN

Type
A

Thread AG
M 63 x 1.5

Clamping Range K
28.0 - 39.0

Thread Length H
12.0

Spannersize SW
SW 66

Reference No.   EPN250/ M 63  RN

Reduced Clamping range Metric Extended mounting thread lengths.
Type
A

Thread AG
M 12 x 1.5

Clamping Range K
  3.0 -   6.0

Thread Length H
15.0

Spannersize SW
SW 15

Reference No.   EPN250/ M 12 LRN

Type
A

Thread AG
M 16 x 1.5

Clamping Range K
  5.0 -   7.0

Thread Length H
15.0

Spannersize SW
SW 19

Reference No.   EPN250/ M 16 LRN

Type
A

Thread AG
M 20 x 1.5

Clamping Range K
  6.0 -   9.0

Thread Length H
15.0

Spannersize SW
SW 24

Reference No.   EPN250/ M 20 LRN

Type
A

Thread AG
M 25 x 1.5

Clamping Range K
  8.0 - 13.0

Thread Length H
15.0

Spannersize SW
SW 30

Reference No.   EPN250/ M 25 LRN

Type
A

Thread AG
M 32 x 1.5

Clamping Range K
11.0 - 15.0

Thread Length H
15.0

Spannersize SW
SW 36

Reference No.   EPN250/ M 32 LRN

Type
A

Thread AG
M 40 x 1.5

Clamping Range K
15.0 - 23.0

Thread Length H
18.0

Spannersize SW
SW 46

Reference No.   EPN250/ M 40 LRN

Type
A

Thread AG
M 50 x 1.5

Clamping Range K
22.0 - 29.0

Thread Length H
18.0

Spannersize SW
SW 55

Reference No.   EPN250/ M 50 LRN

Type
A

Thread AG
M 63 x 1.5

Clamping Range K
28.0 - 39.0

Thread Length H
18.0

Spannersize SW
SW 66

Reference No.   EPN250/ M 63 LRN

Enlarged Clamping range Standard mounting thread lengths.
Type
B

Thread AG
M 16 x 1.5

Clamping Range K
  4.0 -   8.0

Thread Length H
  8.0

Spannersize SW
SW 19

Reference No.   EPN250/ M 16

Type
B

Thread AG
M 20 x 1.5

Clamping Range K
10.0 - 14.0

Thread Length H
10.2

Spannersize SW
SW 27

Reference No.   EPN250/ M 20 E

Type
B

Thread AG
M 25 x 1.5

Clamping Range K
10.0 - 14.0

Thread Length H
11.0

Spannersize SW
SW 27

Reference No.   EPN 250/M 25 E

Type
B

Thread AG
M 25 x 1.5

Clamping Range K
13.0 - 18.0

Thread Length H
11.0

Spannersize SW
SW 33

Reference No.   EPN 250/M 25 E2

Type
B

Thread AG
M 32 x 1.5

Clamping Range K
18.0 - 25.0

Thread Length H
12.0

Spannersize SW
SW 42

Reference No.   EPN250/ M 32 E

Type
B

Thread AG
M 40 x 1.5

Clamping Range K
22.0 - 32.0

Thread Length H
13.0

Spannersize SW
SW 53

Reference No.   EPN250/ M 40

Type
B

Thread AG
M 50 x 1.5

Clamping Range K
30.0 - 38.0

Thread Length H
13.0

Spannersize SW
SW 60

Reference No.   EPN250/ M 50

Enlarged Clamping range Metric Extended mounting thread lengths.
Type
B

Thread AG
M 20 x 1.5

Clamping Range K
10.0 - 14.0

Thread Length H
15.0

Spannersize SW
SW 27

Reference No.   EPN250/ M 20 EL

Type
B

Thread AG
M 25 x 1.5

Clamping Range K
13.0 - 18.0

Thread Length H
15.0

Spannersize SW
SW 33

Reference No.   EPN 250/M 25 EL

Type
B

Thread AG
M 32 x 1.5

Clamping Range K
18.0 - 25.0

Thread Length H
15.0

Spannersize SW
SW 42

Reference No.   EPN250/ M 32 EL

Type
B

Thread AG
M 40 x 1.5

Clamping Range K
22.0 - 32.0

Thread Length H
18.0

Spannersize SW
SW 53

Reference No.   EPN250/ M 40 L

Type
B

Thread AG
M 50 x 1.5

Clamping Range K
30.0 - 38.0

Thread Length H
18.0

Spannersize SW
SW 60

Reference No.   EPN250/ M 50 L

Reduced Clamping range Standard mounting thread lengths.
Type
B

Thread AG
M 16 x 1.5

Clamping Range K
  2.0 -   6.0

Thread Length H
  8.0

Spannersize SW
SW 19

Reference No.   EPN250/ M 16  R

Type
B

Thread AG
M 20 x 1.5

Clamping Range K
  7.0 - 12.0

Thread Length H
11.0

Spannersize SW
SW 27

Reference No.   EPN250/ M 20  R

Type
B

Thread AG
M 25 x 1.5

Clamping Range K
  7.0 - 12.0

Thread Length H
11.0

Spannersize SW
SW 27

Reference No.   EPN250/ M 25  R

Type
B

Thread AG
M 32 x 1.5

Clamping Range K
12.0 - 20.0

Thread Length H
10.0

Spannersize SW
SW 42

Reference No.   EPN250/ M 32  R

Type
B

Thread AG
M 40 x 1.5

Clamping Range K
20.0 - 26.0

Thread Length H
13.0

Spannersize SW
SW 53

Reference No.   EPN250/ M 40  R

Type
B

Thread AG
M 50 x 1.5

Clamping Range K
25.0 - 31.0

Thread Length H
13.0

Spannersize SW
SW 60

Reference No.   EPN250/ M 50  R

Reduced Clamping range Metric Extended mounting thread lengths.
Type
B

Thread AG
M 20 x 1.5

Clamping Range K
  7.0 - 12.0

Thread Length H
15.0

Spannersize SW
SW 27

Reference No.   EPN250/ M 20  LR

Type
B

Thread AG
M 25 x 1.5

Clamping Range K
  9.0 - 16.0

Thread Length H
15.0

Spannersize SW
SW 33

Reference No.   EPN250/ M 25  LR

Type
B

Thread AG
M 32 x 1.5

Clamping Range K
12.0 - 20.0

Thread Length H
15.0

Spannersize SW
SW 42

Reference No.   EPN250/ M 32  LR

Type
B

Thread AG
M 40 x 1.5

Clamping Range K
20.0 - 26.0

Thread Length H
18.0

Spannersize SW
SW 53

Reference No.   EPN250/ M 40  LR

Type
B

Thread AG
M 50 x 1.5

Clamping Range K
25.0 - 31.0

Thread Length H
18.0

Spannersize SW
SW 60

Reference No.   EPN250/ M 50  LR

Enlarged Clamping range Standard connecting thread
Type
B

Thread AG
PG   7

Clamping Range K
  3.0 -   6.5

Thread Length H
  8.0

Spannersize SW
SW 15

Reference No.   EPN250/ PG   7

Type
B

Thread AG
PG   9

Clamping Range K
  4.0 -   8.0

Thread Length H
  8.0

Spannersize SW
SW 19

Reference No.   EPN250/ PG   9

Type
B

Thread AG
PG 11

Clamping Range K
  4.5 - 10.0

Thread Length H
  8.0

Spannersize SW
SW 22

Reference No.   EPN250/ PG 11

Type
B

Thread AG
PG 13.5

Clamping Range K
  6.0 - 12.0

Thread Length H
  9.0

Spannersize SW
SW 24

Reference No.   EPN250/ PG 13.5

Type
B

Thread AG
PG 16

Clamping Range K
10.0 - 14.0

Thread Length H
10.2

Spannersize SW
SW 27

Reference No.   EPN250/ PG 16

Type
B

Thread AG
PG 21

Clamping Range K
13.0 - 18.0

Thread Length H
11.0

Spannersize SW
SW 33

Reference No.   EPN250/ PG 21

Type
B

Thread AG
PG 29

Clamping Range K
18.0 - 25.0

Thread Length H
11.0

Spannersize SW
SW 42

Reference No.   EPN250/ PG 29

Type
B

Thread AG
PG 36

Clamping Range K
22.0 - 32.0

Thread Length H
13.0

Spannersize SW
SW 53

Reference No.   EPN250/ PG 36

Type
B

Thread AG
PG 42

Clamping Range K
30.0 - 38.0

Thread Length H
13.0

Spannersize SW
SW 60

Reference No.   EPN250/ PG 42

Type
B

Thread AG
PG 48

Clamping Range K
34.0 - 44.0

Thread Length H
14.0

Spannersize SW
SW 65

Reference No.   EPN250/ PG 48

Reduced Clamping range Standard mounting thread lengths.
Type
B

Thread AG
PG   7

Clamping Range K
  2.0 -   5.0

Thread Length H
  8.0

Spannersize SW
SW 15

Reference No.   EPN250/ PG   7 R

Type
B

Thread AG
PG   9

Clamping Range K
  2.0 -   6.0

Thread Length H
  8.0

Spannersize SW
SW 19

Reference No.   EPN250/ PG   9 R

Type
B

Thread AG
PG 11

Clamping Range K
  3.0 -   7.0

Thread Length H
  8.0

Spannersize SW
SW 22

Reference No.   EPN250/ PG 11 R

Type
B

Thread AG
PG 13.5

Clamping Range K
  5.0 -   9.0

Thread Length H
  9.0

Spannersize SW
SW 24

Reference No.   EPN250/ PG 13.5 R

Type
B

Thread AG
PG 16

Clamping Range K
  7.0 - 12.0

Thread Length H
10.2

Spannersize SW
SW 27

Reference No.   EPN250/ PG 16 R

Type
B

Thread AG
PG 21

Clamping Range K
  9.0 - 16.0

Thread Length H
11.0

Spannersize SW
SW 33

Reference No.   EPN250/ PG 21 R

Type
B

Thread AG
PG 29

Clamping Range K
12.0 - 20.0

Thread Length H
11.0

Spannersize SW
SW 42

Reference No.   EPN250/ PG 29 R

Type
B

Thread AG
PG 36

Clamping Range K
20.0 - 26.0

Thread Length H
13.0

Spannersize SW
SW 53

Reference No.   EPN250/ PG 36 R

PROTEC products and specifications are subject to improvement and change without notice.

QUICK-FIT® EPN 250 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Both types of Quick-Fit EPN 250 Nylon Cable Glands provide you with both the highest degree of functionality and safety. Designed for a perfect grip and effortless spanner tight seal.

Built-in vibration protection system to eliminate loss of torque. Perfect, watertight seal IP 68 - 5 bar.

For optimal strain relief and cable protection combined with a generous clamping range. For secure and rapid assembly.

Standard Colours :
light grey RAL 7035, dark grey RAL 7001, black RAL 9005

optional : white RAL 9010 and red RAL 3000.

Additional colours on request.

On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.

You might also be interested in these PROTEC series

QUICK-FIT® EPN 255

Cable glands, Nylon - with spiral flex protector

QUICK-FIT® EPN 705

EMC cable glands, brass, nickel plated

QUICK-FIT® EPN 355

Hexagonal locknuts flangeless

QUICK-FIT® EPN 460

Threaded sealing grommets, semi - blind

Certified production & quality management

PROTEC meets the most stringent demands of safety and operations reliability. International approvals and certifications such as UL, CSA, VDE, VDA 6.1 and DIN EN ISO 9001: 2015 demonstrate total quality commitment on superior level.

Be the first to know - Join our newsletter!

Stay on top of the latest news and upcoming events and event information from PROTEC and its partner. Be the first to know when new products are on the market. Get periodic specials and news delivered directly to your email inbox! You can un-subscribe anytime.

Sign our free newsletter now

Imprint | Contact form | Privacy policy | Jobs at PROTEC | Certifications

copyright (c) 2024 PROTEC PLASTICS THE CAP COMPANY LTD
