ProteC Prosicon® EPS 150

High Temperature Masking Silicone Cone Caps / Plugs

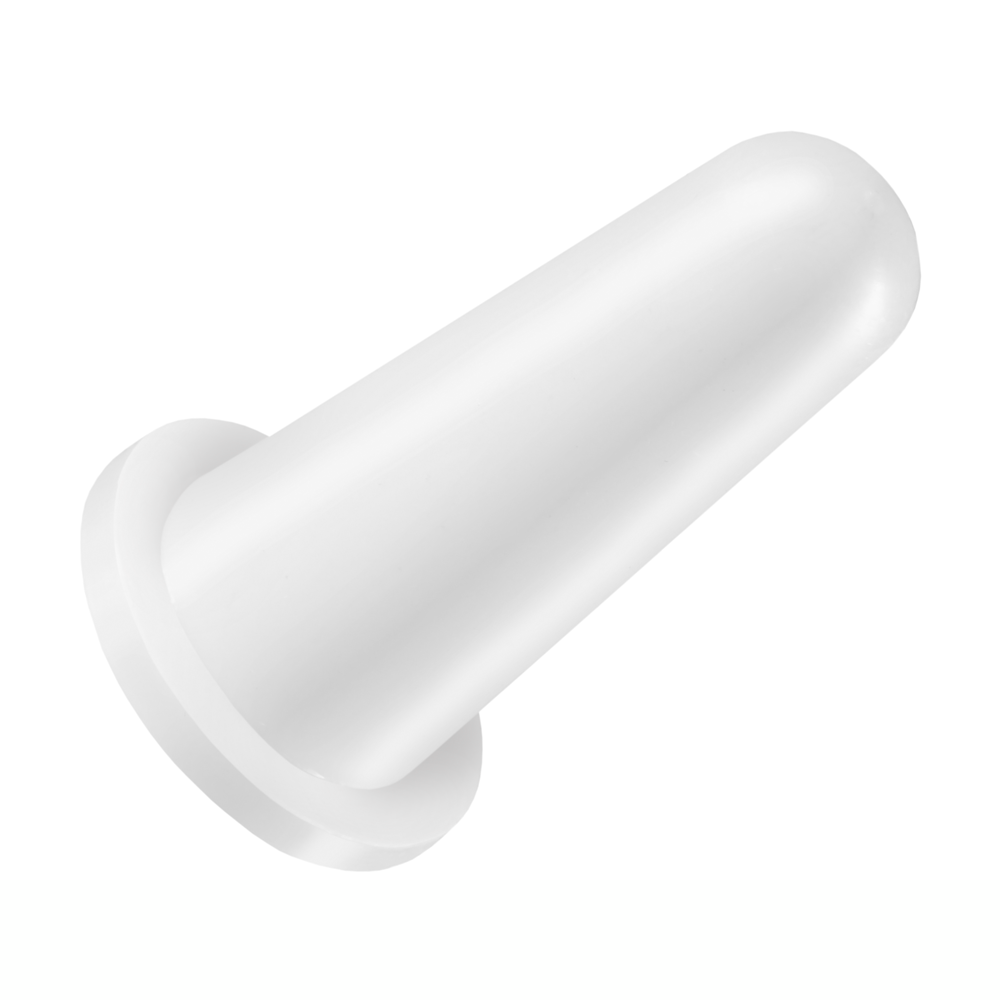

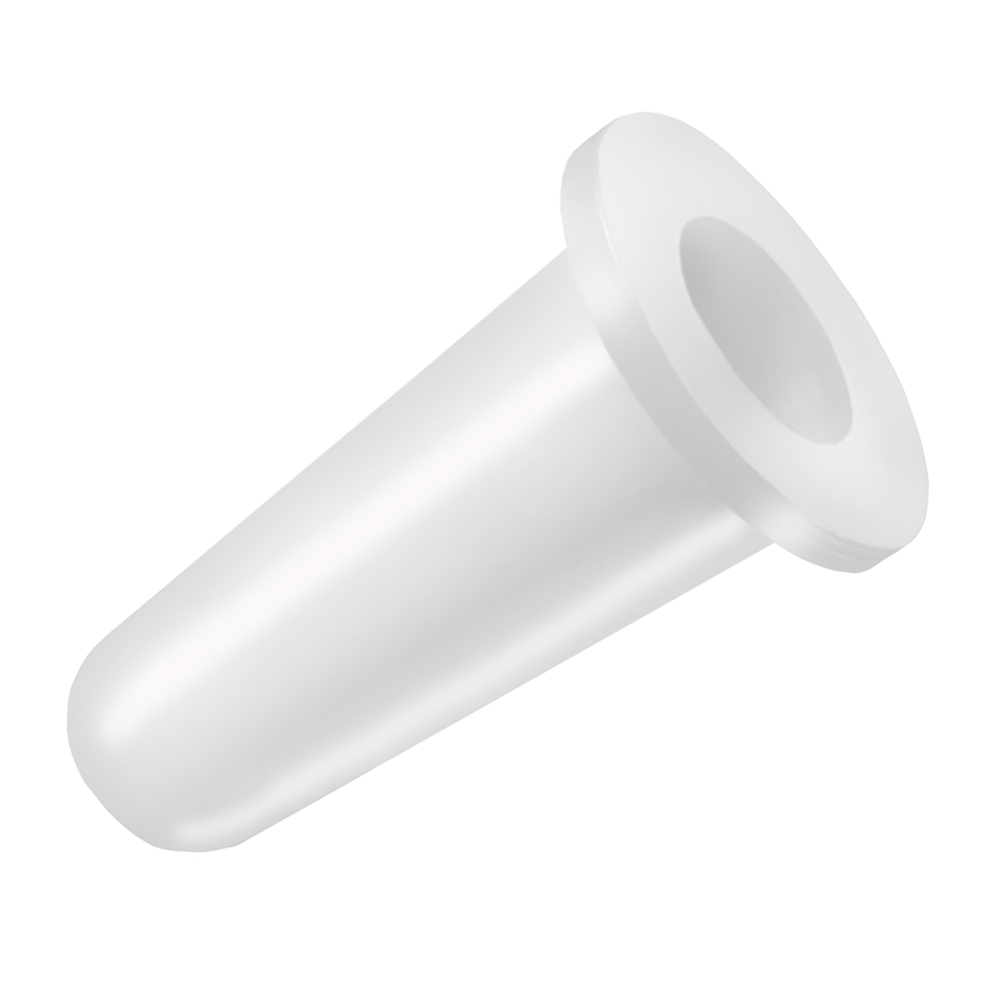

Prosicon® EPS 150

High Temperature Masking Silicone Cone Caps / Plugs


Dual Role Application. Can be used as a plug or cap due to conical shaft design.

Ideal for closing grub screws, bolts and fitting bores with contact surfaces.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code:
Reusable

Color:
Special color runs available on request

Material:
Prosicon® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

HEAT RESISTANT!
PROTEC PROSICON EPS 150

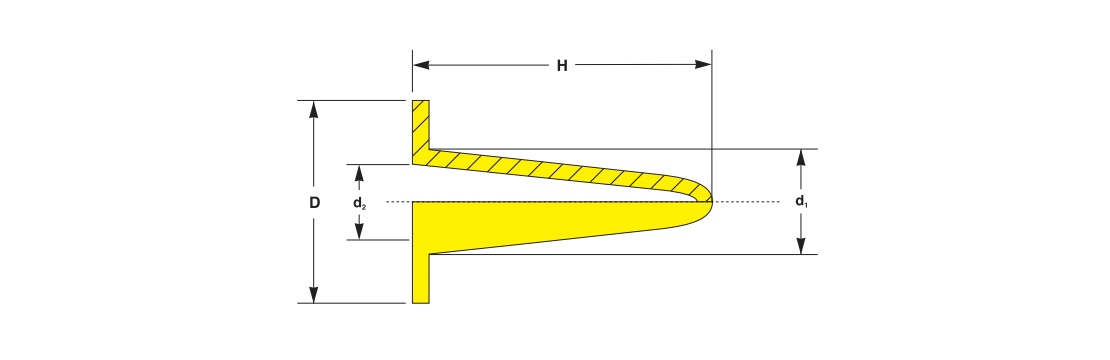

d1 d2 D H Standard
Pack
Reference No. Bookmark
6.35 3.30 12.70 23.01 500 EPS 150 / 0250-0130
8.03 5.49 12.70 25.40 500 EPS 150 / 0316-0216
8.51 4.50 15.88 25.40 500 EPS 150 / 0335-0177
10.01 5.00 16.51 27.99 500 EPS 150 / 0394-0197
10.16 5.84 16.13 27.94 250 EPS 150 / 0400-0230
14.00 8.00 19.05 35.99 250 EPS 150 / 0551-0315
17.50 11.51 24.89 38.10 250 EPS 150 / 0689-0453
19.48 13.51 27.94 51.03 100 EPS 150 / 0767-0532
20.80 14.81 25.40 49.00 100 EPS 150 / 0819-0583
22.00 16.00 30.99 53.01 100 EPS 150 / 0866-0630
d1 d2 D H Standard
Pack
Reference No.
6.35 3.30 12.70 23.01 500 EPS 150 / 0250-0130
8.03 5.49 12.70 25.40 500 EPS 150 / 0316-0216
8.51 4.50 15.88 25.40 500 EPS 150 / 0335-0177
10.01 5.00 16.51 27.99 500 EPS 150 / 0394-0197
10.16 5.84 16.13 27.94 250 EPS 150 / 0400-0230
14.00 8.00 19.05 35.99 250 EPS 150 / 0551-0315
17.50 11.51 24.89 38.10 250 EPS 150 / 0689-0453
19.48 13.51 27.94 51.03 100 EPS 150 / 0767-0532
20.80 14.81 25.40 49.00 100 EPS 150 / 0819-0583
22.00 16.00 30.99 53.01 100 EPS 150 / 0866-0630
d1
6.35

d2
3.30

D
12.70

H
23.01

Standard
Pack
500

Reference No.
EPS 150 / 0250-0130

d1
8.03

d2
5.49

D
12.70

H
25.40

Standard
Pack
500

Reference No.
EPS 150 / 0316-0216

d1
8.51

d2
4.50

D
15.88

H
25.40

Standard
Pack
500

Reference No.
EPS 150 / 0335-0177

d1
10.01

d2
5.00

D
16.51

H
27.99

Standard
Pack
500

Reference No.
EPS 150 / 0394-0197

d1
10.16

d2
5.84

D
16.13

H
27.94

Standard
Pack
250

Reference No.
EPS 150 / 0400-0230

d1
14.00

d2
8.00

D
19.05

H
35.99

Standard
Pack
250

Reference No.
EPS 150 / 0551-0315

d1
17.50

d2
11.51

D
24.89

H
38.10

Standard
Pack
250

Reference No.
EPS 150 / 0689-0453

d1
19.48

d2
13.51

D
27.94

H
51.03

Standard
Pack
100

Reference No.
EPS 150 / 0767-0532

d1
20.80

d2
14.81

D
25.40

H
49.00

Standard
Pack
100

Reference No.
EPS 150 / 0819-0583

d1
22.00

d2
16.00

D
30.99

H
53.01

Standard
Pack
100

Reference No.
EPS 150 / 0866-0630

PROTEC products and specifications are subject to improvement and change without notice.

PROSICON® EPS 150 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.
