ProteC CaPtoP® EP 190

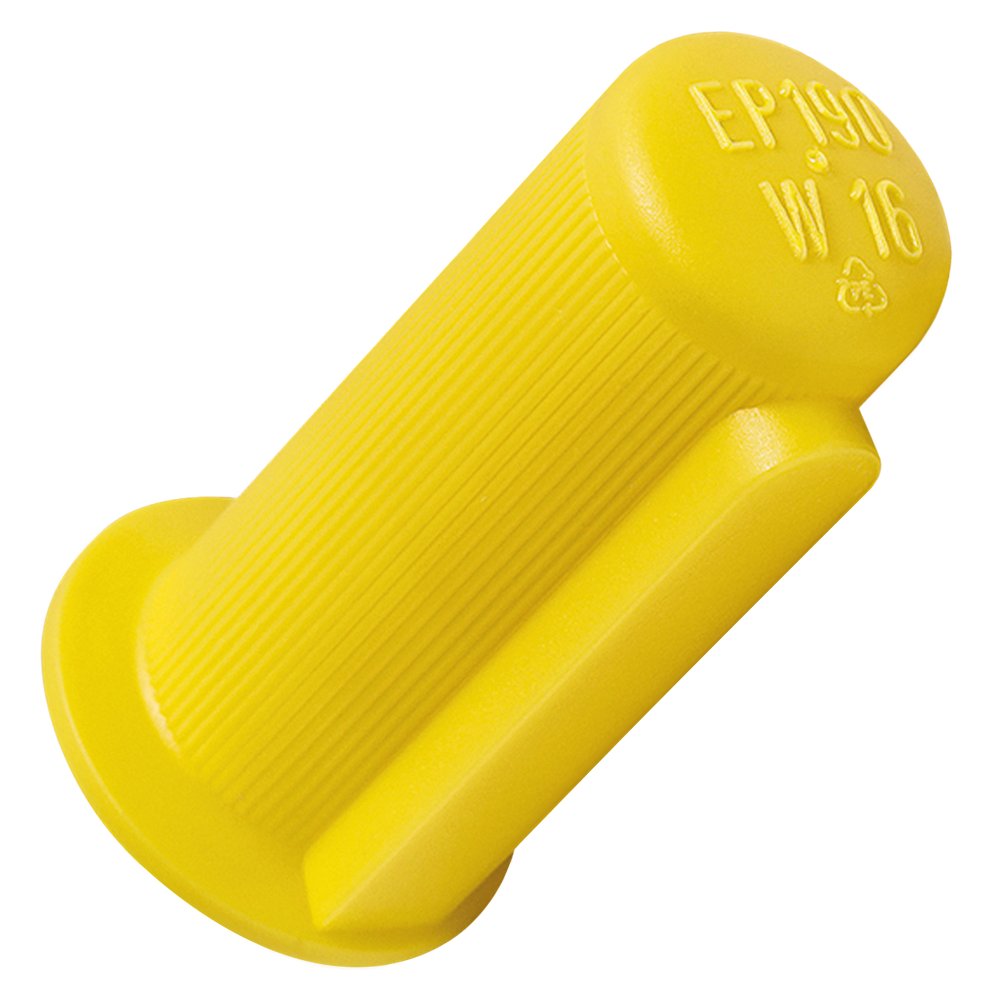

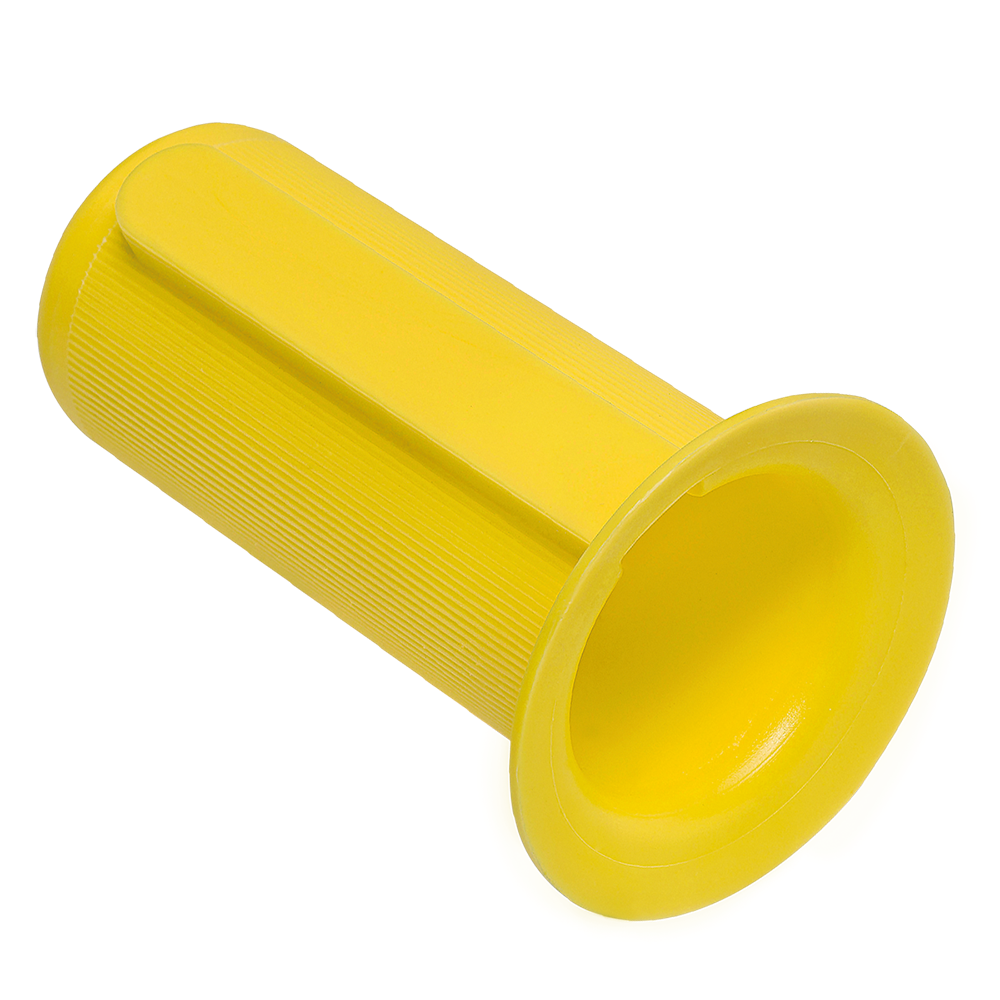

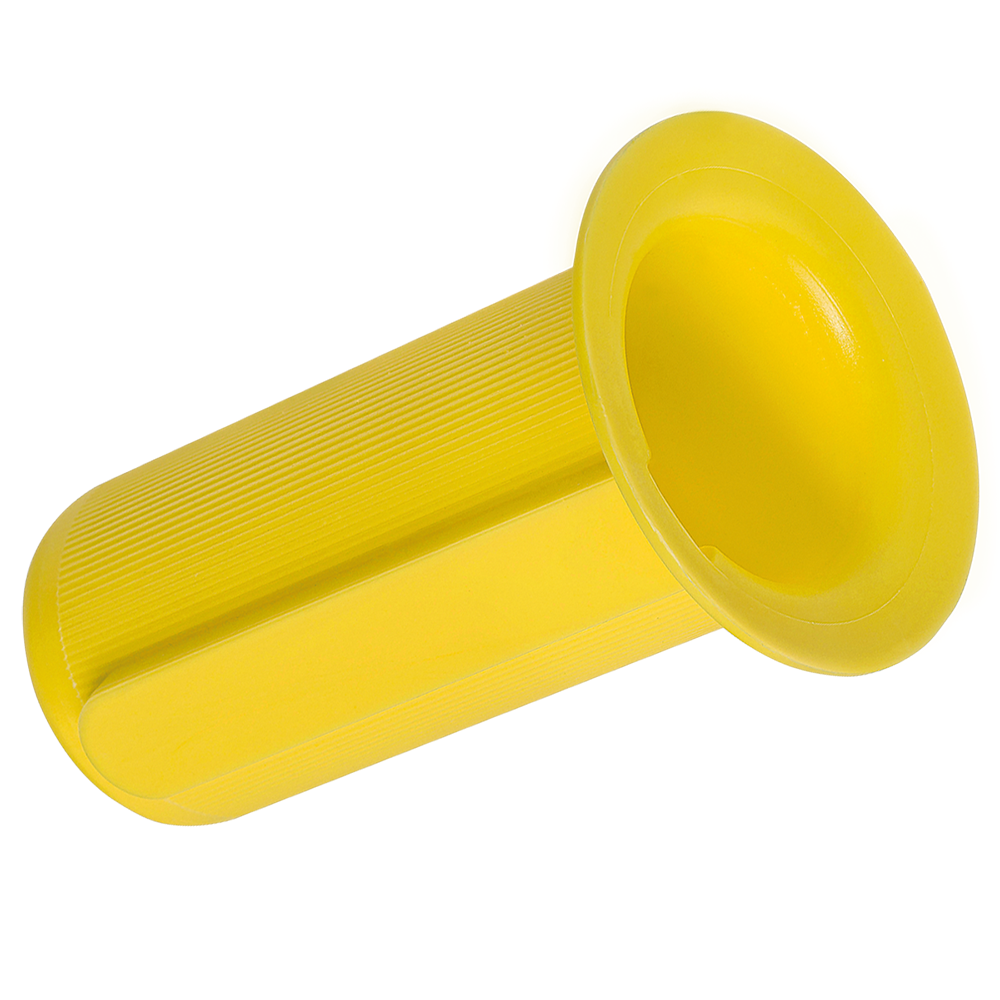

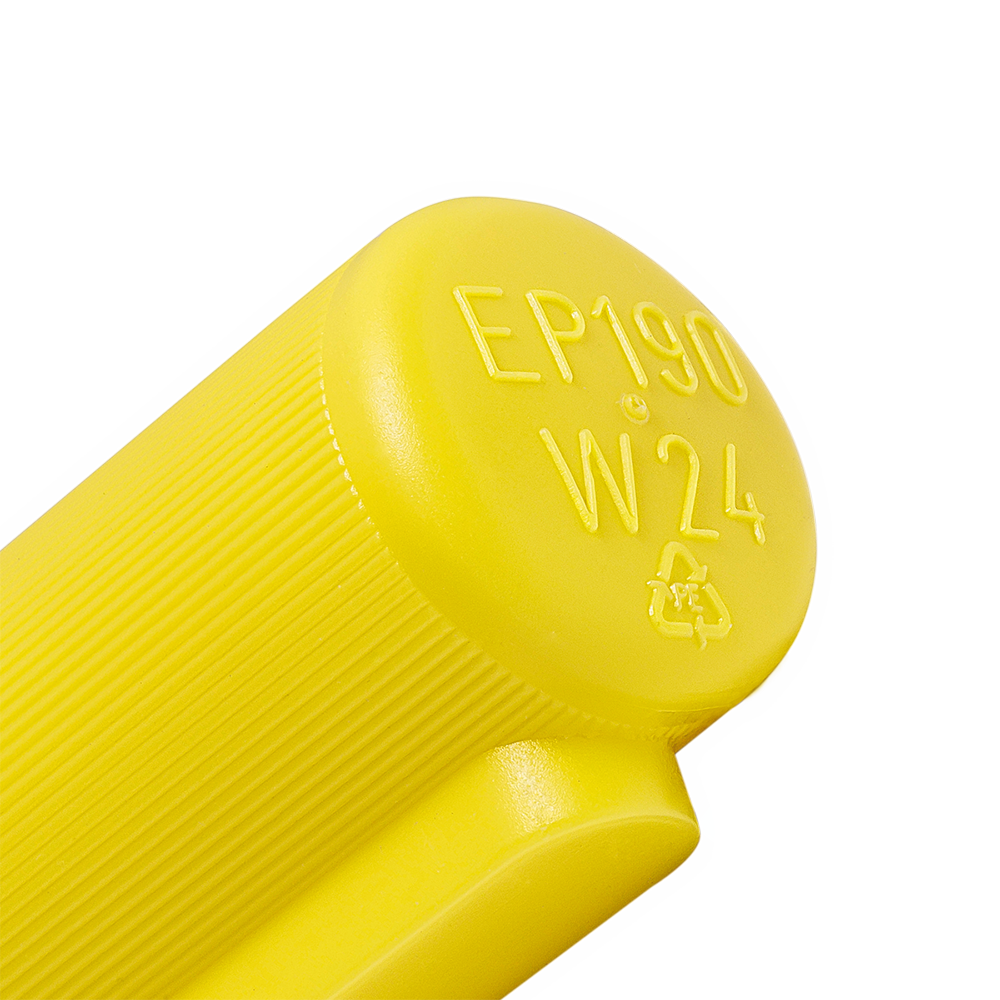

Driveshaft protection caps with fitting key


CaPtoP® EP 190

Driveshaft protection caps with fitting key


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

Fit driveshafts with a protruding fitting key.

Provide protection and masking of driveshafts as well as the surrounding bearings.

Resistant to tearing, splitting, oil and most chemicals.
Fits drive shafts to specification DIN 748, IEC 600-72 and ISO R775.

'Easy-pull' design makes removal easy.

Std. Color: yellow
Material: LLD-PE, linear low density polyethylene

PROTEC CAPTOP EP 190

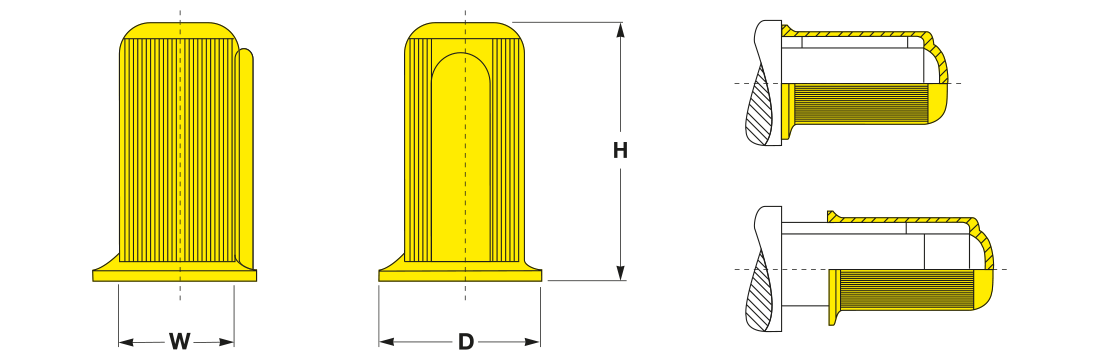

W D H Standard
Pack
Reference No. Bookmark
  9.0   14.5   24.0 15.000 EP 190/W   9
11.0   17.5   27.5   8.000 EP 190/W 11
14.0   22.5   35.0   4.500 EP 190/W 14
15.0   25.5   32.0   4.500 EP 190/W 15
16.0   25.5   47.0   2.700 EP 190/W 16
19.0   30.7   47.0   1.700 EP 190/W 19
20.0   32.0   58.5   1.500 EP 190/W 20
22.0   35.5   58.5   1.000 EP 190/W 22
24.0   38.5   58.5      900 EP 190/W 24
25.0   40.0   70.0      700 EP 190/W 25
28.0   45.0   70.0      600 EP 190/W 28
30.0   48.0   93.5      350 EP 190/W 30
32.0   51.0   93.5      500 EP 190/W 32
35.0   56.0   93.5      400 EP 190/W 35
38.0   61.0   93.5      350 EP 190/W 38
42.0   67.0 127.5      230 EP 190/W 42
45.0   72.0 117.5      200 EP 190/W 45
48.0   77.0 127.5      170 EP 190/W 48
55.0   88.0 127.5      125 EP 190/W 55
60.0   96.0 164.0        80 EP 190/W 60
65.0 104.0 164.0        60 EP 190/W 65
75.0 112.0 164.0        50 EP 190/W 75
W D H Standard
Pack
Reference No.
  9.0   14.5   24.0 15.000 EP 190/W   9
11.0   17.5   27.5   8.000 EP 190/W 11
14.0   22.5   35.0   4.500 EP 190/W 14
15.0   25.5   32.0   4.500 EP 190/W 15
16.0   25.5   47.0   2.700 EP 190/W 16
19.0   30.7   47.0   1.700 EP 190/W 19
20.0   32.0   58.5   1.500 EP 190/W 20
22.0   35.5   58.5   1.000 EP 190/W 22
24.0   38.5   58.5      900 EP 190/W 24
25.0   40.0   70.0      700 EP 190/W 25
28.0   45.0   70.0      600 EP 190/W 28
30.0   48.0   93.5      350 EP 190/W 30
32.0   51.0   93.5      500 EP 190/W 32
35.0   56.0   93.5      400 EP 190/W 35
38.0   61.0   93.5      350 EP 190/W 38
42.0   67.0 127.5      230 EP 190/W 42
45.0   72.0 117.5      200 EP 190/W 45
48.0   77.0 127.5      170 EP 190/W 48
55.0   88.0 127.5      125 EP 190/W 55
60.0   96.0 164.0        80 EP 190/W 60
65.0 104.0 164.0        60 EP 190/W 65
75.0 112.0 164.0        50 EP 190/W 75
Shaft Diameter W
9.0

Dimension Protection Cap D
14.5

Dimension Protection Cap H
24.0

Packaging Unit
15.000

Reference No.
EP 190/W 9

Shaft Diameter W
11.0

Dimension Protection Cap D
17.5

Dimension Protection Cap H
27.5

Packaging Unit
8.000

Reference No.
EP 190/W 11

Shaft Diameter W
14.0

Dimension Protection Cap D
22.5

Dimension Protection Cap H
35.0

Packaging Unit
4.500

Reference No.
EP 190/W 14

Shaft Diameter W
15.0

Dimension Protection Cap D
25.5

Dimension Protection Cap H
32.0

Packaging Unit
4.500

Reference No.
EP 190/W 15

Shaft Diameter W
16.0

Dimension Protection Cap D
25.5

Dimension Protection Cap H
47.0

Packaging Unit
2.700

Reference No.
EP 190/W 16

Shaft Diameter W
19.0

Dimension Protection Cap D
30.7

Dimension Protection Cap H
47.0

Packaging Unit
1.700

Reference No.
EP 190/W 19

Shaft Diameter W
20.0

Dimension Protection Cap D
32.0

Dimension Protection Cap H
58.5

Packaging Unit
1.500

Reference No.
EP 190/W 20

Shaft Diameter W
22.0

Dimension Protection Cap D
35.5

Dimension Protection Cap H
58.5

Packaging Unit
1.000

Reference No.
EP 190/W 22

Shaft Diameter W
24.0

Dimension Protection Cap D
38.5

Dimension Protection Cap H
58.5

Packaging Unit
900

Reference No.
EP 190/W 24

Shaft Diameter W
25.0

Dimension Protection Cap D
40.0

Dimension Protection Cap H
70.0

Packaging Unit
700

Reference No.
EP 190/W 25

Shaft Diameter W
28.0

Dimension Protection Cap D
45.0

Dimension Protection Cap H
70.0

Packaging Unit
600

Reference No.
EP 190/W 28

Shaft Diameter W
30.0

Dimension Protection Cap D
48.0

Dimension Protection Cap H
93.5

Packaging Unit
350

Reference No.
EP 190/W 30

Shaft Diameter W
32.0

Dimension Protection Cap D
51.0

Dimension Protection Cap H
93.5

Packaging Unit
500

Reference No.
EP 190/W 32

Shaft Diameter W
35.0

Dimension Protection Cap D
56.0

Dimension Protection Cap H
93.5

Packaging Unit
400

Reference No.
EP 190/W 35

Shaft Diameter W
38.0

Dimension Protection Cap D
61.0

Dimension Protection Cap H
93.5

Packaging Unit
350

Reference No.
EP 190/W 38

Shaft Diameter W
42.0

Dimension Protection Cap D
67.0

Dimension Protection Cap H
127.5

Packaging Unit
230

Reference No.
EP 190/W 42

Shaft Diameter W
45.0

Dimension Protection Cap D
72.0

Dimension Protection Cap H
117.5

Packaging Unit
200

Reference No.
EP 190/W 45

Shaft Diameter W
48.0

Dimension Protection Cap D
77.0

Dimension Protection Cap H
127.5

Packaging Unit
170

Reference No.
EP 190/W 48

Shaft Diameter W
55.0

Dimension Protection Cap D
88.0

Dimension Protection Cap H
127.5

Packaging Unit
125

Reference No.
EP 190/W 55

Shaft Diameter W
60.0

Dimension Protection Cap D
96.0

Dimension Protection Cap H
164.0

Packaging Unit
80

Reference No.
EP 190/W 60

Shaft Diameter W
65.0

Dimension Protection Cap D
104.0

Dimension Protection Cap H
164.0

Packaging Unit
60

Reference No.
EP 190/W 65

Shaft Diameter W
75.0

Dimension Protection Cap D
112.0

Dimension Protection Cap H
164.0

Packaging Unit
50

Reference No.
EP 190/W 75

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 190 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

High quality solution for protection of driveshafts with a protruding fitting key.

These easy to fit caps provide protection and masking of driveshafts as well as the surrounding bearrings.

Available from DN 9 to DN 75.

On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
