ProteC CaPtoP® EP 303

Valve flange protection plugs


CaPtoP® EP 303

Valve flange protection plugs


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

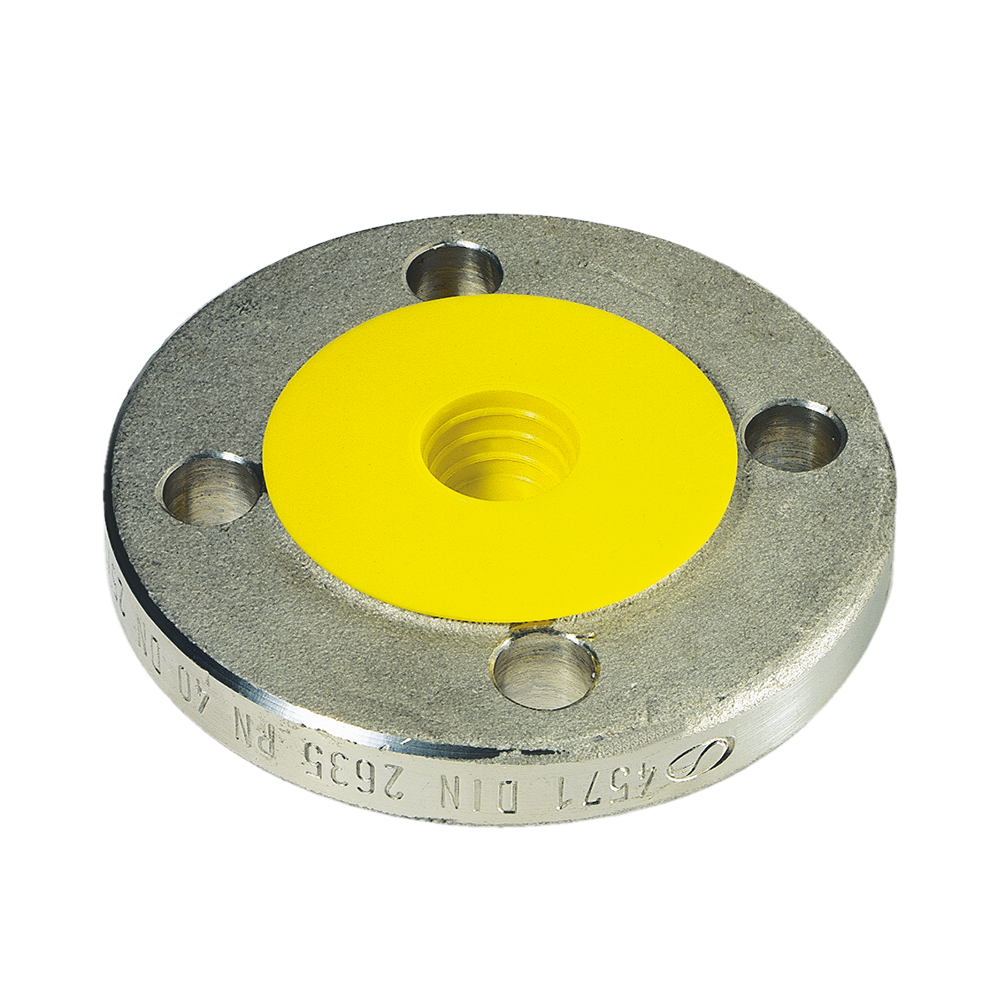

Provides cushioned protection for flange face.
Suitable for DIN 2631-2635 flanges.

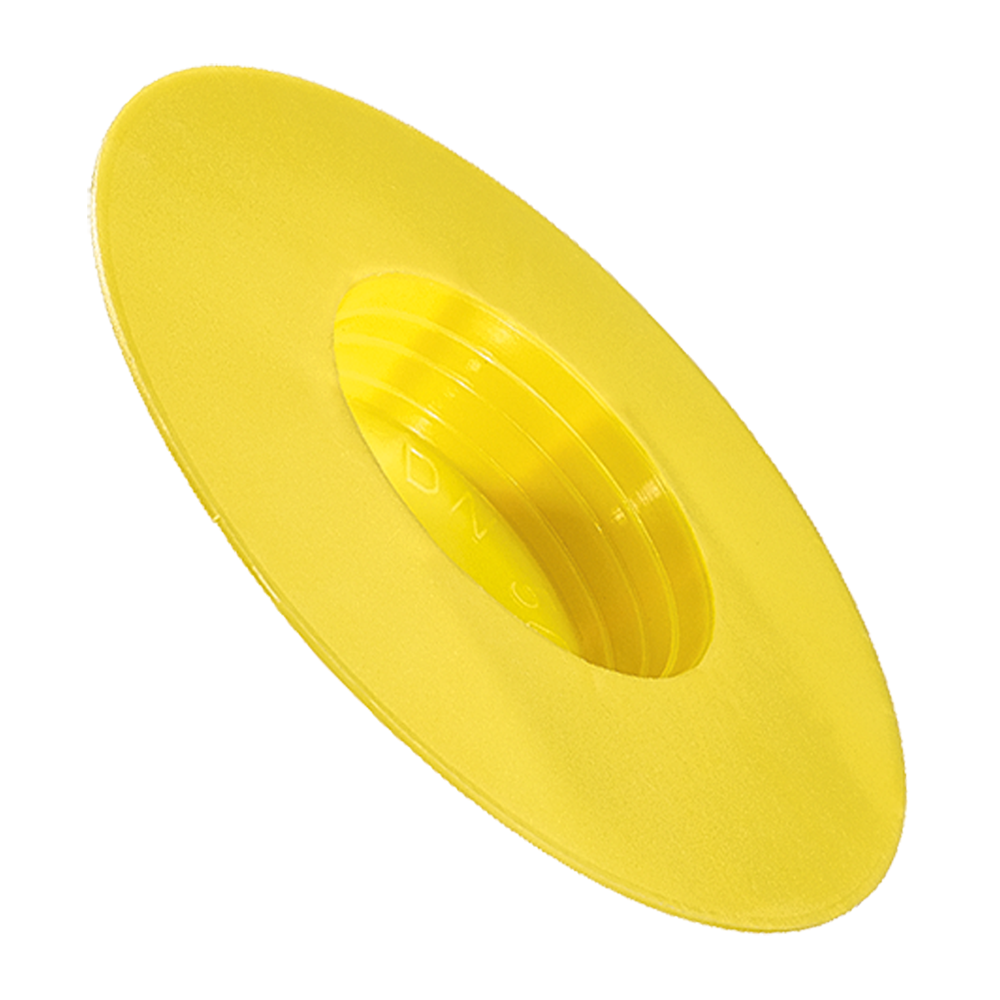

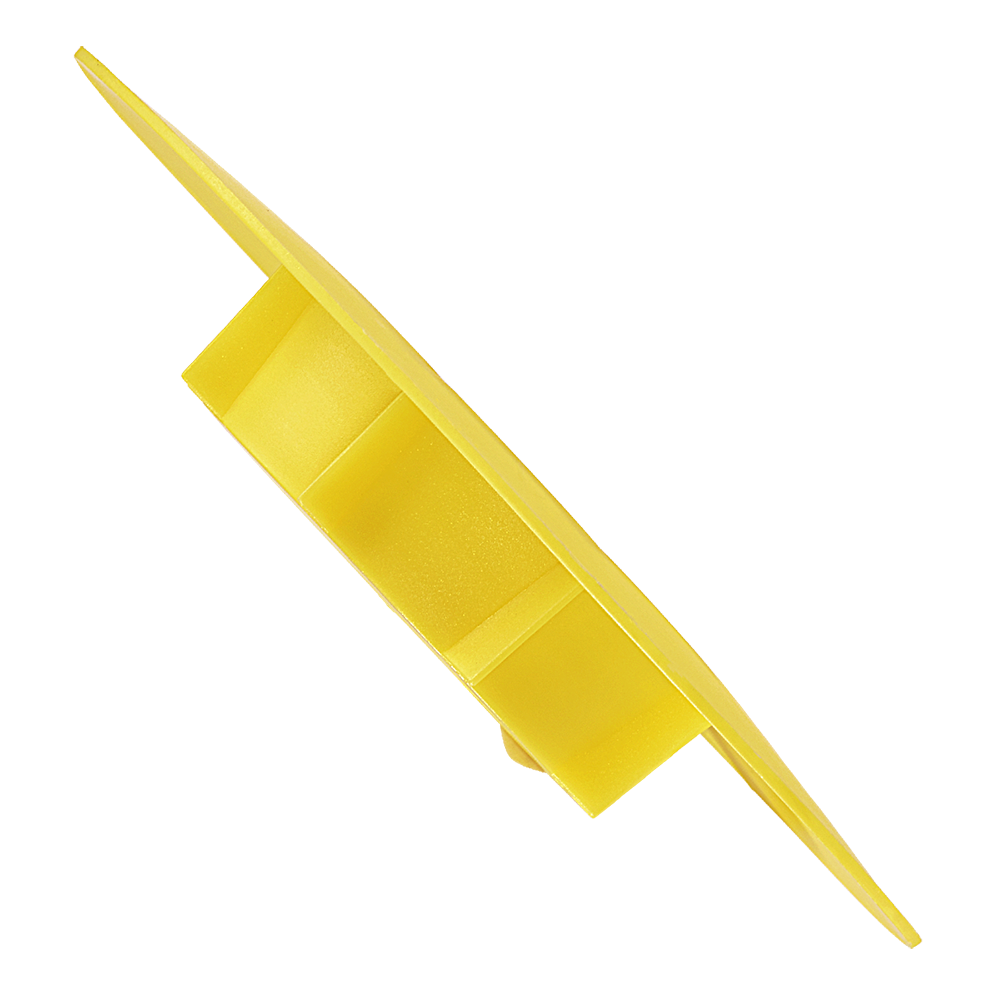

These plugs have a tapered body and a wide flange to protect the entire machined surface of valve flange.

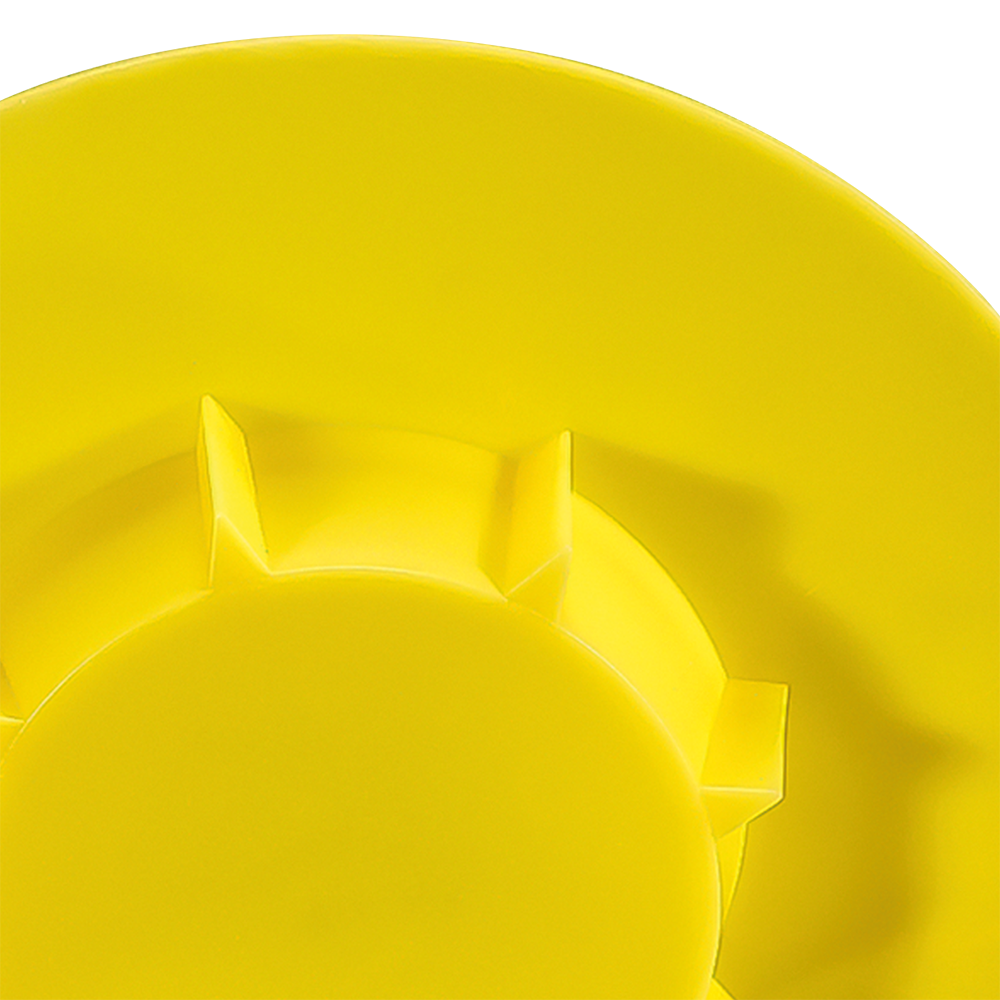

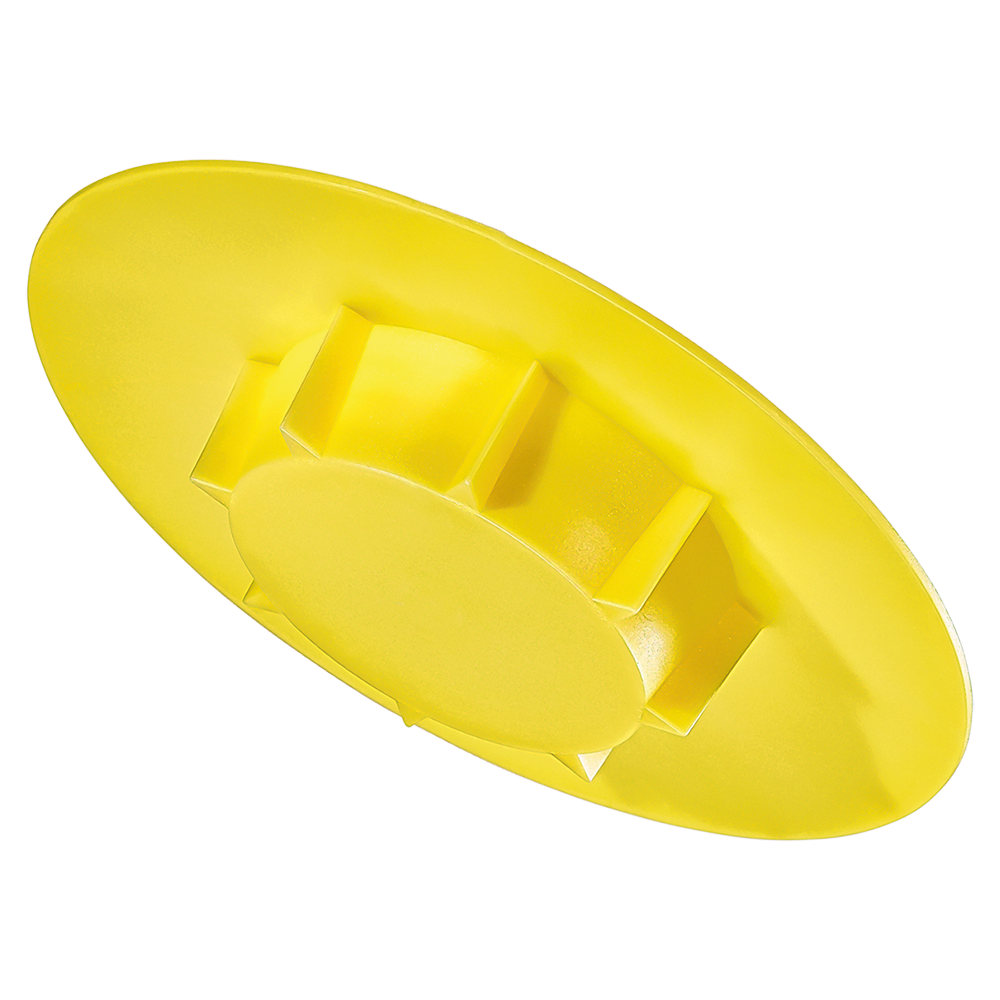

Number of ribs is 4-8 depending on the size.

Std. Color: yellow
Material: LLD-PE, linear low density polyethylene

PROTEC CAPTOP EP 303

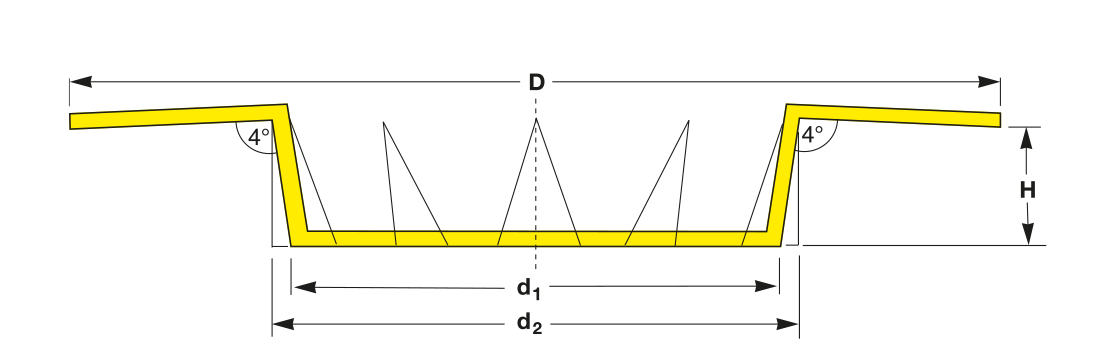

Pipe Flange Pressure Group d1 d2 D H Reference No. Bookmark
33.7 x 2.6 DN 25 PN 6. 10. 16. 25. 40 20.2 30.5   68.7 15.0 EP 303 / DN 25 - R
42.4 x 2.6 DN 32 PN 6. 10. 16. 25. 40 26.8 38.7   78.0 14.6 EP 303 / DN 32 - R
48.3 x 2.6 DN 40 PN 6. 10. 16. 25. 40 35.3 44.8   88.0 15.0 EP 303 / DN 40 - R
60.3 x 2.9 DN 50 PN 6. 10. 16. 25. 40 45.5 57.0 103.0 14.7 EP 303 / DN 50 - R
Pipe Flange Pressure Group d1 d2 D H Reference No.
33.7 x 2.6 DN 25 PN 6. 10. 16. 25. 40 20.2 30.5   68.7 15.0 EP 303 / DN 25 - R
42.4 x 2.6 DN 32 PN 6. 10. 16. 25. 40 26.8 38.7   78.0 14.6 EP 303 / DN 32 - R
48.3 x 2.6 DN 40 PN 6. 10. 16. 25. 40 35.3 44.8   88.0 15.0 EP 303 / DN 40 - R
60.3 x 2.9 DN 50 PN 6. 10. 16. 25. 40 45.5 57.0 103.0 14.7 EP 303 / DN 50 - R
Pipe
33.7 x 2.6

Flange
DN 25

Pressure Group
PN 6. 10. 16. 25. 40

d1
20.2

d2
30.5

D
68.7

H
15.0

Reference No.
EP 303 / DN 25 - R

Pipe
42.4 x 2.6

Flange
DN 32

Pressure Group
PN 6. 10. 16. 25. 40

d1
26.8

d2
38.7

D
78.0

H
14.6

Reference No.
EP 303 / DN 32 - R

Pipe
48.3 x 2.6

Flange
DN 40

Pressure Group
PN 6. 10. 16. 25. 40

d1
35.3

d2
44.8

D
88.0

H
15.0

Reference No.
EP 303 / DN 40 - R

Pipe
60.3 x 2.9

Flange
DN 50

Pressure Group
PN 6. 10. 16. 25. 40

d1
45.5

d2
57.0

D
103.0

H
14.7

Reference No.
EP 303 / DN 50 - R

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 303 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.
