ProteC Prosicon® EPS 870

Heat-resistant masking Silicone Star Tubing


Prosicon® EPS 870

Heat-resistant masking Silicone Star Tubing


Star-shaped hoses are available in large range of diameters.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code:
Reusable

Color:
Special color runs available on request

Material:
Prosicon® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

HEAT RESISTANT!
PROTEC PROSICON EPS 870

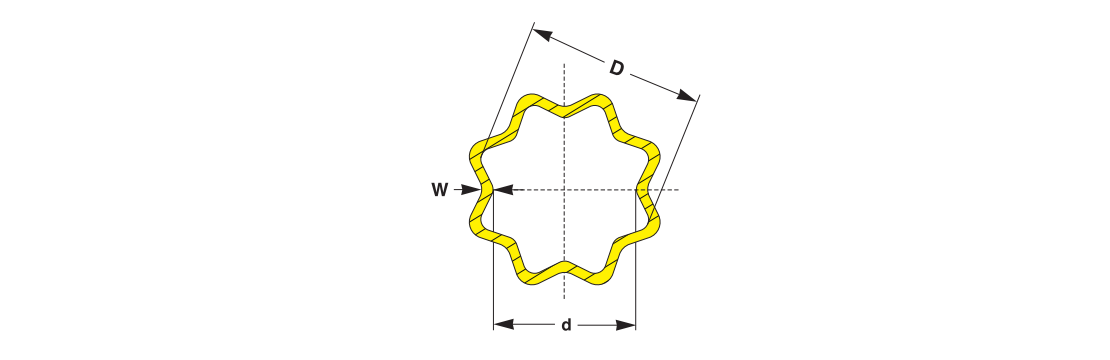

d D W Std. Color Pack Reference No. Bookmark
2.800 5.300 1.52 Red 30.48 EPS 870 / 0110-0209
4.800 7.300 1.52 Yellow 30.48 EPS 870 / 0189-0287
5.080 6.350 1.52 White 30.48 EPS 870 / 0200-0250
6.500 9.500 1.52 Clear 30.48 EPS 870 / 0256-0374
7.620 9.525 1.52 Woodsia 30.48 EPS 870 / 0300-0375
8.500 11.500 1.52 Blue 30.48 EPS 870 / 0335-0453
10.160 12.700 1.52 Yellow 30.48 EPS 870 / 0400-0500
10.700 14.000 1.52 Green 30.48 EPS 870 / 0421-0551
12.500 18.000 1.52 Red 30.48 EPS 870 / 0492-0709
12.700 15.875 1.52 Purple 30.48 EPS 870 / 0500-0625
15.875 19.050 1.52 Woodsia 15.24 EPS 870 / 0625-0750
18.415 22.225 1.52 Blue 15.24 EPS 870 / 0725-0875
21.590 25.400 1.52 White 15.24 EPS 870 / 0850-1000
25.400 31.750 1.52 Clear 7.62 EPS 870 / 1000-1250
31.750 38.100 1.52 Purple 7.62 EPS 870 / 1250-1500
38.100 44.450 1.52 Woodsia 7.62 EPS 870 / 1500-1750
44.450 50.800 1.52 Orange 7.62 EPS 870 / 1750-2000
d D W Std. Color Standard
Pack
Reference No.
2.800 5.300 1.52 Red 30.48 EPS 870 / 0110-0209
4.800 7.300 1.52 Yellow 30.48 EPS 870 / 0189-0287
5.080 6.350 1.52 White 30.48 EPS 870 / 0200-0250
6.500 9.500 1.52 Clear 30.48 EPS 870 / 0256-0374
7.620 9.525 1.52 Woodsia 30.48 EPS 870 / 0300-0375
8.500 11.500 1.52 Blue 30.48 EPS 870 / 0335-0453
10.160 12.700 1.52 Yellow 30.48 EPS 870 / 0400-0500
10.700 14.000 1.52 Green 30.48 EPS 870 / 0421-0551
12.500 18.000 1.52 Red 30.48 EPS 870 / 0492-0709
12.700 15.875 1.52 Purple 30.48 EPS 870 / 0500-0625
15.875 19.050 1.52 Woodsia 15.24 EPS 870 / 0625-0750
18.415 22.225 1.52 Blue 15.24 EPS 870 / 0725-0875
21.590 25.400 1.52 White 15.24 EPS 870 / 0850-1000
25.400 31.750 1.52 Clear 7.62 EPS 870 / 1000-1250
31.750 38.100 1.52 Purple 7.62 EPS 870 / 1250-1500
38.100 44.450 1.52 Woodsia 7.62 EPS 870 / 1500-1750
44.450 50.800 1.52 Orange 7.62 EPS 870 / 1750-2000
d
2.800

D
5.300

W
1.52

Std. Color
Red

Standard
Pack
30.48

Reference No.
EPS 870 / 0110-0209

d
4.800

D
7.300

W
1.52

Std. Color
Yellow

Standard
Pack
30.48

Reference No.
EPS 870 / 0189-0287

d
5.080

D
6.350

W
1.52

Std. Color
White

Standard
Pack
30.48

Reference No.
EPS 870 / 0200-0250

d
6.500

D
9.500

W
1.52

Std. Color
Clear

Standard
Pack
30.48

Reference No.
EPS 870 / 0256-0374

d
7.620

D
9.525

W
1.52

Std. Color
Woodsia

Standard
Pack
30.48

Reference No.
EPS 870 / 0300-0375

d
8.500

D
11.500

W
1.52

Std. Color
Blue

Standard
Pack
30.48

Reference No.
EPS 870 / 0335-0453

d
10.160

D
12.700

W
1.52

Std. Color
Yellow

Standard
Pack
30.48

Reference No.
EPS 870 / 0400-0500

d
10.700

D
14.000

W
1.52

Std. Color
Green

Standard
Pack
30.48

Reference No.
EPS 870 / 0421-0551

d
12.500

D
18.000

W
1.52

Std. Color
Red

Standard
Pack
30.48

Reference No.
EPS 870 / 0492-0709

d
12.700

D
15.875

W
1.52

Std. Color
Purple

Standard
Pack
30.48

Reference No.
EPS 870 / 0500-0625

d
15.875

D
19.050

W
1.52

Std. Color
Woodsia

Standard
Pack
15.24

Reference No.
EPS 870 / 0625-0750

d
18.415

D
22.225

W
1.52

Std. Color
Blue

Standard
Pack
15.24

Reference No.
EPS 870 / 0725-0875

d
21.590

D
25.400

W
1.52

Std. Color
White

Standard
Pack
15.24

Reference No.
EPS 870 / 0850-1000

d
25.400

D
31.750

W
1.52

Std. Color
Clear

Standard
Pack
7.62

Reference No.
EPS 870 / 1000-1250

d
31.750

D
38.100

W
1.52

Std. Color
Purple

Standard
Pack
7.62

Reference No.
EPS 870 / 1250-1500

d
38.100

D
44.450

W
1.52

Std. Color
Woodsia

Standard
Pack
7.62

Reference No.
EPS 870 / 1500-1750

d
44.450

D
50.800

W
1.52

Std. Color
Orange

Standard
Pack
7.62

Reference No.
EPS 870 / 1750-2000

PROTEC products and specifications are subject to improvement and change without notice.

PROSICON® EPS 870 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.
