ProteC CaPtoP® EP 385

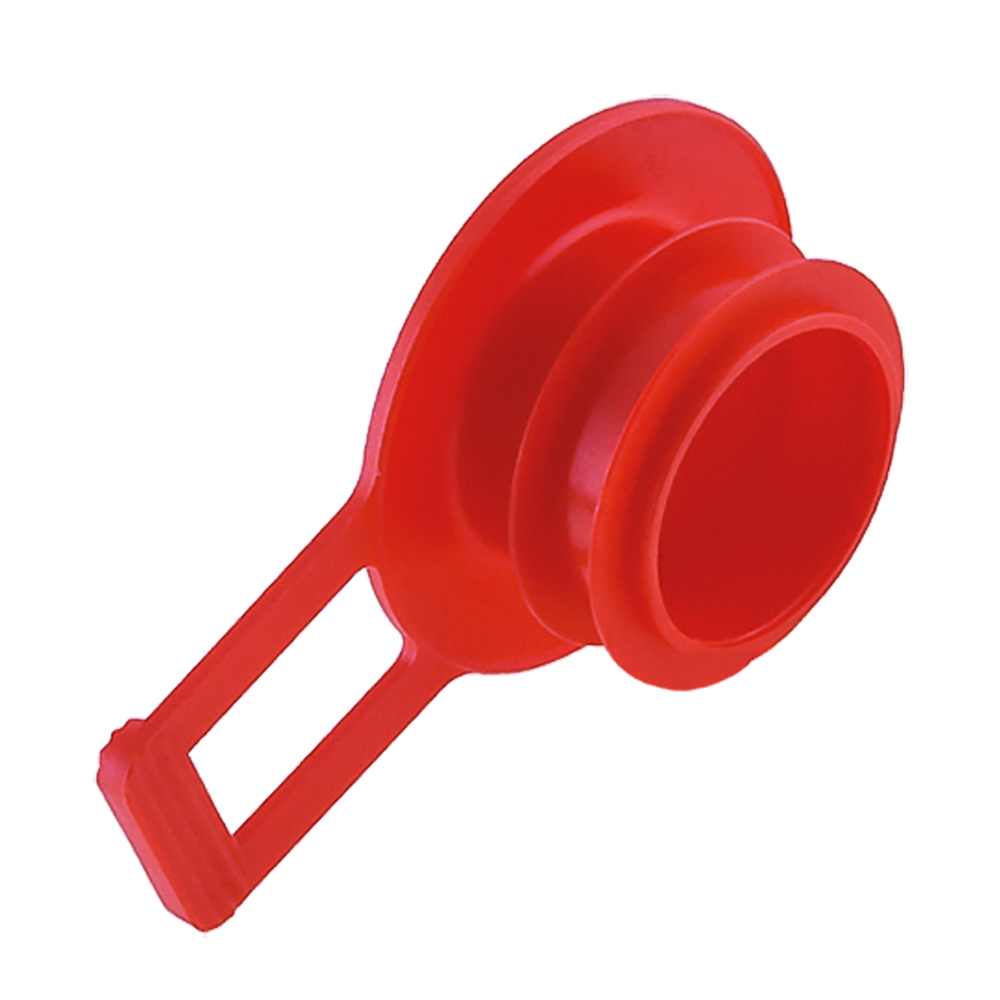

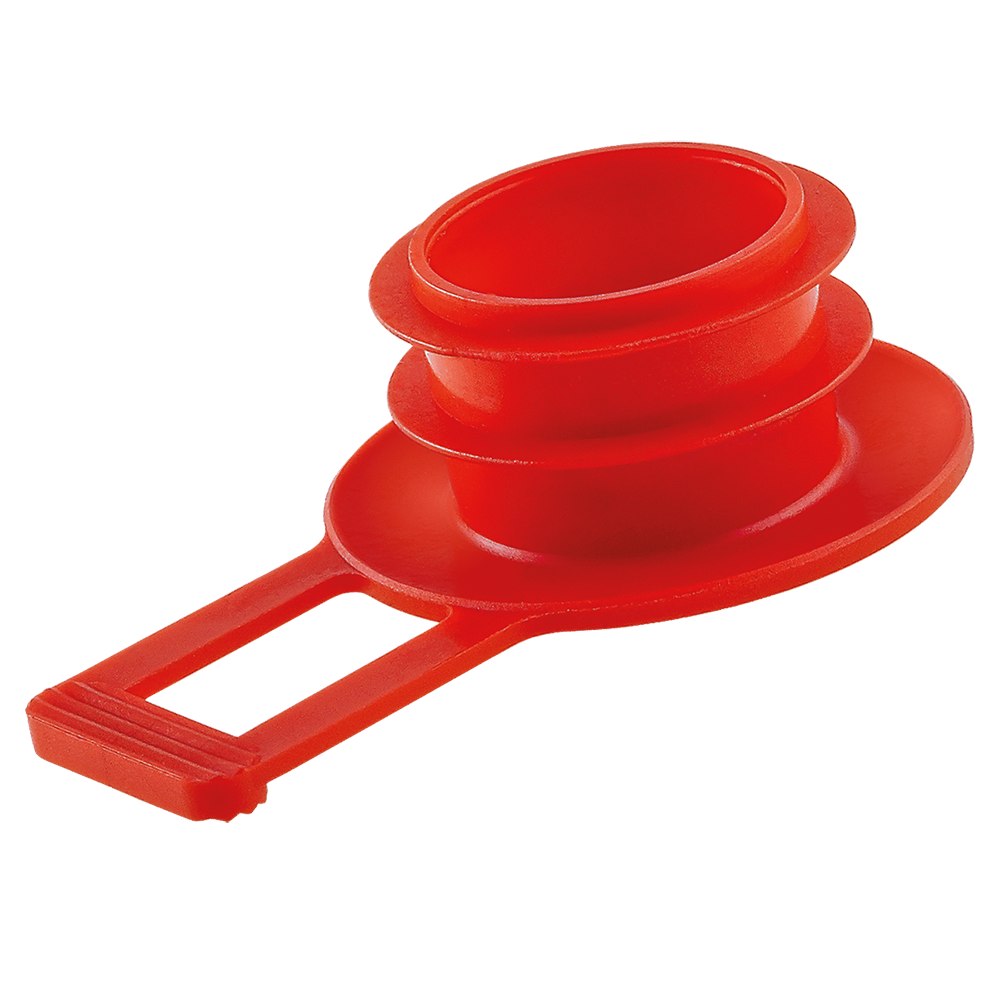

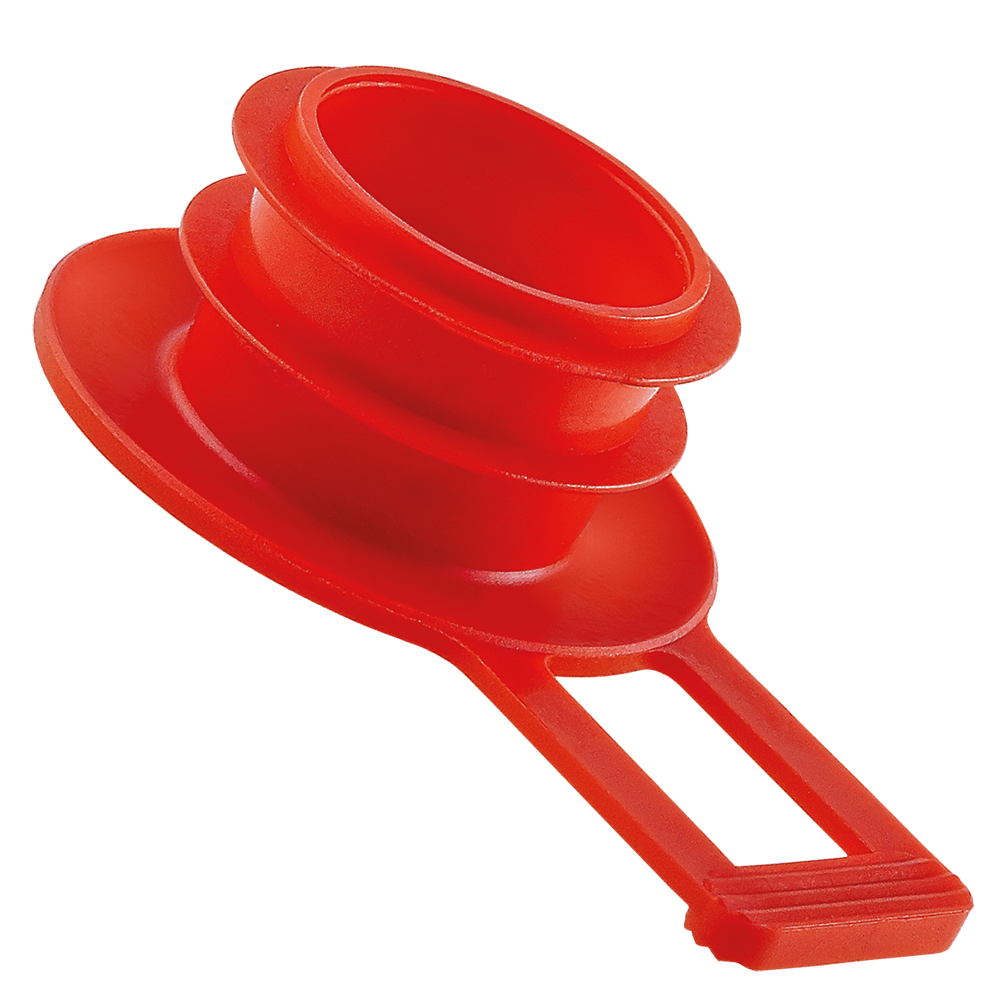

Push-fit side release plugs with 2 strong fins


CaPtoP® EP 385

Push-fit side release plugs with 2 strong fins


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

Push fit.

With continuous sealing lip and strong flexible side-tab for quick and easy removal.

Fit threaded or plain ports.

Low-abrasion fit.

Std. Color: red, RAL 3000
Material: LLD-PE, linear low density polyethylene

NEW sizes available
PROTEC CAPTOP EP 385

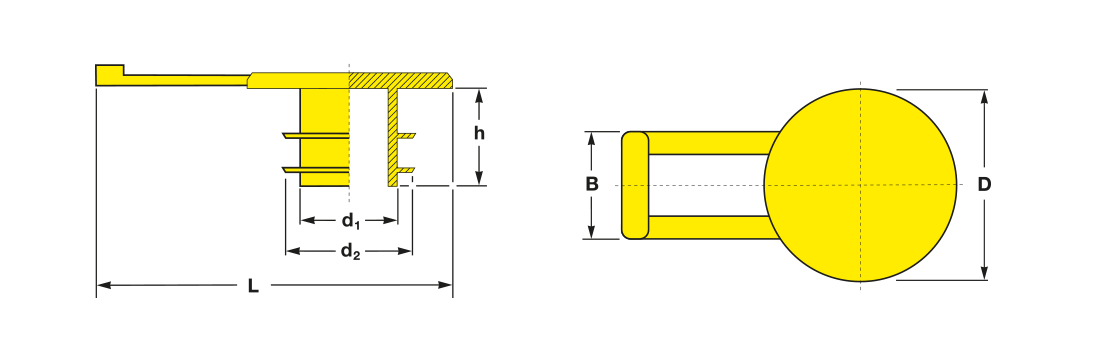

AG d1 d2 Ribs D h L B Reference No. Bookmark
  Metric DIN 3852-1
M 10 x 1   6.4   9.5 2 16.0   8.0 31.5 12.0 EP 385 / M 10 x 1
M 12 x 1.5   7.9 11.1 2 19.0   8.0 34.5 12.0 EP 385 / M 12 x 1.5
M 14 x 1.5   9.9 13.1 2 21.0 10.0 36.5 12.0 EP 385 / M 14 x 1.5
M 16 x 1.5 11.9 15.1 2 24.0 11.0 40.5 14.0 EP 385 / M 16 x 1.5
M 18 x 1.5 14.4 17.2 2 25.5 11.0 39.75 14.0 EP 385 / M 18 x 1.5
M 22 x 1.5 17.4 21.5 2 29.0 11.5 45.5 14.0 EP 385 / M 22 x 1.5
M 26 x 1.5 22.4 25.2 2 34.5 11.5 48.0 14.0 EP 385 / M 26 x 1.5
  Pipethread DIN ISO 228-1, DIN 2999 and DIN 3858
G    1/8   6.4   9.5 2 16.0   8.0 31.5 12.0 EP 385 - G   1/8
G    1/4   9.9 13.0 2 19.0   7.0 29.0 12.0 EP 385 - G    1/4
G    3/8 11.9 16.3 2 21.5   7.0 33.75 14.0 EP 385 - G    3/8
G    1/2 17.5 20.6 1 27.0   7.5 39.5 14.0 EP 385 - G    1/2
G    3/4 22.8 31.0 1 32.0   8.0 47.0 14.0 EP 385 - G    3/4
G 1 29.0 32.5 1 40.0 10.0 54.0 14.0 EP 385 - G 1
AG d1 d2 D h L B Reference No.
  Metric DIN 3852-1
M 10 x 1   6.4   9.5 2 16.0   8.0 31.5 12.0 EP 385 / M 10 x 1
M 12 x 1.5   7.9 11.1 2 19.0   8.0 34.5 12.0 EP 385 / M 12 x 1.5
M 14 x 1.5   9.9 13.1 2 21.0 10.0 36.5 12.0 EP 385 / M 14 x 1.5
M 16 x 1.5 11.9 15.1 2 24.0 11.0 40.5 14.0 EP 385 / M 16 x 1.5
M 18 x 1.5 14.4 17.2 2 25.5 11.0 39.75 14.0 EP 385 / M 18 x 1.5
M 22 x 1.5 17.4 21.5 2 29.0 11.5 45.5 14.0 EP 385 / M 22 x 1.5
M 26 x 1.5 22.4 25.2 2 34.5 11.5 48.0 14.0 EP 385 / M 26 x 1.5
  Pipethread DIN ISO 228-1, DIN 2999 and DIN 3858
G    1/8   6.4   9.5 2 16.0   8.0 31.5 12.0 EP 385 - G   1/8
G    1/4   9.9 13.0 2 19.0   7.0 29.0 12.0 EP 385 - G    1/4
G    3/8 11.9 16.3 2 21.5   7.0 33.75 14.0 EP 385 - G    3/8
G    1/2 17.5 20.6 1 27.0   7.5 39.5 14.0 EP 385 - G    1/2
G    3/4 22.8 31.0 1 32.0   8.0 47.0 14.0 EP 385 - G    3/4
G 1 29.0 32.5 1 40.0 10.0 54.0 14.0 EP 385 - G 1
  Metric DIN 3852-1
Thread
M 10 x 1

Shaft d1
6.4

Rib d2
9.5

Quantity Ribs
2

"Flange D
16.0

Height h
8.0

Length L
31.5

Pull Tab B
12.0

Reference No.
EP 385 / M 10 x 1

Thread
M 12 x 1.5

Shaft d1
7.9

Rib d2
11.1

Quantity Ribs
2

"Flange D
19.0

Height h
8.0

Length L
34.5

Pull Tab B
12.0

Reference No.
EP 385 / M 12 x 1.5

Thread
M 14 x 1.5

Shaft d1
9.9

Rib d2
13.1

Quantity Ribs
2

"Flange D
21.0

Height h
10.0

Length L
36.5

Pull Tab B
12.0

Reference No.
EP 385 / M 14 x 1.5

Thread
M 16 x 1.5

Shaft d1
11.9

Rib d2
15.1

Quantity Ribs
2

"Flange D
24.0

Height h
11.0

Length L
40.5

Pull Tab B
14.0

Reference No.
EP 385 / M 16 x 1.5

Thread
M 18 x 1.5

Shaft d1
14.4

Rib d2
17.2

Quantity Ribs
2

"Flange D
25.5

Height h
11.0

Length L
39.75

Pull Tab B
14.0

Reference No.
EP 385 / M 18 x 1.5

Thread
M 22 x 1.5

Shaft d1
17.4

Rib d2
21.5

Quantity Ribs
2

"Flange D
29.0

Height h
11.5

Length L
45.5

Pull Tab B
14.0

Reference No.
EP 385 / M 22 x 1.5

Thread
M 26 x 1.5

Shaft d1
22.4

Rib d2
25.2

Quantity Ribs
2

"Flange D
34.5

Height h
11.5

Length L
48.0

Pull Tab B
14.0

Reference No.
EP 385 / M 26 x 1.5

  Pipethread DIN ISO 228-1, DIN 2999 and DIN 3858
Thread
G 1/8

Shaft d1
6.4

Rib d2
9.5

Quantity Ribs
2

"Flange D
16.0

Height h
8.0

Length L
31.5

Pull Tab B
12.0

Reference No.
EP 385 - G 1/8

Thread
G 1/4

Shaft d1
9.9

Rib d2
13.0

Quantity Ribs
2

"Flange D
19.0

Height h
7.0

Length L
29.0

Pull Tab B
12.0

Reference No.
EP 385 - G 1/4

Thread
G 3/8

Shaft d1
11.9

Rib d2
16.3

Quantity Ribs
2

"Flange D
21.5

Height h
7.0

Length L
33.75

Pull Tab B
14.0

Reference No.
EP 385 - G 3/8

Thread
G 1/2

Shaft d1
17.5

Rib d2
20.6

Quantity Ribs
1

"Flange D
27.0

Height h
7.5

Length L
39.5

Pull Tab B
14.0

Reference No.
EP 385 - G 1/2

Thread
G 3/4

Shaft d1
22.8

Rib d2
31.0

Quantity Ribs
1

"Flange D
32.0

Height h
8.0

Length L
47.0

Pull Tab B
14.0

Reference No.
EP 385 - G 3/4

Thread
G 1

Shaft d1
29.0

Rib d2
32.5

Quantity Ribs
1

"Flange D
40.0

Height h
10.0

Length L
54.0

Pull Tab B
14.0

Reference No.
EP 385 - G 1

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 385 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.
