ProteC CaPtoP® EP 260

Pipe protection caps

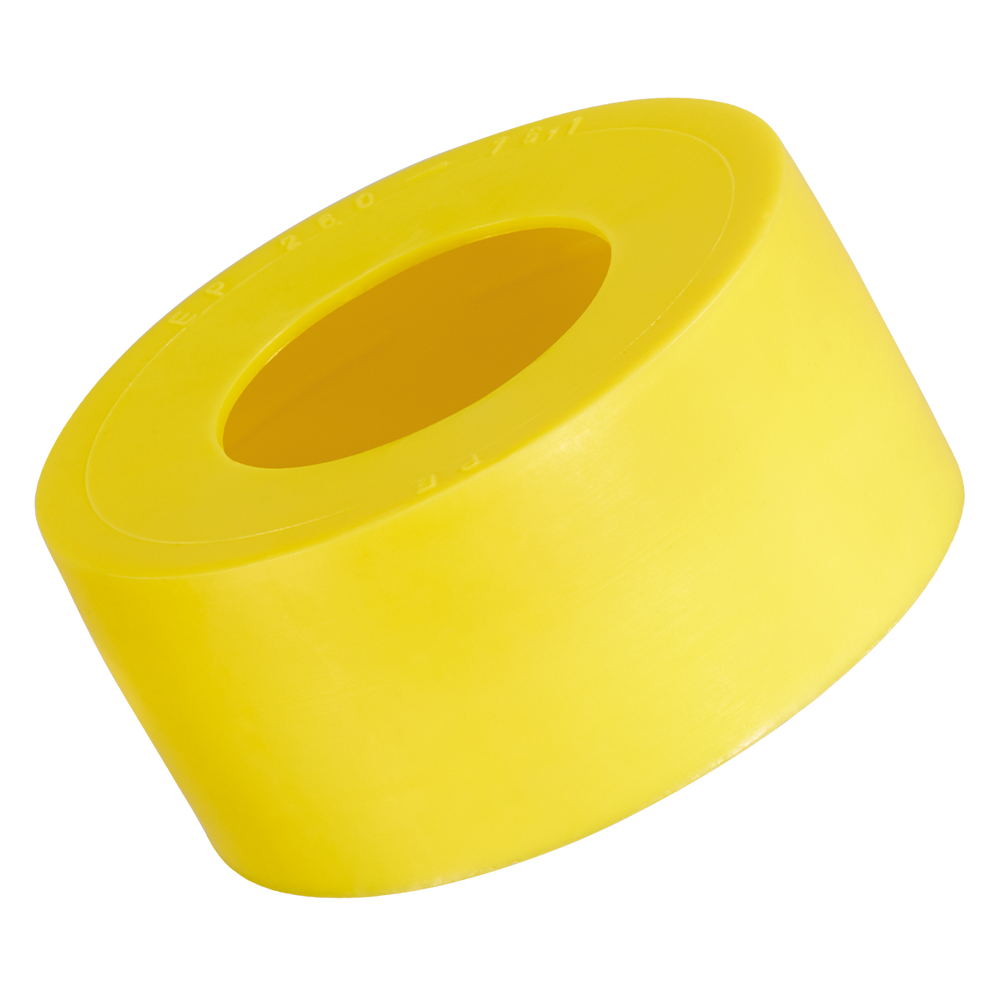

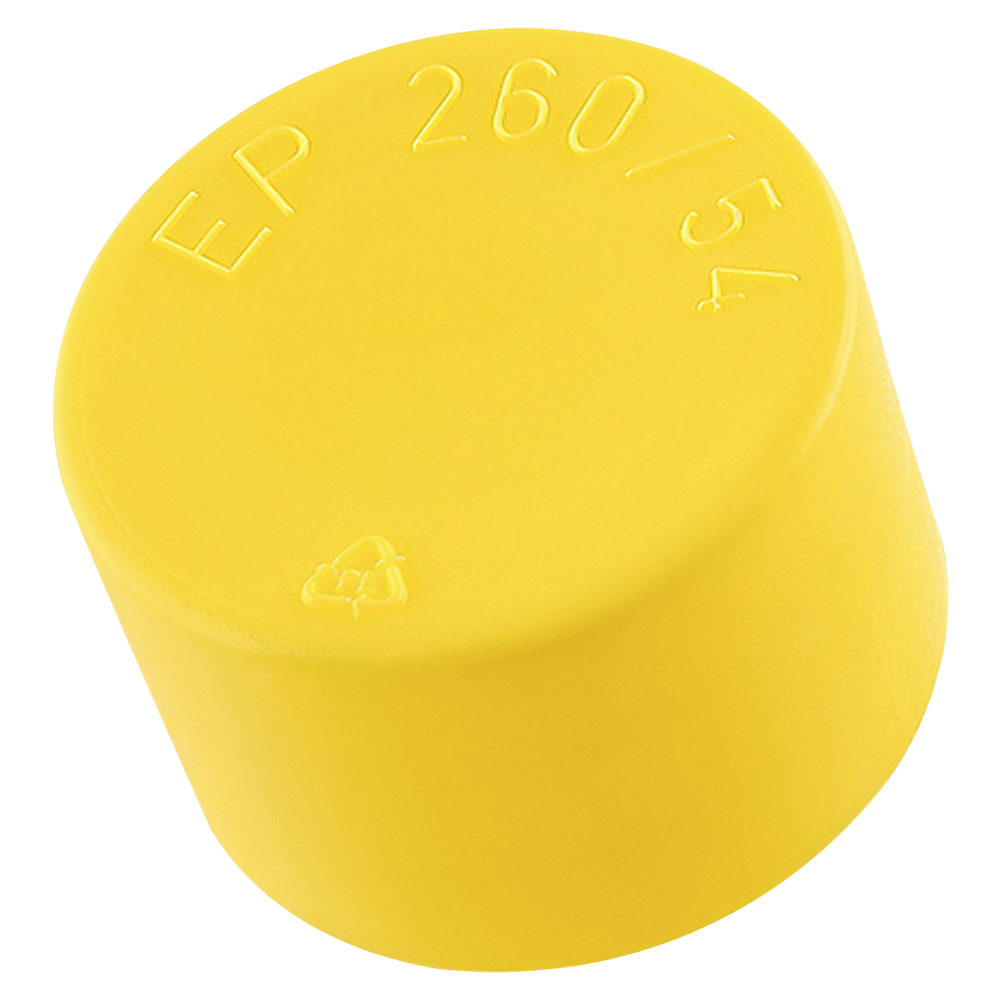

CaPtoP® EP 260

Pipe protection caps


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

The Original Pipe Protection Cap.

One piece construction. Injection-moulded.

Up to 64.” nominal pipe size and complemented with over 170 additional sizes.

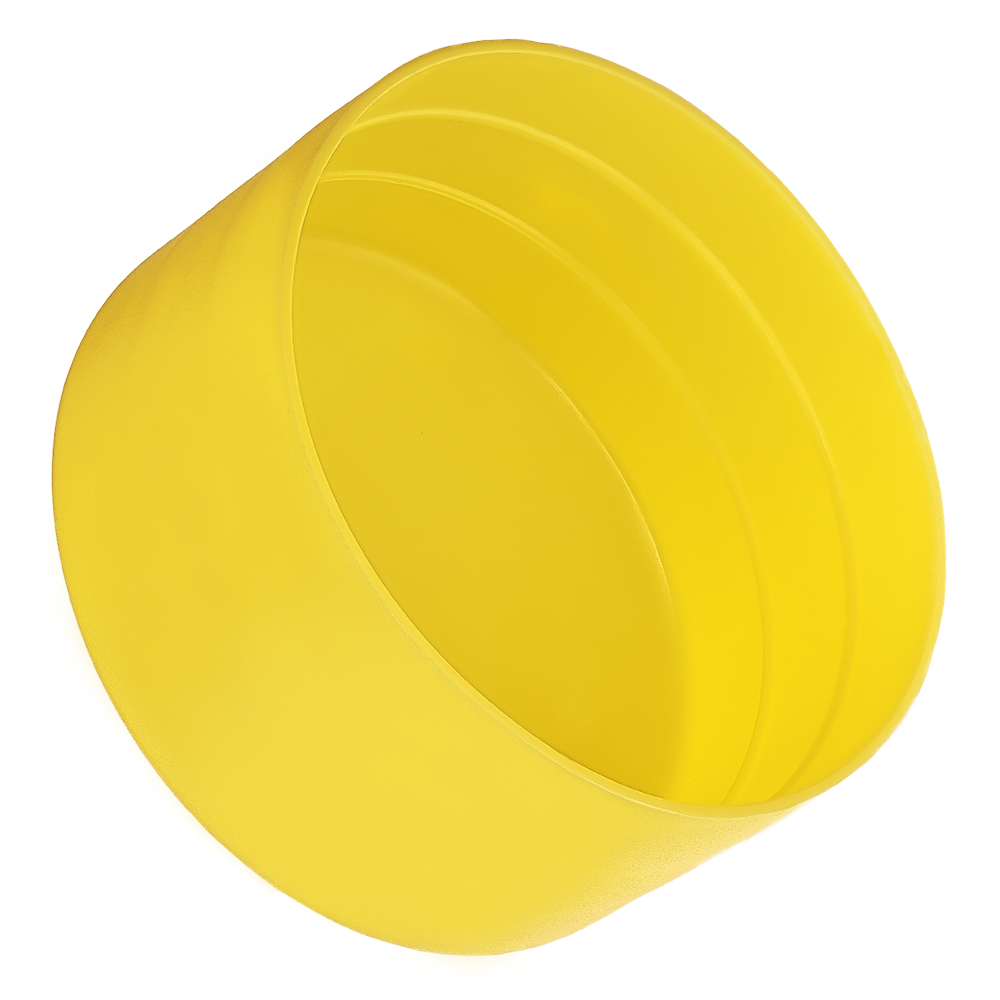

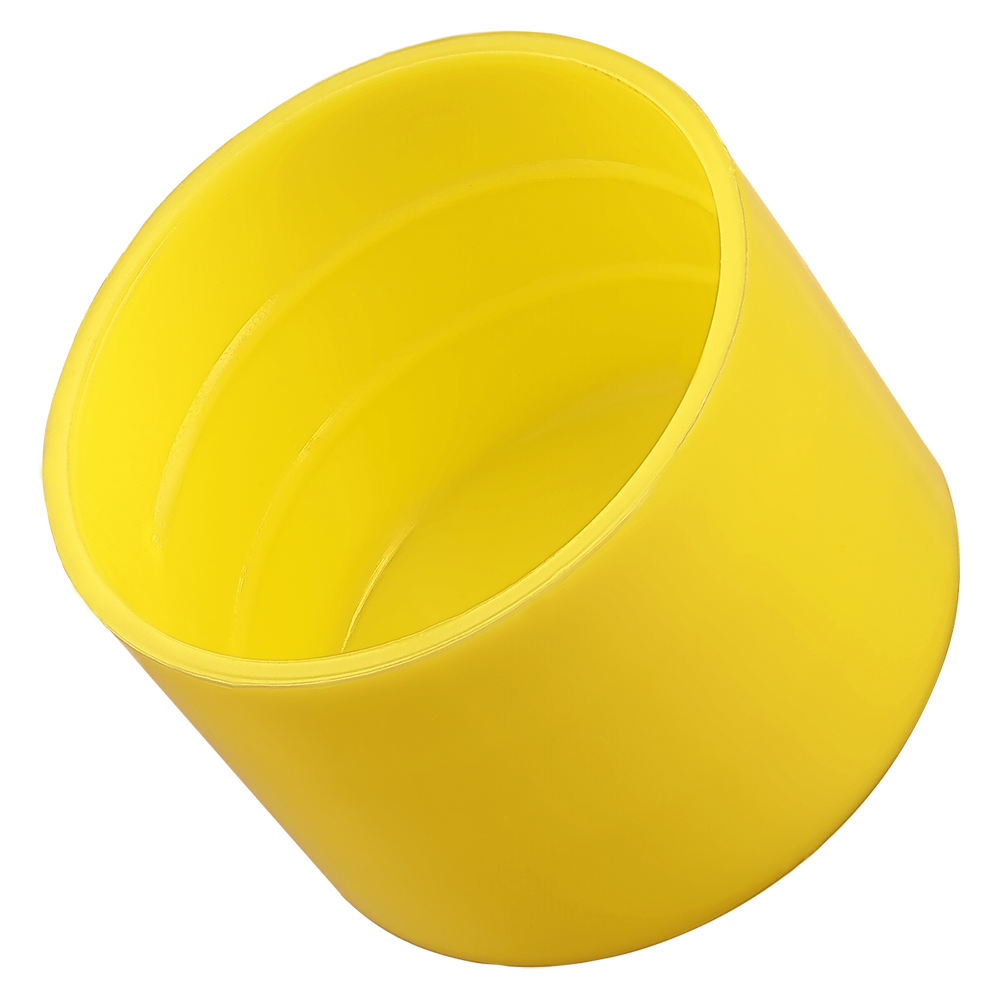

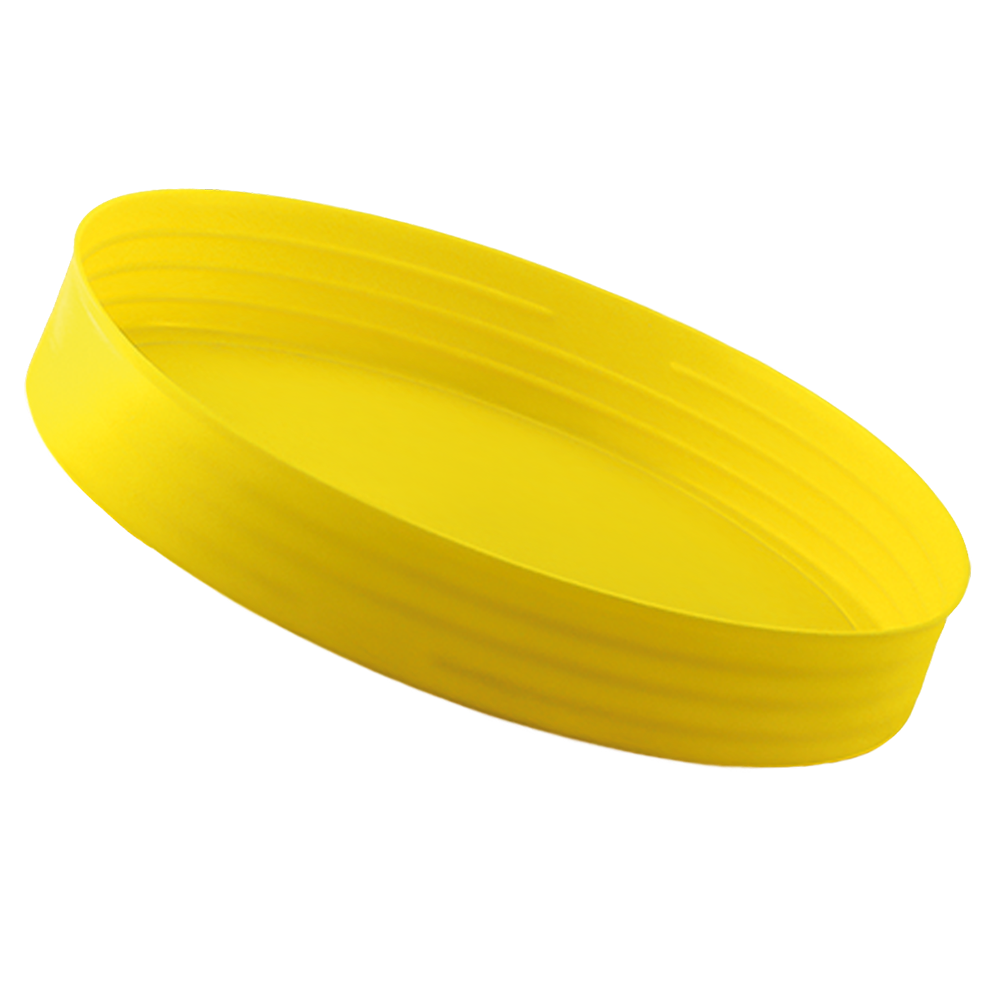

Internal ribs provide tight fit and release pressure build up.

They are suited to the most severe weather conditions due to the use of UV stabilised material and the reinforced design.

Std. Color: yellow, natural (see table)
Material: LLD-PE, linear low density polyethylene

PROTEC CAPTOP EP 260

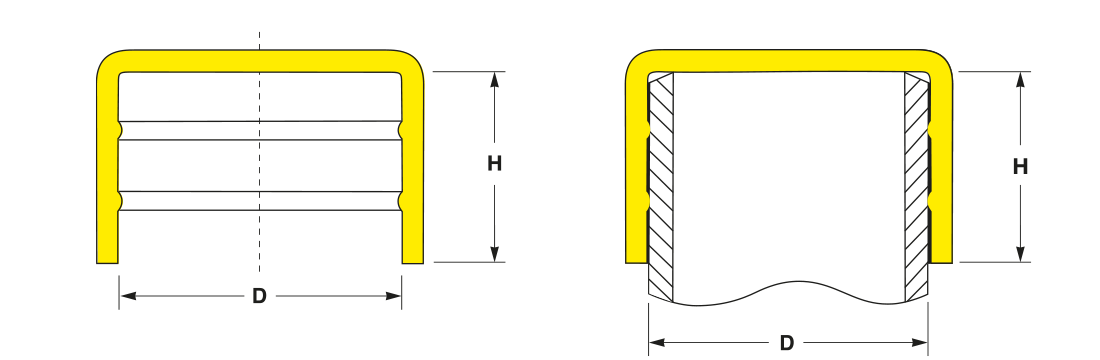

D DIN 259 & DIN 2999
Nom Ø
H Standard
Colour
Standard
Pack
Reference No. Bookmark
      4.0   22.0 Yellow   5.000 EP 260/      4.0
      5.0   18.7 Natural 20.000 EP 260/      5.0
      6.0   18.9 Yellow   5.000 EP 260/      6.0
      6.35   13.0 Yellow   5.000 EP 260/      6.35
      7.0   18.6 Yellow   5.000 EP 260/      7.0
      8.2   17.2 Yellow 10.000 EP 260/      8.0
      9.6   14.0 Yellow   5.000 EP 260/      9.6
    10.2 R    .1/8"   18.6 Yellow   8.000 EP 260/    10.2
    11.0   19.0 Yellow 15.000 EP 260/    11.0
    12.0   18.5 Yellow 15.000 EP 260/    12.0
    12.7   19.3 Yellow 13.500 EP 260/    12.7
    13.0   18.7 Yellow   5.000 EP 260/    13.0
    13.7 R    .1/4"   18.4 Yellow   5.000 EP 260/    13.7
    14.0   18.6 Yellow   5.000 EP 260/    14.0
    15.0   19.1 Yellow   5.000 EP 260/    15.0
    16.0   19.8 Yellow   5.000 EP 260/    16.0
    17.2 R    .3/8"   20.2 Yellow   5.000 EP 260/    17.2
    18.0   20.0 Yellow   5.000 EP 260/    18.0
    19.0   20.0 Yellow   6.000 EP 260/    19.0
    20.0   20.0 Yellow   5.000 EP 260/    20.0
    21.3 R    .1/2"   20.0 Yellow   5.000 EP 260/    21.3
    22.0   20.0 Yellow   5.000 EP 260/    22.0
    23.2   19.0 Yellow   4.500 EP 260/    23.2
    24.0   18.4 Yellow   4.000 EP 260/    24.0
    24.8   16.9 Natural   4.000 EP 260/    24.8
    25.0   50.0 Yellow  1.000 EP 260/    25.0 x   80
    25.4   20.0 Yellow  4.000 EP 260/    25.4
    26.0   18.0 Yellow  5.000 EP 260/    26.0
    26.9 R    .3/4"   27.6 Yellow  3.000 EP 260/    26.9
    26.9   79.2 Yellow     800 EP 260/    26.9 x   80
    28.0   22.5 Yellow  2.500 EP 260/    28.0
    30.0   27.5 Yellow  2.000 EP 260/    30.0
    31.8   27.0 Yellow  2.000 EP 260/    31.8
    31.8   90.0 Yellow     450 EP 260/    31.8 x   90
    33.7 R  1."   23.0 Yellow  2.000 EP 260/    33.7
    35.0   27.0 Yellow  1.800 EP 260/    35.0
    38.1   27.0 Yellow  1.500 EP 260/    38.1
    38.1   90.0 Yellow     400 EP 260/    38.1 x   90
    39.0   17.0 Natural  2.000 EP 260/    39.0
    40.0   27.0 Yellow  1.500 EP 260/    40.0
    41.5   25.6 Yellow  1.500 EP 260/    41.5
    42.4 R  1.1/4"   32.2 Yellow  1.000 EP 260/    42.4
    42.4   80.0 Yellow     350 EP 260/    42.4 x   80
    44.5   35.0 Yellow     800 EP 260/    44.5
    44.5   80.0 Yellow     400 EP 260/    44.5 x   80
    45.4   20.0 Yellow  1.250 EP 260/    45.4
    48.3 R  1.1/2"   31.7 Yellow     800 EP 260/    48.3
    50.8   26.9 Yellow  1.000 EP 260/    50.8
    51.0   90.0 Yellow     250 EP 260/    51.0 x   90
    52.0   33.0 Natural     800 EP 260/    52.0
    52.8   28.0 Natural     800 EP 260/    52.8
    54.0 R  1.3/4"   35.0 Yellow     650 EP 260/    54.0
    55.0   29.0 Natural     750 EP 260/    55.0
    57.0   35.0 Yellow     600 EP 260/    57.0
    57.0   80.0 Yellow    250 EP 260/    57.0 x   80
    59.0   28.6 Yellow    750 EP 260/    59.0
    60.3 R  2."   32.0 Yellow    600 EP 260/    60.3
    63.5   32.0 Yellow    500 EP 260/    63.5

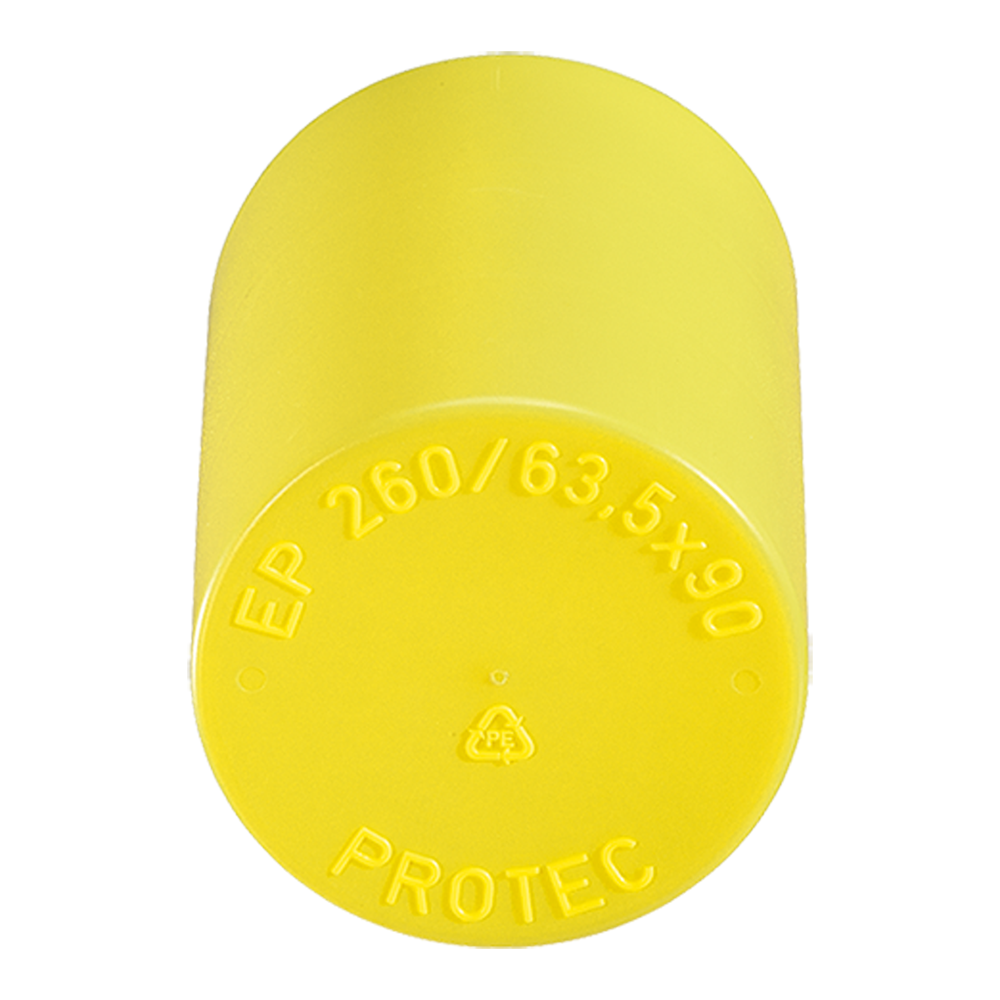

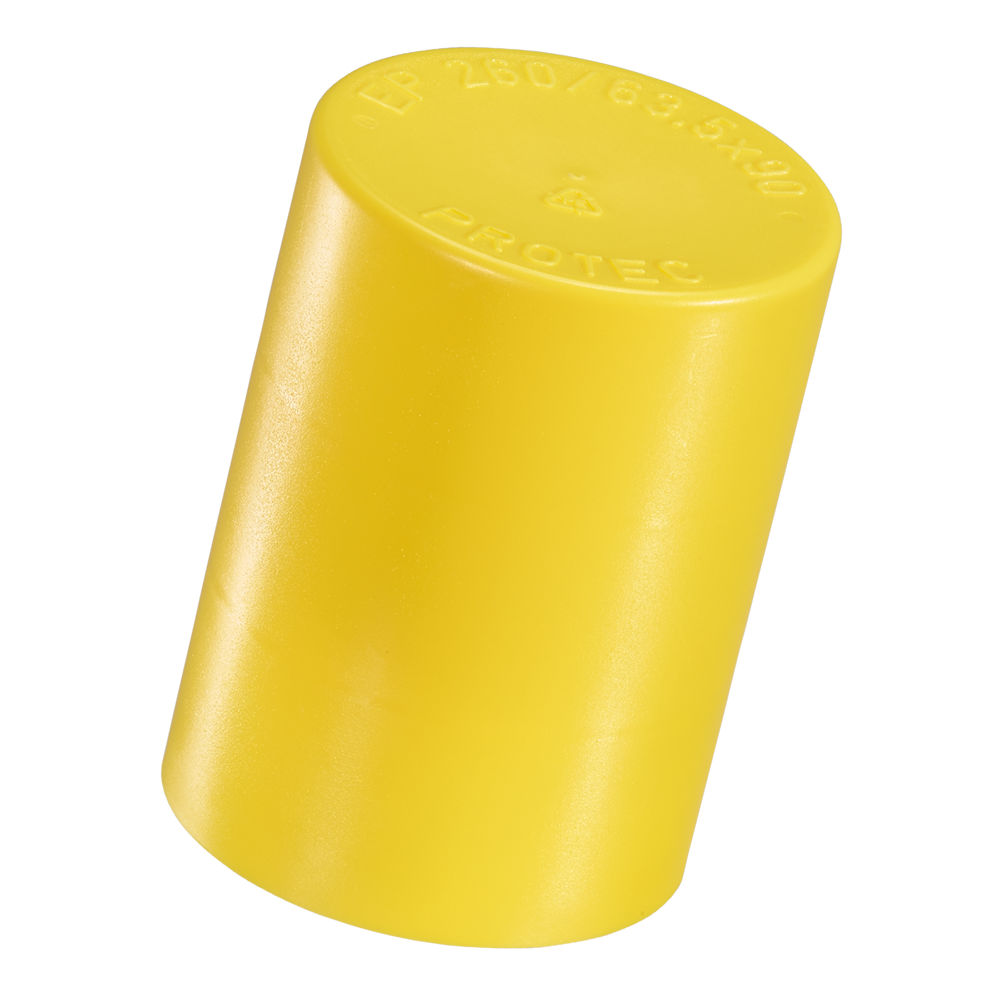

    63.5   90.0 Yellow    175 EP 260/    63.5 x   90
    65.0   35.5 Yellow    500 EP 260/    65.0
    66.5   35.0 Yellow    400 EP 260/    66.5
    67.0   36.0 Yellow    500 EP 260/    67.0
    70.0   30.0 Yellow    500 EP 260/    70.0
    73.0   37.5 Yellow    350 EP 260/    73.0

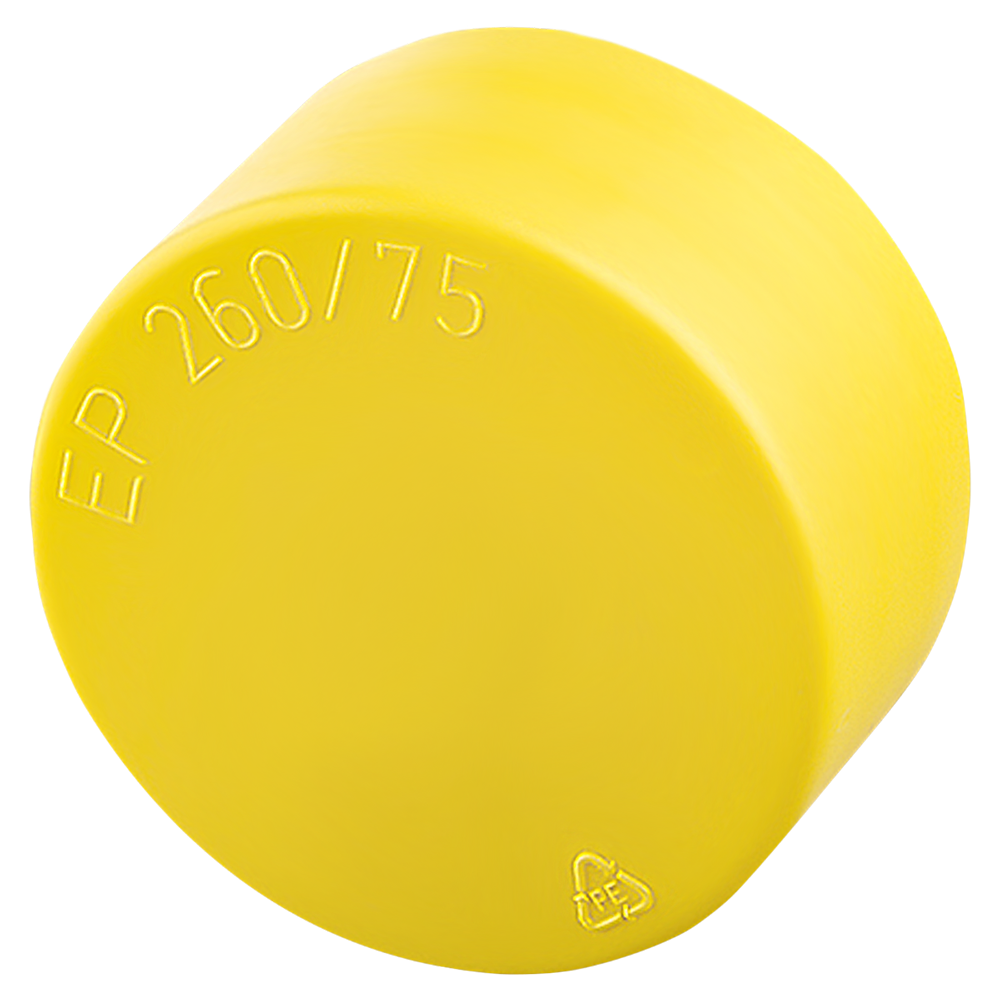

    75.0   38.0 Yellow    300 EP 260/    75.0
    76.1 R  2.1/2"   32.0 Yellow    400 EP 260/    76.1
    77.0   35.5 Natural    350 EP 260/    77.0
    78.0   26.0 Yellow    350 EP 260/    78.0
    79.4   27.0 Yellow    500 EP 260/    79.4
    81.0   30.5 Natural    350 EP 260/    81.0
    82.5   30.5 Yellow    350 EP 260/    82.5
    83.0 R  2.3/4"   31.7 Yellow    350 EP 260/    83.0
    85.0   32.2 Natural    350 EP 260/    85.0
    88.9 R  3."   31.7 Yellow    300 EP 260/    88.9
    88.9   88.2 Yellow    300 EP 260/    88.9 x   90
    90.0   92.0 Yellow      80 EP 260/    90    x   90
    92.4   23.9 Yellow    350 EP 260/    92.4
    95.0   33.7 Yellow    300 EP 260/    95.0
  100.0   40.0 Natural    200 EP 260/  100.0
  101.6   42.0 Yellow    200 EP 260/  101.6
  102.0   40.0 Yellow    200 EP 260/  102.0
  103.0   39.0 Natural    175 EP 260/  103.0
  105.0   39.0 Natural    200 EP 260/  105.0
  106.0   42.0 Yellow    175 EP 260/  106.0
  108.0   38.0 Yellow    200 EP 260/  108.0
  108.5   90.0 Yellow      60 EP 260/  108.5 x   90
  110.0   38.0 Yellow    175 EP 260/  110.0
  114.3 R  4."   38.0 Yellow    150 EP 260/  114.3
  114.3   90.0 Natural .-. EP 260/  114.3 x   90
  116.3   38.0 Gray    150 EP 260/  116.3
  117.5   38.0 Natural    150 EP 260/  117.5
  121.0   37.2 Yellow    150 EP 260/  121.0
  125.0   38.0 Yellow    150 EP 260/  125.0
  126.0   37.2 Natural    150 EP 260/  126.0
  127.0 R  4.1/2"   39.0 Yellow    140 EP 260/  127.0
  130.0   40.0 Natural    130 EP 260/  130.0
  133.0   40.0 Yellow    125 EP 260/  133.0
  133.7   96.0 Yellow      40 EP 260/  133.7 x   90
  136.0   30.0 Natural    150 EP 260/  136.0
  139.7 R  5."   38.0 Yellow    100 EP 260/  139.7
  141.3   41.4 Yellow    110 EP 260/  141.3
  146.0   41.3 Natural    100 EP 260/  146.0
  149.0   40.0 Natural    100 EP 260/  149.0
  151.4   41.5 Natural    100 EP 260/  151.4
  152.4 R  5.1/2"   41.5 Yellow    100 EP 260/  152.4
  156.0   40.0 Natural      80 EP 260/  156.0
  159.0   37.0 Yellow    100 EP 260/  159.0
  160.0   40.0 Yellow    100 EP 260/  160.0
  165.0   67.5 Yellow      40 EP 260/  165.0 x   65
  165.1   40.0 Yellow      90 EP 260/  165.1
  168.3 R  6."   36.0 Yellow      75 EP 260/  168.3
  168.3 100.0 Yellow      25 EP 260/  168.3 x 100
  176.0   42.4 Yellow      80 EP 260/  176.0
  177.8   42.7 Natural      80 EP 260/  177.8
  180.0   39.0 Yellow      75 EP 260/  180.0
  185.0   41.5 Yellow      75 EP 260/  185.0
  188.7 100.0 Yellow      25 EP 260/  188.7 x 100
  193.7   42.0 Yellow      60 EP 260/  193.7
  200.0   50.0 Yellow      35 EP 260/  200.0
  210.0   40.0 Natural      30 EP 260/  210.0
  219.1 R  8."   42.0 Yellow      50 EP 260/  219.1
  225.0   39.0 Yellow      40 EP 260/  225.0
  232.0   42.0 Natural      60 EP 260/  232.0
  242.0   50.0 Natural      50 EP 260/  242.0
  244.5   43.0 Natural      50 EP 260/  244.5
  250.0   47.0 Yellow      40 EP 260/  250.0
  267.0   41.0 Natural      45 EP 260/  267.0
  273.0 R 10."   49.0 Yellow      40 EP 260/  273.0

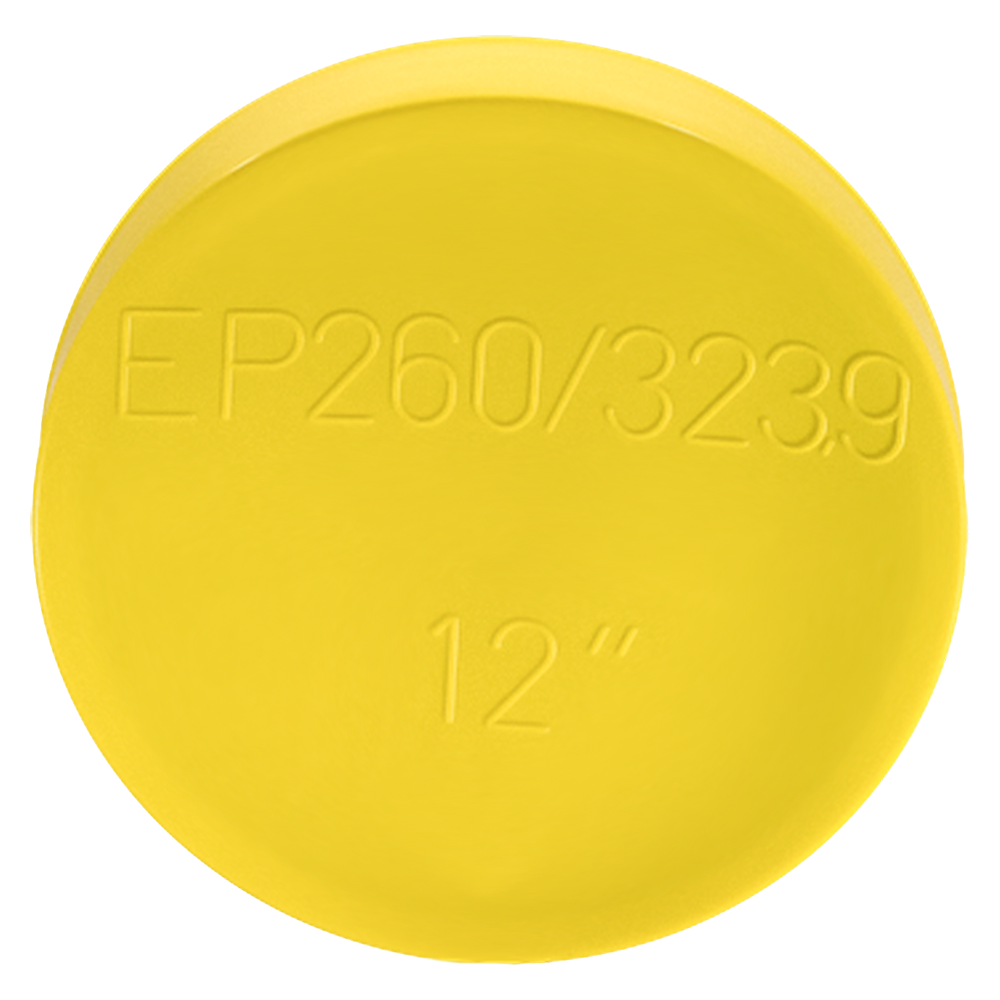

  323.9 R 12."   55.0 Yellow      25 EP 260/  323.9
  355.6 R 14."   57.0 Yellow      27 EP 260/  355.6
  368.0   55.0 Yellow      30 EP 260/  368.0
  400.0   65.0 Natural      25 EP 260/  400.0
  406.4 R 16."   62.0 Yellow      30 EP 260/  406.4
  419.0   54.0 Yellow      25 EP 260/  419.0
  450.0   66.0 Natural      14 EP 260/  450.0
  457.2 R 18."   66.0 Yellow      32 EP 260/  457.2
  508.0 R 20."   65.3 Yellow      26 EP 260/  508.0
  558.8 R 22."   60.0 Yellow      22 EP 260/  558.8
  609.6 R 24."   65.5 Yellow      20 EP 260/  609.6

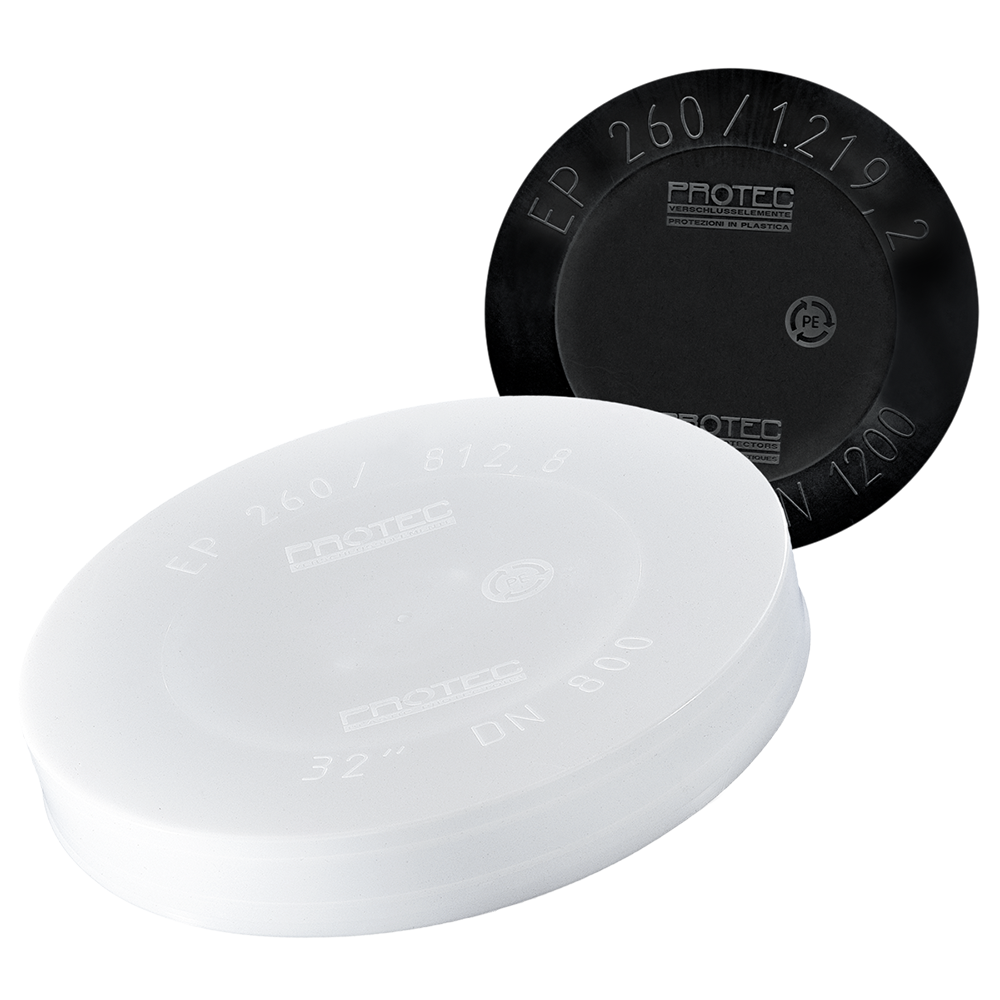

  660.4 R 26." 102.0 Black      10 EP 260/  660.4
  711.2 R 28." 115.0 Black      10 EP 260/  711.2
  762.0 R 30." 115.0 Black      10 EP 260/  762.0
  812.8 R 32." 115.0 Black      10 EP 260/  812.8
  863.6 R 34." 153.0 Black        6 EP 260/  863.6
  914.4 R 36." 115.0 Black      10 EP 260/  914.4
1016.0 R 40." 115.0 Black        8 EP 260/1016.0
1066.8 R 42." 102.0 Black        6 EP 260/1066.8
1117.6 R 44." 115.0 Black        6 EP 260/1117.6

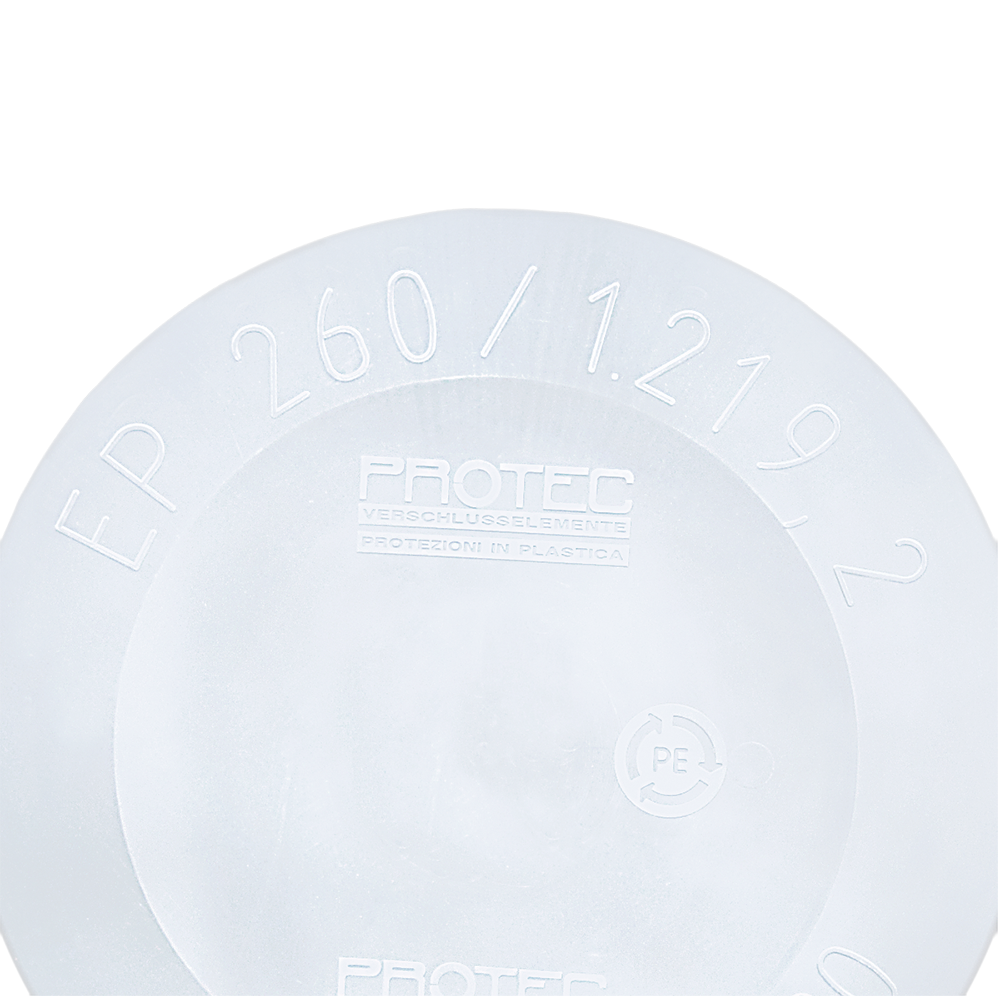

1219.2 R 48." 115.0 Black        6 EP 260/1219.2
1320.8 R 52." 150.0 Black        6 EP 260/1320.8
1422.4 R 56." 146.0 Black        6 EP 260/1422.4
1524.0 R 60." 150.0 Black        6 EP 260/1524.0
1625.6 R 64." 150.0 Black        4 EP 260/1625.6
D DIN 259
DIN 2999
Nom Ø
H Standard
Colour
VPE Reference No.
      4.0   22.0 Yellow   5.000 EP 260/      4.0
      5.0   18.7 Natural 20.000 EP 260/      5.0
      6.0   18.9 Yellow   5.000 EP 260/      6.0
      6.35   13.0 Yellow   5.000 EP 260/      6.35
      7.0   18.6 Yellow   5.000 EP 260/      7.0
      8.2   17.2 Yellow 10.000 EP 260/      8.0
      9.6   14.0 Yellow   5.000 EP 260/      9.6
    10.2 R    .1/8"   18.6 Yellow   8.000 EP 260/    10.2
    11.0   19.0 Yellow 15.000 EP 260/    11.0
    12.0   18.5 Yellow 15.000 EP 260/    12.0
    12.7   19.3 Yellow 13.500 EP 260/    12.7
    13.0   18.7 Yellow   5.000 EP 260/    13.0
    13.7 R    .1/4"   18.4 Yellow   5.000 EP 260/    13.7
    14.0   18.6 Yellow   5.000 EP 260/    14.0
    15.0   19.1 Yellow   5.000 EP 260/    15.0
    16.0   19.8 Yellow   5.000 EP 260/    16.0
    17.2 R    .3/8"   20.2 Yellow   5.000 EP 260/    17.2
    18.0   20.0 Yellow   5.000 EP 260/    18.0
    19.0   20.0 Yellow   6.000 EP 260/    19.0
    20.0   20.0 Yellow   5.000 EP 260/    20.0
    21.3 R    .1/2"   20.0 Yellow   5.000 EP 260/    21.3
    22.0   20.0 Yellow   5.000 EP 260/    22.0
    23.2   19.0 Yellow   4.500 EP 260/    23.2
    24.0   18.4 Yellow   4.000 EP 260/    24.0
    24.8   16.9 Natural   4.000 EP 260/    24.8
    25.0   50.0 Yellow  1.000 EP 260/    25.0 x   80
    25.4   20.0 Yellow  4.000 EP 260/    25.4
    26.0   18.0 Yellow  5.000 EP 260/    26.0
    26.9 R    .3/4"   27.6 Yellow  3.000 EP 260/    26.9
    26.9   79.2 Yellow     800 EP 260/    26.9 x   80
    28.0   22.5 Yellow  2.500 EP 260/    28.0
    30.0   27.5 Yellow  2.000 EP 260/    30.0
    31.8   27.0 Yellow  2.000 EP 260/    31.8
    31.8   90.0 Yellow     450 EP 260/    31.8 x   90
    33.7 R  1."   23.0 Yellow  2.000 EP 260/    33.7
    35.0   27.0 Yellow  1.800 EP 260/    35.0
    38.1   27.0 Yellow  1.500 EP 260/    38.1
    38.1   90.0 Yellow     400 EP 260/    38.1 x   90
    39.0   17.0 Natural  2.000 EP 260/    39.0
    40.0   27.0 Yellow  1.500 EP 260/    40.0
    41.5   25.6 Yellow  1.500 EP 260/    41.5
    42.4 R  1.1/4"   32.2 Yellow  1.000 EP 260/    42.4
    42.4   80.0 Yellow     350 EP 260/    42.4 x   80
    44.5   35.0 Yellow     800 EP 260/    44.5
    44.5   80.0 Yellow     400 EP 260/    44.5 x   80
    45.4   20.0 Yellow  1.250 EP 260/    45.4
    48.3 R  1.1/2"   31.7 Yellow     800 EP 260/    48.3
    50.8   26.9 Yellow  1.000 EP 260/    50.8
    51.0   90.0 Yellow     250 EP 260/    51.0 x   90
    52.0   33.0 Natural     800 EP 260/    52.0
    52.8   28.0 Natural     800 EP 260/    52.8
    54.0 R  1.3/4"   35.0 Yellow     650 EP 260/    54.0
    55.0   29.0 Natural     750 EP 260/    55.0
    57.0   35.0 Yellow     600 EP 260/    57.0
    57.0   80.0 Yellow    250 EP 260/    57.0 x   80
    59.0   28.6 Yellow    750 EP 260/    59.0
    60.3 R  2."   32.0 Yellow    600 EP 260/    60.3
    63.5   32.0 Yellow    500 EP 260/    63.5
    63.5   90.0 Yellow    175 EP 260/    63.5 x   90
    65.0   35.5 Yellow    500 EP 260/    65.0
    66.5   35.0 Yellow    400 EP 260/    66.5
    67.0   36.0 Yellow    500 EP 260/    67.0
    70.0   30.0 Yellow    500 EP 260/    70.0
    73.0   37.5 Yellow    350 EP 260/    73.0
    75.0   38.0 Yellow    300 EP 260/    75.0
    76.1 R  2.1/2"   32.0 Yellow    400 EP 260/    76.1
    77.0   35.5 Natural    350 EP 260/    77.0
    78.0   26.0 Yellow    350 EP 260/    78.0
    79.4   27.0 Yellow    500 EP 260/    79.4
    81.0   30.5 Natural    350 EP 260/    81.0
    82.5   30.5 Yellow    350 EP 260/    82.5
    83.0 R  2.3/4"   31.7 Yellow    350 EP 260/    83.0
    85.0   32.2 Natural    350 EP 260/    85.0
    88.9 R  3."   31.7 Yellow    300 EP 260/    88.9
    88.9   88.2 Yellow    300 EP 260/    88.9 x   90
    90.0   92.0 Yellow      80 EP 260/    90    x   90
    92.4   23.9 Yellow    350 EP 260/    92.4
    95.0   33.7 Yellow    300 EP 260/    95.0
  100.0   40.0 Natural    200 EP 260/  100.0
  101.6   42.0 Yellow    200 EP 260/  101.6
  102.0   40.0 Yellow    200 EP 260/  102.0
  103.0   39.0 Natural    175 EP 260/  103.0
  105.0   39.0 Natural    200 EP 260/  105.0
  106.0   42.0 Yellow    175 EP 260/  106.0
  108.0   38.0 Yellow    200 EP 260/  108.0
  108.5   90.0 Yellow      60 EP 260/  108.5 x   90
  110.0   38.0 Yellow    175 EP 260/  110.0
  114.3 R  4."   38.0 Yellow    150 EP 260/  114.3
  114.3   90.0 Natural .-. EP 260/  114.3 x   90
  116.3   38.0 Gray    150 EP 260/  116.3
  117.5   38.0 Natural    150 EP 260/  117.5
  121.0   37.2 Yellow    150 EP 260/  121.0
  125.0   38.0 Yellow    150 EP 260/  125.0
  126.0   37.2 Natural    150 EP 260/  126.0
  127.0 R  4.1/2"   39.0 Yellow    140 EP 260/  127.0
  130.0   40.0 Natural    130 EP 260/  130.0
  133.0   40.0 Yellow    125 EP 260/  133.0
  133.7   96.0 Yellow      40 EP 260/  133.7 x   90
  136.0   30.0 Natural    150 EP 260/  136.0
  139.7 R  5."   38.0 Yellow    100 EP 260/  139.7
  141.3   41.4 Yellow    110 EP 260/  141.3
  146.0   41.3 Natural    100 EP 260/  146.0
  149.0   40.0 Natural    100 EP 260/  149.0
  151.4   41.5 Natural    100 EP 260/  151.4
  152.4 R  5.1/2"   41.5 Yellow    100 EP 260/  152.4
  156.0   40.0 Natural      80 EP 260/  156.0
  159.0   37.0 Yellow    100 EP 260/  159.0
  160.0   40.0 Yellow    100 EP 260/  160.0
  165.0   67.5 Yellow      40 EP 260/  165.0 x   65
  165.1   40.0 Yellow      90 EP 260/  165.1
  168.3 R  6."   36.0 Yellow      75 EP 260/  168.3
  168.3 100.0 Yellow      25 EP 260/  168.3 x 100
  176.0   42.4 Yellow      80 EP 260/  176.0
  177.8   42.7 Natural      80 EP 260/  177.8
  180.0   39.0 Yellow      75 EP 260/  180.0
  185.0   41.5 Yellow      75 EP 260/  185.0
  188.7 100.0 Yellow      25 EP 260/  188.7 x 100
  193.7   42.0 Yellow      60 EP 260/  193.7
  200.0   50.0 Yellow      35 EP 260/  200.0
  210.0   40.0 Natural      30 EP 260/  210.0
  219.1 R  8."   42.0 Yellow      50 EP 260/  219.1
  225.0   39.0 Yellow      40 EP 260/  225.0
  232.0   42.0 Natural      60 EP 260/  232.0
  242.0   50.0 Natural      50 EP 260/  242.0
  244.5   43.0 Natural      50 EP 260/  244.5
  250.0   47.0 Yellow      40 EP 260/  250.0
  267.0   41.0 Natural      45 EP 260/  267.0
  273.0 R 10."   49.0 Yellow      40 EP 260/  273.0
  323.9 R 12."   55.0 Yellow      25 EP 260/  323.9
  355.6 R 14."   57.0 Yellow      27 EP 260/  355.6
  368.0   55.0 Yellow      30 EP 260/  368.0
  400.0   65.0 Natural      25 EP 260/  400.0
  406.4 R 16."   62.0 Yellow      30 EP 260/  406.4
  419.0   54.0 Yellow      25 EP 260/  419.0
  450.0   66.0 Natural      14 EP 260/  450.0
  457.2 R 18."   66.0 Yellow      32 EP 260/  457.2
  508.0 R 20."   65.3 Yellow      26 EP 260/  508.0
  558.8 R 22."   60.0 Yellow      22 EP 260/  558.8
  609.6 R 24."   65.5 Yellow      20 EP 260/  609.6
  660.4 R 26." 102.0 Black      10 EP 260/  660.4
  711.2 R 28." 115.0 Black      10 EP 260/  711.2
  762.0 R 30." 115.0 Black      10 EP 260/  762.0
  812.8 R 32." 115.0 Black      10 EP 260/  812.8
  863.6 R 34." 153.0 Black        6 EP 260/  863.6
  914.4 R 36." 115.0 Black      10 EP 260/  914.4
1016.0 R 40." 115.0 Black        8 EP 260/1016.0
1066.8 R 42." 102.0 Black        6 EP 260/1066.8
1117.6 R 44." 115.0 Black        6 EP 260/1117.6
1219.2 R 48." 115.0 Black        6 EP 260/1219.2
1320.8 R 52." 150.0 Black        6 EP 260/1320.8
1422.4 R 56." 146.0 Black        6 EP 260/1422.4
1524.0 R 60." 150.0 Black        6 EP 260/1524.0
1625.6 R 64." 150.0 Black        4 EP 260/1625.6
Dimensions D
4.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
22.0

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 4.0

Dimensions D
5.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
18.7

Standardcolour
Natural

Packaging Unit
20.000

Reference No.
EP 260/ 5.0

Dimensions D
6.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
18.9

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 6.0

Dimensions D
6.35

DIN 259 & DIN 2999 Nom Ø

Dimensions H
13.0

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 6.35

Dimensions D
7.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
18.6

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 7.0

Dimensions D
8.2

DIN 259 & DIN 2999 Nom Ø

Dimensions H
17.2

Standardcolour
Yellow

Packaging Unit
10.000

Reference No.
EP 260/ 8.0

Dimensions D
9.6

DIN 259 & DIN 2999 Nom Ø

Dimensions H
14.0

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 9.6

Dimensions D
10.2

DIN 259 & DIN 2999 Nom Ø
R .1/8"

Dimensions H
18.6

Standardcolour
Yellow

Packaging Unit
8.000

Reference No.
EP 260/ 10.2

Dimensions D
11.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
19.0

Standardcolour
Yellow

Packaging Unit
15.000

Reference No.
EP 260/ 11.0

Dimensions D
12.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
18.5

Standardcolour
Yellow

Packaging Unit
15.000

Reference No.
EP 260/ 12.0

Dimensions D
12.7

DIN 259 & DIN 2999 Nom Ø

Dimensions H
19.3

Standardcolour
Yellow

Packaging Unit
13.500

Reference No.
EP 260/ 12.7

Dimensions D
13.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
18.7

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 13.0

Dimensions D
13.7

DIN 259 & DIN 2999 Nom Ø
R .1/4"

Dimensions H
18.4

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 13.7

Dimensions D
14.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
18.6

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 14.0

Dimensions D
15.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
19.1

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 15.0

Dimensions D
16.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
19.8

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 16.0

Dimensions D
17.2

DIN 259 & DIN 2999 Nom Ø
R .3/8"

Dimensions H
20.2

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 17.2

Dimensions D
18.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
20.0

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 18.0

Dimensions D
19.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
20.0

Standardcolour
Yellow

Packaging Unit
6.000

Reference No.
EP 260/ 19.0

Dimensions D
20.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
20.0

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 20.0

Dimensions D
21.3

DIN 259 & DIN 2999 Nom Ø
R .1/2"

Dimensions H
20.0

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 21.3

Dimensions D
22.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
20.0

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 22.0

Dimensions D
23.2

DIN 259 & DIN 2999 Nom Ø

Dimensions H
19.0

Standardcolour
Yellow

Packaging Unit
4.500

Reference No.
EP 260/ 23.2

Dimensions D
24.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
18.4

Standardcolour
Yellow

Packaging Unit
4.000

Reference No.
EP 260/ 24.0

Dimensions D
24.8

DIN 259 & DIN 2999 Nom Ø

Dimensions H
16.9

Standardcolour
Natural

Packaging Unit
4.000

Reference No.
EP 260/ 24.8

Dimensions D
25.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
50.0

Standardcolour
Yellow

Packaging Unit
1.000

Reference No.
EP 260/ 25.0 x 80

Dimensions D
25.4

DIN 259 & DIN 2999 Nom Ø

Dimensions H
20.0

Standardcolour
Yellow

Packaging Unit
4.000

Reference No.
EP 260/ 25.4

Dimensions D
26.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
18.0

Standardcolour
Yellow

Packaging Unit
5.000

Reference No.
EP 260/ 26.0

Dimensions D
26.9

DIN 259 & DIN 2999 Nom Ø
R .3/4"

Dimensions H
27.6

Standardcolour
Yellow

Packaging Unit
3.000

Reference No.
EP 260/ 26.9

Dimensions D
26.9

DIN 259 & DIN 2999 Nom Ø

Dimensions H
79.2

Standardcolour
Yellow

Packaging Unit
800

Reference No.
EP 260/ 26.9 x 80

Dimensions D
28.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
22.5

Standardcolour
Yellow

Packaging Unit
2.500

Reference No.
EP 260/ 28.0

Dimensions D
30.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
27.5

Standardcolour
Yellow

Packaging Unit
2.000

Reference No.
EP 260/ 30.0

Dimensions D
31.8

DIN 259 & DIN 2999 Nom Ø

Dimensions H
27.0

Standardcolour
Yellow

Packaging Unit
2.000

Reference No.
EP 260/ 31.8

Dimensions D
31.8

DIN 259 & DIN 2999 Nom Ø

Dimensions H
90.0

Standardcolour
Yellow

Packaging Unit
450

Reference No.
EP 260/ 31.8 x 90

Dimensions D
33.7

DIN 259 & DIN 2999 Nom Ø
R 1."

Dimensions H
23.0

Standardcolour
Yellow

Packaging Unit
2.000

Reference No.
EP 260/ 33.7

Dimensions D
35.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
27.0

Standardcolour
Yellow

Packaging Unit
1.800

Reference No.
EP 260/ 35.0

Dimensions D
38.1

DIN 259 & DIN 2999 Nom Ø

Dimensions H
27.0

Standardcolour
Yellow

Packaging Unit
1.500

Reference No.
EP 260/ 38.1

Dimensions D
38.1

DIN 259 & DIN 2999 Nom Ø

Dimensions H
90.0

Standardcolour
Yellow

Packaging Unit
400

Reference No.
EP 260/ 38.1 x 90

Dimensions D
39.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
17.0

Standardcolour
Natural

Packaging Unit
2.000

Reference No.
EP 260/ 39.0

Dimensions D
40.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
27.0

Standardcolour
Yellow

Packaging Unit
1.500

Reference No.
EP 260/ 40.0

Dimensions D
41.5

DIN 259 & DIN 2999 Nom Ø

Dimensions H
25.6

Standardcolour
Yellow

Packaging Unit
1.500

Reference No.
EP 260/ 41.5

Dimensions D
42.4

DIN 259 & DIN 2999 Nom Ø
R 1.1/4"

Dimensions H
32.2

Standardcolour
Yellow

Packaging Unit
1.000

Reference No.
EP 260/ 42.4

Dimensions D
42.4

DIN 259 & DIN 2999 Nom Ø

Dimensions H
80.0

Standardcolour
Yellow

Packaging Unit
350

Reference No.
EP 260/ 42.4 x 80

Dimensions D
44.5

DIN 259 & DIN 2999 Nom Ø

Dimensions H
35.0

Standardcolour
Yellow

Packaging Unit
800

Reference No.
EP 260/ 44.5

Dimensions D
44.5

DIN 259 & DIN 2999 Nom Ø

Dimensions H
80.0

Standardcolour
Yellow

Packaging Unit
400

Reference No.
EP 260/ 44.5 x 80

Dimensions D
45.4

DIN 259 & DIN 2999 Nom Ø

Dimensions H
20.0

Standardcolour
Yellow

Packaging Unit
1.250

Reference No.
EP 260/ 45.4

Dimensions D
48.3

DIN 259 & DIN 2999 Nom Ø
R 1.1/2"

Dimensions H
31.7

Standardcolour
Yellow

Packaging Unit
800

Reference No.
EP 260/ 48.3

Dimensions D
50.8

DIN 259 & DIN 2999 Nom Ø

Dimensions H
26.9

Standardcolour
Yellow

Packaging Unit
1.000

Reference No.
EP 260/ 50.8

Dimensions D
51.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
90.0

Standardcolour
Yellow

Packaging Unit
250

Reference No.
EP 260/ 51.0 x 90

Dimensions D
52.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
33.0

Standardcolour
Natural

Packaging Unit
800

Reference No.
EP 260/ 52.0

Dimensions D
52.8

DIN 259 & DIN 2999 Nom Ø

Dimensions H
28.0

Standardcolour
Natural

Packaging Unit
800

Reference No.
EP 260/ 52.8

Dimensions D
54.0

DIN 259 & DIN 2999 Nom Ø
R 1.3/4"

Dimensions H
35.0

Standardcolour
Yellow

Packaging Unit
650

Reference No.
EP 260/ 54.0

Dimensions D
55.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
29.0

Standardcolour
Natural

Packaging Unit
750

Reference No.
EP 260/ 55.0

Dimensions D
57.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
35.0

Standardcolour
Yellow

Packaging Unit
600

Reference No.
EP 260/ 57.0

Dimensions D
57.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
80.0

Standardcolour
Yellow

Packaging Unit
250

Reference No.
EP 260/ 57.0 x 80

Dimensions D
59.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
28.6

Standardcolour
Yellow

Packaging Unit
750

Reference No.
EP 260/ 59.0

Dimensions D
60.3

DIN 259 & DIN 2999 Nom Ø
R 2."

Dimensions H
32.0

Standardcolour
Yellow

Packaging Unit
600

Reference No.
EP 260/ 60.3

Dimensions D
63.5

DIN 259 & DIN 2999 Nom Ø

Dimensions H
32.0

Standardcolour
Yellow

Packaging Unit
500

Reference No.
EP 260/ 63.5

Dimensions D
63.5

DIN 259 & DIN 2999 Nom Ø

Dimensions H
90.0

Standardcolour
Yellow

Packaging Unit
175

Reference No.
EP 260/ 63.5 x 90

Dimensions D
65.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
35.5

Standardcolour
Yellow

Packaging Unit
500

Reference No.
EP 260/ 65.0

Dimensions D
66.5

DIN 259 & DIN 2999 Nom Ø

Dimensions H
35.0

Standardcolour
Yellow

Packaging Unit
400

Reference No.
EP 260/ 66.5

Dimensions D
67.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
36.0

Standardcolour
Yellow

Packaging Unit
500

Reference No.
EP 260/ 67.0

Dimensions D
70.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
30.0

Standardcolour
Yellow

Packaging Unit
500

Reference No.
EP 260/ 70.0

Dimensions D
73.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
37.5

Standardcolour
Yellow

Packaging Unit
350

Reference No.
EP 260/ 73.0

Dimensions D
75.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
38.0

Standardcolour
Yellow

Packaging Unit
300

Reference No.
EP 260/ 75.0

Dimensions D
76.1

DIN 259 & DIN 2999 Nom Ø
R 2.1/2"

Dimensions H
32.0

Standardcolour
Yellow

Packaging Unit
400

Reference No.
EP 260/ 76.1

Dimensions D
77.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
35.5

Standardcolour
Natural

Packaging Unit
350

Reference No.
EP 260/ 77.0

Dimensions D
78.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
26.0

Standardcolour
Yellow

Packaging Unit
350

Reference No.
EP 260/ 78.0

Dimensions D
79.4

DIN 259 & DIN 2999 Nom Ø

Dimensions H
27.0

Standardcolour
Yellow

Packaging Unit
500

Reference No.
EP 260/ 79.4

Dimensions D
81.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
30.5

Standardcolour
Natural

Packaging Unit
350

Reference No.
EP 260/ 81.0

Dimensions D
82.5

DIN 259 & DIN 2999 Nom Ø

Dimensions H
30.5

Standardcolour
Yellow

Packaging Unit
350

Reference No.
EP 260/ 82.5

Dimensions D
83.0

DIN 259 & DIN 2999 Nom Ø
R 2.3/4"

Dimensions H
31.7

Standardcolour
Yellow

Packaging Unit
350

Reference No.
EP 260/ 83.0

Dimensions D
85.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
32.2

Standardcolour
Natural

Packaging Unit
350

Reference No.
EP 260/ 85.0

Dimensions D
88.9

DIN 259 & DIN 2999 Nom Ø
R 3."

Dimensions H
31.7

Standardcolour
Yellow

Packaging Unit
300

Reference No.
EP 260/ 88.9

Dimensions D
88.9

DIN 259 & DIN 2999 Nom Ø

Dimensions H
88.2

Standardcolour
Yellow

Packaging Unit
300

Reference No.
EP 260/ 88.9 x 90

Dimensions D
90.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
92.0

Standardcolour
Yellow

Packaging Unit
80

Reference No.
EP 260/ 90 x 90

Dimensions D
92.4

DIN 259 & DIN 2999 Nom Ø

Dimensions H
23.9

Standardcolour
Yellow

Packaging Unit
350

Reference No.
EP 260/ 92.4

Dimensions D
95.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
33.7

Standardcolour
Yellow

Packaging Unit
300

Reference No.
EP 260/ 95.0

Dimensions D
100.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
40.0

Standardcolour
Natural

Packaging Unit
200

Reference No.
EP 260/ 100.0

Dimensions D
101.6

DIN 259 & DIN 2999 Nom Ø

Dimensions H
42.0

Standardcolour
Yellow

Packaging Unit
200

Reference No.
EP 260/ 101.6

Dimensions D
102.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
40.0

Standardcolour
Yellow

Packaging Unit
200

Reference No.
EP 260/ 102.0

Dimensions D
103.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
39.0

Standardcolour
Natural

Packaging Unit
175

Reference No.
EP 260/ 103.0

Dimensions D
105.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
39.0

Standardcolour
Natural

Packaging Unit
200

Reference No.
EP 260/ 105.0

Dimensions D
106.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
42.0

Standardcolour
Yellow

Packaging Unit
175

Reference No.
EP 260/ 106.0

Dimensions D
108.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
38.0

Standardcolour
Yellow

Packaging Unit
200

Reference No.
EP 260/ 108.0

Dimensions D
108.5

DIN 259 & DIN 2999 Nom Ø

Dimensions H
90.0

Standardcolour
Yellow

Packaging Unit
60

Reference No.
EP 260/ 108.5 x 90

Dimensions D
110.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
38.0

Standardcolour
Yellow

Packaging Unit
175

Reference No.
EP 260/ 110.0

Dimensions D
114.3

DIN 259 & DIN 2999 Nom Ø
R 4."

Dimensions H
38.0

Standardcolour
Yellow

Packaging Unit
150

Reference No.
EP 260/ 114.3

Dimensions D
114.3

DIN 259 & DIN 2999 Nom Ø

Dimensions H
90.0

Standardcolour
Natural

Packaging Unit
.-.

Reference No.
EP 260/ 114.3 x 90

Dimensions D
116.3

DIN 259 & DIN 2999 Nom Ø

Dimensions H
38.0

Standardcolour
Gray

Packaging Unit
150

Reference No.
EP 260/ 116.3

Dimensions D
117.5

DIN 259 & DIN 2999 Nom Ø

Dimensions H
38.0

Standardcolour
Natural

Packaging Unit
150

Reference No.
EP 260/ 117.5

Dimensions D
121.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
37.2

Standardcolour
Yellow

Packaging Unit
150

Reference No.
EP 260/ 121.0

Dimensions D
125.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
38.0

Standardcolour
Yellow

Packaging Unit
150

Reference No.
EP 260/ 125.0

Dimensions D
126.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
37.2

Standardcolour
Natural

Packaging Unit
150

Reference No.
EP 260/ 126.0

Dimensions D
127.0

DIN 259 & DIN 2999 Nom Ø
R 4.1/2"

Dimensions H
39.0

Standardcolour
Yellow

Packaging Unit
140

Reference No.
EP 260/ 127.0

Dimensions D
130.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
40.0

Standardcolour
Natural

Packaging Unit
130

Reference No.
EP 260/ 130.0

Dimensions D
133.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
40.0

Standardcolour
Yellow

Packaging Unit
125

Reference No.
EP 260/ 133.0

Dimensions D
133.7

DIN 259 & DIN 2999 Nom Ø

Dimensions H
96.0

Standardcolour
Yellow

Packaging Unit
40

Reference No.
EP 260/ 133.7 x 90

Dimensions D
136.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
30.0

Standardcolour
Natural

Packaging Unit
150

Reference No.
EP 260/ 136.0

Dimensions D
139.7

DIN 259 & DIN 2999 Nom Ø
R 5."

Dimensions H
38.0

Standardcolour
Yellow

Packaging Unit
100

Reference No.
EP 260/ 139.7

Dimensions D
141.3

DIN 259 & DIN 2999 Nom Ø

Dimensions H
41.4

Standardcolour
Yellow

Packaging Unit
110

Reference No.
EP 260/ 141.3

Dimensions D
146.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
41.3

Standardcolour
Natural

Packaging Unit
100

Reference No.
EP 260/ 146.0

Dimensions D
149.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
40.0

Standardcolour
Natural

Packaging Unit
100

Reference No.
EP 260/ 149.0

Dimensions D
151.4

DIN 259 & DIN 2999 Nom Ø

Dimensions H
41.5

Standardcolour
Natural

Packaging Unit
100

Reference No.
EP 260/ 151.4

Dimensions D
152.4

DIN 259 & DIN 2999 Nom Ø
R 5.1/2"

Dimensions H
41.5

Standardcolour
Yellow

Packaging Unit
100

Reference No.
EP 260/ 152.4

Dimensions D
156.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
40.0

Standardcolour
Natural

Packaging Unit
80

Reference No.
EP 260/ 156.0

Dimensions D
159.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
37.0

Standardcolour
Yellow

Packaging Unit
100

Reference No.
EP 260/ 159.0

Dimensions D
160.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
40.0

Standardcolour
Yellow

Packaging Unit
100

Reference No.
EP 260/ 160.0

Dimensions D
165.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
67.5

Standardcolour
Yellow

Packaging Unit
40

Reference No.
EP 260/ 165.0 x 65

Dimensions D
165.1

DIN 259 & DIN 2999 Nom Ø

Dimensions H
40.0

Standardcolour
Yellow

Packaging Unit
90

Reference No.
EP 260/ 165.1

Dimensions D
168.3

DIN 259 & DIN 2999 Nom Ø
R 6."

Dimensions H
36.0

Standardcolour
Yellow

Packaging Unit
75

Reference No.
EP 260/ 168.3

Dimensions D
168.3

DIN 259 & DIN 2999 Nom Ø

Dimensions H
100.0

Standardcolour
Yellow

Packaging Unit
25

Reference No.
EP 260/ 168.3 x 100

Dimensions D
176.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
42.4

Standardcolour
Yellow

Packaging Unit
80

Reference No.
EP 260/ 176.0

Dimensions D
177.8

DIN 259 & DIN 2999 Nom Ø

Dimensions H
42.7

Standardcolour
Natural

Packaging Unit
80

Reference No.
EP 260/ 177.8

Dimensions D
180.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
39.0

Standardcolour
Yellow

Packaging Unit
75

Reference No.
EP 260/ 180.0

Dimensions D
185.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
41.5

Standardcolour
Yellow

Packaging Unit
75

Reference No.
EP 260/ 185.0

Dimensions D
188.7

DIN 259 & DIN 2999 Nom Ø

Dimensions H
100.0

Standardcolour
Yellow

Packaging Unit
25

Reference No.
EP 260/ 188.7 x 100

Dimensions D
193.7

DIN 259 & DIN 2999 Nom Ø

Dimensions H
42.0

Standardcolour
Yellow

Packaging Unit
60

Reference No.
EP 260/ 193.7

Dimensions D
200.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
50.0

Standardcolour
Yellow

Packaging Unit
35

Reference No.
EP 260/ 200.0

Dimensions D
210.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
40.0

Standardcolour
Natural

Packaging Unit
30

Reference No.
EP 260/ 210.0

Dimensions D
219.1

DIN 259 & DIN 2999 Nom Ø
R 8."

Dimensions H
42.0

Standardcolour
Yellow

Packaging Unit
50

Reference No.
EP 260/ 219.1

Dimensions D
225.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
39.0

Standardcolour
Yellow

Packaging Unit
40

Reference No.
EP 260/ 225.0

Dimensions D
232.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
42.0

Standardcolour
Natural

Packaging Unit
60

Reference No.
EP 260/ 232.0

Dimensions D
242.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
50.0

Standardcolour
Natural

Packaging Unit
50

Reference No.
EP 260/ 242.0

Dimensions D
244.5

DIN 259 & DIN 2999 Nom Ø

Dimensions H
43.0

Standardcolour
Natural

Packaging Unit
50

Reference No.
EP 260/ 244.5

Dimensions D
250.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
47.0

Standardcolour
Yellow

Packaging Unit
40

Reference No.
EP 260/ 250.0

Dimensions D
267.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
41.0

Standardcolour
Natural

Packaging Unit
45

Reference No.
EP 260/ 267.0

Dimensions D
273.0

DIN 259 & DIN 2999 Nom Ø
R 10."

Dimensions H
49.0

Standardcolour
Yellow

Packaging Unit
40

Reference No.
EP 260/ 273.0

Dimensions D
323.9

DIN 259 & DIN 2999 Nom Ø
R 12."

Dimensions H
55.0

Standardcolour
Yellow

Packaging Unit
25

Reference No.
EP 260/ 323.9

Dimensions D
355.6

DIN 259 & DIN 2999 Nom Ø
R 14."

Dimensions H
57.0

Standardcolour
Yellow

Packaging Unit
27

Reference No.
EP 260/ 355.6

Dimensions D
368.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
55.0

Standardcolour
Yellow

Packaging Unit
30

Reference No.
EP 260/ 368.0

Dimensions D
400.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
65.0

Standardcolour
Natural

Packaging Unit
25

Reference No.
EP 260/ 400.0

Dimensions D
406.4

DIN 259 & DIN 2999 Nom Ø
R 16."

Dimensions H
62.0

Standardcolour
Yellow

Packaging Unit
30

Reference No.
EP 260/ 406.4

Dimensions D
419.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
54.0

Standardcolour
Yellow

Packaging Unit
25

Reference No.
EP 260/ 419.0

Dimensions D
450.0

DIN 259 & DIN 2999 Nom Ø

Dimensions H
66.0

Standardcolour
Natural

Packaging Unit
    14

Reference No.
EP 260/ 450.0

Dimensions D
457.2

DIN 259 & DIN 2999 Nom Ø
R 18."

Dimensions H
66.0

Standardcolour
Yellow

Packaging Unit
32

Reference No.
EP 260/ 457.2

Dimensions D
508.0

DIN 259 & DIN 2999 Nom Ø
R 20."

Dimensions H
65.3

Standardcolour
Yellow

Packaging Unit
26

Reference No.
EP 260/ 508.0

Dimensions D
558.8

DIN 259 & DIN 2999 Nom Ø
R 22."

Dimensions H
60.0

Standardcolour
Yellow

Packaging Unit
22

Reference No.
EP 260/ 558.8

Dimensions D
609.6

DIN 259 & DIN 2999 Nom Ø
R 24."

Dimensions H
65.5

Standardcolour
Yellow

Packaging Unit
20

Reference No.
EP 260/ 609.6

Dimensions D
660.4

DIN 259 & DIN 2999 Nom Ø
R 26."

Dimensions H
102.0

Standardcolour
Black

Packaging Unit
10

Reference No.
EP 260/ 660.4

Dimensions D
711.2

DIN 259 & DIN 2999 Nom Ø
R 28."

Dimensions H
115.0

Standardcolour
Black

Packaging Unit
10

Reference No.
EP 260/ 711.2

Dimensions D
762.0

DIN 259 & DIN 2999 Nom Ø
R 30."

Dimensions H
115.0

Standardcolour
Black

Packaging Unit
10

Reference No.
EP 260/ 762.0

Dimensions D
812.8

DIN 259 & DIN 2999 Nom Ø
R 32."

Dimensions H
115.0

Standardcolour
Black

Packaging Unit
10

Reference No.
EP 260/ 812.8

Dimensions D
863.6

DIN 259 & DIN 2999 Nom Ø
R 34."

Dimensions H
153.0

Standardcolour
Black

Packaging Unit
      6

Reference No.
EP 260/ 863.6

Dimensions D
914.4

DIN 259 & DIN 2999 Nom Ø
R 36."

Dimensions H
115.0

Standardcolour
Black

Packaging Unit
10

Reference No.
EP 260/ 914.4

Dimensions D
1016.0

DIN 259 & DIN 2999 Nom Ø
R 40."

Dimensions H
115.0

Standardcolour
Black

Packaging Unit
8

Reference No.
EP 260/1016.0

Dimensions D
1066.8

DIN 259 & DIN 2999 Nom Ø
R 42."

Dimensions H
102.0

Standardcolour
Black

Packaging Unit
6

Reference No.
EP 260/1066.8

Dimensions D
1117.6

DIN 259 & DIN 2999 Nom Ø
R 44."

Dimensions H
115.0

Standardcolour
Black

Packaging Unit
6

Reference No.
EP 260/1117.6

Dimensions D
1219.2

DIN 259 & DIN 2999 Nom Ø
R 48."

Dimensions H
115.0

Standardcolour
Black

Packaging Unit
6

Reference No.
EP 260/1219.2

Dimensions D
1320.8

DIN 259 & DIN 2999 Nom Ø
R 52."

Dimensions H
150.0

Standardcolour
Black

Packaging Unit
6

Reference No.
EP 260/1320.8

Dimensions D
1422.4

DIN 259 & DIN 2999 Nom Ø
R 56."

Dimensions H
146.0

Standardcolour
Black

Packaging Unit
6

Reference No.
EP 260/1422.4

Dimensions D
1524.0

DIN 259 & DIN 2999 Nom Ø
R 60."

Dimensions H
150.0

Standardcolour
Black

Packaging Unit
6

Reference No.
EP 260/1524.0

Dimensions D
1625.6

DIN 259 & DIN 2999 Nom Ø
R 64."

Dimensions H
150.0

Standardcolour
Black

Packaging Unit
4

Reference No.
EP 260/1625.6

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 260 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

These comprehensive range of high quality protection caps is available for all nominal pipe sizes and is complemented with a vast range of additional sizes and lengths to suit a wide variety of applications.

On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.

You might also be interested in these PROTEC series

DURA-SAFE® SES 3000

Sandblasting flange push-in plugs, Nylon PA

CAPTOP® EP 300

Valve flange protection plugs

CAPTOP® EP 207

High temperature cylindrical closures

CAPTOP® EP 185

Pressure pipe protection uniplugs

Certified production & quality management

PROTEC meets the most stringent demands of safety and operations reliability. International approvals and certifications such as UL, CSA, VDE, VDA 6.1 and DIN EN ISO 9001: 2015 demonstrate total quality commitment on superior level.

Be the first to know - Join our newsletter!

Stay on top of the latest news and upcoming events and event information from PROTEC and its partner. Be the first to know when new products are on the market. Get periodic specials and news delivered directly to your email inbox! You can un-subscribe anytime.

Sign our free newsletter now

Imprint | Contact form | Privacy policy | Jobs at PROTEC | Certifications

copyright (c) 2024 PROTEC PLASTICS THE CAP COMPANY LTD
