ProteC CaPtoP® EP 380

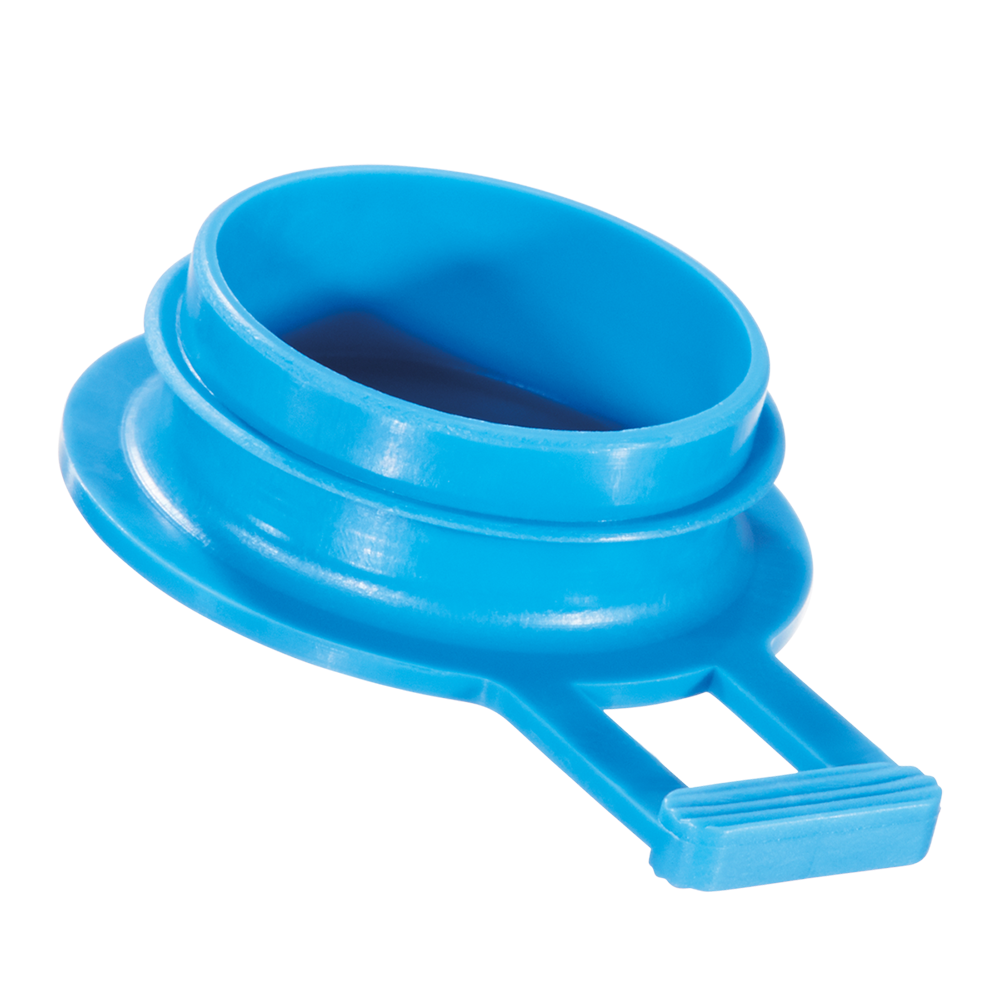

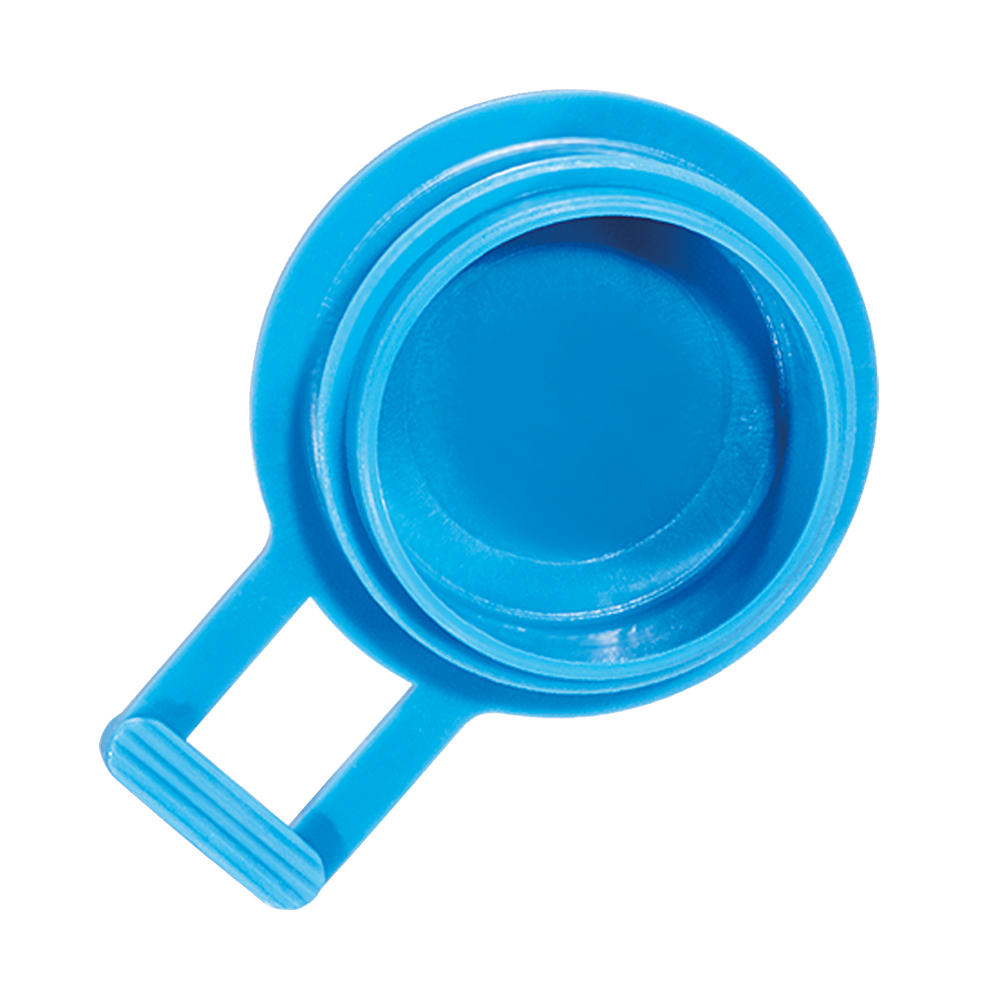

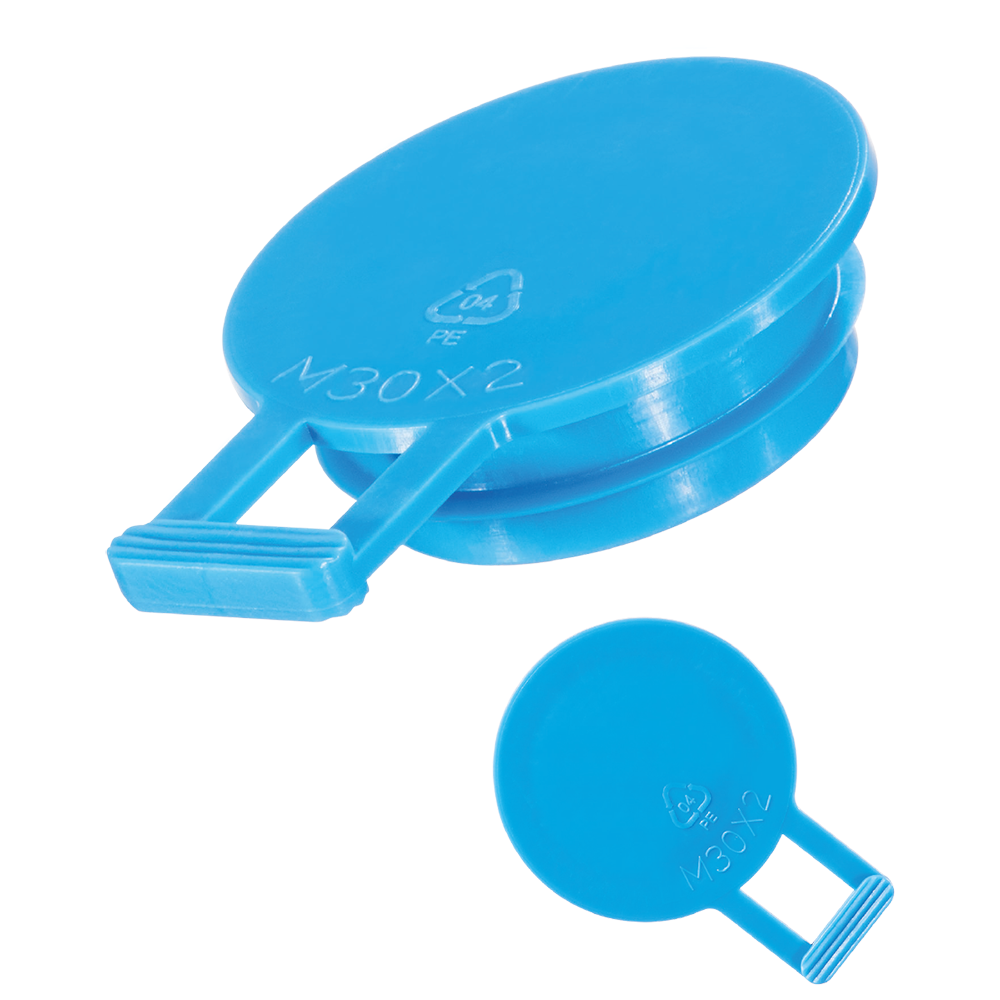

Push-fit side release plugs with 1 strong fin


CaPtoP® EP 380

Push-fit side release plugs with 1 strong fin


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

Push-Fit application for easy installation.

With strong, flexible side-tab for quick and easy removal in awkward locations.

Designed to protect DKO-compression fittings.

Fin gives a firm fit into threaded or plain ports. Low-abrasion fit.

This range offers the convenience of a push-fit plug with the plugging quality of a threaded plug.

Std. Color: blue, RAL 5012
Material: LLD-PE, linear low density polyethylene

PROTEC CAPTOP EP 380

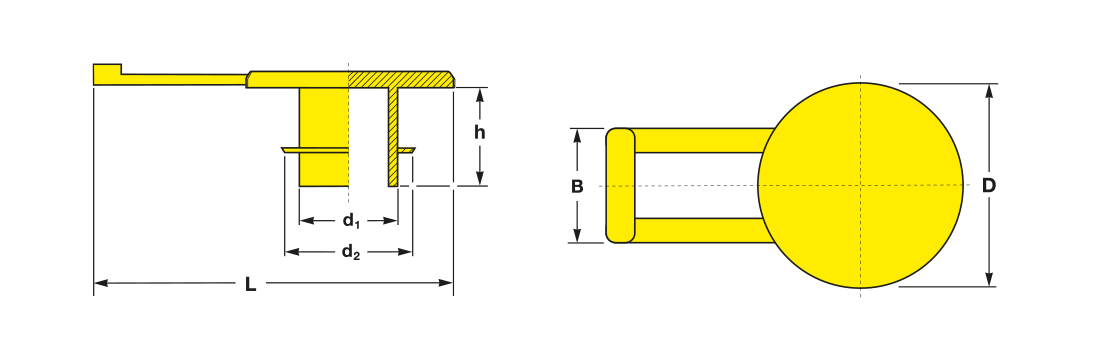

Thread d1 d2 D h L B Reference No. Bookmark
M 12 x 1.5   9.8 11.8 16.0   7.0 26.0 12.0 EP 380 / M 12 x 1.5
M 14 x 1.5 11.2 13.8 19.0   7.0 29.0 12.0 EP 380 / M 14 x 1.5
M 16 x 1.5 14.0 15.8 21.5   7.3 33.75 14.0 EP 380 / M 16 x 1.5
M 18 x 1.5 15.5 17.8 25.0   7.0 37.5 14.0 EP 380 / M 18 x 1.5
M 20 x 1.5 17.5 19.8 27.0   7.5 39.5 14.0 EP 380 / M 20 x 1.5
M 22 x 1.5 19.5 21.8 29.0   7.5 45.5 14.0 EP 380 / M 22 x 1.5
M 24 x 1.5 21.5 23.8 30.0   7.5 46.0 14.0 EP 380 / M 24 x 1.5
M 26 x 1.5 22.8 25.8 32.0   8.0 47.0 14.0 EP 380 / M 26 x 1.5
M 30 x 2 26.5 29.5 34.6 10.0 48.5 14.8 EP 380 / M 30 x 2
M 36 x 2 32.5 35.5 39.6 10.0 54.0 14.0 EP 380 / M 36 x 2
M 42 x 2 38.5 41.5 49.2 10.0 64.0 15.0 EP 380 / M 42 x 2
M 45 x 2 41.5 44.5 49.0 10.0 63.6 15.0 EP 380 / M 45 x 2
M 52 x 2 48.3 51.5 59.0 10.0 74.0 15.0 EP 380 / M 52 x 2
Anschluss-
gewinde
d1 d2 D h L B Reference No.
M 12 x 1.5   9.8 11.8 16.0   7.0 26.0 12.0 EP 380 / M 12 x 1.5
M 14 x 1.5 11.2 13.8 19.0   7.0 29.0 12.0 EP 380 / M 14 x 1.5
M 16 x 1.5 14.0 15.8 21.5   7.3 33.75 14.0 EP 380 / M 16 x 1.5
M 18 x 1.5 15.5 17.8 25.0   7.0 37.5 14.0 EP 380 / M 18 x 1.5
M 20 x 1.5 17.5 19.8 27.0   7.5 39.5 14.0 EP 380 / M 20 x 1.5
M 22 x 1.5 19.5 21.8 29.0   7.5 45.5 14.0 EP 380 / M 22 x 1.5
M 24 x 1.5 21.5 23.8 30.0   7.5 46.0 14.0 EP 380 / M 24 x 1.5
M 26 x 1.5 22.8 25.8 32.0   8.0 47.0 14.0 EP 380 / M 26 x 1.5
M 30 x 2 26.5 29.5 34.6 10.0 48.5 14.8 EP 380 / M 30 x 2
M 36 x 2 32.5 35.5 39.6 10.0 54.0 14.0 EP 380 / M 36 x 2
M 42 x 2 38.5 41.5 49.2 10.0 64.0 15.0 EP 380 / M 42 x 2
M 45 x 2 41.5 44.5 49.0 10.0 63.6 15.0 EP 380 / M 45 x 2
M 52 x 2 48.3 51.5 59.0 10.0 74.0 15.0 EP 380 / M 52 x 2
Thread
M 12 x 1.5

Body Ø d1
9.8

Rib Ø d2
11.8

Flange D
16.0

Height h
7.0

Length L
26.0

"Pull Tab B
12.0

Reference No.
EP 380 / M 12 x 1.5

Thread
M 14 x 1.5

Body Ø d1
11.2

Rib Ø d2
13.8

Flange D
19.0

Height h
7.0

Length L
29.0

"Pull Tab B
12.0

Reference No.
EP 380 / M 14 x 1.5

Thread
M 16 x 1.5

Body Ø d1
14.0

Rib Ø d2
15.8

Flange D
21.5

Height h
7.3

Length L
33.75

"Pull Tab B
14.0

Reference No.
EP 380 / M 16 x 1.5

Thread
M 18 x 1.5

Body Ø d1
15.5

Rib Ø d2
17.8

Flange D
25.0

Height h
7.0

Length L
37.5

"Pull Tab B
14.0

Reference No.
EP 380 / M 18 x 1.5

Thread
M 20 x 1.5

Body Ø d1
17.5

Rib Ø d2
19.8

Flange D
27.0

Height h
7.5

Length L
39.5

"Pull Tab B
14.0

Reference No.
EP 380 / M 20 x 1.5

Thread
M 22 x 1.5

Body Ø d1
19.5

Rib Ø d2
21.8

Flange D
29.0

Height h
7.5

Length L
45.5

"Pull Tab B
14.0

Reference No.
EP 380 / M 22 x 1.5

Thread
M 24 x 1.5

Body Ø d1
21.5

Rib Ø d2
23.8

Flange D
30.0

Height h
7.5

Length L
46.0

"Pull Tab B
14.0

Reference No.
EP 380 / M 24 x 1.5

Thread
M 26 x 1.5

Body Ø d1
22.8

Rib Ø d2
25.8

Flange D
32.0

Height h
8.0

Length L
47.0

"Pull Tab B
14.0

Reference No.
EP 380 / M 26 x 1.5

Thread
M 30 x 2

Body Ø d1
26.5

Rib Ø d2
29.5

Flange D
34.6

Height h
10.0

Length L
48.5

"Pull Tab B
14.8

Reference No.
EP 380 / M 30 x 2

Thread
M 36 x 2

Body Ø d1
32.5

Rib Ø d2
35.5

Flange D
39.6

Height h
10.0

Length L
54.0

"Pull Tab B
14.0

Reference No.
EP 380 / M 36 x 2

Thread
M 42 x 2

Body Ø d1
38.5

Rib Ø d2
41.5

Flange D
49.2

Height h
10.0

Length L
64.0

"Pull Tab B
15.0

Reference No.
EP 380 / M 42 x 2

Thread
M 45 x 2

Body Ø d1
41.5

Rib Ø d2
44.5

Flange D
49.0

Height h
10.0

Length L
63.6

"Pull Tab B
15.0

Reference No.
EP 380 / M 45 x 2

Thread
M 52 x 2

Body Ø d1
48.3

Rib Ø d2
51.5

Flange D
59.0

Height h
10.0

Length L
74.0

"Pull Tab B
15.0

Reference No.
EP 380 / M 52 x 2

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 380 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
