ProteC QuiCk-fit® EPN 705

EMC cable glands, brass, nickel plated


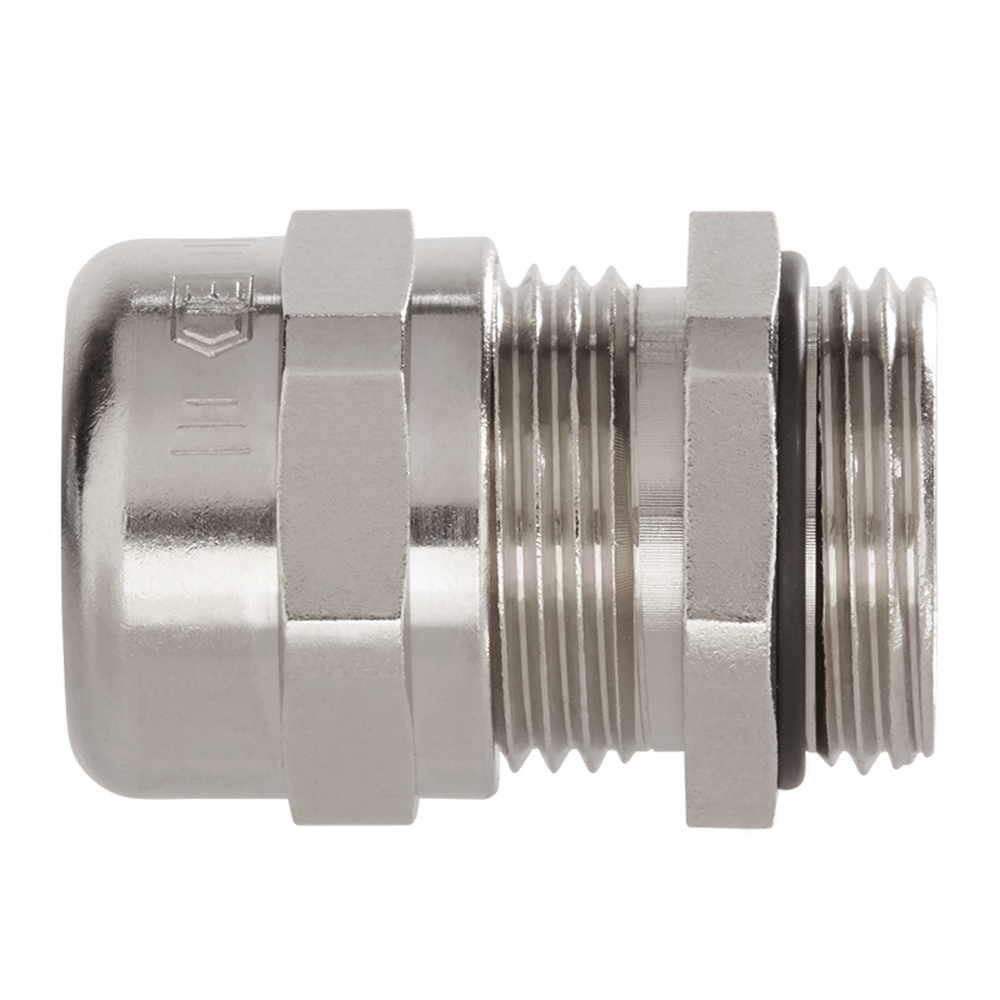

QuiCk-fit® EPN 705

EMC cable glands, brass, nickel plated


This EMC / EMI cable gland is designed to ground cable braids directly to the wall with optimum contact to the periphery of the gland base.

Built-in twisting protection, wide sealing and clamping range.

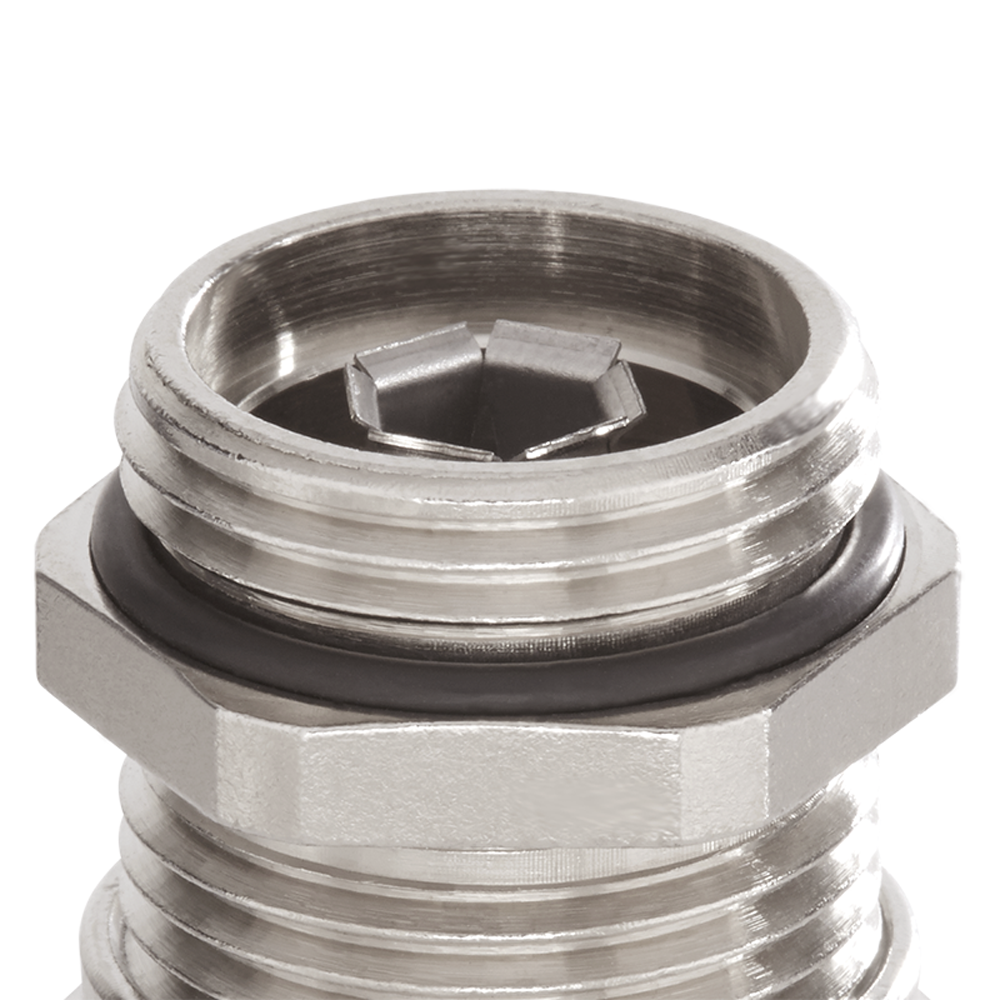

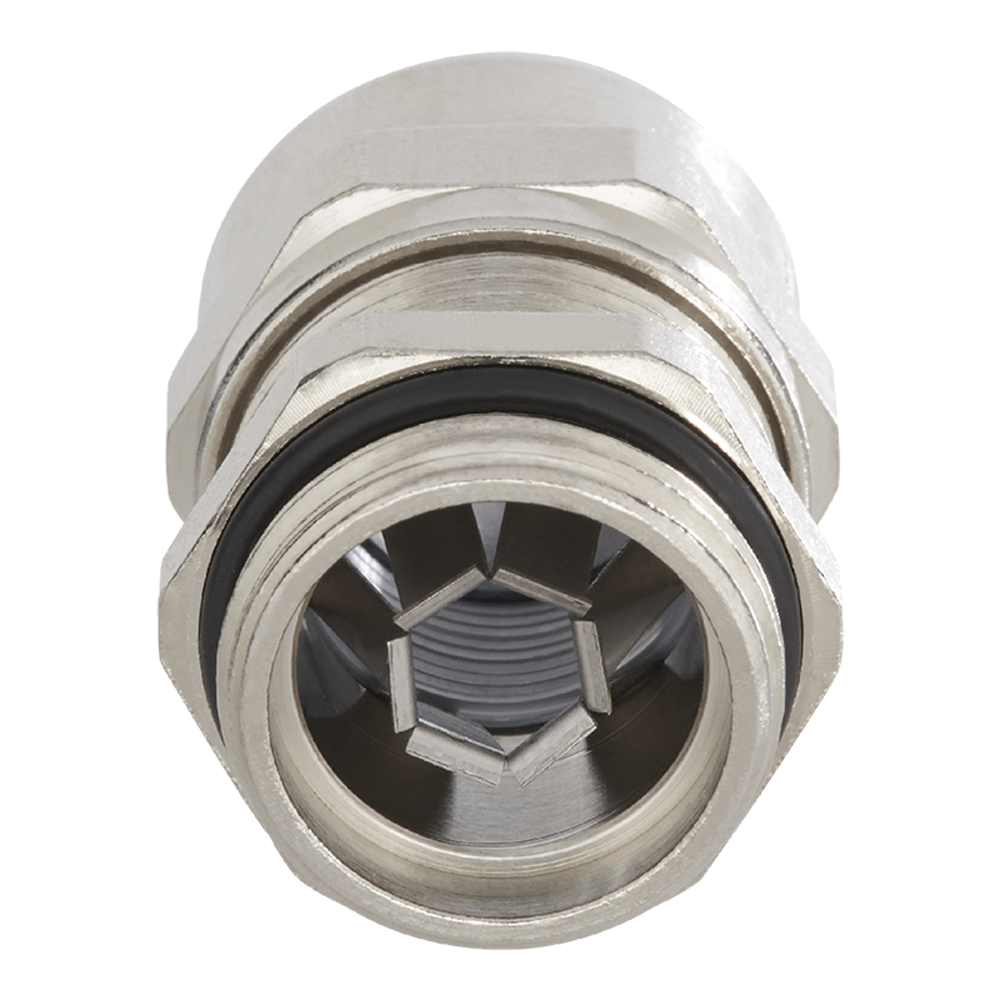

Rapid EMC connection of the cable shield through contact spring inside gland body and the electric potential of the installation.

An additional improvement of the equipotential bonding and the vibration protection can be improved further by using our EPN 715 hexagon nut with cutting edges obtained.

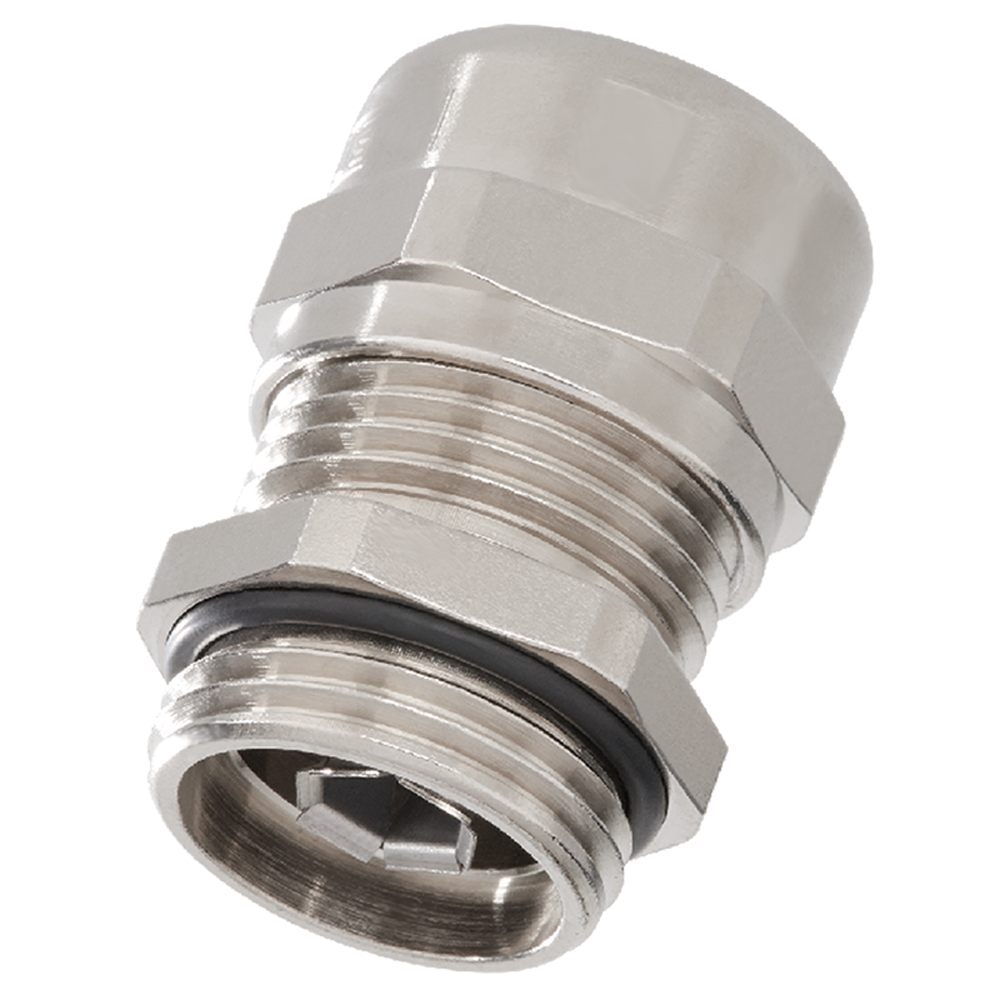

PROTEC QUICK-FIT EPN 705

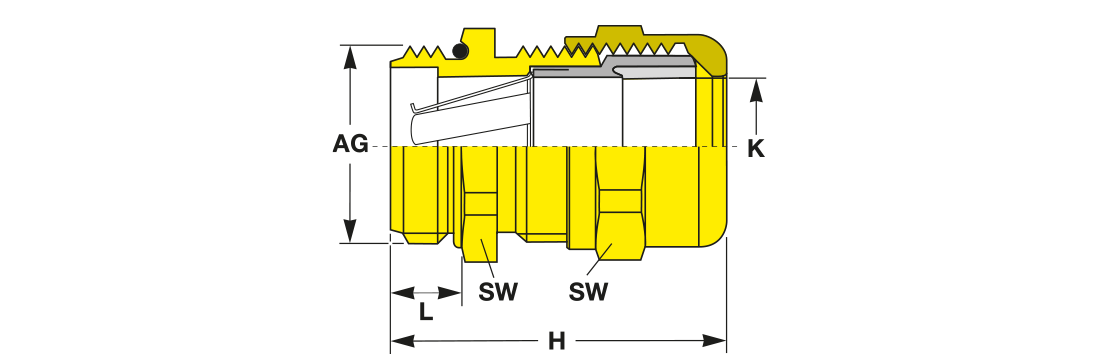

AG K L H SW Reference No. Bookmark
M 16 x 1.5   5.0 -   9.0   5.0 30.0 17 EPN 705/ M 16 x 1.5
M 20 x 1.5   9.0 - 13.0   6.0 33.1 22 EPN 705/ M 20 x 1.5
M 25 x 1.5 11.0 - 16.0   7.0 35.0 27 EPN 705/ M 25 x 1.5
M 32 x 1.5 14.0 - 21.0   8.0 39.0 34 EPN 705/ M 32 x 1.5
M 40 x 1.5 19.0 - 27.0   8.0 41.7 43 EPN 705/ M 40 x 1.5
M 50 x 1.5 24.0 - 35.0   9.0 50.1 55 EPN 705/ M 50 x 1.5
M 63 x 1.5 32.0 - 42.0 10.0 52.5 65 EPN 705/ M 63 x 1.5
AG K L L SW Reference No.
M 16 x 1.5   5.0 -   9.0   5.0 30.0 17 EPN 705/ M 16 x 1.5
M 20 x 1.5   9.0 - 13.0   6.0 33.1 22 EPN 705/ M 20 x 1.5
M 25 x 1.5 11.0 - 16.0   7.0 35.0 27 EPN 705/ M 25 x 1.5
M 32 x 1.5 14.0 - 21.0   8.0 39.0 34 EPN 705/ M 32 x 1.5
M 40 x 1.5 19.0 - 27.0   8.0 41.7 43 EPN 705/ M 40 x 1.5
M 50 x 1.5 24.0 - 35.0   9.0 50.1 55 EPN 705/ M 50 x 1.5
M 63 x 1.5 32.0 - 42.0 10.0 52.5 65 EPN 705/ M 63 x 1.5
Thread AG
M 16 x 1.5

Clamping-Range K
5.0 - 9.0

Thread Length L
5.0

Depth H
30.0

SW
17

Reference No. EPN 705/ M 16 x 1.5

Thread AG
M 20 x 1.5

Clamping-Range K
9.0 - 13.0

Thread Length L
6.0

Depth H
33.1

SW
22

Reference No. EPN 705/ M 20 x 1.5

Thread AG
M 25 x 1.5

Clamping-Range K
11.0 - 16.0

Thread Length L
7.0

Depth H
35.0

SW
27

Reference No. EPN 705/ M 25 x 1.5

Thread AG
M 32 x 1.5

Clamping-Range K
14.0 - 21.0

Thread Length L
8.0

Depth H
39.0

SW
34

Reference No. EPN 705/ M 32 x 1.5

Thread AG
M 40 x 1.5

Clamping-Range K
19.0 - 27.0

Thread Length L
8.0

Depth H
41.7

SW
43

Reference No. EPN 705/ M 40 x 1.5

Thread AG
M 50 x 1.5

Clamping-Range K
24.0 - 35.0

Thread Length L
9.0

Depth H
50.1

SW
55

Reference No. EPN 705/ M 50 x 1.5

Thread AG
M 63 x 1.5

Clamping-Range K
32.0 - 42.0

Thread Length L
10.0

Depth H
52.5

SW
65

Reference No. EPN 705/ M 63 x 1.5

PROTEC products and specifications are subject to improvement and change without notice.

QUICK-FIT® EPN 705 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Cable glands play an important part in safeguarding EMC requirements where cables and leads enter into a shielding system.

They must ensure a durable permanent connection with very small Ohm‘s and inductive resistance between the cable shield and the housing potential.

Our QUICK-FIT EMC cable glands fulfill these requirements in an outstanding way.

The assembly of the type EPN 705 succeeds simply and fast:

1. Partially expose the braid by removing the outer sheath of the cable of approximately 10 mm.

2. Insert the cable through the domed nut and the gland body until the contact spring is pressed against the braided screen.

3. Firmly screw on domed nut.

4. Due to this principle it is possible to conduct the braided screen of the EMC cable through the entire gland body up to the clamping are of the inner wires.

An additional improvement of the equipotential bonding and the vibration protection can be improved further by using our EPN 715 hexagon nut with cutting edges obtained.

Material : Brass, nickel plated
Blade insert : Polyamide PA6 V-2 Sealing ring : Polychloroprene-Nitrile rubber CR/NBR
O-Ring : Nitrile rubber NBR

Protection grade : IP68

On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.
