ProteC CaPtoP® EP 810 Typ 3.1

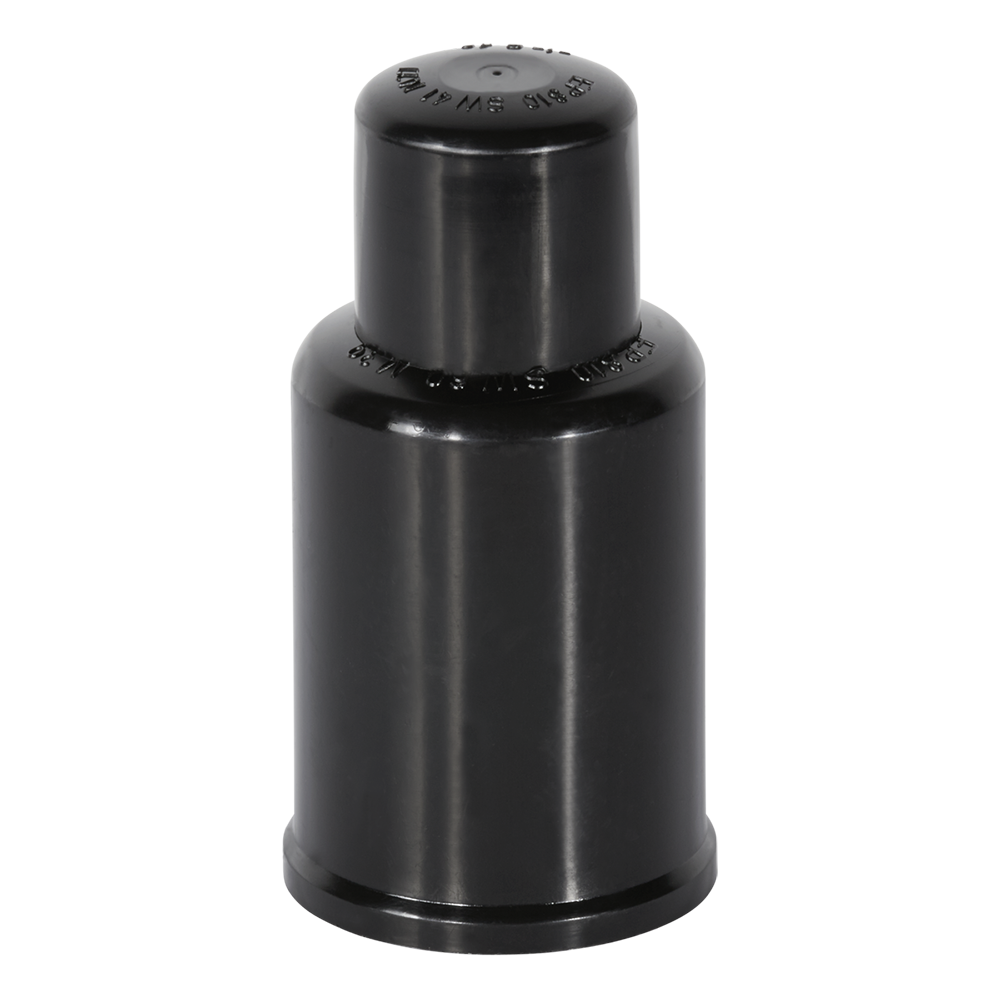

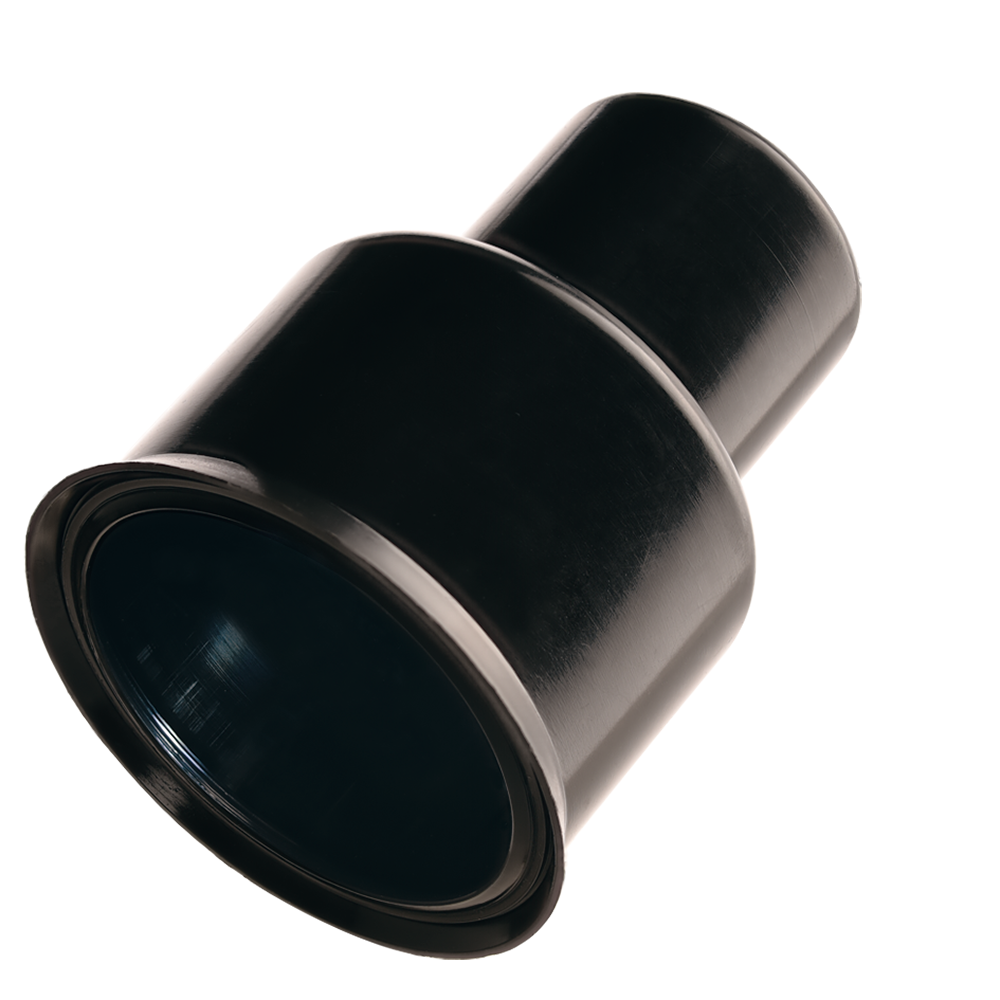

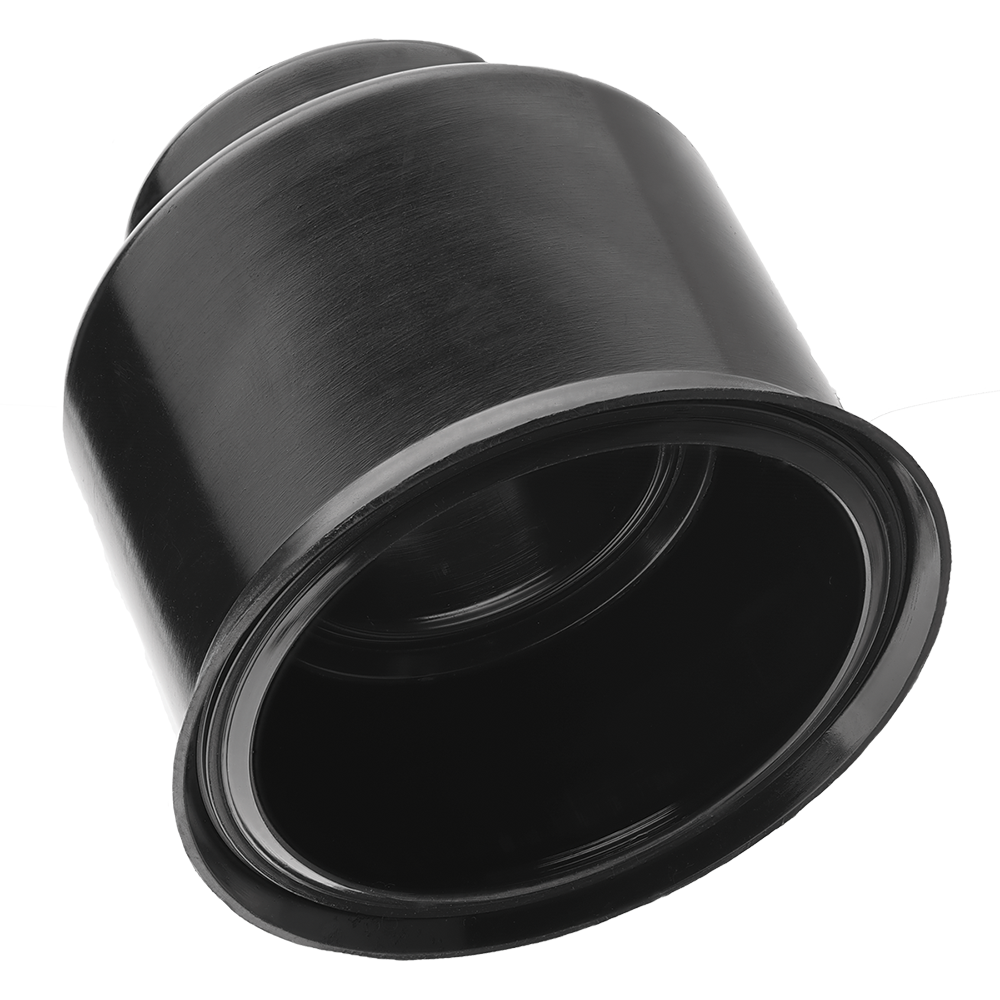

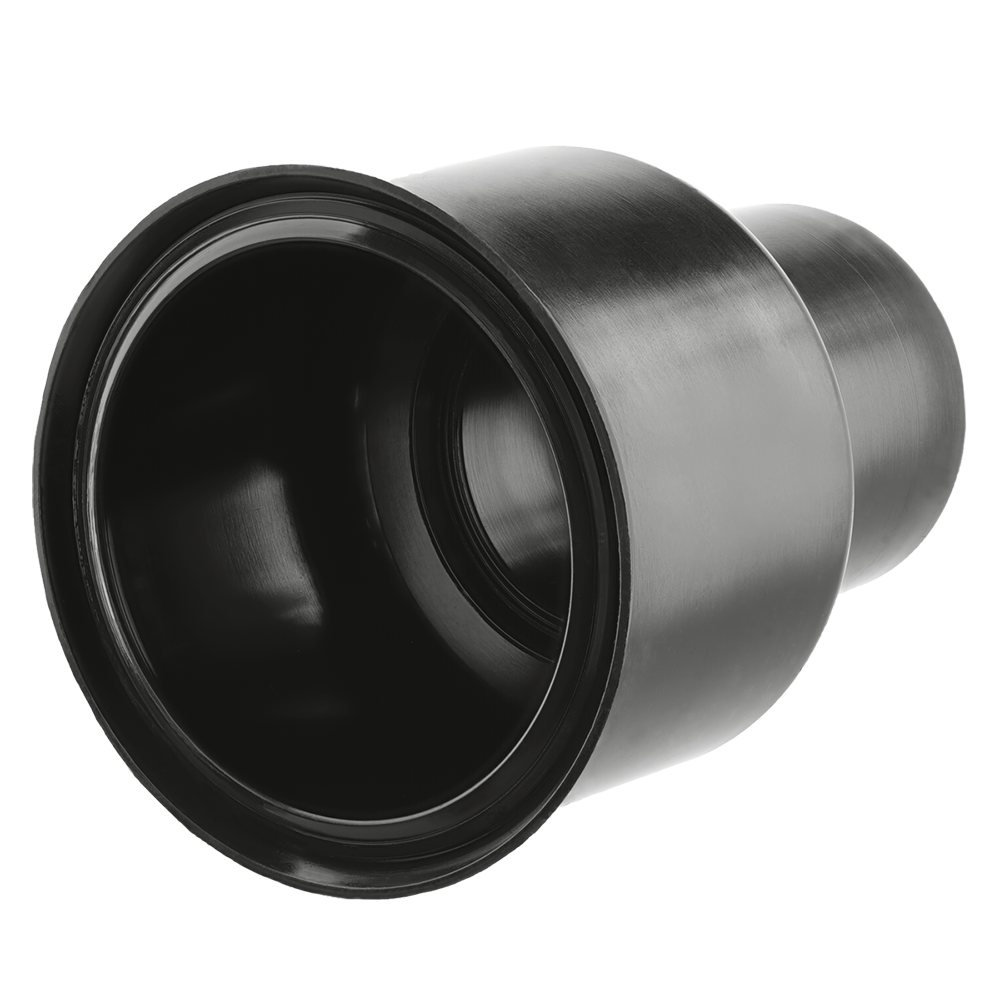

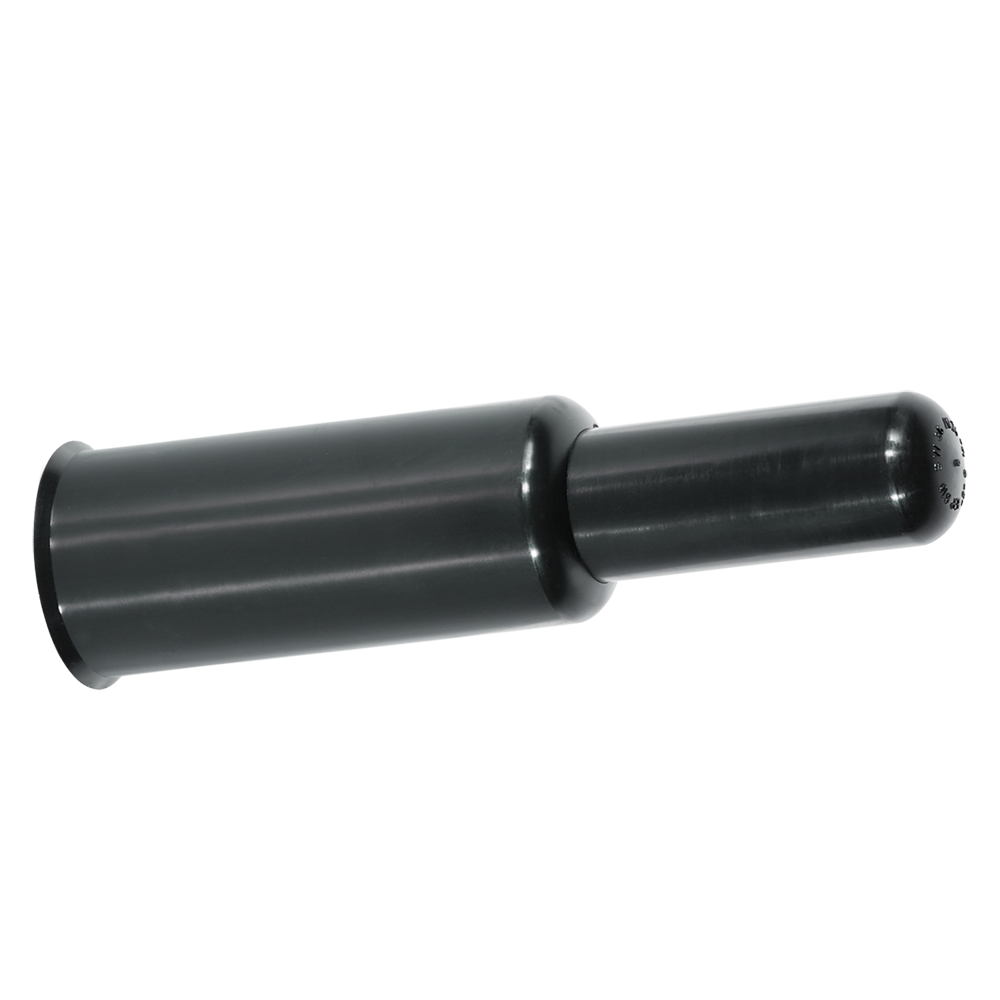

Bolt and nut adjustable telescopic corrosion cap


CaPtoP® EP 810 Typ 3.1

Bolt and nut adjustable telescopic corrosion cap


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

For bolted joints without washers.

With anti-vibration locking lip.

Adjustable for extremely large bolt length.

Resistant against chemicals.

Broad Temperature range, resistant from -25 °C up to +70 °C.

Std. Color: black
Material: LD-PE, low density polyethylene

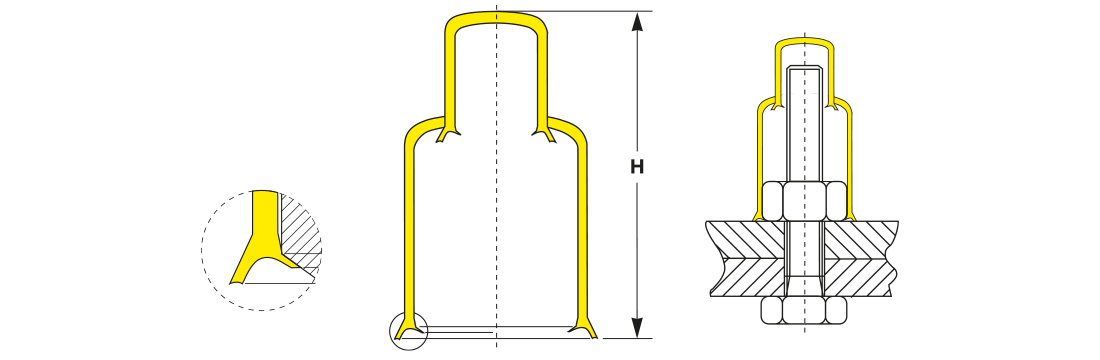

PROTEC CAPTOP EP 810 Typ 3.1
SW h1 H Metric
DIN 13
DIN 11
UNC
Reference No.
EP 810/
Reference No.
EP 810/
Max. height
inside
Reference No.
EP 810 Typ 3.1
Bookmark
SW   24   33.5   36.0 M 16   .9/16" SW   24-1-G   31 SW   17 -1-G  29   57.0 SW   24-3.1-G   57
SW   24   33.5   36.0 M 16   .9/16" SW   24-1-G   31 SW   17-1-G   45   73.0 SW   24-3.1-G   73
SW   24   49.2   52.0 M 16   .9/16" SW   24-1-G   51 SW   17-1-G   29   73.0 SW   24-3.1-G   73
SW   24   49.2   52.0 M 16   .9/16" SW   24-1-G   51 SW   17-1-G   45   89.0 SW   24-3.1-G   89
SW   30   33.5   36.0 M 20 SW   30-1-G   34 SW   19-1-G   29   57.0 SW   30-3.1-G   57
SW   30   33.5   36.0 M 20 SW   30-1-G   34 SW   19-1-G   50   78.0 SW   30-3.1-G   78
SW   30 116.0 119.0 M 20 SW   30-1-G 120 SW   19-1-G   29 140.0 SW   30-3.1-G 140
SW   30 116.0 119.0 M 20 SW   30-1-G 120 SW   19-1-G   50 161.0 SW   30-3.1-G 161
SW   36   41.8   45.0 M 24   .7/8" SW   36-1-G   43 SW   24-1-G   31   70.0 SW   36-3.1-G   70
SW   36   41.8   45.0 M 24   .7/8" SW   36-1-G   43 SW   24-2-G   69   99.0 SW   36-3.1-G   99
SW   36   71.1   75.0 M 24   .7/8" SW   36-1-G   73 SW   24-1-G   69   99.0 SW   36-3.1-G   99
SW   36 132.0 134.0 M 24   .7/8" SW   36-1-G   73 SW   24-2-G   69 132.0 SW   36-3.1-G 128
SW   41   50.1   54.0 M 27 1."       SW   41-1-G   46 SW   30-1-G   34   78.0 SW   41-3.1-G   78
SW   41   50.1   54.0 M 27 1."       SW   41-1-G   46 SW   30-1-G 120 161.0 SW   41-3.1-G 161
SW   41 104.5 106.5 M 27 1."       SW   41-1-G   76 SW   30-1-G   34 102.0 SW   41-3.1-G 102
SW   41   73.8   78.0 M 27 1."       SW   41-1-G   76 SW   30-1-G 120 184.0 SW   41-3.1-G 184
SW   46   50.7   53.0 M 30 1.1/8" SW   46-1-G   49 SW   30-1-G   34   79.0 SW   46-3.1-G   79
SW   46   50.7   53.0 M 30 1.1/8" SW   46-1-G   49 SW   30-1-G 120 161.0 SW   46-3.1-G 161
SW   46 145.5 150.0 M 30 1.1/8" SW   46-1-G 144 SW   30-1-G   34 174.0 SW   46-3.1-G 174
SW   46 145.5 150.0 M 30 1.1/8" SW   46-1-G 144 SW   30-1-G 120 256.0 SW   46-3.1-G 256
SW   50   53.3   58.0 M 33 1.1/4" SW   50-1-G   51 SW   36-1-G   43   90.0 SW   50-3.1-G   90
SW   50   53.3   58.0 M 33 1.1/4" SW   50-1-G   51 SW   36-2-G 120 163.0 SW   50-3.1-G 163
SW   50 120.5 122.5 M 33 1.1/4" SW   50-1-G   81 SW   36-1-G   43 116.0 SW   50-3.1-G 116
SW   50   79.2   87.0 M 33 1.1/4" SW   50-1-G   81 SW   36-2-G 120 189.0 SW   50-3.1-G 189
SW   55   56.8   60.0 M 36 1.3/8" SW   55-1-G   55 SW   36-1-G   43   93.0 SW   55-3.1-G   93
SW   55   56.8   60.0 M 36 1.3/8" SW   55-1-G   55 SW   36-2-G 120 166.0 SW   55-3.1-G 166
SW   55 161.4 165.0 M 36 1.3/8" SW   55-1-G 155 SW   36-1-G   43 198.0 SW   55-3.1-G 198
SW   55 273.0 276.0 M 36 1.3/8" SW   55-1-G 155 SW   36-2-G 120 271.0 SW   55-3.1-G 271
SW   60   57.1   61.0 M 39 1.1/2" SW   60-1-G   57  SW   41-1-G   46 102.0 SW   60-3.1-G 102
SW   60   57.1   61.0 M 39 1.1/2" SW   60-1-G   57  SW   41-2-G   76 125.0 SW   60-3.1-G 125
SW   60 109.4 113.0 M 39 1.1/2" SW   60-1-G 107 SW   41-1-G   46 154.0 SW   60-3.1-G 154
SW   60 109.4 113.0 M 39 1.1/2" SW   60-1-G 107 SW   41-2-G   76 178.0 SW   60-3.1-G 178
SW   65   57.2   64.0 M 42 1.5/8" SW   65-1-G   61 SW   41-1-G   46 102.0 SW   65-3.1-G 102
SW   65   57.2   64.0 M 42 1.5/8" SW   65-1-G   61 SW   41-1-G   76 126.0 SW   65-3.1-G 126
SW   65 123.0 126.0 M 42 1.5/8" SW   65-1-G 123 SW   41-1-G   46 168.0 SW   65-3.1-G 168
SW   65 123.0 126.0 M 42 1.5/8" SW   65-1-G 123 SW   41-1-G   76 191.0 SW   65-3.1-G 191
SW   70   65.0   62.0 M 45 1.3/4" SW   70-1-G   63 SW   46-1-G   49 107.0 SW   70-3.1-G 107
SW   70   65.0   62.0 M 45 1.3/4" SW   70-1-G   63 SW   46-1-G 144 202.0 SW   70-3.1-G 202
SW   70 113.5 118.0 M 45 1.3/4" SW   70-1-G 113 SW   46-1-G   49 159.0 SW   70-3.1-G 159
SW   70 113.5 118.0 M 45 1.3/4" SW   70-1-G 113 SW   46-1-G 144 254.0 SW   70-3.1-G 254
SW   75 113.0 114.5 M 48 1.7/8" SW   75-1-G   66 SW   46-1-G   49 108.0 SW   75-3.1-G 108
SW   75 208.0 210.0 M 48 1.7/8" SW   75-1-G   66 SW   46-1-G 144 203.0 SW   75-3.1-G 203
SW   75   92.8   97.0 M 48 1.7/8" SW   75-1-G   96 SW   46-1-G   49 138.0 SW   75-3.1-G 138
SW   75 235.5 239.0 M 48 1.7/8" SW   75-1-G   96 SW   46-1-G 144 233.0 SW   75-3.1-G 233
SW   80   71.0   77.0 M 52 SW   80-1-G   70 SW   50-1-G   51 119.0 SW   80-3.1-G 119
SW   80   71.0   77.0 M 52 SW   80-1-G   70 SW   50-1-G   81 145.0 SW   80-3.1-G 145
SW   80 179.6 182.0 M 52 SW   80-1-G 130 SW   50-1-G   51 178.0 SW   80-3.1-G 178
SW   80 130.0 133.0 M 52 SW   80-1-G 130 SW   50-1-G   81 204.0 SW   80-3.1-G 204
SW   85   71.3   75.0 M 56 SW   85-1-G   74 SW   55-1-G   55 123.0 SW   85-3.1-G 123
SW   85   71.3   75.0 M 56 SW   85-1-G   74 SW   55-1-G 155 227.0 SW   85-3.1-G 227
SW   85 133.6 138.0 M 56 SW   85-1-G 134 SW   55-1-G   55 185.0 SW   85-3.1-G 185
SW   85 133.6 138.0 M 56 SW   85-1-G 134 SW   55-1-G 155 290.0 SW   85-3.1-G 290
SW   90   84.0   88.0 M 60 SW   90-1-G   78 SW   60-1-G   57  136.0 SW   90-3.1-G 136
SW   90   84.0   88.0 M 60 SW   90-1-G   78 SW   60-1-G 107 188.0 SW   90-3.1-G 188
SW   90 145.0 145.0 M 60 SW   90-1-G 140 SW   60-1-G   57  192.0 SW   90-3.1-G 192
SW   90 145.0 145.0 M 60 SW   90-1-G 140 SW   60-1-G 107 244.0 SW   90-3.1-G 244
SW   95   85.4   90.0 M 64 SW   95-1-G   86 SW   65-1-G   61 137.0 SW   95-3.1-G 137
SW   95   85.4   90.0 M 64 SW   95-1-G   86 SW   65-1-G 123 203.0 SW   95-3.1-G 203
SW   95 143.0 148.0 M 64 SW   95-1-G 143 SW   65-1-G   61 195.0 SW   95-3.1-G 195
SW   95 143.0 148.0 M 64 SW   95-1-G 143 SW   65-1-G 123 261.0 SW   95-3.1-G 261
SW 100   89.8   94.0 M 68 SW 100-1-G   90 SW   70-1-G   63 146.0 SW 100-3.1-G 146
SW 100   89.8   94.0 M 68 SW 100-1-G   90 SW   70-1-G 113 198.0 SW 100-3.1-G 198
SW 100 150.0 156.0 M 68 SW 100-1-G 150 SW   70-1-G   63 207.0 SW 100-3.1-G 207
SW 100 150.0 156.0 M 68 SW 100-1-G 150 SW   70-1-G 113 258.0 SW 100-3.1-G 258
SW 105   92.7   98.0 M 72 SW 105-1-G   90 SW   75-1-G   66 150.0 SW 105-3.1-G 150
SW 105   92.7   98.0 M 72 SW 105-1-G   90 SW   75-1-G   96 180.0 SW 105-3.1-G 180
SW 105 149.1 154.0 M 72 SW 105-1-G 150 SW   75-1-G   66 207.0 SW 105-3.1-G 207
SW 105 149.1 154.0 M 72 SW 105-1-G 150 SW   75-1-G   96 236.0 SW 105-3.1-G 236
SW h1 H DIN 11
UNC
Reference No.
EP 810/
Reference No.
EP 810/
Reference No.
EP 810 Typ 3.1
   24   33.5   36.0 M 16   .9/16"    24-1-G   31    17 -1-G  29   57.0    24-3.1-G   57
   24   33.5   36.0 M 16   .9/16"    24-1-G   31    17-1-G   45   73.0    24-3.1-G   73
   24   49.2   52.0 M 16   .9/16"    24-1-G   51    17-1-G   29   73.0    24-3.1-G   73
   24   49.2   52.0 M 16   .9/16"    24-1-G   51    17-1-G   45   89.0    24-3.1-G   89
   30   33.5   36.0 M 20    30-1-G   34    19-1-G   29   57.0    30-3.1-G   57
   30   33.5   36.0 M 20    30-1-G   34    19-1-G   50   78.0    30-3.1-G   78
   30 116.0 119.0 M 20    30-1-G 120    19-1-G   29 140.0    30-3.1-G 140
   30 116.0 119.0 M 20    30-1-G 120    19-1-G   50 161.0    30-3.1-G 161
   36   41.8   45.0 M 24   .7/8"    36-1-G   43    24-1-G   31   70.0    36-3.1-G   70
   36   41.8   45.0 M 24   .7/8"    36-1-G   43    24-2-G   69   99.0    36-3.1-G   99
   36   71.1   75.0 M 24   .7/8"    36-1-G   73    24-1-G   69   99.0    36-3.1-G   99
   36 132.0 134.0 M 24   .7/8"    36-1-G   73    24-2-G   69 132.0    36-3.1-G 128
   41   50.1   54.0 M 27 1."          41-1-G   46    30-1-G   34   78.0    41-3.1-G   78
   41   50.1   54.0 M 27 1."          41-1-G   46    30-1-G 120 161.0    41-3.1-G 161
   41 104.5 106.5 M 27 1."          41-1-G   76    30-1-G   34 102.0    41-3.1-G 102
   41   73.8   78.0 M 27 1."          41-1-G   76    30-1-G 120 184.0    41-3.1-G 184
   46   50.7   53.0 M 30 1.1/8"    46-1-G   49    30-1-G   34   79.0    46-3.1-G   79
   46   50.7   53.0 M 30 1.1/8"    46-1-G   49    30-1-G 120 161.0    46-3.1-G 161
   46 145.5 150.0 M 30 1.1/8"    46-1-G 144    30-1-G   34 174.0    46-3.1-G 174
   46 145.5 150.0 M 30 1.1/8"    46-1-G 144    30-1-G 120 256.0    46-3.1-G 256
   50   53.3   58.0 M 33 1.1/4"    50-1-G   51    36-1-G   43   90.0    50-3.1-G   90
   50   53.3   58.0 M 33 1.1/4"    50-1-G   51    36-2-G 120 163.0    50-3.1-G 163
   50 120.5 122.5 M 33 1.1/4"    50-1-G   81    36-1-G   43 116.0    50-3.1-G 116
   50   79.2   87.0 M 33 1.1/4"    50-1-G   81    36-2-G 120 189.0    50-3.1-G 189
   55   56.8   60.0 M 36 1.3/8"    55-1-G   55    36-1-G   43   93.0    55-3.1-G   93
   55   56.8   60.0 M 36 1.3/8"    55-1-G   55    36-2-G 120 166.0    55-3.1-G 166
   55 161.4 165.0 M 36 1.3/8"    55-1-G 155    36-1-G   43 198.0    55-3.1-G 198
   55 273.0 276.0 M 36 1.3/8"    55-1-G 155    36-2-G 120 271.0    55-3.1-G 271
   60   57.1   61.0 M 39 1.1/2"    60-1-G   57     41-1-G   46 102.0    60-3.1-G 102
   60   57.1   61.0 M 39 1.1/2"    60-1-G   57     41-2-G   76 125.0    60-3.1-G 125
   60 109.4 113.0 M 39 1.1/2"    60-1-G 107    41-1-G   46 154.0    60-3.1-G 154
   60 109.4 113.0 M 39 1.1/2"    60-1-G 107    41-2-G   76 178.0    60-3.1-G 178
   65   57.2   64.0 M 42 1.5/8"    65-1-G   61    41-1-G   46 102.0    65-3.1-G 102
   65   57.2   64.0 M 42 1.5/8"    65-1-G   61    41-1-G   76 126.0    65-3.1-G 126
   65 123.0 126.0 M 42 1.5/8"    65-1-G 123    41-1-G   46 168.0    65-3.1-G 168
   65 123.0 126.0 M 42 1.5/8"    65-1-G 123    41-1-G   76 191.0    65-3.1-G 191
   70   65.0   62.0 M 45 1.3/4"    70-1-G   63    46-1-G   49 107.0    70-3.1-G 107
   70   65.0   62.0 M 45 1.3/4"    70-1-G   63    46-1-G 144 202.0    70-3.1-G 202
   70 113.5 118.0 M 45 1.3/4"    70-1-G 113    46-1-G   49 159.0    70-3.1-G 159
   70 113.5 118.0 M 45 1.3/4"    70-1-G 113    46-1-G 144 254.0    70-3.1-G 254
   75 113.0 114.5 M 48 1.7/8"    75-1-G   66    46-1-G   49 108.0    75-3.1-G 108
   75 208.0 210.0 M 48 1.7/8"    75-1-G   66    46-1-G 144 203.0    75-3.1-G 203
   75   92.8   97.0 M 48 1.7/8"    75-1-G   96    46-1-G   49 138.0    75-3.1-G 138
   75 235.5 239.0 M 48 1.7/8"    75-1-G   96    46-1-G 144 233.0    75-3.1-G 233
   80   71.0   77.0 M 52    80-1-G   70    50-1-G   51 119.0    80-3.1-G 119
   80   71.0   77.0 M 52    80-1-G   70    50-1-G   81 145.0    80-3.1-G 145
   80 179.6 182.0 M 52    80-1-G 130    50-1-G   51 178.0    80-3.1-G 178
   80 130.0 133.0 M 52    80-1-G 130    50-1-G   81 204.0    80-3.1-G 204
   85   71.3   75.0 M 56    85-1-G   74    55-1-G   55 123.0    85-3.1-G 123
   85   71.3   75.0 M 56    85-1-G   74    55-1-G 155 227.0    85-3.1-G 227
   85 133.6 138.0 M 56    85-1-G 134    55-1-G   55 185.0    85-3.1-G 185
   85 133.6 138.0 M 56    85-1-G 134    55-1-G 155 290.0    85-3.1-G 290
   90   84.0   88.0 M 60    90-1-G   78    60-1-G   57  136.0    90-3.1-G 136
   90   84.0   88.0 M 60    90-1-G   78    60-1-G 107 188.0    90-3.1-G 188
   90 145.0 145.0 M 60    90-1-G 140    60-1-G   57  192.0    90-3.1-G 192
   90 145.0 145.0 M 60    90-1-G 140    60-1-G 107 244.0    90-3.1-G 244
   95   85.4   90.0 M 64    95-1-G   86    65-1-G   61 137.0    95-3.1-G 137
   95   85.4   90.0 M 64    95-1-G   86    65-1-G 123 203.0    95-3.1-G 203
   95 143.0 148.0 M 64    95-1-G 143    65-1-G   61 195.0    95-3.1-G 195
   95 143.0 148.0 M 64    95-1-G 143    65-1-G 123 261.0    95-3.1-G 261
 100   89.8   94.0 M 68  100-1-G   90    70-1-G   63 146.0  100-3.1-G 146
 100   89.8   94.0 M 68  100-1-G   90    70-1-G 113 198.0  100-3.1-G 198
 100 150.0 156.0 M 68  100-1-G 150    70-1-G   63 207.0  100-3.1-G 207
 100 150.0 156.0 M 68  100-1-G 150    70-1-G 113 258.0  100-3.1-G 258
 105   92.7   98.0 M 72  105-1-G   90    75-1-G   66 150.0  105-3.1-G 150
 105   92.7   98.0 M 72  105-1-G   90    75-1-G   96 180.0  105-3.1-G 180
 105 149.1 154.0 M 72  105-1-G 150    75-1-G   66 207.0  105-3.1-G 207
 105 149.1 154.0 M 72  105-1-G 150    75-1-G   96 236.0  105-3.1-G 236
Spannersize SW
24

Hight inside h1
33.5

Hight outside H
36.0

Thread Metric DIN 13
M 16

Thread DIN 11 UNC
.9/16"

Base Cap Reference No. EP 810/ 24-1-G 31

Top Cap Reference No. EP 810 / 17 -1-G 29

Max. Height inside
57.0

Reference No. EP 810 / 24-3.1-G 57

Spannersize SW
24

Hight inside h1
33.5

Hight outside H
36.0

Thread Metric DIN 13
M 16

Thread DIN 11 UNC
.9/16"

Base Cap Reference No. EP 810/ 24-1-G 31

Top Cap Reference No. EP 810 / 17-1-G 45

Max. Height inside
73.0

Reference No. EP 810 / 24-3.1-G 73

Spannersize SW
24

Hight inside h1
49.2

Hight outside H
52.0

Thread Metric DIN 13
M 16

Thread DIN 11 UNC
.9/16"

Base Cap Reference No. EP 810/ 24-1-G 51

Top Cap Reference No. EP 810 / 17-1-G 29

Max. Height inside
73.0

Reference No. EP 810 / 24-3.1-G 73

Spannersize SW
24

Hight inside h1
49.2

Hight outside H
52.0

Thread Metric DIN 13
M 16

Thread DIN 11 UNC
.9/16"

Base Cap Reference No. EP 810/ 24-1-G 51

Top Cap Reference No. EP 810 / 17-1-G 45

Max. Height inside
89.0

Reference No. EP 810 / 24-3.1-G 89

Spannersize SW
30

Hight inside h1
33.5

Hight outside H
36.0

Thread Metric DIN 13
M 20

Base Cap Reference No. EP 810/ 30-1-G 34

Top Cap Reference No. EP 810 / 19-1-G 29

Max. Height inside
57.0

Reference No. EP 810 / 30-3.1-G 57

Spannersize SW
30

Hight inside h1
33.5

Hight outside H
36.0

Thread Metric DIN 13
M 20

Base Cap Reference No. EP 810/ 30-1-G 34

Top Cap Reference No. EP 810 / 19-1-G 50

Max. Height inside
78.0

Reference No. EP 810 / 30-3.1-G 78

Spannersize SW
30

Hight inside h1
116.0

Hight outside H
119.0

Thread Metric DIN 13
M 20

Base Cap Reference No. EP 810/ 30-1-G 120

Top Cap Reference No. EP 810 / 19-1-G 29

Max. Height inside
140.0

Reference No. EP 810 / 30-3.1-G 140

Spannersize SW
30

Hight inside h1
116.0

Hight outside H
119.0

Thread Metric DIN 13
M 20

Base Cap Reference No. EP 810/ 30-1-G 120

Top Cap Reference No. EP 810 / 19-1-G 50

Max. Height inside
161.0

Reference No. EP 810 / 30-3.1-G 161

Spannersize SW
36

Hight inside h1
41.8

Hight outside H
45.0

Thread Metric DIN 13
M 24

Thread DIN 11 UNC
.7/8"

Base Cap Reference No. EP 810/ 36-1-G 43

Top Cap Reference No. EP 810 / 24-1-G 31

Max. Height inside
70.0

Reference No. EP 810 / 36-3.1-G 70

Spannersize SW
36

Hight inside h1
41.8

Hight outside H
45.0

Thread Metric DIN 13
M 24

Thread DIN 11 UNC
.7/8"

Base Cap Reference No. EP 810/ 36-1-G 43

Top Cap Reference No. EP 810 / 24-2-G 69

Max. Height inside
99.0

Reference No. EP 810 / 36-3.1-G 99

Spannersize SW
36

Hight inside h1
71.1

Hight outside H
75.0

Thread Metric DIN 13
M 24

Thread DIN 11 UNC
.7/8"

Base Cap Reference No. EP 810/ 36-1-G 73

Top Cap Reference No. EP 810 / 24-1-G 69

Max. Height inside
99.0

Reference No. EP 810 / 36-3.1-G 99

Spannersize SW
36

Hight inside h1
132.0

Hight outside H
134.0

Thread Metric DIN 13
M 24

Thread DIN 11 UNC
.7/8"

Base Cap Reference No. EP 810/ 36-1-G 73

Top Cap Reference No. EP 810 / 24-2-G 69

Max. Height inside
132.0

Reference No. EP 810 / 36-3.1-G 128

Spannersize SW
41

Hight inside h1
50.1

Hight outside H
54.0

Thread Metric DIN 13
M 27

Thread DIN 11 UNC
1."

Base Cap Reference No. EP 810/ 41-1-G 46

Top Cap Reference No. EP 810 / 30-1-G 34

Max. Height inside
78.0

Reference No. EP 810 / 41-3.1-G 78

Spannersize SW
41

Hight inside h1
50.1

Hight outside H
54.0

Thread Metric DIN 13
M 27

Thread DIN 11 UNC
1."

Base Cap Reference No. EP 810/ 41-1-G 46

Top Cap Reference No. EP 810 / 30-1-G 120

Max. Height inside
161.0

Reference No. EP 810 / 41-3.1-G 161

Spannersize SW
41

Hight inside h1
104.5

Hight outside H
106.5

Thread Metric DIN 13
M 27

Thread DIN 11 UNC
1."

Base Cap Reference No. EP 810/ 41-1-G 76

Top Cap Reference No. EP 810 / 30-1-G 34

Max. Height inside
102.0

Reference No. EP 810 / 41-3.1-G 102

Spannersize SW
41

Hight inside h1
73.8

Hight outside H
78.0

Thread Metric DIN 13
M 27

Thread DIN 11 UNC
1."

Base Cap Reference No. EP 810/ 41-1-G 76

Top Cap Reference No. EP 810 / 30-1-G 120

Max. Height inside
184.0

Reference No. EP 810 / 41-3.1-G 184

Spannersize SW
46

Hight inside h1
50.7

Hight outside H
53.0

Thread Metric DIN 13
M 30

Thread DIN 11 UNC
1.1/8"

Base Cap Reference No. EP 810/ 46-1-G 49

Top Cap Reference No. EP 810 / 30-1-G 34

Max. Height inside
79.0

Reference No. EP 810 / 46-3.1-G 79

Spannersize SW
46

Hight inside h1
50.7

Hight outside H
53.0

Thread Metric DIN 13
M 30

Thread DIN 11 UNC
1.1/8"

Base Cap Reference No. EP 810/ 46-1-G 49

Top Cap Reference No. EP 810 / 30-1-G 120

Max. Height inside
161.0

Reference No. EP 810 / 46-3.1-G 161

Spannersize SW
46

Hight inside h1
145.5

Hight outside H
150.0

Thread Metric DIN 13
M 30

Thread DIN 11 UNC
1.1/8"

Base Cap Reference No. EP 810/ 46-1-G 144

Top Cap Reference No. EP 810 / 30-1-G 34

Max. Height inside
174.0

Reference No. EP 810 / 46-3.1-G 174

Spannersize SW
46

Hight inside h1
145.5

Hight outside H
150.0

Thread Metric DIN 13
M 30

Thread DIN 11 UNC
1.1/8"

Base Cap Reference No. EP 810/ 46-1-G 144

Top Cap Reference No. EP 810 / 30-1-G 120

Max. Height inside
256.0

Reference No. EP 810 / 46-3.1-G 256

Spannersize SW
50

Hight inside h1
53.3

Hight outside H
58.0

Thread Metric DIN 13
M 33

Thread DIN 11 UNC
1.1/4"

Base Cap Reference No. EP 810/ 50-1-G 51

Top Cap Reference No. EP 810 / 36-1-G 43

Max. Height inside
90.0

Reference No. EP 810 / 50-3.1-G 90

Spannersize SW
50

Hight inside h1
53.3

Hight outside H
58.0

Thread Metric DIN 13
M 33

Thread DIN 11 UNC
1.1/4"

Base Cap Reference No. EP 810/ 50-1-G 51

Top Cap Reference No. EP 810 / 36-2-G 120

Max. Height inside
163.0

Reference No. EP 810 / 50-3.1-G 163

Spannersize SW
50

Hight inside h1
120.5

Hight outside H
122.5

Thread Metric DIN 13
M 33

Thread DIN 11 UNC
1.1/4"

Base Cap Reference No. EP 810/ 50-1-G 81

Top Cap Reference No. EP 810 / 36-1-G 43

Max. Height inside
116.0

Reference No. EP 810 / 50-3.1-G 116

Spannersize SW
50

Hight inside h1
79.2

Hight outside H
87.0

Thread Metric DIN 13
M 33

Thread DIN 11 UNC
1.1/4"

Base Cap Reference No. EP 810/ 50-1-G 81

Top Cap Reference No. EP 810 / 36-2-G 120

Max. Height inside
189.0

Reference No. EP 810 / 50-3.1-G 189

Spannersize SW
55

Hight inside h1
56.8

Hight outside H
60.0

Thread Metric DIN 13
M 36

Thread DIN 11 UNC
1.3/8"

Base Cap Reference No. EP 810/ 55-1-G 55

Top Cap Reference No. EP 810 / 36-1-G 43

Max. Height inside
93.0

Reference No. EP 810 / 55-3.1-G 93

Spannersize SW
55

Hight inside h1
56.8

Hight outside H
60.0

Thread Metric DIN 13
M 36

Thread DIN 11 UNC
1.3/8"

Base Cap Reference No. EP 810/ 55-1-G 55

Top Cap Reference No. EP 810 / 36-2-G 120

Max. Height inside
166.0

Reference No. EP 810 / 55-3.1-G 166

Spannersize SW
55

Hight inside h1
161.4

Hight outside H
165.0

Thread Metric DIN 13
M 36

Thread DIN 11 UNC
1.3/8"

Base Cap Reference No. EP 810/ 55-1-G 155

Top Cap Reference No. EP 810 / 36-1-G 43

Max. Height inside
198.0

Reference No. EP 810 / 55-3.1-G 198

Spannersize SW
55

Hight inside h1
273.0

Hight outside H
276.0

Thread Metric DIN 13
M 36

Thread DIN 11 UNC
1.3/8"

Base Cap Reference No. EP 810/ 55-1-G 155

Top Cap Reference No. EP 810 / 36-2-G 120

Max. Height inside
271.0

Reference No. EP 810 / 55-3.1-G 271

Spannersize SW
60

Hight inside h1
57.1

Hight outside H
61.0

Thread Metric DIN 13
M 39

Thread DIN 11 UNC
1.1/2"

Base Cap Reference No. EP 810/ 60-1-G 57

Top Cap Reference No. EP 810 / 41-1-G 46

Max. Height inside
102.0

Reference No. EP 810 / 60-3.1-G 102

Spannersize SW
60

Hight inside h1
57.1

Hight outside H
61.0

Thread Metric DIN 13
M 39

Thread DIN 11 UNC
1.1/2"

Base Cap Reference No. EP 810/ 60-1-G 57

Top Cap Reference No. EP 810 / 41-2-G 76

Max. Height inside
125.0

Reference No. EP 810 / 60-3.1-G 125

Spannersize SW
60

Hight inside h1
109.4

Hight outside H
113.0

Thread Metric DIN 13
M 39

Thread DIN 11 UNC
1.1/2"

Base Cap Reference No. EP 810/ 60-1-G 107

Top Cap Reference No. EP 810 / 41-1-G 46

Max. Height inside
154.0

Reference No. EP 810 / 60-3.1-G 154

Spannersize SW
60

Hight inside h1
109.4

Hight outside H
113.0

Thread Metric DIN 13
M 39

Thread DIN 11 UNC
1.1/2"

Base Cap Reference No. EP 810/ 60-1-G 107

Top Cap Reference No. EP 810 / 41-2-G 76

Max. Height inside
178.0

Reference No. EP 810 / 60-3.1-G 178

Spannersize SW
65

Hight inside h1
57.2

Hight outside H
64.0

Thread Metric DIN 13
M 42

Thread DIN 11 UNC
1.5/8"

Base Cap Reference No. EP 810/ 65-1-G 61

Top Cap Reference No. EP 810 / 41-1-G 46

Max. Height inside
102.0

Reference No. EP 810 / 65-3.1-G 102

Spannersize SW
65

Hight inside h1
57.2

Hight outside H
64.0

Thread Metric DIN 13
M 42

Thread DIN 11 UNC
1.5/8"

Base Cap Reference No. EP 810/ 65-1-G 61

Top Cap Reference No. EP 810 / 41-1-G 76

Max. Height inside
126.0

Reference No. EP 810 / 65-3.1-G 126

Spannersize SW
65

Hight inside h1
123.0

Hight outside H
126.0

Thread Metric DIN 13
M 42

Thread DIN 11 UNC
1.5/8"

Base Cap Reference No. EP 810/ 65-1-G 123

Top Cap Reference No. EP 810 / 41-1-G 46

Max. Height inside
168.0

Reference No. EP 810 / 65-3.1-G 168

Spannersize SW
65

Hight inside h1
123.0

Hight outside H
126.0

Thread Metric DIN 13
M 42

Thread DIN 11 UNC
1.5/8"

Base Cap Reference No. EP 810/ 65-1-G 123

Top Cap Reference No. EP 810 / 41-1-G 76

Max. Height inside
191.0

Reference No. EP 810 / 65-3.1-G 191

Spannersize SW
70

Hight inside h1
65.0

Hight outside H
62.0

Thread Metric DIN 13
M 45

Thread DIN 11 UNC
1.3/4"

Base Cap Reference No. EP 810/ 70-1-G 63

Top Cap Reference No. EP 810 / 46-1-G 49

Max. Height inside
107.0

Reference No. EP 810 / 70-3.1-G 107

Spannersize SW
70

Hight inside h1
65.0

Hight outside H
62.0

Thread Metric DIN 13
M 45

Thread DIN 11 UNC
1.3/4"

Base Cap Reference No. EP 810/ 70-1-G 63

Top Cap Reference No. EP 810 / 46-1-G 144

Max. Height inside
202.0

Reference No. EP 810 / 70-3.1-G 202

Spannersize SW
70

Hight inside h1
113.5

Hight outside H
118.0

Thread Metric DIN 13
M 45

Thread DIN 11 UNC
1.3/4"

Base Cap Reference No. EP 810/ 70-1-G 113

Top Cap Reference No. EP 810 / 46-1-G 49

Max. Height inside
159.0

Reference No. EP 810 / 70-3.1-G 159

Spannersize SW
70

Hight inside h1
113.5

Hight outside H
118.0

Thread Metric DIN 13
M 45

Thread DIN 11 UNC
1.3/4"

Base Cap Reference No. EP 810/ 70-1-G 113

Top Cap Reference No. EP 810 / 46-1-G 144

Max. Height inside
254.0

Reference No. EP 810 / 70-3.1-G 254

Spannersize SW
75

Hight inside h1
113.0

Hight outside H
114.5

Thread Metric DIN 13
M 48

Thread DIN 11 UNC
1.7/8"

Base Cap Reference No. EP 810/ 75-1-G 66

Top Cap Reference No. EP 810 / 46-1-G 49

Max. Height inside
108.0

Reference No. EP 810 / 75-3.1-G 108

Spannersize SW
75

Hight inside h1
208.0

Hight outside H
210.0

Thread Metric DIN 13
M 48

Thread DIN 11 UNC
1.7/8"

Base Cap Reference No. EP 810/ 75-1-G 66

Top Cap Reference No. EP 810 / 46-1-G 144

Max. Height inside
203.0

Reference No. EP 810 / 75-3.1-G 203

Spannersize SW
75

Hight inside h1
92.8

Hight outside H
97.0

Thread Metric DIN 13
M 48

Thread DIN 11 UNC
1.7/8"

Base Cap Reference No. EP 810/ 75-1-G 96

Top Cap Reference No. EP 810 / 46-1-G 49

Max. Height inside
138.0

Reference No. EP 810 / 75-3.1-G 138

Spannersize SW
75

Hight inside h1
235.5

Hight outside H
239.0

Thread Metric DIN 13
M 48

Thread DIN 11 UNC
1.7/8"

Base Cap Reference No. EP 810/ 75-1-G 96

Top Cap Reference No. EP 810 / 46-1-G 144

Max. Height inside
233.0

Reference No. EP 810 / 75-3.1-G 233

Spannersize SW
80

Hight inside h1
71.0

Hight outside H
77.0

Thread Metric DIN 13
M 52

Base Cap Reference No. EP 810/ 80-1-G 70

Top Cap Reference No. EP 810 / 50-1-G 51

Max. Height inside
119.0

Reference No. EP 810 / 80-3.1-G 119

Spannersize SW
80

Hight inside h1
71.0

Hight outside H
77.0

Thread Metric DIN 13
M 52

Base Cap Reference No. EP 810/ 80-1-G 70

Top Cap Reference No. EP 810 / 50-1-G 81

Max. Height inside
145.0

Reference No. EP 810 / 80-3.1-G 145

Spannersize SW
80

Hight inside h1
179.6

Hight outside H
182.0

Thread Metric DIN 13
M 52

Base Cap Reference No. EP 810/ 80-1-G 130

Top Cap Reference No. EP 810 / 50-1-G 51

Max. Height inside
178.0

Reference No. EP 810 / 80-3.1-G 178

Spannersize SW
80

Hight inside h1
130.0

Hight outside H
133.0

Thread Metric DIN 13
M 52

Base Cap Reference No. EP 810/ 80-1-G 130

Top Cap Reference No. EP 810 / 50-1-G 81

Max. Height inside
204.0

Reference No. EP 810 / 80-3.1-G 204

Spannersize SW
85

Hight inside h1
71.3

Hight outside H
75.0

Thread Metric DIN 13
M 56

Base Cap Reference No. EP 810/ 85-1-G 74

Top Cap Reference No. EP 810 / 55-1-G 55

Max. Height inside
123.0

Reference No. EP 810 / 85-3.1-G 123

Spannersize SW
85

Hight inside h1
71.3

Hight outside H
75.0

Thread Metric DIN 13
M 56

Base Cap Reference No. EP 810/ 85-1-G 74

Top Cap Reference No. EP 810 / 55-1-G 155

Max. Height inside
227.0

Reference No. EP 810 / 85-3.1-G 227

Spannersize SW
85

Hight inside h1
133.6

Hight outside H
138.0

Thread Metric DIN 13
M 56

Base Cap Reference No. EP 810/ 85-1-G 134

Top Cap Reference No. EP 810 / 55-1-G 55

Max. Height inside
185.0

Reference No. EP 810 / 85-3.1-G 185

Spannersize SW
85

Hight inside h1
133.6

Hight outside H
138.0

Thread Metric DIN 13
M 56

Base Cap Reference No. EP 810/ 85-1-G 134

Top Cap Reference No. EP 810 / 55-1-G 155

Max. Height inside
290.0

Reference No. EP 810 / 85-3.1-G 290

Spannersize SW
90

Hight inside h1
84.0

Hight outside H
88.0

Thread Metric DIN 13
M 60

Base Cap Reference No. EP 810/ 90-1-G 78

Top Cap Reference No. EP 810 / 60-1-G 57

Max. Height inside
136.0

Reference No. EP 810 / 90-3.1-G 136

Spannersize SW
90

Hight inside h1
84.0

Hight outside H
88.0

Thread Metric DIN 13
M 60

Base Cap Reference No. EP 810/ 90-1-G 78

Top Cap Reference No. EP 810 / 60-1-G 107

Max. Height inside
188.0

Reference No. EP 810 / 90-3.1-G 188

Spannersize SW
90

Hight inside h1
145.0

Hight outside H
145.0

Thread Metric DIN 13
M 60

Base Cap Reference No. EP 810/ 90-1-G 140

Top Cap Reference No. EP 810 / 60-1-G 57

Max. Height inside
192.0

Reference No. EP 810 / 90-3.1-G 192

Spannersize SW
90

Hight inside h1
145.0

Hight outside H
145.0

Thread Metric DIN 13
M 60

Base Cap Reference No. EP 810/ 90-1-G 140

Top Cap Reference No. EP 810 / 60-1-G 107

Max. Height inside
244.0

Reference No. EP 810 / 90-3.1-G 244

Spannersize SW
95

Hight inside h1
85.4

Hight outside H
90.0

Thread Metric DIN 13
M 64

Base Cap Reference No. EP 810/ 95-1-G 86

Top Cap Reference No. EP 810 / 65-1-G 61

Max. Height inside
137.0

Reference No. EP 810 / 95-3.1-G 137

Spannersize SW
95

Hight inside h1
85.4

Hight outside H
90.0

Thread Metric DIN 13
M 64

Base Cap Reference No. EP 810/ 95-1-G 86

Top Cap Reference No. EP 810 / 65-1-G 123

Max. Height inside
203.0

Reference No. EP 810 / 95-3.1-G 203

Spannersize SW
95

Hight inside h1
143.0

Hight outside H
148.0

Thread Metric DIN 13
M 64

Base Cap Reference No. EP 810/ 95-1-G 143

Top Cap Reference No. EP 810 / 65-1-G 61

Max. Height inside
195.0

Reference No. EP 810 / 95-3.1-G 195

Spannersize SW
95

Hight inside h1
143.0

Hight outside H
148.0

Thread Metric DIN 13
M 64

Base Cap Reference No. EP 810/ 95-1-G 143

Top Cap Reference No. EP 810 / 65-1-G 123

Max. Height inside
261.0

Reference No. EP 810 / 95-3.1-G 261

Spannersize SW
100

Hight inside h1
89.8

Hight outside H
94.0

Thread Metric DIN 13
M 68

Base Cap Reference No. EP 810/ 100-1-G 90

Top Cap Reference No. EP 810 / 70-1-G 63

Max. Height inside
146.0

Reference No. EP 810 / 100-3.1-G 146

Spannersize SW
100

Hight inside h1
89.8

Hight outside H
94.0

Thread Metric DIN 13
M 68

Base Cap Reference No. EP 810/ 100-1-G 90

Top Cap Reference No. EP 810 / 70-1-G 113

Max. Height inside
198.0

Reference No. EP 810 / 100-3.1-G 198

Spannersize SW
100

Hight inside h1
150.0

Hight outside H
156.0

Thread Metric DIN 13
M 68

Base Cap Reference No. EP 810/ 100-1-G 150

Top Cap Reference No. EP 810 / 70-1-G 63

Max. Height inside
207.0

Reference No. EP 810 / 100-3.1-G 207

Spannersize SW
100

Hight inside h1
150.0

Hight outside H
156.0

Thread Metric DIN 13
M 68

Base Cap Reference No. EP 810/ 100-1-G 150

Top Cap Reference No. EP 810 / 70-1-G 113

Max. Height inside
258.0

Reference No. EP 810 / 100-3.1-G 258

Spannersize SW
105

Hight inside h1
92.7

Hight outside H
98.0

Thread Metric DIN 13
M 72

Base Cap Reference No. EP 810/ 105-1-G 90

Top Cap Reference No. EP 810 / 75-1-G 66

Max. Height inside
150.0

Reference No. EP 810 / 105-3.1-G 150

Spannersize SW
105

Hight inside h1
92.7

Hight outside H
98.0

Thread Metric DIN 13
M 72

Base Cap Reference No. EP 810/ 105-1-G 90

Top Cap Reference No. EP 810 / 75-1-G 96

Max. Height inside
180.0

Reference No. EP 810 / 105-3.1-G 180

Spannersize SW
105

Hight inside h1
149.1

Hight outside H
154.0

Thread Metric DIN 13
M 72

Base Cap Reference No. EP 810/ 105-1-G 150

Top Cap Reference No. EP 810 / 75-1-G 66

Max. Height inside
207.0

Reference No. EP 810 / 105-3.1-G 207

Spannersize SW
105

Hight inside h1
149.1

Hight outside H
154.0

Thread Metric DIN 13
M 72

Base Cap Reference No. EP 810/ 105-1-G 150

Top Cap Reference No. EP 810 / 75-1-G 96

Max. Height inside
236.0

Reference No. EP 810 / 105-3.1-G 236

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 810 Typ 3.1 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.

You might also be interested in these PROTEC series

CAPTOP® EP 800

Bolt and nut protection caps

CAPTOP® EP 810 Typ 1

Bolt and nut anti-corrosion snap caps

CAPTOP® EP 810 Typ 3.2

Bolt and nut adjustable telescopic snap caps

CAPTOP® EP 810 Typ 2

Bolt and nut anti-corrosion snap caps

Certified production & quality management

PROTEC meets the most stringent demands of safety and operations reliability. International approvals and certifications such as UL, CSA, VDE, VDA 6.1 and DIN EN ISO 9001: 2015 demonstrate total quality commitment on superior level.

Be the first to know - Join our newsletter!

Stay on top of the latest news and upcoming events and event information from PROTEC and its partner. Be the first to know when new products are on the market. Get periodic specials and news delivered directly to your email inbox! You can un-subscribe anytime.

Sign our free newsletter now

Imprint | Contact form | Privacy policy | Jobs at PROTEC | Certifications

copyright (c) 2024 PROTEC PLASTICS THE CAP COMPANY LTD
