ProteC CaPtoP® EP 800

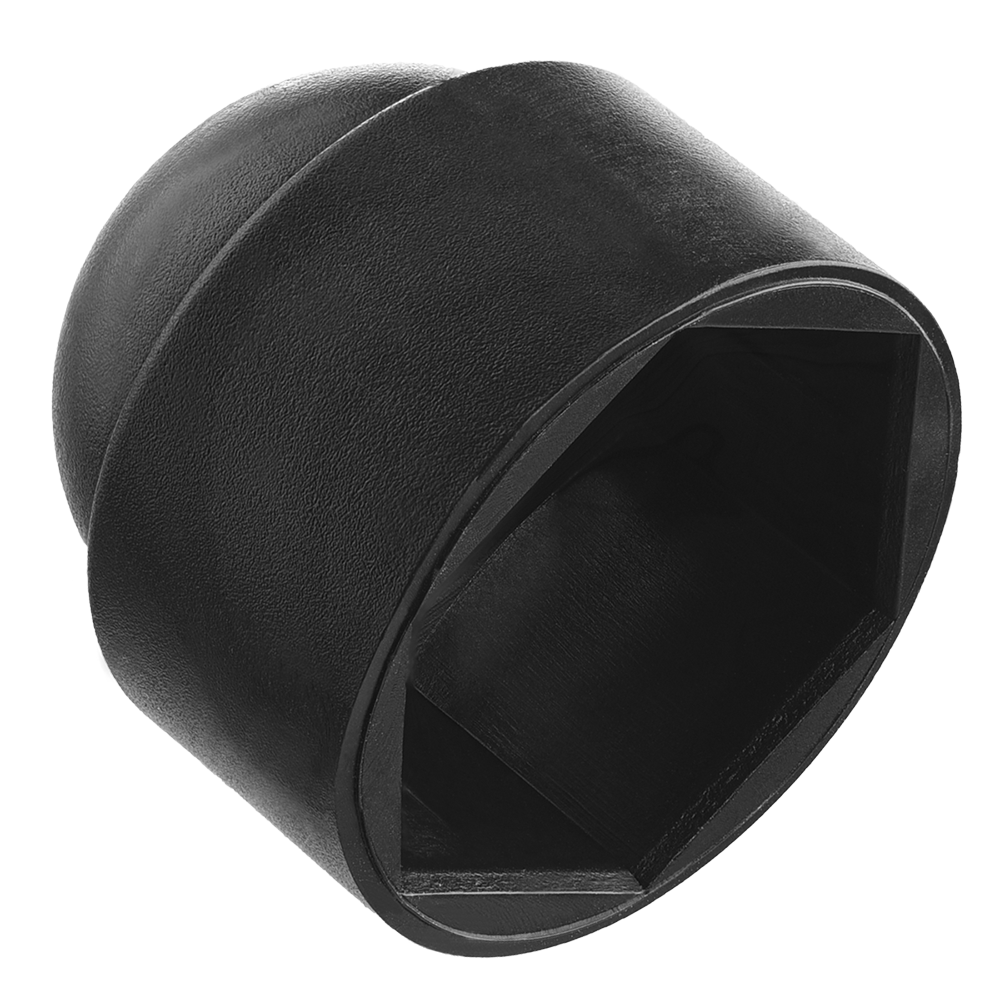

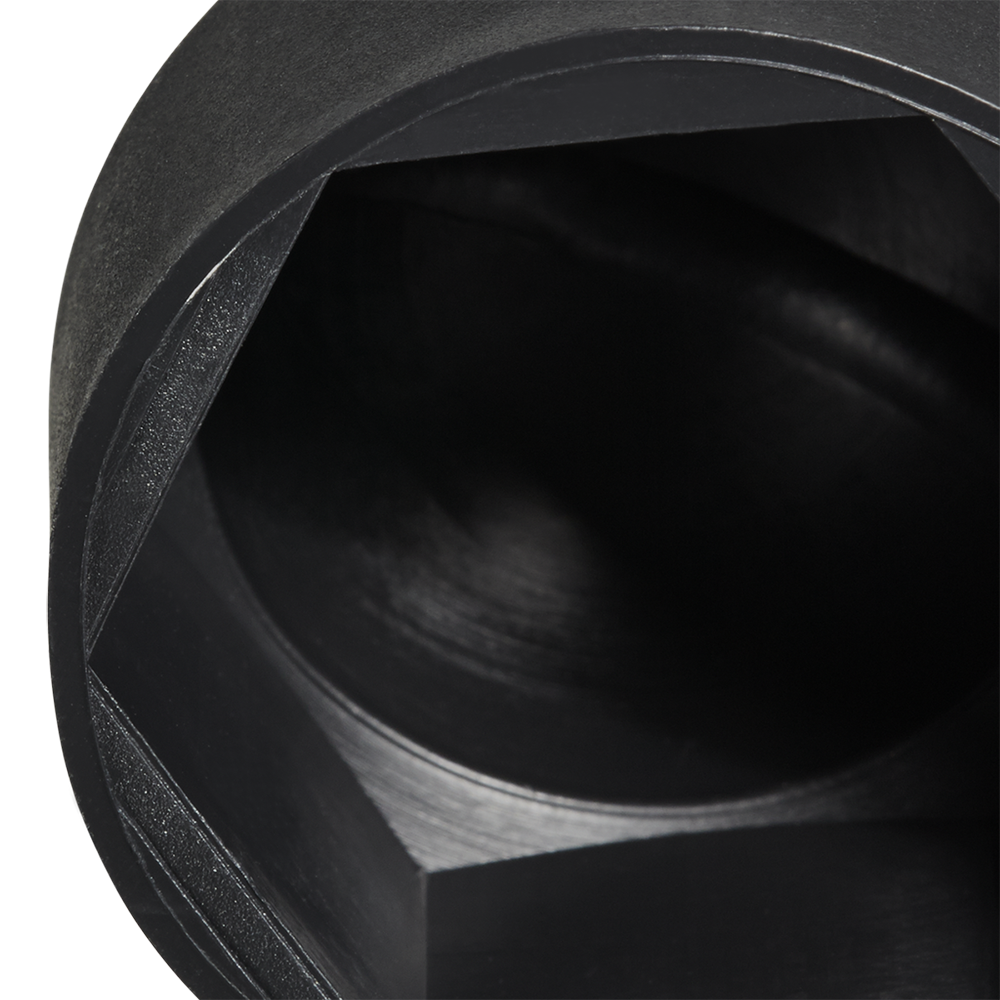

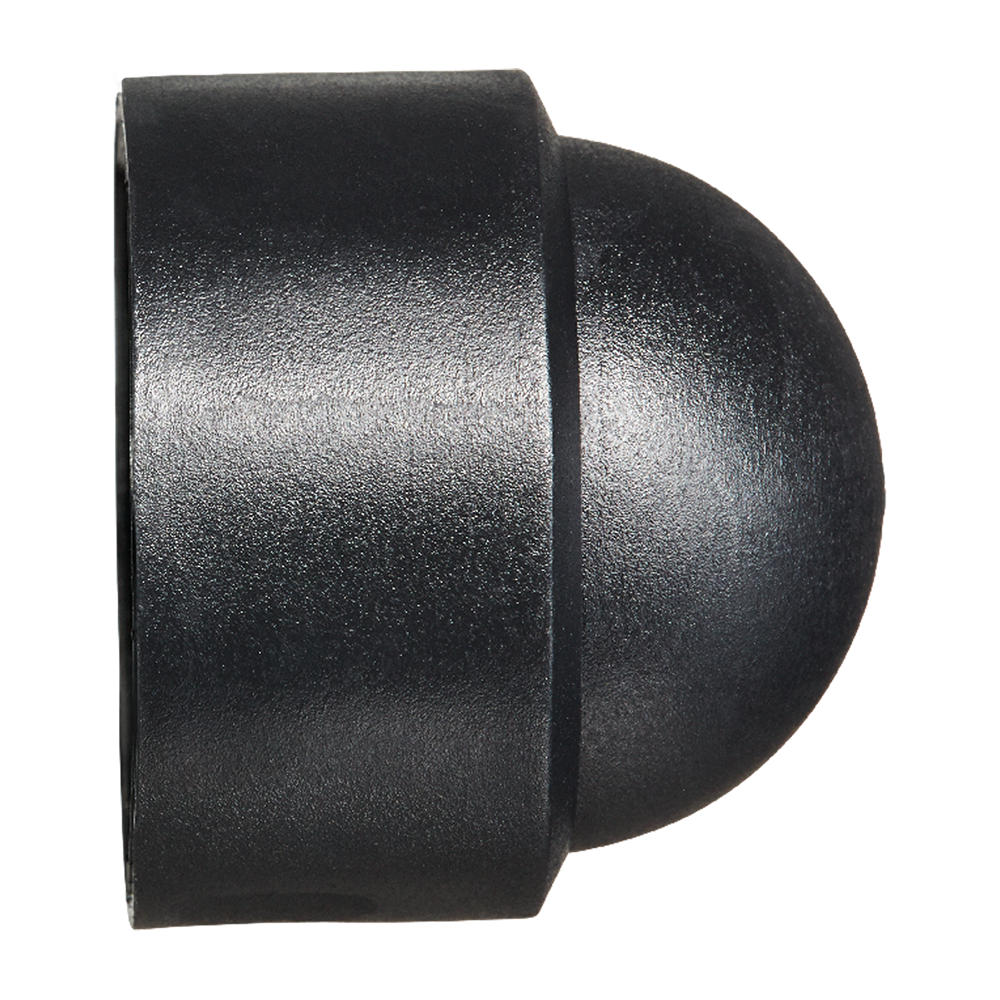

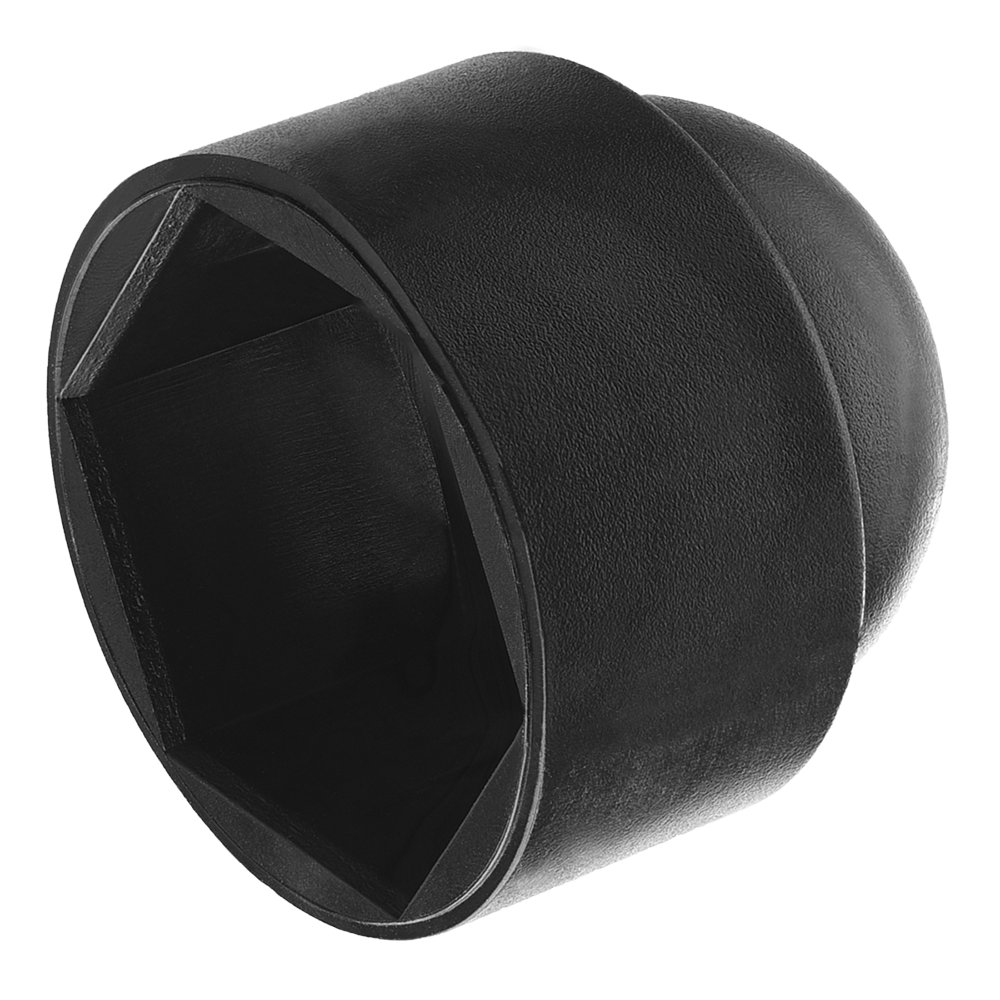

Bolt and nut protection caps


CaPtoP® EP 800

Bolt and nut protection caps


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

These caps cover nuts and exposed bolts and provide effective protection against damage and weathering and improve the finished appearance of your product.

Easy to fit and to remove.

Std. Color: black
Material: LD-PE, low density polyethylene

PROTEC CAPTOP EP 800

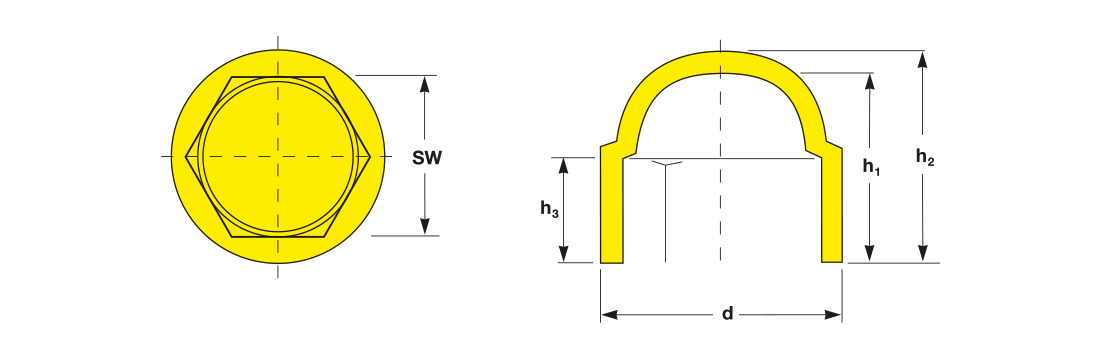

c d h1 h2 h3 SW Metric DIN 11
(BS 84)
DIN 240 DIN 259
DIN ISO 228
Reference No. Bookmark
  5.9     8.0     6.5     7.3   3.0   6.0 M   3.5 EP 800 / M   3.5 - SW   6
  6.9   10.0     8.2     9.8   5.9   7.0 M   4 EP 800 / M   4    - SW   7
  7.9   10.9     9.3   10.5   6.3   8.0 M   5 EP 800 / M   5    - SW   8
  9.8   12.9   11.0   12.5   6.5 10.0 M   6 EP 800 / M   6    - SW 10
10.8   13.7   11.6   13.0   6.5 11.0 M   7   .1/4 EP 800 / M   7    - SW 11
12.8   16.8   14.0   15.0   7.0 13.0 M   8 M   8 x 1 EP 800 / M   8    - SW 13
16.4   20.6   17.5   19.5   9.0 17.0 M 10 M 10 x 1   .3/8 EP 800 / M 10    - SW 17
18.4   22.9   18.4   20.3 10.0 19.0 M 12 M 12 x 1.5   .7/16 EP 800 / M 12    - SW 19
21.7   26.4   22.0   23.7 12.0 22.0 M 14 M 14 x 1.5   .1/2 R   .1/4" EP 800 / M 14    - SW 22
23.7   29.4   23.0   26.0 12.0 24.0 M 16 M 16 x 1.5 EP 800 / M 16    - SW 24
26.8   34.0   29.0   30.6 17.0 27.0 M 18 M 18 x 2 M 18 x 1.5   .5/8 R   .3/8" EP 800 / M 18    - SW 27
29.2   36.0   30.0   32.6 16.7 30.0 M 20 M 20 x 2 M 20 x 1.5 EP 800 / M 20    - SW 30
31.8   39.7   33.6   36.2 19.0 32.0 M 22 M 22 x 2 M 22 x 1.5   .3/4 W 20 x 1/10" R   .1/2" EP 800 / M 22    - SW 32
35.8   43.8   35.5   39.2 20.0 36.0 M 24 M 24 x 2 M 24 x 1.5   .7/8 W 22 x 1/10" R   .5/8" EP 800 / M 24    - SW 36
40.8   50.1   44.8   47.5 23.0 41.0 M 27 M 27 x 2 M 27 x 1.5 1." W 27 x 1/10" R   .3/4" EP 800 / M 27    - SW 41
40.8   50.1   44.0   46.5 23.0 41.0 M 27 M 27 x 2 M 28 x 1.5 1." W 27 x 1/10" R   .3/4" EP 800 / M 27    - SW 41
45.8   55.9   49.0   50.0 24.0 46.0 M 30 M 30 x 2 M 30 x 1.5 1.1/8" W 30 x 1/10" R   .7/8" EP 800 / M 30    - SW 46
49.3   60.5   53.0   55.5 26.2 50.0 M 33 M 33 x 2 M 33 x 1.5 EP 800 / M 33    - SW 50
54.8   67.0   57.0   59.5 28.5 55.0 M 36 M 36 x 2 M 36 x 3 EP 800 / M 36    - SW 55
59.7   73.0   60.0   61.6 32.3 60.0 M 39 M 39 x 2 M 38 x 1.5 EP 800 / M 39    - SW 60
59.7   72.0   60.0   62.5 38.0 60.0 M 39 M 39 x 3 M 40 x 1.5 EP 800 / M 39    - SW 60
59.7   72.0   60.0   62.5 38.0 60.0 M 39 M 39 x 3 M 39 x 1.5 EP 800 / M 39    - SW 60
63.7   77.5   63.0   65.5 35.0 65.0 M 42 M 42 x 3 M 42 x 1.5 1.5/8" EP 800 / M 42    - SW 65
69.7   85.5   70.0   72.0 33.0 70.0 M 45 1.3/4" EP 800 / M 45    - SW 70
75.0   91.6   77.5   79.0 41.0 75.0 M 48 1.7/8" W 48 x .1/8" R 1.1/2" EP 800 / M 48    - SW 75
80.0   98.0   82.6   84.6 43.5 80.0 M 52 2." W 52 x .1/8" R 1.3/4" EP 800 / M 52    - SW 80
85.0 104.2   88.6   91.6 48.0 85.0 M 56 2.1/4" W 56 x .1/6" EP 800 / M 56    - SW 85
95.0 116.7 102.0 105.5 55.0 95.0 M 64 2.1/2" W 64 x .1/6" R 2.1/4" EP 800 / M 64    - SW 95
c d h1 h2 h3 SW Reference No.
  5.9     8.0     6.5     7.3   3.0   6.0 EP 800 / M   3.5 - SW   6
  6.9   10.0     8.2     9.8   5.9   7.0 EP 800 / M   4    - SW   7
  7.9   10.9     9.3   10.5   6.3   8.0 EP 800 / M   5    - SW   8
  9.8   12.9   11.0   12.5   6.5 10.0 EP 800 / M   6    - SW 10
10.8   13.7   11.6   13.0   6.5 11.0 EP 800 / M   7    - SW 11
12.8   16.8   14.0   15.0   7.0 13.0 EP 800 / M   8    - SW 13
16.4   20.6   17.5   19.5   9.0 17.0 EP 800 / M 10    - SW 17
18.4   22.9   18.4   20.3 10.0 19.0 EP 800 / M 12    - SW 19
21.7   26.4   22.0   23.7 12.0 22.0 EP 800 / M 14    - SW 22
23.7   29.4   23.0   26.0 12.0 24.0 EP 800 / M 16    - SW 24
26.8   34.0   29.0   30.6 17.0 27.0 EP 800 / M 18    - SW 27
29.2   36.0   30.0   32.6 16.7 30.0 EP 800 / M 20    - SW 30
31.8   39.7   33.6   36.2 19.0 32.0 EP 800 / M 22    - SW 32
35.8   43.8   35.5   39.2 20.0 36.0 EP 800 / M 24    - SW 36
40.8   50.1   44.8   47.5 23.0 41.0 EP 800 / M 27    - SW 41
40.8   50.1   44.0   46.5 23.0 41.0 EP 800 / M 27    - SW 41
45.8   55.9   49.0   50.0 24.0 46.0 EP 800 / M 30    - SW 46
49.3   60.5   53.0   55.5 26.2 50.0 EP 800 / M 33    - SW 50
54.8   67.0   57.0   59.5 28.5 55.0 EP 800 / M 36    - SW 55
59.7   73.0   60.0   61.6 32.3 60.0 EP 800 / M 39    - SW 60
59.7   72.0   60.0   62.5 38.0 60.0 EP 800 / M 39    - SW 60
59.7   72.0   60.0   62.5 38.0 60.0 EP 800 / M 39    - SW 60
63.7   77.5   63.0   65.5 35.0 65.0 EP 800 / M 42    - SW 65
69.7   85.5   70.0   72.0 33.0 70.0 EP 800 / M 45    - SW 70
75.0   91.6   77.5   79.0 41.0 75.0 EP 800 / M 48    - SW 75
80.0   98.0   82.6   84.6 43.5 80.0 EP 800 / M 52    - SW 80
85.0 104.2   88.6   91.6 48.0 85.0 EP 800 / M 56    - SW 85
95.0 116.7 102.0 105.5 55.0 95.0 EP 800 / M 64    - SW 95
Dimensions c
5.9

Dimensions d
8.0

Dimensions h1
6.5

Dimensions h2
7.3

Dimensions h3
3.0

Dimensions SW
6.0

Metric
M 3.5

Reference No. EP 800 / M 3.5 - SW 6

Dimensions c
6.9

Dimensions d
10.0

Dimensions h1
8.2

Dimensions h2
9.8

Dimensions h3
5.9

Dimensions SW
7.0

Metric
M 4

Reference No. EP 800 / M 4 - SW 7

Dimensions c
7.9

Dimensions d
10.9

Dimensions h1
9.3

Dimensions h2
10.5

Dimensions h3
6.3

Dimensions SW
8.0

Metric
M 5

Reference No. EP 800 / M 5 - SW 8

Dimensions c
9.8

Dimensions d
12.9

Dimensions h1
11.0

Dimensions h2
12.5

Dimensions h3
6.5

Dimensions SW
10.0

Metric
M 6

Reference No. EP 800 / M 6 - SW 10

Dimensions c
10.8

Dimensions d
13.7

Dimensions h1
11.6

Dimensions h2
13.0

Dimensions h3
6.5

Dimensions SW
11.0

Metric
M 7

DIN 11 (BS 84)
.1/4

Reference No. EP 800 / M 7 - SW 11

Dimensions c
12.8

Dimensions d
16.8

Dimensions h1
14.0

Dimensions h2
15.0

Dimensions h3
7.0

Dimensions SW
13.0

Metric
M 8

Metric
M 8 x 1

Reference No. EP 800 / M 8 - SW 13

Dimensions c
16.4

Dimensions d
20.6

Dimensions h1
17.5

Dimensions h2
19.5

Dimensions h3
9.0

Dimensions SW
17.0

Metric
M 10

Metric
M 10 x 1

DIN 11 (BS 84)
.3/8

Reference No. EP 800 / M 10 - SW 17

Dimensions c
18.4

Dimensions d
22.9

Dimensions h1
18.4

Dimensions h2
20.3

Dimensions h3
10.0

Dimensions SW
19.0

Metric
M 12

Metric
M 12 x 1.5

DIN 11 (BS 84)
.7/16

Reference No. EP 800 / M 12 - SW 19

Dimensions c
21.7

Dimensions d
26.4

Dimensions h1
22.0

Dimensions h2
23.7

Dimensions h3
12.0

Dimensions SW
22.0

Metric
M 14

Metric
M 14 x 1.5

DIN 11 (BS 84)
.1/2

DIN 259 DIN ISO 228
R .1/4"

Reference No. EP 800 / M 14 - SW 22

Dimensions c
23.7

Dimensions d
29.4

Dimensions h1
23.0

Dimensions h2
26.0

Dimensions h3
12.0

Dimensions SW
24.0

Metric
M 16

Metric
M 16 x 1.5

Reference No. EP 800 / M 16 - SW 24

Dimensions c
26.8

Dimensions d
34.0

Dimensions h1
29.0

Dimensions h2
30.6

Dimensions h3
17.0

Dimensions SW
27.0

Metric
M 18

Metric
M 18 x 2

Metric
M 18 x 1.5

DIN 11 (BS 84)
.5/8

DIN 259 DIN ISO 228
R .3/8"

Reference No. EP 800 / M 18 - SW 27

Dimensions c
29.2

Dimensions d
36.0

Dimensions h1
30.0

Dimensions h2
32.6

Dimensions h3
16.7

Dimensions SW
30.0

Metric
M 20

Metric
M 20 x 2

Metric
M 20 x 1.5

Reference No. EP 800 / M 20 - SW 30

Dimensions c
31.8

Dimensions d
39.7

Dimensions h1
33.6

Dimensions h2
36.2

Dimensions h3
19.0

Dimensions SW
32.0

Metric
M 22

Metric
M 22 x 2

Metric
M 22 x 1.5

DIN 11 (BS 84)
.3/4

DIN 240
W 20 x 1/10"

DIN 259 DIN ISO 228
R .1/2"

Reference No. EP 800 / M 22 - SW 32

Dimensions c
35.8

Dimensions d
43.8

Dimensions h1
35.5

Dimensions h2
39.2

Dimensions h3
20.0

Dimensions SW
36.0

Metric
M 24

Metric
M 24 x 2

Metric
M 24 x 1.5

DIN 11 (BS 84)
.7/8

DIN 240
W 22 x 1/10"

DIN 259 DIN ISO 228
R .5/8"

Reference No. EP 800 / M 24 - SW 36

Dimensions c
40.8

Dimensions d
50.1

Dimensions h1
44.8

Dimensions h2
47.5

Dimensions h3
23.0

Dimensions SW
41.0

Metric
M 27

Metric
M 27 x 2

Metric
M 27 x 1.5

DIN 11 (BS 84)
1."

DIN 240
W 27 x 1/10"

DIN 259 DIN ISO 228
R .3/4"

Reference No. EP 800 / M 27 - SW 41

Dimensions c
40.8

Dimensions d
50.1

Dimensions h1
44.0

Dimensions h2
46.5

Dimensions h3
23.0

Dimensions SW
41.0

Metric
M 27

Metric
M 27 x 2

Metric
M 28 x 1.5

DIN 11 (BS 84)
1."

DIN 240
W 27 x 1/10"

DIN 259 DIN ISO 228
R .3/4"

Reference No. EP 800 / M 27 - SW 41

Dimensions c
45.8

Dimensions d
55.9

Dimensions h1
49.0

Dimensions h2
50.0

Dimensions h3
24.0

Dimensions SW
46.0

Metric
M 30

Metric
M 30 x 2

Metric
M 30 x 1.5

DIN 11 (BS 84)
1.1/8"

DIN 240
W 30 x 1/10"

DIN 259 DIN ISO 228
R .7/8"

Reference No. EP 800 / M 30 - SW 46

Dimensions c
49.3

Dimensions d
60.5

Dimensions h1
53.0

Dimensions h2
55.5

Dimensions h3
26.2

Dimensions SW
50.0

Metric
M 33

Metric
M 33 x 2

Metric
M 33 x 1.5

Reference No. EP 800 / M 33 - SW 50

Dimensions c
54.8

Dimensions d
67.0

Dimensions h1
57.0

Dimensions h2
59.5

Dimensions h3
28.5

Dimensions SW
55.0

Metric
M 36

Metric
M 36 x 2

Metric
M 36 x 3

Reference No. EP 800 / M 36 - SW 55

Dimensions c
59.7

Dimensions d
73.0

Dimensions h1
60.0

Dimensions h2
61.6

Dimensions h3
32.3

Dimensions SW
60.0

Metric
M 39

Metric
M 39 x 2

Metric
M 38 x 1.5

Reference No. EP 800 / M 39 - SW 60

Dimensions c
59.7

Dimensions d
72.0

Dimensions h1
60.0

Dimensions h2
62.5

Dimensions h3
38.0

Dimensions SW
60.0

Metric
M 39

Metric
M 39 x 3

Metric
M 40 x 1.5

Reference No. EP 800 / M 39 - SW 60

Dimensions c
59.7

Dimensions d
72.0

Dimensions h1
60.0

Dimensions h2
62.5

Dimensions h3
38.0

Dimensions SW
60.0

Metric
M 39

Metric
M 39 x 3

Metric
M 39 x 1.5

Reference No. EP 800 / M 39 - SW 60

Dimensions c
63.7

Dimensions d
77.5

Dimensions h1
63.0

Dimensions h2
65.5

Dimensions h3
35.0

Dimensions SW
65.0

Metric
M 42

Metric
M 42 x 3

Metric
M 42 x 1.5

DIN 11 (BS 84)
1.5/8"

Reference No. EP 800 / M 42 - SW 65

Dimensions c
69.7

Dimensions d
85.5

Dimensions h1
70.0

Dimensions h2
72.0

Dimensions h3
33.0

Dimensions SW
70.0

Metric
M 45

DIN 11 (BS 84)
1.3/4"

Reference No. EP 800 / M 45 - SW 70

Dimensions c
75.0

Dimensions d
91.6

Dimensions h1
77.5

Dimensions h2
79.0

Dimensions h3
41.0

Dimensions SW
75.0

Metric
M 48

DIN 11 (BS 84)
1.7/8"

DIN 240
W 48 x .1/8"

DIN 259 DIN ISO 228
R 1.1/2"

Reference No. EP 800 / M 48 - SW 75

Dimensions c
80.0

Dimensions d
98.0

Dimensions h1
82.6

Dimensions h2
84.6

Dimensions h3
43.5

Dimensions SW
80.0

Metric
M 52

DIN 11 (BS 84)
2."

DIN 240
W 52 x .1/8"

DIN 259 DIN ISO 228
R 1.3/4"

Reference No. EP 800 / M 52 - SW 80

Dimensions c
85.0

Dimensions d
104.2

Dimensions h1
88.6

Dimensions h2
91.6

Dimensions h3
48.0

Dimensions SW
85.0

Metric
M 56

DIN 11 (BS 84)
2.1/4"

DIN 240
W 56 x .1/6"

Reference No. EP 800 / M 56 - SW 85

Dimensions c
95.0

Dimensions d
116.7

Dimensions h1
102.0

Dimensions h2
105.5

Dimensions h3
55.0

Dimensions SW
95.0

Metric
M 64

DIN 11 (BS 84)
2.1/2"

DIN 240
W 64 x .1/6"

DIN 259 DIN ISO 228
R 2.1/4"

Reference No. EP 800 / M 64 - SW 95

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 800 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.

You might also be interested in these PROTEC series

CAPTOP® EP 306

Push-in flange face protectors

CAPTOP® EP 300

Valve flange protection plugs

DURA-SAFE® SES 3000

Sandblasting flange push-in plugs, Nylon PA

CAPTOP® EP 207

High temperature cylindrical closures

Certified production & quality management

PROTEC meets the most stringent demands of safety and operations reliability. International approvals and certifications such as UL, CSA, VDE, VDA 6.1 and DIN EN ISO 9001: 2015 demonstrate total quality commitment on superior level.

Be the first to know - Join our newsletter!

Stay on top of the latest news and upcoming events and event information from PROTEC and its partner. Be the first to know when new products are on the market. Get periodic specials and news delivered directly to your email inbox! You can un-subscribe anytime.

Sign our free newsletter now

Imprint | Contact form | Privacy policy | Jobs at PROTEC | Certifications

copyright (c) 2024 PROTEC PLASTICS THE CAP COMPANY LTD
