ProteC QuiCk-fit® EPN 715

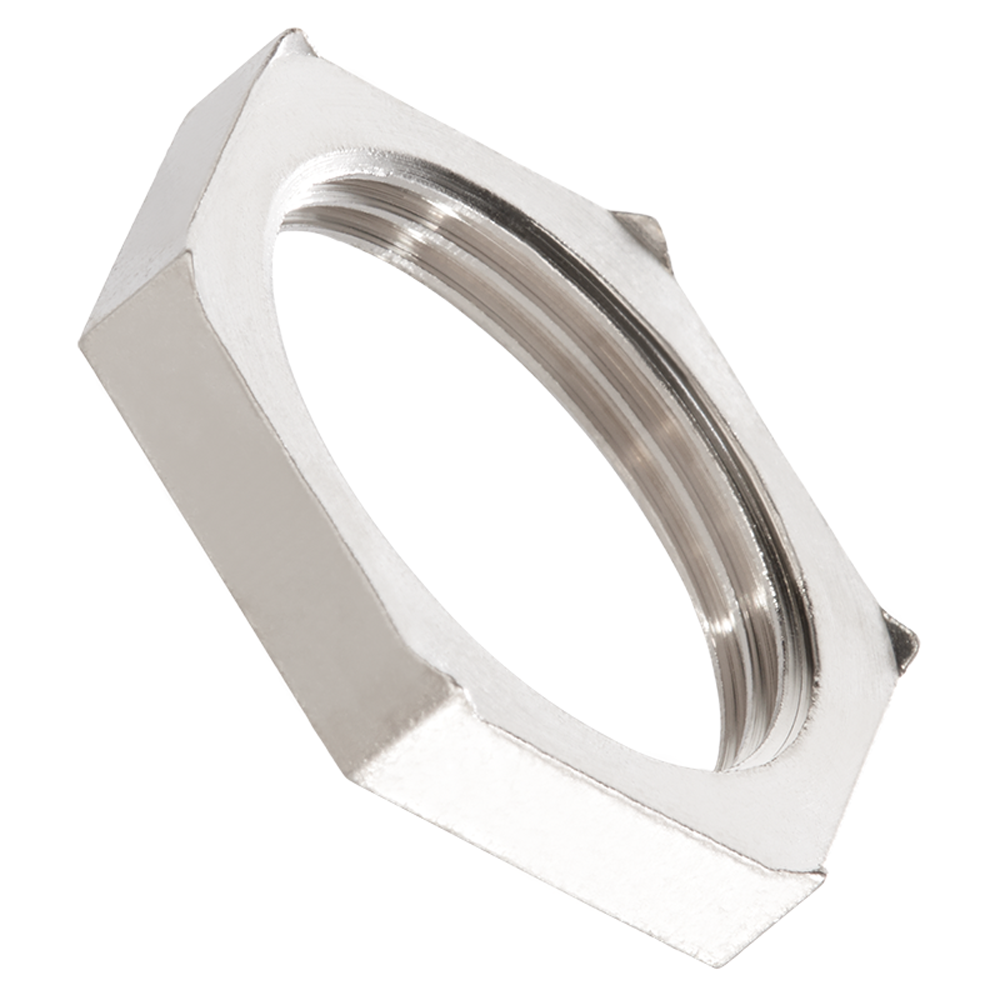

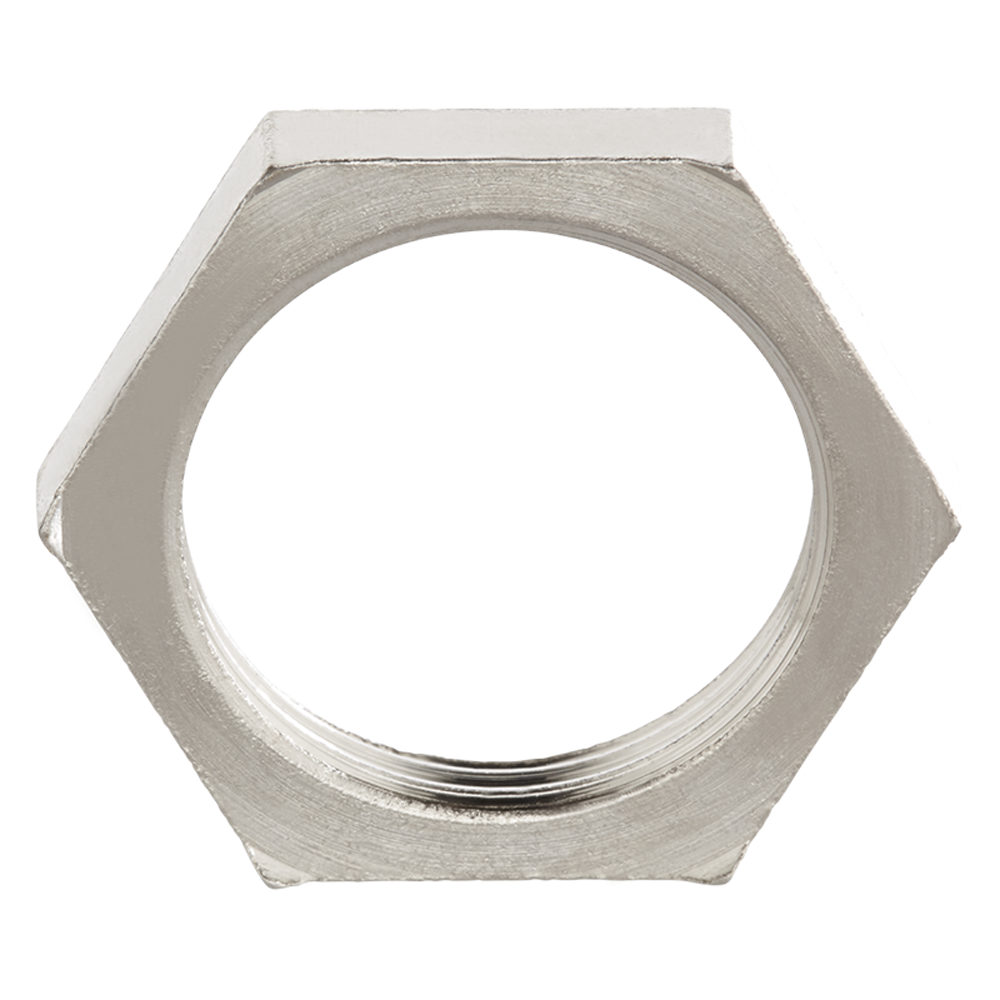

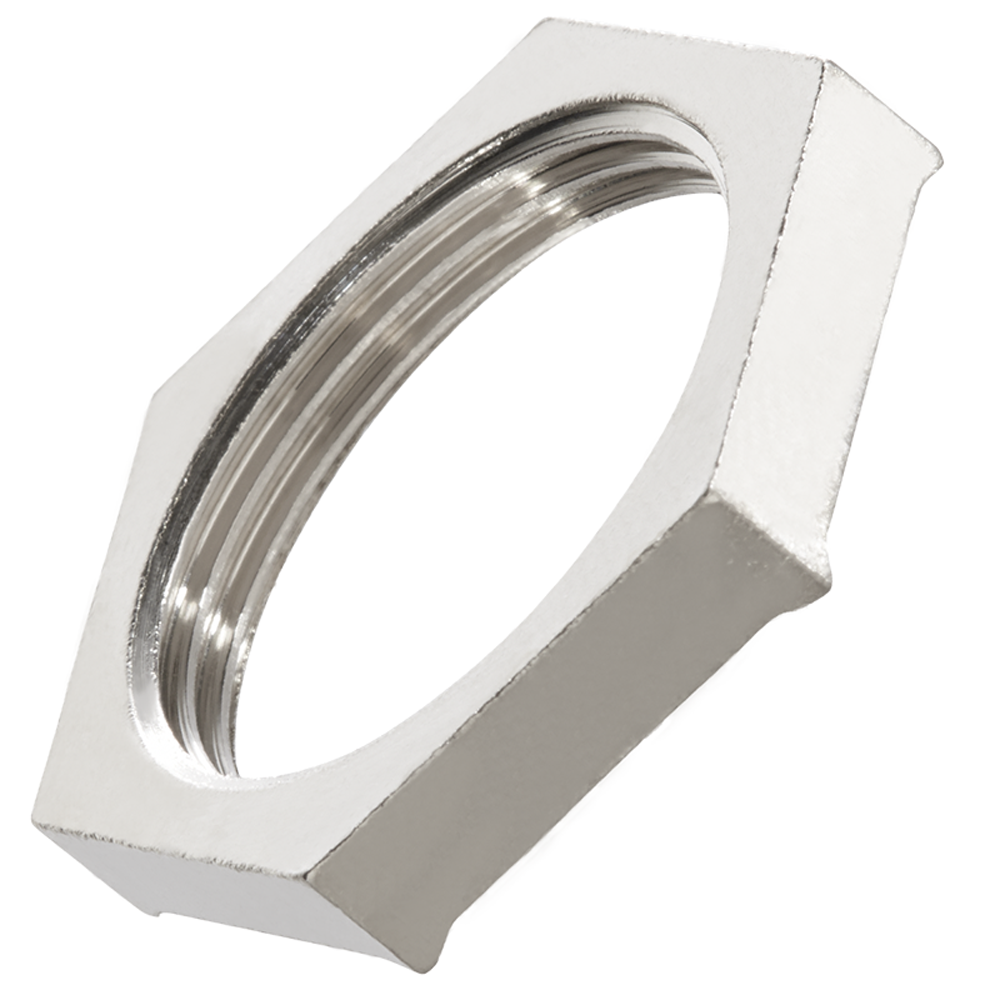

EMC Locknuts, Brass, Nickel plated


QuiCk-fit® EPN 715

EMC Locknuts, Brass, Nickel plated


With cutting edges.

To secure tightening of EMC-cable glands these EMC / EMI hexagon shaped locknuts with cutting edges provide best possible shield contact.

Manufactured in nickel plated brass these specially designed lock-nuts cut through protective powder coatings ensuring optimal contact for equipotential bonding, increased vibration resistance.

Material: Brass, nickel plated

PROTEC QUICK-FIT EPN 715

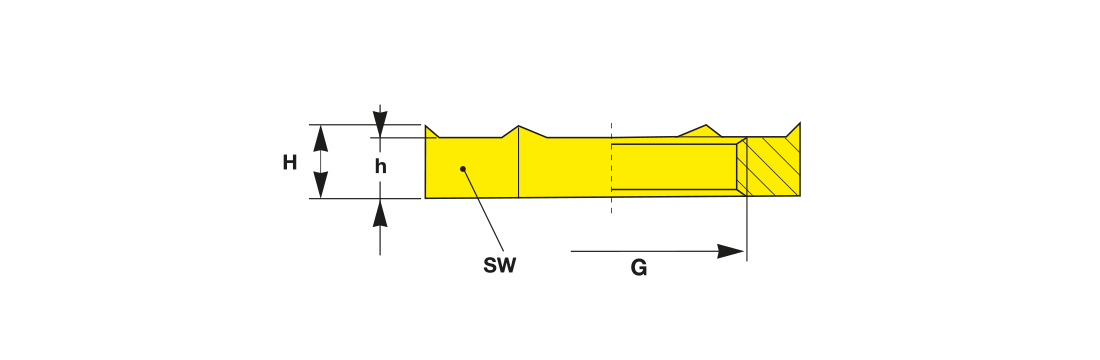

G h H SW Reference No. Bookmark
M 12 x 1.5 2.8 3.5 15 EPN 715/ M 12 x 1.5
M 16 x 1.5 2.8 3.5 19 EPN 715/ M 16 x 1.5
M 20 x 1.5 3.0 3.7 24 EPN 715/ M 20 x 1.5
M 25 x 1.5 3.5 4.2 30 EPN 715/ M 25 x 1.5
M 32 x 1.5 4.0 4.7 36 EPN 715/ M 32 x 1.5
M 40 x 1.5 5.0 6.0 46 EPN 715/ M 40 x 1.5
M 50 x 1.5 5.0 6.0 60 EPN 715/ M 50 x 1.5
M 63 x 1.5 6.0 7.0 70 EPN 715/ M 63 x 1.5
G h H SW Reference No.
M 12 x 1.5 2.8 3.5 15 EPN 715/ M 12 x 1.5
M 16 x 1.5 2.8 3.5 19 EPN 715/ M 16 x 1.5
M 20 x 1.5 3.0 3.7 24 EPN 715/ M 20 x 1.5
M 25 x 1.5 3.5 4.2 30 EPN 715/ M 25 x 1.5
M 32 x 1.5 4.0 4.7 36 EPN 715/ M 32 x 1.5
M 40 x 1.5 5.0 6.0 46 EPN 715/ M 40 x 1.5
M 50 x 1.5 5.0 6.0 60 EPN 715/ M 50 x 1.5
M 63 x 1.5 6.0 7.0 70 EPN 715/ M 63 x 1.5
Thread G
M 12 x 1.5

Hight inside h
2.8

Height H
3.5

Spannersize SW
15

Reference No. EPN 715/ M 12 x 1.5

Thread G
M 16 x 1.5

Hight inside h
2.8

Height H
3.5

Spannersize SW
19

Reference No. EPN 715/ M 16 x 1.5

Thread G
M 20 x 1.5

Hight inside h
3.0

Height H
3.7

Spannersize SW
24

Reference No. EPN 715/ M 20 x 1.5

Thread G
M 25 x 1.5

Hight inside h
3.5

Height H
4.2

Spannersize SW
30

Reference No. EPN 715/ M 25 x 1.5

Thread G
M 32 x 1.5

Hight inside h
4.0

Height H
4.7

Spannersize SW
36

Reference No. EPN 715/ M 32 x 1.5

Thread G
M 40 x 1.5

Hight inside h
5.0

Height H
6.0

Spannersize SW
46

Reference No. EPN 715/ M 40 x 1.5

Thread G
M 50 x 1.5

Hight inside h
5.0

Height H
6.0

Spannersize SW
60

Reference No. EPN 715/ M 50 x 1.5

Thread G
M 63 x 1.5

Hight inside h
6.0

Height H
7.0

Spannersize SW
70

Reference No. EPN 715/ M 63 x 1.5

PROTEC products and specifications are subject to improvement and change without notice.

QUICK-FIT® EPN 715 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

With cutting edges. To secure tightening of EMC-Cable Glands, to cut through paint or powder coatings ensuring optimal contact for equipotential bonding, increased vibration stability.

On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Ask for free no-obligation samples and more information on our contact form.
