ProteC QuiCk-fit® EPN 650

Thread enlargers


QuiCk-fit® EPN 650

Thread enlargers


YOUR QUICK-FIT® ADVANTAGE:   Best Price in the Market

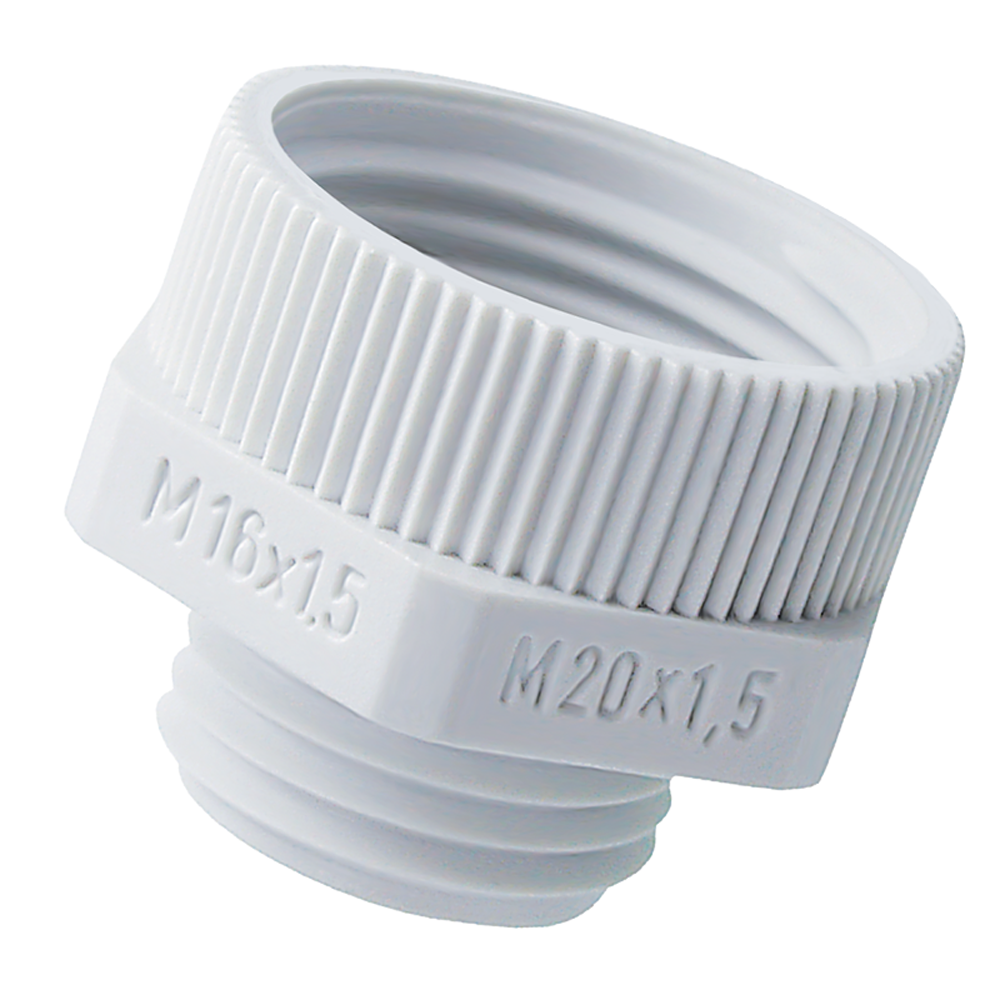

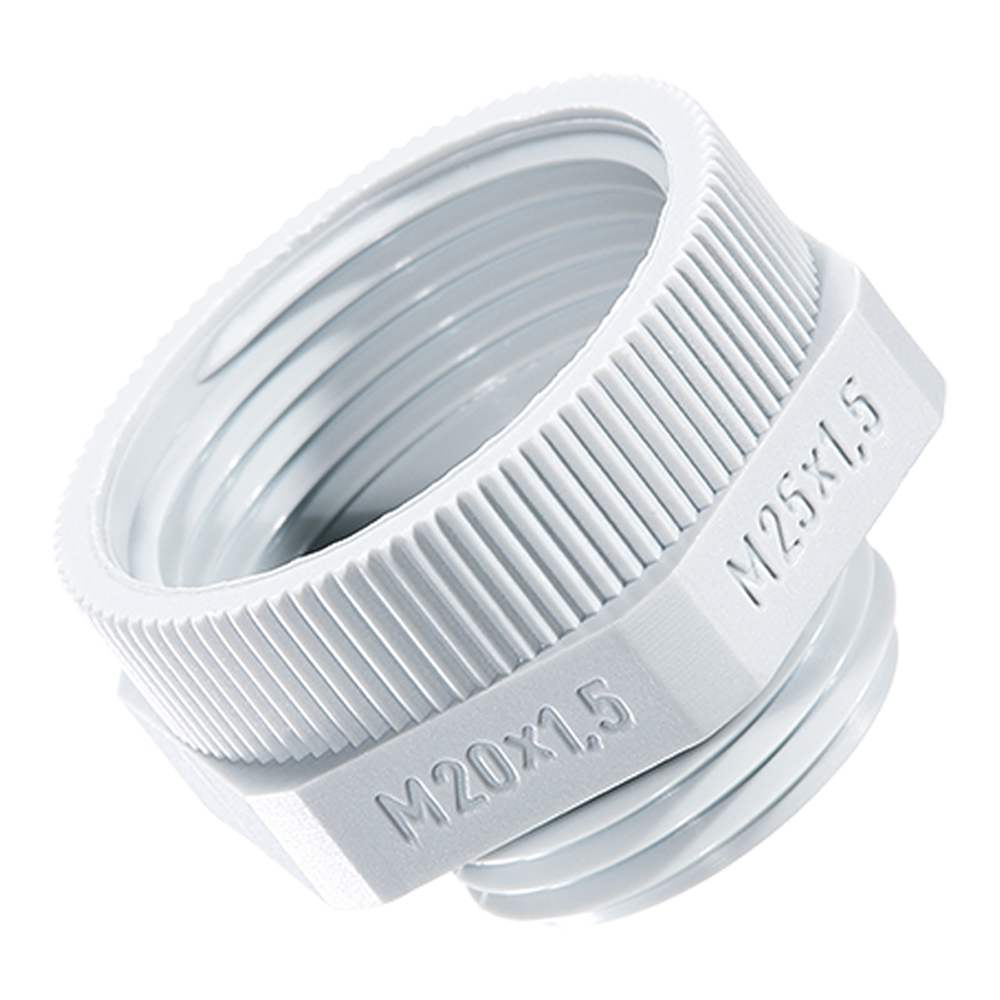

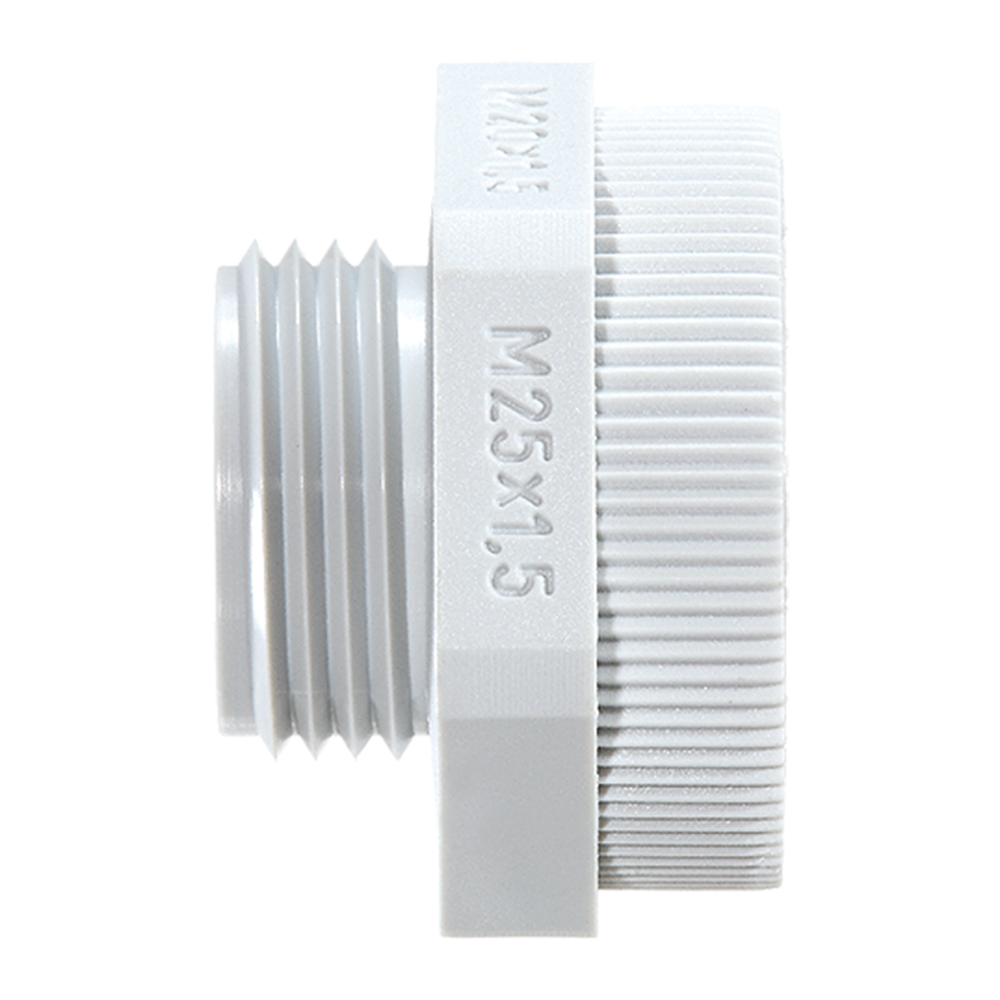

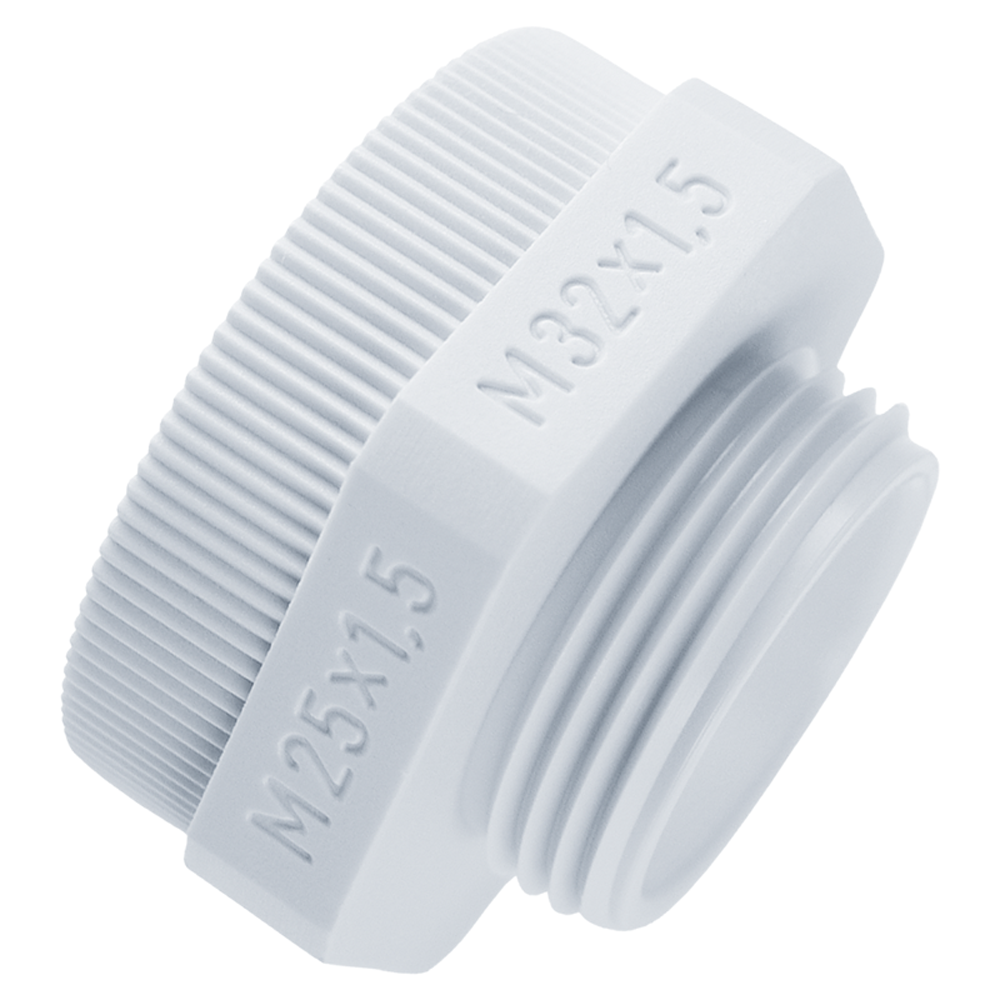

These components enlarge the threaded entry diameter on any threaded interface from a smaller to larger thread size in order to accept a suitable gland.

Configuration: From small external Metric to large internal Metric and from small external PG to large internal PG.

Std. Color: RAL 7035, light grey
Material: PA 6, impact restistant nylon

PROTEC QUICK-FIT EPN 650

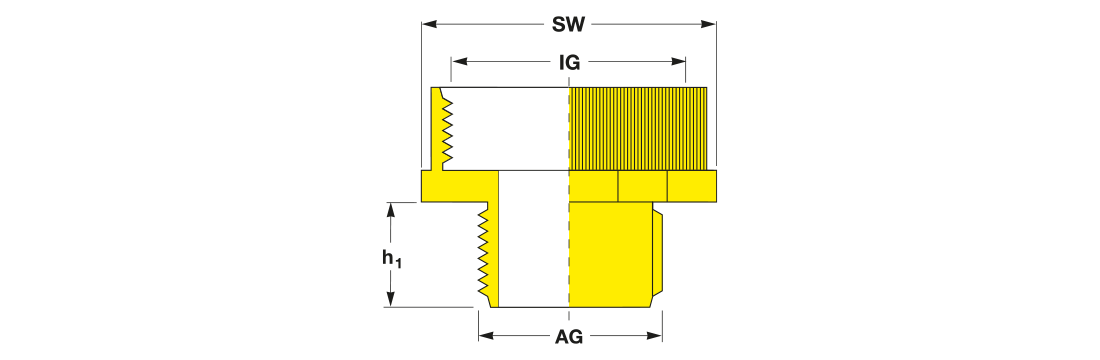

AG IG SW h1 Reference No. Bookmark
  Metric
M 12 M 16 SW 20   8.0 EPN 650/ M 12 - M 16
M 16 M 20 SW 24   8.0 EPN 650/ M 16 - M 20
M 20 M 25 SW 30   8.0 EPN 650/ M 20 - M 25
M 25 M 32 SW 37   8.0 EPN 650/ M 25 - M 32
M 32 M 40 SW 45 10.0 EPN 650/ M 32 - M 40
  PG
PG   7 PG   9 SW 19   7.0 EPN 650/ PG   7 -  PG   9
PG   9 PG 11 SW 22   8.0 EPN 650/ PG   9 -  PG 11
PG 11 PG 13.5 SW 24   8.0 EPN 650/ PG 11 - PG 13.5
PG 11 PG 16 SW 27   8.0 EPN 650/ PG 11 - PG 16
PG 13.5 PG 16 SW 27   9.0 EPN 650/ PG 13.5 - PG 16
PG 16 PG 21 SW 32   9.0 EPN 650/ PG 16 - PG 21
PG 21 PG 29 SW 42 10.0 EPN 650/ PG 21 - PG 29
PG 29 PG 36 SW 53 11.0 EPN 650/ PG 29 - PG 36
PG 36 PG 42 SW 60 13.0 EPN 650/ PG 36 - PG 42
PG 42 PG 48 SW 65 13.0 EPN 650/ PG 42 - PG 48
AG IG SW h1 Reference No.
  Metric
M 12 M 16 SW 20   8.0 EPN 650/ M 12 - M 16
M 16 M 20 SW 24   8.0 EPN 650/ M 16 - M 20
M 20 M 25 SW 30   8.0 EPN 650/ M 20 - M 25
M 25 M 32 SW 37   8.0 EPN 650/ M 25 - M 32
M 32 M 40 SW 45 10.0 EPN 650/ M 32 - M 40
  PG
PG   7 PG   9 SW 19   7.0 EPN 650/ PG   7 -  PG   9
PG   9 PG 11 SW 22   8.0 EPN 650/ PG   9 -  PG 11
PG 11 PG 13.5 SW 24   8.0 EPN 650/ PG 11 - PG 13.5
PG 11 PG 16 SW 27   8.0 EPN 650/ PG 11 - PG 16
PG 13.5 PG 16 SW 27   9.0 EPN 650/ PG 13.5 - PG 16
PG 16 PG 21 SW 32   9.0 EPN 650/ PG 16 - PG 21
PG 21 PG 29 SW 42 10.0 EPN 650/ PG 21 - PG 29
PG 29 PG 36 SW 53 11.0 EPN 650/ PG 29 - PG 36
PG 36 PG 42 SW 60 13.0 EPN 650/ PG 36 - PG 42
PG 42 PG 48 SW 65 13.0 EPN 650/ PG 42 - PG 48
  Metric
from Thread external AG
M 12

to Thread inmternal IG
M 16

to Spannersize SW
SW 20

Thread Length h1
8.0

Reference No. EPN 650/ M 12 - M 16

from Thread external AG
M 16

to Thread inmternal IG
M 20

to Spannersize SW
SW 24

Thread Length h1
8.0

Reference No. EPN 650/ M 16 - M 20

from Thread external AG
M 20

to Thread inmternal IG
M 25

to Spannersize SW
SW 30

Thread Length h1
8.0

Reference No. EPN 650/ M 20 - M 25

from Thread external AG
M 25

to Thread inmternal IG
M 32

to Spannersize SW
SW 37

Thread Length h1
8.0

Reference No. EPN 650/ M 25 - M 32

from Thread external AG
M 32

to Thread inmternal IG
M 40

to Spannersize SW
SW 45

Thread Length h1
10.0

Reference No. EPN 650/ M 32 - M 40

  PG
from Thread external AG
PG 7

to Thread inmternal IG
PG 9

to Spannersize SW
SW 19

Thread Length h1
7.0

Reference No. EPN 650/ PG 7 - PG 9

from Thread external AG
PG 9

to Thread inmternal IG
PG 11

to Spannersize SW
SW 22

Thread Length h1
8.0

Reference No. EPN 650/ PG 9 - PG 11

from Thread external AG
PG 11

to Thread inmternal IG
PG 13.5

to Spannersize SW
SW 24

Thread Length h1
8.0

Reference No. EPN 650/ PG 11 - PG 13.5

from Thread external AG
PG 11

to Thread inmternal IG
PG 16

to Spannersize SW
SW 27

Thread Length h1
8.0

Reference No. EPN 650/ PG 11 - PG 16

from Thread external AG
PG 13.5

to Thread inmternal IG
PG 16

to Spannersize SW
SW 27

Thread Length h1
9.0

Reference No. EPN 650/ PG 13.5 - PG 16

from Thread external AG
PG 16

to Thread inmternal IG
PG 21

to Spannersize SW
SW 32

Thread Length h1
9.0

Reference No. EPN 650/ PG 16 - PG 21

from Thread external AG
PG 21

to Thread inmternal IG
PG 29

to Spannersize SW
SW 42

Thread Length h1
10.0

Reference No. EPN 650/ PG 21 - PG 29

from Thread external AG
PG 29

to Thread inmternal IG
PG 36

to Spannersize SW
SW 53

Thread Length h1
11.0

Reference No. EPN 650/ PG 29 - PG 36

from Thread external AG
PG 36

to Thread inmternal IG
PG 42

to Spannersize SW
SW 60

Thread Length h1
13.0

Reference No. EPN 650/ PG 36 - PG 42

from Thread external AG
PG 42

to Thread inmternal IG
PG 48

to Spannersize SW
SW 65

Thread Length h1
13.0

Reference No. EPN 650/ PG 42 - PG 48

PROTEC products and specifications are subject to improvement and change without notice.

QUICK-FIT® EPN 650 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.
