ProteC CaPtoP® EP 200 Form A

Stud protection caps with knurled top


CaPtoP® EP 200 Form A

Stud protection caps with knurled top


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

Used throughout the automotive and engineering industries for protecting exposed studs.

Flanged for easy removal.

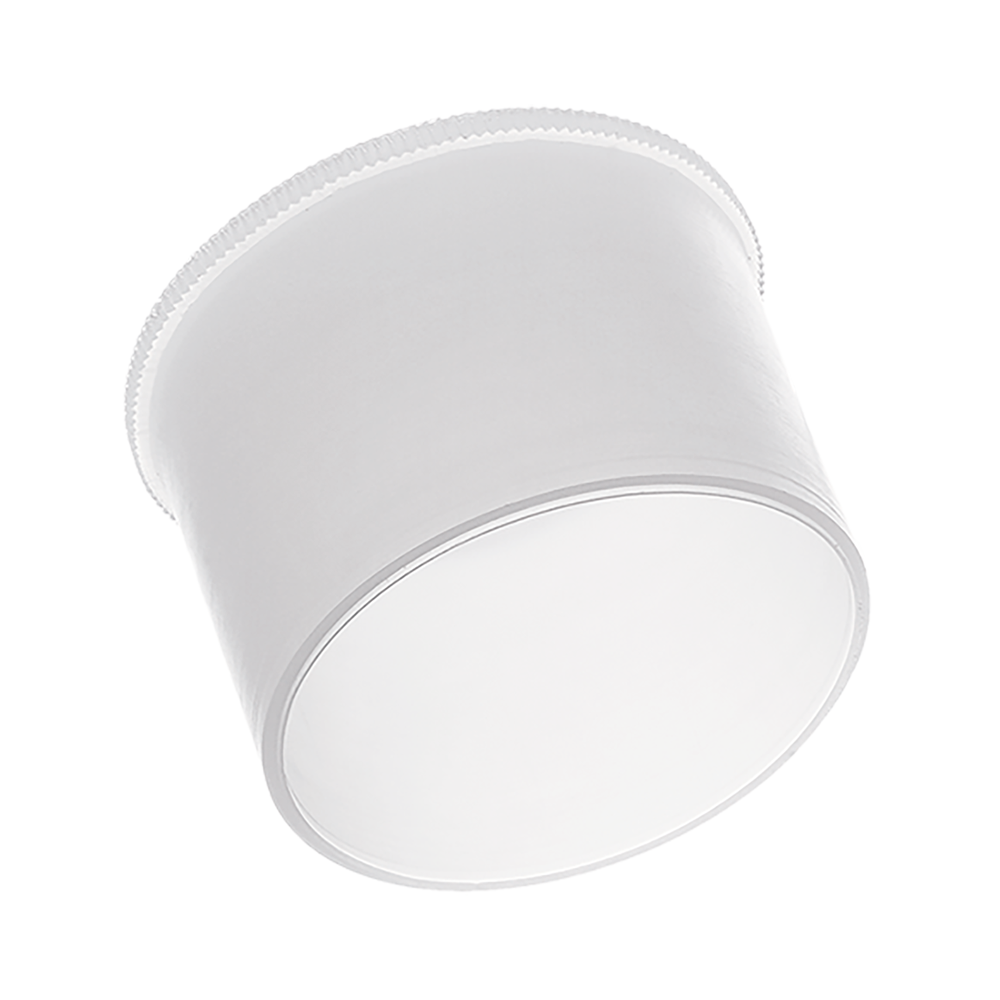

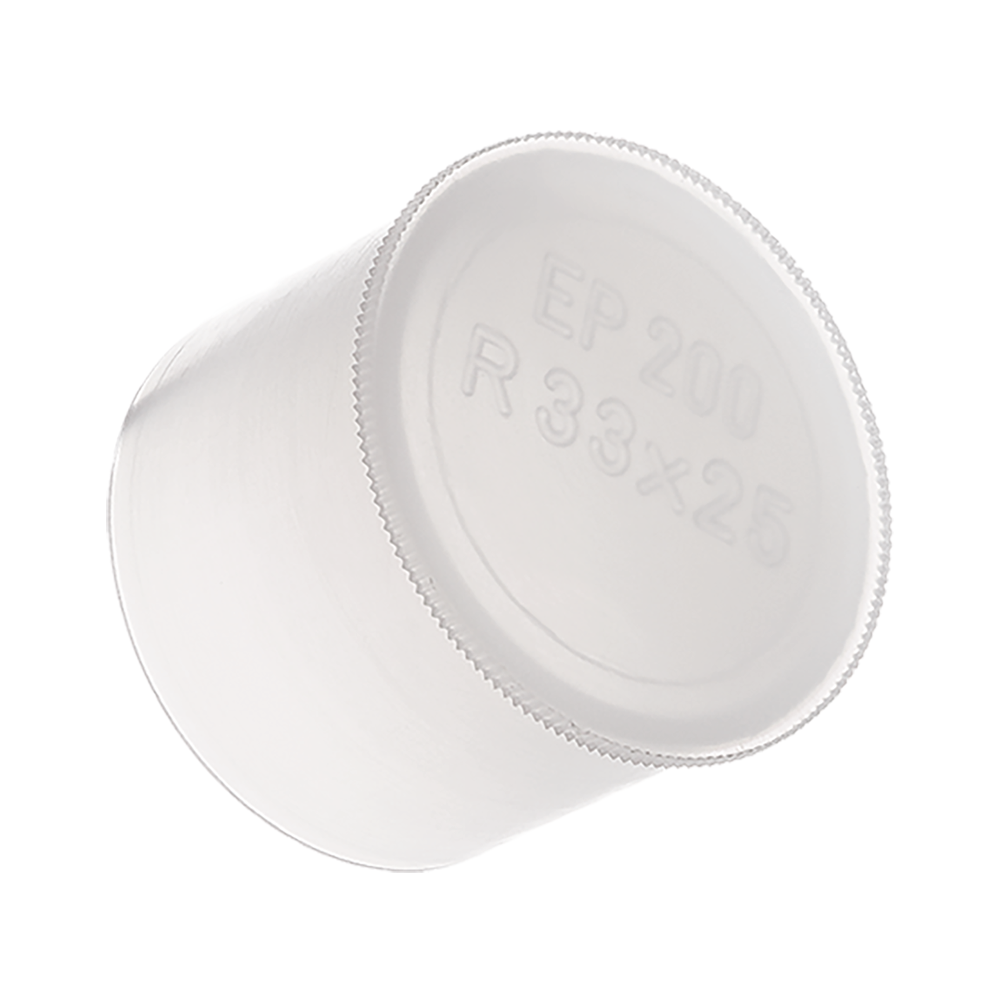

Cylindrical caps with easy-to-grip knurled top for maximum protection of threaded studs, pipe ends and shafts.

Std. Color: natural
Material: LLD-PE, linear low density polyethylene

PROTEC CAPTOP EP 200 Form A

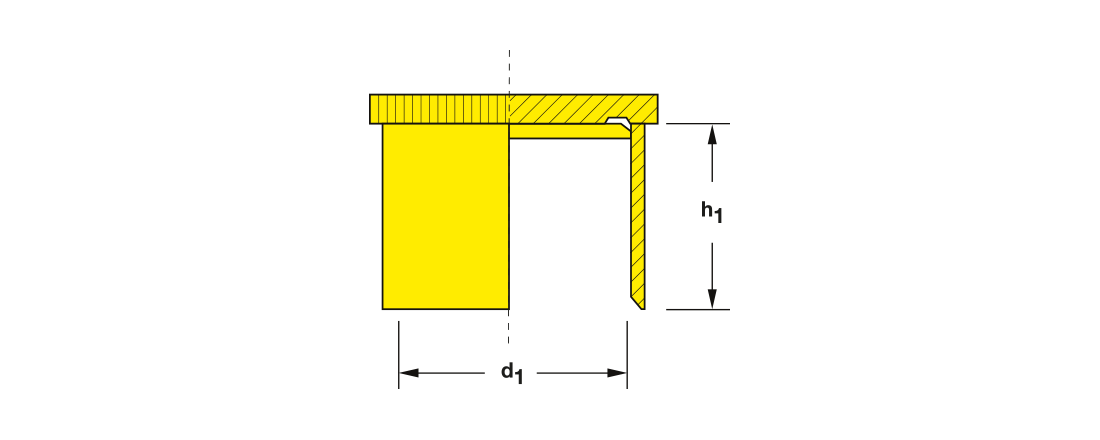

d1 h1 Reference No. Bookmark
  8.0 10.6 EP 200 / R   8x10
  9.0 16.0 EP 200 / R   9x16
10.0 10.4 EP 200 / R 10x10
10.0 28.0 EP 200 / R 10x28
12.0 16.4 EP 200 / R 12x16
14.0 15.5 EP 200 / R 14x15
16.0 15.6 EP 200 / R 16x15
16.0 20.3 EP 200 / R 16x20
18.0 20.9 EP 200 / R 18x20
20.0 19.7 EP 200 / R 20x20
22.0 19.0 EP 200 / R 22x18
26.0 31.0 EP 200 / R 26x31
27.0 20.0 EP 200 / R 27x20
30.0 31.0 EP 200 / R 30x31
33.0 25.0 EP 200 / R 33x25
35.0 33.0 EP 200 / R 35x33
40.0 27.0 EP 200 / R 40x27
d1 h1 Reference No.
  8.0 10.6 EP 200 / R   8x10
  9.0 16.0 EP 200 / R   9x16
10.0 10.4 EP 200 / R 10x10
10.0 28.0 EP 200 / R 10x28
12.0 16.4 EP 200 / R 12x16
14.0 15.5 EP 200 / R 14x15
16.0 15.6 EP 200 / R 16x15
16.0 20.3 EP 200 / R 16x20
18.0 20.9 EP 200 / R 18x20
20.0 19.7 EP 200 / R 20x20
22.0 19.0 EP 200 / R 22x18
26.0 31.0 EP 200 / R 26x31
27.0 20.0 EP 200 / R 27x20
30.0 31.0 EP 200 / R 30x31
33.0 25.0 EP 200 / R 33x25
35.0 33.0 EP 200 / R 35x33
40.0 27.0 EP 200 / R 40x27
External application d1
  8.0

h1
10.6

Reference No.
EP 200 / R   8x10

External application d1
  9.0

h1
16.0

Reference No.
EP 200 / R   9x16

External application d1
10.0

h1
10.4

Reference No.
EP 200 / R 10x10

External application d1
10.0

h1
28.0

Reference No.
EP 200 / R 10x28

External application d1
12.0

h1
16.4

Reference No.
EP 200 / R 12x16

External application d1
14.0

h1
15.5

Reference No.
EP 200 / R 14x15

External application d1
16.0

h1
15.6

Reference No.
EP 200 / R 16x15

External application d1
16.0

h1
20.3

Reference No.
EP 200 / R 16x20

External application d1
18.0

h1
20.9

Reference No.
EP 200 / R 18x20

External application d1
20.0

h1
19.7

Reference No.
EP 200 / R 20x20

External application d1
22.0

h1
19.0

Reference No.
EP 200 / R 22x18

External application d1
26.0

h1
31.0

Reference No.
EP 200 / R 26x31

External application d1
27.0

h1
20.0

Reference No.
EP 200 / R 27x20

External application d1
30.0

h1
31.0

Reference No.
EP 200 / R 30x31

External application d1
33.0

h1
25.0

Reference No.
EP 200 / R 33x25

External application d1
35.0

h1
33.0

Reference No.
EP 200 / R 35x33

External application d1
40.0

h1
27.0

Reference No.
EP 200 / R 40x27

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 200 Form A Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.
