ProteC CaPtoP® EP 304 - 300

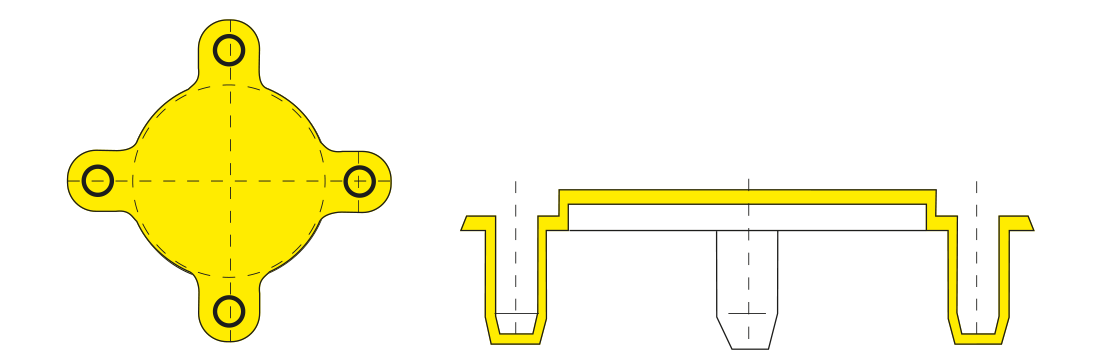

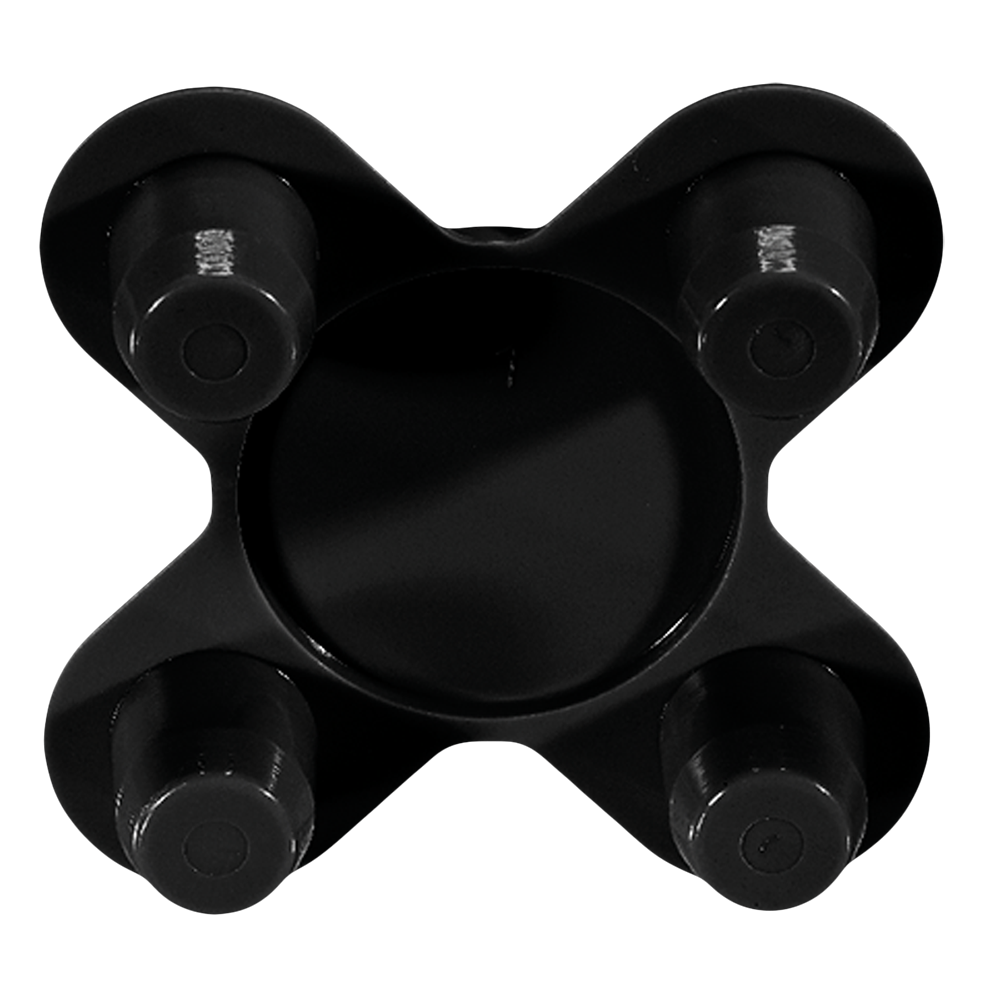

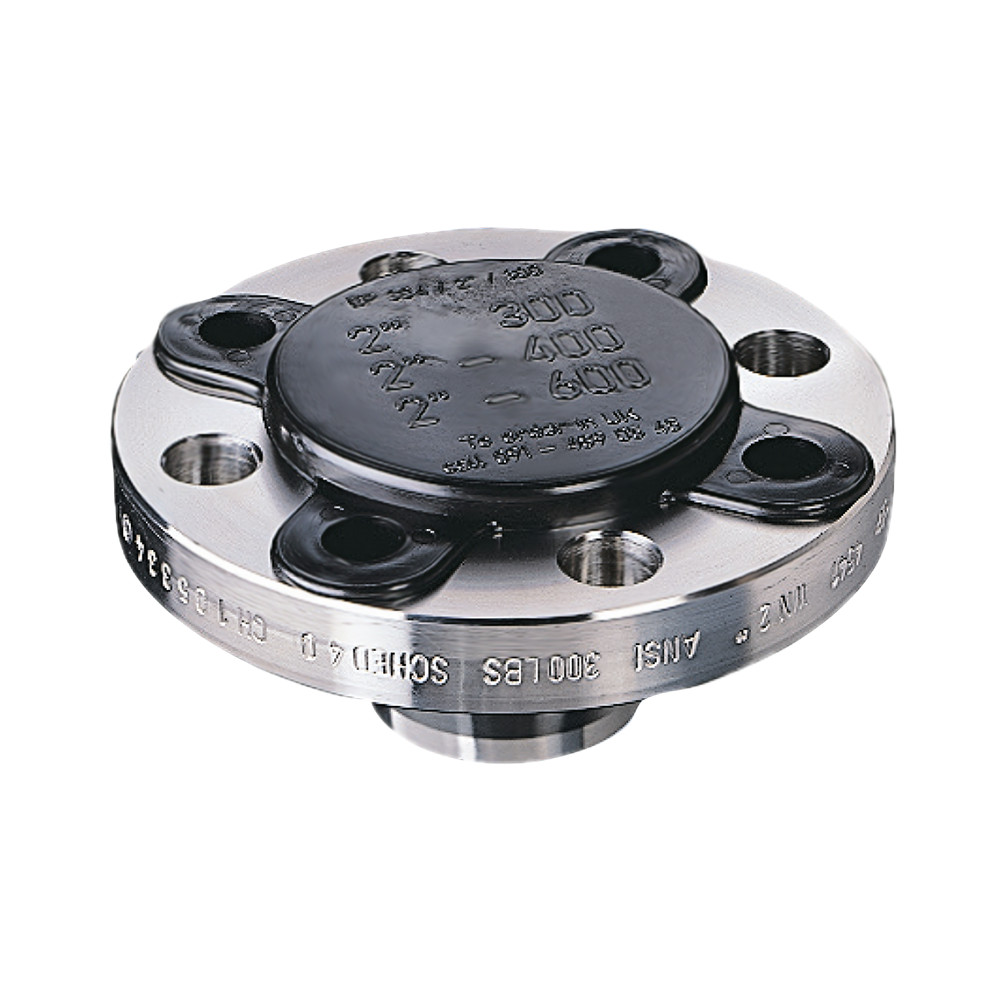

Stud hole fitting flange pro-tectors


CaPtoP® EP 304 - 300

Stud hole fitting flange pro-tectors


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

Suitable for ASA/ANSI/BS1560 flanges.
Quick fitting. Simply insert plugs into the bolt holes.

Will not tear or crack. Weather and petroleum resistant.

.1/2" to 12." available.

Pressure group 300 lbs.

Std. Color: black
Material: LLD-PE linear low density polyethylene

PROTEC CAPTOP EP 304 - 300
Ø Flange Pressure Group Standard
Pack
Reference No. Bookmark
    .1/2" 300. 600 lbs 800 EP 304 /   .1/2" / 300
    .3/4" 300. 600 lbs 500 EP 304 /   .3/4" / 300
  1." 300. 600 lbs 400 EP 304 / 1."      / 300
  1.1/2" 300. 600 lbs 250 EP 304 / 1.1/2" / 300
  2." 300. 600 lbs 200 EP 304 / 2."      / 300
  3." 300. 600 lbs 175 EP 304 / 3."      / 300
  4."          300 lbs 175 EP 304 / 4."      / 300
  6."          300 lbs 125 EP 304 / 6."      / 300
  8."          300 lbs 100 EP 304 / 8."      / 300
10."          300 lbs   60 EP 304 / 10."    / 300
12."          300 lbs   30 EP 304 / 12."    / 300
Ø Flange Pressure Group VPE Reference No.
    .1/2" 300. 600 lbs 800 EP 304 /   .1/2" / 300
    .3/4" 300. 600 lbs 500 EP 304 /   .3/4" / 300
  1." 300. 600 lbs 400 EP 304 / 1."      / 300
  1.1/2" 300. 600 lbs 250 EP 304 / 1.1/2" / 300
  2." 300. 600 lbs 200 EP 304 / 2."      / 300
  3." 300. 600 lbs 175 EP 304 / 3."      / 300
  4."          300 lbs 175 EP 304 / 4."      / 300
  6."          300 lbs 125 EP 304 / 6."      / 300
  8."          300 lbs 100 EP 304 / 8."      / 300
10."          300 lbs   60 EP 304 / 10."    / 300
12."          300 lbs   30 EP 304 / 12."    / 300
Ø Flange
.1/2"

Pressure Group
300. 600 lbs

Packaging Unit
800

Reference No.
EP 304 / .1/2" / 300

Ø Flange
.3/4"

Pressure Group
300. 600 lbs

Packaging Unit
500

Reference No.
EP 304 / .3/4" / 300

Ø Flange
1."

Pressure Group
300. 600 lbs

Packaging Unit
400

Reference No.
EP 304 / 1." / 300

Ø Flange
1.1/2"

Pressure Group
300. 600 lbs

Packaging Unit
250

Reference No.
EP 304 / 1.1/2" / 300

Ø Flange
2."

Pressure Group
300. 600 lbs

Packaging Unit
200

Reference No.
EP 304 / 2." / 300

Ø Flange
3."

Pressure Group
300. 600 lbs

Packaging Unit
175

Reference No.
EP 304 / 3." / 300

Ø Flange
4."

Pressure Group
300 lbs

Packaging Unit
175

Reference No.
EP 304 / 4." / 300

Ø Flange
6."

Pressure Group
300 lbs

Packaging Unit
125

Reference No.
EP 304 / 6." / 300

Ø Flange
8."

Pressure Group
300 lbs

Packaging Unit
100

Reference No.
EP 304 / 8." / 300

Ø Flange
10."

Pressure Group
300 lbs

Packaging Unit
60

Reference No.
EP 304 / 10." / 300

Ø Flange
12."

Pressure Group
300 lbs

Packaging Unit
30

Reference No.
EP 304 / 12." / 300

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 304 - 300 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.
