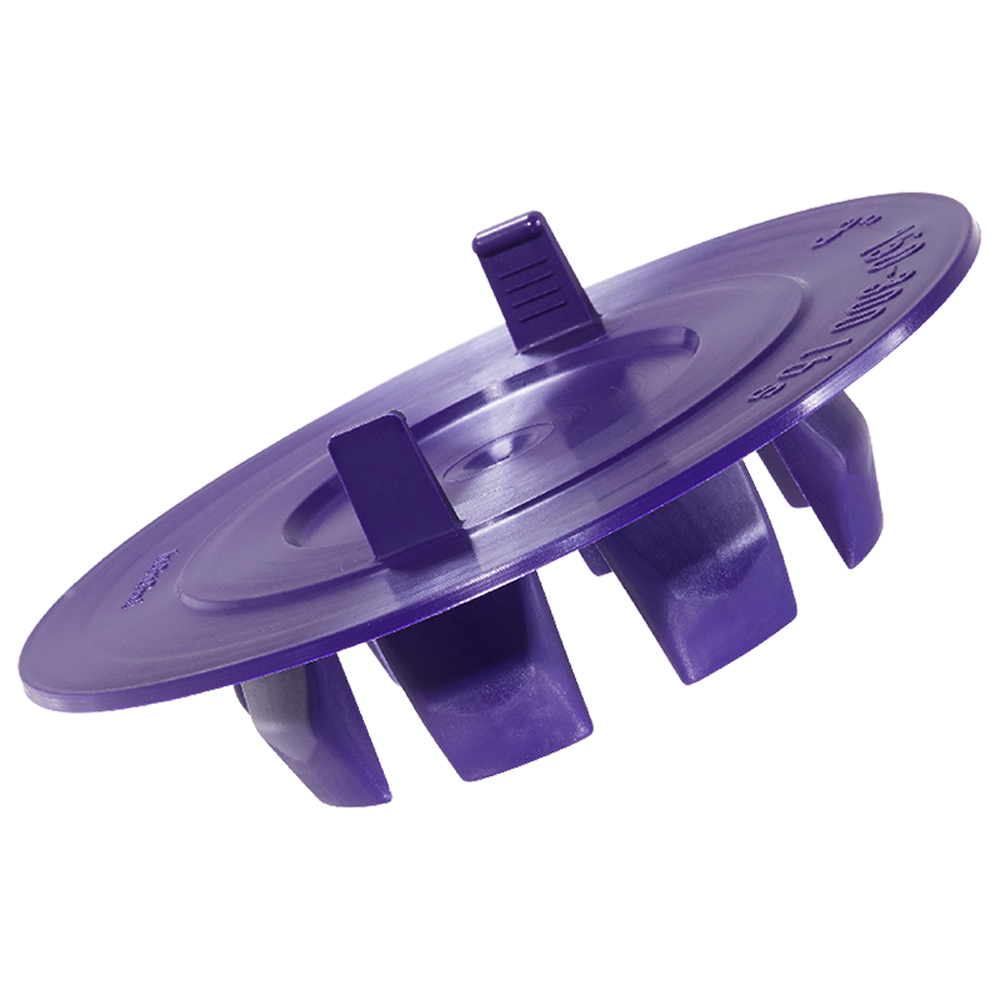

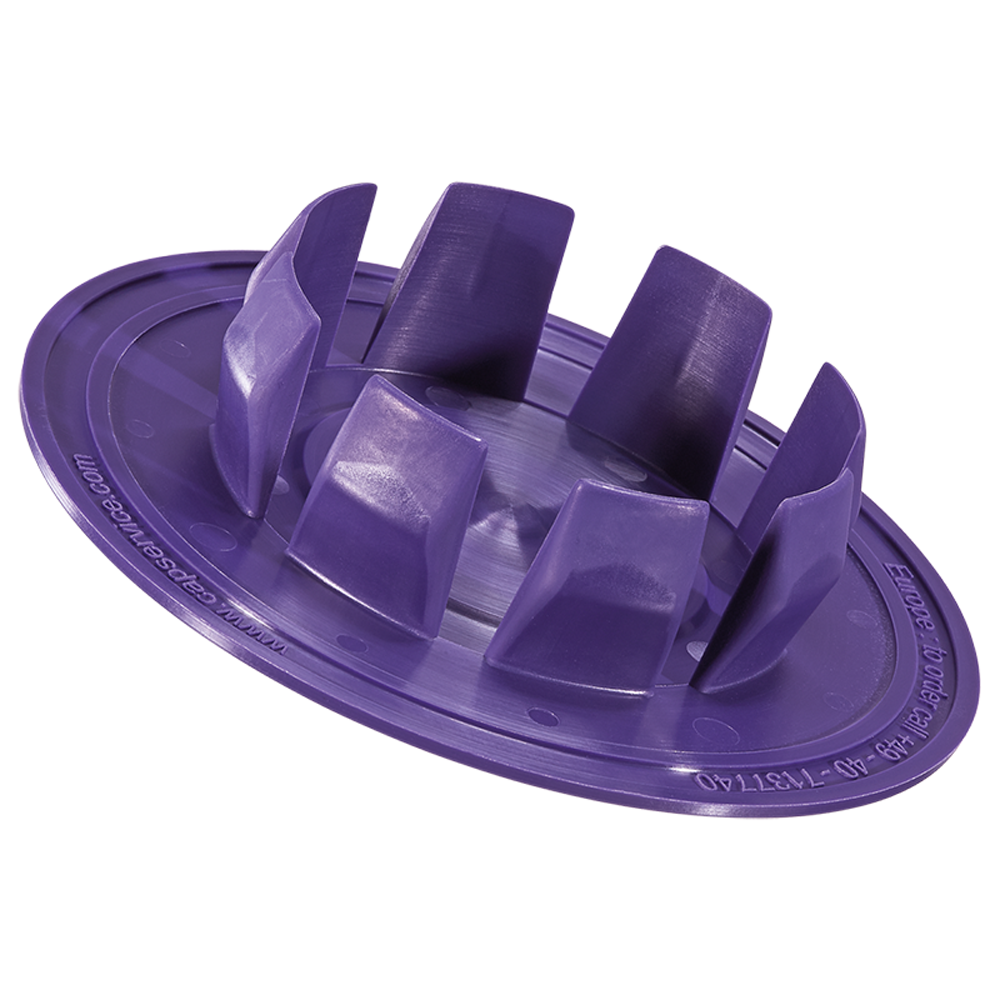

ProteC Dura-safe® SES 3000

Sandblasting flange push-in plugs, Nylon PA


Dura-safe® SES 3000

Sandblasting flange push-in plugs, Nylon PA

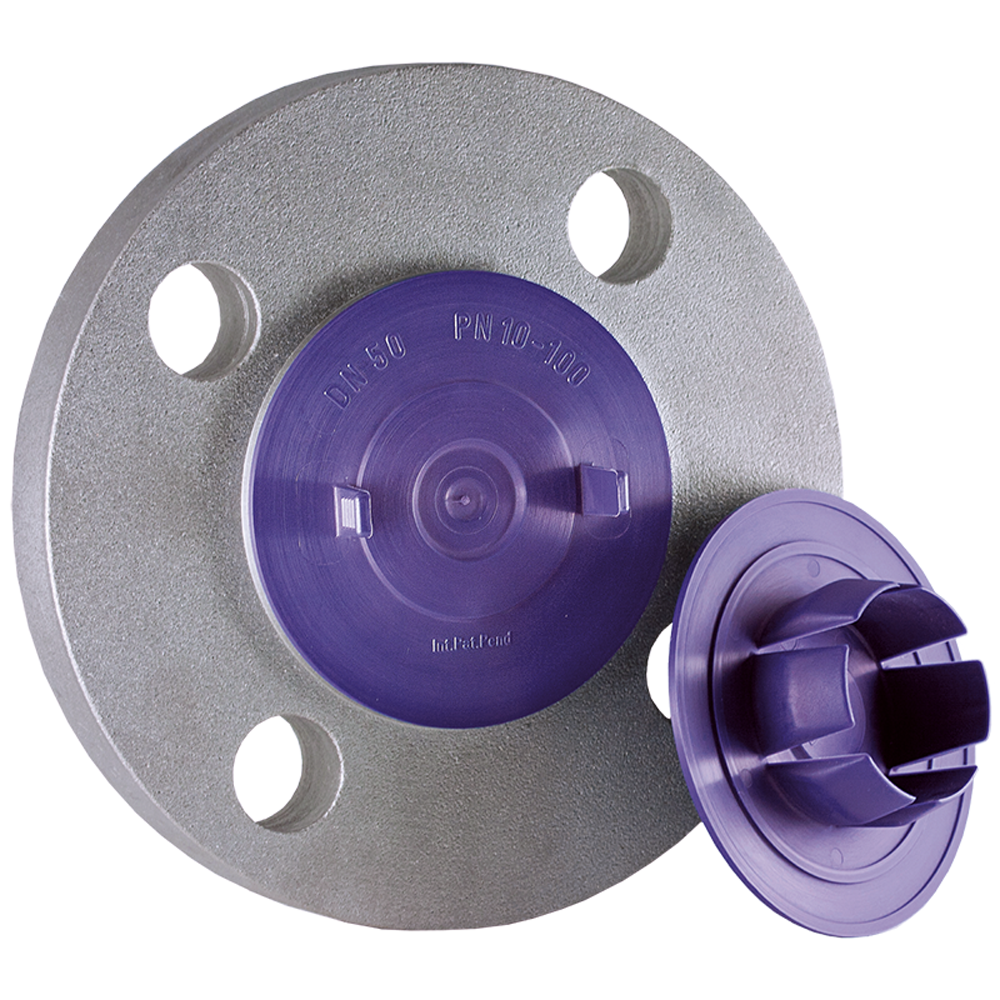

Flange Protection during Sandblasting and Painting Operations. Single push application and accurate fitting in a matter of seconds. With double Grip Tap for easy removal.

Can be applied to flanges with dry, clean, cold, oily or wet surface!

Manufactured from durable and impact resistant nylon. Heavy duty design for positive gripping power and strong fit.

Fits flanges according to DIN 2627-2638, BS 5504 and ANSI 16.5

Flange size and classification clearly marked on each plug.

Material: Nylon (PA 6)

NEW! Int. Pat. Pend.
PROTEC DURA-SAFE SES 3000

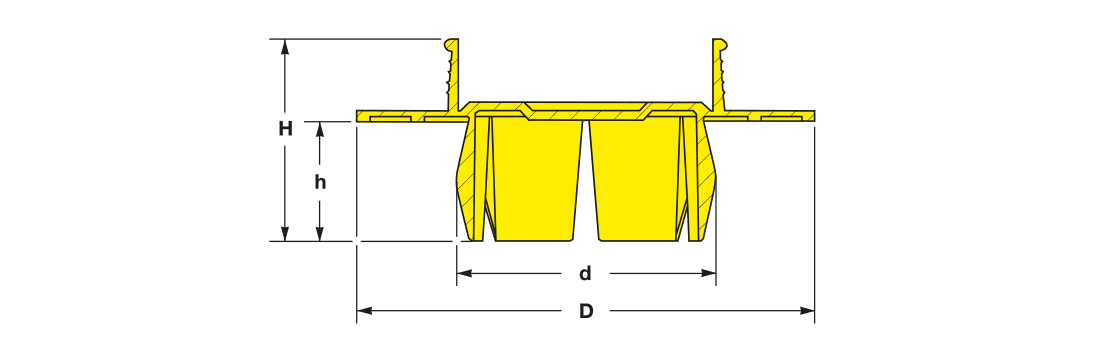

Ø Pressure Group D d h H Reference No. Bookmark
  DIN
DN   25 PN    1 -     6   62.0   26.0 -   31.0 28.0 45.0 SES 3000/  25/    1 -     6
DN   25 PN  10 - 100   70.0   26.0 -   31.0 24.3 41.0 SES 3000/  25/  10 - 100
DN   32 PN    1 -     6   70.0   34.5 -   39.5 28.0 45.0 SES 3000/  32/    1 -     6
DN   32 PN   10 -   40   80.0   34.5 -   39.5 28.0 45.0 SES 3000/  32/   10 -   40
DN   40 PN    1 -     6   80.0   40.5 -   45.5 28.0 45.0 SES 3000/  40/    1 -     6
DN   40 PN  10 - 100   90.0   40.5 -   45.5 28.0 45.0 SES 3000/  40/  10 - 100
DN   50 PN    1 -     6   92.0   52.5 -   56.5 28.0 45.0 SES 3000/  50/    1 -     6
DN   50 PN  10 - 100 102.7   52.5 -   56.5 28.0 45.0 SES 3000/  50/  10 - 100
DN   65 PN    1 -     6 110.0   67.5 -   72.5 28.0 45.0 SES 3000/  65/    1 -     6
DN   65 PN  10 - 100 122.0   67.5 -   72.5 28.0 45.0 SES 3000/  65/  10 - 100
DN   80 PN    1 -     6 128.0   77.5 -   83.0 28.0 46.1 SES 3000/  80/    1 -     6
DN   80 PN  10 - 100 139.0   77.5 -   83.0 28.0 46.2 SES 3000/  80/  10 - 100
DN 100 PN    1 -     6 150.0 102.0 - 109.0 32.2 52.9 SES 3000/100/    1 -     6
DN 100 PN   10 -   16 161.3 102.0 - 109.0 32.2 52.8 SES 3000/100/   10 -  16
DN 100 PN   25 - 100 165.3 102.0 - 109.0 32.2 52.7 SES 3000/100/   25 -100
DN 125 PN    1 -     6 180.0 126.5 - 133.5 33.0 50.0 SES 3000/125/    1 -     6
DN 125 PN  10 - 100 188.0 126.5 - 133.5 33.0 50.0 SES 3000/125/  10 - 100
DN 150 PN    1 -     6 204.0 153.9 - 161.0 32.2 52.7 SES 3000/150/    1 -     6
DN 150 PN   10 -  16 216.0 153.9 - 161.0 32.2 52.7 SES 3000/150/   10 -  16
DN 150 PN   25 - 100 220.0 153.9 - 161.0 32.2 52.7 SES 3000/150/   25 -100
  ANSI
1. " 150 - 300 lbs.   52.0   26.0 -   31.0 24.3 41.5 SES 3000/ 1."       / 150 - 300
1.1/4" 150 - 300 lbs.   65.0   34.5 -   39.5 28.0 45.0 SES 3000/ 1.1/4" / 150 - 300
1.1/2" 150 - 300 lbs.   75.0   40.5 -   45.5 28.0 45.0 SES 3000/ 1.1/2" / 150 - 300
2. " 150 - 300 lbs.   92.0   52.5 -   56.5 28.0 45.0 SES 3000/ 2."       / 150 - 300
2.1/2" 150 - 300 lbs. 105.0   62.0 -   67.0 28.0 45.0 SES 3000/ 2.1/2" / 150 - 300
3. " 150 - 300 lbs. 128.0   77.5 -   83.0 28.0 46.0 SES 3000/ 3."       / 150 - 300
4. " 150 - 300 lbs. 161.5 102.0 - 109.0 32.3 52.8 SES 3000/ 4."       / 150 - 300
5. " 150 - 300 lbs. 188.0 126.5 - 133.5 33.0 50.0 SES 3000/ 5."       / 150 - 300
6. " 150 - 300 lbs. 218.0 153.9 - 161.1 33.0 50.0 SES 3000/ 6."       / 150 - 300
Ø Pressure Group D d h H Reference No.
  DIN
DN   25 PN    1 -     6   62.0   26.0-  31.0 28.0 45.0 SES 3000/  25/    1 -     6
DN   25 PN  10 - 100   70.0   26.0-  31.0 24.3 41.0 SES 3000/  25/  10 - 100
DN   32 PN    1 -     6   70.0   34.5-  39.5 28.0 45.0 SES 3000/  32/    1 -     6
DN   32 PN   10 -   40   80.0   34.5-  39.5 28.0 45.0 SES 3000/  32/   10 -   40
DN   40 PN    1 -     6   80.0   40.5-  45.5 28.0 45.0 SES 3000/  40/    1 -     6
DN   40 PN  10 - 100   90.0   40.5-  45.5 28.0 45.0 SES 3000/  40/  10 - 100
DN   50 PN    1 -     6   92.0   52.5-  56.5 28.0 45.0 SES 3000/  50/    1 -     6
DN   50 PN  10 - 100 102.7   52.5-  56.5 28.0 45.0 SES 3000/  50/  10 - 100
DN   65 PN    1 -     6 110.0   67.5-  72.5 28.0 45.0 SES 3000/  65/    1 -     6
DN   65 PN  10 - 100 122.0   67.5-  72.5 28.0 45.0 SES 3000/  65/  10 - 100
DN   80 PN    1 -     6 128.0   77.5-  83.0 28.0 46.1 SES 3000/  80/    1 -     6
DN   80 PN  10 - 100 139.0   77.5-  83.0 28.0 46.2 SES 3000/  80/  10 - 100
DN 100 PN    1 -     6 150.0 102.0-109.0 32.2 52.9 SES 3000/100/    1 -     6
DN 100 PN   10 -   16 161.3 102.0-109.0 32.2 52.8 SES 3000/100/   10 -  16
DN 100 PN   25 - 100 165.3 102.0-109.0 32.2 52.7 SES 3000/100/   25 -100
DN 125 PN    1 -     6 180.0 126.5-133.5 33.0 50.0 SES 3000/125/    1 -     6
DN 125 PN  10 - 100 188.0 126.5-133.5 33.0 50.0 SES 3000/125/  10 - 100
DN 150 PN    1 -     6 204.0 153.9-161.0 32.2 52.7 SES 3000/150/    1 -     6
DN 150 PN   10 -  16 216.0 153.9-161.0 32.2 52.7 SES 3000/150/   10 -  16
DN 150 PN   25 - 100 220.0 153.9-161.0 32.2 52.7 SES 3000/150/   25 -100
  ANSI
1. " 150 - 300 lbs.   52.0   26.0-  31.0 24.3 41.5 SES 3000/ 1."       / 150 - 300
1.1/4" 150 - 300 lbs.   65.0   34.5-  39.5 28.0 45.0 SES 3000/ 1.1/4" / 150 - 300
1.1/2" 150 - 300 lbs.   75.0   40.5-  45.5 28.0 45.0 SES 3000/ 1.1/2" / 150 - 300
2. " 150 - 300 lbs.   92.0   52.5-  56.5 28.0 45.0 SES 3000/ 2."       / 150 - 300
2.1/2" 150 - 300 lbs. 105.0   62.0-  67.0 28.0 45.0 SES 3000/ 2.1/2" / 150 - 300
3. " 150 - 300 lbs. 128.0   77.5-  83.0 28.0 46.0 SES 3000/ 3."       / 150 - 300
4. " 150 - 300 lbs. 161.5 102.0-109.0 32.3 52.8 SES 3000/ 4."       / 150 - 300
5. " 150 - 300 lbs. 188.0 126.5-133.5 33.0 50.0 SES 3000/ 5."       / 150 - 300
6. " 150 - 300 lbs. 218.0 153.9-161.1 33.0 50.0 SES 3000/ 6."       / 150 - 300
  DIN
Nominal size Ø
DN 25

Pressure Group
PN 1 - 6

Raised face D
62.0

Clamping Range d
26.0 - 31.0

Height h
28.0

Depth H
45.0

Reference No. SES 3000/ 25/ 1 - 6

Nominal size Ø
DN 25

Pressure Group
PN 10 - 100

Raised face D
70.0

Clamping Range d
26.0 - 31.0

Height h
24.3

Depth H
41.0

Reference No. SES 3000/ 25/ 10 - 100

Nominal size Ø
DN 32

Pressure Group
PN 1 - 6

Raised face D
70.0

Clamping Range d
34.5 - 39.5

Height h
28.0

Depth H
45.0

Reference No. SES 3000/ 32/ 1 - 6

Nominal size Ø
DN 32

Pressure Group
PN 10 - 40

Raised face D
80.0

Clamping Range d
34.5 - 39.5

Height h
28.0

Depth H
45.0

Reference No. SES 3000/ 32/ 10 - 40

Nominal size Ø
DN 40

Pressure Group
PN 1 - 6

Raised face D
80.0

Clamping Range d
40.5 - 45.5

Height h
28.0

Depth H
45.0

Reference No. SES 3000/ 40/ 1 - 6

Nominal size Ø
DN 40

Pressure Group
PN 10 - 100

Raised face D
90.0

Clamping Range d
40.5 - 45.5

Height h
28.0

Depth H
45.0

Reference No. SES 3000/ 40/ 10 - 100

Nominal size Ø
DN 50

Pressure Group
PN 1 - 6

Raised face D
92.0

Clamping Range d
52.5 - 56.5

Height h
28.0

Depth H
45.0

Reference No. SES 3000/ 50/ 1 - 6

Nominal size Ø
DN 50

Pressure Group
PN 10 - 100

Raised face D
102.7

Clamping Range d
52.5 - 56.5

Height h
28.0

Depth H
45.0

Reference No. SES 3000/ 50/ 10 - 100

Nominal size Ø
DN 65

Pressure Group
PN 1 - 6

Raised face D
110.0

Clamping Range d
67.5 - 72.5

Height h
28.0

Depth H
45.0

Reference No. SES 3000/ 65/ 1 - 6

Nominal size Ø
DN 65

Pressure Group
PN 10 - 100

Raised face D
122.0

Clamping Range d
67.5 - 72.5

Height h
28.0

Depth H
45.0

Reference No. SES 3000/ 65/ 10 - 100

Nominal size Ø
DN 80

Pressure Group
PN 1 - 6

Raised face D
128.0

Clamping Range d
77.5 - 83.0

Height h
28.0

Depth H
46.1

Reference No. SES 3000/ 80/ 1 - 6

Nominal size Ø
DN 80

Pressure Group
PN 10 - 100

Raised face D
139.0

Clamping Range d
77.5 - 83.0

Height h
28.0

Depth H
46.2

Reference No. SES 3000/ 80/ 10 - 100

Nominal size Ø
DN 100

Pressure Group
PN 1 - 6

Raised face D
150.0

Clamping Range d
102.0 - 109.0

Height h
32.2

Depth H
52.9

Reference No. SES 3000/100/ 1 - 6

Nominal size Ø
DN 100

Pressure Group
PN 10 - 16

Raised face D
161.3

Clamping Range d
102.0 - 109.0

Height h
32.2

Depth H
52.8

Reference No. SES 3000/100/ 10 - 16

Nominal size Ø
DN 100

Pressure Group
PN 25 - 100

Raised face D
165.3

Clamping Range d
102.0 - 109.0

Height h
32.2

Depth H
52.7

Reference No. SES 3000/100/ 25 -100

Nominal size Ø
DN 125

Pressure Group
PN 1 - 6

Raised face D
180.0

Clamping Range d
126.5 - 133.5

Height h
33.0

Depth H
50.0

Reference No. SES 3000/125/ 1 - 6

Nominal size Ø
DN 125

Pressure Group
PN 10 - 100

Raised face D
188.0

Clamping Range d
126.5 - 133.5

Height h
33.0

Depth H
50.0

Reference No. SES 3000/125/ 10 - 100

Nominal size Ø
DN 150

Pressure Group
PN 1 - 6

Raised face D
204.0

Clamping Range d
153.9 - 161.0

Height h
32.2

Depth H
52.7

Reference No. SES 3000/150/ 1 - 6

Nominal size Ø
DN 150

Pressure Group
PN 10 - 16

Raised face D
216.0

Clamping Range d
153.9 - 161.0

Height h
32.2

Depth H
52.7

Reference No. SES 3000/150/ 10 - 16

Nominal size Ø
DN 150

Pressure Group
PN 25 - 100

Raised face D
220.0

Clamping Range d
153.9 - 161.0

Height h
32.2

Depth H
52.7

Reference No. SES 3000/150/ 25 -100

  ANSI
Nominal size Ø
1. "

Pressure Group
150 - 300 lbs.

Raised face D
52.0

Clamping Range d
26.0 - 31.0

Height h
24.3

Depth H
41.5

Reference No. SES 3000/ 1." / 150 - 300

Nominal size Ø
1.1/4"

Pressure Group
150 - 300 lbs.

Raised face D
65.0

Clamping Range d
34.5 - 39.5

Height h
28.0

Depth H
45.0

Reference No. SES 3000/ 1.1/4" / 150 - 300

Nominal size Ø
1.1/2"

Pressure Group
150 - 300 lbs.

Raised face D
75.0

Clamping Range d
40.5 - 45.5

Height h
28.0

Depth H
45.0

Reference No. SES 3000/ 1.1/2" / 150 - 300

Nominal size Ø
2. "

Pressure Group
150 - 300 lbs.

Raised face D
92.0

Clamping Range d
52.5 - 56.5

Height h
28.0

Depth H
45.0

Reference No. SES 3000/ 2." / 150 - 300

Nominal size Ø
2.1/2"

Pressure Group
150 - 300 lbs.

Raised face D
105.0

Clamping Range d
62.0 - 67.0

Height h
28.0

Depth H
45.0

Reference No. SES 3000/ 2.1/2" / 150 - 300

Nominal size Ø
3. "

Pressure Group
150 - 300 lbs.

Raised face D
128.0

Clamping Range d
77.5 - 83.0

Height h
28.0

Depth H
46.0

Reference No. SES 3000/ 3." / 150 - 300

Nominal size Ø
4. "

Pressure Group
150 - 300 lbs.

Raised face D
161.5

Clamping Range d
102.0 - 109.0

Height h
32.3

Depth H
52.8

Reference No. SES 3000/ 4." / 150 - 300

Nominal size Ø
5. "

Pressure Group
150 - 300 lbs.

Raised face D
188.0

Clamping Range d
126.5 - 133.5

Height h
33.0

Depth H
50.0

Reference No. SES 3000/ 5." / 150 - 300

Nominal size Ø
6. "

Pressure Group
150 - 300 lbs.

Raised face D
218.0

Clamping Range d
153.9 - 161.1

Height h
33.0

Depth H
50.0

Reference No. SES 3000/ 6." / 150 - 300

PROTEC products and specifications are subject to improvement and change without notice.

DURA-SAFE® SES 3000 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ultimate Push-In Plug for the best Raised Face Protection in the market.

In. Pat. Pend.

Heat resistant.

After Sandblasting and/or Painting no adhesive resedue clean-up from raised face required.

With double Grip Tap for Easy Removal

On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.

You might also be interested in these PROTEC series

CAPTOP® EP 300

Valve flange protection plugs

CAPTOP® EP 310

Outside fitting flange protectors

CAPTOP® EP 304 - 150

Stud hole fitting flange pro-tectors

CAPTOP® EP 305

Push-in full-face flange protectors

Certified production & quality management

PROTEC meets the most stringent demands of safety and operations reliability. International approvals and certifications such as UL, CSA, VDE, VDA 6.1 and DIN EN ISO 9001: 2015 demonstrate total quality commitment on superior level.

Be the first to know - Join our newsletter!

Stay on top of the latest news and upcoming events and event information from PROTEC and its partner. Be the first to know when new products are on the market. Get periodic specials and news delivered directly to your email inbox! You can un-subscribe anytime.

Sign our free newsletter now

Imprint | Contact form | Privacy policy | Jobs at PROTEC | Certifications

copyright (c) 2024 PROTEC PLASTICS THE CAP COMPANY LTD
