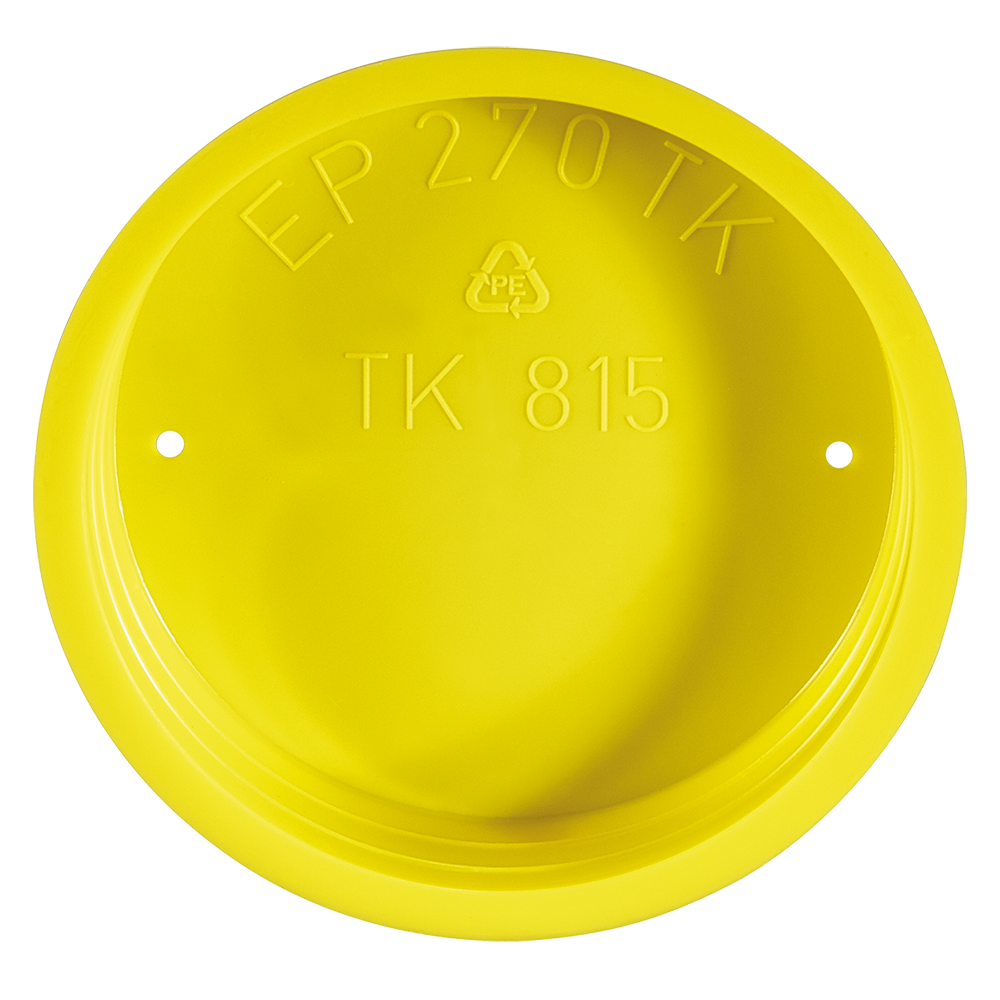

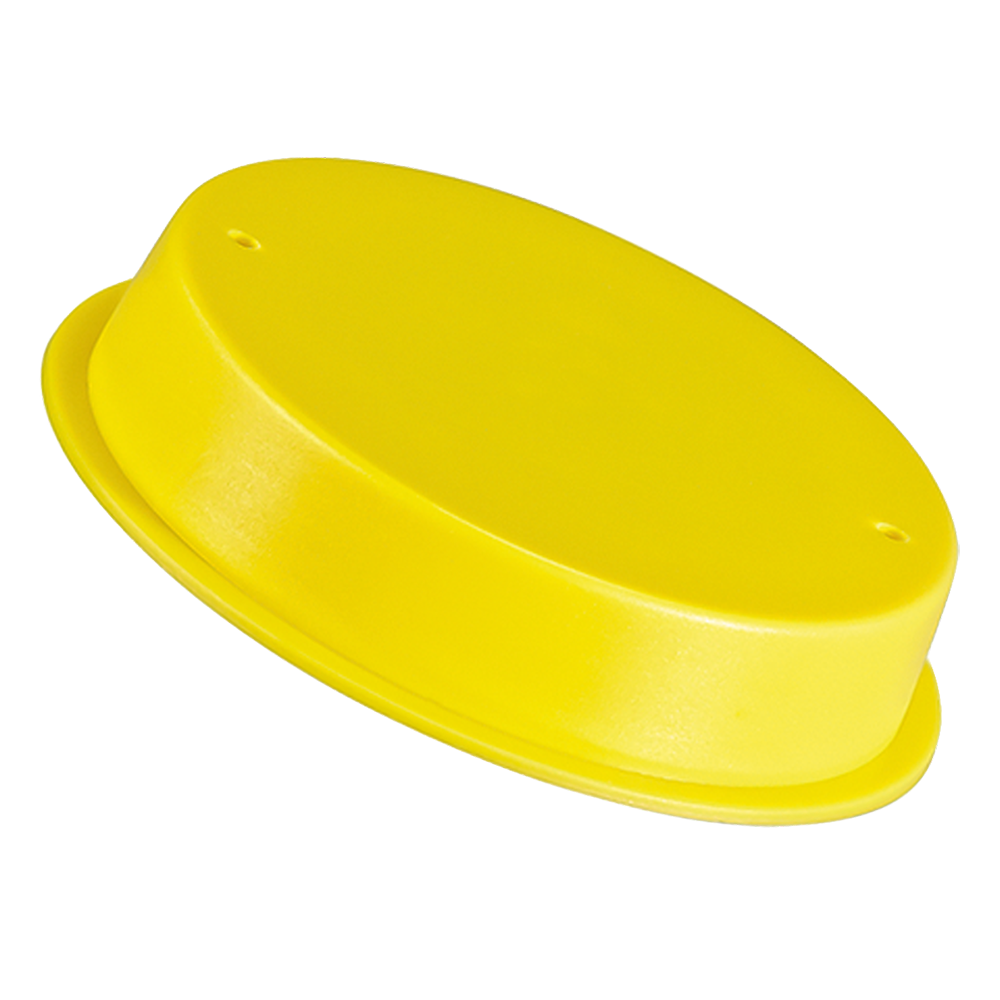

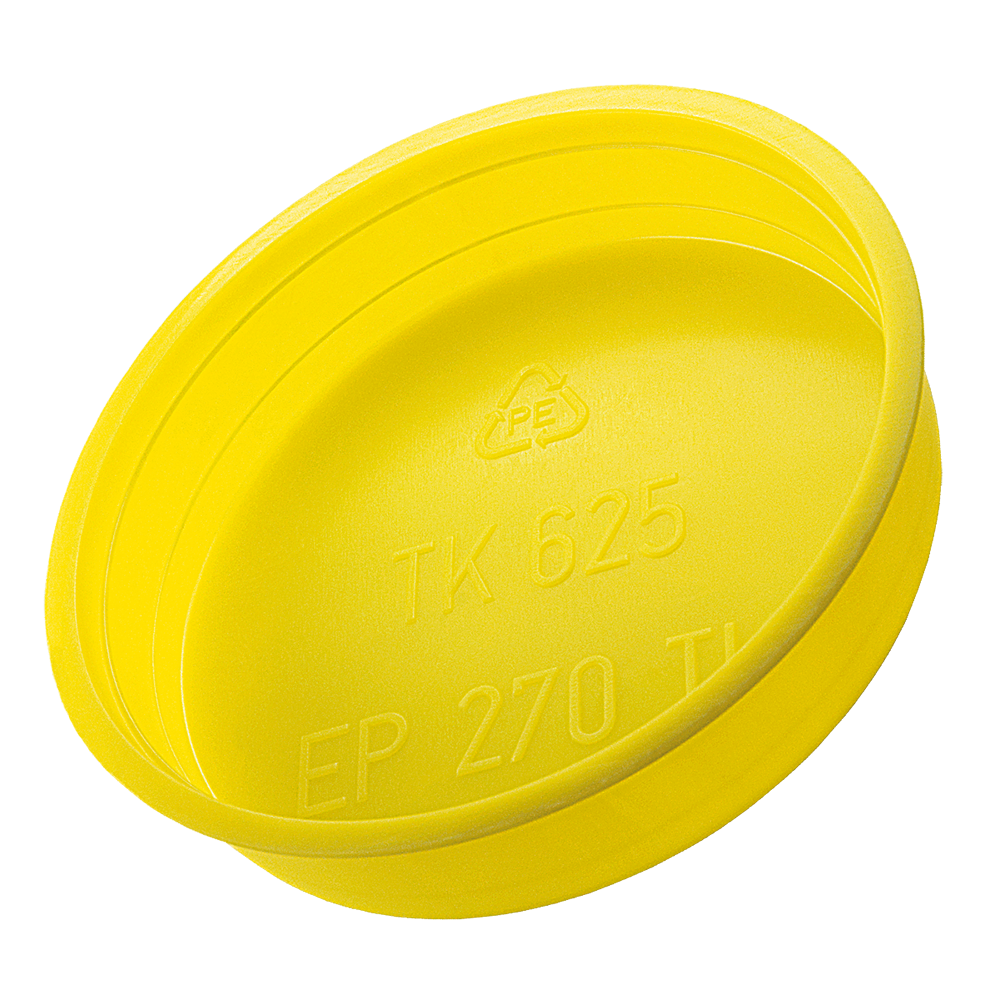

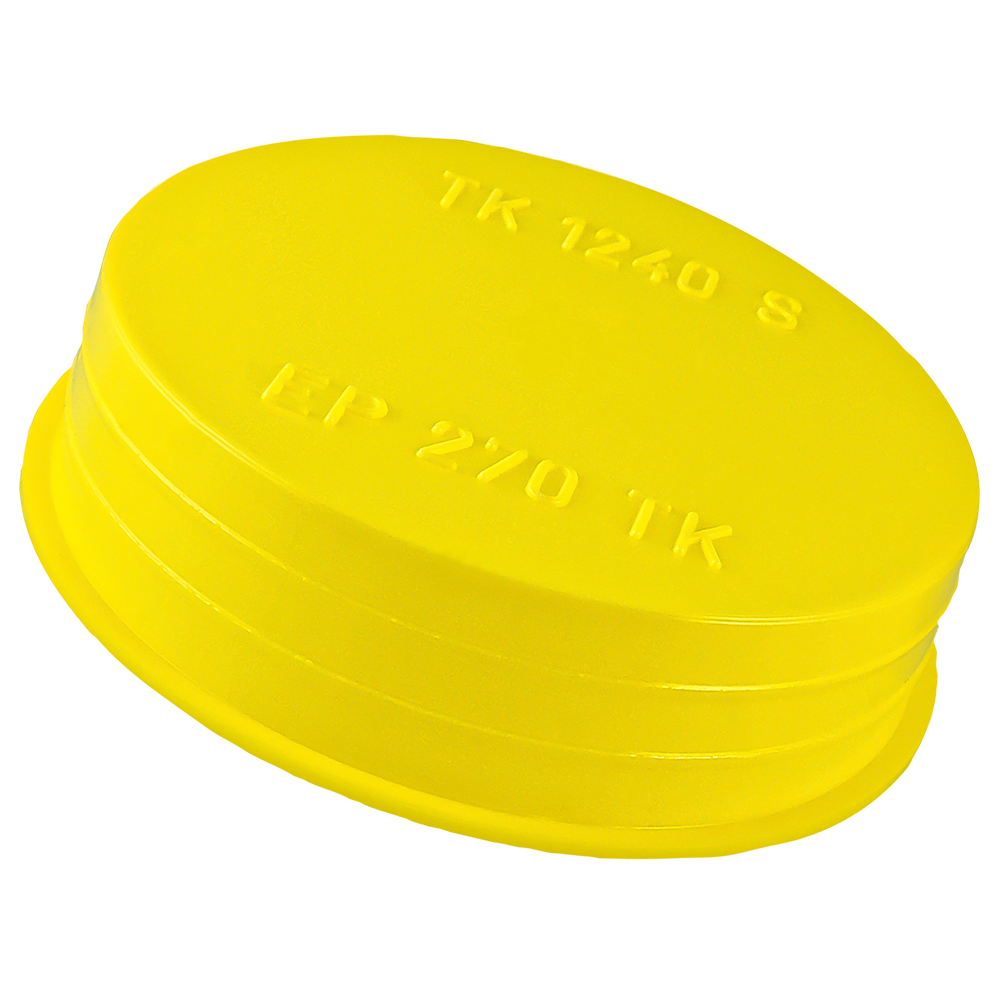

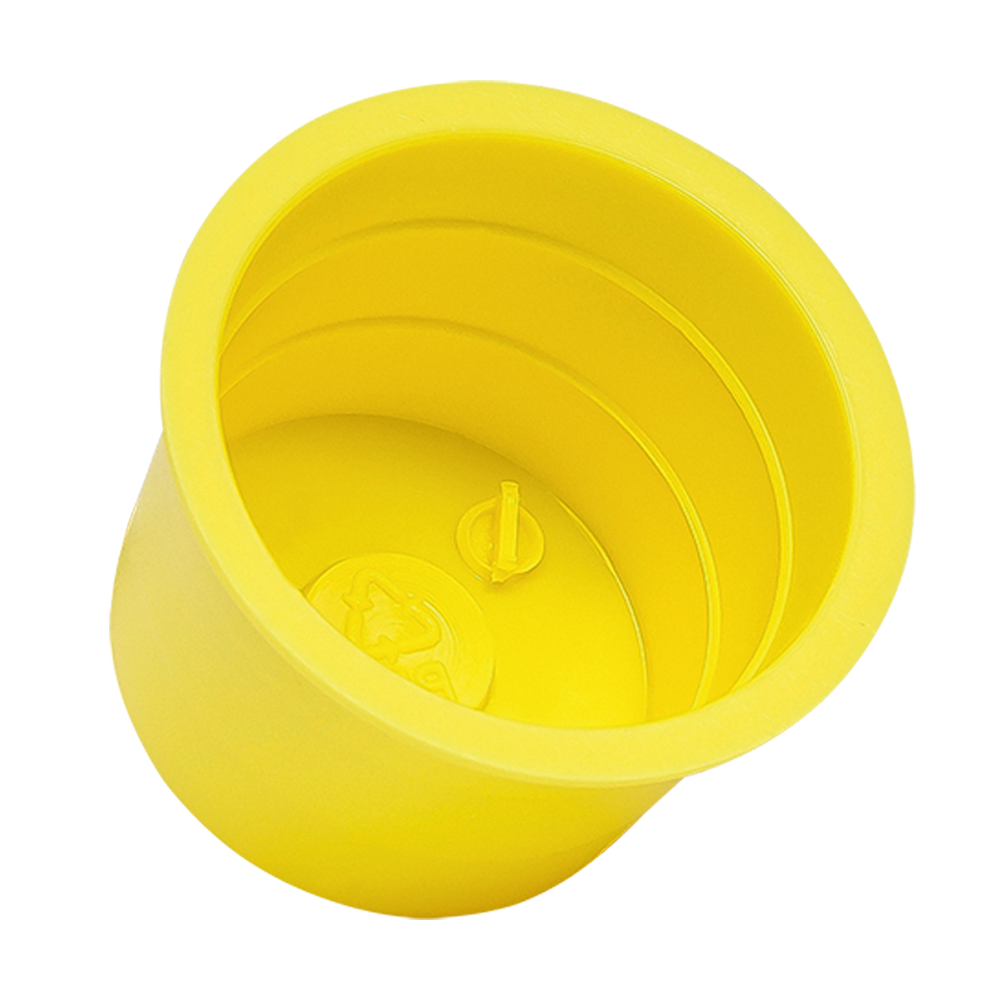

ProteC CaPtoP® EP 270 TK

Tapered protection plugs / caps - expanded


CaPtoP® EP 270 TK

Tapered protection plugs / caps - expanded


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

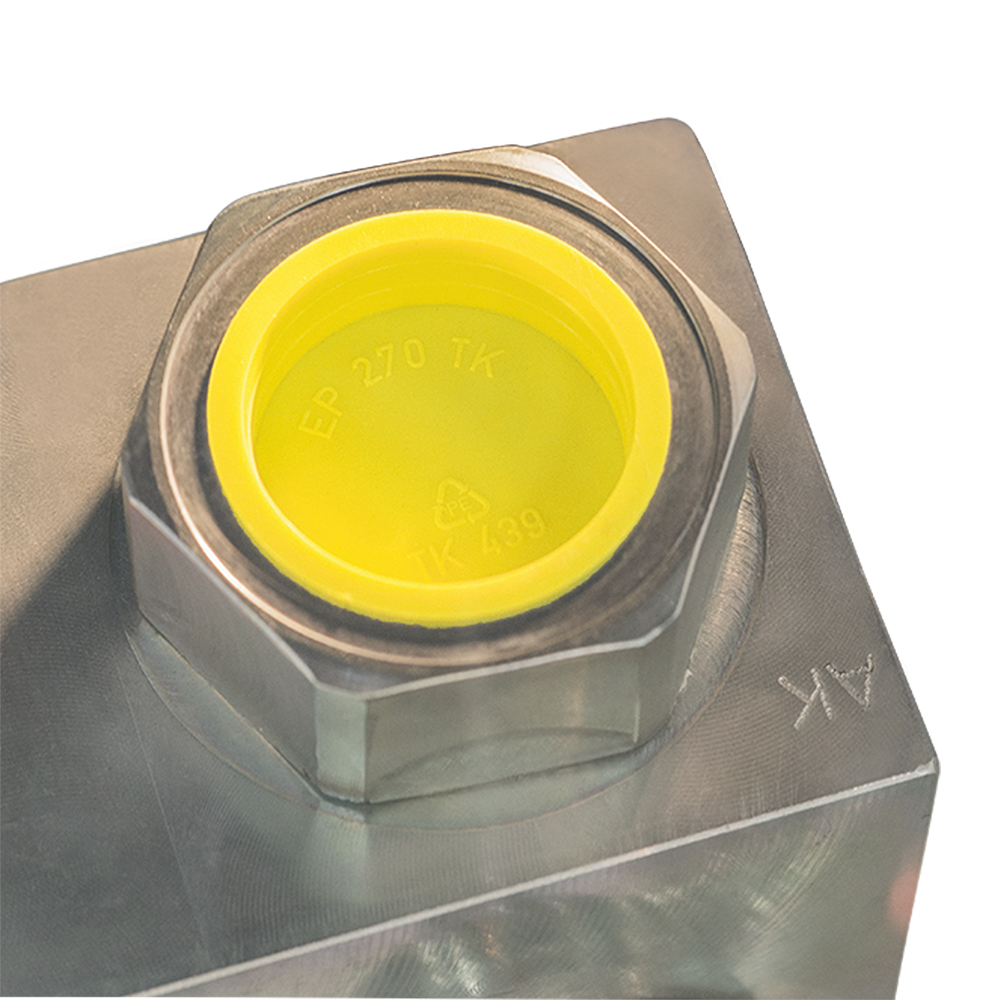

For Gas pipes, Plastics pipes, Steel pipes, Internal threads and bore holes.

Can be used as either a cap or a plug.

Easy fitting and removal.

Tapered design allows the plug to cover multiple inside diameters.

New sizes up to 12 inch / 330 mm.

Provides excellent protection from damage, dirt, moisture and corrosion during storage and transportation.

Std. Color: yellow (flanges and steel pipes), red (HDPE Gas Pipes)
Material: LLD-PE, linear low density polyethylene

PROTEC CAPTOP EP 270 TK

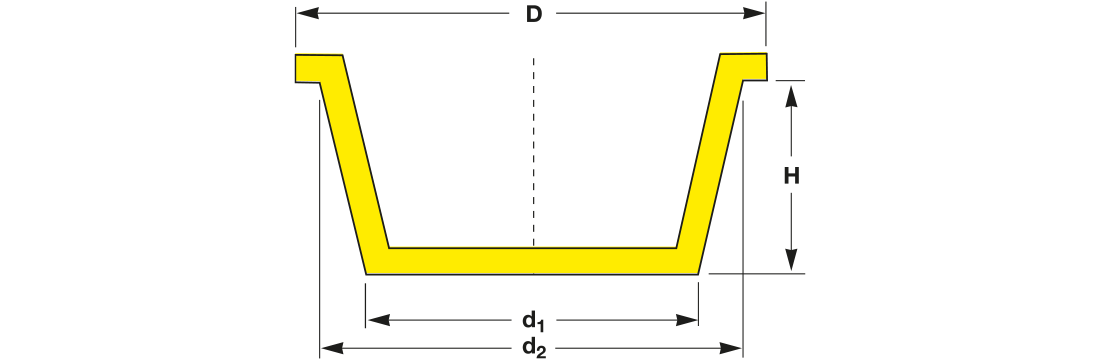

d1 d2 D H Reference No. Bookmark
    8.1     9.2   11.0     7.0 TK     81
    9.8   11.0   12.0     7.0 TK     98
  10.6   11.6   14.0     7.0 TK   106
  11.4   12.4   15.0     7.0 TK   114
  13.3   14.4   16.0     7.0 TK   133
  14.0   15.1   17.0     7.0 TK   140
  14.6   15.6   18.0     7.3 TK   146
  15.3   16.4   18.0     7.0 TK   153
  16.0   17.3   20.0     9.0 TK   160
  17.4   18.8   21.0     9.0 TK   174
  18.2   19.2   22.0     9.0 TK   182
  18.7   20.0   23.8     8.7 TK   187
  19.8   21.2   24.0     9.0 TK   198
  20.3   22.6   25.0   14.0 TK   203
  21.2   23.3   26.0   14.0 TK   212
  23.0   25.0   28.0   14.0 TK   230
  24.3   26.4   30.0   14.0 TK   243
  25.7   27.8   30.0   14.0 TK   257
  27.2   29.3   32.0   14.0 TK   272
  30.0   32.0   35.0   14.0 TK   300
  32.0   34.0   38.0   14.0 TK   320
  33.6   36.0   40.0   14.0 TK   336
  34.5   37.0   41.0   14.0 TK   345
  36.0   37.8   42.0   14.0 TK   360
  37.9   40.0   44.0   14.0 TK   379
  38.5   41.0   43.0   14.0 TK   385
  39.8   42.0   46.0   14.0 TK   398
  41.3   43.5   47.0   14.0 TK   413
  43.9   46.5   52.0   13.5 TK   439
  45.5   47.5   54.0   14.0 TK   455
  47.9   50.0   54.0   13.5 TK   479
  49.8   51.8   58.0   14.0 TK   498
  49.8   51.7   82.0   18.0 TK   498 x 82
  50.5   53.3   62.7   14.1 TK   505
  52.5   53.3   58.0   13.9 TK   525
  54.5   56.2   63.0   14.0 TK   545
  55.5   56.3   61.0   13.0 TK   555
  57.0   58.6   62.9   13.5 TK   570
  58.5   60.8   64.0   12.7 TK   585
  60.5   62.3   66.0   13.5 TK   605
  61.3   63.5   67.0   14.0 TK   613
  62.5   64.8   68.0   13.5 TK   625
  60.7   66.3   75.0   30.0 TK   650-S
  66.0   67.9   75.0   13.0 TK   660
  67.9   69.5   74.0   13.0 TK   679
  69.8   72.6   80.3   17.7 TK   698
  71.5   73.4   77.8   16.3 TK   715
  72.8   74.0   79.0   18.0 TK   728
  74.0   76.6   85.0   17.8 TK   740
  76.5   79.0   87.2   18.7 TK   765
  77.5   80.0   88.0   17.0 TK   775
  79.0   82.0   90.0   29.0 TK   790-S
  81.5   83.6   92.0   17.0 TK   815
  84.0   87.1   95.0   17.7 TK   840
  86.5   89.0   97.0   17.0 TK   865
  89.0   91.5 100.0   17.0 TK   890
  91.5   93.9 101.2   18.5 TK   915
  94.0   97.1 105.0   17.7 TK   940
  96.5   99.0 107.0   17.0 TK   965
  96.7 102.5 110.0   30.0 TK   990-S
101.5 104.0 112.0   17.0 TK 1015
104.0 106.5 115.0   17.0 TK 1040
106.0 111.0 120.0   23.0 TK 1060-S
110.0 114.5 123.0   27.4 TK 1100-S
114.0 116.5 125.0   19.0 TK 1140
119.0 123.0 130.0   23.0 TK 1190
124.0 127.0 135.0   30.0 TK 1240-S
127.5 133.0 140.0   23.0 TK 1275-S
133.0 137.0 145.0   18.7 TK 1330
139.0 143.0 152.0   27.8 TK 1390-S
143.5 148.0 159.5   33.4 TK 1435-S
149.0 153.0 160.8   30.1 TK 1468/1490
153.5 157.5 167.0   38.0 TK 1535-S
159.0 161.5 170.0   38.0 TK 1590-S
160.0 163.0 172.0   38.0 TK 1600-S
164.0 166.0 174.0   21.5 TK 1640
168.0 175.0 190.0   38.0 TK 1680-S
169.0 172.0 179.0   21.6 TK 1690
173.0 181.3 195.0   38.5 TK 1730-S
179.0 185.0 195.0   38.0 TK 1790-S
187.5 191.5 197.5   21.7 TK 1875
192.0 200.0 215.0   38.0 TK 1920-S
199.0 204.0 214.0   38.0 TK 1990-S
203.5 208.5 216.0   26.0 TK 2035
209.0 213.0 223.0   26.5 TK 2090
218.0 226.0 237.0   46.4 TK 2180-S
221.5 230.0 237.0   23.7 TK 2215
223.0 230.5 240.0   38.0 TK 2230-S
232.0 239.0 250.0   46.0 TK 2320-S
239.0 250.0 263.0   46.0 TK 2390-S
249.0 254.0 264.0   46.0 TK 2490-S
255.0 261.0 280.0   46.0 TK 2550-S
270.5 281.0 296.0   46.0 TK 2750-S
278.0 286.0 304.0   46.0 TK 2780-S
284.0 293.0 315.0   46.0 TK 2840-S
292.0 299.0 315.0   46.0 TK 2920-S
298.0 301.0 314.0   23.0 TK 2990
305.0 316.0 330.0   46.0 TK 3050-S
313.0 325.0 340.0   50.5 TK 3130-S
d1 d2 D H Reference No.
    8.1     9.2   11.0     7.0 TK     81
    9.8   11.0   12.0     7.0 TK     98
  10.6   11.6   14.0     7.0 TK   106
  11.4   12.4   15.0     7.0 TK   114
  13.3   14.4   16.0     7.0 TK   133
  14.0   15.1   17.0     7.0 TK   140
  14.6   15.6   18.0     7.3 TK   146
  15.3   16.4   18.0     7.0 TK   153
  16.0   17.3   20.0     9.0 TK   160
  17.4   18.8   21.0     9.0 TK   174
  18.2   19.2   22.0     9.0 TK   182
  18.7   20.0   23.8     8.7 TK   187
  19.8   21.2   24.0     9.0 TK   198
  20.3   22.6   25.0   14.0 TK   203
  21.2   23.3   26.0   14.0 TK   212
  23.0   25.0   28.0   14.0 TK   230
  24.3   26.4   30.0   14.0 TK   243
  25.7   27.8   30.0   14.0 TK   257
  27.2   29.3   32.0   14.0 TK   272
  30.0   32.0   35.0   14.0 TK   300
  32.0   34.0   38.0   14.0 TK   320
  33.6   36.0   40.0   14.0 TK   336
  34.5   37.0   41.0   14.0 TK   345
  36.0   37.8   42.0   14.0 TK   360
  37.9   40.0   44.0   14.0 TK   379
  38.5   41.0   43.0   14.0 TK   385
  39.8   42.0   46.0   14.0 TK   398
  41.3   43.5   47.0   14.0 TK   413
  43.9   46.5   52.0   13.5 TK   439
  45.5   47.5   54.0   14.0 TK   455
  47.9   50.0   54.0   13.5 TK   479
  49.8   51.8   58.0   14.0 TK   498
  49.8   51.7   82.0   18.0 TK   498 x 82
  50.5   53.3   62.7   14.1 TK   505
  52.5   53.3   58.0   13.9 TK   525
  54.5   56.2   63.0   14.0 TK   545
  55.5   56.3   61.0   13.0 TK   555
  57.0   58.6   62.9   13.5 TK   570
  58.5   60.8   64.0   12.7 TK   585
  60.5   62.3   66.0   13.5 TK   605
  61.3   63.5   67.0   14.0 TK   613
  62.5   64.8   68.0   13.5 TK   625
  60.7   66.3   75.0   30.0 TK   650-S
  66.0   67.9   75.0   13.0 TK   660
  67.9   69.5   74.0   13.0 TK   679
  69.8   72.6   80.3   17.7 TK   698
  71.5   73.4   77.8   16.3 TK   715
  72.8   74.0   79.0   18.0 TK   728
  74.0   76.6   85.0   17.8 TK   740
  76.5   79.0   87.2   18.7 TK   765
  77.5   80.0   88.0   17.0 TK   775
  79.0   82.0   90.0   29.0 TK   790-S
  81.5   83.6   92.0   17.0 TK   815
  84.0   87.1   95.0   17.7 TK   840
  86.5   89.0   97.0   17.0 TK   865
  89.0   91.5 100.0   17.0 TK   890
  91.5   93.9 101.2   18.5 TK   915
  94.0   97.1 105.0   17.7 TK   940
  96.5   99.0 107.0   17.0 TK   965
  96.7 102.5 110.0   30.0 TK   990-S
101.5 104.0 112.0   17.0 TK 1015
104.0 106.5 115.0   17.0 TK 1040
106.0 111.0 120.0   23.0 TK 1060-S
110.0 114.5 123.0   27.4 TK 1100-S
114.0 116.5 125.0   19.0 TK 1140
119.0 123.0 130.0   23.0 TK 1190
124.0 127.0 135.0   30.0 TK 1240-S
127.5 133.0 140.0   23.0 TK 1275-S
133.0 137.0 145.0   18.7 TK 1330
139.0 143.0 152.0   27.8 TK 1390-S
143.5 148.0 159.5   33.4 TK 1435-S
149.0 153.0 160.8   30.1 TK 1468/1490
153.5 157.5 167.0   38.0 TK 1535-S
159.0 161.5 170.0   38.0 TK 1590-S
160.0 163.0 172.0   38.0 TK 1600-S
164.0 166.0 174.0   21.5 TK 1640
168.0 175.0 190.0   38.0 TK 1680-S
169.0 172.0 179.0   21.6 TK 1690
173.0 181.3 195.0   38.5 TK 1730-S
179.0 185.0 195.0   38.0 TK 1790-S
187.5 191.5 197.5   21.7 TK 1875
192.0 200.0 215.0   38.0 TK 1920-S
199.0 204.0 214.0   38.0 TK 1990-S
203.5 208.5 216.0   26.0 TK 2035
209.0 213.0 223.0   26.5 TK 2090
218.0 226.0 237.0   46.4 TK 2180-S
221.5 230.0 237.0   23.7 TK 2215
223.0 230.5 240.0   38.0 TK 2230-S
232.0 239.0 250.0   46.0 TK 2320-S
239.0 250.0 263.0   46.0 TK 2390-S
249.0 254.0 264.0   46.0 TK 2490-S
255.0 261.0 280.0   46.0 TK 2550-S
270.5 281.0 296.0   46.0 TK 2750-S
278.0 286.0 304.0   46.0 TK 2780-S
284.0 293.0 315.0   46.0 TK 2840-S
292.0 299.0 315.0   46.0 TK 2920-S
298.0 301.0 314.0   23.0 TK 2990
305.0 316.0 330.0   46.0 TK 3050-S
313.0 325.0 340.0   50.5 TK 3130-S
