ProteC CaPtoP® EP 265

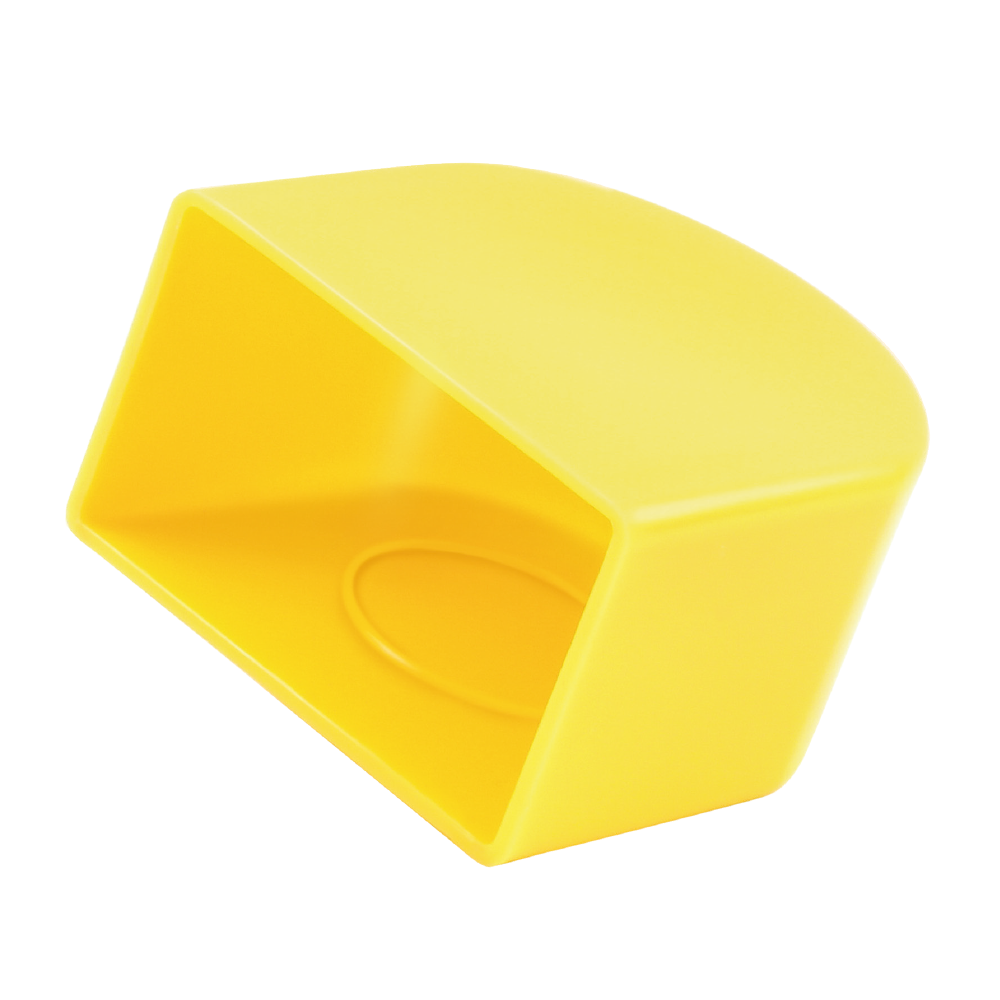

Banjo union caps


CaPtoP® EP 265

Banjo union caps


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

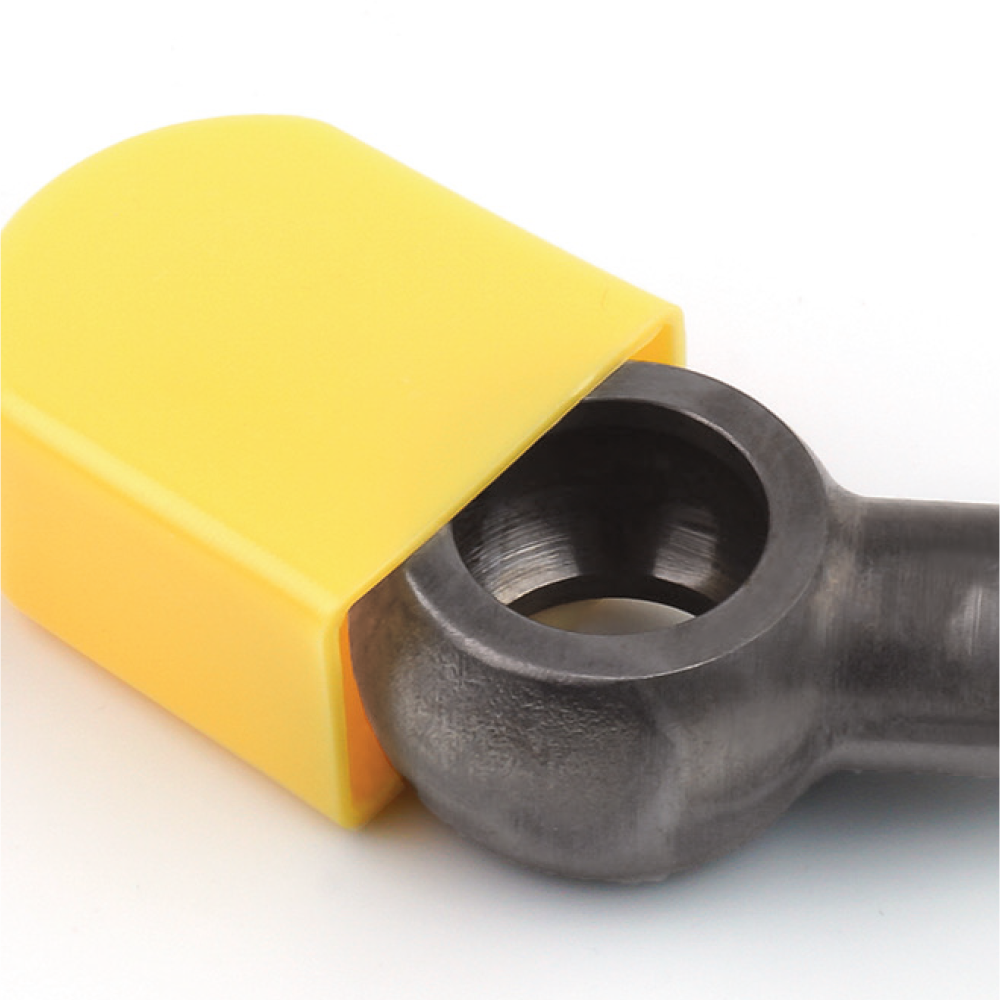

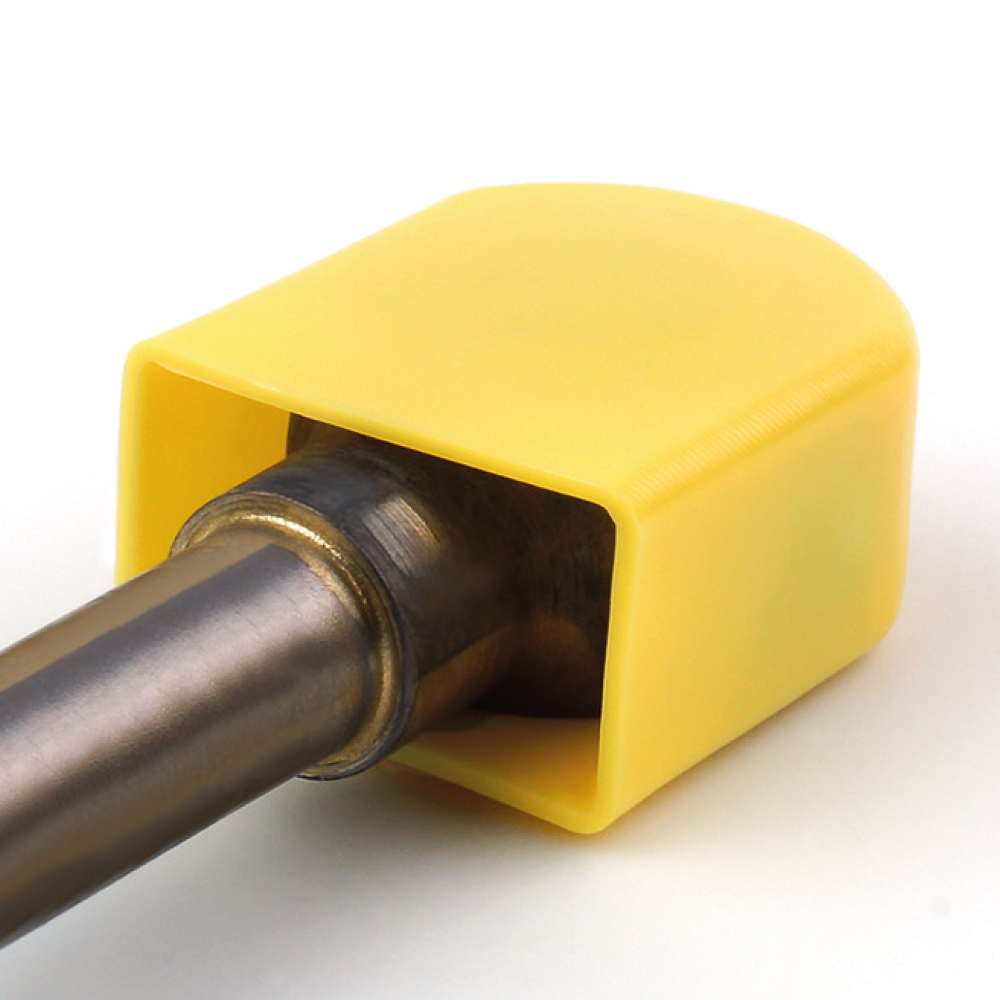

Banjo union caps provide external protection to banjo bolts.

These caps provide a quick application and removal. Banjo Swivel Joints provide 360° rotation in a single plane without leakage.

The units establish mechanical flexibility into high pressure and temperature systems such as fuel pressure systems, turbo charging, air-conditioning and brake installations.

Banjo union caps are typically used in hydraulic, pneumatic and automotive industries.

Fit hydraulic banjo unions to DIN 7642 B/E

Std. Color: yellow
Material: LLD-PE, linear low density polyethylene

PROTEC CAPTOP EP 265
For ring-type nipples
DIN 7642 B/E
Pipe Diameter

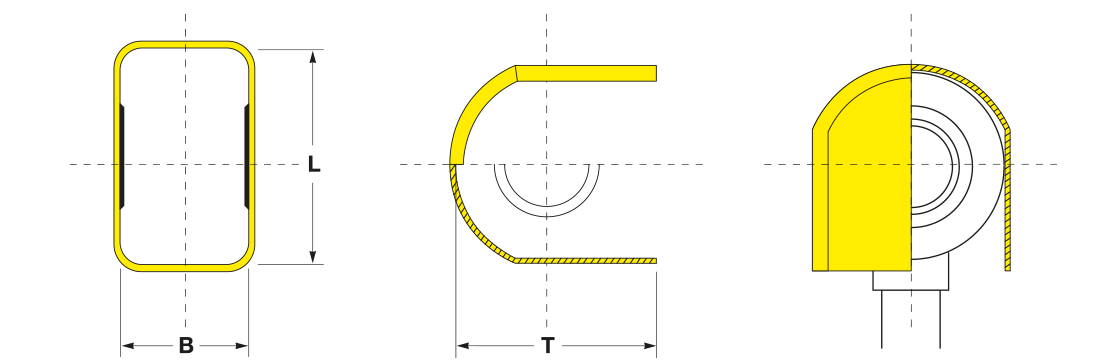

L B T Reference No. Bookmark
  4.0 14.0   7.8 17.0 EP 265 / BE   4
  5.0 14.0   7.8 17.0 EP 265 / BE   5
  6.0 17.0   9.8 19.6 EP 265 / BE   6
  8.0 20.0 11.6 23.5 EP 265 / BE   8
10.0 24.0 13.8 27.6 EP 265 / BE 10
12.0 28.0 15.8 31.2 EP 265 / BE 12
15.0 32.2 19.6 35.3 EP 265 / BE 15
18.0 40.0 24.8 43.0 EP 265 / BE 18
For ring-type nipples
DIN 7642 B/E
Pipe Diameter
L B T Reference No.
  4.0 14.0   7.8 17.0 EP 265 / BE   4
  5.0 14.0   7.8 17.0 EP 265 / BE   5
  6.0 17.0   9.8 19.6 EP 265 / BE   6
  8.0 20.0 11.6 23.5 EP 265 / BE   8
10.0 24.0 13.8 27.6 EP 265 / BE 10
12.0 28.0 15.8 31.2 EP 265 / BE 12
15.0 32.2 19.6 35.3 EP 265 / BE 15
18.0 40.0 24.8 43.0 EP 265 / BE 18
For ring connections DIN 7642 B/E Pipe Diameter 4.0 mm

L
14.0

B
7.8

T
17.0

Reference No.
EP 265 / BE 4

For ring connections DIN 7642 B/E Pipe Diameter 5.0 mm

L
14.0

B
7.8

T
17.0

Reference No.
EP 265 / BE 5

For ring connections DIN 7642 B/E Pipe Diameter 6.0 mm

L
17.0

B
9.8

T
19.6

Reference No.
EP 265 / BE 6

For ring connections DIN 7642 B/E Pipe Diameter 8.0 mm

L
20.0

B
11.6

T
23.5

Reference No.
EP 265 / BE 8

For ring connections DIN 7642 B/E Pipe Diameter 10.0 mm

L
24.0

B
13.8

T
27.6

Reference No.
EP 265 / BE 10

For ring connections DIN 7642 B/E Pipe Diameter 12.0 mm

L
28.0

B
15.8

T
31.2

Reference No.
EP 265 / BE 12

For ring connections DIN 7642 B/E Pipe Diameter 15.0 mm

L
32.2

B
19.6

T
35.3

Reference No.
EP 265 / BE 15

For ring connections DIN 7642 B/E Pipe Diameter 18.0 mm

L
40.0

B
24.8

T
43.0

Reference No.
EP 265 / BE 18

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 265 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.
