ProteC Prosicon® EPS 525

High Temp Silicone Straight Caps - Dome Top

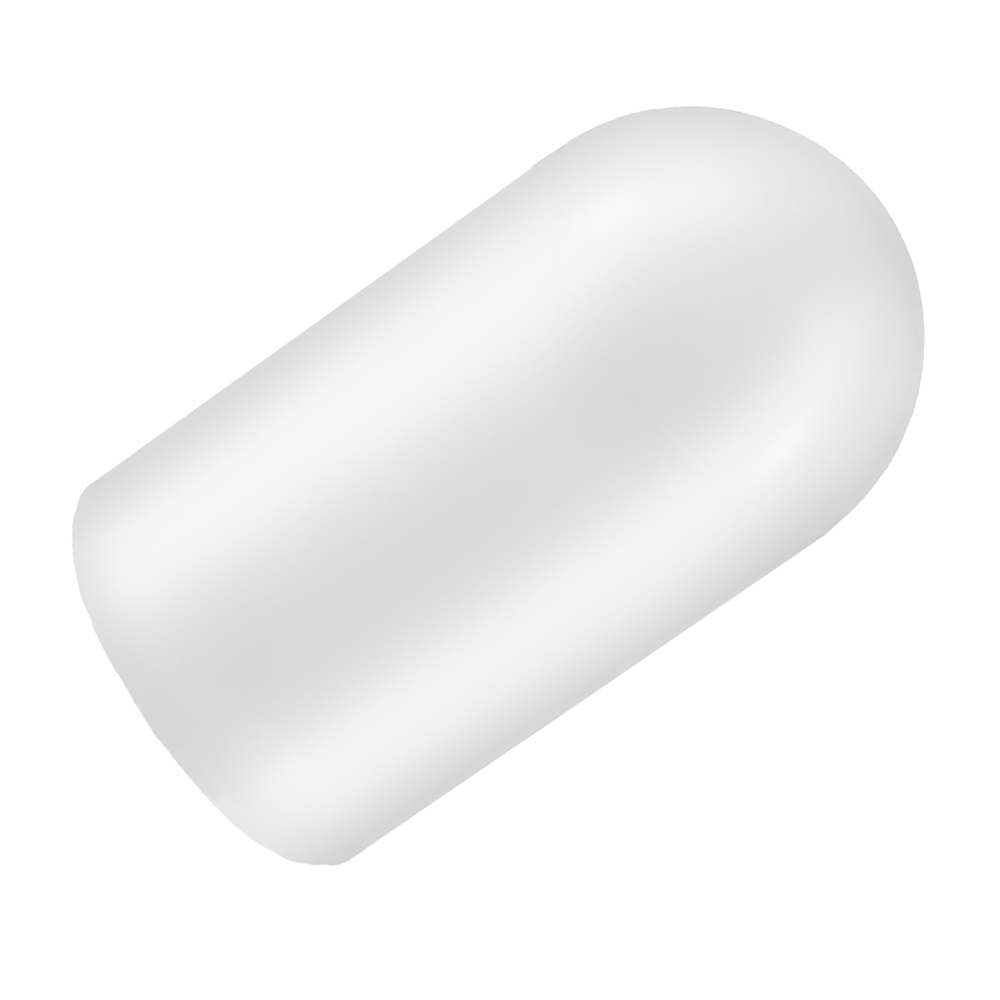

Prosicon® EPS 525

High Temp Silicone Straight Caps - Dome Top


Cylindrical, smooth shaft design, round profile, dome top.

Designed to provide complete protection for masking applications.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code:
Reusable

Color:
Special color runs available on request

Material:
Prosicon® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

HEAT RESISTANT!
PROTEC PROSICON EPS 525

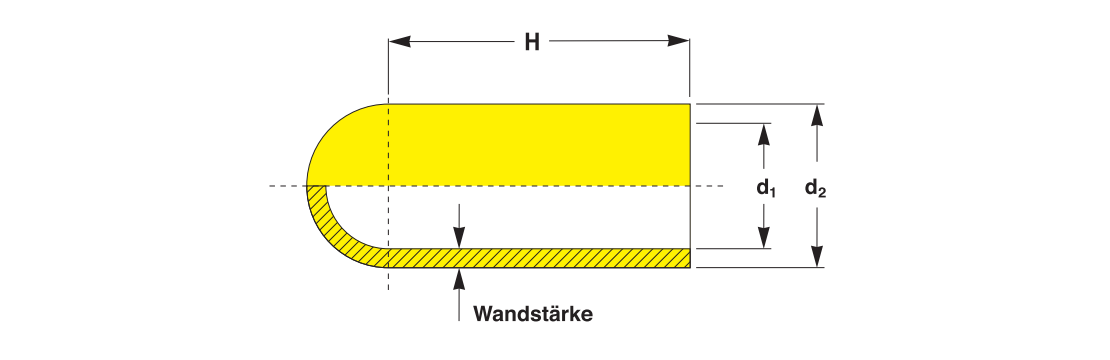

d1 d2 H WS Metric UNF Pack Reference No. Bookmark
0.51 3.56 12.70 1.52 1.000 EPS 525 / 0020-0500
0.89 3.43 12.70 1.27 1.000 EPS 525 / 0035-0500
1.02 3.32 12.70 1.15 1.000 EPS 525 / 0040-0500
1.02 3.30 19.05 1.15 1.000 EPS 525 / 0040-0750
1.57 3.86 12.70 1.15 1.000 EPS 525 / 0062-0500
1.57 3.81 19.05 1.12 1.000 EPS 525 / 0062-0750
1.57 4.62 25.40 1.35 1.000 EPS 525 / 0062-1000
1.78 4.08 25.40 1.15 1.000 EPS 525 / 0070-1000
2.03 4.57 12.70 1.27 1.000 EPS 525 / 0080-0500
2.03 5.08 19.05 1.52 1.000 EPS 525 / 0080-0750
2.03 4.72 25.40 1.35 1.000 EPS 525 / 0080-1000
2.36 4.95 12.70 1.30 1.000 EPS 525 / 0093-0500
2.36 4.95 19.05 1.30 1.000 EPS 525 / 0093-0750
2.36 4.95 25.40 1.30 1.000 EPS 525 / 0093-1000
2.54 5.13 12.70 1.30 M 3  1.000 EPS 525 / 0100-0500
2.54 5.13 19.05 1.30 M 3  1.000 EPS 525 / 0100-0750
2.54 5.13 25.40 1.30 M 3  1.000 EPS 525 / 0100-1000
2.54 5.59 38.10 1.52 1.000 EPS 525 / 0100-1500
2.77 5.82 12.70 1.52 1.000 EPS 525 / 0109-0500
2.77 5.36 19.05 1.30 1.000 EPS 525 / 0109-0750
2.77 5.36 25.40 1.30 1.000 EPS 525 / 0109-1000
3.05 5.59 6.35 1.27 1.000 EPS 525 / 0120-0250
3.05 5.59 10.16 1.27 1.000 EPS 525 / 0120-0400
3.18 5.77 12.70 1.30 1.000 EPS 525 / 0125-0500
3.18 5.77 19.05 1.30 1.000 EPS 525 / 0125-0750
3.18 5.77 25.40 1.30 1.000 EPS 525 / 0125-1000
3.18 6.22 38.10 1.52 1.000 EPS 525 / 0125-1500
3.43 6.48 15.88 1.52 1.000 EPS 525 / 0135-0625
3.48 6.53 12.70 1.52 1.000 EPS 525 / 0137-0500
3.48 6.53 25.40 1.52 1.000 EPS 525 / 0137-1000
3.56 6.60 12.70 1.52 1.000 EPS 525 / 0140-0500
3.56 6.60 25.40 1.52 1.000 EPS 525 / 0140-1000
3.56 6.60 38.10 1.52 1.000 EPS 525 / 0140-1500
3.76 6.81 12.70 1.52 M 4  1.000 EPS 525 / 0148-0500
3.76 6.81 19.05 1.52 M 4  1.000 EPS 525 / 0148-0750
3.76 6.81 25.40 1.52 M 4  1.000 EPS 525 / 0148-1000
3.76 6.81 38.10 1.52 M 4  1.000 EPS 525 / 0148-1500
3.96 7.01 12.70 1.52 1.000 EPS 525 / 0156-0500
3.96 7.01 25.40 1.52 1.000 EPS 525 / 0156-1000
3.96 7.01 31.75 1.52 1.000 EPS 525 / 0156-1250
3.96 7.01 38.10 1.52 1.000 EPS 525 / 0156-1500
4.19 7.24 25.40 1.52 1.000 EPS 525 / 0165-1000
4.19 7.24 38.10 1.52 1.000 EPS 525 / 0165-1500
4.19 7.24 50.80 1.52 1.000 EPS 525 / 0165-2000
4.37 7.42 12.70 1.52 M 5  1.000 EPS 525 / 0172-0500
4.37 7.42 25.40 1.52 M 5  1.000 EPS 525 / 0172-1000
4.37 7.42 38.10 1.52 M 5  1.000 EPS 525 / 0172-1500
4.57 7.62 25.40 1.52 1.000 EPS 525 / 0180-1000
4.75 7.80 12.70 1.52 1.000 EPS 525 / 0187-0500
4.75 7.80 15.49 1.52 1.000 EPS 525 / 0187-0610
4.75 7.80 19.05 1.52 1.000 EPS 525 / 0187-0750
4.75 7.80 25.40 1.52 1.000 EPS 525 / 0187-1000
4.75 7.80 38.10 1.52 1.000 EPS 525 / 0187-1500
5.00 8.05 12.70 1.52 1.000 EPS 525 / 0197-0500
5.00 8.05 25.40 1.52 1.000 EPS 525 / 0197-1000
5.54 8.59 25.40 1.52 1.000 EPS 525 / 0218-1000
5.66 8.71 12.70 1.52 M 6  1.000 EPS 525 / 0223-0500
5.66 8.71 19.05 1.52 M 6  1.000 EPS 525 / 0223-0750
5.66 8.71 25.40 1.52 M 6  1.000 EPS 525 / 0223-1000
5.66 8.71 38.10 1.52 M 6  1.000 EPS 525 / 0223-1500
5.66 8.71 54.99 1.52 M 6  1.000 EPS 525 / 0223-2165
5.94 8.99 12.70 1.52 1/4"  1.000 EPS 525 / 0234-0500
5.94 8.99 19.99 1.52 1/4"  1.000 EPS 525 / 0234-0787
5.94 8.99 25.40 1.52 1/4"  1.000 EPS 525 / 0234-1000
5.94 8.99 31.75 1.52 1/4"  1.000 EPS 525 / 0234-1250
5.94 8.99 38.10 1.52 1/4"  1.000 EPS 525 / 0234-1500
6.35 9.40 12.70 1.52 1.000 EPS 525 / 0250-0500
6.35 9.40 25.40 1.52 1.000 EPS 525 / 0250-1000
6.35 9.40 38.10 1.52 1.000 EPS 525 / 0250-1500
6.60 9.65 12.70 1.52 1.000 EPS 525 / 0260-0500
6.60 9.65 25.40 1.52 500 EPS 525 / 0260-1000
7.14 10.19 12.70 1.52 500 EPS 525 / 0281-0500
7.14 10.19 19.05 1.52 500 EPS 525 / 0281-0750
7.14 10.19 25.40 1.52 500 EPS 525 / 0281-1000
7.14 10.19 50.80 1.52 500 EPS 525 / 0281-2000
7.49 10.54 12.70 1.52 M 8  5/16“  500 EPS 525 / 0295-0500
7.49 10.54 19.05 1.52 M 8  5/16“  500 EPS 525 / 0295-0750
7.49 10.54 25.40 1.52 M 8  5/16“  500 EPS 525 / 0295-1000
7.49 10.54 38.10 1.52 M 8  5/16“  500 EPS 525 / 0295-1500
7.49 10.54 59.69 1.52 M 8  5/16“  500 EPS 525 / 0295-2350
7.70 11.00 25.40 1.65 M 8  5/16“  500 EPS 525 / 0303-1000
7.92 10.97 12.70 1.52 M 8  5/16“  500 EPS 525 / 0312-0500
7.92 10.97 25.40 1.52 M 8  5/16“  500 EPS 525 / 0312-1000
7.92 10.97 38.10 1.52 M 8  5/16“  500 EPS 525 / 0312-1500
7.92 10.97 50.80 1.52 M 8  5/16“  500 EPS 525 / 0312-2000
8.64 11.68 12.70 1.52 500 EPS 525 / 0340-0500
8.64 11.68 25.40 1.52 500 EPS 525 / 0340-1000
8.64 11.68 38.10 1.52 500 EPS 525 / 0340-1500
8.64 11.68 50.80 1.52 500 EPS 525 / 0340-2000
9.02 12.07 25.40 1.52 500 EPS 525 / 0355-1000
9.02 12.07 38.10 1.52 500 EPS 525 / 0355-1500
9.30 12.34 25.40 1.52 500 EPS 525 / 0366-1000
9.30 12.34 38.10 1.52 500 EPS 525 / 0366-1500
9.53 12.57 12.70 1.52 M 10  500 EPS 525 / 0375-0500
9.53 12.57 19.05 1.52 M 10  500 EPS 525 / 0375-0750
9.53 12.57 25.40 1.52 M 10  500 EPS 525 / 0375-1000
9.53 12.57 38.10 1.52 M 10  500 EPS 525 / 0375-1500
9.53 12.57 50.01 1.52 M 10  250 EPS 525 / 0375-1969
10.31 13.36 25.40 1.52 7/16“  250 EPS 525 / 0406-1000
10.31 13.36 38.10 1.52 7/16“  250 EPS 525 / 0406-1500
11.10 14.15 6.35 1.52 250 EPS 525 / 0437-0250
11.10 14.15 19.05 1.52 250 EPS 525 / 0437-0750
11.10 14.15 25.40 1.52 250 EPS 525 / 0437-1000
11.10 14.15 50.80 1.52 250 EPS 525 / 0437-2000
11.58 14.63 12.70 1.52 M 12  250 EPS 525 / 0456-0500
11.58 14.63 19.05 1.52 M 12  250 EPS 525 / 0456-0750
11.58 14.63 25.40 1.52 M 12  250 EPS 525 / 0456-1000
11.58 14.63 38.10 1.52 M 12  250 EPS 525 / 0456-1500
11.58 14.63 50.01 1.52 M 12  250 EPS 525 / 0456-1969
11.89 14.94 25.40 1.52 250 EPS 525 / 0468-1000
11.89 14.94 38.10 1.52 250 EPS 525 / 0468-1500
12.07 15.11 101.60 1.52 250 EPS 525 / 0475-4000
12.19 15.24 25.40 1.52 1/2"  250 EPS 525 / 0480-1000
12.19 15.24 38.10 1.52 1/2"  250 EPS 525 / 0480-1500
12.70 15.75 19.05 1.52 250 EPS 525 / 0500-0750
12.70 15.75 38.10 1.52 250 EPS 525 / 0500-1500
12.70 15.75 76.20 1.52 250 EPS 525 / 0500-3000
12.70 15.75 101.60 1.52 250 EPS 525 / 0500-4000
13.59 16.64 19.05 1.52 M 14  250 EPS 525 / 0535-0750
13.59 16.64 25.40 1.52 M 14  250 EPS 525 / 0535-1000
13.59 16.64 38.10 1.52 M 14  250 EPS 525 / 0535-1500
13.59 16.64 76.20 1.52 M 14  250 EPS 525 / 0535-3000
14.27 17.32 16.74 1.52 M 16  250 EPS 525 / 0562-0659
14.27 17.32 20.32 1.52 M 16  250 EPS 525 / 0562-0800
14.27 17.32 27.94 1.52 M 16  250 EPS 525 / 0562-1100
14.27 17.32 38.10 1.52 M 16  250 EPS 525 / 0562-1500
15.24 18.29 38.10 1.52 250 EPS 525 / 0600-1500
15.88 18.92 19.05 1.52 250 EPS 525 / 0625-0750
15.88 18.92 28.58 1.52 250 EPS 525 / 0625-1125
15.88 18.92 31.75 1.52 250 EPS 525 / 0625-1250
15.88 18.92 38.10 1.52 250 EPS 525 / 0625-1500
15.88 18.92 63.50 1.52 250 EPS 525 / 0625-2500
17.45 20.50 15.88 1.52 M 18  250 EPS 525 / 0687-0625
17.45 20.50 25.40 1.52 M 18  100 EPS 525 / 0687-1000
17.45 20.50 31.75 1.52 M 18  100 EPS 525 / 0687-1250
17.45 20.50 38.10 1.52 M 18  100 EPS 525 / 0687-1500
17.45 20.50 44.45 1.52 M 18  100 EPS 525 / 0687-1750
17.45 20.50 63.50 1.52 M 18  100 EPS 525 / 0687-2500
17.45 20.50 114.30 1.52 M 18  100 EPS 525 / 0687-4500
18.54 21.59 38.10 1.52 3/4"  100 EPS 525 / 0730-1500
18.54 21.59 109.86 1.52 3/4"  100 EPS 525 / 0730-4325
19.05 22.10 38.10 1.52 M 20  100 EPS 525 / 0750-1500
19.05 22.10 44.45 1.52 M 20  100 EPS 525 / 0750-1750
19.05 22.10 50.80 1.52 M 20  100 EPS 525 / 0750-2000
19.05 22.10 88.90 1.52 M 20  100 EPS 525 / 0750-3500
19.05 22.10 109.22 1.52 M 20  100 EPS 525 / 0750-4300
19.81 22.86 38.10 1.52 100 EPS 525 / 0780-1500
20.62 23.67 25.40 1.52 M 22  7/8“  100 EPS 525 / 0812-1000
20.62 23.67 38.10 1.52 M 22  7/8“  100 EPS 525 / 0812-1500
21.46 24.51 38.10 1.52 100 EPS 525 / 0845-1500
21.46 24.51 72.24 1.52 100 EPS 525 / 0845-2844
22.23 25.27 25.40 1.52 100 EPS 525 / 0875-1000
22.23 25.27 38.10 1.52 100 EPS 525 / 0875-1500
23.80 26.85 25.40 1.52 100 EPS 525 / 0937-1000
23.80 26.85 38.10 1.52 100 EPS 525 / 0937-1500
24.64 27.69 38.10 1.52 M 25  1“  100 EPS 525 / 0970-1500
24.64 27.69 101.60 1.52 M 25  1“  100 EPS 525 / 0970-4000
25.40 28.45 20.83 1.52 M 27  100 EPS 525 / 1000-0820
25.40 28.45 38.10 1.52 M 27  100 EPS 525 / 1000-1500
25.40 28.45 50.80 1.52 M 27  100 EPS 525 / 1000-2000
26.97 30.02 25.40 1.52 100 EPS 525 / 1062-1000
26.97 30.02 38.10 1.52 100 EPS 525 / 1062-1500
26.97 30.02 50.80 1.52 100 EPS 525 / 1062-2000
26.97 30.02 86.72 1.52 100 EPS 525 / 1062-3414
27.51 30.56 76.20 1.52 M 30  100 EPS 525 / 1083-3000
28.58 31.62 38.10 1.52 100 EPS 525 / 1125-1500
30.15 33.20 38.10 1.52 M 33  100 EPS 525 / 1187-1500
31.75 34.80 28.58 1.52 100 EPS 525 / 1250-1125
31.75 34.80 38.10 1.52 100 EPS 525 / 1250-1500
34.29 37.34 38.10 1.52 M 36  100 EPS 525 / 1350-1500
34.29 37.34 44.45 1.52 100 EPS 525 / 1350-1750
34.93 37.97 38.10 1.52 50 EPS 525 / 1375-1500
35.05 38.10 25.40 1.52 50 EPS 525 / 1380-1000
35.05 38.10 38.10 1.52 50 EPS 525 / 1380-1500
38.10 41.15 25.40 1.52 M 39  1 1/4“  50 EPS 525 / 1500-1000
38.10 41.15 38.10 1.52 M 39  1 1/4“  50 EPS 525 / 1500-1500
38.10 41.15 44.45 1.52 M 39  1 1/4“  50 EPS 525 / 1500-1750
41.28 44.32 50.80 1.52 50 EPS 525 / 1625-2000
44.45 47.50 38.10 1.52 50 EPS 525 / 1750-1500
44.45 47.50 50.80 1.52 50 EPS 525 / 1750-2000
47.63 50.67 38.10 1.52 50 EPS 525 / 1875-1500
47.63 50.67 50.80 1.52 50 EPS 525 / 1875-2000
50.80 53.85 25.40 1.52 50 EPS 525 / 2000-1000
50.80 53.85 50.80 1.52 25 EPS 525 / 2000-2000
53.47 56.52 50.80 1.52 25 EPS 525 / 2105-2000
d1 d2 H WS Metric UNF Pack Reference No.
0.51 3.56 12.70 1.52 1.000 EPS 525 / 0020-0500
0.89 3.43 12.70 1.27 1.000 EPS 525 / 0035-0500
1.02 3.32 12.70 1.15 1.000 EPS 525 / 0040-0500
1.02 3.30 19.05 1.15 1.000 EPS 525 / 0040-0750
1.57 3.86 12.70 1.15 1.000 EPS 525 / 0062-0500
1.57 3.81 19.05 1.12 1.000 EPS 525 / 0062-0750
1.57 4.62 25.40 1.35 1.000 EPS 525 / 0062-1000
1.78 4.08 25.40 1.15 1.000 EPS 525 / 0070-1000
2.03 4.57 12.70 1.27 1.000 EPS 525 / 0080-0500
2.03 5.08 19.05 1.52 1.000 EPS 525 / 0080-0750
2.03 4.72 25.40 1.35 1.000 EPS 525 / 0080-1000
2.36 4.95 12.70 1.30 1.000 EPS 525 / 0093-0500
2.36 4.95 19.05 1.30 1.000 EPS 525 / 0093-0750
2.36 4.95 25.40 1.30 1.000 EPS 525 / 0093-1000
2.54 5.13 12.70 1.30 M 3  1.000 EPS 525 / 0100-0500
2.54 5.13 19.05 1.30 M 3  1.000 EPS 525 / 0100-0750
2.54 5.13 25.40 1.30 M 3  1.000 EPS 525 / 0100-1000
2.54 5.59 38.10 1.52 1.000 EPS 525 / 0100-1500
2.77 5.82 12.70 1.52 1.000 EPS 525 / 0109-0500
2.77 5.36 19.05 1.30 1.000 EPS 525 / 0109-0750
2.77 5.36 25.40 1.30 1.000 EPS 525 / 0109-1000
3.05 5.59 6.35 1.27 1.000 EPS 525 / 0120-0250
3.05 5.59 10.16 1.27 1.000 EPS 525 / 0120-0400
3.18 5.77 12.70 1.30 1.000 EPS 525 / 0125-0500
3.18 5.77 19.05 1.30 1.000 EPS 525 / 0125-0750
3.18 5.77 25.40 1.30 1.000 EPS 525 / 0125-1000
3.18 6.22 38.10 1.52 1.000 EPS 525 / 0125-1500
3.43 6.48 15.88 1.52 1.000 EPS 525 / 0135-0625
3.48 6.53 12.70 1.52 1.000 EPS 525 / 0137-0500
3.48 6.53 25.40 1.52 1.000 EPS 525 / 0137-1000
3.56 6.60 12.70 1.52 1.000 EPS 525 / 0140-0500
3.56 6.60 25.40 1.52 1.000 EPS 525 / 0140-1000
3.56 6.60 38.10 1.52 1.000 EPS 525 / 0140-1500
3.76 6.81 12.70 1.52 M 4  1.000 EPS 525 / 0148-0500
3.76 6.81 19.05 1.52 M 4  1.000 EPS 525 / 0148-0750
3.76 6.81 25.40 1.52 M 4  1.000 EPS 525 / 0148-1000
3.76 6.81 38.10 1.52 M 4  1.000 EPS 525 / 0148-1500
3.96 7.01 12.70 1.52 1.000 EPS 525 / 0156-0500
3.96 7.01 25.40 1.52 1.000 EPS 525 / 0156-1000
3.96 7.01 31.75 1.52 1.000 EPS 525 / 0156-1250
3.96 7.01 38.10 1.52 1.000 EPS 525 / 0156-1500
4.19 7.24 25.40 1.52 1.000 EPS 525 / 0165-1000
4.19 7.24 38.10 1.52 1.000 EPS 525 / 0165-1500
4.19 7.24 50.80 1.52 1.000 EPS 525 / 0165-2000
4.37 7.42 12.70 1.52 M 5  1.000 EPS 525 / 0172-0500
4.37 7.42 25.40 1.52 M 5  1.000 EPS 525 / 0172-1000
4.37 7.42 38.10 1.52 M 5  1.000 EPS 525 / 0172-1500
4.57 7.62 25.40 1.52 1.000 EPS 525 / 0180-1000
4.75 7.80 12.70 1.52 1.000 EPS 525 / 0187-0500
4.75 7.80 15.49 1.52 1.000 EPS 525 / 0187-0610
4.75 7.80 19.05 1.52 1.000 EPS 525 / 0187-0750
4.75 7.80 25.40 1.52 1.000 EPS 525 / 0187-1000
4.75 7.80 38.10 1.52 1.000 EPS 525 / 0187-1500
5.00 8.05 12.70 1.52 1.000 EPS 525 / 0197-0500
5.00 8.05 25.40 1.52 1.000 EPS 525 / 0197-1000
5.54 8.59 25.40 1.52 1.000 EPS 525 / 0218-1000
5.66 8.71 12.70 1.52 M 6  1.000 EPS 525 / 0223-0500
5.66 8.71 19.05 1.52 M 6  1.000 EPS 525 / 0223-0750
5.66 8.71 25.40 1.52 M 6  1.000 EPS 525 / 0223-1000
5.66 8.71 38.10 1.52 M 6  1.000 EPS 525 / 0223-1500
5.66 8.71 54.99 1.52 M 6  1.000 EPS 525 / 0223-2165
5.94 8.99 12.70 1.52 1/4"  1.000 EPS 525 / 0234-0500
5.94 8.99 19.99 1.52 1/4"  1.000 EPS 525 / 0234-0787
5.94 8.99 25.40 1.52 1/4"  1.000 EPS 525 / 0234-1000
5.94 8.99 31.75 1.52 1/4"  1.000 EPS 525 / 0234-1250
5.94 8.99 38.10 1.52 1/4"  1.000 EPS 525 / 0234-1500
6.35 9.40 12.70 1.52 1.000 EPS 525 / 0250-0500
6.35 9.40 25.40 1.52 1.000 EPS 525 / 0250-1000
6.35 9.40 38.10 1.52 1.000 EPS 525 / 0250-1500
6.60 9.65 12.70 1.52 1.000 EPS 525 / 0260-0500
6.60 9.65 25.40 1.52 500 EPS 525 / 0260-1000
7.14 10.19 12.70 1.52 500 EPS 525 / 0281-0500
7.14 10.19 19.05 1.52 500 EPS 525 / 0281-0750
7.14 10.19 25.40 1.52 500 EPS 525 / 0281-1000
7.14 10.19 50.80 1.52 500 EPS 525 / 0281-2000
7.49 10.54 12.70 1.52 M 8  5/16“  500 EPS 525 / 0295-0500
7.49 10.54 19.05 1.52 M 8  5/16“  500 EPS 525 / 0295-0750
7.49 10.54 25.40 1.52 M 8  5/16“  500 EPS 525 / 0295-1000
7.49 10.54 38.10 1.52 M 8  5/16“  500 EPS 525 / 0295-1500
7.49 10.54 59.69 1.52 M 8  5/16“  500 EPS 525 / 0295-2350
7.70 11.00 25.40 1.65 M 8  5/16“  500 EPS 525 / 0303-1000
7.92 10.97 12.70 1.52 M 8  5/16“  500 EPS 525 / 0312-0500
7.92 10.97 25.40 1.52 M 8  5/16“  500 EPS 525 / 0312-1000
7.92 10.97 38.10 1.52 M 8  5/16“  500 EPS 525 / 0312-1500
7.92 10.97 50.80 1.52 M 8  5/16“  500 EPS 525 / 0312-2000
8.64 11.68 12.70 1.52 500 EPS 525 / 0340-0500
8.64 11.68 25.40 1.52 500 EPS 525 / 0340-1000
8.64 11.68 38.10 1.52 500 EPS 525 / 0340-1500
8.64 11.68 50.80 1.52 500 EPS 525 / 0340-2000
9.02 12.07 25.40 1.52 500 EPS 525 / 0355-1000
9.02 12.07 38.10 1.52 500 EPS 525 / 0355-1500
9.30 12.34 25.40 1.52 500 EPS 525 / 0366-1000
9.30 12.34 38.10 1.52 500 EPS 525 / 0366-1500
9.53 12.57 12.70 1.52 M 10  500 EPS 525 / 0375-0500
9.53 12.57 19.05 1.52 M 10  500 EPS 525 / 0375-0750
9.53 12.57 25.40 1.52 M 10  500 EPS 525 / 0375-1000
9.53 12.57 38.10 1.52 M 10  500 EPS 525 / 0375-1500
9.53 12.57 50.01 1.52 M 10  250 EPS 525 / 0375-1969
10.31 13.36 25.40 1.52 7/16“  250 EPS 525 / 0406-1000
10.31 13.36 38.10 1.52 7/16“  250 EPS 525 / 0406-1500
11.10 14.15 6.35 1.52 250 EPS 525 / 0437-0250
11.10 14.15 19.05 1.52 250 EPS 525 / 0437-0750
11.10 14.15 25.40 1.52 250 EPS 525 / 0437-1000
11.10 14.15 50.80 1.52 250 EPS 525 / 0437-2000
11.58 14.63 12.70 1.52 M 12  250 EPS 525 / 0456-0500
11.58 14.63 19.05 1.52 M 12  250 EPS 525 / 0456-0750
11.58 14.63 25.40 1.52 M 12  250 EPS 525 / 0456-1000
11.58 14.63 38.10 1.52 M 12  250 EPS 525 / 0456-1500
11.58 14.63 50.01 1.52 M 12  250 EPS 525 / 0456-1969
11.89 14.94 25.40 1.52 250 EPS 525 / 0468-1000
11.89 14.94 38.10 1.52 250 EPS 525 / 0468-1500
12.07 15.11 101.60 1.52 250 EPS 525 / 0475-4000
12.19 15.24 25.40 1.52 1/2"  250 EPS 525 / 0480-1000
12.19 15.24 38.10 1.52 1/2"  250 EPS 525 / 0480-1500
12.70 15.75 19.05 1.52 250 EPS 525 / 0500-0750
12.70 15.75 38.10 1.52 250 EPS 525 / 0500-1500
12.70 15.75 76.20 1.52 250 EPS 525 / 0500-3000
12.70 15.75 101.60 1.52 250 EPS 525 / 0500-4000
13.59 16.64 19.05 1.52 M 14  250 EPS 525 / 0535-0750
13.59 16.64 25.40 1.52 M 14  250 EPS 525 / 0535-1000
13.59 16.64 38.10 1.52 M 14  250 EPS 525 / 0535-1500
13.59 16.64 76.20 1.52 M 14  250 EPS 525 / 0535-3000
14.27 17.32 16.74 1.52 M 16  250 EPS 525 / 0562-0659
14.27 17.32 20.32 1.52 M 16  250 EPS 525 / 0562-0800
14.27 17.32 27.94 1.52 M 16  250 EPS 525 / 0562-1100
14.27 17.32 38.10 1.52 M 16  250 EPS 525 / 0562-1500
15.24 18.29 38.10 1.52 250 EPS 525 / 0600-1500
15.88 18.92 19.05 1.52 250 EPS 525 / 0625-0750
15.88 18.92 28.58 1.52 250 EPS 525 / 0625-1125
15.88 18.92 31.75 1.52 250 EPS 525 / 0625-1250
15.88 18.92 38.10 1.52 250 EPS 525 / 0625-1500
15.88 18.92 63.50 1.52 250 EPS 525 / 0625-2500
17.45 20.50 15.88 1.52 M 18  250 EPS 525 / 0687-0625
17.45 20.50 25.40 1.52 M 18  100 EPS 525 / 0687-1000
17.45 20.50 31.75 1.52 M 18  100 EPS 525 / 0687-1250
17.45 20.50 38.10 1.52 M 18  100 EPS 525 / 0687-1500
17.45 20.50 44.45 1.52 M 18  100 EPS 525 / 0687-1750
17.45 20.50 63.50 1.52 M 18  100 EPS 525 / 0687-2500
17.45 20.50 114.30 1.52 M 18  100 EPS 525 / 0687-4500
18.54 21.59 38.10 1.52 3/4"  100 EPS 525 / 0730-1500
18.54 21.59 109.86 1.52 3/4"  100 EPS 525 / 0730-4325
19.05 22.10 38.10 1.52 M 20  100 EPS 525 / 0750-1500
19.05 22.10 44.45 1.52 M 20  100 EPS 525 / 0750-1750
19.05 22.10 50.80 1.52 M 20  100 EPS 525 / 0750-2000
19.05 22.10 88.90 1.52 M 20  100 EPS 525 / 0750-3500
19.05 22.10 109.22 1.52 M 20  100 EPS 525 / 0750-4300
19.81 22.86 38.10 1.52 100 EPS 525 / 0780-1500
20.62 23.67 25.40 1.52 M 22  7/8“  100 EPS 525 / 0812-1000
20.62 23.67 38.10 1.52 M 22  7/8“  100 EPS 525 / 0812-1500
21.46 24.51 38.10 1.52 100 EPS 525 / 0845-1500
21.46 24.51 72.24 1.52 100 EPS 525 / 0845-2844
22.23 25.27 25.40 1.52 100 EPS 525 / 0875-1000
22.23 25.27 38.10 1.52 100 EPS 525 / 0875-1500
23.80 26.85 25.40 1.52 100 EPS 525 / 0937-1000
23.80 26.85 38.10 1.52 100 EPS 525 / 0937-1500
24.64 27.69 38.10 1.52 M 25  1“  100 EPS 525 / 0970-1500
24.64 27.69 101.60 1.52 M 25  1“  100 EPS 525 / 0970-4000
25.40 28.45 20.83 1.52 M 27  100 EPS 525 / 1000-0820
25.40 28.45 38.10 1.52 M 27  100 EPS 525 / 1000-1500
25.40 28.45 50.80 1.52 M 27  100 EPS 525 / 1000-2000
26.97 30.02 25.40 1.52 100 EPS 525 / 1062-1000
26.97 30.02 38.10 1.52 100 EPS 525 / 1062-1500
26.97 30.02 50.80 1.52 100 EPS 525 / 1062-2000
26.97 30.02 86.72 1.52 100 EPS 525 / 1062-3414
27.51 30.56 76.20 1.52 M 30  100 EPS 525 / 1083-3000
28.58 31.62 38.10 1.52 100 EPS 525 / 1125-1500
30.15 33.20 38.10 1.52 M 33  100 EPS 525 / 1187-1500
31.75 34.80 28.58 1.52 100 EPS 525 / 1250-1125
31.75 34.80 38.10 1.52 100 EPS 525 / 1250-1500
34.29 37.34 38.10 1.52 M 36  100 EPS 525 / 1350-1500
34.29 37.34 44.45 1.52 100 EPS 525 / 1350-1750
34.93 37.97 38.10 1.52 50 EPS 525 / 1375-1500
35.05 38.10 25.40 1.52 50 EPS 525 / 1380-1000
35.05 38.10 38.10 1.52 50 EPS 525 / 1380-1500
38.10 41.15 25.40 1.52 M 39  1 1/4“  50 EPS 525 / 1500-1000
38.10 41.15 38.10 1.52 M 39  1 1/4“  50 EPS 525 / 1500-1500
38.10 41.15 44.45 1.52 M 39  1 1/4“  50 EPS 525 / 1500-1750
41.28 44.32 50.80 1.52 50 EPS 525 / 1625-2000
44.45 47.50 38.10 1.52 50 EPS 525 / 1750-1500
44.45 47.50 50.80 1.52 50 EPS 525 / 1750-2000
47.63 50.67 38.10 1.52 50 EPS 525 / 1875-1500
47.63 50.67 50.80 1.52 50 EPS 525 / 1875-2000
50.80 53.85 25.40 1.52 50 EPS 525 / 2000-1000
50.80 53.85 50.80 1.52 25 EPS 525 / 2000-2000
53.47 56.52 50.80 1.52 25 EPS 525 / 2105-2000
d1
0.51

d2
3.56

H
12.70

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0020-0500

d1
0.89

d2
3.43

H
12.70

Wall Thickness
1.27

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0035-0500

d1
1.02

d2
3.32

H
12.70

Wall Thickness
1.15

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0040-0500

d1
1.02

d2
3.30

H
19.05

Wall Thickness
1.15

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0040-0750

d1
1.57

d2
3.86

H
12.70

Wall Thickness
1.15

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0062-0500

d1
1.57

d2
3.81

H
19.05

Wall Thickness
1.12

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0062-0750

d1
1.57

d2
4.62

H
25.40

Wall Thickness
1.35

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0062-1000

d1
1.78

d2
4.08

H
25.40

Wall Thickness
1.15

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0070-1000

d1
2.03

d2
4.57

H
12.70

Wall Thickness
1.27

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0080-0500

d1
2.03

d2
5.08

H
19.05

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0080-0750

d1
2.03

d2
4.72

H
25.40

Wall Thickness
1.35

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0080-1000

d1
2.36

d2
4.95

H
12.70

Wall Thickness
1.30

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0093-0500

d1
2.36

d2
4.95

H
19.05

Wall Thickness
1.30

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0093-0750

d1
2.36

d2
4.95

H
25.40

Wall Thickness
1.30

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0093-1000

d1
2.54

d2
5.13

H
12.70

Wall Thickness
1.30

Metric
M 3

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0100-0500

d1
2.54

d2
5.13

H
19.05

Wall Thickness
1.30

Metric
M 3

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0100-0750

d1
2.54

d2
5.13

H
25.40

Wall Thickness
1.30

Metric
M 3

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0100-1000

d1
2.54

d2
5.59

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0100-1500

d1
2.77

d2
5.82

H
12.70

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0109-0500

d1
2.77

d2
5.36

H
19.05

Wall Thickness
1.30

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0109-0750

d1
2.77

d2
5.36

H
25.40

Wall Thickness
1.30

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0109-1000

d1
3.05

d2
5.59

H
6.35

Wall Thickness
1.27

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0120-0250

d1
3.05

d2
5.59

H
10.16

Wall Thickness
1.27

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0120-0400

d1
3.18

d2
5.77

H
12.70

Wall Thickness
1.30

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0125-0500

d1
3.18

d2
5.77

H
19.05

Wall Thickness
1.30

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0125-0750

d1
3.18

d2
5.77

H
25.40

Wall Thickness
1.30

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0125-1000

d1
3.18

d2
6.22

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0125-1500

d1
3.43

d2
6.48

H
15.88

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0135-0625

d1
3.48

d2
6.53

H
12.70

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0137-0500

d1
3.48

d2
6.53

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0137-1000

d1
3.56

d2
6.60

H
12.70

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0140-0500

d1
3.56

d2
6.60

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0140-1000

d1
3.56

d2
6.60

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0140-1500

d1
3.76

d2
6.81

H
12.70

Wall Thickness
1.52

Metric
M 4

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0148-0500

d1
3.76

d2
6.81

H
19.05

Wall Thickness
1.52

Metric
M 4

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0148-0750

d1
3.76

d2
6.81

H
25.40

Wall Thickness
1.52

Metric
M 4

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0148-1000

d1
3.76

d2
6.81

H
38.10

Wall Thickness
1.52

Metric
M 4

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0148-1500

d1
3.96

d2
7.01

H
12.70

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0156-0500

d1
3.96

d2
7.01

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0156-1000

d1
3.96

d2
7.01

H
31.75

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0156-1250

d1
3.96

d2
7.01

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0156-1500

d1
4.19

d2
7.24

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0165-1000

d1
4.19

d2
7.24

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0165-1500

d1
4.19

d2
7.24

H
50.80

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0165-2000

d1
4.37

d2
7.42

H
12.70

Wall Thickness
1.52

Metric
M 5

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0172-0500

d1
4.37

d2
7.42

H
25.40

Wall Thickness
1.52

Metric
M 5

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0172-1000

d1
4.37

d2
7.42

H
38.10

Wall Thickness
1.52

Metric
M 5

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0172-1500

d1
4.57

d2
7.62

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0180-1000

d1
4.75

d2
7.80

H
12.70

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0187-0500

d1
4.75

d2
7.80

H
15.49

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0187-0610

d1
4.75

d2
7.80

H
19.05

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0187-0750

d1
4.75

d2
7.80

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0187-1000

d1
4.75

d2
7.80

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0187-1500

d1
5.00

d2
8.05

H
12.70

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0197-0500

d1
5.00

d2
8.05

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0197-1000

d1
5.54

d2
8.59

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0218-1000

d1
5.66

d2
8.71

H
12.70

Wall Thickness
1.52

Metric
M 6

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0223-0500

d1
5.66

d2
8.71

H
19.05

Wall Thickness
1.52

Metric
M 6

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0223-0750

d1
5.66

d2
8.71

H
25.40

Wall Thickness
1.52

Metric
M 6

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0223-1000

d1
5.66

d2
8.71

H
38.10

Wall Thickness
1.52

Metric
M 6

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0223-1500

d1
5.66

d2
8.71

H
54.99

Wall Thickness
1.52

Metric
M 6

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0223-2165

d1
5.94

d2
8.99

H
12.70

Wall Thickness
1.52

Metric

UNF
1/4"

Packaging Unit
1.000

Reference No.
EPS 525 / 0234-0500

d1
5.94

d2
8.99

H
19.99

Wall Thickness
1.52

Metric

UNF
1/4"

Packaging Unit
1.000

Reference No.
EPS 525 / 0234-0787

d1
5.94

d2
8.99

H
25.40

Wall Thickness
1.52

Metric

UNF
1/4"

Packaging Unit
1.000

Reference No.
EPS 525 / 0234-1000

d1
5.94

d2
8.99

H
31.75

Wall Thickness
1.52

Metric

UNF
1/4"

Packaging Unit
1.000

Reference No.
EPS 525 / 0234-1250

d1
5.94

d2
8.99

H
38.10

Wall Thickness
1.52

Metric

UNF
1/4"

Packaging Unit
1.000

Reference No.
EPS 525 / 0234-1500

d1
6.35

d2
9.40

H
12.70

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0250-0500

d1
6.35

d2
9.40

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0250-1000

d1
6.35

d2
9.40

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0250-1500

d1
6.60

d2
9.65

H
12.70

Wall Thickness
1.52

Metric

UNF

Packaging Unit
1.000

Reference No.
EPS 525 / 0260-0500

d1
6.60

d2
9.65

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0260-1000

d1
7.14

d2
10.19

H
12.70

Wall Thickness
1.52

Metric

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0281-0500

d1
7.14

d2
10.19

H
19.05

Wall Thickness
1.52

Metric

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0281-0750

d1
7.14

d2
10.19

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0281-1000

d1
7.14

d2
10.19

H
50.80

Wall Thickness
1.52

Metric

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0281-2000

d1
7.49

d2
10.54

H
12.70

Wall Thickness
1.52

Metric
M 8

UNF
5/16“

Packaging Unit
500

Reference No.
EPS 525 / 0295-0500

d1
7.49

d2
10.54

H
19.05

Wall Thickness
1.52

Metric
M 8

UNF
5/16“

Packaging Unit
500

Reference No.
EPS 525 / 0295-0750

d1
7.49

d2
10.54

H
25.40

Wall Thickness
1.52

Metric
M 8

UNF
5/16“

Packaging Unit
500

Reference No.
EPS 525 / 0295-1000

d1
7.49

d2
10.54

H
38.10

Wall Thickness
1.52

Metric
M 8

UNF
5/16“

Packaging Unit
500

Reference No.
EPS 525 / 0295-1500

d1
7.49

d2
10.54

H
59.69

Wall Thickness
1.52

Metric
M 8

UNF
5/16“

Packaging Unit
500

Reference No.
EPS 525 / 0295-2350

d1
7.70

d2
11.00

H
25.40

Wall Thickness
1.65

Metric
M 8

UNF
5/16“

Packaging Unit
500

Reference No.
EPS 525 / 0303-1000

d1
7.92

d2
10.97

H
12.70

Wall Thickness
1.52

Metric
M 8

UNF
5/16“

Packaging Unit
500

Reference No.
EPS 525 / 0312-0500

d1
7.92

d2
10.97

H
25.40

Wall Thickness
1.52

Metric
M 8

UNF
5/16“

Packaging Unit
500

Reference No.
EPS 525 / 0312-1000

d1
7.92

d2
10.97

H
38.10

Wall Thickness
1.52

Metric
M 8

UNF
5/16“

Packaging Unit
500

Reference No.
EPS 525 / 0312-1500

d1
7.92

d2
10.97

H
50.80

Wall Thickness
1.52

Metric
M 8

UNF
5/16“

Packaging Unit
500

Reference No.
EPS 525 / 0312-2000

d1
8.64

d2
11.68

H
12.70

Wall Thickness
1.52

Metric

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0340-0500

d1
8.64

d2
11.68

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0340-1000

d1
8.64

d2
11.68

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0340-1500

d1
8.64

d2
11.68

H
50.80

Wall Thickness
1.52

Metric

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0340-2000

d1
9.02

d2
12.07

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0355-1000

d1
9.02

d2
12.07

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0355-1500

d1
9.30

d2
12.34

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0366-1000

d1
9.30

d2
12.34

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0366-1500

d1
9.53

d2
12.57

H
12.70

Wall Thickness
1.52

Metric
M 10

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0375-0500

d1
9.53

d2
12.57

H
19.05

Wall Thickness
1.52

Metric
M 10

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0375-0750

d1
9.53

d2
12.57

H
25.40

Wall Thickness
1.52

Metric
M 10

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0375-1000

d1
9.53

d2
12.57

H
38.10

Wall Thickness
1.52

Metric
M 10

UNF

Packaging Unit
500

Reference No.
EPS 525 / 0375-1500

d1
9.53

d2
12.57

H
50.01

Wall Thickness
1.52

Metric
M 10

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0375-1969

d1
10.31

d2
13.36

H
25.40

Wall Thickness
1.52

Metric

UNF
7/16“

Packaging Unit
250

Reference No.
EPS 525 / 0406-1000

d1
10.31

d2
13.36

H
38.10

Wall Thickness
1.52

Metric

UNF
7/16“

Packaging Unit
250

Reference No.
EPS 525 / 0406-1500

d1
11.10

d2
14.15

H
6.35

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0437-0250

d1
11.10

d2
14.15

H
19.05

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0437-0750

d1
11.10

d2
14.15

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0437-1000

d1
11.10

d2
14.15

H
50.80

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0437-2000

d1
11.58

d2
14.63

H
12.70

Wall Thickness
1.52

Metric
M 12

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0456-0500

d1
11.58

d2
14.63

H
19.05

Wall Thickness
1.52

Metric
M 12

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0456-0750

d1
11.58

d2
14.63

H
25.40

Wall Thickness
1.52

Metric
M 12

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0456-1000

d1
11.58

d2
14.63

H
38.10

Wall Thickness
1.52

Metric
M 12

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0456-1500

d1
11.58

d2
14.63

H
50.01

Wall Thickness
1.52

Metric
M 12

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0456-1969

d1
11.89

d2
14.94

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0468-1000

d1
11.89

d2
14.94

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0468-1500

d1
12.07

d2
15.11

H
101.60

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0475-4000

d1
12.19

d2
15.24

H
25.40

Wall Thickness
1.52

Metric

UNF
1/2"

Packaging Unit
250

Reference No.
EPS 525 / 0480-1000

d1
12.19

d2
15.24

H
38.10

Wall Thickness
1.52

Metric

UNF
1/2"

Packaging Unit
250

Reference No.
EPS 525 / 0480-1500

d1
12.70

d2
15.75

H
19.05

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0500-0750

d1
12.70

d2
15.75

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0500-1500

d1
12.70

d2
15.75

H
76.20

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0500-3000

d1
12.70

d2
15.75

H
101.60

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0500-4000

d1
13.59

d2
16.64

H
19.05

Wall Thickness
1.52

Metric
M 14

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0535-0750

d1
13.59

d2
16.64

H
25.40

Wall Thickness
1.52

Metric
M 14

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0535-1000

d1
13.59

d2
16.64

H
38.10

Wall Thickness
1.52

Metric
M 14

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0535-1500

d1
13.59

d2
16.64

H
76.20

Wall Thickness
1.52

Metric
M 14

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0535-3000

d1
14.27

d2
17.32

H
16.74

Wall Thickness
1.52

Metric
M 16

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0562-0659

d1
14.27

d2
17.32

H
20.32

Wall Thickness
1.52

Metric
M 16

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0562-0800

d1
14.27

d2
17.32

H
27.94

Wall Thickness
1.52

Metric
M 16

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0562-1100

d1
14.27

d2
17.32

H
38.10

Wall Thickness
1.52

Metric
M 16

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0562-1500

d1
15.24

d2
18.29

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0600-1500

d1
15.88

d2
18.92

H
19.05

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0625-0750

d1
15.88

d2
18.92

H
28.58

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0625-1125

d1
15.88

d2
18.92

H
31.75

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0625-1250

d1
15.88

d2
18.92

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0625-1500

d1
15.88

d2
18.92

H
63.50

Wall Thickness
1.52

Metric

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0625-2500

d1
17.45

d2
20.50

H
15.88

Wall Thickness
1.52

Metric
M 18

UNF

Packaging Unit
250

Reference No.
EPS 525 / 0687-0625

d1
17.45

d2
20.50

H
25.40

Wall Thickness
1.52

Metric
M 18

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0687-1000

d1
17.45

d2
20.50

H
31.75

Wall Thickness
1.52

Metric
M 18

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0687-1250

d1
17.45

d2
20.50

H
38.10

Wall Thickness
1.52

Metric
M 18

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0687-1500

d1
17.45

d2
20.50

H
44.45

Wall Thickness
1.52

Metric
M 18

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0687-1750

d1
17.45

d2
20.50

H
63.50

Wall Thickness
1.52

Metric
M 18

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0687-2500

d1
17.45

d2
20.50

H
114.30

Wall Thickness
1.52

Metric
M 18

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0687-4500

d1
18.54

d2
21.59

H
38.10

Wall Thickness
1.52

Metric
3/4"

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0730-1500

d1
18.54

d2
21.59

H
109.86

Wall Thickness
1.52

Metric
3/4"

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0730-4325

d1
19.05

d2
22.10

H
38.10

Wall Thickness
1.52

Metric
M 20

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0750-1500

d1
19.05

d2
22.10

H
44.45

Wall Thickness
1.52

Metric
M 20

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0750-1750

d1
19.05

d2
22.10

H
50.80

Wall Thickness
1.52

Metric
M 20

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0750-2000

d1
19.05

d2
22.10

H
88.90

Wall Thickness
1.52

Metric
M 20

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0750-3500

d1
19.05

d2
22.10

H
109.22

Wall Thickness
1.52

Metric
M 20

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0750-4300

d1
19.81

d2
22.86

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0780-1500

d1
20.62

d2
23.67

H
25.40

Wall Thickness
1.52

Metric
M 22

UNF
7/8“

Packaging Unit
100

Reference No.
EPS 525 / 0812-1000

d1
20.62

d2
23.67

H
38.10

Wall Thickness
1.52

Metric
M 22

UNF
7/8“

Packaging Unit
100

Reference No.
EPS 525 / 0812-1500

d1
21.46

d2
24.51

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0845-1500

d1
21.46

d2
24.51

H
72.24

Wall Thickness
1.52

Metric

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0845-2844

d1
22.23

d2
25.27

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0875-1000

d1
22.23

d2
25.27

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0875-1500

d1
23.80

d2
26.85

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0937-1000

d1
23.80

d2
26.85

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
100

Reference No.
EPS 525 / 0937-1500

d1
24.64

d2
27.69

H
38.10

Wall Thickness
1.52

Metric
M 25

UNF
1“

Packaging Unit
100

Reference No.
EPS 525 / 0970-1500

d1
24.64

d2
27.69

H
101.60

Wall Thickness
1.52

Metric
M 25

UNF
1“

Packaging Unit
100

Reference No.
EPS 525 / 0970-4000

d1
25.40

d2
28.45

H
20.83

Wall Thickness
1.52

Metric
M 27

UNF

Packaging Unit
100

Reference No.
EPS 525 / 1000-0820

d1
25.40

d2
28.45

H
38.10

Wall Thickness
1.52

Metric
M 27

UNF

Packaging Unit
100

Reference No.
EPS 525 / 1000-1500

d1
25.40

d2
28.45

H
50.80

Wall Thickness
1.52

Metric
M 27

UNF

Packaging Unit
100

Reference No.
EPS 525 / 1000-2000

d1
26.97

d2
30.02

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
100

Reference No.
EPS 525 / 1062-1000

d1
26.97

d2
30.02

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
100

Reference No.
EPS 525 / 1062-1500

d1
26.97

d2
30.02

H
50.80

Wall Thickness
1.52

Metric

UNF

Packaging Unit
100

Reference No.
EPS 525 / 1062-2000

d1
26.97

d2
30.02

H
86.72

Wall Thickness
1.52

Metric

UNF

Packaging Unit
100

Reference No.
EPS 525 / 1062-3414

d1
27.51

d2
30.56

H
76.20

Wall Thickness
1.52

Metric
M 30

UNF

Packaging Unit
100

Reference No.
EPS 525 / 1083-3000

d1
28.58

d2
31.62

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
100

Reference No.
EPS 525 / 1125-1500

d1
30.15

d2
33.20

H
38.10

Wall Thickness
1.52

Metric
M 33

UNF

Packaging Unit
100

Reference No.
EPS 525 / 1187-1500

d1
31.75

d2
34.80

H
28.58

Wall Thickness
1.52

Metric

UNF

Packaging Unit
100

Reference No.
EPS 525 / 1250-1125

d1
31.75

d2
34.80

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
100

Reference No.
EPS 525 / 1250-1500

d1
34.29

d2
37.34

H
38.10

Wall Thickness
1.52

Metric
M 36

UNF

Packaging Unit
100

Reference No.
EPS 525 / 1350-1500

d1
34.29

d2
37.34

H
44.45

Wall Thickness
1.52

Metric

UNF

Packaging Unit
100

Reference No.
EPS 525 / 1350-1750

d1
34.93

d2
37.97

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
50

Reference No.
EPS 525 / 1375-1500

d1
35.05

d2
38.10

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
50

Reference No.
EPS 525 / 1380-1000

d1
35.05

d2
38.10

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
50

Reference No.
EPS 525 / 1380-1500

d1
38.10

d2
41.15

H
25.40

Wall Thickness
1.52

Metric
M 39

UNF
1 1/4“

Packaging Unit
50

Reference No.
EPS 525 / 1500-1000

d1
38.10

d2
41.15

H
38.10

Wall Thickness
1.52

Metric
M 39

UNF
1 1/4“

Packaging Unit
50

Reference No.
EPS 525 / 1500-1500

d1
38.10

d2
41.15

H
44.45

Wall Thickness
1.52

Metric
M 39

UNF
1 1/4“

Packaging Unit
50

Reference No.
EPS 525 / 1500-1750

d1
41.28

d2
44.32

H
50.80

Wall Thickness
1.52

Metric

UNF

Packaging Unit
50

Reference No.
EPS 525 / 1625-2000

d1
44.45

d2
47.50

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
50

Reference No.
EPS 525 / 1750-1500

d1
44.45

d2
47.50

H
50.80

Wall Thickness
1.52

Metric

UNF

Packaging Unit
50

Reference No.
EPS 525 / 1750-2000

d1
47.63

d2
50.67

H
38.10

Wall Thickness
1.52

Metric

UNF

Packaging Unit
50

Reference No.
EPS 525 / 1875-1500

d1
47.63

d2
50.67

H
50.80

Wall Thickness
1.52

Metric

UNF

Packaging Unit
50

Reference No.
EPS 525 / 1875-2000

d1
50.80

d2
53.85

H
25.40

Wall Thickness
1.52

Metric

UNF

Packaging Unit
50

Reference No.
EPS 525 / 2000-1000

d1
50.80

d2
53.85

H
50.80

Wall Thickness
1.52

Metric

UNF

Packaging Unit
25

Reference No.
EPS 525 / 2000-2000

d1
53.47

d2
56.52

H
50.80

Wall Thickness
1.52

Metric

UNF

Packaging Unit
25

Reference No.
EPS 525 / 2105-2000

PROTEC products and specifications are subject to improvement and change without notice.

PROSICON® EPS 525 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.

You might also be interested in these PROTEC series

PROSICON® EPS 475

High Temp Silicone Dual Round & Square Plugs

PROSICON® EPS 450

High Temp Silicone Multi-Flanged Plugs

CAPTOP® EP 275

High temperature tapered silicone plugs

PROSICON® EPS 125

Tapered Silicone Plugs - hollow core

Certified production & quality management

PROTEC meets the most stringent demands of safety and operations reliability. International approvals and certifications such as UL, CSA, VDE, VDA 6.1 and DIN EN ISO 9001: 2015 demonstrate total quality commitment on superior level.

Be the first to know - Join our newsletter!

Stay on top of the latest news and upcoming events and event information from PROTEC and its partner. Be the first to know when new products are on the market. Get periodic specials and news delivered directly to your email inbox! You can un-subscribe anytime.

Sign our free newsletter now

Imprint | Contact form | Privacy policy | Jobs at PROTEC | Certifications

copyright (c) 2024 PROTEC PLASTICS THE CAP COMPANY LTD
