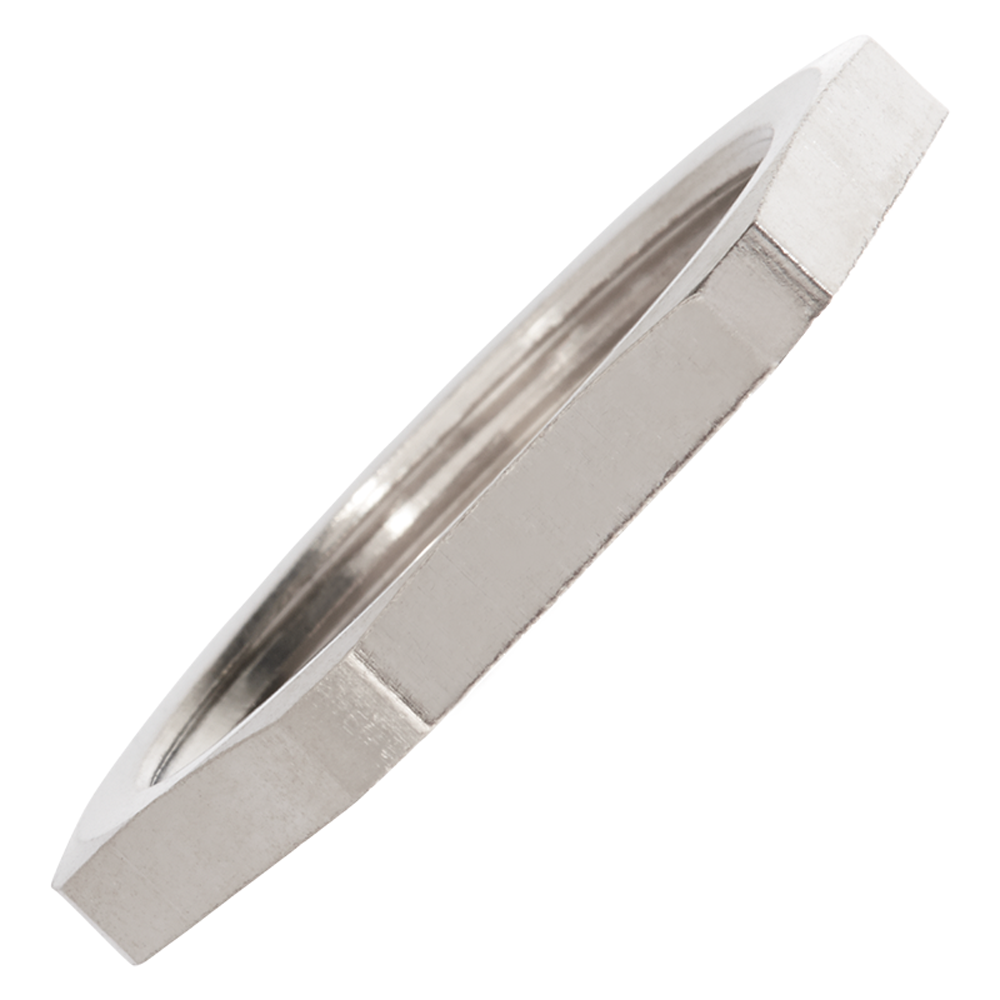

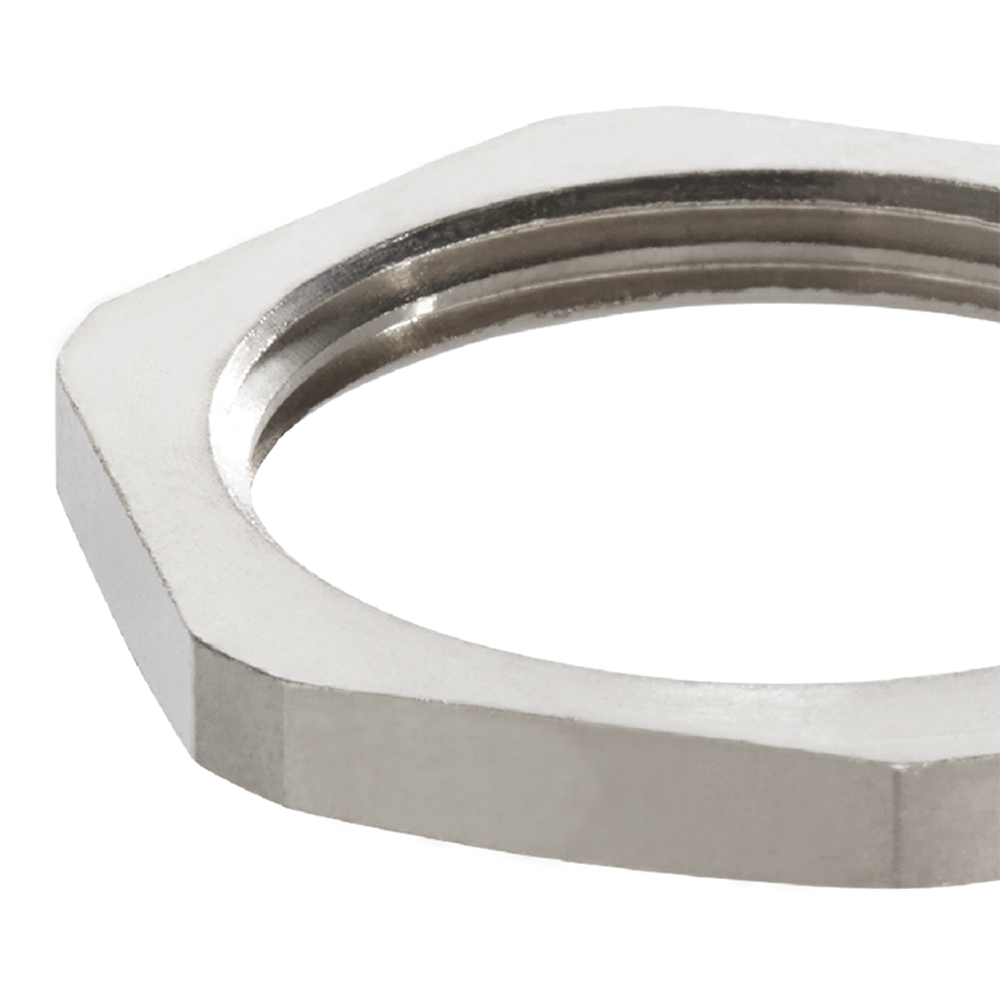

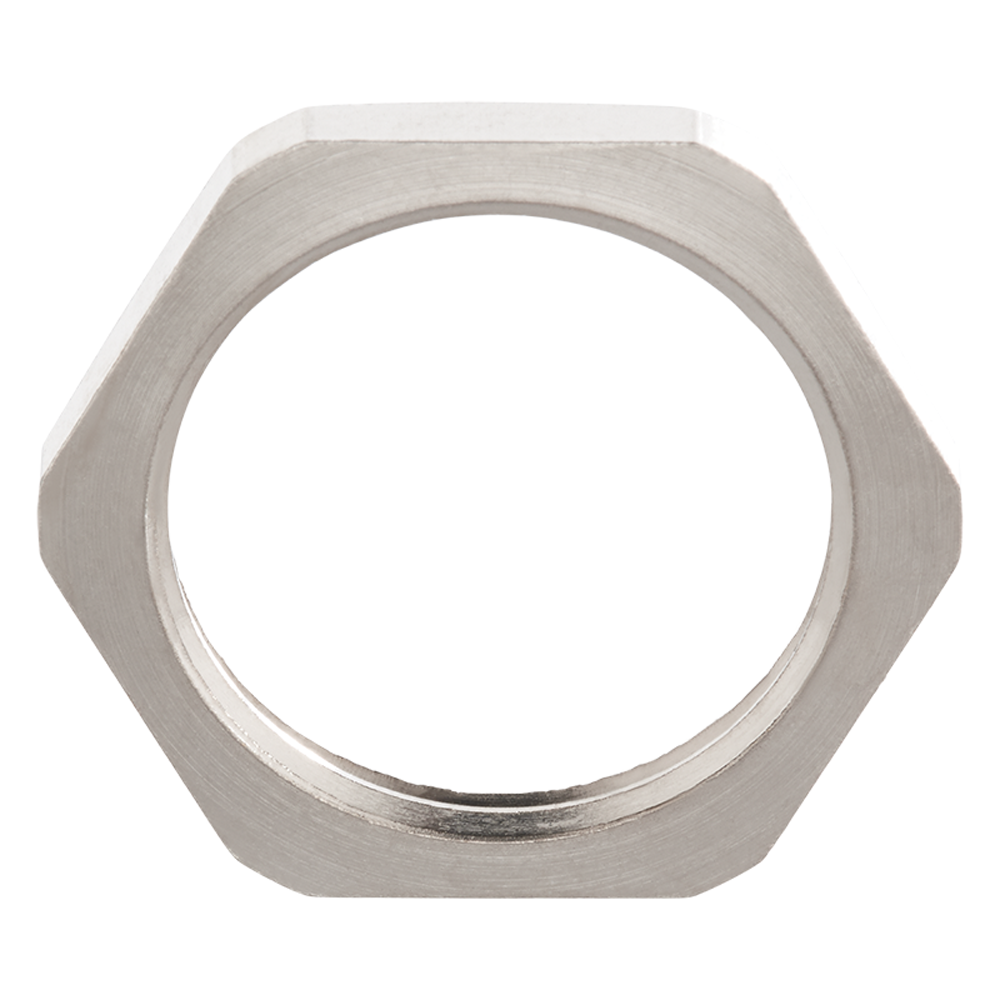

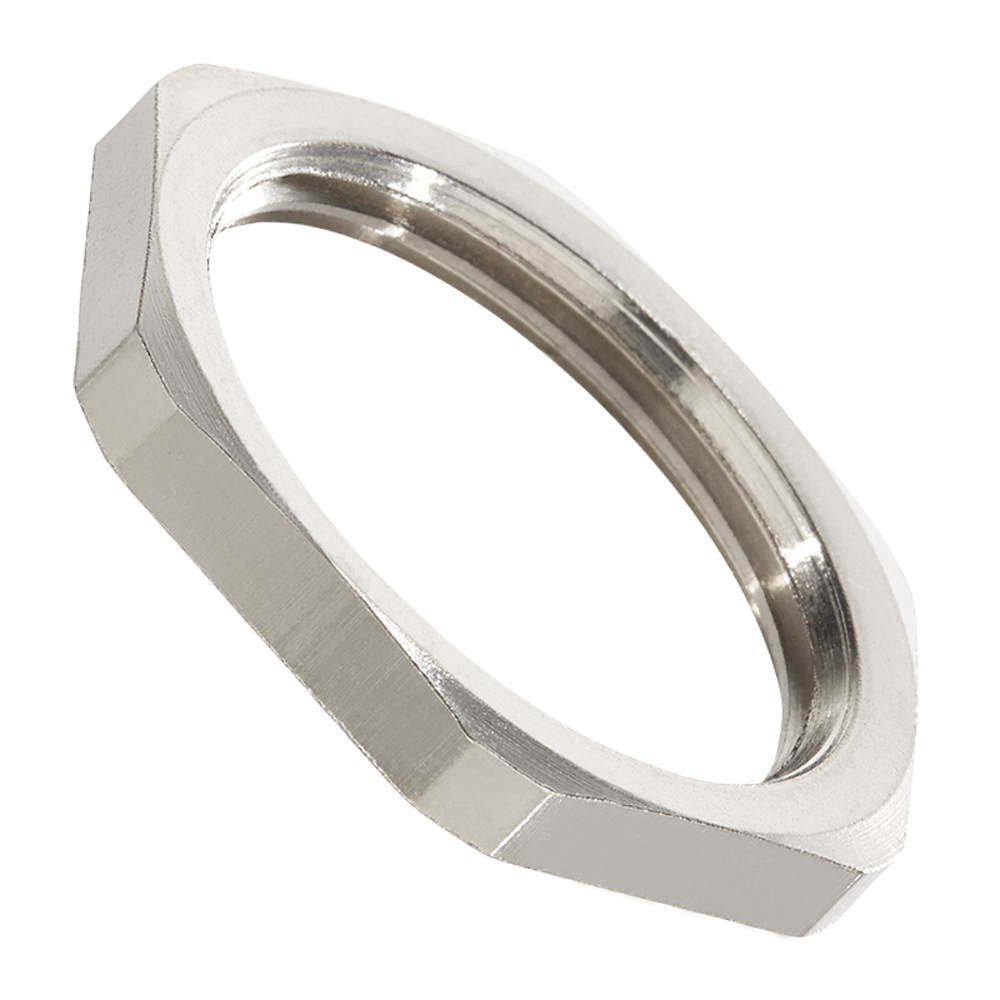

ProteC QuiCk-fit® EPN 710

Locknuts, brass, nickel plated, flangeless


QuiCk-fit® EPN 710

Locknuts, brass, nickel plated, flangeless


Locknuts are required wherever varnished, anodized and powder coated housings are used for secure tightening of cable glands and accessories.

This range fits a variety of thread Metric and PG sizes and can be applied for a range of applications.

For secure tightening of cable glands and accessories.

Material: Brass, nickel plated

PROTEC QUICK-FIT EPN 710

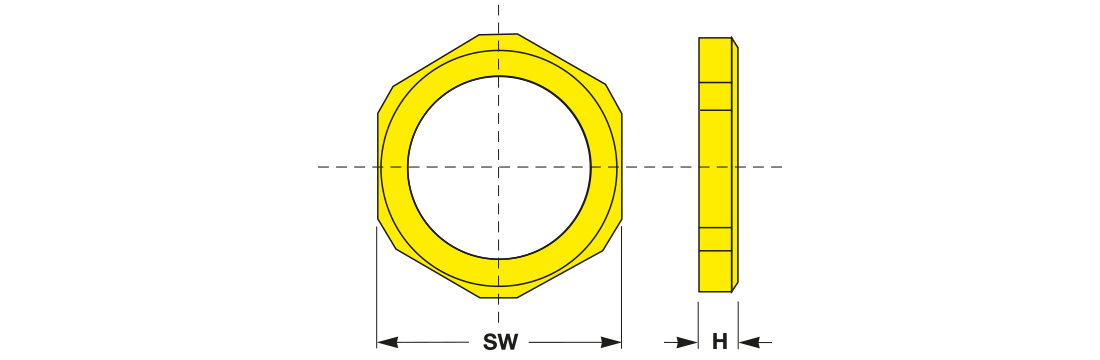

Thread H SW Reference No. Bookmark
  Metric
M 12x1.5 2.8 15 EPN 710/ M 12 MS
M 16x1.5 2.8 19 EPN 710/ M 16 MS
M 20x1.5 3.0 24 EPN 710/ M 20 MS
M 25x1.5 3.5 30 EPN 710/ M 25 MS
M 32x1.5 4.0 36 EPN 710/ M 32 MS
M 40x1.5 4.5 46 EPN 710/ M 40 MS
M 50x1.5 5.0 60 EPN 710/ M 50 MS
M 63x1.5 5.5 70 EPN 710/ M 63 MS
  PG
PG   7 2.8 15 EPN 710/ PG   7 MS
PG   9 2.8 18 EPN 710/ PG   9 MS
PG 11 3.0 21 EPN 710/ PG 11 MS
PG 13.5 3.0 23 EPN 710/ PG 13 MS
PG 16 3.0 26 EPN 710/ PG 16 MS
PG 21 3.5 32 EPN 710/ PG 21 MS
PG 29 4.0 41 EPN 710/ PG 29 MS
PG 36 5.0 51 EPN 710/ PG 36 MS
PG 42 5.0 60 EPN 710/ PG 42 MS
PG 48 5.5 64 EPN 710/ PG 48 MS
Thread H SW Reference No.
  Metric
M 12x1.5 2.8 15 EPN 710/ M 12 MS
M 16x1.5 2.8 19 EPN 710/ M 16 MS
M 20x1.5 3.0 24 EPN 710/ M 20 MS
M 25x1.5 3.5 30 EPN 710/ M 25 MS
M 32x1.5 4.0 36 EPN 710/ M 32 MS
M 40x1.5 4.5 46 EPN 710/ M 40 MS
M 50x1.5 5.0 60 EPN 710/ M 50 MS
M 63x1.5 5.5 70 EPN 710/ M 63 MS
  PG
PG   7 2.8 15 EPN 710/ PG   7 MS
PG   9 2.8 18 EPN 710/ PG   9 MS
PG 11 3.0 21 EPN 710/ PG 11 MS
PG 13.5 3.0 23 EPN 710/ PG 13 MS
PG 16 3.0 26 EPN 710/ PG 16 MS
PG 21 3.5 32 EPN 710/ PG 21 MS
PG 29 4.0 41 EPN 710/ PG 29 MS
PG 36 5.0 51 EPN 710/ PG 36 MS
PG 42 5.0 60 EPN 710/ PG 42 MS
PG 48 5.5 64 EPN 710/ PG 48 MS
  Metric
Thread
M 12x1.5

Depth H
2.8

Spannersize SW
15

Reference No. EPN 710/ M 12 MS

Thread
M 16x1.5

Depth H
2.8

Spannersize SW
19

Reference No. EPN 710/ M 16 MS

Thread
M 20x1.5

Depth H
3.0

Spannersize SW
24

Reference No. EPN 710/ M 20 MS

Thread
M 25x1.5

Depth H
3.5

Spannersize SW
30

Reference No. EPN 710/ M 25 MS

Thread
M 32x1.5

Depth H
4.0

Spannersize SW
36

Reference No. EPN 710/ M 32 MS

Thread
M 40x1.5

Depth H
4.5

Spannersize SW
46

Reference No. EPN 710/ M 40 MS

Thread
M 50x1.5

Depth H
5.0

Spannersize SW
60

Reference No. EPN 710/ M 50 MS

Thread
M 63x1.5

Depth H
5.5

Spannersize SW
70

Reference No. EPN 710/ M 63 MS

  PG
Thread
PG 7

Depth H
2.8

Spannersize SW
15

Reference No. EPN 710/ PG 7 MS

Thread
PG 9

Depth H
2.8

Spannersize SW
18

Reference No. EPN 710/ PG 9 MS

Thread
PG 11

Depth H
3.0

Spannersize SW
21

Reference No. EPN 710/ PG 11 MS

Thread
PG 13.5

Depth H
3.0

Spannersize SW
23

Reference No. EPN 710/ PG 13 MS

Thread
PG 16

Depth H
3.0

Spannersize SW
26

Reference No. EPN 710/ PG 16 MS

Thread
PG 21

Depth H
3.5

Spannersize SW
32

Reference No. EPN 710/ PG 21 MS

Thread
PG 29

Depth H
4.0

Spannersize SW
41

Reference No. EPN 710/ PG 29 MS

Thread
PG 36

Depth H
5.0

Spannersize SW
51

Reference No. EPN 710/ PG 36 MS

Thread
PG 42

Depth H
5.0

Spannersize SW
60

Reference No. EPN 710/ PG 42 MS

Thread
PG 48

Depth H
5.5

Spannersize SW
64

Reference No. EPN 710/ PG 48 MS

PROTEC products and specifications are subject to improvement and change without notice.

QUICK-FIT® EPN 710 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.
