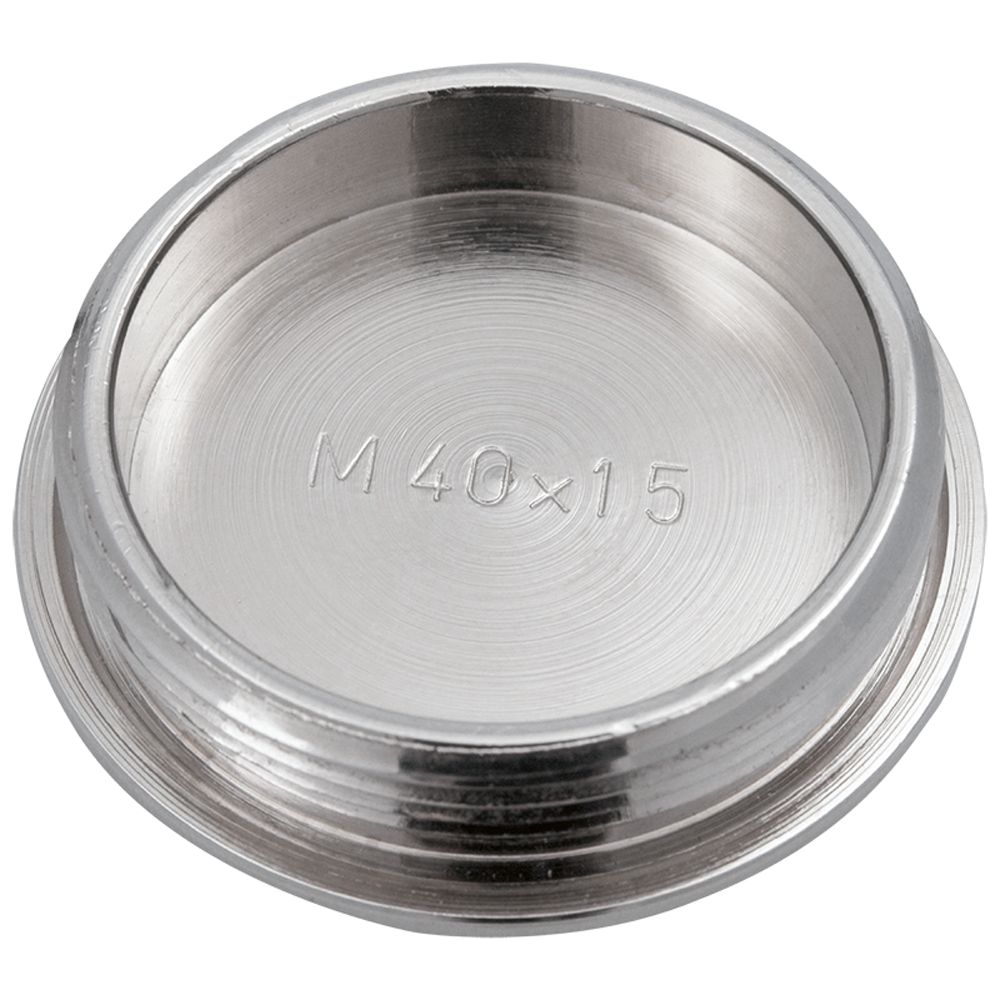

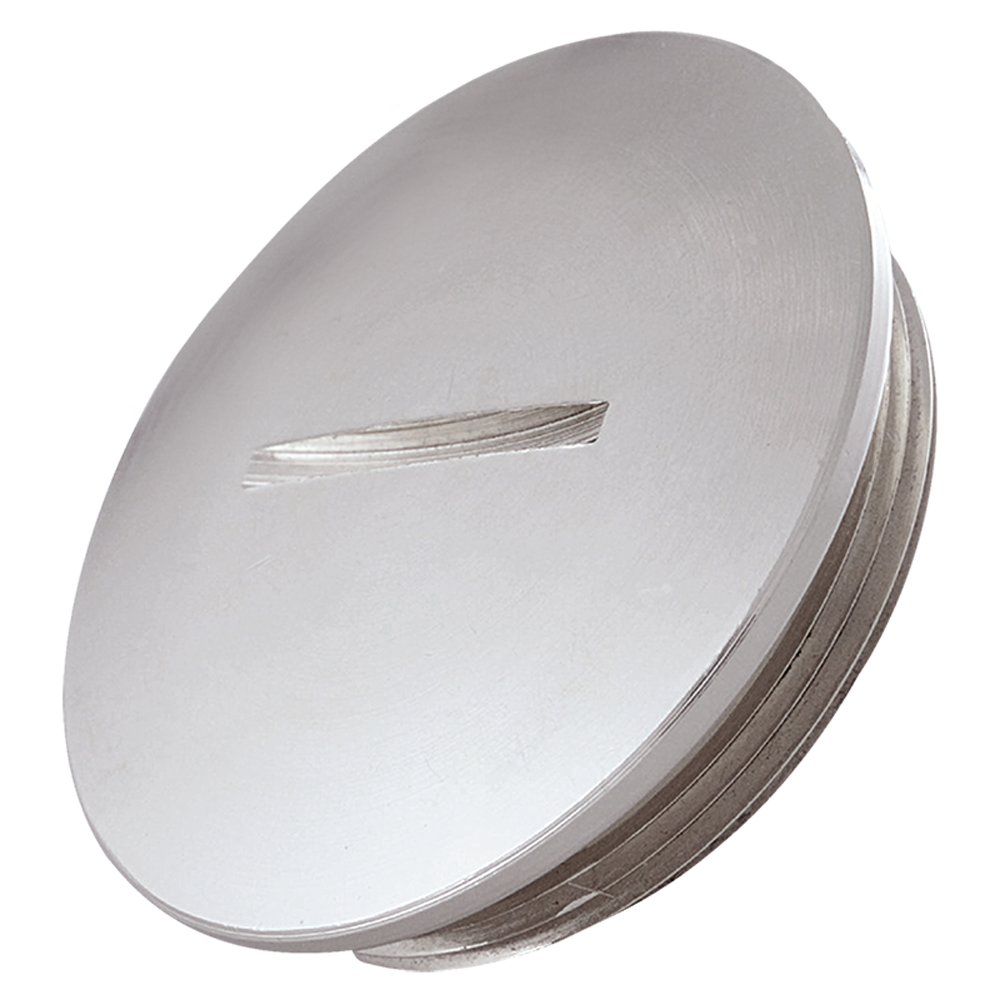

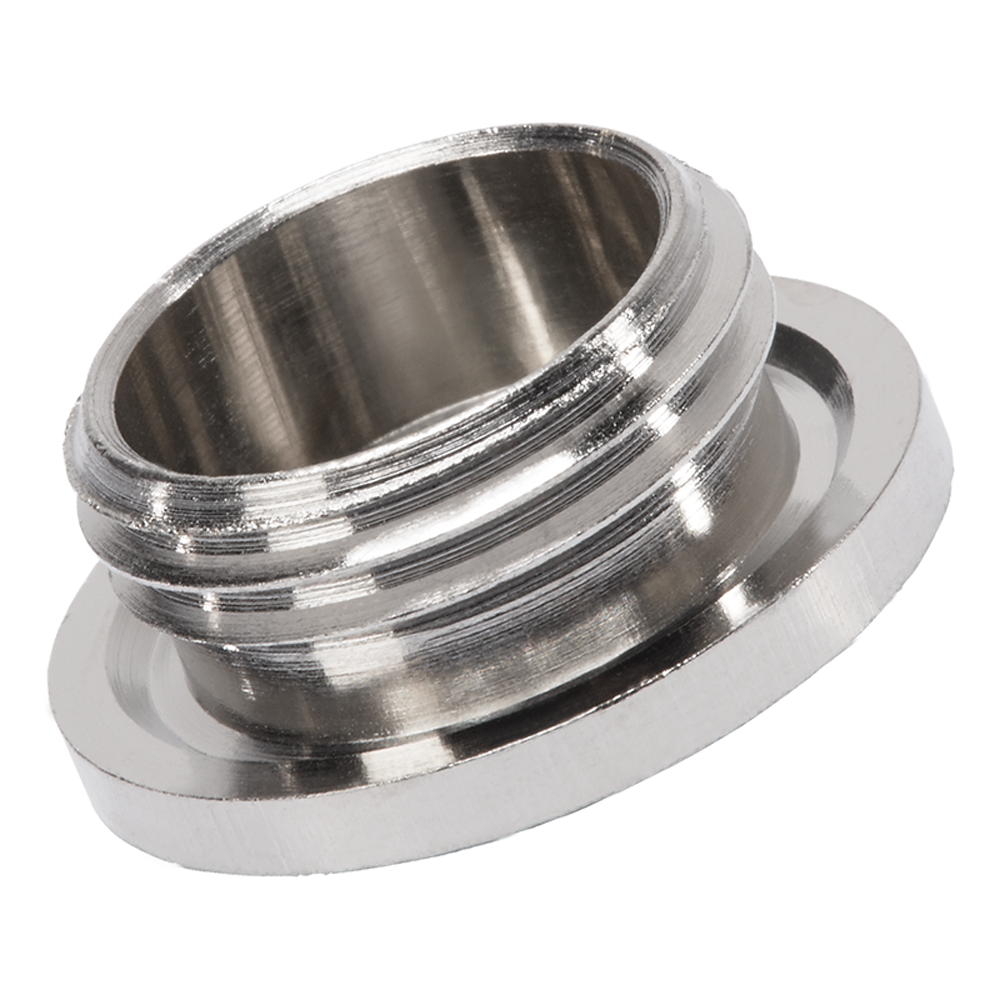

ProteC QuiCk-fit® EPN 730

Blanking plugs, brass, nickel plated


QuiCk-fit® EPN 730

Blanking plugs, brass, nickel plated


Close existing threads to secure unused ports for future use.

Nickel plated.

This range fits a variety of Metirc and PG thread sizes and can be applied for plugging threads in panels from 12mm to 63mm in diameter.

Material: Brass, nickel plated

PROTEC QUICK-FIT EPN 730

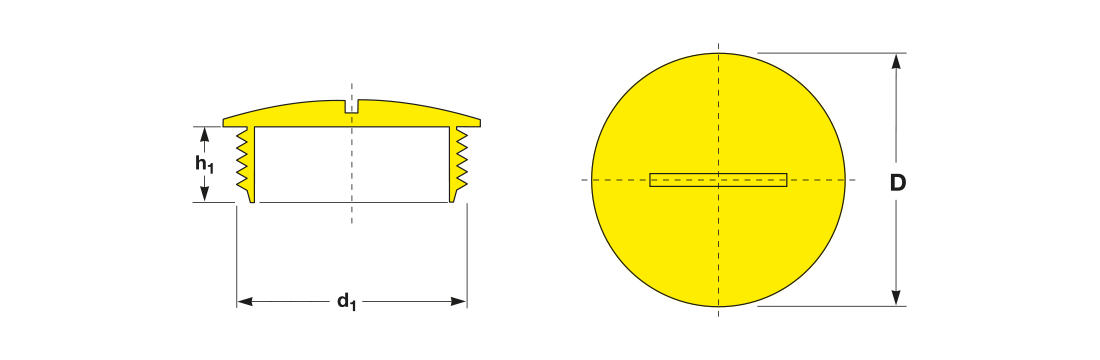

d1 D h1 Reference No. Bookmark
  Metric
M 12 x 1.5 16.0   5.0 EPN 730/ M 12
M 16 x 1.5 20.0   6.0 EPN 730/ M 16
M 20 x 1.5 24.0   6.5 EPN 730/ M 20
M 25 x 1.5 28.0   7.0 EPN 730/ M 25
M 32 x 1.5 35.0   8.0 EPN 730/ M 32
M 40 x 1.5 45.0   8.0 EPN 730/ M 40
M 50 x 1.5 55.0   9.0 EPN 730/ M 50
M 63 x 1.5 68.0 10.0 EPN 730/ M 63
  PG
PG   7 14.0   5.0 EPN 730/ PG   7
PG   9 18.0   6.0 EPN 730/ PG   9
PG 11 21.0   6.0 EPN 730/ PG 11
PG 13.5 23.0   6.5 EPN 730/ PG 13.5
PG 16 25.5   6.5 EPN 730/ PG 16
PG 21 31.0   7.0 EPN 730/ PG 21
PG 29 39.0   8.0 EPN 730/ PG 29
PG 36 50.0   9.0 EPN 730/ PG 36
PG 42 57.0 10.0 EPN 730/ PG 42
PG 48 64.0 10.0 EPN 730/ PG 48
d1 D h1 Reference No.
  Metric
M 12 x 1.5 16.0   5.0 EPN 730/ M 12
M 16 x 1.5 20.0   6.0 EPN 730/ M 16
M 20 x 1.5 24.0   6.5 EPN 730/ M 20
M 25 x 1.5 28.0   7.0 EPN 730/ M 25
M 32 x 1.5 35.0   8.0 EPN 730/ M 32
M 40 x 1.5 45.0   8.0 EPN 730/ M 40
M 50 x 1.5 55.0   9.0 EPN 730/ M 50
M 63 x 1.5 68.0 10.0 EPN 730/ M 63
  PG
PG   7 14.0   5.0 EPN 730/ PG   7
PG   9 18.0   6.0 EPN 730/ PG   9
PG 11 21.0   6.0 EPN 730/ PG 11
PG 13.5 23.0   6.5 EPN 730/ PG 13.5
PG 16 25.5   6.5 EPN 730/ PG 16
PG 21 31.0   7.0 EPN 730/ PG 21
PG 29 39.0   8.0 EPN 730/ PG 29
PG 36 50.0   9.0 EPN 730/ PG 36
PG 42 57.0 10.0 EPN 730/ PG 42
PG 48 64.0 10.0 EPN 730/ PG 48
  Metric
Thread d1
M 12 x 1.5

Ø Flange D
16.0

Thread Length h1
  5.0

Reference No.
EPN 730/ M 12

Thread d1
M 16 x 1.5

Ø Flange D
20.0

Thread Length h1
  6.0

Reference No.
EPN 730/ M 16

Thread d1
M 20 x 1.5

Ø Flange D
24.0

Thread Length h1
  6.5

Reference No.
EPN 730/ M 20

Thread d1
M 25 x 1.5

Ø Flange D
28.0

Thread Length h1
  7.0

Reference No.
EPN 730/ M 25

Thread d1
M 32 x 1.5

Ø Flange D
35.0

Thread Length h1
  8.0

Reference No.
EPN 730/ M 32

Thread d1
M 40 x 1.5

Ø Flange D
45.0

Thread Length h1
  8.0

Reference No.
EPN 730/ M 40

Thread d1
M 50 x 1.5

Ø Flange D
55.0

Thread Length h1
  9.0

Reference No.
EPN 730/ M 50

Thread d1
M 63 x 1.5

Ø Flange D
68.0

Thread Length h1
10.0

Reference No.
EPN 730/ M 63

  PG
Thread d1
PG   7

Ø Flange D
14.0

Thread Length h1
  5.0

Reference No.
EPN 730/ PG   7

Thread d1
PG   9

Ø Flange D
18.0

Thread Length h1
  6.0

Reference No.
EPN 730/ PG   9

Thread d1
PG 11

Ø Flange D
21.0

Thread Length h1
  6.0

Reference No.
EPN 730/ PG 11

Thread d1
PG 13.5

Ø Flange D
23.0

Thread Length h1
  6.5

Reference No.
EPN 730/ PG 13.5

Thread d1
PG 16

Ø Flange D
25.5

Thread Length h1
  6.5

Reference No.
EPN 730/ PG 16

Thread d1
PG 21

Ø Flange D
31.0

Thread Length h1
  7.0

Reference No.
EPN 730/ PG 21

Thread d1
PG 29

Ø Flange D
39.0

Thread Length h1
  8.0

Reference No.
EPN 730/ PG 29

Thread d1
PG 36

Ø Flange D
50.0

Thread Length h1
  9.0

Reference No.
EPN 730/ PG 36

Thread d1
PG 42

Ø Flange D
57.0

Thread Length h1
10.0

Reference No.
EPN 730/ PG 42

Thread d1
PG 48

Ø Flange D
64.0

Thread Length h1
10.0

Reference No.
EPN 730/ PG 48

PROTEC products and specifications are subject to improvement and change without notice.

QUICK-FIT® EPN 730 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
