ProteC Prosicon® EPS 865

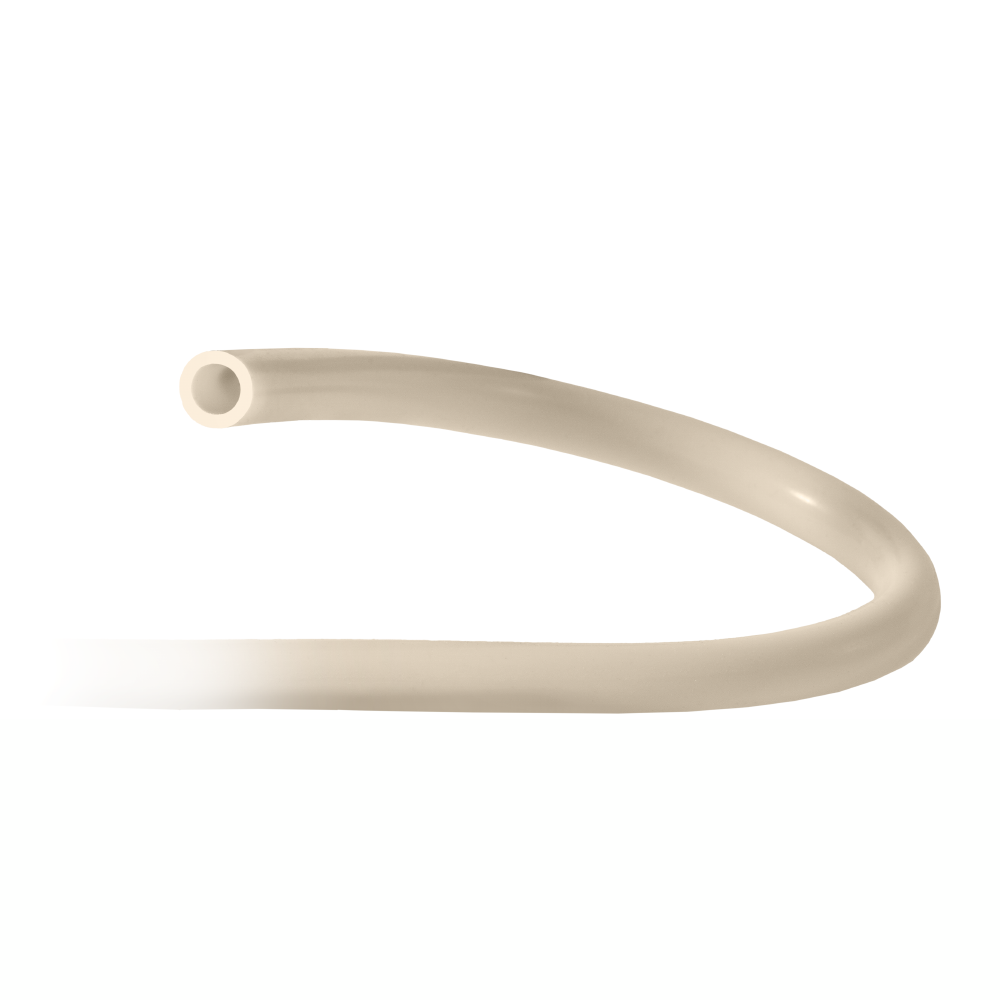

Heat-resistant Silicone Round Tubing - BIS


Prosicon® EPS 865

Heat-resistant Silicone Round Tubing - BIS


As an alternative to caps, the silicone hose can be used to cover threaded bolts, screws or bolts.

Especially when many different lengths have to be covered with the same diameter.

Available in large range of diameters.

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code:
Reusable

Color:
Special color runs available on request

Material:
Prosicon® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

HEAT RESISTANT!
PROTEC PROSICON EPS 865

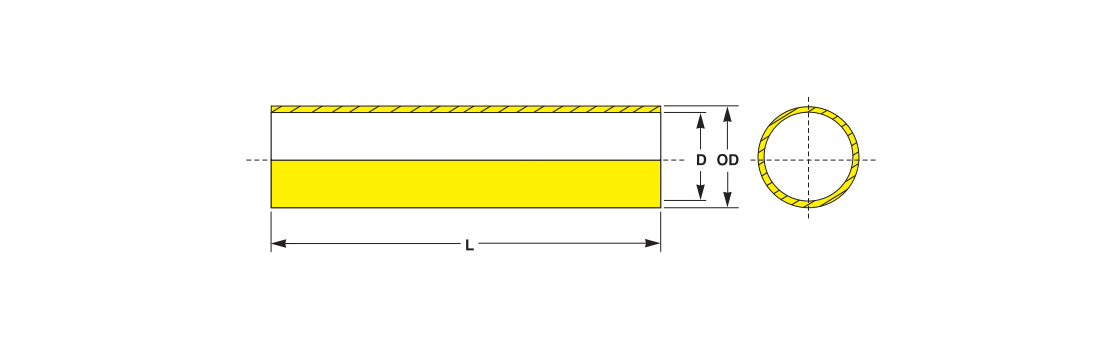

D OD L (Meter) Reference No. Bookmark
1,02 4,19 30,48 EPS 865 / 0040
1,42 4,6 30,48 EPS 865 / 0056
1,57 4,75 30,48 EPS 865 / 0062
1,73 4,9 30,48 EPS 865 / 0068
2,03 5,21 30,48 EPS 865 / 0080
2,36 5,54 30,48 EPS 865 / 0093
2,77 5,94 30,48 EPS 865 / 0109
3,18 6,35 30,48 EPS 865 / 0125
3,56 6,73 30,48 EPS 865 / 0140
3,96 7,14 30,48 EPS 865 / 0156
4,37 7,54 30,48 EPS 865 / 0172
4,75 7,92 30,48 EPS 865 / 0187
5,16 8,33 30,48 EPS 865 / 0203
5,54 8,71 30,48 EPS 865 / 0218
5,94 9,12 30,48 EPS 865 / 0234
6,35 9,53 30,48 EPS 865 / 0250
7,14 10,31 15,24 EPS 865 / 0281
7,92 11,1 15,24 EPS 865 / 0312
8,71 11,89 15,24 EPS 865 / 0343
9,53 12,7 15,24 EPS 865 / 0375
10,31 13,49 15,24 EPS 865 / 0406
11,1 14,27 15,24 EPS 865 / 0437
12,7 15,88 15,24 EPS 865 / 0500
15,88 19,05 15,24 EPS 865 / 0625
19,05 22,23 15,24 EPS 865 / 0750
22,23 25,4 15,24 EPS 865 / 0875
23,8 26,97 15,24 EPS 865 / 0937
25,4 28,58 15,24 EPS 865 / 1000
28,58 31,75 7,62 EPS 865 / 1125
31,75 34,93 7,62 EPS 865 / 1250
34,93 38,1 7,62 EPS 865 / 1375
38,1 41,28 7,62 EPS 865 / 1500
41,28 44,45 7,62 EPS 865 / 1625
44,45 47,63 7,62 EPS 865 / 1750
47,63 50,8 7,62 EPS 865 / 1875
50,8 53,98 7,62 EPS 865 / 2000
D OD L (Meter) Reference No.
1,02 4,19 30,48 EPS 865 / 0040
1,42 4,6 30,48 EPS 865 / 0056
1,57 4,75 30,48 EPS 865 / 0062
1,73 4,9 30,48 EPS 865 / 0068
2,03 5,21 30,48 EPS 865 / 0080
2,36 5,54 30,48 EPS 865 / 0093
2,77 5,94 30,48 EPS 865 / 0109
3,18 6,35 30,48 EPS 865 / 0125
3,56 6,73 30,48 EPS 865 / 0140
3,96 7,14 30,48 EPS 865 / 0156
4,37 7,54 30,48 EPS 865 / 0172
4,75 7,92 30,48 EPS 865 / 0187
5,16 8,33 30,48 EPS 865 / 0203
5,54 8,71 30,48 EPS 865 / 0218
5,94 9,12 30,48 EPS 865 / 0234
6,35 9,53 30,48 EPS 865 / 0250
7,14 10,31 15,24 EPS 865 / 0281
7,92 11,1 15,24 EPS 865 / 0312
8,71 11,89 15,24 EPS 865 / 0343
9,53 12,7 15,24 EPS 865 / 0375
10,31 13,49 15,24 EPS 865 / 0406
11,1 14,27 15,24 EPS 865 / 0437
12,7 15,88 15,24 EPS 865 / 0500
15,88 19,05 15,24 EPS 865 / 0625
19,05 22,23 15,24 EPS 865 / 0750
22,23 25,4 15,24 EPS 865 / 0875
23,8 26,97 15,24 EPS 865 / 0937
25,4 28,58 15,24 EPS 865 / 1000
28,58 31,75 7,62 EPS 865 / 1125
31,75 34,93 7,62 EPS 865 / 1250
34,93 38,1 7,62 EPS 865 / 1375
38,1 41,28 7,62 EPS 865 / 1500
41,28 44,45 7,62 EPS 865 / 1625
44,45 47,63 7,62 EPS 865 / 1750
47,63 50,8 7,62 EPS 865 / 1875
50,8 53,98 7,62 EPS 865 / 2000
D
1,02

OD
4,19

L (Meter)
30,48

Reference No.
EPS 865 / 0040

D
1,42

OD
4,6

L (Meter)
30,48

Reference No.
EPS 865 / 0056

D
1,57

OD
4,75

L (Meter)
30,48

Reference No.
EPS 865 / 0062

D
1,73

OD
4,9

L (Meter)
30,48

Reference No.
EPS 865 / 0068

D
2,03

OD
5,21

L (Meter)
30,48

Reference No.
EPS 865 / 0080

D
2,36

OD
5,54

L (Meter)
30,48

Reference No.
EPS 865 / 0093

D
2,77

OD
5,94

L (Meter)
30,48

Reference No.
EPS 865 / 0109

D
3,18

OD
6,35

L (Meter)
30,48

Reference No.
EPS 865 / 0125

D
3,56

OD
6,73

L (Meter)
30,48

Reference No.
EPS 865 / 0140

D
3,96

OD
7,14

L (Meter)
30,48

Reference No.
EPS 865 / 0156

D
4,37

OD
7,54

L (Meter)
30,48

Reference No.
EPS 865 / 0172

D
4,75

OD
7,92

L (Meter)
30,48

Reference No.
EPS 865 / 0187

D
5,16

OD
8,33

L (Meter)
30,48

Reference No.
EPS 865 / 0203

D
5,54

OD
8,71

L (Meter)
30,48

Reference No.
EPS 865 / 0218

D
5,94

OD
9,12

L (Meter)
30,48

Reference No.
EPS 865 / 0234

D
6,35

OD
9,53

L (Meter)
30,48

Reference No.
EPS 865 / 0250

D
7,14

OD
10,31

L (Meter)
15,24

Reference No.
EPS 865 / 0281

D
7,92

OD
11,1

L (Meter)
15,24

Reference No.
EPS 865 / 0312

D
8,71

OD
11,89

L (Meter)
15,24

Reference No.
EPS 865 / 0343

D
9,53

OD
12,7

L (Meter)
15,24

Reference No.
EPS 865 / 0375

D
10,31

OD
13,49

L (Meter)
15,24

Reference No.
EPS 865 / 0406

D
11,1

OD
14,27

L (Meter)
15,24

Reference No.
EPS 865 / 0437

D
12,7

OD
15,88

L (Meter)
15,24

Reference No.
EPS 865 / 0500

D
15,88

OD
19,05

L (Meter)
15,24

Reference No.
EPS 865 / 0625

D
19,05

OD
22,23

L (Meter)
15,24

Reference No.
EPS 865 / 0750

D
22,23

OD
25,4

L (Meter)
15,24

Reference No.
EPS 865 / 0875

D
23,8

OD
26,97

L (Meter)
15,24

Reference No.
EPS 865 / 0937

D
25,4

OD
28,58

L (Meter)
15,24

Reference No.
EPS 865 / 1000

D
28,58

OD
31,75

L (Meter)
7,62

Reference No.
EPS 865 / 1125

D
31,75

OD
34,93

L (Meter)
7,62

Reference No.
EPS 865 / 1250

D
34,93

OD
38,1

L (Meter)
7,62

Reference No.
EPS 865 / 1375

D
38,1

OD
41,28

L (Meter)
7,62

Reference No.
EPS 865 / 1500

D
41,28

OD
44,45

L (Meter)
7,62

Reference No.
EPS 865 / 1625

D
44,45

OD
47,63

L (Meter)
7,62

Reference No.
EPS 865 / 1750

D
47,63

OD
50,8

L (Meter)
7,62

Reference No.
EPS 865 / 1875

D
50,8

OD
53,98

L (Meter)
7,62

Reference No.
EPS 865 / 2000

PROTEC products and specifications are subject to improvement and change without notice.

PROSICON® EPS 865 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.
