ProteC CaPtoP® EP 285

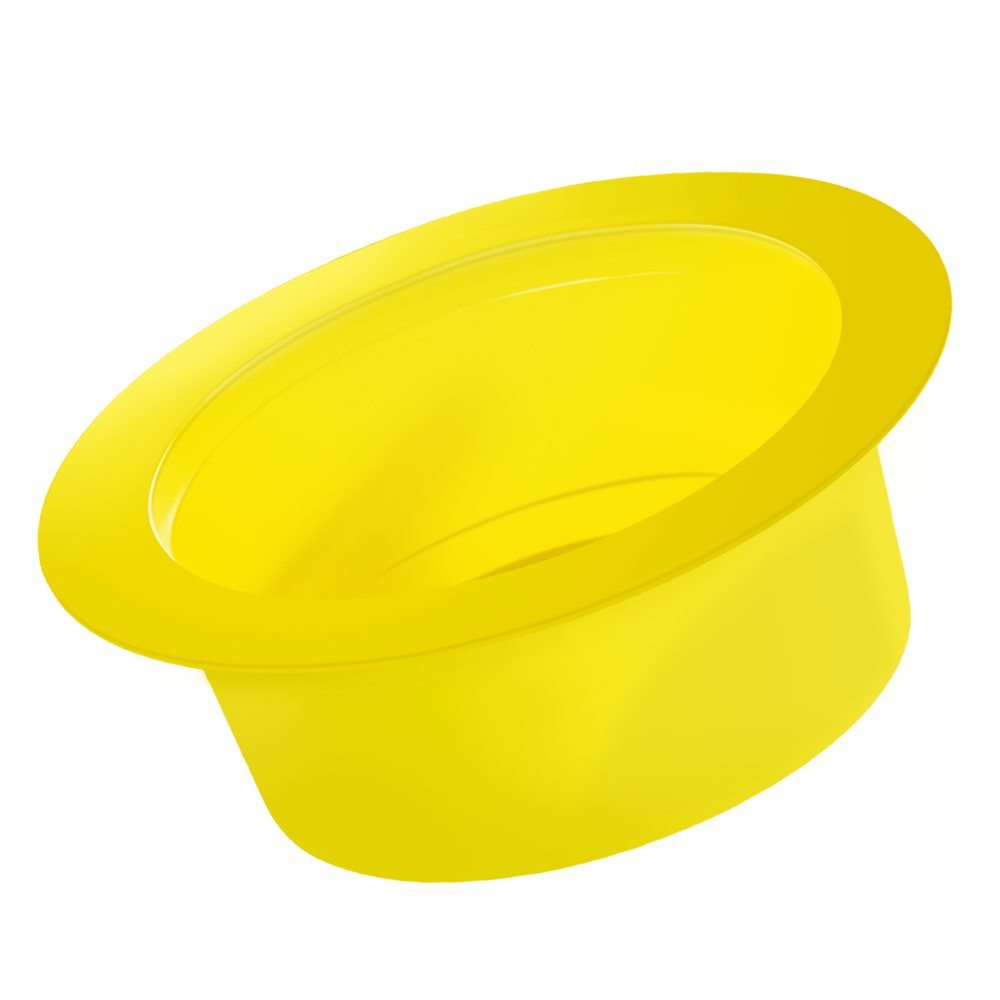

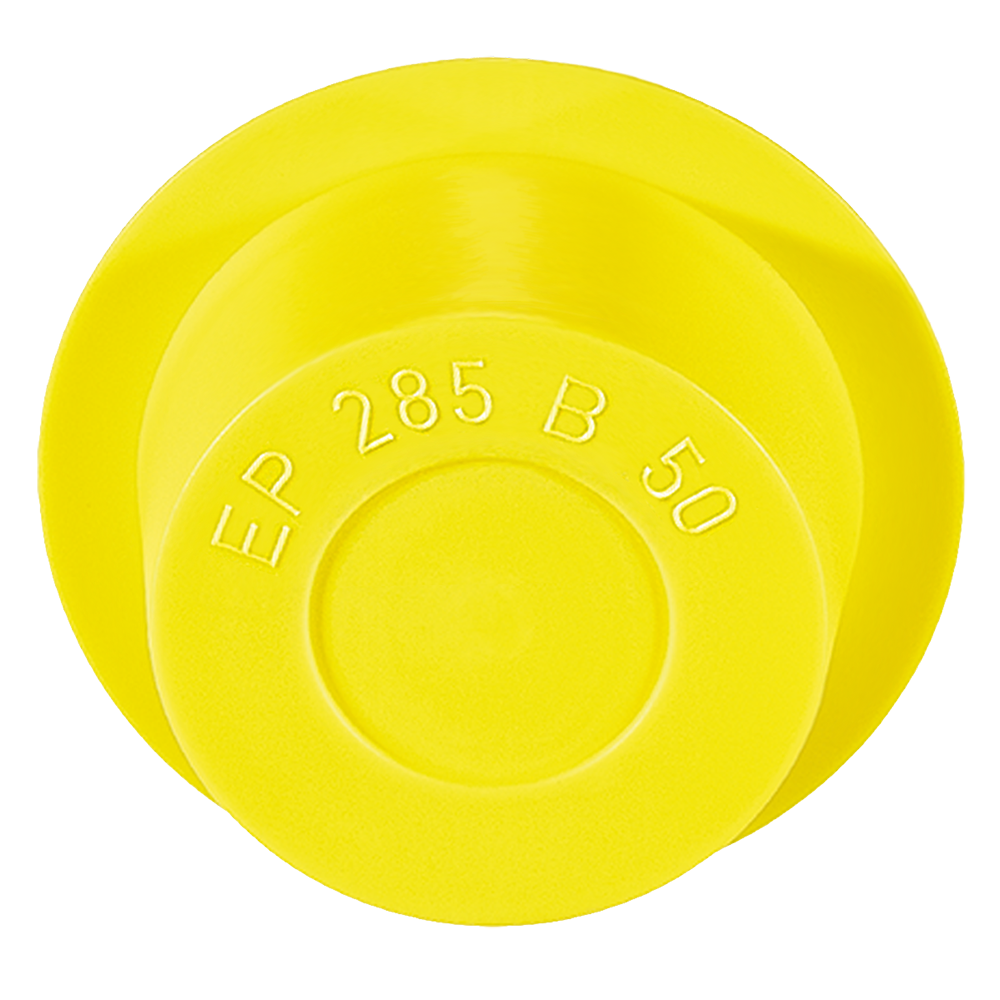

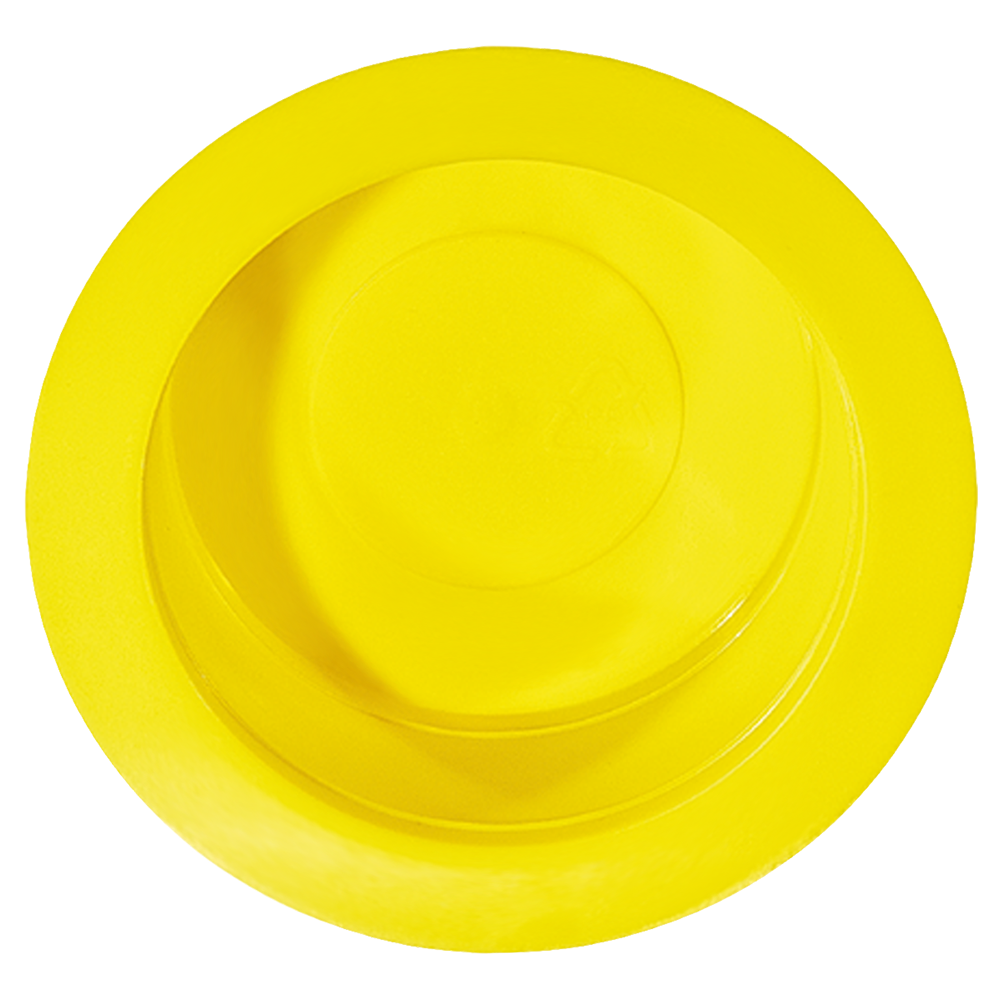

Tapered protection plugs / caps - Large flange


CaPtoP® EP 285

Tapered protection plugs / caps - Large flange


YOUR CAPTOP® ADVANTAGE:   Best Price in the Market

They are tapered in design and made from highly flexible polyethylene. Ideal for use on MIL Std. and SAE-type tube and hydraulic fittings, and for threaded external and internal NPT and BSP fittings.

Large flange for greater surface protection and easy removal.

Compliments EP 280 range of caps and plugs.

Std. Color: yellow
Material: LLD-PE, linear low density polyethylene

PROTEC CAPTOP EP 285

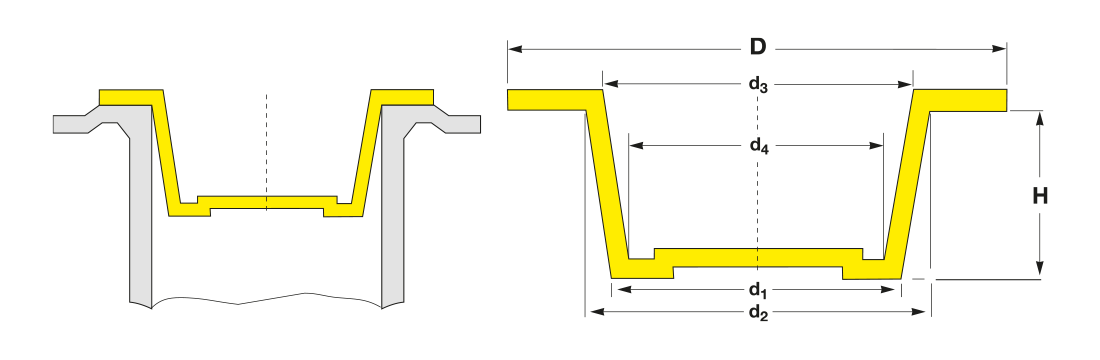

d1 d2 d3 d4 D H Reference No. Bookmark
  4.4   6.3   4.6   2.7 22.0 11.0 EP 285 - B   1
  6.0   7.9   6.1   4.25 22.8 10.7 EP 285 - B   2
  7.6   9.5   7.8   5.9 25.0 11.0 EP 285 - B   3
  8.4 10.25   8.55   6.8 26.0 11.0 EP 285 - B   4
  9.2 11.0   9.25   7.5 26.0 11.0 EP 285 - B   5
  9.9 11.75 10.0   8.3 27.0 11.0 EP 285 - B   6
10.6 12.4 10.6   8.8 28.0 10.7 EP 285 - B   7
11.3 13.22 11.8   9.83 29.0 11.0 EP 285 - B   8
12.0 14.2 12.45 10.4 30.0 13.0 EP 285 - B   9
12.5 14.6 13.3 11.2 30.0 13.0 EP 285 - B 10
13.8 15.9 14.1 12.0 31.0 13.0 EP 285 - B 11
14.0 16.35 14.5 12.2 31.0 12.7 EP 285 - B 12
15.0 17.2 15.5 13.5 32.8 14.1 EP 285 - B 13
16.5 18.8 17.1 14.8 34.0 14.0 EP 285 - B 14
17.4 19.55 17.8 15.6 34.0 14.0 EP 285 - B 15
17.7 20.3 18.6 16.0 36.0 16.0 EP 285 - B 16
18.6 21.15 19.45 16.9 37.0 15.6 EP 285 - B 17
19.0 21.7 19.8 17.4 36.9 16.3 EP 285 - B 18
20.8 23.5 21.8 18.0 39.0 17.0 EP 285 - B 19
21.2 24.0 22.1 19.3 40.0 17.0 EP 285 - B 20
22.3 25.2 23.4 20.4 41.0 17.0 EP 285 - B 21
23.7 27.0 25.2 21.8 42.0 18.5 EP 285 - B 22
25.0 28.3 26.4 23.0 44.0 19.5 EP 285 - B 23
26.0 29.5 27.7 24.3 45.0 20.2 EP 285 - B 24 NEU/NEW
28.3 31.3 29.7 26.4 47.0 20.0 EP 285 - B 25
29.8 32.85 30.6 28.1 49.0 20.0 EP 285 - B 26
32.0 35.5 33.6 29.8 50.0 22.0 EP 285 - B 27
33.8 37.82 36.0 31.94 52.0 23.0 EP 285 - B 28
36.39 40.23 38.4 34.52 54.0 22.0 EP 285 - B 29
39.24 43.1 41.3 37.24 60.0 23.0 EP 285 - B 31
41.3 44.8 43.0 39.5 70.0 20.0 EP 285 - B 32
44.4 47.9 46.1 42.6 64.0 20.0 EP 285 - B 33
45.2 49.6 48.0 43.6 66.0 27.0 EP 285 - B 34 NEU/NEW
46.6 51.2 49.6 45.0 68.0 26.0 EP 285 - B 35 NEU/NEW
54.0 59.3 57.7 52.4 76.0 26.0 EP 285 - B 37 NEU/NEW
58.4 62.8 61.1 56.7 80.0 26.0 EP 280 - B 39
60.8 66.05 64.42 59.17 85.0 30.0 EP 285 - B 40
d1 d2 d3 d4 D H Reference No.
  4.4   6.3   4.6   2.7 22.0 11.0 EP 285 - B   1
  6.0   7.9   6.1   4.25 22.8 10.7 EP 285 - B   2
  7.6   9.5   7.8   5.9 25.0 11.0 EP 285 - B   3
  8.4 10.25   8.55   6.8 26.0 11.0 EP 285 - B   4
  9.2 11.0   9.25   7.5 26.0 11.0 EP 285 - B   5
  9.9 11.75 10.0   8.3 27.0 11.0 EP 285 - B   6
10.6 12.4 10.6   8.8 28.0 10.7 EP 285 - B   7
11.3 13.22 11.8   9.83 29.0 11.0 EP 285 - B   8
12.0 14.2 12.45 10.4 30.0 13.0 EP 285 - B   9
12.5 14.6 13.3 11.2 30.0 13.0 EP 285 - B 10
13.8 15.9 14.1 12.0 31.0 13.0 EP 285 - B 11
14.0 16.35 14.5 12.2 31.0 12.7 EP 285 - B 12
15.0 17.2 15.5 13.5 32.8 14.1 EP 285 - B 13
16.5 18.8 17.1 14.8 34.0 14.0 EP 285 - B 14
17.4 19.55 17.8 15.6 34.0 14.0 EP 285 - B 15
17.7 20.3 18.6 16.0 36.0 16.0 EP 285 - B 16
18.6 21.15 19.45 16.9 37.0 15.6 EP 285 - B 17
19.0 21.7 19.8 17.4 36.9 16.3 EP 285 - B 18
20.8 23.5 21.8 18.0 39.0 17.0 EP 285 - B 19
21.2 24.0 22.1 19.3 40.0 17.0 EP 285 - B 20
22.3 25.2 23.4 20.4 41.0 17.0 EP 285 - B 21
23.7 27.0 25.2 21.8 42.0 18.5 EP 285 - B 22
25.0 28.3 26.4 23.0 44.0 19.5 EP 285 - B 23
26.0 29.5 27.7 24.3 45.0 20.2 EP 285 - B 24 NEU/NEW
28.3 31.3 29.7 26.4 47.0 20.0 EP 285 - B 25
29.8 32.85 30.6 28.1 49.0 20.0 EP 285 - B 26
32.0 35.5 33.6 29.8 50.0 22.0 EP 285 - B 27
33.8 37.82 36.0 31.94 52.0 23.0 EP 285 - B 28
36.39 40.23 38.4 34.52 54.0 22.0 EP 285 - B 29
39.24 43.1 41.3 37.24 60.0 23.0 EP 285 - B 31
41.3 44.8 43.0 39.5 70.0 20.0 EP 285 - B 32
44.4 47.9 46.1 42.6 64.0 20.0 EP 285 - B 33
45.2 49.6 48.0 43.6 66.0 27.0 EP 285 - B 34 NEU/NEW
46.6 51.2 49.6 45.0 68.0 26.0 EP 285 - B 35 NEU/NEW
54.0 59.3 57.7 52.4 76.0 26.0 EP 285 - B 37 NEU/NEW
58.4 62.8 61.1 56.7 80.0 26.0 EP 280 - B 39
60.8 66.05 64.42 59.17 85.0 30.0 EP 285 - B 40
Dimensions d1
  4.4

Dimensions d2
  6.3

Dimensions d3
  4.6

Dimensions d4
  2.7

Dimensions D
22.0

Dimensions H
11.0

Reference No.
EP 285 - B   1

Dimensions d1
  6.0

Dimensions d2
  7.9

Dimensions d3
  6.1

Dimensions d4
  4.25

Dimensions D
22.8

Dimensions H
10.7

Reference No.
EP 285 - B   2

Dimensions d1
  7.6

Dimensions d2
  9.5

Dimensions d3
  7.8

Dimensions d4
  5.9

Dimensions D
25.0

Dimensions H
11.0

Reference No.
EP 285 - B   3

Dimensions d1
  8.4

Dimensions d2
10.25

Dimensions d3
  8.55

Dimensions d4
  6.8

Dimensions D
26.0

Dimensions H
11.0

Reference No.
EP 285 - B   4

Dimensions d1
  9.2

Dimensions d2
11.0

Dimensions d3
  9.25

Dimensions d4
  7.5

Dimensions D
26.0

Dimensions H
11.0

Reference No.
EP 285 - B   5

Dimensions d1
  9.9

Dimensions d2
11.75

Dimensions d3
10.0

Dimensions d4
  8.3

Dimensions D
27.0

Dimensions H
11.0

Reference No.
EP 285 - B   6

Dimensions d1
10.6

Dimensions d2
12.4

Dimensions d3
10.6

Dimensions d4
  8.8

Dimensions D
28.0

Dimensions H
10.7

Reference No.
EP 285 - B   7

Dimensions d1
11.3

Dimensions d2
13.22

Dimensions d3
11.8

Dimensions d4
  9.83

Dimensions D
29.0

Dimensions H
11.0

Reference No.
EP 285 - B   8

Dimensions d1
12.0

Dimensions d2
14.2

Dimensions d3
12.45

Dimensions d4
10.4

Dimensions D
30.0

Dimensions H
13.0

Reference No.
EP 285 - B   9

Dimensions d1
12.5

Dimensions d2
14.6

Dimensions d3
13.3

Dimensions d4
11.2

Dimensions D
30.0

Dimensions H
13.0

Reference No.
EP 285 - B 10

Dimensions d1
13.8

Dimensions d2
15.9

Dimensions d3
14.1

Dimensions d4
12.0

Dimensions D
31.0

Dimensions H
13.0

Reference No.
EP 285 - B 11

Dimensions d1
14.0

Dimensions d2
16.35

Dimensions d3
14.5

Dimensions d4
12.2

Dimensions D
31.0

Dimensions H
12.7

Reference No.
EP 285 - B 12

Dimensions d1
15.0

Dimensions d2
17.2

Dimensions d3
15.5

Dimensions d4
13.5

Dimensions D
32.8

Dimensions H
14.1

Reference No.
EP 285 - B 13

Dimensions d1
16.5

Dimensions d2
18.8

Dimensions d3
17.1

Dimensions d4
14.8

Dimensions D
34.0

Dimensions H
14.0

Reference No.
EP 285 - B 14

Dimensions d1
17.4

Dimensions d2
19.55

Dimensions d3
17.8

Dimensions d4
15.6

Dimensions D
34.0

Dimensions H
14.0

Reference No.
EP 285 - B 15

Dimensions d1
17.7

Dimensions d2
20.3

Dimensions d3
18.6

Dimensions d4
16.0

Dimensions D
36.0

Dimensions H
16.0

Reference No.
EP 285 - B 16

Dimensions d1
18.6

Dimensions d2
21.15

Dimensions d3
19.45

Dimensions d4
16.9

Dimensions D
37.0

Dimensions H
15.6

Reference No.
EP 285 - B 17

Dimensions d1
19.0

Dimensions d2
21.7

Dimensions d3
19.8

Dimensions d4
17.4

Dimensions D
36.9

Dimensions H
16.3

Reference No.
EP 285 - B 18

Dimensions d1
20.8

Dimensions d2
23.5

Dimensions d3
21.8

Dimensions d4
18.0

Dimensions D
39.0

Dimensions H
17.0

Reference No.
EP 285 - B 19

Dimensions d1
21.2

Dimensions d2
24.0

Dimensions d3
22.1

Dimensions d4
19.3

Dimensions D
40.0

Dimensions H
17.0

Reference No.
EP 285 - B 20

Dimensions d1
22.3

Dimensions d2
25.2

Dimensions d3
23.4

Dimensions d4
20.4

Dimensions D
41.0

Dimensions H
17.0

Reference No.
EP 285 - B 21

Dimensions d1
23.7

Dimensions d2
27.0

Dimensions d3
25.2

Dimensions d4
21.8

Dimensions D
42.0

Dimensions H
18.5

Reference No.
EP 285 - B 22

Dimensions d1
25.0

Dimensions d2
28.3

Dimensions d3
26.4

Dimensions d4
23.0

Dimensions D
44.0

Dimensions H
19.5

Reference No.
EP 285 - B 23

Dimensions d1
26.0

Dimensions d2
29.5

Dimensions d3
27.7

Dimensions d4
24.3

Dimensions D
45.0

Dimensions H
20.2

Reference No.
EP 285 - B 24 NEU/NEW

Dimensions d1
28.3

Dimensions d2
31.3

Dimensions d3
29.7

Dimensions d4
26.4

Dimensions D
47.0

Dimensions H
20.0

Reference No.
EP 285 - B 25

Dimensions d1
29.8

Dimensions d2
32.85

Dimensions d3
30.6

Dimensions d4
28.1

Dimensions D
49.0

Dimensions H
20.0

Reference No.
EP 285 - B 26

Dimensions d1
32.0

Dimensions d2
35.5

Dimensions d3
33.6

Dimensions d4
29.8

Dimensions D
50.0

Dimensions H
22.0

Reference No.
EP 285 - B 27

Dimensions d1
33.8

Dimensions d2
37.82

Dimensions d3
36.0

Dimensions d4
31.94

Dimensions D
52.0

Dimensions H
23.0

Reference No.
EP 285 - B 28

Dimensions d1
36.39

Dimensions d2
40.23

Dimensions d3
38.4

Dimensions d4
34.52

Dimensions D
54.0

Dimensions H
22.0

Reference No.
EP 285 - B 29

Dimensions d1
39.24

Dimensions d2
43.1

Dimensions d3
41.3

Dimensions d4
37.24

Dimensions D
60.0

Dimensions H
23.0

Reference No.
EP 285 - B 31

Dimensions d1
41.3

Dimensions d2
44.8

Dimensions d3
43.0

Dimensions d4
39.5

Dimensions D
70.0

Dimensions H
20.0

Reference No.
EP 285 - B 32

Dimensions d1
44.4

Dimensions d2
47.9

Dimensions d3
46.1

Dimensions d4
42.6

Dimensions D
64.0

Dimensions H
20.0

Reference No.
EP 285 - B 33

Dimensions d1
45.2

Dimensions d2
49.6

Dimensions d3
48.0

Dimensions d4
43.6

Dimensions D
66.0

Dimensions H
27.0

Reference No.
EP 285 - B 34 NEU/NEW

Dimensions d1
46.6

Dimensions d2
51.2

Dimensions d3
49.6

Dimensions d4
45.0

Dimensions D
68.0

Dimensions H
26.0

Reference No.
EP 285 - B 35 NEU/NEW

Dimensions d1
54.0

Dimensions d2
59.3

Dimensions d3
57.7

Dimensions d4
52.4

Dimensions D
76.0

Dimensions H
26.0

Reference No.
EP 285 - B 37 NEU/NEW

Dimensions d1
58.4

Dimensions d2
62.8

Dimensions d3
61.1

Dimensions d4
56.7

Dimensions D
80.0

Dimensions H
26.0

Reference No.
EP 280 - B 39

Dimensions d1
60.8

Dimensions d2
66.05

Dimensions d3
64.42

Dimensions d4
59.17

Dimensions D
85.0

Dimensions H
30.0

Reference No.
EP 285 - B 40

PROTEC products and specifications are subject to improvement and change without notice.

CAPTOP® EP 285 Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.

You might also be interested in these PROTEC series

DURA-SAFE® SES 3000

Sandblasting flange push-in plugs, Nylon PA

CAPTOP® EP 505

Threaded caps - Flanged - With sealing disk

CAPTOP® EP 185

Pressure pipe protection uniplugs

CAPTOP® EP 283

Tapered plugs with pull ring tab

Certified production & quality management

PROTEC meets the most stringent demands of safety and operations reliability. International approvals and certifications such as UL, CSA, VDE, VDA 6.1 and DIN EN ISO 9001: 2015 demonstrate total quality commitment on superior level.

Be the first to know - Join our newsletter!

Stay on top of the latest news and upcoming events and event information from PROTEC and its partner. Be the first to know when new products are on the market. Get periodic specials and news delivered directly to your email inbox! You can un-subscribe anytime.

Sign our free newsletter now

Imprint | Contact form | Privacy policy | Jobs at PROTEC | Certifications

copyright (c) 2024 PROTEC PLASTICS THE CAP COMPANY LTD
