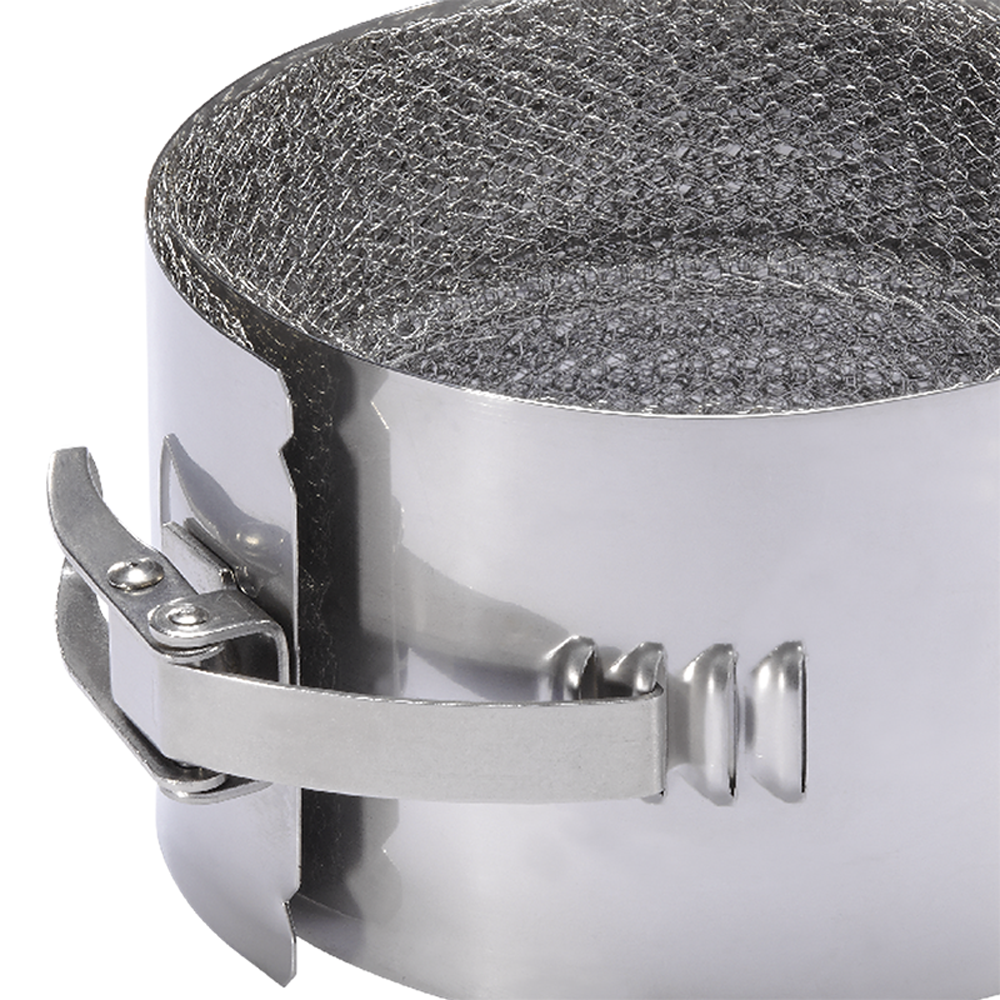

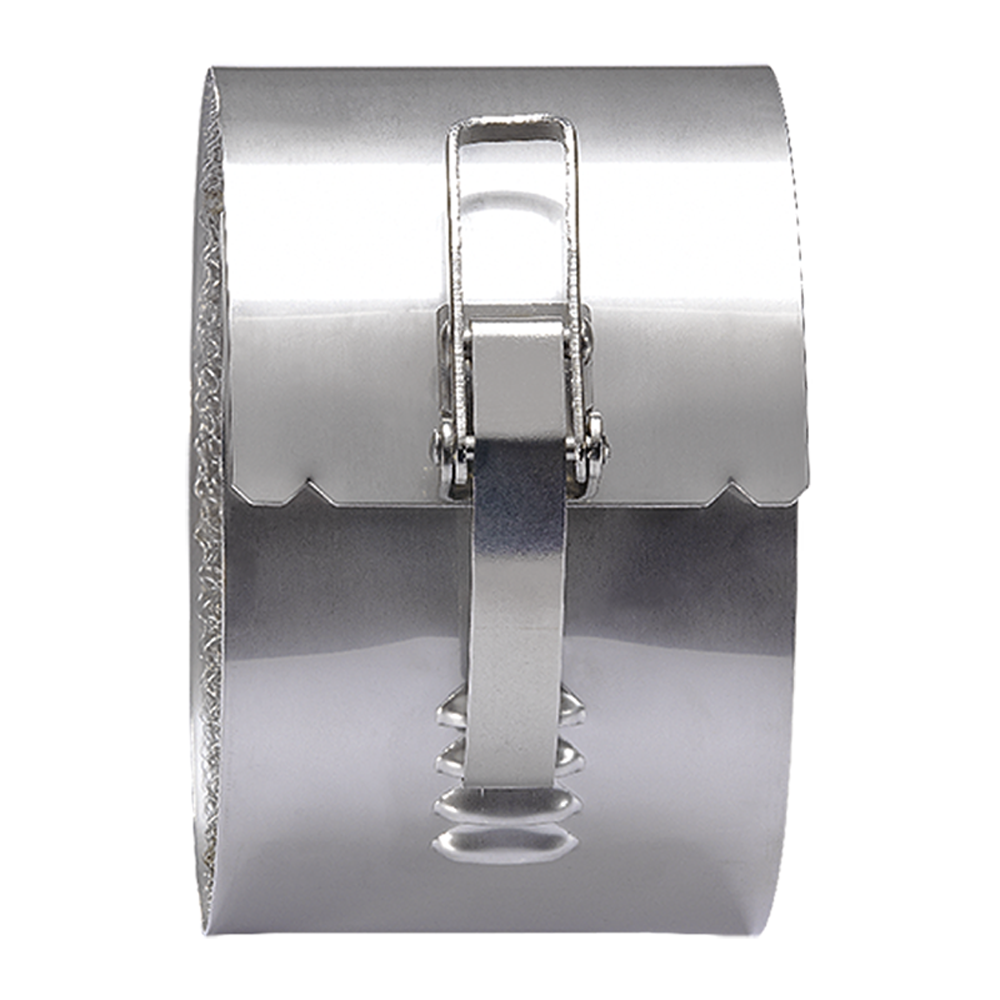

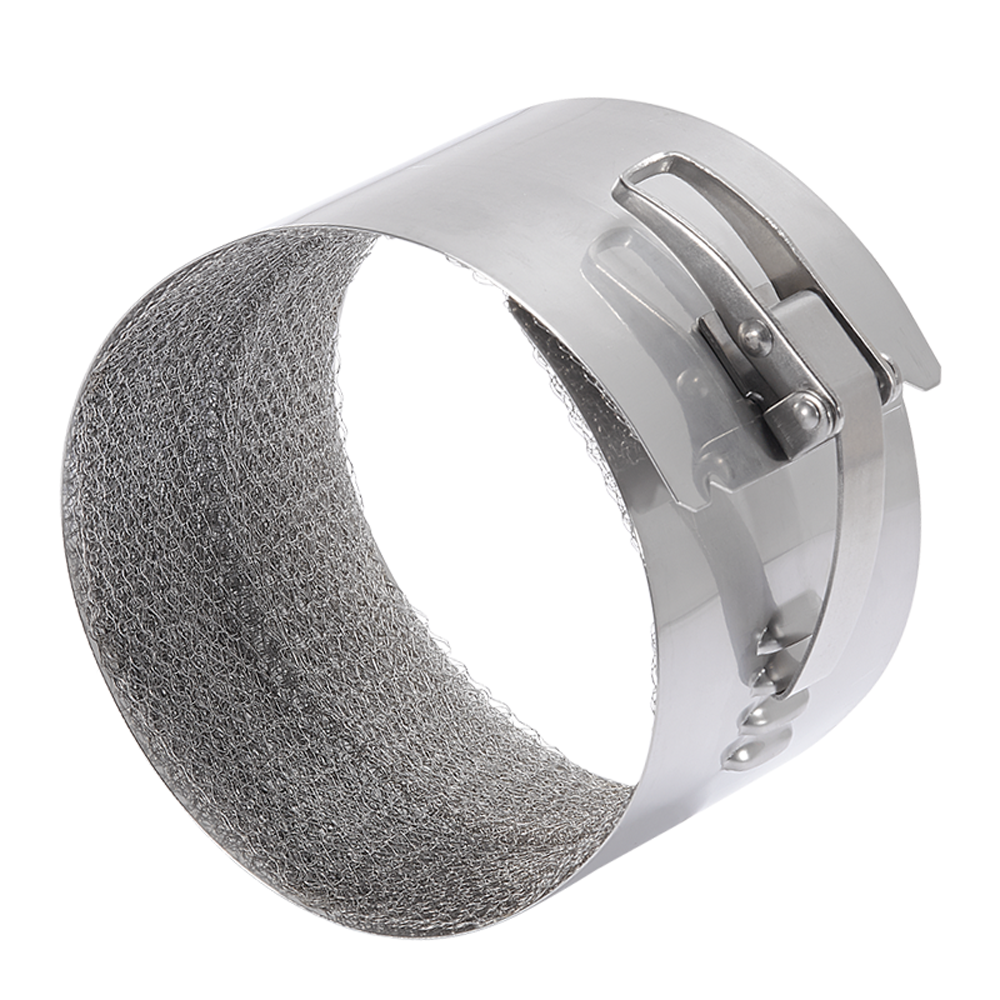

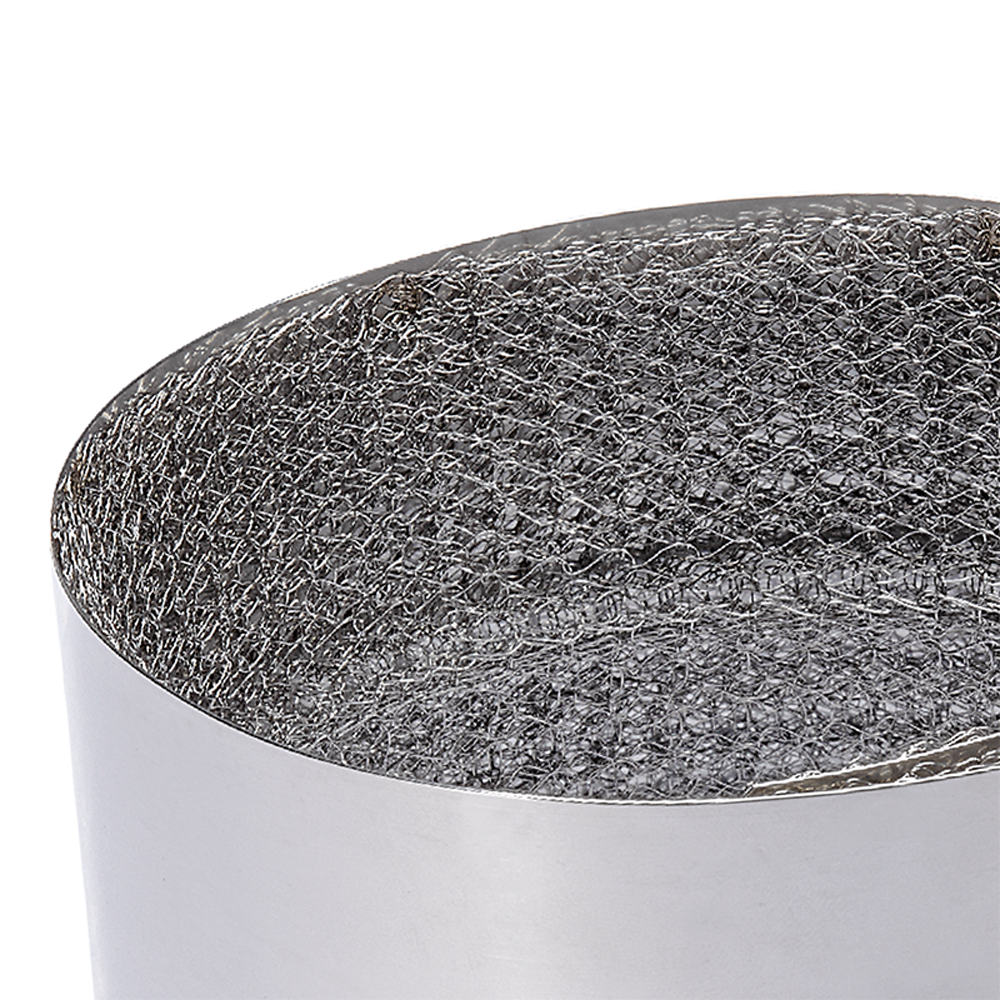

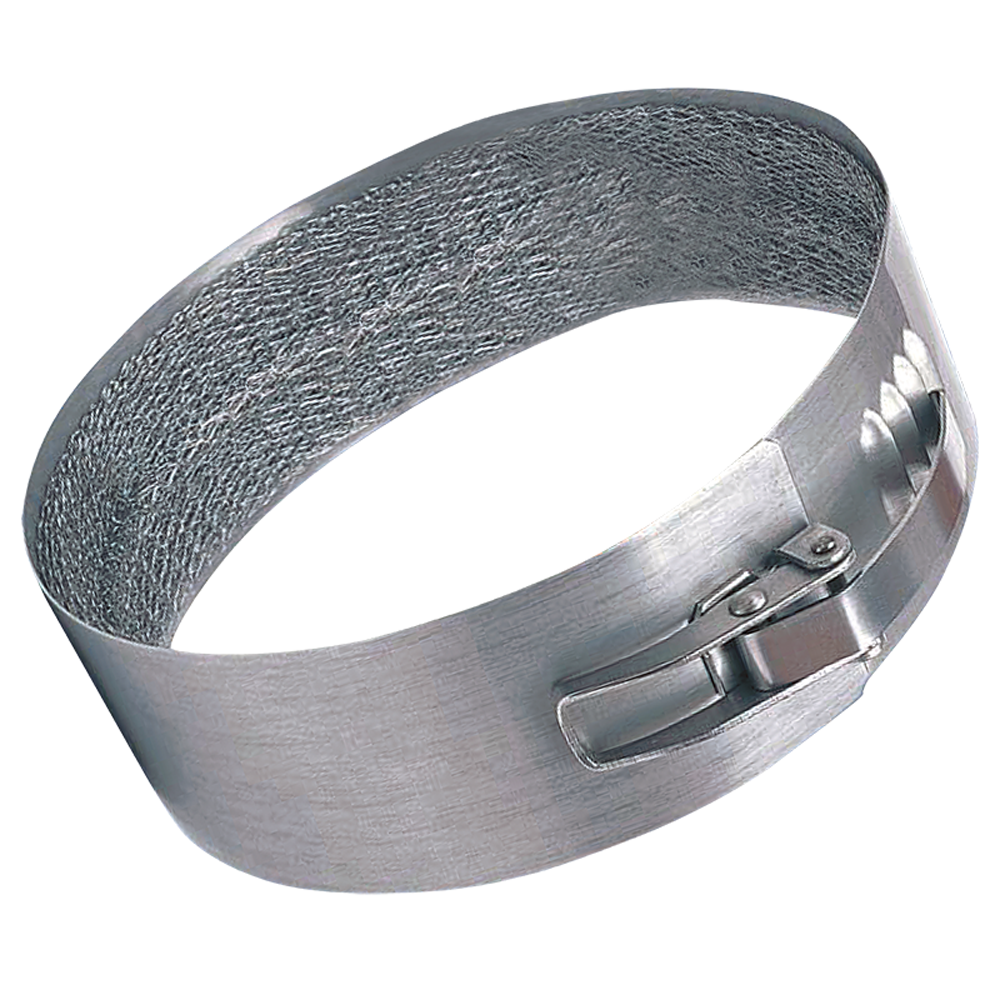

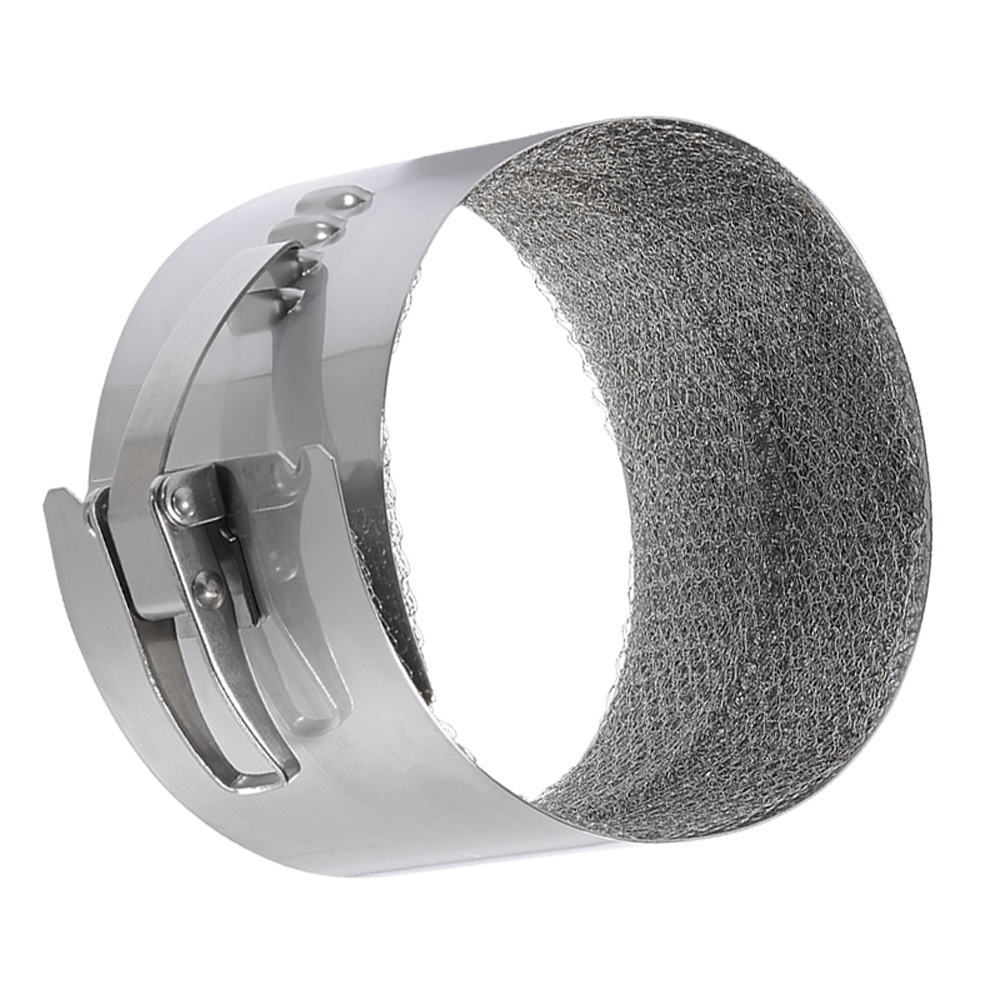

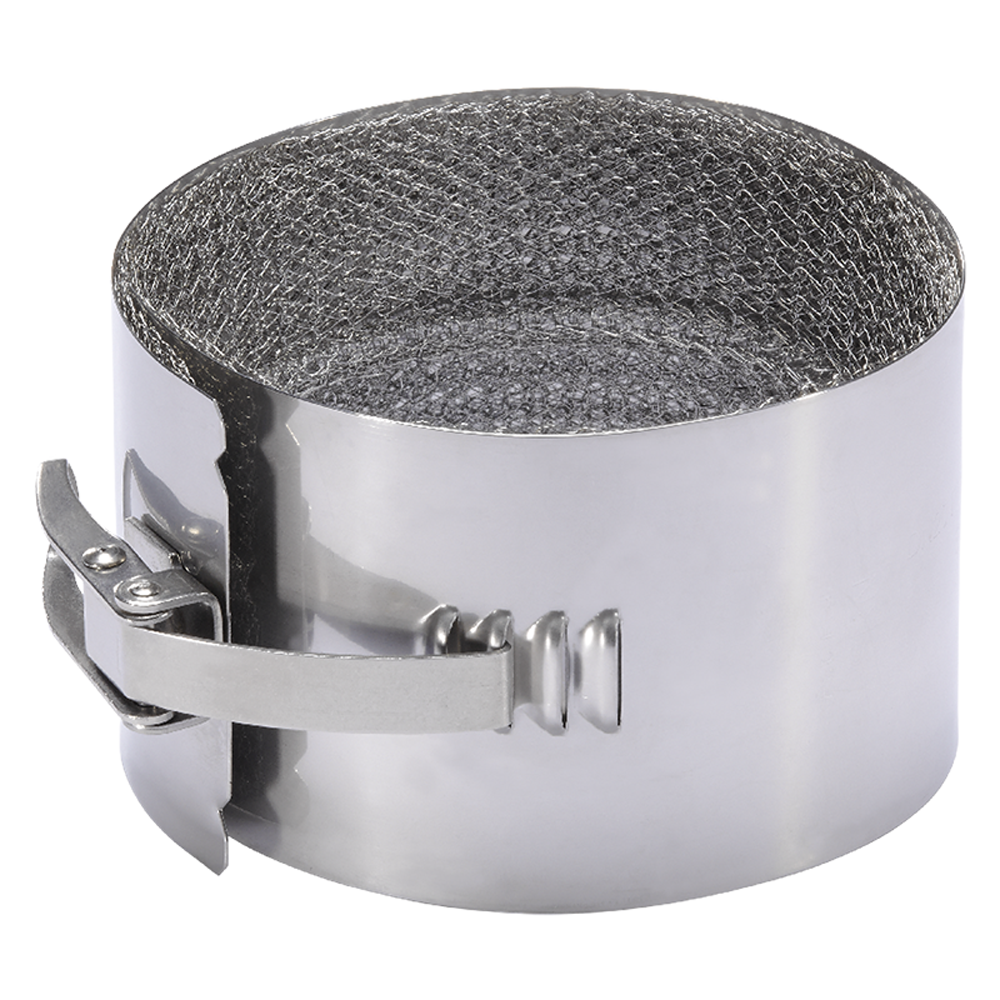

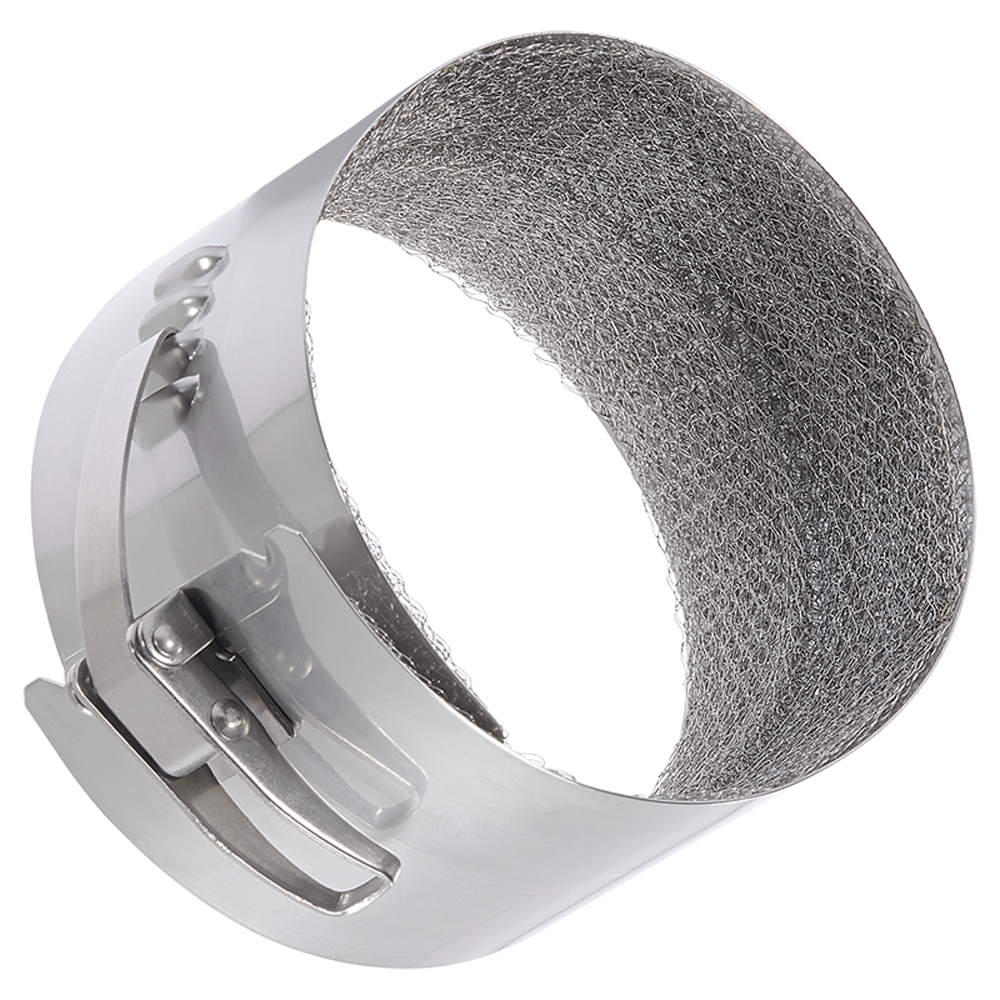

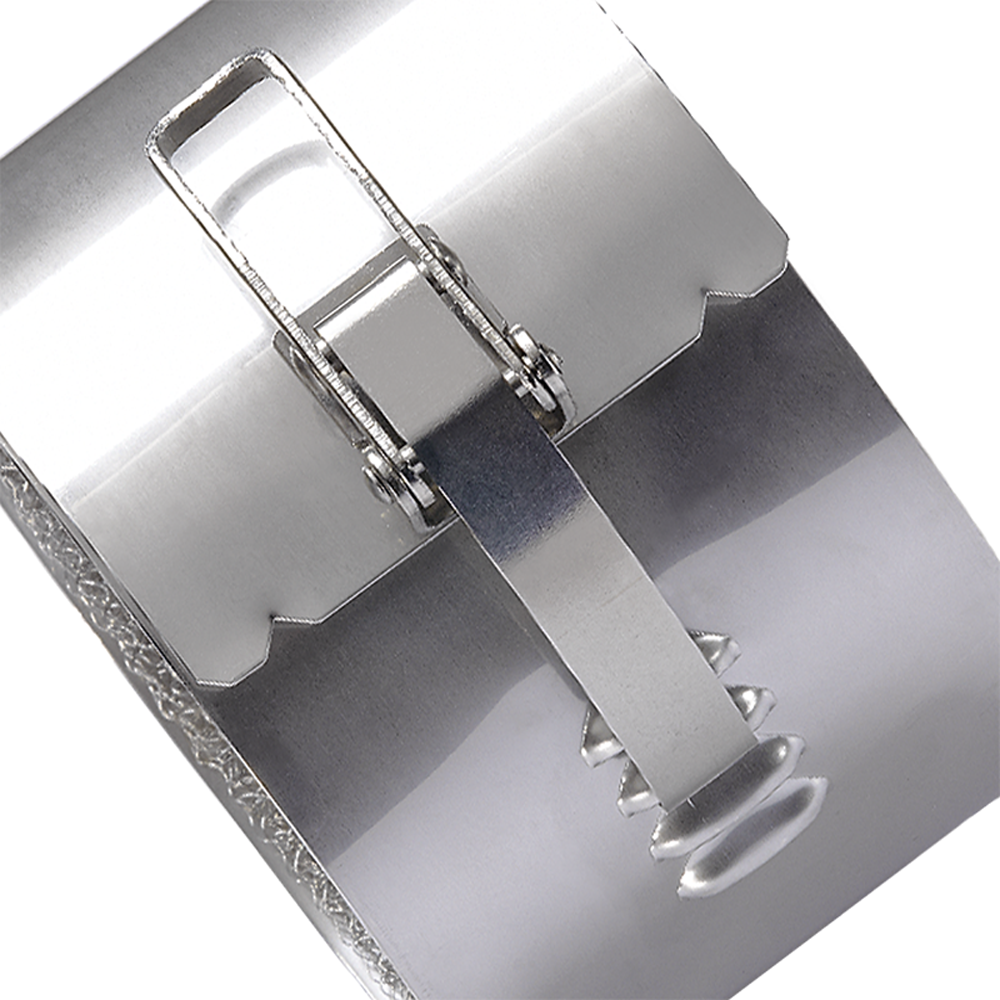

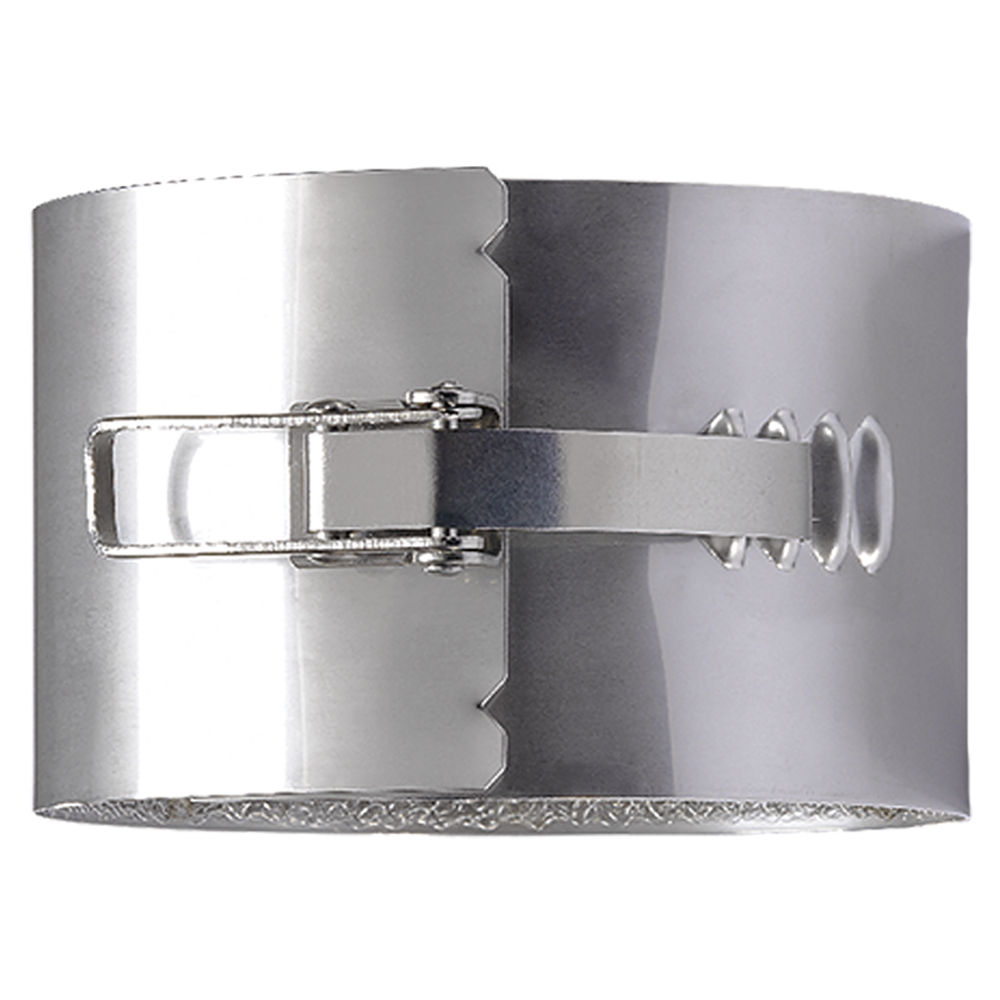

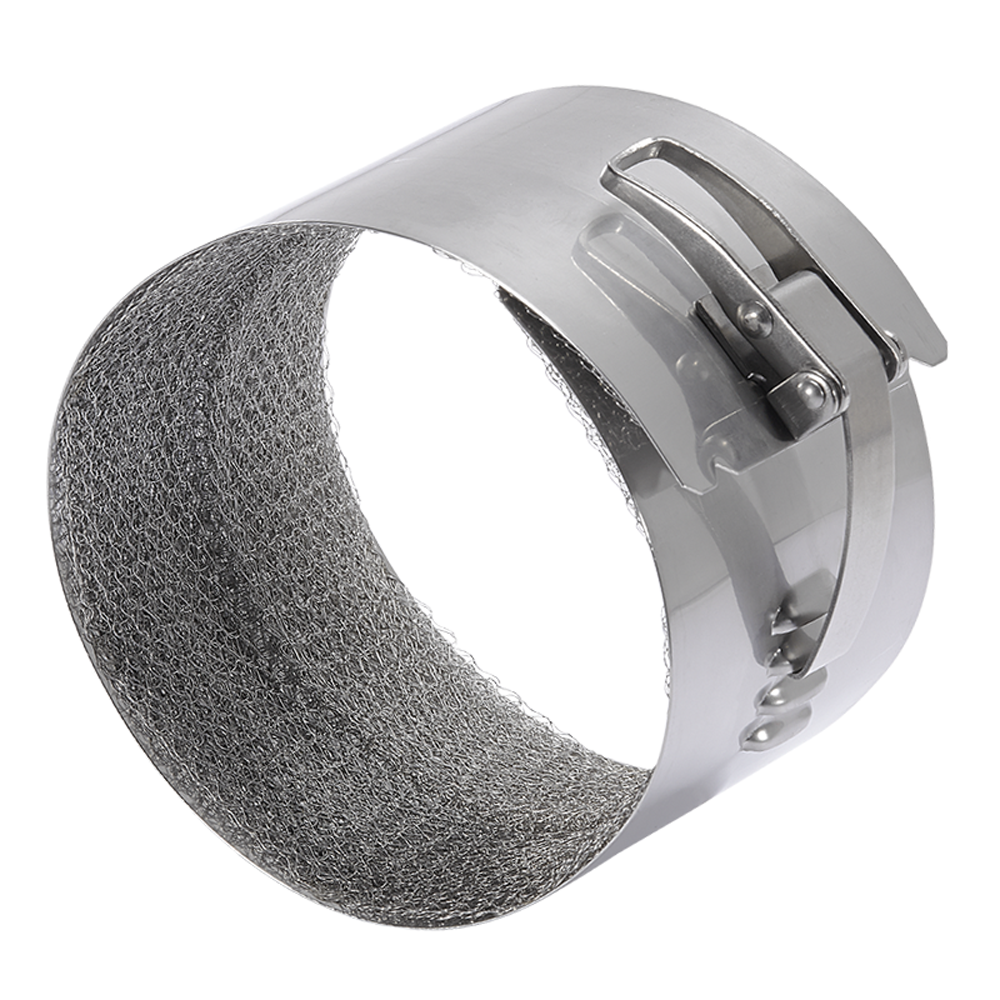

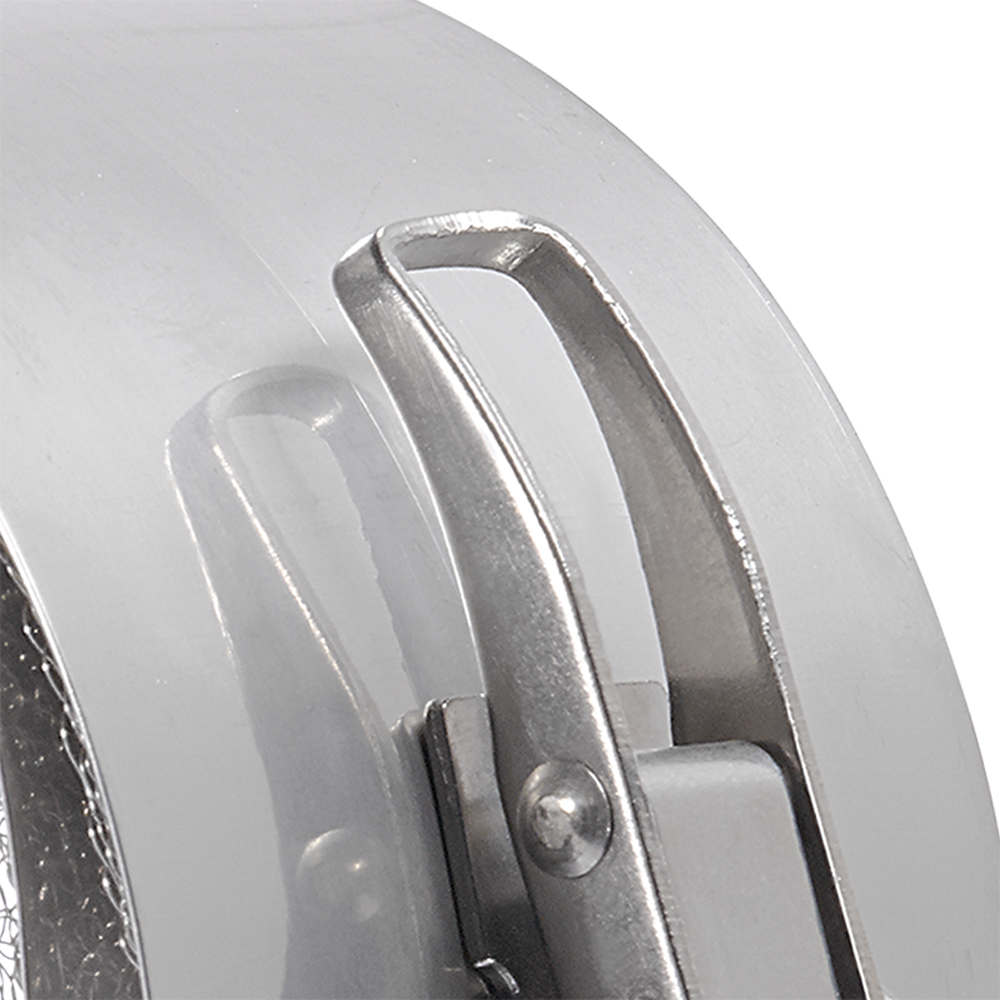

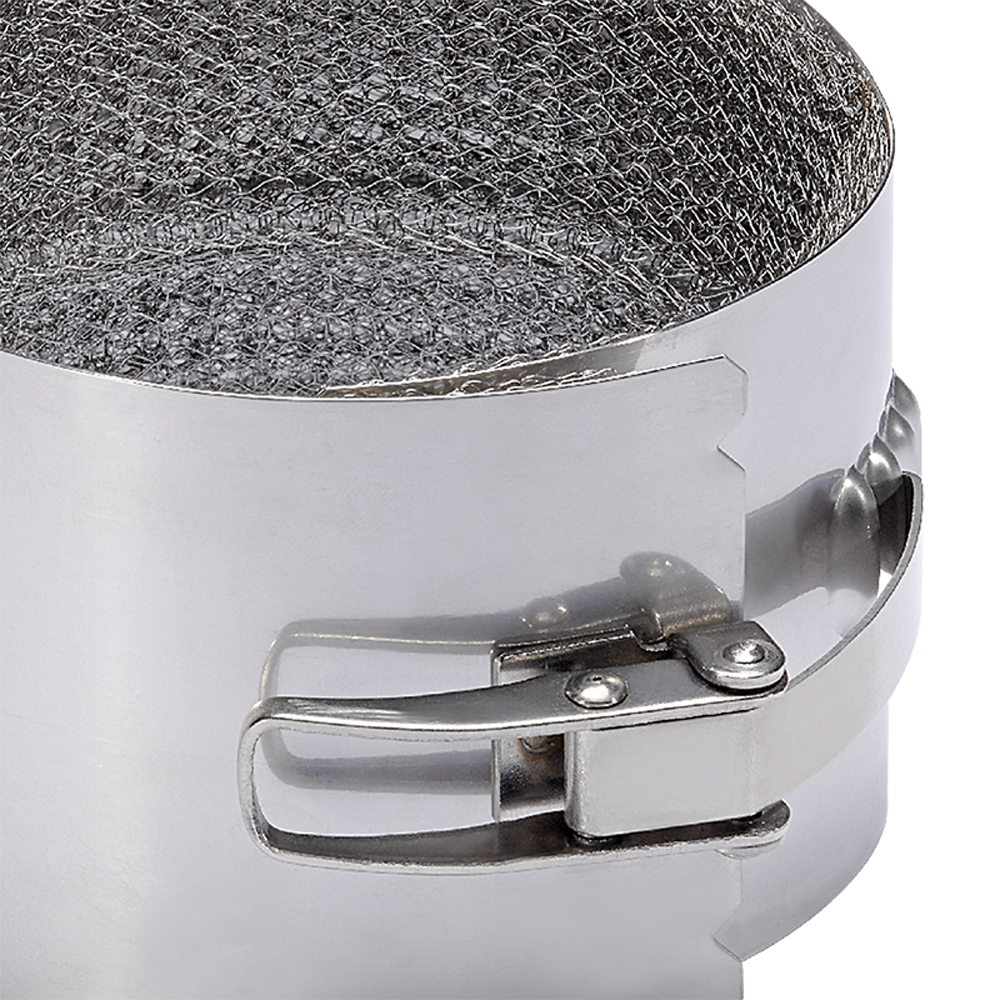

ProteC Dura-safe® SRM 3600A

Spray control flange safety rings, stainless steel


Dura-safe® SRM 3600A

Spray control flange safety rings, stainless steel


This range is designed for installation over flange joints to prevent injury and damage in the event of a hazardous spray out.

Steel Rings SRM 3600 are used for high temperature and/or pressure applications when PP spray shields are unsuitable for the design conditions.

Stainless steel spray shields in ASTM 316 are suitable for maximum operating temperature of 1100 °C and maximum operating pressures of 240 bar.

Stainless steel ASTM 316 for high temperature resistance.

Also available: DN 10 up to DN 1.000

Material: Stainless steel ASTM 316

PROTEC DURA-SAFE SRM 3600A
Flange 150
lbs
300
lbs
400
lbs
600
lbs

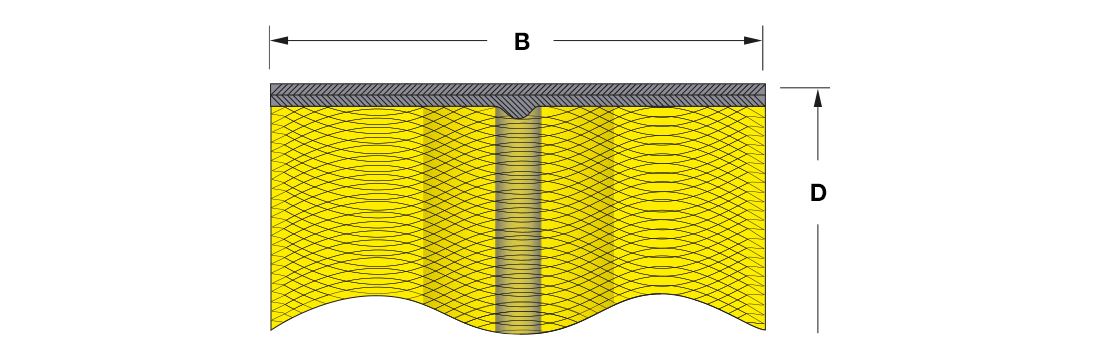

D mm D Inch B Reference No. Bookmark
ANSI     .1/2"   89.0   3.1/2" 50.0 SRM-ANSI     .1/2" - 150
ANSI     .1/2"   95.0   3.3/4" 50.0 SRM-ANSI     .1/2" - 300-600
ANSI     .3/4"   99.0   3.7/8" 50.0 SRM-ANSI     .3/4" - 150
ANSI     .3/4" 117.0   4.5/8" 50.0 SRM-ANSI     .3/4" - 300-600
ANSI   1."      108.0   4.1/4" 50.0 SRM-ANSI   1."      - 150
ANSI   1."      124.0   4.7/8" 50.0 SRM-ANSI   1."      - 300-600
ANSI   1.1/4" 117.0   4.5/8" 50.0 SRM-ANSI   1.1/4" - 150
ANSI   1.1/4" 133.0   5.1/4" 50.0 SRM-ANSI   1.1/4" - 300-600
ANSI   1.1/2" 127.0   5."      50.0 SRM-ANSI   1.1/2" - 150
ANSI   1.1/2" 155.0   6.1/8" 50.0 SRM-ANSI   1.1/2" - 300-600
ANSI   2."      152.0   6."      50.0 SRM-ANSI   2."      - 150
ANSI   2."      165.0   6.1/2" 50.0 SRM-ANSI   2."      - 300-600
ANSI   2.1/2" 178.0   7."      50.0 SRM-ANSI   2.1/2" - 150
ANSI   2.1/2" 191.0   7.1/2" 50.0 SRM-ANSI   2.1/2" - 300-600
ANSI   3."      191.0   7.1/2" 50.0 SRM-ANSI   3."      - 150
ANSI   3."      210.0   8.1/4" 50.0 SRM-ANSI   3."      - 300-600
ANSI   3.1/2" 216.0   8.1/2" 50.0 SRM-ANSI   3.1/2" - 150
ANSI   3.1/2" 229.0   9."      50.0 SRM-ANSI   3.1/2" - 300-600
ANSI   4."      229.0   9."      50.0 SRM-ANSI   4."      - 150
ANSI   4."      254.0 10."      50.0 SRM-ANSI   4."      - 300-400
ANSI   4."      273.0 10.3/4" 50.0 SRM-ANSI   4."      - 600
ANSI   5."      254.0 10."      50.0 SRM-ANSI   5."      - 150
ANSI   5."      280.0 11."      50.0 SRM-ANSI   5."      - 300-400
ANSI   5."      330.0 13."      50.0 SRM-ANSI   5."      - 600
ANSI   6."      280.0 11."      50.0 SRM-ANSI   6."      - 150
ANSI   6."      318.0 12.1/2" 50.0 SRM-ANSI   6."      - 300-400
ANSI   6."      356.0 14."      50.0 SRM-ANSI   6."      - 600
ANSI   8."      343.0 13.1/2" 50.0 SRM-ANSI   8."      - 150
ANSI   8."      381.0 15."      50.0 SRM-ANSI   8."      - 300-400
ANSI   8."      419.0 16.1/2" 50.0 SRM-ANSI   8."      - 600
ANSI 10."      406.0 16."      50.0 SRM-ANSI 10."      - 150
ANSI 10."      445.0 17.1/2" 50.0 SRM-ANSI 10."      - 300-400
ANSI 10."      508.0 20."      50.0 SRM-ANSI 10."      - 600
ANSI 12."      483.0 19."      50.0 SRM-ANSI 12."      - 150
ANSI 12."      521.0 20.1/2" 50.0 SRM-ANSI 12."      - 300-400
ANSI 12."      559.0 22."      50.0 SRM-ANSI 12."      - 600
ANSI 14."      533.0 21."      50.0 SRM-ANSI 14."      - 150
ANSI 14."      584.0 23."      50.0 SRM-ANSI 14."      - 300-400
ANSI 14."      603.0 23.3/4" 50.0 SRM-ANSI 14."      - 600
ANSI 16."      597.0 23.1/2" 50.0 SRM-ANSI 16."      - 150
ANSI 16."      648.0 25.1/2" 50.0 SRM-ANSI 16."      - 300-400
ANSI 16."      686.0 27."      50.0 SRM-ANSI 16."      - 600
ANSI 18."      635.0 25."      50.0 SRM-ANSI 18."      - 150
ANSI 18."      711.0 28."      50.0 SRM-ANSI 18."      - 300-400
ANSI 18."      743.0 29.1/4" 50.0 SRM-ANSI 18."      - 600
ANSI 20."      699.0 27.1/2" 50.0 SRM-ANSI 20."      - 150
ANSI 20."      775.0 30.1/2" 50.0 SRM-ANSI 20."      - 300-400
ANSI 20."      813.0 32."      50.0 SRM-ANSI 20."      - 600
ANSI 24."      813.0 32."      50.0 SRM-ANSI 24."      - 150
ANSI 24."      914.0 36."      50.0 SRM-ANSI 24."      - 300-400
ANSI 24."      940.0 37."      50.0 SRM-ANSI 24."      - 600
Flange 150
lbs
300
lbs
400
lbs
600
lbs
D mm D Inch B Reference No.
ANSI     .1/2"   89.0   3.1/2" 50.0 SRM-ANSI     .1/2" - 150
ANSI     .1/2"   95.0   3.3/4" 50.0 SRM-ANSI     .1/2" - 300-600
ANSI     .3/4"   99.0   3.7/8" 50.0 SRM-ANSI     .3/4" - 150
ANSI     .3/4" 117.0   4.5/8" 50.0 SRM-ANSI     .3/4" - 300-600
ANSI   1."      108.0   4.1/4" 50.0 SRM-ANSI   1."      - 150
ANSI   1."      124.0   4.7/8" 50.0 SRM-ANSI   1."      - 300-600
ANSI   1.1/4" 117.0   4.5/8" 50.0 SRM-ANSI   1.1/4" - 150
ANSI   1.1/4" 133.0   5.1/4" 50.0 SRM-ANSI   1.1/4" - 300-600
ANSI   1.1/2" 127.0   5."      50.0 SRM-ANSI   1.1/2" - 150
ANSI   1.1/2" 155.0   6.1/8" 50.0 SRM-ANSI   1.1/2" - 300-600
ANSI   2."      152.0   6."      50.0 SRM-ANSI   2."      - 150
ANSI   2."      165.0   6.1/2" 50.0 SRM-ANSI   2."      - 300-600
ANSI   2.1/2" 178.0   7."      50.0 SRM-ANSI   2.1/2" - 150
ANSI   2.1/2" 191.0   7.1/2" 50.0 SRM-ANSI   2.1/2" - 300-600
ANSI   3."      191.0   7.1/2" 50.0 SRM-ANSI   3."      - 150
ANSI   3."      210.0   8.1/4" 50.0 SRM-ANSI   3."      - 300-600
ANSI   3.1/2" 216.0   8.1/2" 50.0 SRM-ANSI   3.1/2" - 150
ANSI   3.1/2" 229.0   9."      50.0 SRM-ANSI   3.1/2" - 300-600
ANSI   4."      229.0   9."      50.0 SRM-ANSI   4."      - 150
ANSI   4."      254.0 10."      50.0 SRM-ANSI   4."      - 300-400
ANSI   4."      273.0 10.3/4" 50.0 SRM-ANSI   4."      - 600
ANSI   5."      254.0 10."      50.0 SRM-ANSI   5."      - 150
ANSI   5."      280.0 11."      50.0 SRM-ANSI   5."      - 300-400
ANSI   5."      330.0 13."      50.0 SRM-ANSI   5."      - 600
ANSI   6."      280.0 11."      50.0 SRM-ANSI   6."      - 150
ANSI   6."      318.0 12.1/2" 50.0 SRM-ANSI   6."      - 300-400
ANSI   6."      356.0 14."      50.0 SRM-ANSI   6."      - 600
ANSI   8."      343.0 13.1/2" 50.0 SRM-ANSI   8."      - 150
ANSI   8."      381.0 15."      50.0 SRM-ANSI   8."      - 300-400
ANSI   8."      419.0 16.1/2" 50.0 SRM-ANSI   8."      - 600
ANSI 10."      406.0 16."      50.0 SRM-ANSI 10."      - 150
ANSI 10."      445.0 17.1/2" 50.0 SRM-ANSI 10."      - 300-400
ANSI 10."      508.0 20."      50.0 SRM-ANSI 10."      - 600
ANSI 12."      483.0 19."      50.0 SRM-ANSI 12."      - 150
ANSI 12."      521.0 20.1/2" 50.0 SRM-ANSI 12."      - 300-400
ANSI 12."      559.0 22."      50.0 SRM-ANSI 12."      - 600
ANSI 14."      533.0 21."      50.0 SRM-ANSI 14."      - 150
ANSI 14."      584.0 23."      50.0 SRM-ANSI 14."      - 300-400
ANSI 14."      603.0 23.3/4" 50.0 SRM-ANSI 14."      - 600
ANSI 16."      597.0 23.1/2" 50.0 SRM-ANSI 16."      - 150
ANSI 16."      648.0 25.1/2" 50.0 SRM-ANSI 16."      - 300-400
ANSI 16."      686.0 27."      50.0 SRM-ANSI 16."      - 600
ANSI 18."      635.0 25."      50.0 SRM-ANSI 18."      - 150
ANSI 18."      711.0 28."      50.0 SRM-ANSI 18."      - 300-400
ANSI 18."      743.0 29.1/4" 50.0 SRM-ANSI 18."      - 600
ANSI 20."      699.0 27.1/2" 50.0 SRM-ANSI 20."      - 150
ANSI 20."      775.0 30.1/2" 50.0 SRM-ANSI 20."      - 300-400
ANSI 20."      813.0 32."      50.0 SRM-ANSI 20."      - 600
ANSI 24."      813.0 32."      50.0 SRM-ANSI 24."      - 150
ANSI 24."      914.0 36."      50.0 SRM-ANSI 24."      - 300-400
ANSI 24."      940.0 37."      50.0 SRM-ANSI 24."      - 600
Flange
ANSI .1/2"

Flange diameter D mm
89.0

Flange diameter D Inch
3.1/2"

Ring width B
50.0

Reference No. SRM 3600 / ANSI .1/2" - 150

Flange
ANSI .1/2"

Flange diameter D mm
95.0

Flange diameter D Inch
3.3/4"

Ring width B
50.0

Reference No. SRM 3600 / ANSI .1/2" - 300-600

Flange
ANSI .3/4"

Flange diameter D mm
99.0

Flange diameter D Inch
3.7/8"

Ring width B
50.0

Reference No. SRM 3600 / ANSI .3/4" - 150

Flange
ANSI .3/4"

Flange diameter D mm
117.0

Flange diameter D Inch
4.5/8"

Ring width B
50.0

Reference No. SRM 3600 / ANSI .3/4" - 300-600

Flange
ANSI 1."

Flange diameter D mm
108.0

Flange diameter D Inch
4.1/4"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 1." - 150

Flange
ANSI 1."

Flange diameter D mm
124.0

Flange diameter D Inch
4.7/8"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 1." - 300-600

Flange
ANSI 1.1/4"

Flange diameter D mm
117.0

Flange diameter D Inch
4.5/8"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 1.1/4" - 150

Flange
ANSI 1.1/4"

Flange diameter D mm
133.0

Flange diameter D Inch
5.1/4"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 1.1/4" - 300-600

Flange
ANSI 1.1/2"

Flange diameter D mm
127.0

Flange diameter D Inch
5."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 1.1/2" - 150

Flange
ANSI 1.1/2"

Flange diameter D mm
155.0

Flange diameter D Inch
6.1/8"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 1.1/2" - 300-600

Flange
ANSI 2."

Flange diameter D mm
152.0

Flange diameter D Inch
6."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 2." - 150

Flange
ANSI 2."

Flange diameter D mm
165.0

Flange diameter D Inch
6.1/2"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 2." - 300-600

Flange
ANSI 2.1/2"

Flange diameter D mm
178.0

Flange diameter D Inch
7."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 2.1/2" - 150

Flange
ANSI 2.1/2"

Flange diameter D mm
191.0

Flange diameter D Inch
7.1/2"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 2.1/2" - 300-600

Flange
ANSI 3."

Flange diameter D mm
191.0

Flange diameter D Inch
7.1/2"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 3." - 150

Flange
ANSI 3."

Flange diameter D mm
210.0

Flange diameter D Inch
8.1/4"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 3." - 300-600

Flange
ANSI 3.1/2"

Flange diameter D mm
216.0

Flange diameter D Inch
8.1/2"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 3.1/2" - 150

Flange
ANSI 3.1/2"

Flange diameter D mm
229.0

Flange diameter D Inch
9."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 3.1/2" - 300-600

Flange
ANSI 4."

Flange diameter D mm
229.0

Flange diameter D Inch
9."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 4." - 150

Flange
ANSI 4."

Flange diameter D mm
254.0

Flange diameter D Inch
10."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 4." - 300-400

Flange
ANSI 4."

Flange diameter D mm
273.0

Flange diameter D Inch
10.3/4"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 4." - 600

Flange
ANSI 5."

Flange diameter D mm
254.0

Flange diameter D Inch
10."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 5." - 150

Flange
ANSI 5."

Flange diameter D mm
280.0

Flange diameter D Inch
11."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 5." - 300-400

Flange
ANSI 5."

Flange diameter D mm
330.0

Flange diameter D Inch
13."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 5." - 600

Flange
ANSI 6."

Flange diameter D mm
280.0

Flange diameter D Inch
11."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 6." - 150

Flange
ANSI 6."

Flange diameter D mm
318.0

Flange diameter D Inch
12.1/2"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 6." - 300-400

Flange
ANSI 6."

Flange diameter D mm
356.0

Flange diameter D Inch
14."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 6." - 600

Flange
ANSI 8."

Flange diameter D mm
343.0

Flange diameter D Inch
13.1/2"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 8." - 150

Flange
ANSI 8."

Flange diameter D mm
381.0

Flange diameter D Inch
15."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 8." - 300-400

Flange
ANSI 8."

Flange diameter D mm
419.0

Flange diameter D Inch
16.1/2"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 8." - 600

Flange
ANSI 10."

Flange diameter D mm
406.0

Flange diameter D Inch
16."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 10." - 150

Flange
ANSI 10."

Flange diameter D mm
445.0

Flange diameter D Inch
17.1/2"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 10." - 300-400

Flange
ANSI 10."

Flange diameter D mm
508.0

Flange diameter D Inch
20."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 10." - 600

Flange
ANSI 12."

Flange diameter D mm
483.0

Flange diameter D Inch
19."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 12." - 150

Flange
ANSI 12."

Flange diameter D mm
521.0

Flange diameter D Inch
20.1/2"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 12." - 300-400

Flange
ANSI 12."

Flange diameter D mm
559.0

Flange diameter D Inch
22."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 12." - 600

Flange
ANSI 14."

Flange diameter D mm
533.0

Flange diameter D Inch
21."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 14." - 150

Flange
ANSI 14."

Flange diameter D mm
584.0

Flange diameter D Inch
23."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 14." - 300-400

Flange
ANSI 14."

Flange diameter D mm
603.0

Flange diameter D Inch
23.3/4"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 14." - 600

Flange
ANSI 16."

Flange diameter D mm
597.0

Flange diameter D Inch
23.1/2"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 16." - 150

Flange
ANSI 16."

Flange diameter D mm
648.0

Flange diameter D Inch
25.1/2"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 16." - 300-400

Flange
ANSI 16."

Flange diameter D mm
686.0

Flange diameter D Inch
27."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 16." - 600

Flange
ANSI 18."

Flange diameter D mm
635.0

Flange diameter D Inch
25."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 18." - 150

Flange
ANSI 18."

Flange diameter D mm
711.0

Flange diameter D Inch
28."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 18." - 300-400

Flange
ANSI 18."

Flange diameter D mm
743.0

Flange diameter D Inch
29.1/4"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 18." - 600

Flange
ANSI 20."

Flange diameter D mm
699.0

Flange diameter D Inch
27.1/2"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 20." - 150

Flange
ANSI 20."

Flange diameter D mm
775.0

Flange diameter D Inch
30.1/2"

Ring width B
50.0

Reference No. SRM 3600 / ANSI 20." - 300-400

Flange
ANSI 20."

Flange diameter D mm
813.0

Flange diameter D Inch
32."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 20." - 600

Flange
ANSI 24."

Flange diameter D mm
813.0

Flange diameter D Inch
32."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 24." - 150

Flange
ANSI 24."

Flange diameter D mm
914.0

Flange diameter D Inch
36."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 24." - 300-400

Flange
ANSI 24."

Flange diameter D mm
940.0

Flange diameter D Inch
37."

Ring width B
50.0

Reference No. SRM 3600 / ANSI 24." - 600

PROTEC products and specifications are subject to improvement and change without notice.

DURA-SAFE® SRM 3600A Individual Productions:
On request we develop and produce individually tailored solutions along with the standard items of this range: If you require additional dimensions, different materials and new colours. We would be pleased to assist you.

Delivery Service:
Orders that arrive before midday can be despatched on the same day, using either our standard service or via a faster service if required.

Ask for free no-obligation samples and more information on our contact form.
We will promptly take care of your request and get in touch with you.
Please click here.


You will finde more details on how we protect you data during the chat session in our privacy policy.

You might also be interested in these PROTEC series

CAPTOP® EP 250

Open bevel edge protectors for pipe ends

CAPTOP® EP 207

High temperature cylindrical closures

DURA-SAFE® SES 3000

Sandblasting flange push-in plugs, Nylon PA

CAPTOP® EP 283

Tapered plugs with pull ring tab

Certified production & quality management

PROTEC meets the most stringent demands of safety and operations reliability. International approvals and certifications such as UL, CSA, VDE, VDA 6.1 and DIN EN ISO 9001: 2015 demonstrate total quality commitment on superior level.

Be the first to know - Join our newsletter!

Stay on top of the latest news and upcoming events and event information from PROTEC and its partner. Be the first to know when new products are on the market. Get periodic specials and news delivered directly to your email inbox! You can un-subscribe anytime.

Sign our free newsletter now

Imprint | Contact form | Privacy policy | Jobs at PROTEC | Certifications

copyright (c) 2024 PROTEC PLASTICS THE CAP COMPANY LTD
